AAGG--1100DD
SERVICE MANUAL
AV Digital Home Theater Receiver
Effective : April, 2004 S-0105A
NOTES
●PC boards shown are viewed from parts side.
●The parts with no reference number or no parts number in the
exploded views are not supplied.
●As regards the resistors and capacitors, refer to the circuit diagrams
contained in this manual.
●£Parts marked with this sign are safety critical components. They
must be replaced with identical components - refer to the appropriate
parts list and ensure exact replacement.
●Parts of [ ] mark can be used only with the version designated.
[US]:U.S.A.[C]:CANADA[E]:EUROPE[UK]:U.K.[K]:KOREA
CONTENTS
1 SPECIFICATIONS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・2
2 ADJUSTMENTS AND CHECKS ・・・・・・・・・・・・・・・・・・・・・・・・3
3 MICROCOMPUTER PIN FUNCTIONS ・・・・・・・・・・・・・・・・・5

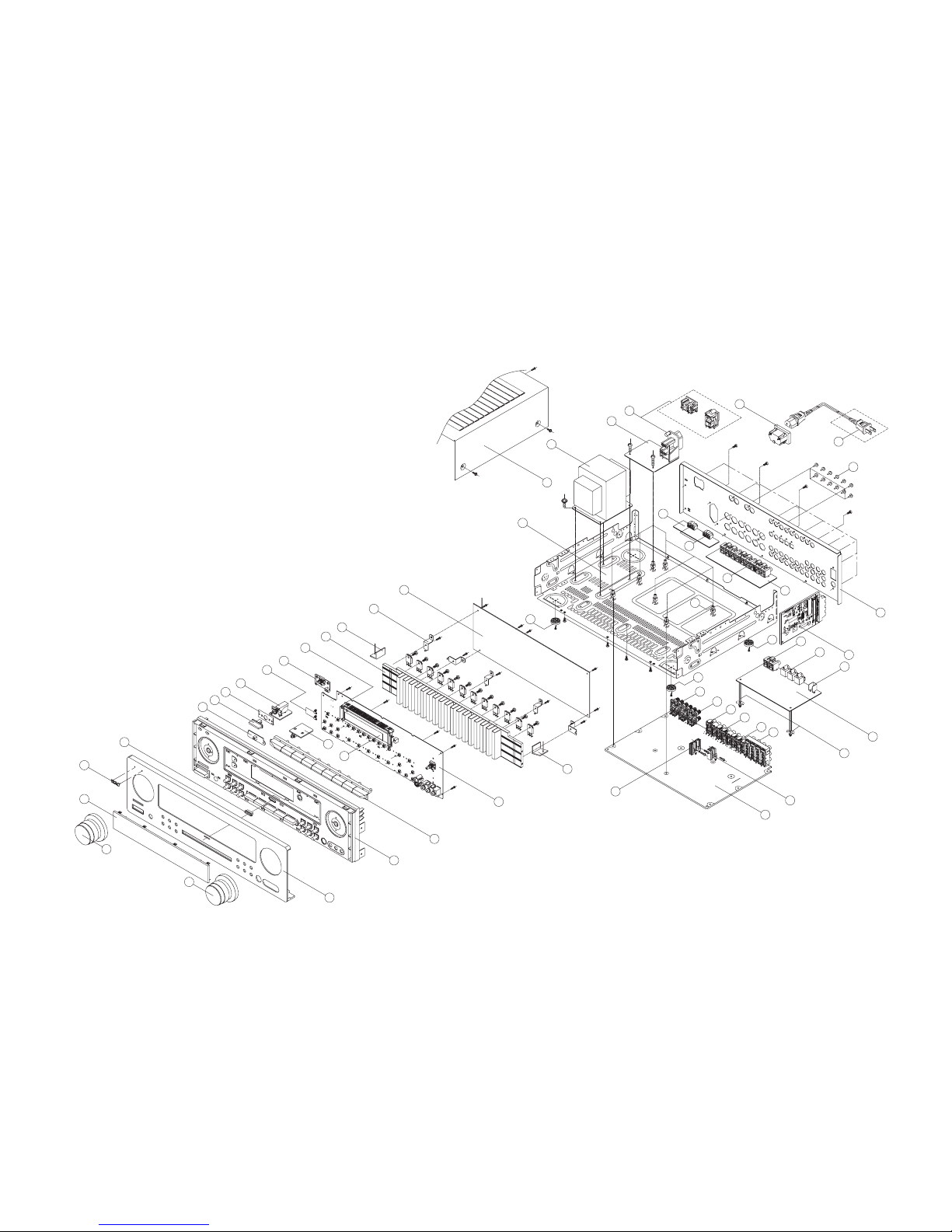

4 EXPLODED VIEWS AND PARTS LIST ・・・・・・・・・・・・・・・・・8
5 PC BOARDS AND PARTS LIST ・・・・・・・・・・・・・・・・・・・・・・11
6 INCLUDED ACCESSORIES ・・・・・・・・・・・・・・・・・・・・・・・・・・・36

1 SPECIFICATIONS
−2−
Amplifier Section
Output Power ........................................................100 W + 100 W
(Stereo, 0.2 % THD, 20 Hz to 20 kHz, 6 Ω)
Surround Output Power ....................................125 W per channel
(0.7 % THD, 1 kHz, 6 Ω, only one channel driven)
Total Harmonic Distortion ................0.09 % (at 95 W, 1 kHz, 6 Ω)
Audio Input Sensitivity/Impedance ..............*LINE: 200 mV/47 kΩ
Output Level/Impedance (TAPE REC) ..................200 mV / 2.2 kΩ
Frequency Response ................*LINE: 20 Hz – 50 kHz, +0 / –3 dB
Signal-to-Noise Ratio ....................................*LINE: 90 dB (IHF-A)
Tone Control ............................................BASS: ± 10 dB at 100 Hz
TREBLE: ± 10 dB at 10 kHz
Digital Audio Section
Sampling Frequency ..................32 kHz, 44.1 kHz, 48 kHz, 96 kHz
Digital Input Level ................................COAXIAL (75 Ω): 0.5 Vp-p
OPTICAL (660nm): –15 dBm to –21 dBm
Video Section
Video Format (OSD)
U.S.A./Canada/Korea model ............................................NTSC
Europe/U.K. model ............................................................PAL
S-Video Output
Y (luminance) - Output level ..............................1 Vp-p (75 Ω)
C (color) - Output level................................286 mVp-p (75 Ω)
Jacks ..................................................................S-VIDEO jack
Video Output
Output level ........................................................1 Vp-p (75 Ω)
Jacks ..........................................................................RCA jack
Component Video Output (Y, PB, PR)
Y-Output level..................................................1.0 Vp-p (75 Ω)
PB, PR-Output level ..........................................0.7 Vp-p (75 Ω)
Jacks ...................................................................... RCA jacks
FM Tuner Section
(Without notes 100.1 MHz, 65 dBf)
Tuning Range
U.S.A./Canada model......87.5 MHz – 108.0 MHz, 100 kHz steps
Europe/U.K./Korea model....87.5 MHz – 108.0 MHz, 50 kHz steps
Total Harmonic Distortion (1 kHz) ........Mono: 0.5%, Stereo: 0.8%
Frequency Response....................................30 Hz – 15 kHz, ±3 dB
Stereo Separation (1 kHz)
U.S.A./Canada/Korea model ............................................32 dB
Europe/U.K. model ..........................................................40 dB
Signal-to-Noise Ratio ..........................Mono: 70 dB, Stereo: 65 dB
AM Tuner Section
Tuning Range
U.S.A./Canada model ........520 kHz – 1,710 kHz, 10 kHz steps
Europe/U.K./Korea model ....522 kHz – 1,611 kHz, 9 kHz steps
Usable Sensitivity ............................................................500 µV/m
Total Harmonic Distortion ..................................1.5% at 100 dB/m
Signal-to-Noise Ratio ........................................40 dB at 100 dB/m
General
Power Requirements
U.S.A./Canada model ......................................AC 120 V, 60 Hz
Europe/U.K. model..........................................AC 230 V, 50 Hz
Korea model....................................................AC 220 V, 60 Hz
Power Consumption
U.S.A./Canada model ..........................2.5 A (STANDBY : 2 W)
Europe/U.K. model ............................250 W (STANDBY : 3 W)
Korea model ......................................250 W (STANDBY : 2 W)
AC Outlet (except U.K. model, total 100 W max.)
U.S.A./Canada model ............................................switched x 2
Europe/Korea model ............................................switched x 1
Dimensions (W x H x D) ................................435 x 143 x 372 mm
(17-1/8" x 5-5/8" x 14-5/8")
Weight (net) ..................................................10.4 kg (22-15/16 lb)
Standard Accessories
Power Cord x 1
AM Loop Antenna x 1
FM T-type Antenna x 1
FM Matching Transformer x 1
Remote Control Unit x 1
U.S.A./Canada/Korea model : UR-423
Europe/U.K. model : UR-424
Battery (AAA, R03, UM-4) x 2
Owner's Manual x 1
* LINE means CD, TAPE, VIDEO.
•Design and specifications are subject to change without notice.
•Weight and dimensions are approximate.

−3−
2-1 Equipment Requried
・AM Standard Signal Generator (AM SSG) ・Audio Generator
・FM Standard Signal Generator (FM SSG) ・Stereo Modulator
・Oscilloscope ・Distortion Meter
・AC Voltmeter ・DC Voltmeter
Note : Disconnect external FM antenna prior to adjustment.
2-2 Adjustment Locations
SVR02
SVR01
SVR03
FD1
IF COIL
OSC COIL ANT COIL
R17 (Pattern Side)
JW10
EC1
TUNER PCB
2 ADJUSTMENTS AND CHECKS
1. Tunning Voltage
520kHz / 1710kHz
[US,C]
522kHz / 1611kHz
[E,UK,K]
520kHz / 1710kHz
[US,C]
522kHz / 1611kHz
[E,UK,K]
JW10
DC Voltmeter OSC COIL
520kHz : 1.2 ±0.1V
1710kHz : 7.0〜8.5V
1611kHz : 7.2〜8.5V
ITEM SIGNAL GENERATOR
SETTING
SET FREQUENCY
SETTING
EQUIPMENT
CONNECTION
ADJUSTMENT
POINTS ADJUST FOR
2. IF Tracking 600kHz [US,C]
603kHz [E,UK,K]
600kHz [US,C]
603kHz [E,UK,K]
TAPE PLAY terminal
AC Voltmeter
Oscilloscope
IF COIL Maximize audio output
3. RF Tracking 600kHz [US,C]
603kHz [E,UK,K]
600kHz [US,C]
603kHz [E,UK,K]
TAPE PLAY terminal
AC Voltmeter
Oscilloscope
ANT COIL
Maximize audio output
Repeat LOW,HIGH
frequency
4. Seek Level 600kHz [US,C]
603kHz [E,UK,K]
600kHz [US,C]
603kHz [E,UK,K]
TAPE PLAY terminal
AC Voltmeter
Oscilloscope
SVR03 Tuned on point
2-3 AM Adjustment
・Output of signal generator should not be greater than necessary to obtain an optimum output reading.
・Signal generator modulation : 30%
・Signal frequency : 400Hz
・Modulation frequency : 600kHz, 1000kHz, 1400kHz [US,C] / 603kHz, 999kHz, 1404kHz [E,UK,K]

−4−
ITEM SIGNAL GENERATOR
SETTING
SET FREQUENCY
SETTING
EQUIPMENT
CONNECTION
ADJUSTMENT
POINTS ADJUST FOR
2. FM DET and
Distortion 98.1MHz 98.1MHz
R17
DC Voltmeter
TAPE PLAY terminal
AC Voltmeter
Oscilloscope
FD1 0V and minimize
distortion
3. Stereo
Separation 98.1MHz 98.1MHz
TAPE PLAY terminal
AC Voltmeter
Oscilloscope
SVR02
Minimize stereo
distortion and maximize
separation
4. Seek Stop Level 98.1MHz 98.1MHz
TAPE PLAY terminal
AC Voltmeter
Oscilloscope
SVR01 Scan stop point to
18dBu
1. Tunning Voltage 87.5MHz
108MHz
87.5MHz
108MHz
EC1
DC Voltmeter Check 87.5MHz : 1.35〜1.65V
108MHz : 6.5〜8.5V
2-4 FM Adjustment
・Output of signal generator should not be greater than necessary to obtain an optimum output reading.
・Signal generator modulation : MAIN : 90%, PILOT : 10%
・Signal frequency : 1kHz, Deviation : 75kHz [US,C,K] / 40kHz [E,UK]
・Modulation frequency : 90.1MHz, 98.1MHz, 106.1MHz

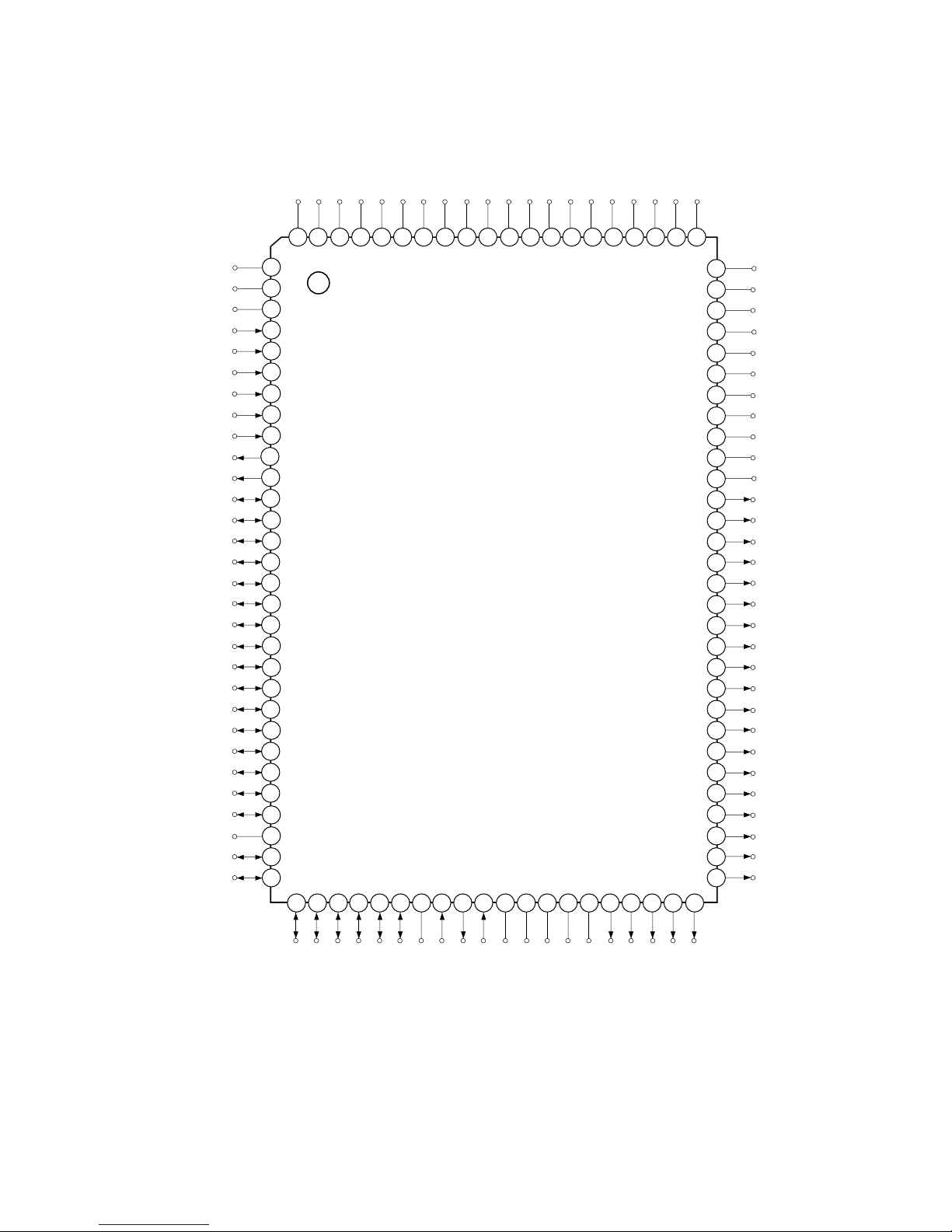

3 MICROCOMPUTER PIN FUNCTIONS
−5−
G11
G12
VDD
P.DOWN
VOL. UP
RDS CLK
VOL. DOWN
RMC
RDS DATA
SPK LED
CLK_72131
PROTECTION
STEREO
IF COUNT
CLK 61516
DATA 61516
KEY IN3
KEY IN2
KEY IN1
FUNC-DN
FUNC_UP
DATA 72131
CE _72131
CDI 49326
CLK 4112/4529/49326
SDI 4112/4529/49326
CDI 4112
VREF
VSYNC
TUNED
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
40
39
38
37
36
35
34
31 32 33 41 42 43 44 45 46 47 48 49 50
51
52
53
54
55
56
57
58
59
60
70
69
68
67
63
64
65
66
61
62
71
72
73
74
81
82
83
84
75
76
77
78
88 87 86 85
79
80
89
90
100 99 98 97 96 95 94 91
92
93
1
49326_CS
SV_DET
49326 INTERQ
4112/4529 P/N
STEP OPTION
LATCH 61516
GND
RESET
EXTAL
XTAL
GND
NC
GND
+5V BACK UP
VFDP-30V
TUNER MUTE
SR MUTE
SW.MUTE
C MUTE
F.MUTE
S11
S10
S9
S8
S7
S6
S5
S4
S3
S2
S1
STBY_LED/RELAY/
POWER LED
POWER LED2
CS _4112
OSD_DATA
OSD_CLK
OSD_CE
CONT_2506
SPK_RLY
SC MUTE
SUB W .SUM
ABOOT
ROM3
ROM30
ROM2
49326 RESET
DSP MUTE
C.EQ
VIDEO_S3
VIDEO_S2
G10
G9
G8
G7
G6
G5
G4
G3
G2
G1
NC
VDD
NC
NC
NC
S16
S15
S14
S13
S12
CXP82860
(Top View)
3-1 Pin Assignment

−6−
Pin No. Symbol Description
1~2 G1/G2 GRID FL PORT
3 VDD PULL UP(N.C)
4 P/D Input for power down.
5 VOL. UP Input for main volume up.
6 RDS CLK Clock signal output for BU1924.
7 VOL. DOWN Input for main volume down.
8 RMC Input for remocon data.
9 RDS DATA Input for RDS data of BU1924.
10 SPK LED Output to drive speaker LED. (At "H", it is active.)
11 CLK 72131 Clock signal output for 72131.
12 PROTECTION Input for detecting "PROTECTION" condition.
13 STEREO Input for detecting "STEREO" condition.
14 IF COUNT Input for detecting TUNER FREQUENCY.
15 CLK 61516 Clock signal output for M61516.
16 DATA 61516 Data signal output for M61516.
17 KEY IN3 Data input for key scan.
18 KEY IN2 Data input for key scan.
19 KEY IN1 Data input for key scan.
20 FUNC_DN Input for function encoder down
21 FUNC_UP Input for function encoder up
22 DATA 72131 Data signal output for 72131.
23 CE 72131 Chip enable signal output to 72131.
24 CDI 49326 Data signal input for CS49326.
25 CLK 4112/4529/49326 Clock signal output for AK4112/AK4529/CS49236.
26 SDI 4112/4529/49326 Data signal output for AK4112/AK4529/CS49326.
27 CDI 4112 Data signal input for AK4112.
28 AVREF Reference voltage. (Connected to +5V, Not VDD.)
29 VSYNC Input for detecting synchronization signal output from BA7046
30 TUNED Input for detecting "TUNED" condition. (At "L", it is active.)
31 CS 49326 Chip select signal output to CS49326
32 SV-DET Input for detecting S-VIDEO input signal (At "H", it is active.)
33 INTERQ 49326 Interrupt signal output to CS49326
34 P/D4112,4529 Input for AK4112/AK4529power down.
35 STEP_OPT Input for selecting the frequency ranges steps of FM and AM.
( 3.4V : RDS, 5V : without RDS Receiver)
36 LATCH M61516 Chip enable signal output to M61516.
37 GND GROUND
38 RESET Input for resetting the CPU. (At "L", it is active.)
39 EXTAL Input for 10MHz crystal oscillator.
40 XTAL Output for 10MHz crystal oscillator.
41 GND Ground.
42 NC Not used!
43 GND Ground.
44 +5V BACK UP +5V power supply.
45 VFDP -30V Supply
3-2 Pin Functions

−7−
Pin No. Symbol Description
46 T_MUTE Output for tuner mute. (At "L", it is active.)
47 SR_MUTE Output for surround channel mute. (At "L", it is active.)
48 SW_MUTE Output for sub woofer channel mute. (At "L", it is active.)
49 C_MUTE Output for center channel mute. (At "L", it is active.)
50 F_MUTE Output for front channel mute. (At "L", it is active.)
51 VIDEO_S2 Video select 1,2,3
52 VIDEO_S3 Video select 1,2,3
53 CINEMA ,EQ Output for cinema eq (At "H", it is active.)
54 DSP_MUTE Output for DSP mute. (At "L", it is active.)
55 CS49326RST Reset signal output to CS4926.
56 ROM2 Signal output to M27W201 .
57 ROM30 Signal output to M27W201 .
58 ROM3 Signal output to M27W201 .
59 AUTOBOOT Output for DSP AUTOBOOT
60 SUB SUM Output for sub woofer Summing. (At "L", it is active.)
61 SC_MUTE Output for center channel mute. (At "L", it is active.)
62 SPK RELAY Output for Speaker Relay ON/OFF (At "H", it is active.)
63 CONT 2506 Output for NJM 2506 IC
64 OSD CE Output for chip enable of M35010 OSD IC
65 OSD CLK Output for clock of M35010 OSD IC
66 OSD DATA Output for data of M35010 OSD IC
67 CS 4112 Chip select signal output to AK4112
68 POWER LED2 Output for POWER LED Dimmer.
69 STANDBY LED/RELAY/POWER LED Output to ST/BY LED, STBY Relay and POWER LED. (At "H", it is active.)
70~85 S1~S15 GRID FL PORT
86 N.C Not used!
87 N.C Not used!
88 N.C Not used!
89 VDD +5V power supply.
90 N.C Not used!
91~100 G1~G10 GRID FL PORT

−8−
18
14
21
23
49
46
20
6
7
22
32
33
34
29
30
40
27
26
36
35
39
24
38
45
24
24
15
25
4
1
1
47
9
3
11
12
5
13
8
19
28
42
41
43
44
48
10
17
16
50
51
2
37
31
52
4 EXPLODED VIEWS AND PARTS LIST

−9−
EXPLODED VIEW LIST
REF.NO. PARTSNO. DESCRIPTION REMARKS
19A09976400 KNOBASSY,VOLUME 5088210788000
29A09980600 PANEL,FRONT[US,C,K] 3067211198020
29A09974900 PANEL,FRONT[E,UK] 3067211198030
39A09976300 WINDOW,DISPLAY 5077210973010
49A09976900 BADGE,GRAY 5630210328000
59A09976800 INDICATOR 5160210093000
69A09975300 BODY 3417210091000
79A09976600 BUTTON,9KEY‑RDS 5097211981010
89A09978300 ST/BYPCBASSY 7028062244010
99A09976500 BUTTON,POWER 5097211971000
10 9A09975700 BRACKET,POWER 4010210876000
11 9A09978600 POWERSWPCBASSY 7028062262010
12 9A09981600 HEADPHONEPCBASSY 7028062263010
13 9A09976700 INDICATOR,STAND‑BY 5160040643010
14 9A09978400 FUNCTIONPCBASSY 7028062252010
15 9A09982600 FRONTPCBASSY[US,C] 7025HK0214011
15 9A09977200 FRONTPCBASSY[E] 7025HK0214021
15 9A09983900 FRONTPCBASSY[UK] 7025HK0214031
15 9A09981000 FRONTPCBASSY[K] 7025HK0214051
16 9A09967400 DISPLAY,FLT K530123500010
17 9A09976000 HOLDER,FLT 4320210091010
18 9A09974600 HEATSINK,POWER 2120210608000
19 9A09973900 GUIDELPCBASSY 0702806100040
20 9A09974000 GUIDERPCBASSY 0702806100050
21 9A09975600 BRACKET,HSINK 4010056906010
22 9A09982800 AMPPCBASSY[US,C] 7025HK0214015
22 9A09977500 AMPPCBASSY[E] 7025HK0214025
22 9A09984100 AMPPCBASSY[UK] 7025HK0214035
22 9A09981200 AMPPCBASSY[K] 7025HK0214055
23 9A09980700 CHASSIS,MAIN 3200211166000
24 9A09975500 FOOT 4007040241040
25 9A09975800 SPACER,KNOB 4300040561010
26 9A09982500 MAINPCBASSY[US,C] 7025HK0214010
26 9A09977100 MAINPCBASSY[E] 7025HK0214020
26 9A09983800 MAINPCBASSY[UK] 7025HK0214030
26 9A09980900 MAINPCBASSY[K] 7025HK0214050
27 9A09974500 HEATSINK 2120044308020
28 9A09974300 HEATSINK 2120043538030
29 9A09961100 TERMINAL,RCA12PIN G608120154000
30 9A09960700 TERMINAL,RCA6PIN G603060046020
31 9A09960600 TERMINAL,RCA4PIN G602040045030
32 9A09960500 TERMINAL,RCA4PIN G602040045000
33 9A09961300 TERMINAL,BOARDSCREW8P G61408103600A
34 9A09961200 TERMINAL,BOARDSCREW4P G612041037330
35 9A09982700 DSPPCBASSY[US,C] 7025HK0214012
35 9A09977300 DSPPCBASSY[E] 7025HK0214022
35 9A09984000 DSPPCBASSY[UK] 7025HK0214032
35 9A09981100 DSPPCBASSY[K] 7025HK0214052
36 9A09975900 SPACER,SUPPORTER 4300210023000
37 9A09975000 SHIELD‑PLATEGND 3070045526010
38 9A09958400 MODULE,OPTICALRCVR E100150200020
39 9A09960400 TERMINAL,RCA2PIN G601200099040
40 9A09981900 TUNER,FM/AM[US,C] E900900100020
40 9A09959000 TUNER,FM/AM[E,UK] E903901416000
40 9A09979500 TUNER,FM/AM[K] E903900100010

−10−
EXPLODED VIEW LIST
REF.NO. PARTSNO. DESCRIPTION REMARKS
41 9A09977600 COM‑VPCBASSY 7025HK0214026
42 9A09961000 TERMINAL,RCA3PIN G606300125030
43 9A09977400 S‑VIDEOPCBASSY 7025HK0214024
44 9A09959900 JACK,DIN,S‑VIDEO2P G403040020010
45 9A09982200 CHASSIS,BACK[US,C,UK] 3207211176130
45 9A09975200 CHASSIS,BACK[E] 3207211176120
45 9A09980800 CHASSIS,BACK[K] 3207211176150
46 9A09983700 POWERPCBASSY[US,C] 7028061621060
46 9A09978200 POWERPCBASSY[E] 7028061621070
46 9A09983600 POWERPCBASSY[UK] 70280616210A0
46 9A09981500 POWERPCBASSY[K] 7028061621090
47 £9A09979700 SOCKET,POWERRECEPTACLE[US,C] G435040070000
47 £9A09960100 SOCKET,ACOUTLETYKE31‑0090[E] G435040110000
47 £9A09982000 SOCKET,POWERRECEPTACLE[K] G435000160010
48 £9A09960000 SOCKET,POWERAC G430040550010
49 9A09974800 CABINET,TOP 3007210356000
50 £9A09982100 CORD,AC[US,C] L061000000080
50 £9A09969200 CORD,AC[E] L061000000060
50 £9A09982100 CORD,AC[UK] L061000000080
50 £9A09980100 CORD,AC[K] L061000000050
51 9A09974700 BUSHING,TERMINAL 2410040353010
52 £9A09986100 POWERTRANS,MAIN(RD8108A)[US,C] 8200960610021
52 £9A09984900 POWERTRANS,MAIN(RD8108D)[E,UK] 8200960610091
52 £9A09986700 POWERTRANS,MAIN(RD8108C)[K] 8200960610081
Q213C £9A10004800 TR,SAP16P J501151000010
Q213L £9A10004800 TR,SAP16P J501151000010
Q213R £9A10004800 TR,SAP16P J501151000010
Q213SC £9A10004800 TR,SAP16P J501151000010
Q213SL £9A10004800 TR,SAP16P J501151000010
Q213SR £9A10004800 TR,SAP16P J501151000010
Q214C £9A10005000 TR,SAP16N J503151000010
Q214L £9A10005000 TR,SAP16N J503151000010
Q214R £9A10005000 TR,SAP16N J503151000010
Q214SC £9A10005000 TR,SAP16N J503151000010
Q214SL £9A10005000 TR,SAP16N J503151000010
Q214SR £9A10005000 TR,SAP16N J503151000010

−11−
5 PC BOARDS AND PARTS LIST
MAIN PCB (SIDE A)

−12−
MAIN PCB (SIDE B)

−13−
AMP PCB
FUNCTION PCB / FRONT PCB

−14−
DSP PCB (SIDE A)
DSP PCB (SIDE B)

−15−
S-VIDEO PCB (SIDE A)
S-VIDEO PCB (SIDE B)
COMPONENT PCB

−16−
TUNER PCB [US,C] (SIDE A)
TUNER PCB [US,C] (SIDE B)

−17−
TUNER PCB [E,UK] (SIDE A)
TUNER PCB [E,UK] (SIDE B)

−18−
TUNER PCB [K] (SIDE A)
TUNER PCB [K] (SIDE B)

−19−
POWER PCB
HEADPHONE PCB
ST/BY PCB
POWER SW PCB

MAIN PCB ASSY [US,C]
REF.NO. PARTSNO. DESCRIPTION
9A09982500 MAINPCBASSY
9A09974400 HEATSINK
9A09974500 HEATSINK
9A09975100 SHIELD,PLATE
C414 £9A09957700 CE,6800UF‑M/63V
C415 £9A09957700 CE,6800UF‑M/63V
C426 £9A09957200 CE,2200UF‑M/35V
C428 £9A09957200 CE,2200UF‑M/35V
C429 £9A09957600 CE,4700UF‑M/25V
CN411 9A09969400 CN,WAFER,GIL‑S‑2P‑S2T2‑EF
CN412 9A09969400 CN,WAFER,GIL‑S‑2P‑S2T2‑EF
CP401 9A09970800 CN,WAFER,5267‑10A10P
CP402 9A09970700 CN,WAFER,5267‑09A9P
CP403 9A09970500 CN,WAFER,5267‑04A4P
CP404 9A09980300 CN,WAFER,35328‑0310
CP405 9A09970600 CN,WAFER,5267‑06A6P
CP501 9A09969300 CN,WAFER,TUC‑P13P‑B113P
CP507 9A09969600 CN,WAFER,G1L‑S‑3P‑S2T2‑EF
CP508 9A09969400 CN,WAFER,GIL‑S‑2P‑S2T2‑EF
D400 9A09966200 DIODE,1SS133T‑72
D401 9A09966700 D,ZENER,MTZJ5.1B
D402 9A09966200 DIODE,1SS133T‑72
D403 9A09966200 DIODE,1SS133T‑72
D404 9A09966200 DIODE,1SS133T‑72
D405 9A09966200 DIODE,1SS133T‑72
D406 9A09966200 DIODE,1SS133T‑72
D407 9A09966200 DIODE,1SS133T‑72
D408 £9A09966300 DIODE,IN4007
D409 £9A09966300 DIODE,IN4007
D410 £9A09966300 DIODE,IN4007
D411 £9A09966300 DIODE,IN4007
D412 £9A09966300 DIODE,IN4007
D414 £9A09966300 DIODE,IN4007
D418 £9A09966500 D,BRIDGE,KBPC604
D419 £9A09966500 D,BRIDGE,KBPC604
D501 9A09966200 DIODE,1SS133T‑72
D502 9A09966200 DIODE,1SS133T‑72
D505 9A09966200 DIODE,1SS133T‑72
D510 9A09966200 DIODE,1SS133T‑72
D511 9A09966200 DIODE,1SS133T‑72
D512 9A09966200 DIODE,1SS133T‑72
D513 9A09966200 DIODE,1SS133T‑72
D514 9A09966200 DIODE,1SS133T‑72
D515 9A09966200 DIODE,1SS133T‑72
D516 9A09966200 DIODE,1SS133T‑72
D517 9A09966200 DIODE,1SS133T‑72
D518 9A09966200 DIODE,1SS133T‑72
D519 9A09966200 DIODE,1SS133T‑72
D520 9A09966200 DIODE,1SS133T‑72
D521 9A09966200 DIODE,1SS133T‑72
D530 9A09966200 DIODE,1SS133T‑72
D531 9A09966200 DIODE,1SS133T‑72
D532 9A09966200 DIODE,1SS133T‑72
FPC505 9A09971000 CN.FPC,SCB1125‑0025PST
GND401 9A09975400 TERMINAL,GNDPLATE
MAIN PCB ASSY [US,C]
REF.NO. PARTSNO. DESCRIPTION
GND403 9A09975400 TERMINAL,GNDPLATE
GND404 9A09975400 TERMINAL,GNDPLATE
IC401 £9A09963600 IC,MC7815CT
IC402 £9A09963700 IC,KIA7915PI
IC403 £9A09963400 IC,MC7805CT
IC501 9A09962800 IC,M61516FP
IC502 9A09964000 IC,LA7952
IC503 9A09963000 IC,BA4558F‑E2
IC504 9A09963000 IC,BA4558F‑E2
IC505 9A09963000 IC,BA4558F‑E2
IC506 9A09963000 IC,BA4558F‑E2
JACK410 9A09961200 TERMINAL,SPK4P,SH0410379P
JACK411 9A09961400 TERMINAL,SPK8P,SH0810369P
JACK501 9A09960600 TERMINAL,4PIN,JK040045YN
JACK502 9A09960500 TERMINAL,4PIN,JK0400450N
JACK503 9A09960700 TERMINAL,6PIN,JK060046CN
JACK504 9A09961100 TERMINAL,RCA,JB120154MN
Q401 9A09964900 TR,KTC3200BL
Q402 9A09964500 TR,KTA1268BL
Q403 9A09964400 TR,KTA1266Y
Q404 9A09964400 TR,KTA1266Y
Q405 9A09964200 TR,KSA992F
Q406 9A09964600 TR,2SC1740SR
Q407 9A09964600 TR,2SC1740SR
Q408 9A09964600 TR,2SC1740SR
Q409 9A09964600 TR,2SC1740SR
Q410 9A09964600 TR,2SC1740SR
Q411 9A09964600 TR,2SC1740SR
Q412 9A09966100 TR,KRC107M
Q501 9A09966100 TR,KRC107M
Q502 9A09966100 TR,KRC107M
Q503 9A09964600 TR,2SC1740SR
Q504 9A09964600 TR,2SC1740SR
Q505 9A09966000 TR,KRA107M
Q506 9A09966100 TR,KRC107M
Q507 9A09965600 TR,KRC107S(NH)
Q508 9A09965200 TR,KRA107S(PH)
Q509 9A09965500 TR,KRC231S(NW)
Q510 9A09965600 TR,KRC107S(NH)
Q511 9A09965600 TR,KRC107S(NH)
Q512 9A09965600 TR,KRC107S(NH)
Q513 9A09965600 TR,KRC107S(NH)
Q514 9A09965200 TR,KRA107S(PH)
Q515 9A09965500 TR,KRC231S(NW)
Q516 9A09965200 TR,KRA107S(PH)
Q517 9A09965500 TR,KRC231S(NW)
Q518 9A09965200 TR,KRA107S(PH)
Q519 9A09965500 TR,KRC231S(NW)
Q520 9A09965200 TR,KRA107S(PH)
Q521 9A09965500 TR,KRC231S(NW)
Q522 9A09965500 TR,KRC231S(NW)
Q523 9A09965700 TR,KTC2875B(MB)
Q524 9A09965900 FET,2SK117Y(TYPE2)
Q525 9A09965900 FET,2SK117Y(TYPE2)
Q526 9A09965900 FET,2SK117Y(TYPE2)
−20−
