Teac MC-DX40 User manual

MC-DX40/MC-DX40DAB
NOTES CONTENTS
1 SPECIFICATIONS ........................................................................ 2
2 MICROCONTROLLER PIN FUNCTIONS.................. 3
3 EXPLODED VIEW AND PARTS LIST........................... 6
4 PC BOARDS AND PARTS LISTS .................................... 9
5 INCLUDED ACCESSORIES............................................... 18
Micro Hi-Fi System
PC boards shown are viewed from parts side.
The parts with no reference number or no parts number
in the exploded views are not supplied.
As regards the resistors and capacitors, refer to the circuit
diagrams supplied pripor to this manual.
Parts marked with this sign are safety critical components.
They must be replaced with designated components.
Destination of product is expressed by [ ] mark and ensure
exact replacement:
[EUR] - Europe; [UK] - UK
!

2
MC-DX40/MC-DX40DAB
1 SPECIFICATIONS
Amplifier Section
Output power (L+R) 10 W + 10 W (MC-DX40 only)
5 W + 5 W (MC-DX40DAB only)
Output power (Subwoofer) 15 W
Input sensitivity 500 mV
Frequency response 50 to 20,000 Hz
Radio Section (FM)
Frequency range 87.5 to 108.0 MHz (50 kHz step)
Sensitivity (S/N30dB) 10 dBμV/m
Radio Section (AM) (MC-DX40 only)
Frequency range 522 to 1,629 kHz (9 kHz step)
Sensitivity (S/N20dB) 54 dBμV/m
Radio Section (DAB) (MC-DX40DAB only)
Frequency range Band III: 5A to 13F (174.928 MHz to 239.200 MHz)
CD Player Section
Frequency response 20 to 20,000 Hz(±1dB)
Signal-to-Noise Ratio 55dB
Wow and Flutter Unmeasurable
Speaker
Type Full range flat type
Impedance 4 ohms
GENERAL
Power requirements 230V AC,50Hz
Power consumption 74 W (Stanby:0.35 W)
Dimensions (W x H x D)
Main Unit 247 x 169.5 x 83 mm
L & R Speakers 210 x 169.5 x 85 mm
Subwoofer 170 x 220 x 325 mm
Weight (Net)
Main Unit 13 kg
L & R Speakers 0.6 kg each
Subwoofer 4.8 kg
Standard Accessories
Remote control unit (RC-1195) x 1 MC-DX40 only
(RC-1200) x 1 MC-DX40DAB only
Battery for remote control unit (CR2025) x 1
Subwoofer cable x 1
Speaker cable x 2
FM antenna x 1
AM antenna x 1
Wall mounting bracket for speaker x 4
Wall mounting bracket for main unit x 4
Screw x 8
Guide sheet for wall mounting x 1
Owner’s manual x 1
Quick guide for connection x 1
Warranty card x 1
Design and specifications are subject to change without notice.
Weight and dimensions are approximate.
Illustrations may differ slightly from production models.

3
MC-DX40/MC-DX40DAB
2 MICROCONTROLLER PIN FUNCTIONS
T5CC1, MAIN PCBA IC 21
2-1 Pin Assignment
T5CC1

4
MC-DX40/MC-DX40DAB
Use
ON Pull-up NoUse init stby Act.
1 VREF VREFL ADC Reference LOW( GND )
DNG_CDASSVASSVA2 rewopUCMV3.3+UCMCCVA3
4 P70/TA0IN N.C I/O X OPEN I
5 P71/TA1OUT N.C I/O X OPEN I
6 P72/TA3OUT N.C I/O X OPEN I
7 P73/TA4IN N.C I/O X OPEN I
8 P74/TA5OUT N.C I/O X OPEN I
9 P75/TA7OUT N.C I/O X OPEN I
10 P80/TB0IN0/INT5 N.C I/O X OPEN I
11 P81/TB0IN1/INT6 N.C I/O X OPEN I
12 P82/TB0OUT0 N.C I/O X OPEN I
13 P83/TB0OUT1 N.C I/O X OPEN I
14 P84/TB1IN0/INT7 VFD_RESET I/O O X I H L vfd reset
15 P85/TB1IN1/INT8 VFD_DO I/O O X I - - vfd data
16 P86/TB1OUT0 VFD_CS I/O OXI - - vfd chip select
17 P87/TB1OUT1 VFD_CLK I/O O X I - - vfd clock
18 P90/TXD0 DAB TXD I/O O X I - - DAB TXD
19 P91/RXD0 DAB RXD I/O I X I - - DAB RXD
,tcelesetarepopihcV3.3+UCM0MA42 ,rewopUCMV3.3+UCMCCVD52 )zHM72(rotallicso-O)ZHM72(lat-X2X62 DNGDNGSSVD72 )zHM72(rotallicso-I)ZHM72(lat-X1X82 tcelesetarepopihcV3.3+UCM1MA92
30 RESET Reset I I I I L MCU reset )zHK867.23(rotallicsoCTRI)ZHK867.23(lat-X1TX/69P13 )zHK867.23(rotallicsoCTRO)ZHK867.23(lat-X2TX/79P23
33 EMU0 N.C O OPEN
34 EMU1 N.C O OPEN
36 PA1/INT2 RDS_CLK I I X I - - rds clock
37 PA2/INT3 EX_INT. I I O I L
38 PA3/INT4 BUS_IN I I X I - - bus input
39 PA4 ST-BY_LED I/O O X I L H Stand-by LED control
40 PA5 DAB_ON I/O O X I H L dab on
41 PA6 PWR_ON I/O O X I L H power on
42 PA7 FM/AM_ON I/O O X I H L FM/AM on
NEPOXC.NELA34
44 P00/AD0 SYSTEM_MUTE I/O X I H L system mute
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN I - - RTC SQW/OUT
OPEN I - - Real time ic clock
OPEN I - - Real time ic data
61 P21/A1/A17 RTC_SWITCH I/O I O I - - Remote selector( system or single )
DNGDNGSSVD26 rewopUCMV3.3+UCMIMN36 rewopUCMV3.3+UCMCCVD46
65 P22/A2/A18 N.C I/O X OPEN
66 P23/A3/A19 N.C I/O X OPEN
67 P24/A4/A20 N.C I/O X OPEN
68 P25/A5/A21 N.C I/O X OPEN
69 P26/A6/A22 N.C I/O X OPEN
70 P27/A7/A23 N.C I/O X OPEN
Note
pin
No O/IemaNtroP Status
Description
20 P92/SCLK0/CTS0 N.C I/O X OPEN I
21 P93/TXD1 UPDATE_TXD I/O O X I - - MCU Updata TXD
22 P94/RXD1 UPDATE_RXD I/O I X I - - MCU Updata RXD
23 P95/SCLK1/CTS1 P_DWN I/O I X I I L Power down
35 PA0/INT1 REMOTE_IN I I X I - - remote in
45 P01/AD1 N.C I/O X
46 P02/AD2 N.C I/O X
47 P03/AD3 N.C I/O X
48 P04/AD4 N.C I/O X
49 P05/AD5 N.C I/O X
50 P06/AD6 N.C I/O X
51 P07/AD7 BUS_OUT I/O O X I - - Bus output
52 P10/AD8/A8 N.C I/O X
53 P11/AD9/A9 N.C I/O X
54 P12/AD10/A10 N.C I/O X
55 P13/AD11/A11 N.C I/O X
56 P14/AD12/A12 N.C I/O X
57 P15/AD13/A13 N.C I/O X
58 P16/AD14/A14 RTC_SQW/OUT I/O I X
59 P17/AD15/A15 RTC_CLK I/O O X
60 P20/A0/A16 RTC_DOUT I/O O X
Pin Functions

5
MC-DX40/MC-DX40DAB
75 P34/BUSRQ DAB_SYS_RST I/O O O I - - DAB system reset(Does not use)
76 P35/BUSAK N.C I/O I O I - -
77 P36/R/W N.C I/O X OPEN
78 P37/BOOT BOOT_MODE I/O O O I H L update mode select
79 P40/CS0 N.C I/O X OPEN
80 P41/CS1 N.C I/O X OPEN
81 P42/CS2 RDS_DATA I/O I X I - - tuner RDS data input
82 P43/CS3 PLL_CE I/O O X I - - tuner PLL ic enable
83 P60/SCK PLL_CLK I/O O X I - - tuner PLL IC clock
84 P61/SO/SDA PLL_DOUT I/O O X I - - tuner PLL IC data out
85 P62/SI/SCL PLL_DINI/O I X I - - tuner PLL IC data input
86 P63/INT0 T_MUTE I/O I O I - - tuner PLL IC mute
87 P64/SCOUT TUNED_IN I/O I O I - L tuned in
88 P65 STEREO_IN I/O I O I - L stereo in rewopUCMV3.3+UCMCCVD98
90 P66 N.C I/O X OPEN I DNGDNGSSVD19
92 P50/AN0 KEY0 I I O I - - key0 input
93 P51/AN1 KEY1 I I O I - - key1 input
94 P52/AN2 N.C I I O I - -
95 P53/AN3/ADTRG SCROL_UP I I O I - - Scrol up
96 P54/AN4 SCROL_DWN I I O I - - scrol down
97 P55/AN5 V_PROTECT I I O I - - voltage protect
98 P56/AN6 N.C I O
99 P57/AN7 OPTION I I O I - - Version Option
100 VREFH MCU +3.3V ADC Reference HIGH( VCC )
Use
ON Pull-up NoUse init stby Act. Note
pin
No O/IemaNtroP Status
Description
71 P30/RD N.C I/O X OPEN
72 P31/WR N.C I/O X OPEN
73 P32/HWR EEPROM_DATA I/O O O I - - EEPROM DATA
74 P33/WAIT EEPROM_CLK I/O O O I - - EEPROM CLOCK

6
MC-DX40/MC-DX40DAB

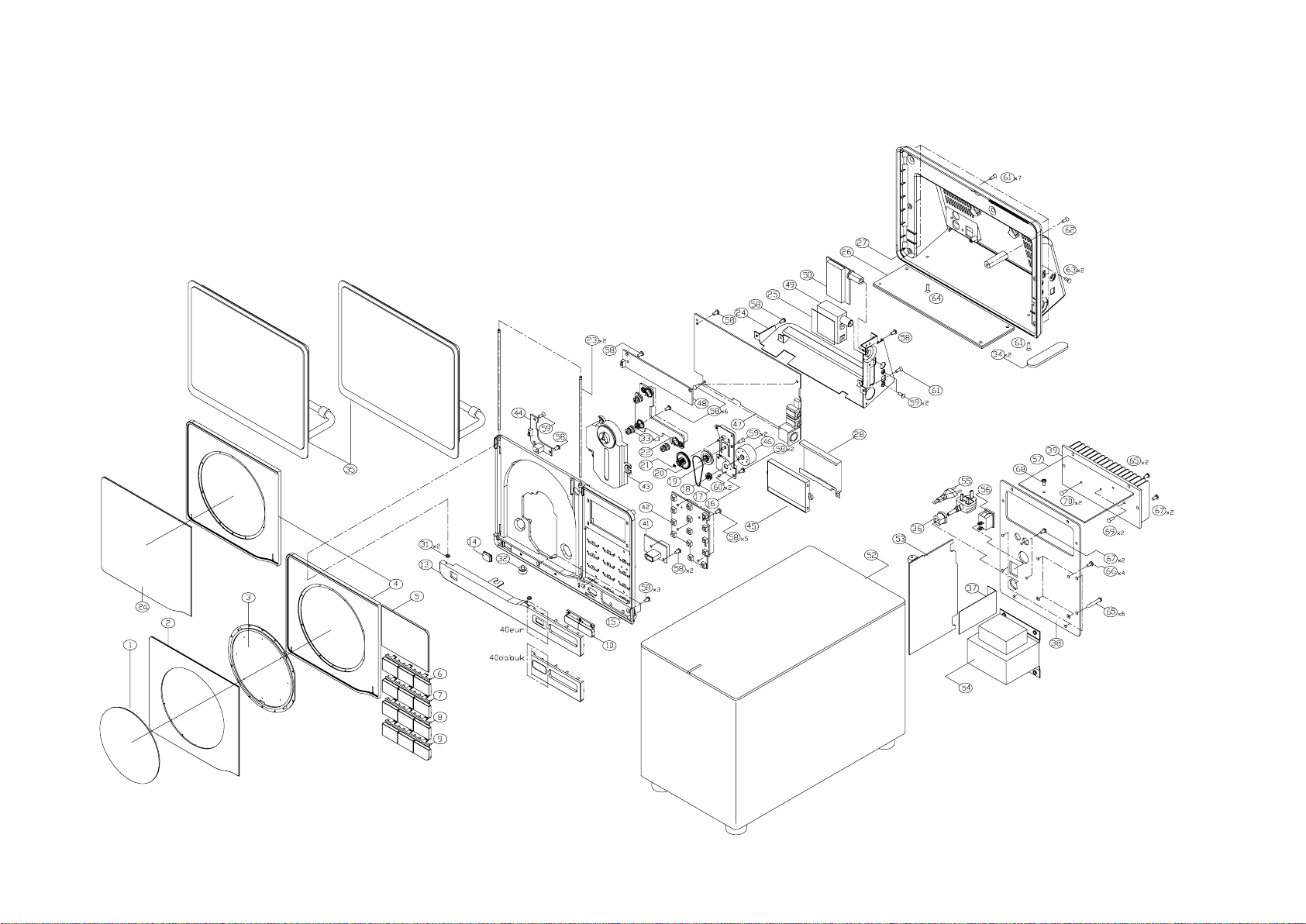

3 EXPLODED VIEWSAND PARTS LIST
EXPLODE VIEW

7
MC-DX40/MC-DX40DAB
REF. NO. PARTS NO. DESCRIPTION REMARKS
1 ORNAMENT , DOOR A (40B)
ORNAMENT , DOOR A (40S)
2 ORNAMENT , DOOR B (40B)
ORNAMENT , DOOR B (40S)
2a WINDOW , DOOR (40HB/40DABB)
3 WINDOW , DOOR (40B/40S)
4 CGR1A458ZA CD DOOR ASSY (40B)
CGR1A458YA CD DOOR ASSY (40S)
CGR1A458XA CD DOOR ASSY (40HB/40DABB)
5 CGU1A428ZA30 WINDOW, LCD (40B/40HB/40DABB)
CGU1A428YA30 WINDOW, LCD (40S)
6 CBT1A1090ZB38 KNOB, FUNCTION A (40B)
CBT1A1090W KNOB, FUNCTION A (40HB)
CBT1A1090M7WG5 KNOB, FUNCTION A (40S)
CBT1A1090Z KNOB, FUNCTION A (40DABB)
7 CBT1A1090YB38 KNOB , FUNCTION A (40B)
CBT1A1090W KNOB , FUNCTION A (40HB)
CBT1A1090M7VG5 KNOB , FUNCTION A (40S)
CBT1A1090Y KNOB , FUNCTION A (40DABB)
8 CBT1A1090ZB38 KNOB , FUNCTION A (40B)
CBT1A1090X KNOB , FUNCTION A (40HB)
CBT1A1090M7WG5 KNOB , FUNCTION A (40S)
CBT1A1090Z KNOB , FUNCTION A (40DABB)
9 CBT1A1091ZB38 KNOB , FUNCTION B (40B)
CBT1A1091Y KNOB , FUNCTION B (40HB)
CBT1A1091M7YG5 KNOB , FUNCTION B (40S)
CBT1A1091Z KNOB , FUNCTION B (40DABB)
10 CBT1A1092ZB38 KNOB , VOLUME (40B/40HB/40DABB) supplied under mane of KNOB , POWER A
CBT1A1092M7YG5 KNOB , VOLUME (40S) supplied under mane of KNOB , POWER A
11 Not in use
12 Not in use
13 CGR1A461ZB38 ORNAMENT , FRONT A (40B/40HB)
CGR1A461M7YG5 ORNAMENT , FRONT A (40S)
CGR2A461ZB38 ORNAMENT , FRONT A (40DABB)
14 CGU1A429A8 WINDOW , SENSOR
15 CGW1A469B38 PANEL , FRONT (40B/40HB/40DABB)
CGW1A469M7G53 PANEL , FRONT (40S)
16 CMD1A685 BRACKET , MOTOR
17 CDV1A006 BELT
18 CDR1A002 PULLY
19 CGR1A029 GEAR , PULLY
20 CDG1A028 GEAR , CD DOOR
21 CNW1A043 WASHER
22 CMH1A290 SUPPORT , CD MECH
23 CDF1A025 SHAFT , DOOR
24 CUA1A290 PLATE , BOTTOM
25 CMX1A261 INSULLATOR , TUNER
26 CUA1A291 PLATE , WEIGHT
27 CKD2A066ZB38 COVER REAR (40B/40HB)
CKD2A066M7YG5 COVER REAR (40S)
CKD3A066VB38 COVER REAR (40DABB)
28 CMC1A356 PLATE , EARTH
29 Not in use
EXPLODED VIEW

8
MC-DX40/MC-DX40DAB
30 Not in use
31 CHG1A417 RUBBER , SHAFT
32 CHG1A415Y ABSORBER , MECH (B)
33 CHG1A416Z ABSORBER , MECH (A)
34 CHG1A418 FOOT , SET
35 CASDX40NXTBK NXT SPEAKER (40B/40HB)
CASDX40NXTSL NXT SPEAKER (40S)
CASDX450NXTBK NXT SPEAKER (40DABB)
36 CHR1A302 BUSHING , AC CORD
37 CMX1A245 SHEET , TRANS
38 CKF1A395Z PANEL , REAR
39 CMY1A308Z HEATSINK
40 Not in use
41 USB PCB ASSY...................................................................... United on PCBA-MAIN, refer to page 9
42 COP12112C FRONT (KEY PAD) PCB ASSY
43 CJDDA23Z1F TRAVERSE UNIT , DA23Z1F
44 CLOSE SW (REMOTE SENSOR) PCB ASSY......................... United on PCBA-FRONT, refer to page 16
45 CFLICG1602017BTLWA LCD , IC-G160201-7BTLWA
46 CDMCCM03030R139 MOTOR (CCM03030R139)
47 COP12113D MAIN PCB ASSY (40B/40HB)
COP12113F MAIN PCB ASSY (40S)
COP12113C MAIN PCB ASSY (40DABB)
48 OPEN SW PCB ASSY............................................................. United on PCBA-FRONT, refer to page 16
49 CNVMW104MA1N51W MODULE , TUNER (40B/40S/40HB)
CNVMW104FA1N51 MODULE , FM TUNER ONLY (40DABB)
50 CNVFS2025V22A MODULE , DAB, FS2025V22A (40DABB)
51 Not in use
52 CKADX40SWBEUR SUBWOOFER CABINET ASSY (40B)
CKADX40SWSEUR SUBWOOFER CABINET ASSY (40S)
CKADX40SWHBEUR SUBWOOFER CABINET ASSY (40HB)
CKADX40DABSWBUK SUBWOOFER CABINET ASSY (40DABB)
┗CAS16LP286SEZ WOOFER UNIT
53 POWER PCB ASSY................................................................ United on PCBA-AMP, refer to page 13
54 CLT5P049ZE TRANS , POWER , EUR (230V, 50Hz) (40B/40S/40HB)
CLT5P048ZE TRANS , POWER , EUR (230V, 50Hz) (40DABB)
55 CJA2B043ZA CORD , POWER (40B/40S/40HB) [EUR]
CJA2E086Z CORD , POWER (40DABB) [UK]
56 CSH1A009ZV SWITCH, POWER MOMS
57 COP12110C AMP PCB ASSY (40B/40S/40HB) Equivalent to COP12110B AMP PCB
ASSY (40DABB) on MP
58 CTB3+8JR SCREW
59 CTS3+8JR SCREW
60 CTB1.7+2.3FR SCREW
61 CTS3+10JFC SCREW Silver
CTS3+10JFB SCREW Black
62 CTS3+16JR SCREW
63 CTB3+8JFZR SCREW
64 CTB3+6JFZR SCREW
65 CTB35+22AFZR SCREW (6X3.5X1.4P X22L Black)
66 CTB4+10FFZR SCREW
67 CTBD3+8JFZR SCREW
68 CTB3+6FFZR SCREW
69 CTB3+10JFZR SCREW
70 CHD1A012R SCREW , SPECIAL
EXPLODED VIEW
REF. NO. PARTS NO. DESCRIPTION REMARKS

9
MC-DX40/MC-DX40DAB
MAIN PCB , TOP
4 PC BOARDSAND PARTS LIST
CUP12113Z-1
MAIN PCB
CUP12113Z-2
IPOD PCB
No mount
CUP12113Z-3
VIDEO PCB
No mount
CUP12113Z- 4
USB PCB
(40B/40S/40HB only)

10
MC-DX40/MC-DX40DAB
MAIN PCB , BOTTOM
CUP12113Z-2
IPOD PCB
No mount
CUP12113Z-3
VIDEO PCB
No mount
CUP12113Z- 4
USB PCB
(40B/40S/40HB only)
CUP12113Z-1
MAIN PCB

11
MC-DX40/MC-DX40DAB
CUP12113Z-2
IPOD PCB
No mount
CUP12113Z-1
MAIN PCB
REF. NO. PARTS NO. DESCRIPTION REMARKS
COP12113D MAIN PCB ASS'Y (40B/40HB)
COP12113F MAIN PCB ASSY (40S)
COP12113C MAIN PCB ASSY (40DABB)
CUP12113Z PCB, MAIN
CUP12113Z-1 MAIN PCB
C592 CCEA1EH102E CAP , ELECT, 1000uF/25V
C594 CCEA1CH222E CAP , ELECT, 2200uF/16V
C151,158,160,161 CCEA1AH471T CAP , ELECT, 470uF/10V
C166
C153,159,251 CCEA1CKS101T CAP , ELECT, 100uF/16V
C152,157,162~164
CN11 CJP16GA117ZY WAFER , CD MECHA
CN12 CJP06GA229ZB WAFER . STRAIGHT(6P, 1.5MM)
CN13 CJP02GB231ZB WAFER , 2P(2MM)
CN14 CJP05GB46ZY WAFER
CN16 CJP13GA117ZY WAFER , CARD CABLE
CN17 CJP03GB46ZY WAFER , ANGLE(3PIN)
CN19 CJP11GB116ZY WAFER
CN20 CJP05GB46ZY WAFER
CN21 CJP07GA19ZY WAFER , STRAIGHT(7PIN)
CN23 CJP07GB113ZY WAFER , CARD CABLE
D101,201,202 CVD1SS355T DIODE , CHIP, 1SS355
D203 HVDRB160L60TE25 DIODE , SCHOTTKEY RB160L60TE25
IC11 CVITC94A70FG I.C , CD DSP, TC94A70FG
IC12 HVITA2125AFG I.C , MOTOR DRIVER , TA2125AFG
IC13,55 CVIKIA1117S33 I.C , REGULATOR, KIA1117S33
IC14 CVIKIA1117S15 I.C , REGULATOR, KIA1117S15
IC15 CVIKIA7808AF I.C , REGULATOR, KIA7808AF
IC21 CVIANAM1426CR I.C , U-COM MC-DX40(CVIT5CC1/TOSHIBA)
┗CVIT5CC1 I.C , FLASH U-COM, T5CC1
IC22 CVIAT24C02NSU18 I.C , EEPROM (2K), AT24C02NSU18
IC24 HVIRH5VT18C I.C , RESET, RH5VT18C
IC26 CVIKIA1117S00 I.C , REGULATOR, KIA1117S00 (40DABB only) No mount on COP12113D/F (40B/S/HB)
IC27 CVIKIA1117S33 I.C , REGULATOR, KIA1117S33 (40DABB only) No mount on COP12113D/F (40B/S/HB)
IC28 CVIKIA78R33F I.C , REGULATOR, KIA78R33F
IC31 CVIOTI2368 I.C , USB DECODER, OTI2368 (40B/S/HB only) No mount on COP12113C (40DABB)
IC33 CVIRT9702APB I.C , CURRENT LIMITER, RT9702APB (40B/S/HB only) No mount on COP12113C (40DABB)
IC34 CVISST39VF51270WH I.C , FLUSH 512K, SST39VF51270WH (40B/S/HB only) No mount on COP12113C (40DABB)
IC51 CVINJU7391V I.C , FUNCTION + VOLUME, NJU7391V
IC52 HVIBA4560RF I.C , OP AMP, BA4560RF
IC53 HVINJM4556AL I.C , HEADPHONE, NJM4556AL
IC56 BVIBA50BC0FP I.C , REGULATOR CHIP , BA50BC0FP
IC57 CVIMCDX40ZA HEATSINK ASS'Y (CMY1A239, 5V + 8V)
┗HVIKIA7805API I.C, REGULATOR, KIA7805API
HVIKIA7808API I.C , REGULATOR, KIA7808API
CMY1A239 HEATSINK
CTB3+8JR SCREW
IC59 HVIKIA7809API I.C , REGULATOR KIA7809API
JK13 CJJ6L001Z JACK , DIN 13P
JK21,51 HJJ2E027Z JACK , HEADPHONE
L101 CLQ09E100KRZ COIL , CHIP(10uH, 3216)
L102,104,203,204 CLZ9R001Z FERRITE , CHIP BEAD(60ohm, 2012)
Q101 HVTKTA1504SYRTK T.R , CHIP, KTA1504SYRTK
Q102,504,508,605 HVTKRC107S T.R , CHIP, C107S
Q103,201,503,507 HVTKRA107S TR, CHIP, A107S
Q104,105,501,502 HVTKTD1304T T.R , CHIP , D1304T
Q505,506,509~512
Q106,107 HVTKTD1304T T.R , CHIP, D1304
Q203 HVTKRA107S TR, CHIP, A107S
MAIN PCB ASSY

12
MC-DX40/MC-DX40DAB
REF. NO. PARTS NO. DESCRIPTION REMARKS
X101 HOX16934A120C CRYSTAL
X201 HOX27000E180S CRYSTAL , CHIP(27MHZ,SMD)
X202 HOX00032K120I CRYSTAL , 32.768KHZ
X301 HOX12000E200C 12MHz CRYSTAL
CUP12113Z-2 iPOD PCB
IC44 I.C, OP AMP, BA4560RF No mount
S401, S402 SW , TACT No mount
K41 CONNECTOR , IPOD(30P) No mount
CY22 CARD CABLE , WAFER No mount
CUP12113Z-3 VIDEO PCB
C656, C657 CAP , ELECT, 470uF/16V No mount
JK61 JACK , S-VIDEO+CVBS(GOLD, 2P) No mount
CN61 WAFER , STRAIGHT No mount
CUP12113Z-4 USB PCB ASS'Y
CN21 CJP07GA19ZY WAFER, STRAIGHT (7PIN) No mount on COP12113C (40DABB)
C356 CCEA1HKS100T CAP , ELECT , 10uF/50V No mount on COP12113C (40DABB)
C357 CCEA1CKS101T CAP , ELECT , 100uF/16V No mount on COP12113C (40DABB)
JK31 CJJ9X006Z JACK , USB STRAIGHT (40B/HB only) No mount on COP12113C (40DABB)
CJJ9X003Y JACK, USB SILVER (40S only) No mount on COP12113C (40DABB)
L302.303 CLZ9R001Z FERRITE , CHIP BEAD (60ohm, 2012) No mount on COP12113C (40DABB)

13
MC-DX40/MC-DX40DAB

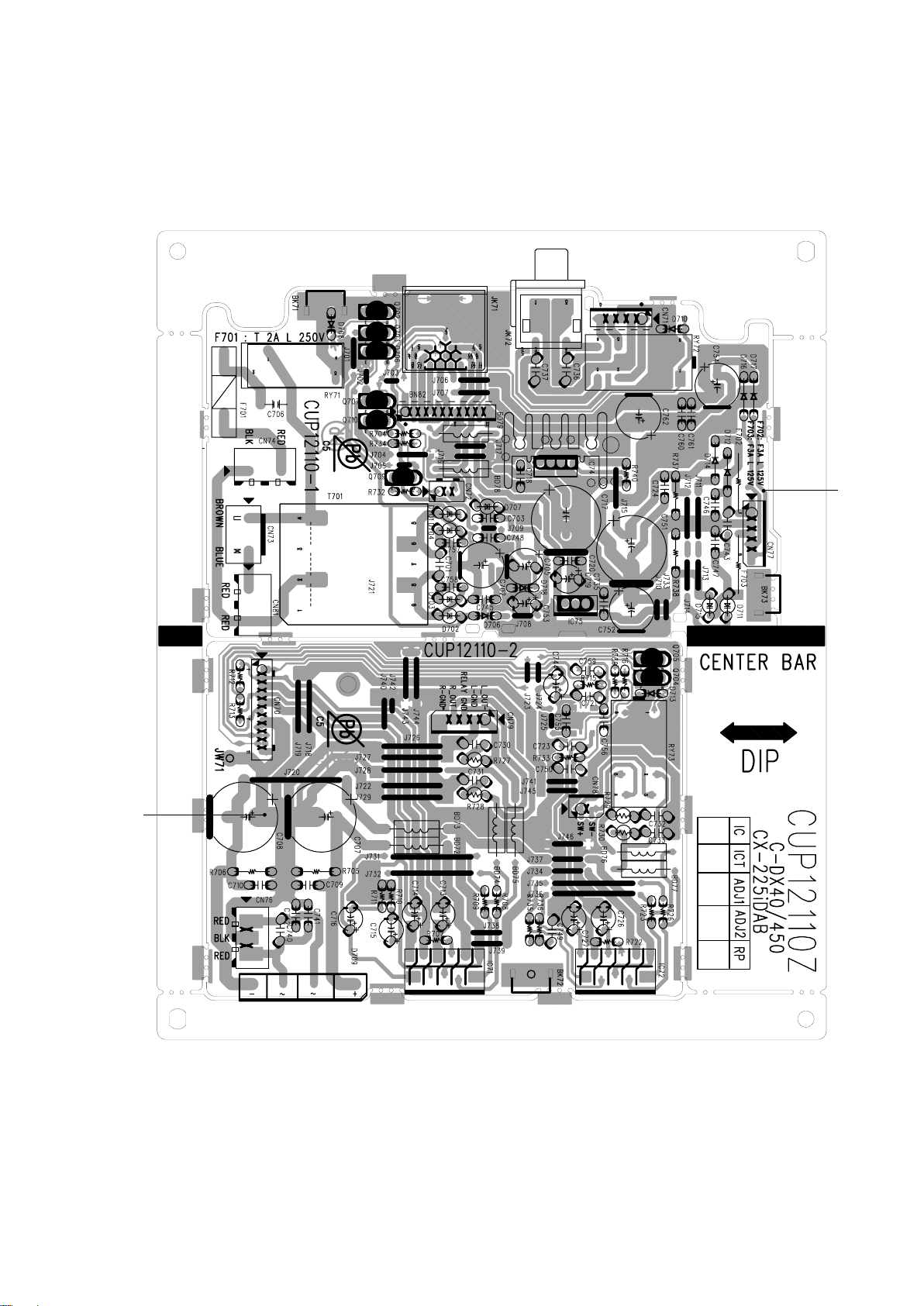

AMP PCB
CUP12110-1
POWER PCB
CUP12110-2
AMP PCB

14
MC-DX40/MC-DX40DAB
REF. NO. PARTS NO. DESCRIPTION REMARKS
COP12110C AMP PCB ASSY (40B/40S/40HB) Equivalent to COP12110B AMP PCB
ASSY (40DABB) on MP
CUP12110Z PCB , POWER(AMP)
CUP12110-1 POWER PCB
BD78,79 KLZ9H001Z BEAD , CORE
C702 CCEA1CH102E CAP , ELECT, 100uF/50V
C705 CCEA1CH471T CAP , ELECT, 470uF/16V
C717 CCEA1CH682E CAP , ELECT, 6800uF/50V
C719 CCEA1EH101T CAP , ELECT, 100uF/25V
C751 CCEA1EH332E CAP , ELECT, 3300uF/25V
C752,754,762 CCEA1EH102E CAP , ELECT, 100uF/25V
C753 CCEA1EH470T CAP , ELECT, 47uF/25V
CN72 CJP03GA19ZY WAFER , STRAIGHT(3PIN)
CN73 CJP02KA060ZY WAFER
CN74 CJP02GA89ZY WAFER
CN77 CJP05GA01ZY WAFER(YMW025-05R)
CN81 CJP02GA89ZY WAFER
D701~704 CVD1N4003SRT DIODE , RECT, 1N4003SRT
D706 CVD11EQS10GT DIODE , SCHOTTKY (100V/1A)
D707 CVD1N4003SRT DIODE , RECT, 1N4003SRT
D708,710 CVD1SS133MT DIODE , 1SS133
D711,715 CVD1N4003SRT DIODE , RECT, 1N4003SRT
D712,714,716,717 CVD1N4003ST DIODE , RECT, 1N4003ST
D718 CVD1SS133MT DIODE , 1SS133
F701 KJCFC5S HOLDER , FUSE
┗KBA2C2000TLEZ FUSE , 2 AT - 250 V
F702 KBA1A3000FAT FUSE , SUBMINIAITURE US
F703 KBA1A3000FAT FUSE , SUBMINIAITURE US
IC74 CVIKIA278R12PIBA I.C HEATSINK ASS'Y(CMY3A222)
┗HVIKIA278R12PI I.C , REGULATOR, KIA278R12PI
CMY3A222 HEATSINK
CTB3+8JR SCREW
IC75 HVIKIA7912PI I.C , REGULATOR, KIA7912PI
IC76 BVIBA50BC0FP I.C , REGULATOR, BA50BC0FP
JK71 CJJ6L001Z JACK , DIN 13P
Q702,703,706,707 HVTKRC107MT T.R, C107M
Q709,710
Q703 HVTKRA102MT T.R, A102M
RY71 CSL1E002ZE RELAY , AC POWER
T701 CLT5I009ZE TRANS , SUB CD6002/N
CUP12110-2 AMP PCB
BD72~77 KLZ9H001Z BEAD , CORE
C707,708 CCEA1ERD332EH CAP , ELECT, 3300uF/25V
C713~716 CCEA1HH2R2T CAP , ELECT, 2.2uF/50V
C726,727 CCEA1HH4R7T CAP , ELECT, 4.7uF/50V
C755 CCEA1CH471T CAP , ELECT, 470uF/16V
CN70 CJP11GA19ZY WAFER , STRAIGHT
CN76 CJP03GA90ZY WAFER
CN78 CJP02GA01ZY WAFER , STRAIGHT, 2PIN
CN79 CJP05GA01ZY WAFER(YMW025-05R)
D709 HVDGBJ1006 DIODE , BRIDGE, GBJ1006
D713 CVD1SS133MT DIODE, 1SS133
IC71,72 HVITDA7265 I.C , AMP, TDA7265
Q704 HVTKRA102MT T.R, A102M
AMP PCB ASSY

15
MC-DX40/MC-DX40DAB
AMP PCB ASSY
REF. NO. PARTS NO. DESCRIPTION REMARKS
Q705 HVTKRC107MT T.R, C107M
RY72 CSL3A018ZE RELAY , L/R NXT SPK
RY73 CSL3A018ZE RELAY , SUBWOOFER
JK72 CJJ4N083Z JACK , 2P RCA(W/R, SILVER PLATE)

16
MC-DX40/MC-DX40DAB

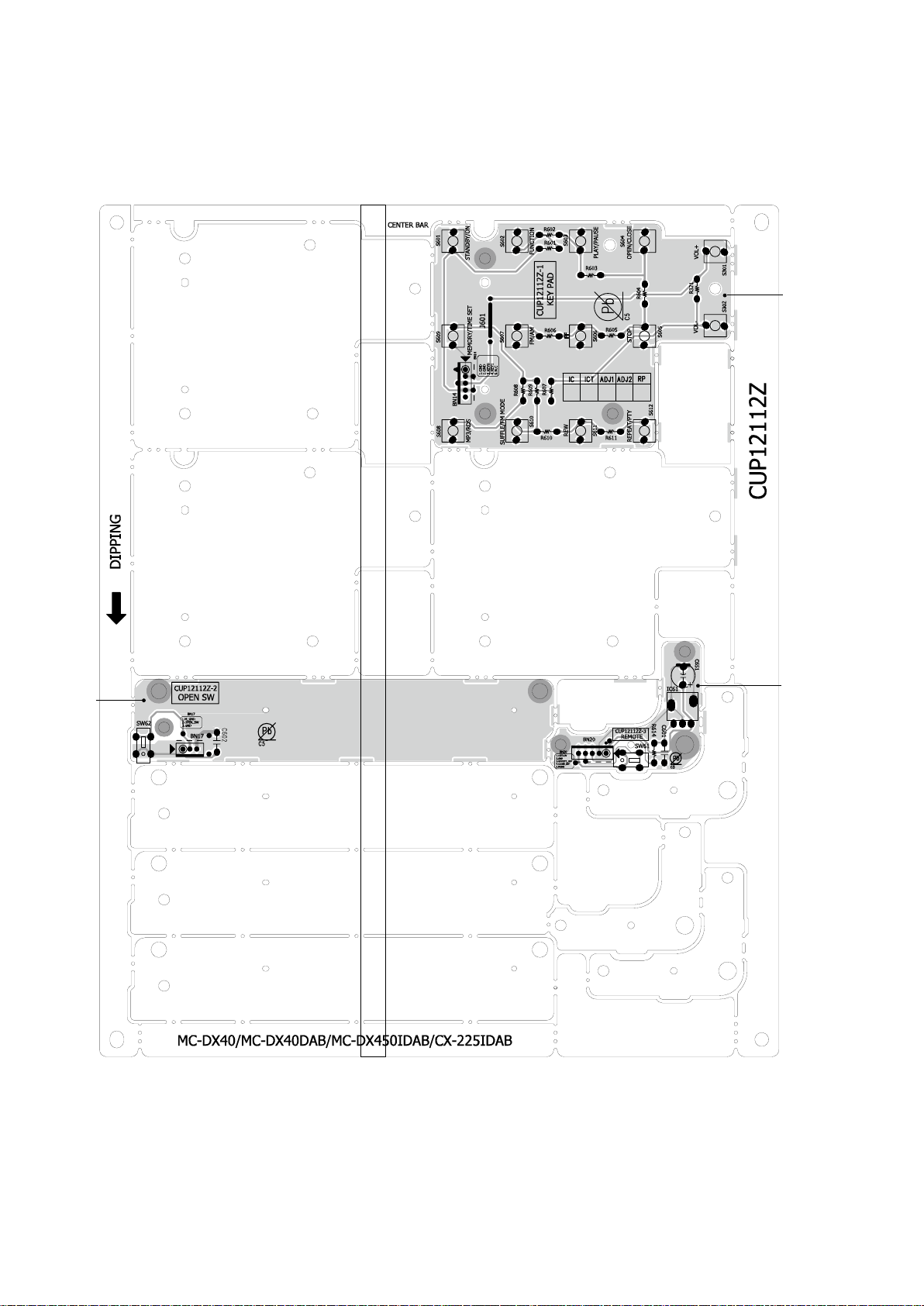

FRONT PCB
CUP12112Z-1
FRONT(KEY PAD) PCB
CUP12112Y-3
CLOSE SWITCH PCB
CUP12112Y-2
OPEN SWITCH PCB

17
MC-DX40/MC-DX40DAB
REF. NO. PARTS NO. DESCRIPTION REMARKS
COP12112C FRONT PCB ASSY
CUP12112Z PCB , FRONT
CUP12112Z-1 FRONT (KEY PAD) PCB
S301,302,601~612 CST1A012ZT SW , TACT
CUP12112Y-2 OPEN SW PCB
SW62 CSH1A011Z SW , DETECTOR(1C1P, SNAP IN, 5.2MM PITCH)
CUP12112Y-3 CLOSE SW (REMOTE/SENSOR) PCB
IC6 CRVKSM603TH2E SENSOR, REMOTE
C651 CCEA1CKS101T CAP, ELECT, 100uF/16V
SW61 CSH1A011Z SW, DETECTOR (1C1P)
FRONT PCB ASSY

18
MC-DX40/MC-DX40DAB
PARTS NO. DESCRIPTION REMARKS
CARTMCDX40 REMOTE CONTROL UNIT RC-1195 (40B/40S/40HB)
CARTMCDX40DAB REMOTE CONTROL UNIT RC-1200 (40DABB)
  ┗ BATTERY CR2025 (Supplied with Remote control units)
CQX1A1384Z MANUAL , INSTRUCTION - EGNS (40B/40S)
CQX1A1419Z MANUAL , INSTRUCTION - FI (40S/40HB)
CQX1A1385Z MANUAL , INSTRUCTION - E (40DABB)
CQE1A415Z SHEET , QUICK GUIDE - 6L (40B/40S/40HB)
CQE1A416Z SHEET , QUICK GUIDE - E (40DABB)
CQE1A420Z SHEET , GUIDE MOUNT(M)
CSA1A018Z FM 1 POLE ANT
CSA1A037Z ANT , AM (40B/40S/40HB only)
CJS4M037Z CORD , 1P PIN(2150MM, RED, ANGLE)
CJS4M038Z CORD , 1P PIN(2150MM, WHITE, ANGLE)
CJS6L001Z CABLE , SUBWOOFER DIN 13P BLACK , 2M (40B/40HB/40DABB)
CJS6L002Z CABLE , SUBWOOFER DIN 13P SILVER , 2M (40S)
CMD1A689Z BRACKET, WALL NXT SPEAKER
CTB3+6FFZR SCREW
CMH1A292B38 BRACKET, WALL MAIN UNIT (40B/40S/40HB)
CMH1A292M7G5 BRACKET, WALL MAIN UNIT (40S)
CHG1A425 CUSHION, WALL
CTW3+8JR SCREW
INCLUDED ACCESSORIES
5 INCLUDEDACCESSORIES

MC-DX40/MC-DX40DAB
SKTE-SM0904006
PREPARED IN CHINA
April 2009
TEAC CORPORATION 1-47, Ochiai, Tama-shi, Tokyo 206-8530, Japan Phone: [phone]
TEAC AMERICA, INC. 7733 Telegraph Road, Montebello, California 90640 Phone: [phone]
TEAC CANADA LTD. 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada Phone: [phone]
TEAC MEXICO, S.A. De C.V
TEAC UK LIMITED Unit 19 & 20, The Courtyards, Hatters Lane, Watford, Hertfordshire, WD18 8TE, U.K. Phone: [phone]
TEAC EUROPE GmbH Bahnstrasse 12, 65205 Wiesbaden-Erbenheim, Germany Phone: [phone]
Río Churubusco 364, Colonia Del Carmen, Delegación Coyoacán, CP 04100, México DF, México Phone:[phone]

MC-DX40/MC-DX40DAB
MC-DX40/MC-DX40DAB
Micro Hi-Fi System
MAIN PCB
86 74 52 31
E
D
C
B
A
TESER1
2
SR
3BSC
4
LCS
5
6
SSV
7
8
TU
O
_V
90
1N1C
112131
IS
P1C
DNG
22XC DCL
K
A
NI_V
KLC_MORPE
E
ATAD_MORPEE
IPOD_Rx IPOD_Tx
SSVD
DVSS
SSVD
AVSS
CCVD
DVCC
DVCC
AVCC
EDOMTOOB C.N
ATAD_V_F
NI_ETOMER
N.C
HFERV
CCVD
DVCC
NI-X
TUO-X
TESER
OTI_Rx OTI_Tx
C.N
CD_BUCK
CD_BUS3
N.C
1CC5TIVC
AD_BAD
C.N
LED_POWER_ON
IS_DCL
TESER_DCL
KLC_BAD
C.N
P_DOWN
0YEK
1YEK
DVCC
CD_CCE
N.C
DSP_RST
CD_LIMIT_SW
CD_CLOSE_SW
CD_OPEN_SW
MT_STB
CD_OPEN_M
CD_CLOSE_M
HCTAL_V_F
N.C
N.C
N.C
BSC_DCL
USB_PON
KLC_V_F
N.C HP_IN
SP_ON
HP_MUTE
1TX
2TX NI_TX
TUO_TX
IPOD_DET
C.N
C.N
C.N
F_MUTE
PWR_CTL
C.N
CD_BUS2
0A
1A
2A
DNG
CCV
PW
LCS
A
DS
K2MORPEE
K652UCM
zHK867.23LAT'X
zHM72LAT'X
TRAPBAD/RENUT/UCM
DNGA
R-UT
CCV
KLC_C2I
ATAD_C2I
AL
XEV
CII
ISDR
L-UT 40TEEHS
traPRENUT
traPBAD
40TEEHS
TESERV8.1
0.5ECINEV
V2.1
V3.3
DNG
DNG
41COIPG
11B_OIPG
5AOIPG
51COIPC
1BOIPC
21AOIPC
4BOIPG
01BOIPG
ATAD2PCS
KLC2PCS
NID1S
TUOD1S
2SCIPS
41AOIPG
TESER_SYS
TUOFIDP/S
OSIM_IPS
ISOM_IPS
KLCS_IPS
KLCM_DUA
RFS_DUA
KLCS_DUA
0TUODS_DUA
DNG_A
LDUA
RDUA
10TEEHS
10TEEHS
VREFL
K7.4
NOITPO
V1 V5.1K2.8 BAD04XD-
CM BADi54XD-CM
noisreV K8.1
RUE04XD-CM V5.0 EGATLOV
252R
>.SERNOITPO<
MA/MF
1
L_UT
2
DNGA
3
R_UT
4
)V3.3(CCV
5
6ATAD_C2I
7
8
XEV
901
ISDR
K
LC_C
2
I
C
I
I
AL
91NC
81NC
L_DUA
ATAD2PCS
R_DUA0392 KLC2PCS4131 DNG4 DNG3 V3.32 V2.11
40TEEHS
ELUDOMBAD
ELUDOMRENUT
DAB MODULE
40
TEEHS 30
TEEHS
NI_ETOMER
NI_ETOMER
V3.3
DNG 1V3.3TS+
2NI_ETOMER
3DNG
02NB ROSNES
C.N:NIPrehtO*
DNG
1
2DNG3
71NC ROSNES
ISDR
ISDR
TESER
SR
BSC
LCS
IS
SSV
DDV
TUO_V
P1C
N1C
A
K
DOPI
V3.3TS+
0YEK
1YEK
DNG
DNG
SHEET 04
USB_OC
ATAD_RENUT
KLC_RENUT
IPOD_nRESET
IPOD_I2C_DATA
IPOD_I2C_CLK
AUX _IN
NI_V
OTI_RESET
LCS_DCL
N.C
AL
C.N
C.N
C.N
C.N
C.N
C.N
C.N
LCS_C2I
ADS_C2I
TESERn
CCV
1EDOM0EDOM
NOITACITNEHTUA
ylnoBADi522-XC/BADi054XD-CM
b0.2.reV
ELPPA
SUTATSLANGIS SSERDDAC2I DAERETIRW0EDOM1EDOM
01 02x0 12x0
132x022x01
NOITPOSSERDDA52CI
TUNER MODULE
11P FFC CABLE 30P WAFER
D'BDOPI
ELBACCFFP51
D'BWSPO/DEL REFAWP5
D'BDAPYEK REFAWP5
ELUDOMDCL ELBACCFFP31
D'BLC/ROSNES REFAWP3
DNGA
GND
GND
RESET
VCC
RX
TX
BOOT
1
)V3.3(CCV TESER2
3
XT
4XR5
TOOB
32NC
6
DNG
ETADPUUCM
ETADPUUCM ELBACCFFP7
20EPYT
7
DNG
WS-NEPO
W
S-
ESOLC
DNGM
WS_NEPO DNGM
DNGM WS_ESOLC4 DNGM5
TIMILTNERRUC
1
2NC D'BBSU
1
DNG
2
3
)V5(TUOV
4+D
5
6
7
DNG-D
DNG
1YEK
D'BBSU
ELBACREFAWP7
VOUT
GND
D+
GND
D-
GND
KEY1
IPOD_R
IPOD_L
VOUT
IPOD_RX
IPOD_TX
KEY1
1
2
3
4HCL_DOPI
5
6
7
8
90111
1YEK XT_DOPI
DNG
D
NG V5+ XR_DOPI
TED_DOPI HCR_TOPI DNG
2131
C-S_DOPI Y-S_DOPI
SBVC_DOPI
IPOD_CVBS
IPOD_S-C
IPOD_S-Y
IPOD_CVBS
IPOD_S-C
IPOD_S-Y
GND GND
TUOOEDIVDOPI
IPOD_DET
BADi054XD-CM BAD04XD-CM
SR_DCL
THGILKCAB REWOP
V0
LH V7.2
LV3
H
HRWP_DCL
2WS
1WS
L
SUTATS YLLUF YBTS/FLAH FFO_DCL
traPRENUT
MF
BADi522-XC
CD_CLOSE_SW_2
1
V3.3TS+
21YEK
3
DNG
41NC DAPYEK
0YEK4
5
DNG
V5.1K2.8
ylnoBADi522-XC
52423222120291817161514131211101987654321
62
72
82
92
03
13
23
33
43
53
63
73
83
93
04
14
24
34
44
54
64
74
84
94
05
15253545556575859506162636465666768696071727374757
67
77
87
97
08
18
28
38
48
58
68
78
88
98
09
19
29
39
49
59
69
79
89
99
001
12CI
X202
32.768KHz
602C
P21
702C
P21
X201
27MHz
502C
P22
40
2C
P22
R221
1M
522R
0
C201 0.1uF
R238 33
R237 33 R236 33
R235 33
R234 33
8765
4 3 2 1
22CI K2MORPEE
132R 33
032R 33
R232 3.3K R233 3.3K
R239 33
C210 0.01uF
562R 001
662R 001
C216
100P
C217
100P
362R 0
462R 0
912R
K1
GND VDD OUT
321
4
2CI C81TV5H
R
R220
10K
29 30
27 28
17 18
19 20
21 22 24
23 25
2616
1513
1412
11
10
9
8 7
6 53
4
1 2
CN18
C220
0.1uF
C256
47/25V
C218
0.1uF
C254
47/25V
nItuO
GND
3
1
2
72CI V3.3
nItuO
GND
3
1
2
62CI
V2.1
542R 0
7
4
2R 0
C202
0.1uF
C251
1000/6.3V
R217 33
R216 33
R215
100K
762R
33
862R 0
962
R0
072R 33
172R 33
272R 33
L203
60R
C221
0.1uF
C257
47/25V
102R 33
R202 0
R203 0
822R 33
722R 33
622R 33
422R 0
322R 0
222R
33
R206 0
R205
10K
R213 0 R212 0
R240
0
142R
C.N
R242
0
R214 33
442R 33
342R 33
R218 47
C214
220P
C208
100P
C209 0.1uF
C211
0.1uF
302C
Fu1.0
212C
Fu1.0
152R K01
942R
K22
052
RK22
R252
OPTION
R209 0R210 10K
R211 0
13
12
11
10
9
8
7
6
5
4
3
2
1
CN16
652
R
0
952R 0
7
52R 0
852R 0
R285 0
R284 0
R283
0
R282
0
R281
0
512C
Fu1
8
52
CV05/2.2
452R 0
352R 0
R262
10K
R261
10K
R255 10K
R204 10K
R207 10K R208 10K
R229 10K
C259
47/25V
C233
0.022u
102Q S701A 092R
001
R293
27K
R291
47K
C260
100/50V
102D
T553SS1
C222
0.01uF
R292
100K
33764R
864R 33
R466
10K
R465
10K
1 2 3 4 5
6 7 8 9
10
1112131415
16 17 18 19 20
52CI
B02DOPI211VPCIVC
R469
0
R462
1K
R461
10
R470
N.C
R463
0
R464
N.C
C234
0.1uF
R294 0
R295 0 R296 0
L204
60R
521C
C.N
73
6
5
42
132NC
43
2
1
NIV
G
LF
NE
5DNG
TUOV
33CI
CITIMILTNERRUC
R324
10K
C396
0.1uF
K001523
R
C358
10/16V
C331
0.1uF
7654321
CN21
R299
0R298
0
R297
0
54321
22NC
455C
Fu1
755C
Fu1
992C
Fu1.0
003C
Fu1.0
472R 0
202Q
HVTKTD1304T
C255
330/10V
R276
5R6
R273
6.8K
R289 10K
R286 10K
54321
CN14
321
CN17
C224
0.1uF
C262
N.C
54
3
2
1
CIcificepS
82CI F33R87AIKIV
C
C223
0.1uF
C261
47/25V
R275
N.C
54321
CN20
3 11
10
9
8
7
6
5
42
1
91NC
31
21
11
01
9
8
7
6
5
4
3
2
1
1
2
XC
302Q S701A
R260
N.C
D203
RB160L60TE25
202D
T553SS1DVC
506Q S701CRK
C213
0.1uF
R146
10K
R147
33
R287
33
R288 33
R300 33
R499
0
R320
33
R321
10K
V3.3TS+
CD_LIMIT_SW
CD_OPEN_M CD_CLOSE_M
DSP_RESET
CD_CCE
CD_BUCK
CD_BUS3
CD_BUS2
V3.3TS+
MT_STBY
L_RENUT
R_RENUT
R_BAD
L_BAD
DNG
DNG
DNG
DNG
DNG
DNG
DNG
DNG
DNG
V3.3BAD+
V2.1BAD+
AT
AD_V_F
KLC_V_F
OTI_TX OTI_RX
IPOD_TX IPOD_RX
V3.3TS+
+TUNER3.3V
V3.3RENUT+
DNG
V5NIAM+
DNG
DNG
DNG
HCTAL_V_F
HP_MUTE
PWR_CTL
V3.3TS+
F_MUTE
DNG
DNG
ISDR
AL
ATAD_RENUT
KLC_RE
NUT
DNG
V3.3TS+
V3.3TS+
DNG
TOOB
BOOT
DNG
V5CCA+
DNG
USB/IPOD_R
USB/IPOD_L
USB_PON
IPOD_DET
ISDR
SP_ON
OTI_RESET
V5TS+
V5TS+
DNG
NI_ETOMER
1YEK
0YEK
BSC_DCL
LCS_DCL
IS_DCL
TESER_DCL
KLC_RENUT
ATAD_RENUT
V3.3RENUT+
AL
HP_IN
USB_OC
LCS_D
CL
IS_DCL
BSC_DCL
TESER_DCL
DNG
0YEK
1
YEK
V3.3TS+
DNG
DNG DNGDNG
P_DOWN
V3.3TS+
V3.3UCM+
V3.3UCM+
DNG
V3.3UCM+
DNG
IPOD_NRESET IPOD_I2C_CLK IPOD_I2C_DATA
DNG
IPOD_NRESET
D
N
G
IPOD_I2C_CLK
IPOD_I2C_DATA
+MCU3.3V
A
D
_BAD
KLC_BAD
AD_BAD
V3.3
TS+ D
N
G
DNG
DNGM
D
N
G
M
CD_CLOSE_SW
CD_OPEN_SW
DNG
D
NG
DNG
USB_PON
USB_OC
V5CC
A+
D+
D-
DNG
DNG
KEY1
DNG
IPOD_RX
IPOD_TX
KEY1
SR_DCL
SR_DCL
DNGDNG
V3.3T
S+
KLC_
BAD
P_DOWN
TED_
D
OPI
V
3
.
3TS+
DNG
DNG
DNG
V5NIAM+
V3.3TS+
2WS_REMMID
1WS_REMMID
V3.3TS+ V3.3TS+
2WS_REMMID
1WS_REMMID
DNG
WS_ESOLC_DC
NI_ETOMER
WS_NE
PO_DC
DNG
USB_DETECT
USB_UPDATE
ETADPU_BSU
MOR_TXE
EDOM_PSI
AUX_IN
BADi054XD-CM BAD04XD-CM
ylnoBADi522-XC
04XD-CM ylno
