Teac MC-DX50i User manual

MC-DX50i
NOTES CONTENTS
1 SAFETY INFORMATION ........................................................ 2
2 SPECIFICATIONS ........................................................................ 3
3 ADJUSTMENT AND CHECK .............................................. 4
4 EXPLODED VIEW AND PARTS LIST........................... 5
5 PC BOARDS AND PARTS LIST ........................................ 8
6 WIRING DIAGRAM ................................................................... 18
7 INCLUDED ACCESSORIES............................................... 21
Micro Hi-Fi system
PC board shown are viewed from parts side.
The parts with no reference number or no parts number
in the exploded views are not supplied.
As regards the resistors and capacitors, refer to the
circuit diagrams contained in this manual.
Parts marked with this sign are safety critical
components. they must be replaced with identical
components - refer to the appropriate parts list and
ensure exact replacement.
Parts of [ ] mark can be used only with the version
designated.
!

2
MC-DX50i
1 SAFETY INFORMATION
Optical pickup:
Type : SF-P200Z
Manufacturer : SANYO ELECTRIC CO., LTD.
Laser output : Less than 0.5 mW on the objective lens
Wavelength : 765 - 815 nm
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

3
MC-DX50i
2 SPECIFICATIONS
AMPLIFIER section
Output Power (L+R) 5 W + 5 W
Output Power (Subwoofer) 15 W
Input Sensitivity 300 mV
Frequency Response 50 to 20,000 Hz
TUNER Section (FM)
Frequency Range 87.50 to 108.00 MHz
Sensitivity (S/N30dB) 20 dBμV/m
TUNER Section (AM)
Frequency Range 520 to 1,710 kHz
Sensitivity (S/N20dB) 54 dBμV/m
CD PLAYER Section
Frequency Response 20 to 20,000 Hz (±1 dB)
Signal-to-Noise Ratio 55 dB
Wow and Flutter Unmeasurable
SPEAKER
Type Full range flat type
Impedance 4 ohms
SUBWOOFER
Impedance 8 ohms
GENERAL
Power Requirements 120 V AC, 60 Hz
Power Consumption 80 W
Standby Power Consumption 2.5W
Dimension (W x H x D)
Main Unit 6 3/4” x 10 1/8” x 6 1/8”
(170 x 255 x 155 mm)
L & R Speakers 6” x 10 1/8” x 3 1/4”
(150 x 255 x 81 mm)
Subwoofer 6 3/8” x 9 3/4” x 11 7/8”
(160 x 245 x 300 mm)
Weight
Main Unit 2.1 lbs (1.2 kg)
L & R Speakers 1.6 lbs (640 g) each
Subwoofer 11 lbs (5.0 kg)
Standard Accessories
Standard Accessories
Remote Control Unit (RC-1185) x 1
Battery for Remote Control Unit x 1
Dock adapter x 3
(adapter 60GB (color) + Photo 40GB/60GB premounted)
Subwoofer Cable x 1
Speaker Cable x 2
FM Antenna x 1
AM Antenna x 1
Stereo mini plug cable x 1
Wall mount brackets x 2
Screw x 4
Tapered Plastic Wall Anchor x 4
Template for Wall Mounting x 2
Owner’ Manual x 1
Quick Guide for Connection x 1
Warranty Card x 1
Design and specifications are subject to change without notice.
Weight and dimensions are approximate.
Illustrations may differ slightly from production models.

4
MC-DX50i

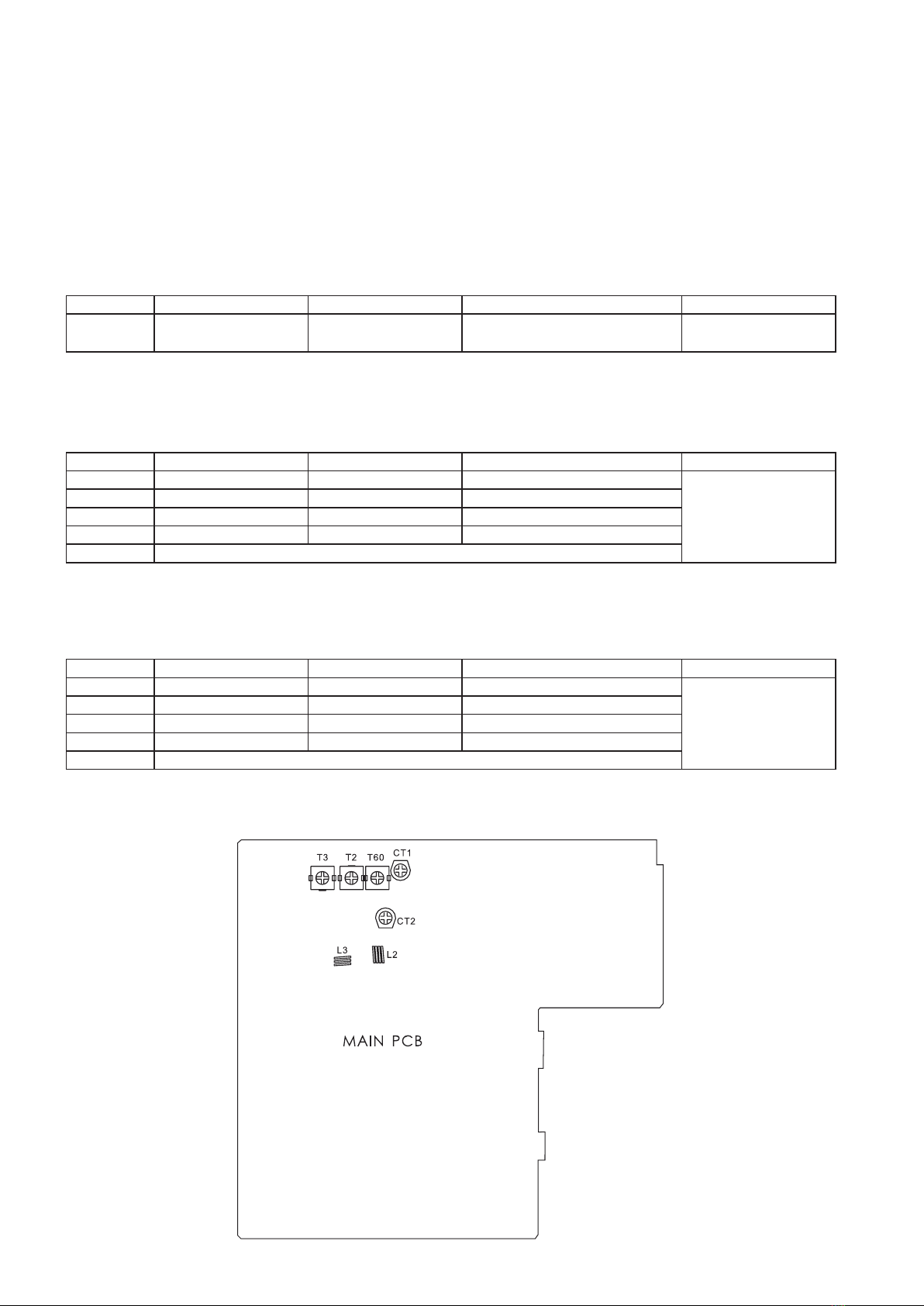

AM I.F. ALIGNMENT
1. Set the POWER BUTTON to POWER "ON".
2. Set the Radio and band button to Radio and AM BAND.
3. Connect a SWEEPSCOPE OUTPUT to AM antenna terminal.
4. Connect a SWEEPSCOPE INPUT to pin17 of IC2 through a 1uf capacitor and ground.
STEP SET SIGNAL SET DIAL ADJUST ADJUST FOR
1 4455KHz GANG OPEN T3 CENTER
&MAXIMUM OUTPUT
AM R.F. ALIGNMENT
1. Connect an RF generator to a standard radiating loop.
2. Connect a SCOPE and VTVM across the speaker output.
STEP SET SIGNAL SET DIAL ADJUST ADJUST FOR
1 515KHz GANG CLOSED L6
MAXIMUM
OUTPUT
2 1640KHz GANG OPEN PVC-D
3 600KHz 1400KHz L4
4 1400KHz 1400KHz PVC-C
5 REPEAT STEPS 3 AND 4 TO OBTAIN BEST TRACKING.
FM R.F. ALIGNMENT
1. Connect an RF generator to the FM antenna terminal and ground.
2. Connect a SCOPE & VTVM across the speaker output.
STEP SET SIGNAL SET DIAL ADJUST ADJUST FOR
1 76MHz GANG CLOSED L3
MAXIMUM
OUTPUT
2 108MHz GANG OPEN PVC-A
3 90MHz 90MHz L2
4 106MHz 1106MHz PVC-B
5 REPEAT STEPS 3 AND 4 TO OBTAIN MAX ADJUST.
CD ALIGNMENT
Auto alignment.
3 ADJUSTMENTS AND CHECKS
ALIGNMENT PROCEDURES

MC-DX50i
4 EXPLODED VIEW AND PARTS LIST
5
EXPLODED VIEW

6
MC-DX50i
REF.NO. PARTS NO. DESCRIPTION REMARKS
1 56-04DX50I00B10 FRONT CAB (HIPS) 931980 428C
2 56-05DX50I00B10 REAR CAB(HIPS) DAB 931980
3 56-07DX50I10910 BACK LIHGT BRACKET 1 (ABS) WHITE
4 56-07DX50I30910 REMOTE CONTROL INCEPT BRACKET (ABS) WHT
5 56-07DX50I40010 LOAD BRACKET (ABS)
6 56-09DX50I00B10 IPOD BRACKET BOTTOM BOARD (ABS) BLACK
7 56-09DX50I10B10 IPOD BRACKET BASE (ABS) BLACK
8 56-22DX50I00B10 CD COVER (ABS) BLACK
9 56-22DX50I20B10 POWER COVER (ABS) BLACK
10 56-33DX50I00B10 IPOD BRACKET FIXING (ABS) BLACK
11 56-54DX50I00A10 FUNCTION KNOB GROUP-1(ABS) SILVER
12 56-54DX50I10A10 FUNCTION KNOB (ABS) BLACK
13 56-54DX50I20A10 FUNCTION KNOB GROUP-2(ABS) SILVER
14 56-57DX50I30010 CD LENS (PMMA)
15 56-57DX50I10010 BACK LIGHT LENS 1 (PMMA)
16 56-57DX50I40010 STANDBY LENS (PMMA) MILK
17 56-69DX50I00000 LOADER PLATE -L(ABS)
18 56-69DX50I00100 LOADER PLATE -R(ABS)
19 56-69DX50I00200 PCB PLATE (ABS) BLACK
20 56-78DX50I00010 FUNCTION KNOB RING (ABS) ELECTROPLATE
21 57-08DM23000020 PETP PLATE
22 57-26DX50I00020 FILTER SHEET
23 57-47DX50I00020 DISPLAY LENS T=1mm (PC)
24 58-263102300120 RUBBER FOOT(BLK)(PORON) DIA10mm T=3mm
25 58-26DX50I00021 RUBBER FOOT (PORON) 16x15x3mm
26 58-58DX50100020 RUBBER PLATE 28X17X2mm
27 61-11CDX0900020 DS MTEAL PLATE
28 61-11DX50100020 WEIGHT STEEL 1 115X90mm
29 61-11EXM5M00020 METAL PLATE 9.5x5x0.8mm
30 61-30DX50I00020 KNOB COVER (ALUMINUM)
31 66-120330180121 MACHINE SCREW MS/PH 3x8mm (BLACK)
32 66-120530180121 MACHINE SCREW MS/KH 3x8mm (BLACK)
33 66-150526150321 SELF TAPPING SCREW TB/KH 2.6x5
34 66-140326160121 SELF-TAPPING SCREW TA/PH 2.6x6mm (BLACK)
35 66-140326180121 SELF-TAPPING SCREW TA/PH 2.6x8mm (BLK)
36 66-140326180321 SELF-TAPPING SCREW TA/PH 2.6x8mm
37 66-151426180321 SCREW TB/BWH 2.6x8mm HD8.5mm
38 66-140330180121 SELF-TAPPING SCREW TA/PH 3x8mm (BLACK)
39 66-140330210121 SELF-TAPPING SCREW TA/PH 3x10mm(BLACK)
40 66-140330212121 SELF-TAPPING SCREW TA/PH 3x12mm (BLACK)
41 66-140530210121 SELF-TAPPING SCREW TA/KH 3x10mm (BLACK)
42 66-140826212321 SELF-TAPPING SCREW TA/WH 2.6x12mm
43 66-141430210321 SCREW TA/WH 3x10mm HD:10mm
44 19-50DX50I00020 SPEAKER BOX UNIT-L
45 19-50DX50I00120 SPEAKER BOX UNIT-R
46 20-71DX50I00020 CD LOADER #VSH-L33C-0762L (FOR DA23SR)
47 05-DX50I0100001 PCBA-MAIN "UL"
48 05-DX50I0500000 PCBA-MCU/KEY "UL"
49 05-DX50I0800000 PCBA-IPOD "UL"
50 05-DX50I3000000 PCBA-CD "UL"
51 66-150230180123 HARDEN SCREW BTTB 3x8mm AB(BLACK)
52 67-021400000020 NUT M4mm
53 68-112403101000 METAL WASHER 4x10x1mm
54 13-05DX22I00020 LCD DISPLAY
55 PCBA-CD BACKLIGHT................................................. Included in Ref. No. 47 PCBA-MAIN.
Refer to page 8.
56 PCBA-AUX&PHONE..................................................... Included in Ref. No. 47 PCBA-MAIN.
Refer to page 8.
57 PCBA-S-VIDEO ............................................................ Included in Ref. No. 47 PCBA-MAIN.
Refer to page 8.
58 PCBA-RESET................................................................ Included in Ref. No. 47 PCBA-MAIN.
Refer to page 8.
EXPLODED VIEW PARTS LIST

7
MC-DX50i
59 41-172111000310 POWER SWITCH
60 45-114180310061 AC POWER CORD
61 05-DX32I0300000 PCBA-STANDBY -120V
62 05-DX50I0700000 PCBA-SUB POWER
63 05-DX50I0810000 PCBA-RCA/D-S JACK
64 18-203DX0150120 H/TRANSFORMER EI66 120V 60Hz TU0000700
65 190021153300120 SPEAKER5.25"8Ω30W#JHD-SA130-12
66 43-500000002020 AC CORD BUSHING T=1.6mm #4N4
67 48-16DX50100220 SUBWOOFER LED PCB
68 56-22CDX0908000 PCB COVER (ABS)
69 56-78CD10I0B000 SAFEGUARD RING/SUB (ABS)
70 56-85DX50I00B10 AKER BOX PANEL (HIPS) 931980 428C
71 56-87CDX090B000 PLASTIC TUBE (ABS)
72 56-87DX50I00010 LED COVER (PMMA) MILK
73 58-263253150020 RUBBER FOOT (PORON) DIA25mm T=15mm
74 58-58DX01500320 CUSHION (EVA) 106x40x1mm
75 58-58DX02500020 CIRCLE CUSHION DIA(60+35)x1.5mm
76 58-73DX50I00000 WOODEN BOX
77 61-11V600000020 PCB BRACKET
78 61-11V820010020 PCB FIX BRACKET (B) (T0.8mm) #DV-8200
79 61-33DX50I00020 SUB.REAR PANEL 120V "TEAC"
80 61-48DX01500020 HEATSINK A
81 66-120230160121 MACHINE SCREW MS/BH 3x6mm (BLACK)
82 66-120240212121 MACHINE SCREW MS/BH 4x12mm (BLACK)
83 66-140230210321 SELF-TAPPING SCREW TA/BH 3x10mm
84 66-140230212121 SELF-TAPPING SCREW TA/BH 3x12mm(BLACK)
85 66-140230214121 SELF-TAPPING SCREW TA/BH 3x14mm(BLACK)
86 66-141430214121 SCREW TA/BWH 3x14mm(HEAD 10mm)(BLACK)
EXPLODED VIEW PARTS LIST
REF.NO. PARTS NO. DESCRIPTION REMARKS

8
MC-DX50i

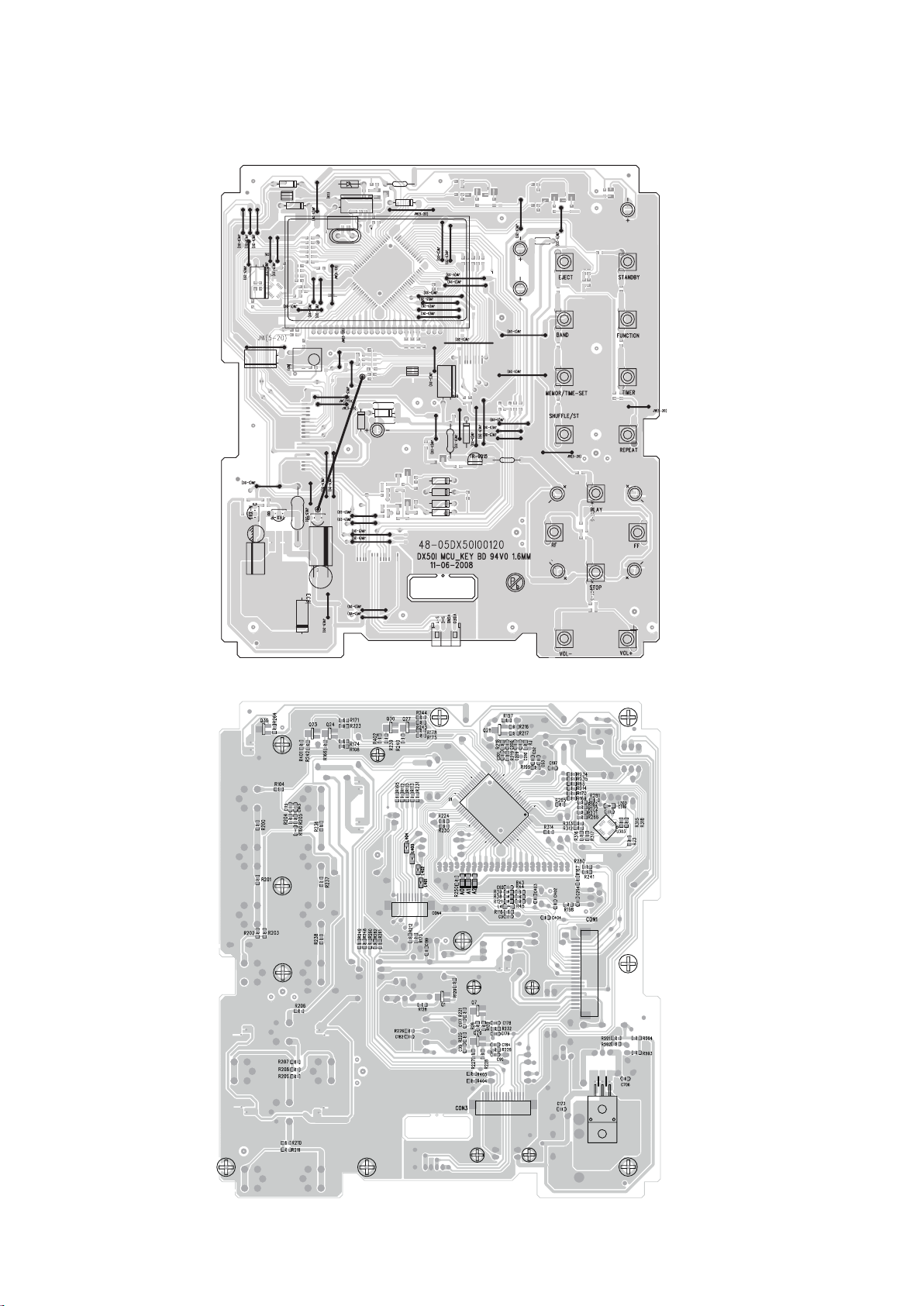

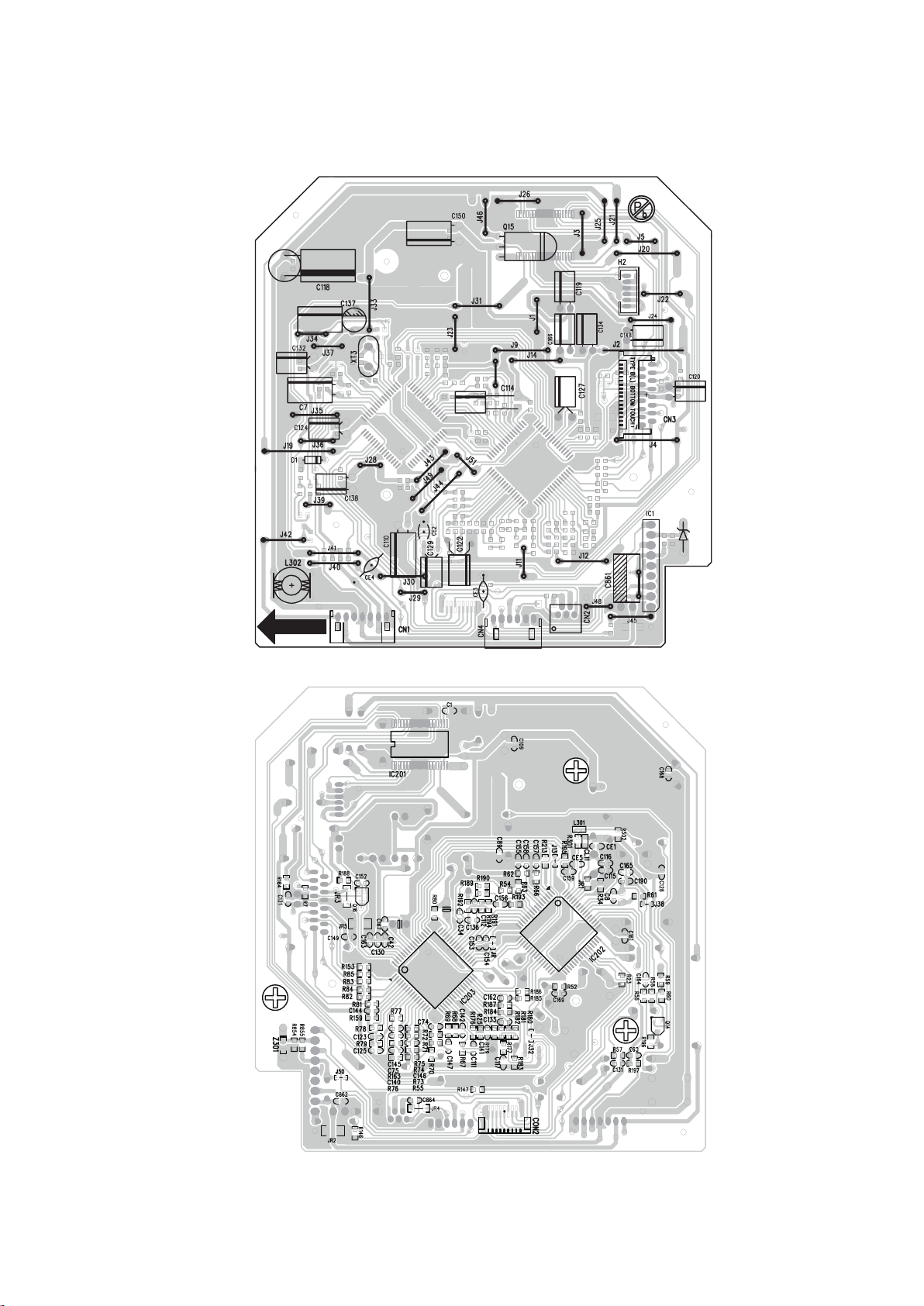

5 PC BOARDS AND PARTS LIST
CD BACKLIGHT PCB
AUX&PHONE PCB
S-VIDEO PCB
RESET PCB
MAIN PCB
MAIN PCB
CD BACKLIGHT PCB
AUX&PHONE PCB
S-VIDEO PCB
RESET PCB
MAIN PCB

9
MC-DX50i
REF.NO. PARTS NO. DESCRIPTION REMARKS
05-DX50I0100001 PCBA-MAIN "UL"
48-01DX50I00121 MAIN/AUX/REST/LED PCB 94V0 141X132x1.6mm
CF1 31-038107020120 DISCRIMINATOR FILTER JT10.7MG46-A (2PIN)
CF2 31-028107000210 CERAMIC FILTER LT10.7MA5-A(3PIN) RED
CF3 31-026450010110 CERAMIC FILTER (MURATA) SFU450B
CT1 27-501602202020 TRIMMER 20PF 6mm (RED)
CT2 27-501602101020 TRIMMER 10PF 6mm (WH)
D7,8,151,18,19,21, 12-BAS316000021 SMD DIODE BAS316 (319801010630)
D201,402,601
D301,305 12-RL2020000021 RECTIFIER DIODE RL-202 2A 100V
D403,404 12-SS1400000025 SMD DIODE SS14 SMA/DO-214AC
IC4 16-TC9257F00021 IC (TOSHIBA) TC9257FG
IC5 16-UE1823D00021 IC UE1823D SDIP24
IC703 16-NJM4556AM021 CHIP IC (NJRC) NJM4556AM (932207733685)
L2 40-351500125020 FM COIL 5x2.5T (0.8mm)
L3,5 40-351500135020 FM COIL 5x3.5T (0.8mm)
L9,10 38-013100050220 AXIAL INDUCTOR 10UH +-10% 500mA EC-36
JK1 43-421000003120 COAXIAL JACK IF-01
Q206,207,208, 11-PMBT39040021 SMD TRANSISTORS PMBT3904 SOT23 (PHILIPS)
Q302,304
Q401 11-8050C0000025 TRANSISTORS 2W 8050C (TAPING)
Q4,5,8 11-9018G0000021 TRANSISTORS 9018G
Q601 11-PMBT39060021 SMD TRANSISTORS PMBT3906 SOT23 (PHILIPS)
Q602,603 11-2SD1936T0125 TRANSISTORS 2SD1936T-AC (SANYO) (TAPING)
Q703,704 11-B772Y0000121 TRANSISTORS B772Y (160-320)(TO-126C)
Q712 11-8550C0000025 TRANSISTORS 2W 8550C (TAPING)
T2 40-02660R002020 I.F.T 7mm 660R (RED)
T3 40-02A049004020 I.F.T 7mm A049 (YELLOW)
T60 40-023120000020 I.F.T 7mm 312A (BLACK)
U001 16-UTC780800121 IC UTC7808(TO-220) (1.5A)
U1 16-ET2314000021 IC (ETEK) ET2314 (SOP28)
U201 16-LM78L0500121 IC (LIBERAL) LM78L05 (933510720676)
U301 16-UTC781000021 IC UTC7810 (TO-220) (1.5A)
U603 16-LM324D000021 IC SM LM324D (933984860668)
VD1,2 12-V14900000021 VARICAP DIODE V149
VD3,4 12-V10100000021 VARICAP DIODE V101
X201 31-017720002020 CRYSTAL 49/U 7.2MHZ +-30PPM
ZD3 12-011620320121 ZENER DIODE +-5% 6.2V 1/2W
48-16DX50i10120 CD BACKLIGHT PCB
LED1,2,3,4 13-011206322020 LED LAMP 2x4x4mm(S.BLUE)1L2445B12E0CJ001
48-09DX50i00220 AUX&PHONE PCB
L1,409,412,901 38-013100060220 CHIP INDUCTOR 10UH 1.15 OHM (0805)
AUX1 43-431350012120 PHONE JACK 3.5mm TC38-399-51-01BLK+METAL
HEADPHONE1 43-431360004120 PHONE JACK 3. mmTC-38-399-05-01BLK+METAL
48-10DX50i00120 S-VIDEO PCB
L905,90 ,907 38-012220050120 CHIP INDUCTOR 2.2UH +-10% (1 08)
JK2 43-451100014020 RCA JACK 1P (YELLOW) RJ1P070044-44-0
JK3 43-462103000120 D-S TERMINAL #DS-15
CN-DC1 43-462103003321 D-S TERMINAL #DSW-31 R1
48-23DX50i00120 RESET PCB
SW801 41-180010000020 PUSH SWITCH 7x7mm PS-2203-F(W/O LOCK)
MAIN PCB ASSY PARTS LIST

10
MC-DX50i
MCU/KEY PCB
