Team Beharbros TORO Dual Video Box User manual

ADVANCED VIDEO BOX
FOR THE SEGA DREAMCAST
INSTRUCTION MANUAL
Thank you very much for purchasing this product and supporting the legendary Dreamcast console.
Please read this manual before use and retain it for future reference.
1

Introduction
Toro is a Dreamcast video box with multiple video outputs. It has both VG and Euro Scart
connectors to output RGBS(composite sync) and RGBHV for maximum compatibility with displays
and upscalers. So you can play both RGB Scart and VG compatible games. Like the Hanzo it's a
built-in Scanline Generator to add scanlines. Basically it's a combination of Hanzo and Kenzei with
less features like RC RGBS outputs, scanline thickness selection, scart/rca video pass-through
function.
This product is designed and manufactured by Team Beharbros, Dreamcast is a trademark of Sega
Enterprises Ltd.
2

Specific tions
1. Supports resolutions up to 480i/480p.
2. RGB/VG switch to select the 15khz RGB mode or the 31khz VG mode.
3. VG female connector (HD15) for connecting to your video display.
4. Euro Scart connector for connecting to your TV or upscaler. Supports 480i & 480p.
5. High quality Stereo RC audio output jacks for plugging to a Hi-Fi system(amplifier) or TV.
6. Scanliner ON/OFF switch to turn it on or off.
7. Scanliner Even/Odd switch for selecting even or odd scanlines.
8. Sync combiner circuit to output CSYNC (composite sync) through Scart or VG connector.
9. Push button to select video sync output mode for the VG : H&V SYNCs or CSYNC alone.
10. Luminosity adjustment as a bonus feature.
11. Blue power led.
12. High quality custom made Dreamcast audio/video cable.
13. Durable plexi case with laser etched TORO logo.
14. Small form factor: 2.9x2.9x0.78 inches or 7.5x7.5x2 cms, around 100 grams or 3.5 ounces.
P rts

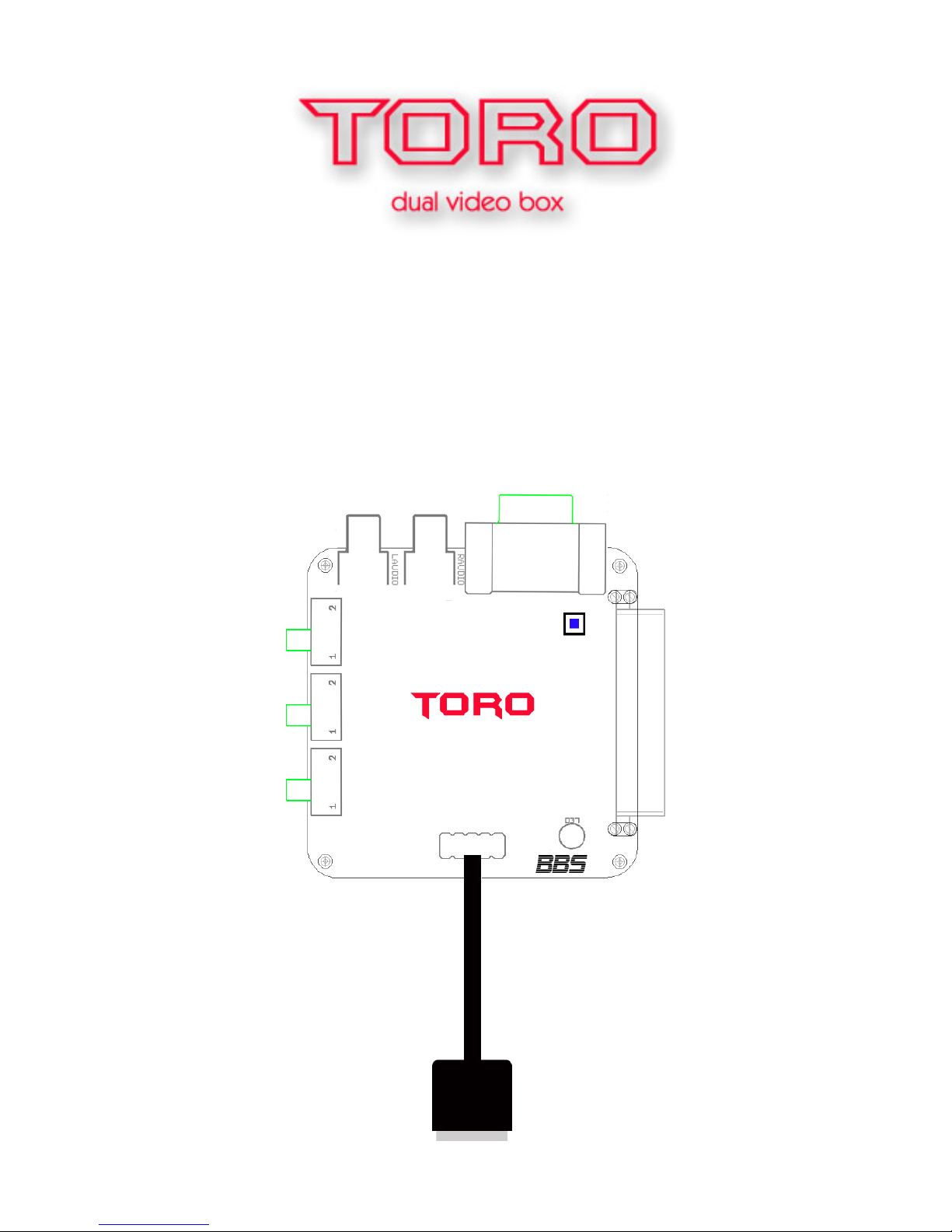

* Parts list as figured on the 2nd page.
1. Dreamcast V plug
2. Dreamcast V cable
3. Female VG port (HD15) for video output, RGBHV or RGBS
4. Right udio output jack.
5. Left udio output jack.
6. Euro Scart connector for audio/video output, RGBS (with CSYNC)
7. VG /RGB mode select switch. (15/31khz)
8. Scanliner feature ON/OFF switch to turn it on or off.
9. Scanliner Even/Odd Select switch for selecting even or odd scanlines.
10. Push button for video sync output mode selection for the VG connector. (RGBHV or RGBS)
11. Blue power led
3

PRIMARY INSTRUCTIONS
1. Make sure your TV and Dreamcast is turned off
2. Connect your Toro’s Dreamcast V plug (1) to your console’s V port on the back.
3. Connect your VG cable (male to male, not included) between your Toro (3) and your display
(plasma, LCD, monitor etc.) You can also plug Toro to your upscaler or TV via Euro Scart
connector. Scart can deliver both video and stereo audio signals. Standard TVs don’t support
480p through Scart, so you need to set it to 480i (RGB mode) before using. You can enjoy the
480p / RGBS mode with upscalers like the XRGB Mini.
4. Connect your RC audio cables to your Toro (4 & 5). You can get stereo sound from your TV
or an amplifier for a better gaming experience. You should turn off your stereo system
(amplifier) before connecting your cables to eliminate the risk of damaging your speakers.
5. djust the settings (RGB, sync mode/scanlines) you prefer by the help of switches.
6. Turn on your TV and Dreamcast (amplifier too) and enjoy your VG box with different
settings.
4

SETTINGS
RGB MODE
RGB mode can be set by the help of RGB/VG Switch (7). When it’s in position 1, it displays 15khz
RGB video, or 480i. If you change it to position 2, it will display 31khz VG video or 480p. Some
games are not compatible with the VG mode, and the console checks the type of cable plugged
while booting, so it refuses to boot if the game doesn't support the VG mode. To eliminate this
problem you can trick the console while booting(after the beep sound) by switching to position 2
(VG mode). This can work on most of the games, however some games still may not support it,
please check the incompatibility list on the web.
SCANLINES ON/OFF
Scanliner function can be turned on or off by the ON/OFF switch (8). When it’s in position 2,
scanlines will be displayed, when it’s switched to position 1, scanlines won’t be displayed.
This feature can be used on the fly, however it’s recommended to do it while the console is turned
off.
EVEN / ODD SCANLINES
EVEN/ODD switch (9) is used for selecting either even scanlines to be displayed or odd ones
according to your preferences.
VIDEO SYNC MODE SELECTION
Sync mode on the VG connector can be selected by a push button (10) on the board. You need to
remove the 4 screws on top cover to be able to reach this button. You can choose CSYNC (for RGBS)
by pushing the button, when it latches, it will output CSYNC. When you push it again, by releasing
the button, it will output RGBHV through the VG connector.
BONUS MODE : LUMINOSITY ADJUSTMENT
s a bonus feature, while the EVEN/ODD switch is set to position 1, and the scanlines are turned off
(position 1) Toro can display a darker image without scanlines and when the EVEN/ODD switch is set
to position 2 again, it will display in its normal brightness.
5

WARRANTY
ll our products are handmade using high quality imported components. Every component is tested
multiple times and chosen carefully for its longevity. When it’s totally assembled and ready to use,
we test it again for enough time before shipping it. However sometimes malfunctions can be occured
because of the workmanship or human errors by usage. We warrant our products to be free of
defects in materials and workmanship that result in failure during normal usage for 1 year. In case of
a malfunction, we advise you to consult us before trying to repair or replace any component. You can
send it back for repair or replacement. However you are free to modify your Toro, this doesn’t end its
warranty. fter this duration we will still keep standing back of our products, even they are
discontinued. Because your satisfaction is too important for us.
THANKS
SEG , for creating this awesome console!
ll the Dreamcast scene supporting this legendary console from the day one :
sites, modders, everyone...
Our friends and family for always believing and supporting us.
This product is designed and manufactured by Team Beharbros, Dreamcast is a trademark of Sega
Enterprises Ltd.
