NEUTRIK NAC3MX-W Product guide

Page 1BDA 380
NAC3MX-W powerCON TRUE1
|
R
OPERATING & ASSEMBLY INSTRUCTION
20
250
P S
EJET
16
250
20
250
NAC 3M X-W
Place the chuck over
the cable.
Prepare the cable as
shown.
D
B. ASSEMBLY INSTRUCTION
A. OPERATING INSTRUCTION
[0.32"]
8 mm
[0.787”]
20 mm
[0.9”]
PE 23 mm
Separate the housing
from the bushing (cable
remain in bushing)
B
C
20
250
P S
EJET
16
250
20
250
NA C3 MX-W
Approval based:
Rating:
Cable Type:
Strain Relief:
Cable O.D.:
VDE
EN 60320-1/EN60320-2-2
250 V ac / 16 A
2
H05VV-F3G 1.0 mm , Length max. 2 m
2
H05VV-F3G 1.5 - 2.5 mm
2
H07RN-F3G 1.5 mm
White chuck
6.0 - 12.0 mm
UL
UL 498 / CSA C22.2 No. 182.3
250 V ac / 20 A
SJTOW, SJOOW 3 x 12 AWG
White chuck
6.0 - 12.0 mm
C
[0.32"]
8 mm
[0.787”]
20 mm
[0.9”]
PE 23 mm
VDE (EN 60320-1/EN60320-2-2) UL (UL 498 / CSA C22.2 No. 182.3)
40 - 50 mm
Recommendation:
Wire Pulling Lubricant - LUB-I/0.95
TM
from 3M
i
AInsert cable into the bushing and housing.
Note: “Apply cable pulling
lubricant to cable jacket.”
Connector Assignment: APPLIANCE
APPLIANCE INLET APPLIANCE OUTLET INLET OUTLET
COMBINATION
NAC3PX
NAC3MPX NAC3FPX
NAC3FPX-ST
20
250
P S
EJET
20
250
P S
EJET
16
250
20
250
NAC 3MX-W
20
250
P S
EJET
16
250
20
250
NAC3 MX-W
20
250
P S
EJET
Power IN
Power OUT
Power OUT
Power IN
NAC3MX-W
(Plug connector)

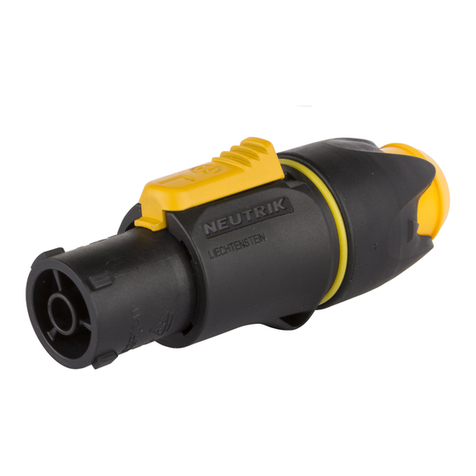

NAC3FX-W
(Connector)
NAC3FX-W
(Connector)
NAC3MX-W
(Plug connector)
Application:
The powerCON TRUE1 system is certified as a connector with breaking capacity according
IEC 60320, VDE 0625. It is intended for use as an appliance coupler and interconnection coupler.
It serves to supply power to an appliance and from an appliance to other equipment.
To be installed by qualified person only.

ASSEMBLY INSTRUCTION powerCON TRUE1
I
R
20
250
P S
EJET
16
250
20
250
NAC 3MX-W
20
250
P S
EJET
16
250
20
250
NAC 3MX-W
Torque Value 0.7 Nm
5.
Torque Value 2.0Nm
PRESS FIRMLY
Torx size
T8
1.
2.
4.
Wrench size
13 mm
6.
3.
Important:
Push and turn simultaneously.
FOR DISASSEMBLY - OPEN TWIST LOCK!
1. Press with screw driver to unlock
2. Turn bushing 360°.
3. Repat step 1 + 2 until bushing is unscrewed.
1.
2.
CAUTION
To ensure protection
category, do not expose the
connection to bending forces
(e.g. do not attach loads to
the cable, no free-dangling
cable windings etc.).
LIECHTENSTEIN
20
250
P S
EJET
G
E
F
Important:
Align rubber key
and latch.
Insert the wires into the terminals and fasten the
screw with Torx size T8.
Wiring VDE UL
L brown blackÞ
N blue whiteÞ
green / yellow greenÞ
Slide the chuck onto the insert (1) and then both
together into housing (2).
Important: Align the chuck and insert by
positioning the nose into the keyway.
Slide the bushing up the cable and tighten it with
the tool as shown.
Important: Yellow O-ring to hide to achieve IP
protection (6).
(Tool available: Art. No. HTAC)
FORCE
Draft. Nr.: BDA 380 Update: 21.12.2017 Data subject to change without prior notice. 2017 NEUTRIK . ALL RIGHTS RESERVED. NEUTRIK and powerCON is a registered trademark.
I I ® ® ®
©
NEUTRIK AG LI T: +423 / 237 24 24 F: +423 / 232 53 93
NEUTRIK USA Inc. USA T: +1 704 / 972 3050 F: +1 704 / 438 9202
( )
NEUTRIK UK Ltd. UK T: +44 1983 / 811 441 F: +44 1983 / 811 439
NEUTRIK Vertriebs GmbH DE / NL / AT/DK T: +49 8131 / 280 890 F: +49 8131 / 280 830
NEUTRIK France FR T: +33 1 / 4131 6750 F: +33 1 / 4131 0511
NEUTRIK Tokyo Ltd. JP T: +81 3 / 3663 4733 F: +81 3 / 3663 4796
NEUTRIK Hong Kong Ltd. HK T: +852 / 2687 6055 F: +852 / 2687 6052
NEUTRIK India Pvt. Ltd. IND T: +91 / 982 05 43 424 F: +91 / 22 26163 540
SAFETY WARNING
For safety and certification reasons the connector must be
replaced in case of any broken parts or excessive wear and tear.
