Teba TP-10 User manual

Installation & Manuals
Pellet Stove
Model TP-10
Tested according to DIN EN 13240
Tip BA 1
Please, see enclosed declaration of conformity for
efficiency and emission
TR

2
Contents
1.0 Introduction 3-4
2.0 General Information 5
2.1 Safety 5
2.2 Safety Distances(minimum distance) 5-6-7
3.0 Installation and Connections 8
3.1 Electricity 8
3.2 Chimney Connection 8
4.0 Control Panel 8
4.1 Buttons& Leds 9
4.2 Display 9
4.3 Errors 9
4.4 Menu 10
4.4.1 Combustion(Working) Power Menu 10
4.4.2 Heating Power Menu 10
4.4.3 Working Thermostat Menu 10
4.4.4 Chrono Menu 10
4.4.4.1 Activation 10
4.4.4.2 Programming 10-11
4.4.5 Clock Menu 11
4.4.6 Calibration Menu 11
4.4.7 Radio Controller Menu 11
4.4.8 Pellet Manual LoadingMenu 12
4.4.9 Language Menu 12
4.4.10 Board Menu 12
4.4.10.1 Learn Menu 12
4.4.10.2 Regulation Contrast 12
4.4.10.3 Regulation Minimum Light 12
4.4.11 System Menu 12
5.0 Stove Work Principles 12
5.1 Suitable Fuel 13
5.2 Cleaning and Maintenance 14
6.0 General Warranty 15
6.1 Warranty Policies 15
6.2 Complaints 15
7.0 Informations to Order Spare Parts 15

3
Pellet stoves which is environment friendly and provide comfortable and easy-to-use interior
aqueous and dry system, have taken place of dry stoves which used in Turkey and over the World.
Pellet stoves is used to heat some areas like homes, work places…etc. These are heating units that
combine pleasure with fireplace view, comfort with its efficiency and fuel save.
In this context, as a result, on all test in our manufacturing plant since 2011, first air and hydro pellet
stoves (which are automatical, and work with pellet fuel that is renewable energy source) are
produced. And we got %90 efficiency. In 2014, we started to sell in Turkey and abroad by producing
all capacity.
You have a pellet stove with European Standarts Quality Certificate.
Please Read Carefully the user manual. Product functions and easy-to-use informations are described
in the manual.
Use of these informations increases product quality and extend its life. Also fuel saves can be made
with a correct combustion thus protect the environment.
Warranty of the product depends on the right use of installation and instructions as described in the
guide.
We advice you to hide the guide in order to reach to necessary descriptions of the stove every winter.
1.0 Introduction
Consumption of Pellet (environmental fuel) that is preferred by all European countries
It has no risk for poisoning since it doesn’t contain carbon monoxide
Electronical control system
Automatical ignition
To set-up of combustion speed at 5 stage
To keep the boiler water temperature at a requested temperature
Remote Control system
To blow air
To control by room thermostat
It provides easy and comfortable using with these features
Fan and thermostat are keeped inside the stoves

4

5
2.0 General Informations
All required standart examinations have been made for your product. Predicted parameters
associated with combustion efficiency and exhaust gas emissions are observed. The conformity of the
product described in this manual was tested in IMQ Primacontrol Laboratory
Pellet stoves provide comfortable and easy use through blowing hot air to ambient and fireplace
view.
Pellet stove is a full automatic device. Switch, sensor and similar parts are located inside the stove
safely.
Pellet stove provides to ignition through resistance, loading fuel through auger and reductor, also
blowing and emission of chimney through fans.
2.1 Safety
Product assembly must be installed by authorized person.
Before installing stove, lifting capacity of the installation ground should be checked whether it is
resistant for stove. In case of low resistance or low lifting capacity, suitable precautions must be
taken.(for example a stove lifting plate must be put) If the floor stove installed is flammable or heat-
sensitive, you should place the product on a protection plate floor (marble or glass substrate).
You should care about air condition for the area stove is installed.
The stove can be used with multiple chimney system.
Chimney can be given outside directly according to place of stove. Or can be connected to available
chimney in short distance.
Our company is not responsible for the problems that can occur because of this.
Prefer quality pellet to obtain heat efficiency and to make life of device long. Don’t use wet or moist
pellet, shavings, wood or coal…etc.
Pellet stove shouldn’t be installed in an area like bathroom, cellar, coal-hole since the stove designed
for indoors.

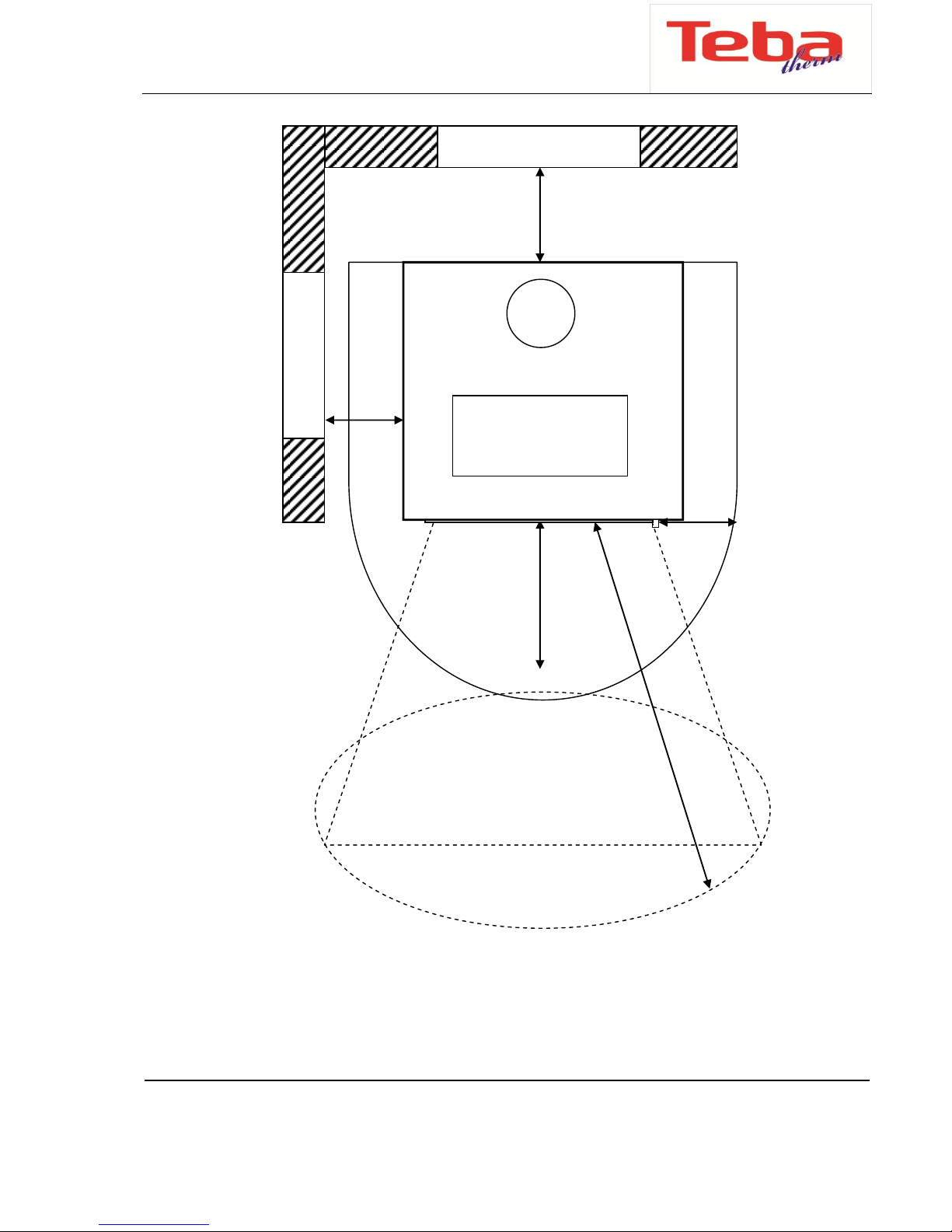

2.2 Safety Distances(minimum distance)
While installing the stove, fire regulations and chimney’s instructions must be complied. For any
related questions please ask chimney provider. Flammable or heat-sensitive materials (furniture,
wallpaper, wood paneling) minimum distances must be complied with (see diagram below):
A20 cm from back wall
B20 cm from lateral Wall and

6
C 80cm from radiation area
In the radiation field of the flame monitor cover (C), at 80 cm distance, combustible materials and
furniture should notbe placed.
This distance can be reduced to 40cm when the protection panel which inhibits the passage of heat is
put between stove and combustible materials.
Minimum distance combustible materials and furnitureis stated on the product label and must not be
exceeded.If the floor stove installed is flammable or heat-sensitive, you should place the product on a
protection plate floor (marble or glass substrate).
In this case minimum dimensions of stove bottom plate( look at drawing)
D 50cm ( front lenght)
E 30cm (lateral lenght of inner egde of fire chamber cover)

7
A
B
BACK WALL
LATERAL WALL
D
FLOOR PROTECTION PLATE
RADIATION AREA
C
E
You can order floor protection plate from seller when you require.

8
3.0 Installation and Connection
Product assembly must be installed by authorized person.
Pellet stove is a full automatic device. Switch, sensor and similar parts are located inside the stove
safely.
3.1. Electricity
Electricity system should be 220V-230V/50Hz. Our company is not responsible for any problem which
occur in case sudden low or high volt.
Note: Keep plug of device on outlet during summer-winter.

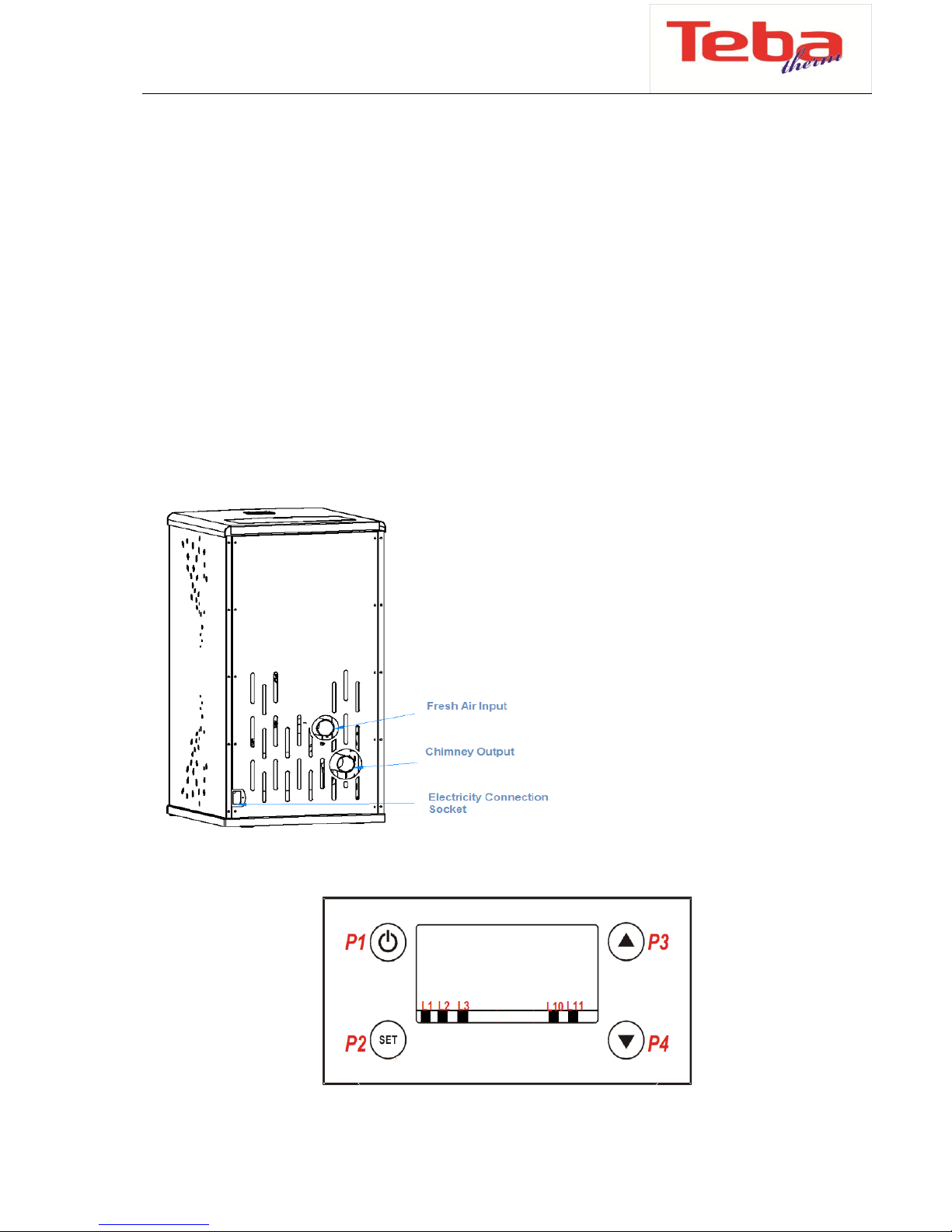

3.2. Chimney Connection
We advice steel chimney pipe for chimney connections. Pellet stove can be connected to multiple
chimney. Chimney can be given outside directly according to place of stove. Or can be connected
available chimney in short distance.
4.0 Control Panel

9
4.1 Buttons& Leds
Buttons
Leds
4.2 Dısplay
The main display shows; date, hours, chrono activation, combustion power, heating power,
functioning state, possible error code, main temperature and main thermostat.
4.3 Errors

10
4.4 Menu
Push P2 button to enter in the User Menu
Using P3 and P4 buttons it is possible to select the desired Menu or Submenu. Push P2 button to
enter in desired Menu or Submenu.
To decrease or increase value push the buttons P3 or P4; to save the new vale push the button P2; to
cancel the modifies and restore the old parameter’s value push the button P1.
If a parameter value is changed, the new value is sent to the control board; if the transmission
failures appears the message “Transfer not successful”: in this case modify again the parameter’s
value.

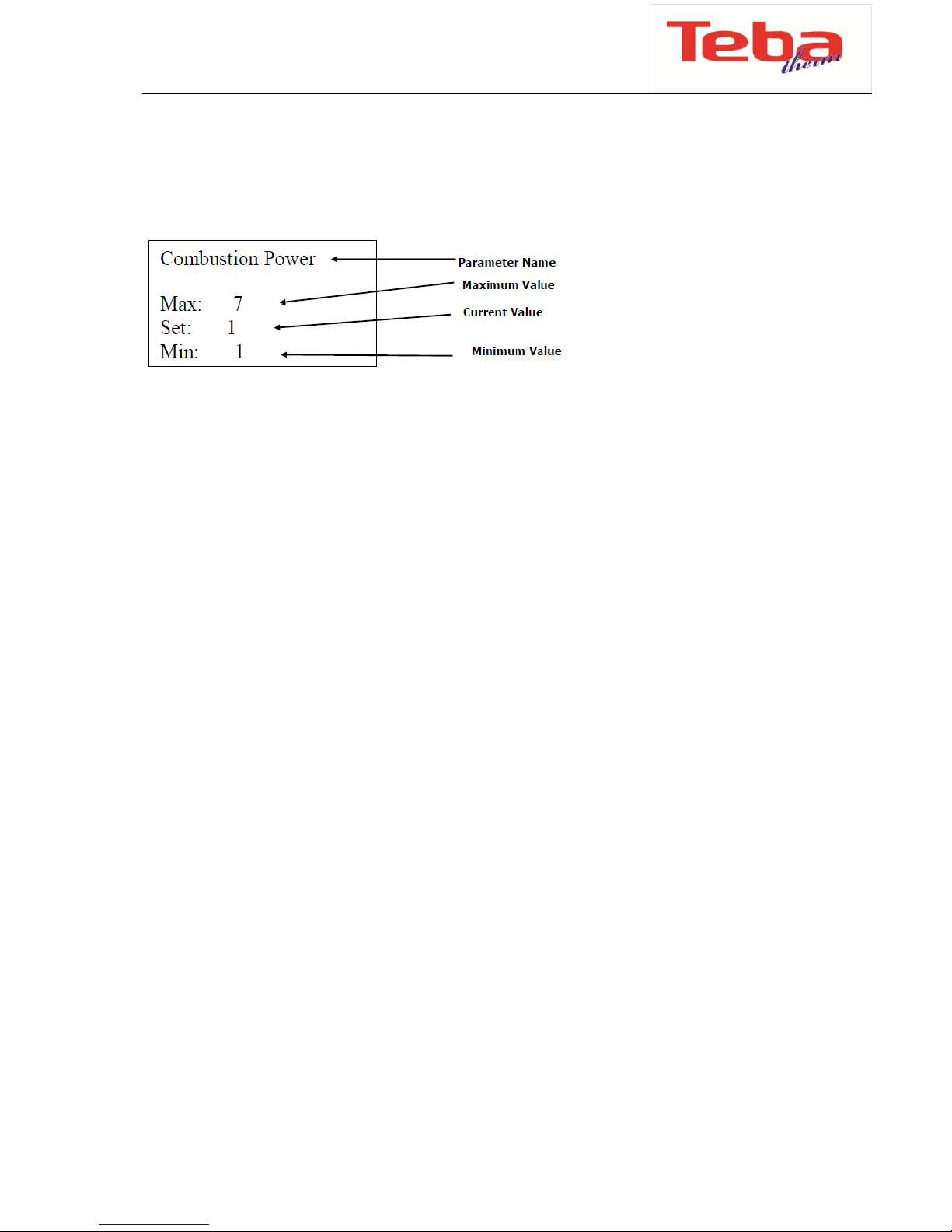

4.4.1 Combustion(Working) Power Menu
In this menu is possible to modify the combustion power of the system. It can be set in modality
automatic or manual. In
the first case the system chooses the combustion power. In the second case the user selects the
desired power.
On the left side of the Display are signalled the combustion modality (A=automatic combustion,
M=manual combustion)
and the working power of the system.
4.4.2 Heating Power Menu
In this menu is possible to modify the heating power. It can be set in modality automatic or manual. In
the first caIf the
system chooses the combustion power. In the second case the user selects the desired power.
On the left side of the Display are signalled the heating modality (A=automatic, M=manual) and the
related power.
4.4.3 Working Thermostat Menu
Menu used to modify the value of the main thermostat
4.4.4 Chrono Menu
Used to program and activate the ignitions/extinguishing of the system.
4.4.4.1 Activation
Used to activate or deactivate the set programs.

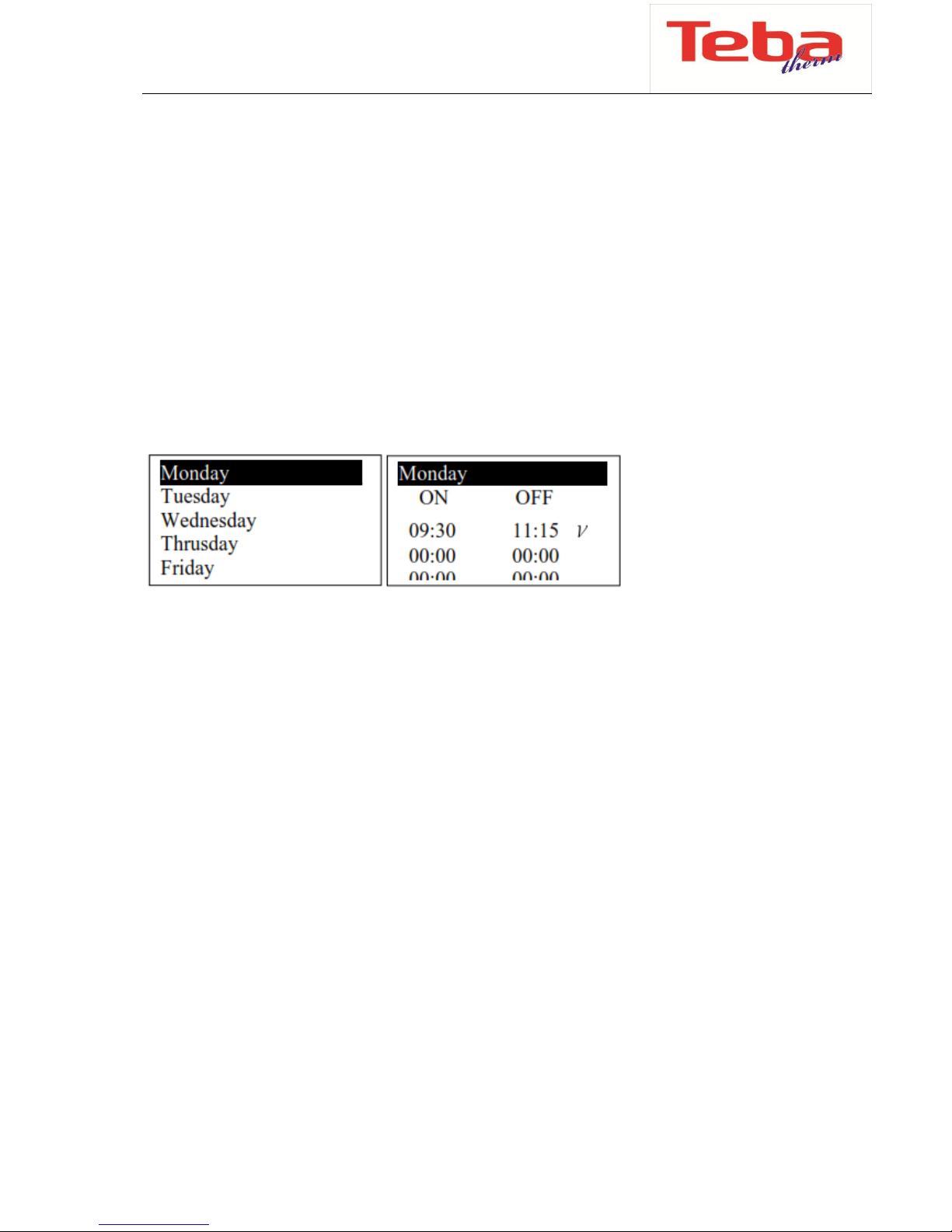

4.4.4.2 Programming
Select the day of the week to program and set the ignition and extinguishing

11
times. The procedure to follow is this:
Select the time to program with buttons P3 or P4
Enter the modality modify (the selected time blinks) with button P2
Modify the times with button P3 or P4
Save with button P2
Activate (appears “V”) or deactivate the time band (there is no “V”)
pushing the button P2
Programs around midnight
Set the clock On of the previous day at the desired time: Ex. 20.30
Set the clock of OFF of the previous day at: 23:59
Set the clock On of the following day at 00:00
Set the clock of OFF of the following day at the desired time: Ex. 6:30
The system turns on at 20.30 on Tuesday and turns off at 6.30 on Wednesday
4.4.5 ClockMenu
Used to set the day, month, year, current time.
4.4.6 CalibrationMenu
It allows to modify the value set in firm of the Comburent fan speed and the On
times of the Auger.
The values are in the range –7 ÷ 7. The value from firm is ‘0’
4.4.7 Radio ControllerMenu
Menu used to activate or deactivate the radio control functioning.
Radio Command Buttons
Button 1 activates extinguishing. Button 2 activates ignition.
Button 3 or 4 decrease/increase the combustion power.
Change code
On radio controller:
Open the battery case sliding the cover towards right
Modify the configuration of the internal dip-switch and close
On the controller:
Switch OFF the power supply

12
Switch ON the Power Supply pressing at the same time one button on the
Remote Control waiting about 5 seconds until an acoustic signal is
emitted confirming the code learned
4.4.8 Pellet Manual Loading
The procedure activates the Pellet manual loading with activation in continue
modality of the Auger engine.
The loading is stopped automatically after 600 seconds.
The system must be OFF for the function can be activated.
4.4.9 Language Menu
Menu to modify the language of the LCD board. The highlighted is the language in use.
4.4.10 Board Menu
4.4.10.1 Learn Menu
It allows to update the Menu of the control board. This operation is notreversible. The menu learning
is protected by the system’s 4 digit password.
4.4.10.2 Regulation Contrast
Menu used to regulate the display contrast.
4.4.10.3 Regulation Minimum Light
Menu used to regulate the lighting of the display when the command aren’t us
4.4.11 System Menu
THIS MENU IS FOR AUTORIZED PERSON.
5.0 Stove Work Principles
Only adults should use stoves. Children should not stay alone and close to stove. Stoves should only
be used according to this manual. Safety instructions described in section 2.1 should be followed.

13

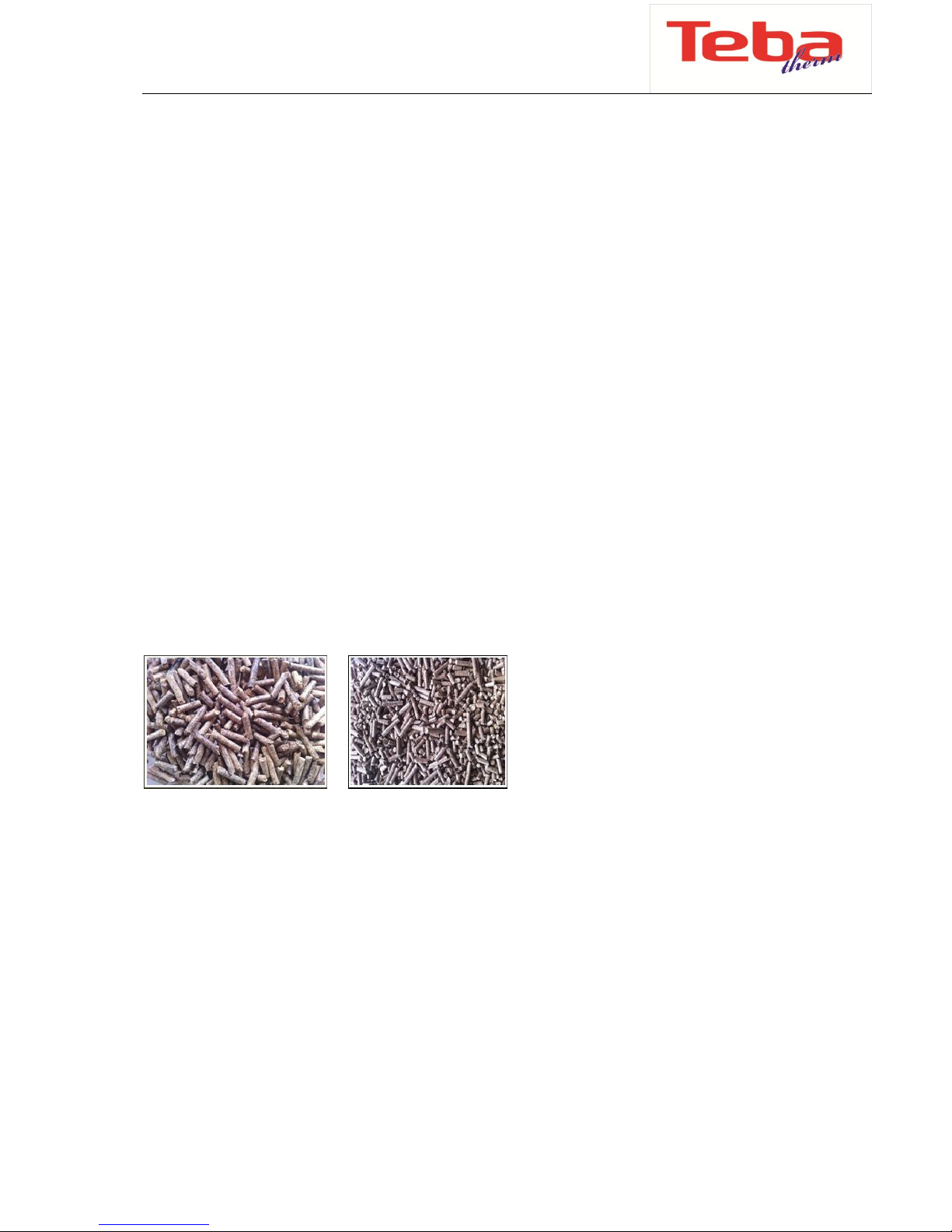

5.1 Suitable Fuels
Pellet is a solid fuel which is obtained by compressing wood wastes at high pressure after drying,
grinding and making shavings and diameter of pellet 6-8 mm.
Wood pellet contains approximately 7-12% moisture. Its calorie higher than wood since its moisture
rate is low.
There are at least 3 steps while producing pellet. Firstly, wood wastes are made shavings by grinding,
after that they are dried with minimum moisture, later compressed, made cold and packaged. After
these process,, combustion and energy efficiency of trees increases 300% and so contribute
economy, environment and nature. It means that fuel amount decrease at rate 1/3, in addition lower
damage on forest and lower cost.
Advantages
It is a sustainable source. It contributes to economy and decreases imports of fossil fuel
It is acceptable for environment and health. After using ash is very low.
It is less dangerous than the other fossil fuels
It is used for producing electricity
It is under acceptable CO oscillation threshold values according to Kyoto Protokol
The cleanest of solid fuel is pellet
It is easily provided over the World
Transpotation of wood pellet is very easy
It is not necessary to cut trees for commercial pellet. Wood wastes are used and so it can be burned
easily. Also, it contributes to avoid forest fire since wastes are collected
It needs smaller area compared to wood
During using other solid fuels, creosote occurs on chimney and for pellet there is almost no creosote.
Thus it is not neccessary to connect to a chimney, smoke can be given outside directly from its
chimney output

14
5.2 Cleaning And Maintenance
Once a year, stove fire transition pipes are cleaned through moving out cast iron cover and cleaning
cover of chimney emission fan

15
6.0 General Warranty
6.1 Warranty Policies
TEBA THERM provide guarantees to the buyer within the framework of legal provisions. Two-year
warranty periode which starts from the date of delivery, to benefit from warranty legal policies
please keep your bill.
Pump, glass, faults on control board because of low or high voltaj, wrong use are out of warranty.
If your product damages within warranty period our company will tries to resolve the dammage or
will replace dammaged part. Only submitted and approved spare parts provided by manufacturer
should be used.
Upon the end of the warranty period, we wish to emphasize our customer service is at your disposal
in the current conditions.
6.2 Complaints
We ask you to direct your complaints to your dealer. You definitely need to specify your stove model.
This information is stated on the back of the product.
7.0 Informations to Order Spare Parts
You should contact your spare parts provider.
Attention!!! Stove place should not be changed. Only advised and approved spart parts of
manufacturer should be used. In case of need please contact your dealer or provider.
After the publication of this manuel, the company reserves the right to make changes.
