TEBO Ultimate User manual

LEAVE STRESS BEHIND
Relax, Unwind
Owner’s Manual
A306-2
Ultimate
TEBO Chair - Ultimate - Owners Manual - BDV1.indd 1TEBO Chair - Ultimate - Owners Manual - BDV1.indd 1 18/08/2020 11:21:11 a.m.18/08/2020 11:21:11 a.m.

Page 2
TEBO™ Ultimate Chair Owner’s Manual
TEBO Chair - Ultimate - Owners Manual - BDV1.indd 2TEBO Chair - Ultimate - Owners Manual - BDV1.indd 2 18/08/2020 11:21:11 a.m.18/08/2020 11:21:11 a.m.

Page 3
TEBO™ Ultimate Chair Owner’s Manual
Contents
WELCOME 4
SAFETY AND MAINTENANCE 5
1. Important Safety Warning 5
2. Environment 5
3. Do not use this product if you: 5
4. Safety 6
5. Maintenance 6
6. Trouble shooting: Solutions for common malfunctions 7
SAFETY WARNINGS 8
MASSAGE CHAIR OVERVIEW 10
FUNCTION & FEATURES OVERVIEW 11

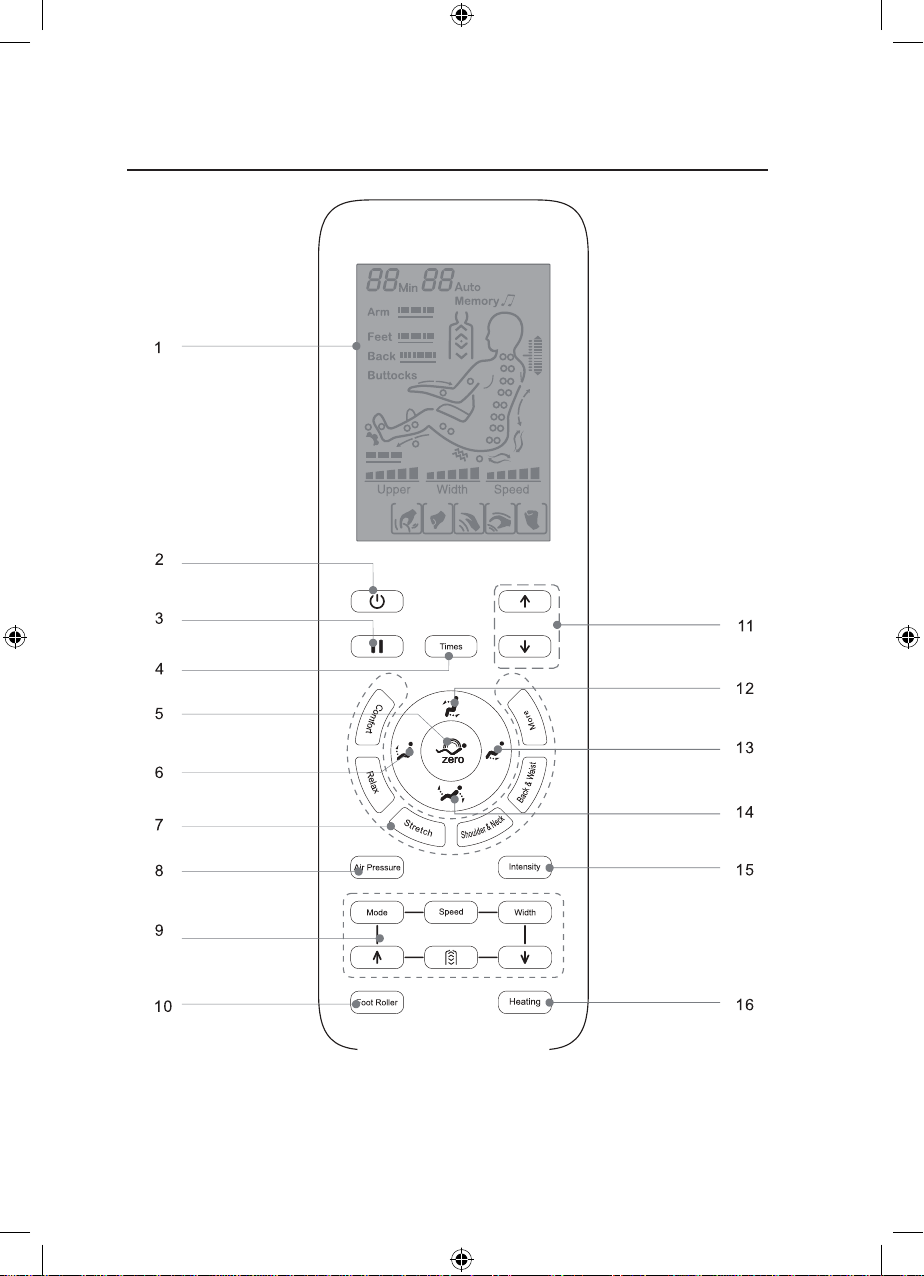

REMOTE CONTROL OVERVIEW 12
USER GUIDE 14

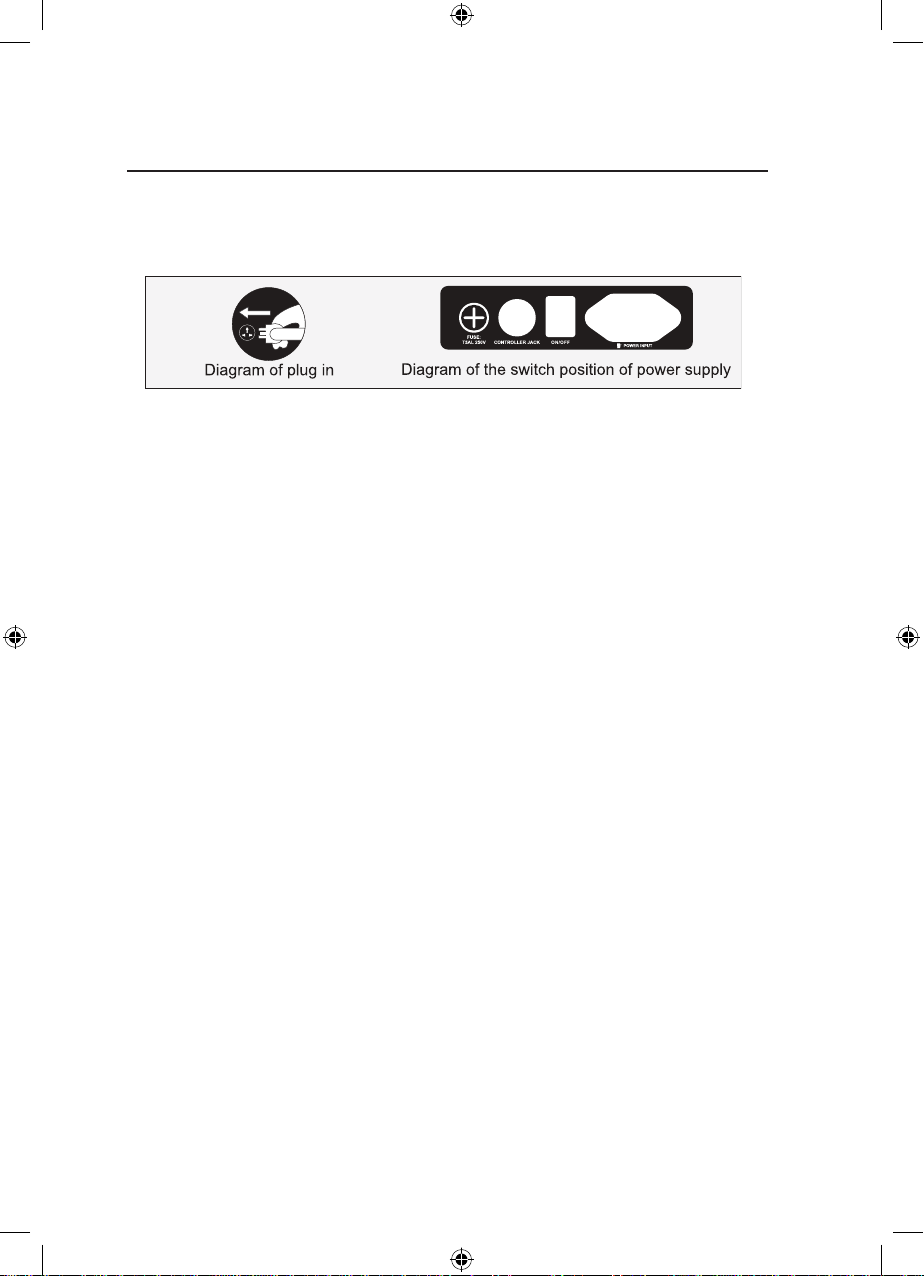

Switch power supply on 14
Start to massage 14
Massage Functions Overview 16
Automatic Massage 16
Upper body manual massage 17
Air Pressure massage 17
Adjusting Laying Angle 18
Foot roller Massage 18
Heated massage 19
Pause/start massage button 19
Other manual functions 19
Armrest control with shortcut keys 20
Voice control operation 22
Voice Control Commands 22
Bluetooth®Player Operation 23
Turn o󰀨 power and stop massage 23
Calf Rest installation 24
Head cushion and back rest pad 25
Floor Protection 26
Moving the chair 26
PRODUCT SPECIFICATION 27
WARRANTY 28
TEBO Chair - Ultimate - Owners Manual - BDV1.indd 3TEBO Chair - Ultimate - Owners Manual - BDV1.indd 3 18/08/2020 11:21:11 a.m.18/08/2020 11:21:11 a.m.

Page 4
TEBO™ Ultimate Chair Owner’s Manual
Welcome
Thank you for purchasing this product. Please read this instruction manual
carefully so you know how to use the product correctly right from the start. This
manual contains important health and safety information. Keep it somewhere
safe for future reference.
Note: Our Company reserves the right to revise the design and description of
this product at any time. Please refer to your product model
Support
If you experience problems with the TEBOTM Chair or its performance, please
call our Customer Service Team for assistance:
• 1800 890 840 in Australia
• 0800 002 999 in New Zealand
TEBO Chair - Ultimate - Owners Manual - BDV1.indd 4TEBO Chair - Ultimate - Owners Manual - BDV1.indd 4 18/08/2020 11:21:11 a.m.18/08/2020 11:21:11 a.m.

Page 5
TEBO™ Ultimate Chair Owner’s Manual
Safety and Maintenance
IMPORTANT:
Please read this Owner’s Manual carefully before operation.
1. Important Safety Warning
• Do not allow children to touch moveable parts of this product.
• Only use grounded power supply for this product.
• Pull out the plug after use and before cleaning to avoid the risk of
electric shock, or damage to the product.
• Only use this product as directed in this instruction manual.
• Do not use accessories other than those specically recommended for
the product.
• Do not use this product outdoors.
• Please read the instruction manual carefully before operation.
• Any usage other than that specied in this instruction manual may be
dangerous, and is forbidden.
• For optimal results, do not exceed 20 minutes of usage per session.
• Do not use if leather is broken or damaged.
• Do not use if the cover is damaged.
• Do not use if the radiator hole is covered or blocked. Do not drop
anything into this product.
• Do not fall asleep while using this product.
• Do not use if you are under the inuence of alcohol, drugs, or
prescription medications.
• Do not use if you feel unwell, or within one hour of having a meal.
• To avoid injury, adjust massage intensity to avoid irritating an existing
condition or causing injury.
2. Environment
• Do not use in hot environments, or moist areas such as bathrooms.
• Do not use at times when there are rapid changes in temperature.
• Do not use in very dusty or acidic environments.
• Do not use in areas that lack adequate space or ventilation.
3. Do not use this product if you:
• Have osteoporosis.
• Su󰀨er from heart disease.
• Wear a pacemaker or other electronic medical implants.
• Have a fever.
• Are pregnant or menstruating.
• Have open wounds or skin disease.
TEBO Chair - Ultimate - Owners Manual - BDV1.indd 5TEBO Chair - Ultimate - Owners Manual - BDV1.indd 5 18/08/2020 11:21:11 a.m.18/08/2020 11:21:11 a.m.

Page 6
TEBO™ Ultimate Chair Owner’s Manual
• Have been told by a doctor to rest, or feel unwell.
• Do not use if your skin is wet.
• The appliance has a heated surface. If you are sensitive to heat, use
with care.
• Children under 14 years of age and people with cognitive impairments
must be supervised if they use the machine.
4. Safety
• Check that your power voltage is suitable to the specications of the
product.
• Do not use wet hands to pull the plug.
• Keep water away from the product to avoid the risk of electric shock or
damage.
• Do not interfere with the wires or change the circuit of the product.
• Do not use a wet cloth to clean the electric parts such as the switch or
plug.
• If there is a power cut, stay clear of the product until the power is back
on to avoid the risk of injury from a power surge.
• Stop using this product if it ceases to function in its normal way, and
consult your local agent immediately.
• Stop using the product if you feel unwell, and consult your health care
practitioner.
• This appliance is not intended for use by persons (Including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety.
• Children should be supervised to ensure that they do not play with the
appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer,
service agent, or similarly qualied person for safety reasons.
5. Maintenance
• This product should only be maintained by appointed agents. Users are
prohibited to disassemble or maintain by themselves.
• Always turn the power o󰀨 after usage.
• Do not use the product if the socket is loose.
• If you leave the product for a lengthy period without use, always store
with the power cord wrapped up. Store in a dry environment and protect
from dust.
• Do not place the product in hot or sunny environments.
• If the detachable cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons for safety
reasons.
• Only clean this product with a dry cloth. Do not use thinners, benzene,
or alcohol.
• The mechanical components of this product require specic
maintenance and should only be maintained by the manufacturer or
TEBO Chair - Ultimate - Owners Manual - BDV1.indd 6TEBO Chair - Ultimate - Owners Manual - BDV1.indd 6 18/08/2020 11:21:11 a.m.18/08/2020 11:21:11 a.m.

Page 7
TEBO™ Ultimate Chair Owner’s Manual
authorised service agent. Do not roll or pull this product along uneven
ground. It should be lifted before moving.
• Do not use the product for lengthy periods. 20 minutes per session is
optimal, 40 minutes is the maximum programmable time.
6. Trouble shooting: Solutions for common
malfunctions
• It is normal to hear the motor during usage.
• If the controller doesn’t work, check the plug and socket to ensure there
is an adequate connection. Make sure the switch is turned on.
• The product will automatically switch o󰀨 when it needs to cool down.
This feature is designed to protect your safety and enhance the lifespan
of the product. If the product activates the automatic shut down feature,
leave it to rest for half an hour before using again.
TEBO Chair - Ultimate - Owners Manual - BDV1.indd 7TEBO Chair - Ultimate - Owners Manual - BDV1.indd 7 18/08/2020 11:21:11 a.m.18/08/2020 11:21:11 a.m.

Page 8
TEBO™ Ultimate Chair Owner’s Manual
Safety Warnings
WARNING
DO NOT apply downward pressure to the footrest when it is raised. This could
cause the massage chair to fall forward, resulting in personal injury or damage
to the product.
WARNING
Before sitting on the massage chair, make sure that the massage hand stays
in the seat cushion position to avoid discomfort to the buttocks during use and
damage to the massage hand.
TEBO Chair - Ultimate - Owners Manual - BDV1.indd 8TEBO Chair - Ultimate - Owners Manual - BDV1.indd 8 18/08/2020 11:21:11 a.m.18/08/2020 11:21:11 a.m.

Page 9
TEBO™ Ultimate Chair Owner’s Manual
WARNING
DO NOT try to pull out the control cable or power cord during standby or power
on states due to the risk of electric shock or damage to the product. Always
unplug the controller cable and power cord and put away after you use the chair.
WARNING
When using the zero-gravity lying function, rst check to ensure there are no
children or pets under the bottom of the footrest and backrest, to avoid the risk
of personal injuries or damage to the product.
TEBO Chair - Ultimate - Owners Manual - BDV1.indd 9TEBO Chair - Ultimate - Owners Manual - BDV1.indd 9 18/08/2020 11:21:11 a.m.18/08/2020 11:21:11 a.m.

Page 10
TEBO™ Ultimate Chair Owner’s Manual
Massage Chair Overview
1. Head cushion
2. 3D digital speaker
(built-in voice controlled
microphone)
3. Upper arm air pressure
massager
4. Remote control
5. Seat
6. Armrest control with
shortcut keys
7. Arm air pressure massager
8. Calf area magnetic therapy
9. Foot rest
10. Back cushion
11. Armrest
12. Pocket for Remote or
mobile phone, includes
USB dock
13. LED light
14. Side Panel
15. Side cover
16. Back cover
17. Drive box cover
18. Wheel
19. Power cord & plug
20. Fuse box
21. Wire socket of remote
controller
22. Power switch
23. Power cord socket
TEBO Chair - Ultimate - Owners Manual - BDV1.indd 10TEBO Chair - Ultimate - Owners Manual - BDV1.indd 10 18/08/2020 11:21:12 a.m.18/08/2020 11:21:12 a.m.

Page 11
TEBO™ Ultimate Chair Owner’s Manual
Function & Features Overview
• This product has a set of massage wheels that can move up and down,
working simultaneously for a combined e󰀨ect or working independently.
• There are ve simulated massage techniques: Shiatsu, Kneading,
Tapping, Tapping and Kneading together, Knocking.
• Equipped with automatic shoulder-position detection.
• Automatic Massage functions: Automatic Massage includes 12 di󰀨erent
kinds of massage functions, including Comfortable Massage, Relaxing
Massage, Stretch Massage, Shoulder and Neck Massage, Back
and Waist Massage, Whole Body Massage, Protection of Vertebral
(Chiropractic) Massage, Fatigue Recovery, Stretching Muscles and
Activating Collaterals, Buttock Shaping, Restful Sleep, and Full Air
Pressure.
• The Upper Body manual massage function allows for the Whole body,
xed point and a localised massage function. Each massage function
can be adjusted to ve di󰀨erent speeds. In xed point and localised
modes, the manipulator can adjust the position up and down. For
Tapping, Shiatsu, and Knocking massage, the width of the massage
ball can be set to wide, medium, or narrow.
• Air Pressure massage function o󰀨ers three levels of intensity in three
modes; Arms, Legs and Feet pressure, Arm pressure, and Legs and
Feet pressure.
• The massage chair is equipped with a foot roller massage function.
• The Footrest has a stepless adjustable function which adapts to height.
• The Back-heat function uses carbon bre as the far infrared heat
source.
• The Chair uses slide rail technology when adjusting position to occupy
the least space possible. Keep the area clear to ensure optimal
function.
• The “L” backrest frame adopts curve guide technology, which conforms
to the natural curve of the human back, providing continuous massage
from head to thigh.
• Music playback system includes 3D audio speakers built into left and
right upper arms. Use the Bluetooth®function of your smart device to
play music wirelessly.
• Equipped with intelligent voice recognition function.
• The armrest control with shortcut keys features an on/o󰀨 button; chair
angle adjust button, pause button, auto mode button, voice wake up,
heating, air pressure, foot lifting, zero gravity, and backrest adjustment.
• In the left and right lower armrests there are raised areas for the palms
to receive magnetic massage therapy
• The left armrest features a USB charging dock
• LED lights in the side of both armrests.
• LCD colour screen controller.
• On shutdown, the chair automatically returns to sitting position.
TEBO Chair - Ultimate - Owners Manual - BDV1.indd 11TEBO Chair - Ultimate - Owners Manual - BDV1.indd 11 18/08/2020 11:21:12 a.m.18/08/2020 11:21:12 a.m.

Page 12
TEBO™ Ultimate Chair Owner’s Manual
Remote Control Overview
TEBO Chair - Ultimate - Owners Manual - BDV1.indd 12TEBO Chair - Ultimate - Owners Manual - BDV1.indd 12 18/08/2020 11:21:12 a.m.18/08/2020 11:21:12 a.m.

Page 13
TEBO™ Ultimate Chair Owner’s Manual
1. LCD: Display all massage functions.
2. Power switch: Turn on or o󰀨 all massage functions.
3. Pause \ run button: Pause or run all massage functions.
4. Timing key: Adjust massage time
5. Zero G position adjustment: There are three automatic reclining
modes, which can automatically switch according to your own needs.
6. Footrest up key: Adjust footrest up.
7. Automatic massage button: Please refer to page 10 of this manual
for details.
8. Air pressure mode key: Turn on/o󰀨 air pressure massage function
(please refer to page 11 of this manual for details).
9. Manual massage key: Please refer to page 11 of this manual for
details.
10. Foot roller key: Please refer to page 11 of this manual for details.
11. Shoulder adjustment key: Manual adjustment of Shoulder massage
point.
12. Up key: Adjust backrest frame rise and calf frame drop.
13. Calf frame down key: Adjust calf frame down.
14. Lie down key: Adjust backrest frame to drop and calf frame to rise.
15. Air pressure intensity key: Adjust air pressure intensity function.
16. Heating key: On/o󰀨 heating massage function.
TEBO Chair - Ultimate - Owners Manual - BDV1.indd 13TEBO Chair - Ultimate - Owners Manual - BDV1.indd 13 18/08/2020 11:21:12 a.m.18/08/2020 11:21:12 a.m.

Page 14
TEBO™ Ultimate Chair Owner’s Manual
User Guide
1.Switch power supply on
2.Start to massage
2.1 Press the power button to start the massage.
2.2 The leg frame and back frame will automatically adjust to recline angle,
awaiting the selection of automatic massage function. After more than 3
minutes without operation, the chair goes into automatic shutdown and
returns to the seated position.
There are 12 automatic massage function keys (Comfort massage,
Relax massage, Stretch massage, Shoulder & Neck massage, Back &
Waist massage, Full body massage, Chiropractic vertebral massage,
Fatigue recovery, Meridian microcirculation massage, Buttock shaping
massage, Restful Sleep massage and Whole Body pressure massage).
Use the appropriate key and select the massage function. Use the
“More” button to select massages that don’t have a shortcut key.
2.3 After selection of an Auto massage, the automatic detection of the
shoulder position and massage nger pressure point shall be carried out
rst - wait for the detection to be completed.
TEBO Chair - Ultimate - Owners Manual - BDV1.indd 14TEBO Chair - Ultimate - Owners Manual - BDV1.indd 14 18/08/2020 11:21:12 a.m.18/08/2020 11:21:12 a.m.

Page 15
TEBO™ Ultimate Chair Owner’s Manual
2.4 If the detected shoulder position is di󰀨erent from your preferred shoulder
position, adjust the upper and lower keys to the appropriate position.
The shoulder position function has 10 di󰀨erent positions. If there is no
shoulder position adjustment made within 10 seconds, the massage
function will start automatically.
Button Description Display
Move the massage balls upward to a suitable
position
Move the massage balls downward to a suitable
position
TEBO Chair - Ultimate - Owners Manual - BDV1.indd 15TEBO Chair - Ultimate - Owners Manual - BDV1.indd 15 18/08/2020 11:21:13 a.m.18/08/2020 11:21:13 a.m.

Page 16
TEBO™ Ultimate Chair Owner’s Manual
3.Massage Functions Overview
AUTOMATIC MASSAGE
Function Button Description Display
AUTOMATIC MASSAGE
Comfort: The most comfortable massage
experience. F1 Auto
Relax: a deeper, soft, comfortable massage to
relieve body fatigue. F2 Auto
Stretch: Calf-rest Frame and Backrest frame
rise and fall, combined with air pressure
massage and stretch/traction of the leg.
Relieves fatigue, restores vitality.
F3 Auto
Shoulder & neck: focused shoulder and neck
massage. F4 Auto
Back & waist: focused back and waist
massage. F5 Auto
Full body massage: deep massage to
rejuvenate the body. A1 Auto
Chiropractic massage: focus on chiropractic
massage, to relax the body and mind. A2 Auto
Fatigue recovery: improve whole body fatigue,
back pain, and aching limbs to promote
relaxation, improve microcirculation.
A3 Auto
Meridians: dredge meridians to support
lymphatic and microcirculation, enhance
immunity.
A4 Auto
Buttock massage mode: sculpt shapely
buttocks and thighs with stimulating massage
to promote the reduction of fatty tissue and uid
build-up.
A5 Auto
Restful sleep massage: stimulates the 12 major
health acupoints to enhance balance and
improve quality of sleep.
A6 Auto
All pressure: whole body pressure massage,
promoting total body relaxation with a deep, full
body massage to relieve fatigue and pain.
A7 Auto
TEBO Chair - Ultimate - Owners Manual - BDV1.indd 16TEBO Chair - Ultimate - Owners Manual - BDV1.indd 16 18/08/2020 11:21:13 a.m.18/08/2020 11:21:13 a.m.

Page 17
TEBO™ Ultimate Chair Owner’s Manual
UPPER BODY MANUAL MASSAGE
Function Button Description Display
TECHNIQUE
Shiatsu: speed, width.
Knead: speed.
Tapping: speed, width.
Knead tap: speed.
Knocking: speed, width.
SPEED 5 speed adjustable.
WIDTH The width of the gears/rollers can be adjusted.
BACK STRETCH
Fixed position spot massage.
Small localised area massage
Full back massage
Massage position adjustment (in “Fixed position
spot massage” and “Small localised area
massage” the position can be adjusted).
Manipulator
uplink
Manipulator
descending
AIR PRESSURE MASSAGE
Function Button Description Display
AIR
PRESSURE
MODE
Full pressure: air pressure massage on arms,
legs and feet.
Arm: air pressure massage with the arm as the
focus.
Leg: barometric massage for leg, foot.
INTENSITY Adjustable in three levels.
TEBO Chair - Ultimate - Owners Manual - BDV1.indd 17TEBO Chair - Ultimate - Owners Manual - BDV1.indd 17 18/08/2020 11:21:16 a.m.18/08/2020 11:21:16 a.m.

Page 18
TEBO™ Ultimate Chair Owner’s Manual
ADJUSTING LAYING ANGLE
Function Button Description
SIT UP
To resume a seated position, press this button and the backrest
frame will slowly rise, while the calf frame slowly falls. The chair
will beep until the original seated position has been reached. Press
this key again during the adjustment and it will stop at that position.
LAY DOWN
To resume the “lay down” position, press this button and the
backrest frame will slowly lower, while the calf frame slowly rise.
The chair will beep until the preset “lay down” position has been
reached. Press this key again during the adjustment and it will stop
at that position.
CALF UP
To adjust the calf frame upwords press this button. The chair
will beep until the preset “Calf Up” position has been reached
Releasing button during adjustment will stop the calf frame at that
position.
CALF
DOWN
To adjust the calf frame downwards, press this button. The chair
will beep until the preset “Calf Down” position has been reached
Releasing button during adjustment will stop the calf frame at that
position.
ZERO G Press this button to switch between the three Zero G modes; non-
Zero G, Zero G I, Zero G II.
FOOT ROLLER MASSAGE
Function Button Description Display
FOOT
ROLLER
Press this button to turn the foot roller massage
on. Scroll through the three levels of intensity:
O󰀨, light, medium, or strong.
TEBO Chair - Ultimate - Owners Manual - BDV1.indd 18TEBO Chair - Ultimate - Owners Manual - BDV1.indd 18 18/08/2020 11:21:17 a.m.18/08/2020 11:21:17 a.m.

Page 19
TEBO™ Ultimate Chair Owner’s Manual
HEATED MASSAGE
Function Button Description Display
HEAT Press this button to turn the back far infrared
heat on or o󰀨. It takes 3 minutes to heat up.
PAUSE/START MASSAGE BUTTON
Function Button Description Display
PAUSE/
START
To pause all massage movements instantly
mid-massage, press this button. Press it again
to resume movements.
OTHER MANUAL FUNCTIONS
Function Button Description Display
TIMING
Press this button to add 5 more minutes, up
to a maximum of 40 minutes. If you exceed 40
minutes, the function will return to 20 minutes.
You can also use this button during a massage
to add more time in 5-minute increments.
TEBO Chair - Ultimate - Owners Manual - BDV1.indd 19TEBO Chair - Ultimate - Owners Manual - BDV1.indd 19 18/08/2020 11:21:18 a.m.18/08/2020 11:21:18 a.m.

Page 20
TEBO™ Ultimate Chair Owner’s Manual
4.Armrest control with shortcut keys
1. Chair-angle adjust Dial:
The Backrest and footrest
will lift and recline in
unison.
2. Power button: on/o󰀨.
3. Auto mode button: start
Auto mode.
4. Pause button: pause all
functions.
5. Heating button: turn
heating on/o󰀨.
6. Air pressure button: on/o󰀨.
7. Leg rest lifting: to adjust the
lifting and reclining part of the
foot rest.
8. Voice wake up button: wake
up voice control function.
9. Back rest lifting: adjust the
lifting and reclining of the back
rest.
10. Zero gravity: adjust the chair
angle to zero gravity positions.
TEBO Chair - Ultimate - Owners Manual - BDV1.indd 20TEBO Chair - Ultimate - Owners Manual - BDV1.indd 20 18/08/2020 11:21:19 a.m.18/08/2020 11:21:19 a.m.
