Technaxx® * User Manual
Bicycle Helmet with Light and Turn Signal TX-161
Declaration of Conformity: www.technaxx.de/ (in bottom bar
“Konformitätserklärung”). Before using the device the first time, please read the user
manual carefully.
Service phone No. for technical support: 01805 012643 (14 cent/minute from German
fixed-line and 42 cent/minute from mobile networks).
Free Email: [email protected]
Keep this user manual for future reference or product sharing carefully. Do the same
with the original accessories for this product. In case of warranty, please contact the
dealer or the store where you bought this product. Warranty 2 years

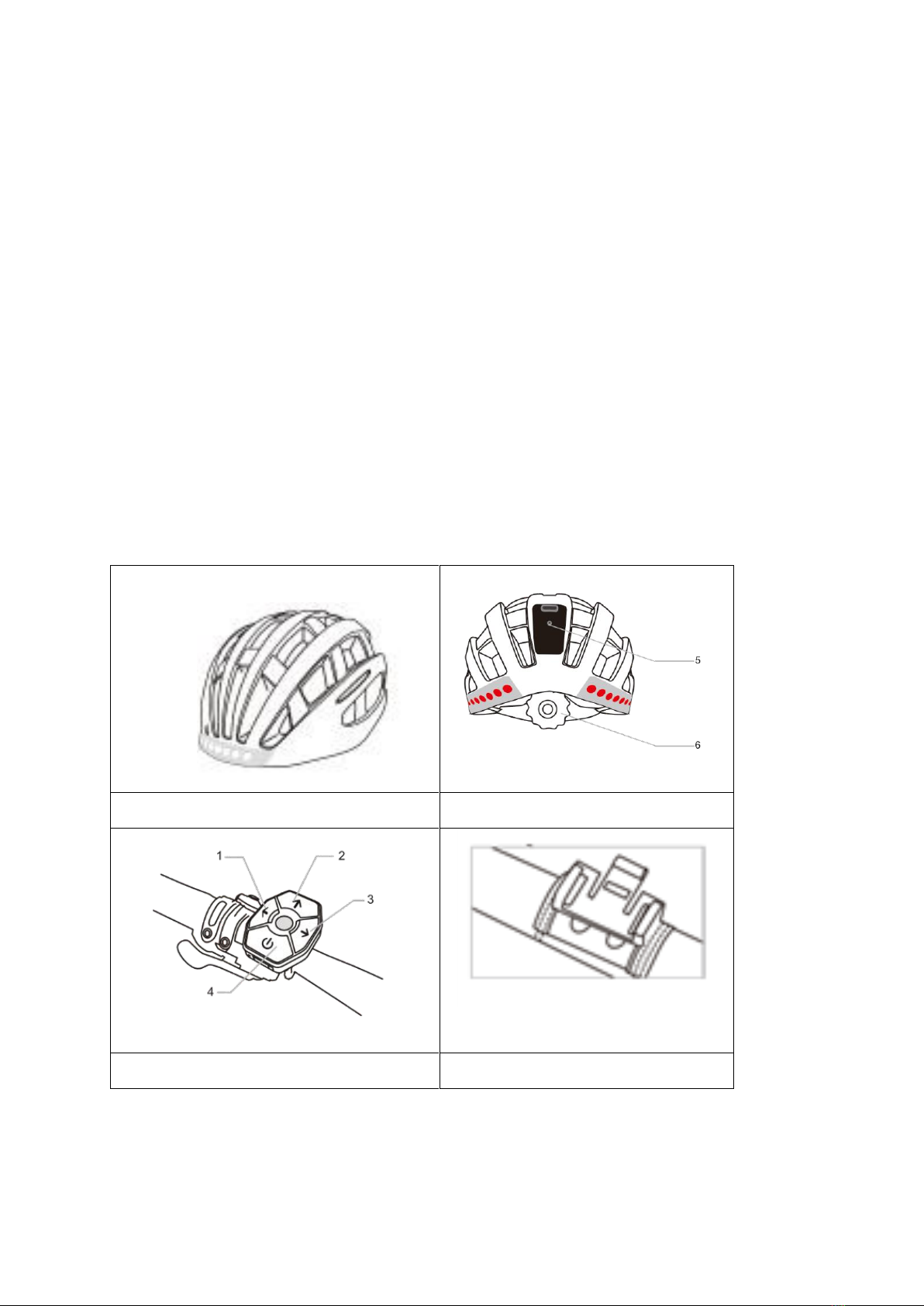

Helmet front
Helmet back
Remote
Base of Remote

General Information
This helmet is a high-quality protection for cyclists, skaters and scooters.
EN 1078: 2012+A1: 2012 European standard for helmets for cyclists and for
users of skateboards and roller skates.
Warning!
This helmet should not be used by children while climbing or doing other
activities when there is a risk of strangulation /hanging if the child gets trapped
with the helmet.
HOW DO I ADJUST THE SIZE OF MY HELMET AND FITS ME
CORRECTLY?
The Bicycle-Sports Safety Helmet you have just purchased provides protection,
whether on or off the road. To insure proper use of this helmet, familiarize yourself with
its features, fit and care by carefully reading through this manual before wearing your
new helmet.
Adjustment of the one-hand size adjustment system
The integrated size adjustment system can be infinitely adjusted with a knob (6) at the
back of the head:
Turn the knob (6) clockwise to continuously reduce the size.
Turn the knob (6) counter-clockwise to continuously increase the size.
Protection and Ventilation
The outer shell allows the helmet to be rated one of the lightest helmets while providing
excellent durability and integrity. The multiple vents with inner air channels draw the air
through the helmet and over the brow for maximum cooling.
Pad Fitting
The helmet must fit properly to be effective. With a proper fit, the helmet will not move
back and forth or side to side while fastened. To insure the proper fit, test different size
before you buy the helmet.
Retention System
This Bicycle-Sports Safety Helmet uses a quick-release buckle that is simple and can
be buckled and unbuckled without changing the adjustment.

Danger
An open or incorrectly adjusted belt can cause the product to slip in the event of an
accident. The product loses its protective effect. Before each journey, check that the
belts are correctly adjusted. Align the product so that it fits correctly. The straps must
be adjusted so that they do not cover the ears. The chinstrap fastener must not rest on
the chin. Straps must be adjusted comfortably and firmly.
Put the product on properly and close the fastener. Check the tension of the chin-strap.
Both the front strap and the back strap must fit tightly. They must be comfortable and
tight and you must feel a slight pressure when opening your mouth. The fastener must
not rest on the chin or jawbone.
If the chin strap is too loose, it must be tightened using the size adjustment on the
strap. If the chin strap is too tight, it must also be loosened using the size adjustment
on the strap. Check that all straps are evenly and tightly tensioned. Then try to pull the
helmet off to the front or back. If the helmet can be taken off, the strap tension must be
increased. The helmet should sit firmly on the head without pressing, and it must not
be possible to remove the helmet without first loosening the buckle!
correct
Incorrect
Final Check
The important thing to remember is that the helmet fits snugly. If you can fit it forward
or backward, you need to tighten the strap adjustment.
The straps should be positioned that they do not cover the ears and that the buckle is
away from the jaw when correctly fitted.
Buyer should always try different sizes and choose the size which feel secure and
comfortable on the head. It is important for the helmet to fit snugly on your head and
must be fastened to provide maximum protection. All adjustments should be checked
each time the helmet is worn, making sure it fits snugly at all time.

Caring for Your Helmet
Clean the headgear with mild soap and water only. The use of any solvents, paints or
decals can cause damage to the helmet and make it ineffective in the result of an
accident.
Keep Helmet Out of Extreme Heat
Helmet will be damaged if exposed to temperatures exceeding 65C. Dark vehicles and
storage bags can exceed this on very hot days, heat damaged helmets will have
random disfigured areas where the texture appears bubbly and uneven. If damaged,
helmets should be destroyed and replaced immediately.
Important Information
This headgear is designed to absorb the energy of a blow by partial destruction or
damage itself. Even though such damage may not be visible, the helmet should be
destroyed or replaced, if it is involved in an injury-related fall.
Installation and use

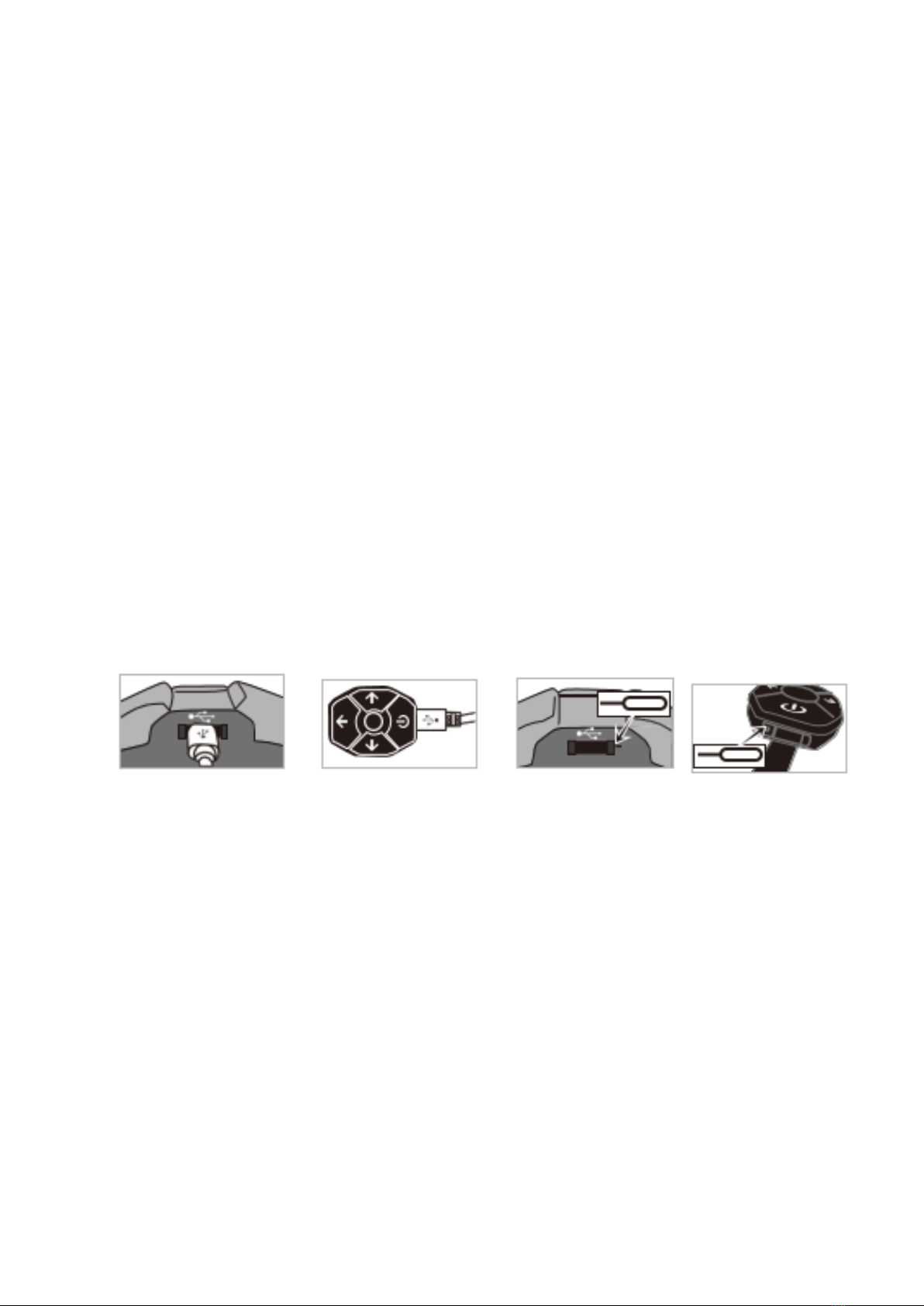

Charge the helmet like shown on image (1)
Charge the remote control like shown on image (2)
1
2
3
4
Your Techni Helmet is not working after you switch the helmet and Remote control to “on” your
Helmet is still in sleep mode (Battery Safe Mode), this is because no using in 1 week.
Press the reset button on the helmet with a needle as shown in image(3). All the LED lights on the
helmet flash quickly. At this time, press the reset button the remotecontrol as shown in image (4)
Nowthe helmet is standby

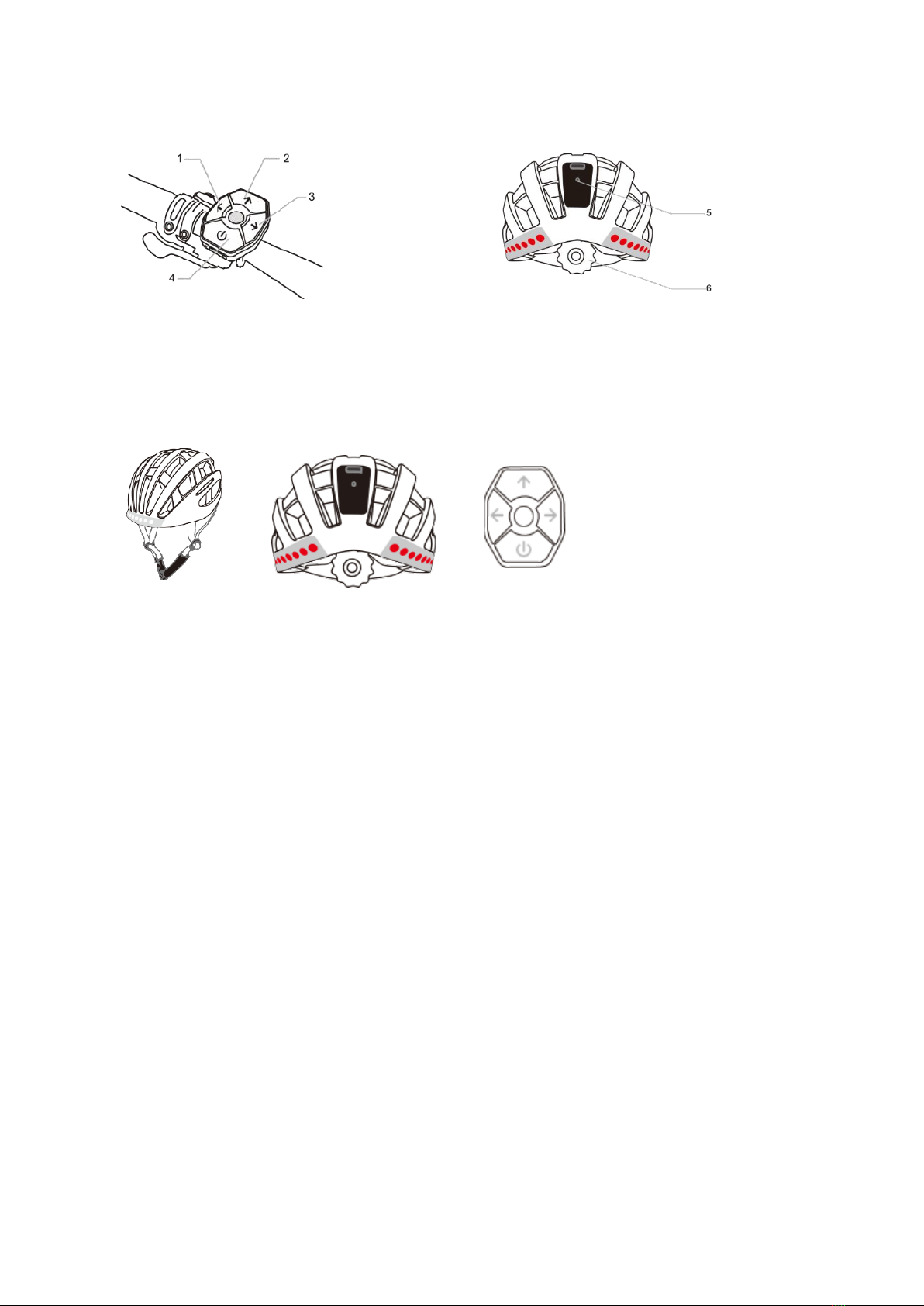

User Instructions
Remote control
Fix the fastening base on the steering bar with the cable ties.
Turn on the Helmet, press the on/off (5) button: Press the left (1), right (3) or
straight (2) button on remote control.
Turn light left/right:
Press the left (1)/right (3) button if you want to turn left/right. The turn light on the
left/right of the helmet turns on. After 20 seconds the turn light will stop
automatically.
If you would like to stop turn signal manually press the “straight” button (2).

Note: If the helmet does not follow the key strokes, a tiny red LED near the button you press flashes
quickly. In this case, please check whether the helmet and the remote control not paired or the helmet
is out of power. Red LED near button flashes during charging, and turns off when fully charged.
Warnings:
Due to its shock-absorbing properties, the product protects against mechanical
shocks and thus reduces the risk of head injuries.
The product is designed exclusively for protection when cycling, skateboarding,
roller-skating and pedalling. The product is not suitable for downhill riding. It
must not be used for other sports or for motorcycling. It is intended exclusively
for private use and is not suitable for commercial use.
Only use the product as described in this user manual. Any other use is
considered improper and can lead to damage to property or even personal injury.
The product is not a toy for children.
The manufacturer or dealer accepts no liability for damage caused by improper
or incorrect use.
Danger of injury!
The product cannot protect the wearer from all accidents.
The product does not provide sufficient protection when used in motor sports.
The product does not provide 100% protection against injuries. However, it can
help to reduce the severity of injuries.
Try different sizes. Only use a product that fits properly, is firm and comfortable
on the head. This product can only protect if it fits properly.
Replace the product and discard it if it has been subjected to a violent impact,

e.g. after an accident. Even if the damage is not visible, replace the product with
a new one after a severe impact.
The same applies if the product does not fit properly.
The product has a limited service life. Replace the product with a new product if
it no longer fits properly or no later than 5 years after the date of manufacture,
even if no damage can be detected.
Do not remove any original parts or make any improper changes to this product.
This can considerably impair the protective function of the product.
The product cannot protect the wearer from all foreseeable accidents.
Depending on the type of impact, accidents occurring at very low speed can
cause serious head injuries or even death. Therefore, always drive with extreme
caution.
Please note that the flashing device on the product to indicate the change of
direction does not replace the hand signal.
Before each use, check that the front/ rear light and flashing devices work in
combination with the remote control. When used correctly, the rear light is used
for optimum visibility in road traffic.
When mounting the remote control on the handlebars, always make sure that
you mount the remote control in correct position.
Check the product at regular intervals for visible defects.
Do not permanently expose the product to extreme temperatures (e.g. extreme
heat or cold) and store the product in a dry and cool place.
Children can suffocate on plastic film.
Do not let children play with the packaging film. The packaging is not a toy for
children
If the product does not fit perfectly, it can slip in an accident and lose its
protective effect.
Adjust the product correctly with the size adjustment system. The product fits
correctly when the pads hold it firmly but firmly in place.
An open belt distributor can cause the product to slip in an accident. The product
will lose its protective effect.
An open or incorrectly adjusted belt can cause the product to slip in the event
of an accident. The product loses its protective effect.
Before each journey, check that the belts are correctly adjusted.
The LED tail light on the product does not replace the lighting equipment on

bicycles prescribed by the German Road Traffic Licensing Regulations (§67).
Do not use the LED tail light in the rain, as its functionality in wet conditions is
not guaranteed.
Please note that the LED taillight may be covered or not visible when using
clothing, bagpack or by head movements.
Before each use, check that the remote control works properly in combination
with the product and its rear light and flashing devices.
The LED rear light is not a toy and may only be used by children under adult
supervision.
Parents must ensure that their child also regularly checks the rear light's ability
to function.
Never immerse the product in water or other liquids.
Never use solvents, thinners or other chemicals to clean the product. These can
cause damage to the product which considerably impairs its protective function.
Never put the product in the dishwasher. You would destroy it.
Technical specifications
Input voltage
DC 5V USB Source max. 2A
Helmet
Battery
Li Ion Battery 500mAh
Charge- Working- Time
2h/ 16h
Stand-by
~45 Days
Frequenz:
2,4MHz, max. -6dBm
Size:
M:54-58cm/ L:58-61cm
Remote control:
Battery:
Li Ion 60mAh
Charge- Working- Time
2h/ 16h
Stand-by
~45Days
Weight / Dimensions
~0,3kg / 27x 22 x 15cm
Package contents
TX-161, User Manual, USB connection
cable, storage bag, remote control,
cable ties

We hereby declare that the designated device, due to its design and
construction as well as in the version we have placed on the market,
complies with the relevant EC directives mentioned below.
PPE 2016/425/EU
RED 2014/53/EU
RoHS 2011/65/EU
EN:1078: 2012 +A1:2012
EN62311: 2008
EN301489-1
EN300328
EU-Typ-Examination Certificate issued by:
TÜV Rheinland LGA Products GmbH
Tillystraße 2
90431 Nürnberg
Germany
Notified Body-No.: 0197
Hints for Environment Protection: Packages materials are raw
materials and can be recycled. Dispose of old equipment
and batteries/rechargeable batteries separated from household
waste, e.g. at a collection point, so that they can be disposed of
in an environmentally friendly manner. Contact your local waste
disposal company for correct disposal.
Distributor: Technaxx Deutschland GmbH & Co.KG, Kruppstr.
105, 60388 Frankfurt a.M., Germany
