Techno Source RAPTOR 2000 User manual

Raptor 2000 Features
•2048 x 2048 Resolution
•Drives Sony DDM Monitor
•8/16/24-Bits Per Pixel
•Hardware Double Buffering
•12 MB Viewable Frame Buffer
•12 MB Additional Frame Buffer
•24 Independent Overlays
•1024 Dynamic Colors
•Single Slot PCI Long Card
Markets
•Air Traffic Management
•Vessel Traffic Control
•Command & Control
•Remote Auction Art
Platforms
•Sun UltraSPARC Workstations
•Hewlett Packard
•Digital Alpha Workstations
•IBM PowerPC workstations
•Intel Pentium Based PC

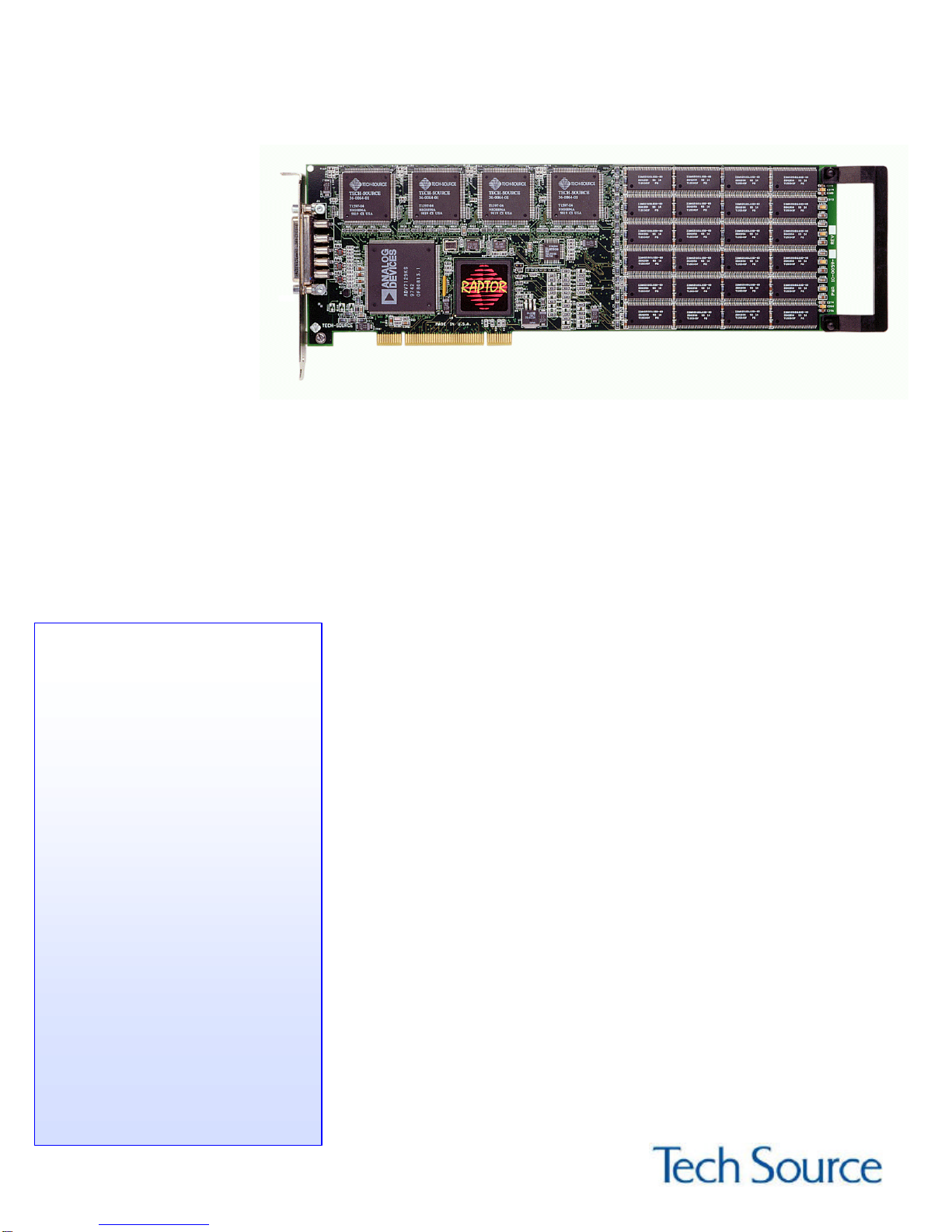

Product Brief
Raptor 2000
2048 x 2048 Color Video Graphics Adapter
The Tech Source Raptor 2000 ultra-high
resolution graphics accelerator combines
in a single slot PCI card a comprehensive
array of high-end display subsystem fea-
tures that formerly required a box level
solution. Tech Source's high speed video
switching circuitry permits the Raptor
2000 to redefine the meaning of world
class resolution and functionality. The
Raptor 2000 is designed for use in ultra
high resolution, high performance, color
graphics applications such as Air Traffic
Management and Vessel Control. It's
high level of integration achieves extreme
flexibility over a wide range of functions.
An advanced Application Specific Inte-
grated Circuit designed by Tech Source
engineers provides the ability to display
1024 independent dynamic colors at the
same time. That’s four times the number
of colors available in traditional graphics
systems. Specialized frame buffer layering
hardware allows for complete control of
24 independently addressable overlays
with dynamic priority adjustment. That’s
12 times more than most advanced un-
derlay/overlay systems.
The Raptor 2000 offers two-dimensional
drawing acceleration for polygons, text
and windowing operations. The co-
processor can generate an excess of
900,000 X Window System characters per
second providing the ability to manage
over 2,000 targets/tracks in real time.
Multiple configuration modes are avail-
able for double buffering and multiple
overlay buffering support. True hard-
ware double buffering is supported using
standard software interfaces such as
MBX (Multi-buffering extension for X)
and DBE (Double buffering extension).
Specialized flash fill hardware performs
back buffer screen erases in under 100
microseconds.

442 S. North Lake Boulevard
Altamonte Springs, FL 32701
407.262.7100
www.techsource.com
Tech Source, the Tech Source logo, and Raptor 2000 are trademarks of Tech Source, Inc. All other trademarks are the property of
their respective owners. ©2002 Tech Source, Inc. All rights reserved. Information in this document is subject to change without
notice. Tech Source, Inc. assumes no responsibility for errors or omissions that may appear in this document.
Raptor 2000 Technical Specifications
Raptor 2000-24M PCI video graphics adapter, 2048 by 2048 color resolution, 24 MB frame buffer, includes DB-5-W5 to
5BNC video cable, operating system specific device driver software and manuals.
Raptor 2000-12M PCI video graphics adapter, 2048 by 2048 color resolution, 12 MB frame buffer, includes DB-5-W5 to
5BNC video cable, operating system specific device driver software and manuals.
Raptor OpenWindows for Solaris Loadable drivers for Sun PCI systems running Solaris 2.6, 7 or 8.
Raptor X Servers for Digital UNIX Loadable drivers for the Digital/Compaq Alpha workstations running Tru64
UNIX 4.0f, 5.0, 5.1.
Raptor X11R6.1 for IBM AIX Complete X11R6.1 environment with loadable drivers for IBM RS/6000
running AIX 4.3.3 and higher.
Raptor Drivers for HP-UX Loadable drivers for Hewlett Packard B, C & J class machines running
HP-UX 10.20 and HP-UX 11.0.
Raptor Drivers for Linux Loadable drivers for Red Hat & SUSE Linux on x86 based machines
Specifications
Frame Buffer Size 24MB
Color Lookup Table 1024 entries from a palette of 16.7 million colors
Bits Per Pixel 8, 16 or 24 (software configurable)
Dynamic Color Plane Groups 24
Drawing Processor Number Nine PCI graphics accelerator
PCI Interface 33 MHz, 32-bit, Revision 2.1
Video Interface Red, green and blue at RS-343 levels (50 ohm)
Video Sync Separate sync at TTL levels (75 ohm)
Video Connector DB-5-W5
Temperature Rating 10 degrees to 50 degrees C (operating)
-10 degrees to 70 degrees C (non-operating)
Humidity Rating 10% to 90% (non-condensing)
Power Rating Less than 25 watts
Physical 12.283 inches x 4.2 inches (PCI long format)
