techo-bloc MANCHESTER ELITE User manual

MANCHESTER ELITE
PIZZA OVEN
INSTALLATION GUIDE
AND OWNER’S MANUAL

TABLE OF
CONTENTS
COMPONENTS .................................................3
OVERALL DIMENSIONS........................................ 4
CONCRETE PAD PREPARATION ................................5
INSTALLING BOTTOM SECTION .................................5
INSTALLING TOP SECTION .................................... 6
FILLER BLOCKS ............................................... 6
SAFETY .......................................................7
BUILDING A FIRE
SELECTION OF WOOD .........................................................7
STARTING AND KEEPING A FIRE ...............................................7
COOKING .....................................................................8
CLEANING, INSPECTION AND MAINTENANCE .................. 9
WARRANTY .................................................. 9

3
GENERAL INFORMATION
PLEASE SAVE THIS OWNER’S MANUAL FOR FUTURE REFERENCE
Carefully read the information in this manual before installing and using the pizza
oven. Improper installation, operation and maintenance can result in serious
injury, fire and/or damages not covered by the warranty.
IMPORTANT
Check with your municipality for regulations on the installation and use of an outdoor
Pizza Oven. We also recommend that you contact your home insurance company and
advise them of the acquisition of your new Techo-Bloc Pizza Oven.
This Pizza Oven is for OUTDOOR USE ONLY. Check with your municipality for
minimum clearance distances. Make sure that there is nothing directly above the
pizza oven area that can be a potential fire and/or injury hazard.

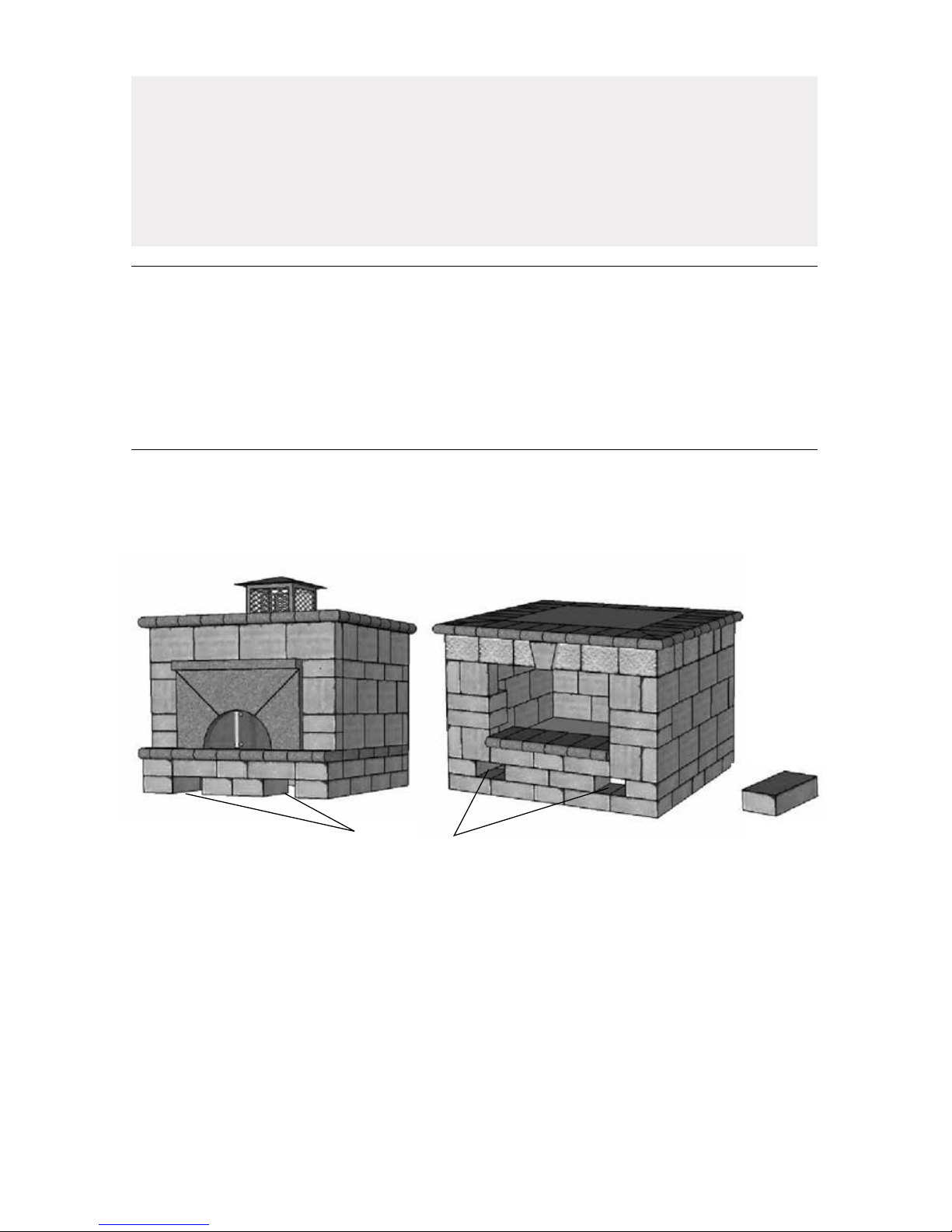

COMPONENTS
Place a piece of material (e.g. plywood) between the forks and the Pizza Oven sections
to prevent chipping of the concrete blocks. Remove the forks protecting material before
the filler blocks are installed.
Top Section Bottom Section
Fork holes
Filler
block
(x4)

FRONT ELEVATION RIGHT SIDE ELEVATION

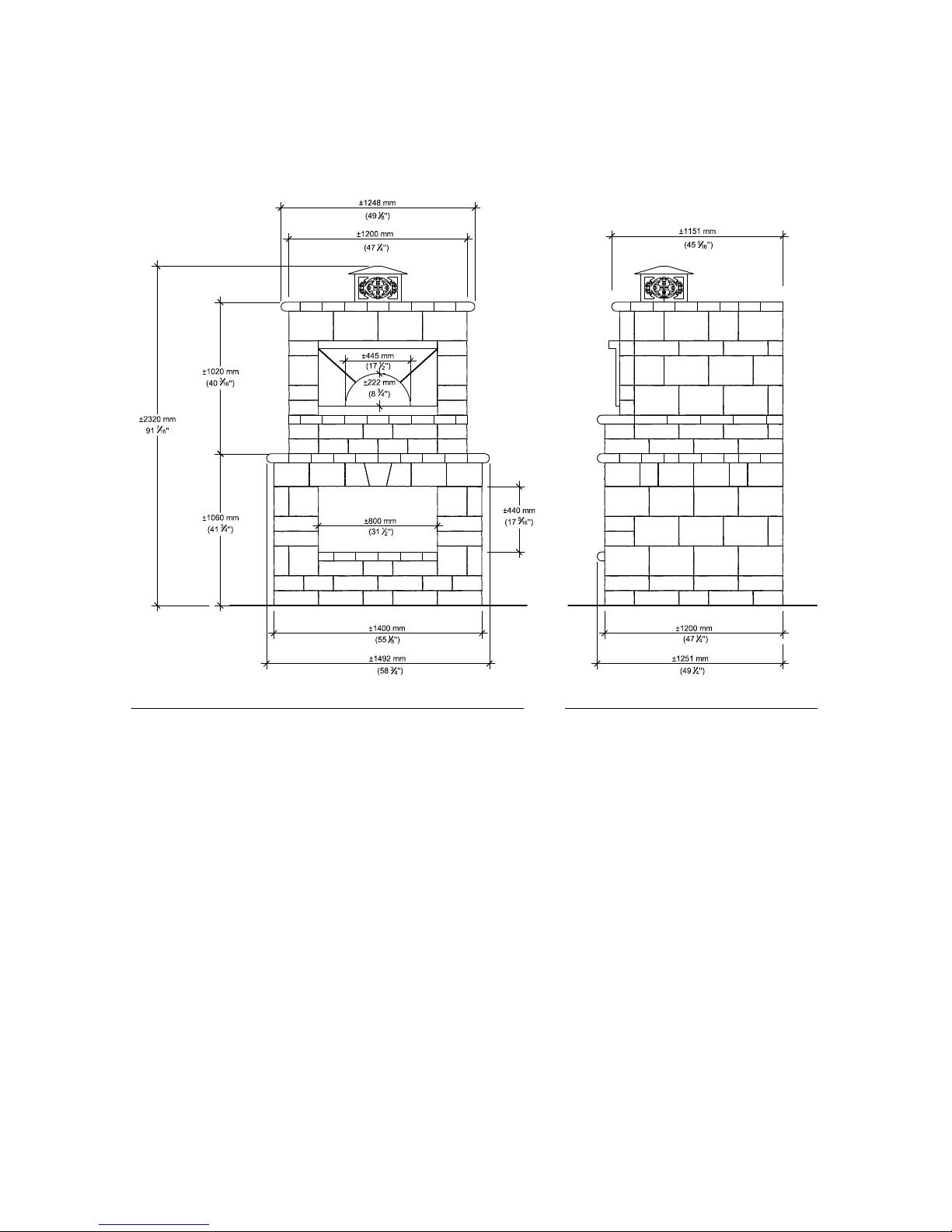

OVERALL DIMENSIONS
Below are the overall dimensions of the pizza oven. The height shown is the total height
(including buried portion). The pizza oven should be buried 4" below finished grade.
4

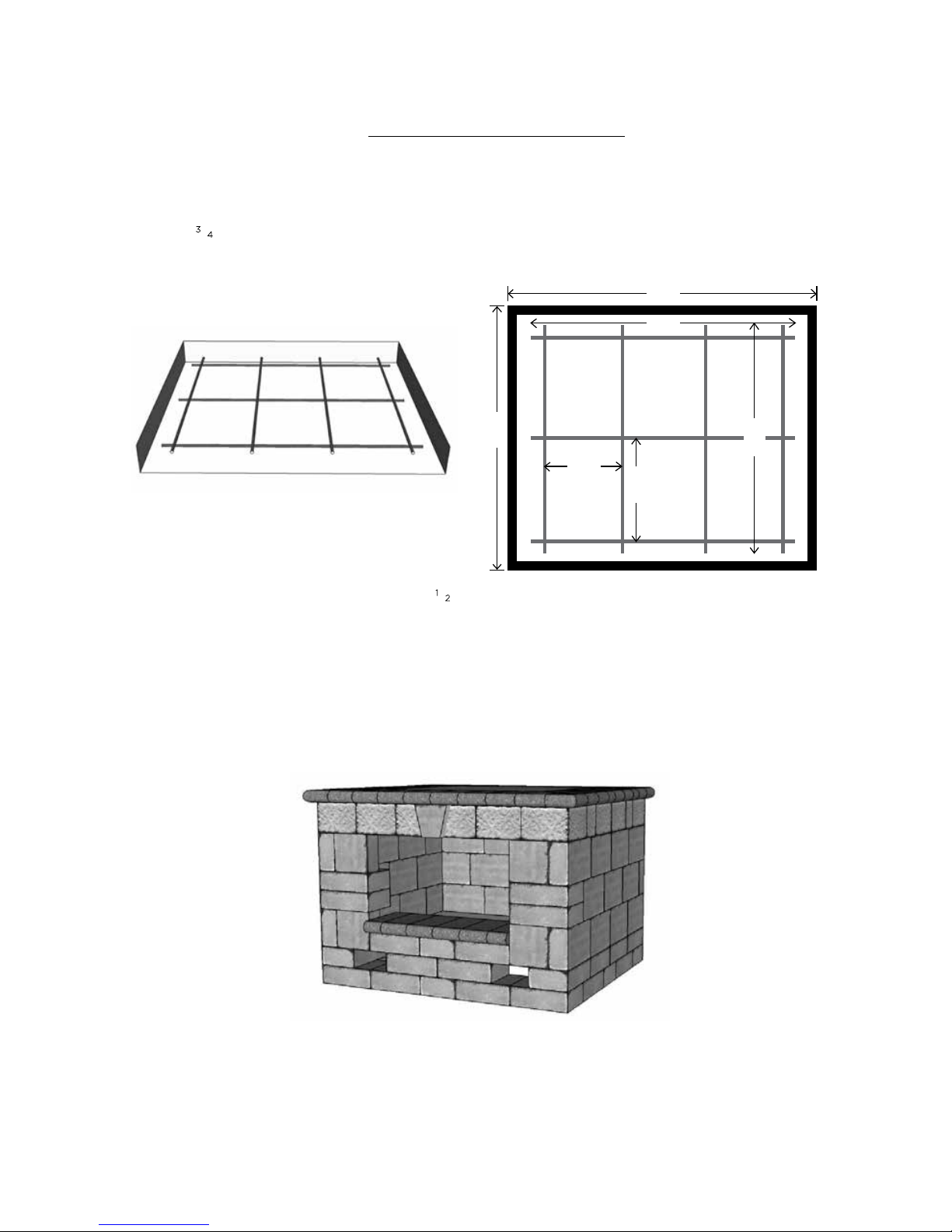

CONCRETE PAD PREPARATION
The following drawings are NOT ENGINEERED DRAWINGS. They are provided as
a general guidance for the consideration of the installer. Concrete pillars extending
to frost line may be required as per local code. Check your local building codes
before installing.
Determine the desired location and excavate as necessary to accommodate a minimum
of 6" of 3⁄4" clean stone, 6" of reinforced concrete pad (see drawing below for steel rod
placement) and 4” of the pizza oven bottom section below finished grade.
(a) #4 rebar (1⁄2") / (Metric size: 15 M)
(b) 6" concrete slab (4000 psi)
INSTALLING BOTTOM SECTION
Carefully insert the forklift forks in the openings of the bottom section. Lift the bottom
section and place it centered on the concrete pad.
56"
48"
18"
15"
50"
42"
5
