TechPlay COMMANDER User manual

1

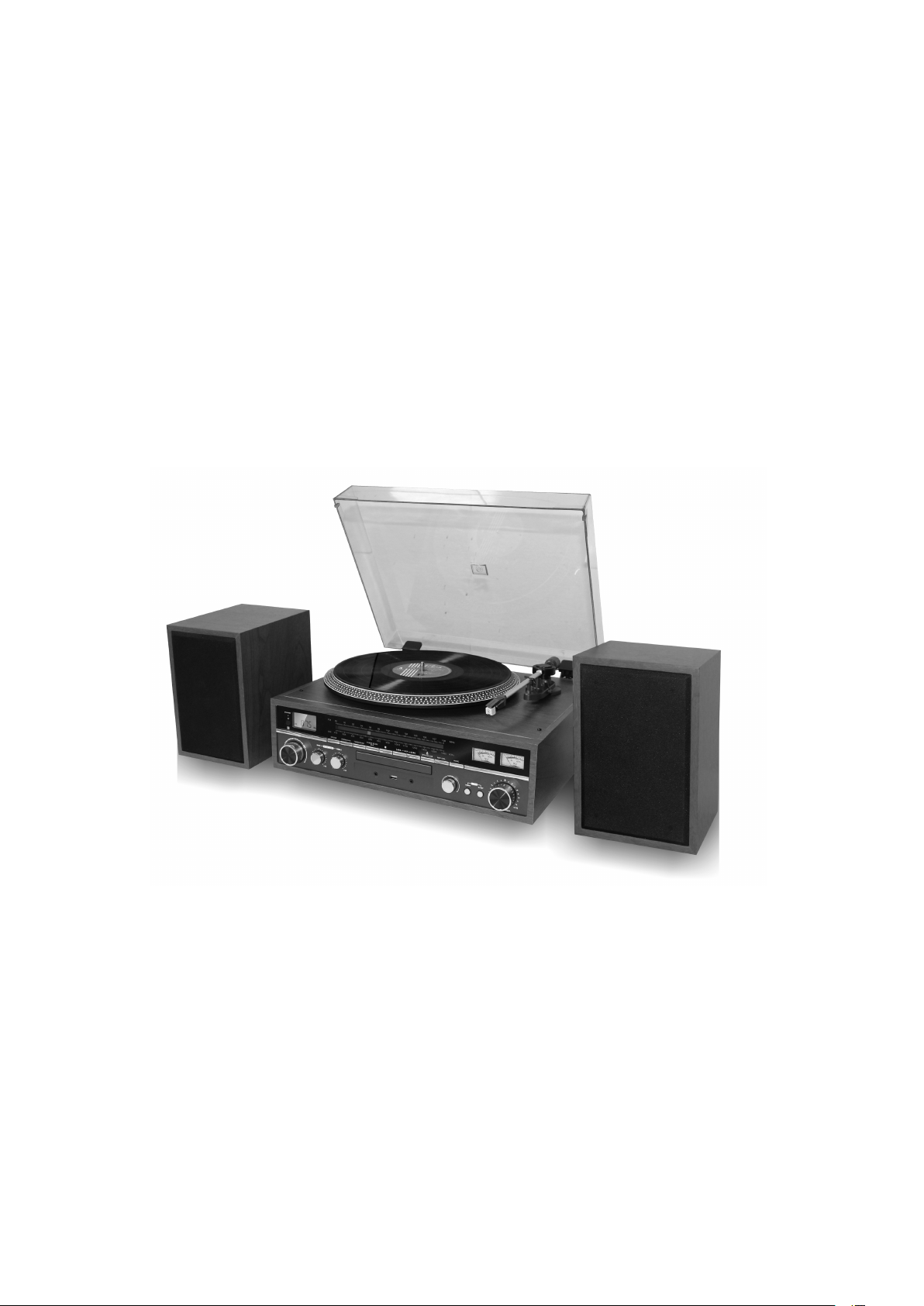

COMMANDER
2 SPEED TURNTABLE WITH CD/MP3 PLAYER, FM/AM RADIO, AUX IN
USB ENCODING, TURNTABLE PITCH CONNTROL, BLUETOOTH AND
EXTERNAL SPEAKER BOX
INSTRUCTION MANUAL
READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE

2
PRODUCT FEATURES
- 33/45 RPM SELECTABLE TURNTABLE
- AUTO STOP TURNTABLE
- BELT DRIVEN SYSTEM
- BLUETOOTH WIRELESS MUSIC STREAMING
- PRORAMMABLE CD/MP3 PLAYER
- DIRECT USB ENCODING FOR CD, TURNTABLE, FM RADIO & AUX IN
- AUX IN FOR CONNECTION OF OTHER DEVICE (EG. CD & MP3 PLAYER)
- USB SLOT FOR MP3 PLAYBACK
- ANALOG FM/AM RADIO
- CLOCK ALARM
- TIMER TO SWITCH ON AND OFF
- CD DISPLAY WITH BLUE BACKLIGHT
- RCA LINE-OUT
- EXTERNAL SPEAKER BOX
- 45RPM ADAPTOR, EXTERNAL POWER
- ADAPTOR & REMOTE CONTROL
LOCATION OF CONTROL
1) REMOTE CONTROL RECEIVER
2) STANDBY / BT INDICATOR
3) LCD DISPLAY
4) FUNCTION
5) REC/DEL
6) MODE/CLK
7) PLAY/PAUSE
8) STOP
9) RADIO DIAL SCALE
10) SKIP DOWN
11) SKIP UP
12) ALBUM DOWN
13) ALBUM UP
14) OPEN/CLOSE
15) VU METER
16) VU METER
17) STANDBY / VOLUME KNOB
18) BASS CONTROL
19) TREBLE CONTROL
20) EARPHONE JACK
21) USB SLOT
22) AUX IN JACK
23) CD PLAYER
24) RADIO TUNING
25) TIMER/SLEEP
26) 33RPM/45RPM SPEED
27) PITCH ADJUSTMENT (TURNTABLE)
28) FM ANTENNA
29) LINE-OUT RCA JACK
30) EXTERNAL POWER ADAPTOR JACK
31) SPEAKER RCA JACK
32) STROB LIGHT
33) LIFT LEVER
34) TONE ARM
35) CARTRIDGE
36) TURNTABLE
37) CENTER SPINDLE
AUX I N
PHO NES
TIMER/SLEEP SPEED
N
I
N
U
G
T
PIT CH ADJ.
MOD E/C LK OPEN/CLOSE
REC /DE LFUN CTI ON AL BUM
DN UP
1 2 3 4 5 6 7 8 9 10 12 13 1411 15 16
17 18 19 20 21 22 23 24 25 26 27

3
CAUTION:
USAGE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULTE IN HAZARDOUS RADIATION EXPOSURE.
THIS UNIT SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT QUALIFIED SERVICE
PERSONNEL.
WARNING:
- THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND THAT NO
OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.
- BATTERIES (BATTERY PACK OR BATTERIES INSTALLED) SHALL NOT BE EXPOSED TO
EXCESSIVE HEAT SUCH AS SUNSHINE, FIRE OR THE LIKE.
- THE MAINS PLUGS OR AN APPLIANCE COUPLER IS USED AS THE DISCONNECT DEVICE, AND
THE DISCONNECT DEVISE SHALL REMAIN READILY OPERABLE.
PRECAUTIONS FOR USE
INSTALLATION
UNPACK ALL PARTS AND REMOVE PROTECTIVE MATERIAL.
DO NOT CONNECT THE UNIT TO THE MAINS BEFORE CHECKING THE MAINS VOLTAGE AND
BEFORE ALL OTHER CONNECTIONS HAVE BEEN MADE.
DO NOT COVER ANY VENTS AND MAKE SURE THAT THERE IS A SPACE OF SEVERAL
CENTIMETERS AROUND THE UNIT FOR VENTILATION.
CONNECTION
1. CONNECT EXTERNAL POWER ADAPTOR TO EXTERNAL POWER ADAPTOR JACK
2. CONNECT EXTERNAL SPEAKER BOX WITH SPEAKER RCA JACK
3. PUSH THE STANDBY KNOB TO SWITCH ON THE UNIT, STANDBY INDICATOR (RED COLOR)
WILL BE OFF. IF THE BACKLIGHT ON THE LCD DISPLAY LIGHTS UP, IT MEANS THE POWER
SUPPLY IS NORMAL, NOW YOUR SYSTEM IS READY FOR USE.
SETTING THE CLOCK
1 WHEN THE STANDBY INDICATOR (RED COLOR) LIGHT UP, UNIT IS IN THE STANDBY MODE.
2 DURING STANDBY MODE, SELECT BETWEEN 12H OR 24H MODE: PRESS AND HOLD CLK
BUTTON FOR 3-5 SECONDSS, 12H / 24H WILL BE FLASHING. PRESSING SKIP UP OR SKIP
DOWN BUTTON TO SELECT 12H / 24H MODE. PRESS CLK BUTTON AGAIN TO CONFIRM.
3 SETTING HOUR: PRESSING SKIP UP OR SKIP DOWN BUTTON TO SELECT THE CORRECT
HOUR, THEN PRESS CLK BUTTON AGAIN TO CONFIRM.
4 SETTING MINUTE: AFTER STEP 3 IS COMPLETED, PRESSING SKIP UP OR SKIP DOWN
BUTTON TO SELECT THE CORRECT MINUTE, THEN PRESS CLK BUTTON AGAIN TO
CONFIRM.
SETTING ALARM
1. DURING STANDBY MODE, HOLD TIMER BUTTON FOR 3-5 SECONDS. SETTING ALARM
SEQUENCE IS “ALARM ON TIME > ALARM OFF TIME > ALARM MODE > ALARM VOLUME”.
2. SETTING ALARM ON TIME: “ON” IS LIGHTING ON THE DISPLAY
i. SETTING HOUR: PRESSING SKIP UP OR SKIP DOWN BUTTON TO SELECT THE
CORRECT HOUR, THEN PRESS TIMER BUTTON AGAIN TO CONFIRM.
ii. SETTING MINUTE: PRESSING SKIP UP OR SKIP DOWN BUTTON TO SELECT THE
CORRECT MINUTE, THEN PRESS TIMER BUTTON AGAIN TO CONFIRM.
3. SETTING ALARM OFF TIME: “OFF” IS LIGHTING ON THE DISPLAY:
i. SETTING HOUR: PRESSING SKIP UP OR SKIP DOWN BUTTON TO SELECT THE
CORRECT HOUR, THEN PRESS TIMER BUTTON AGAIN TO CONFIRM.
ii. SETTING MINUTE: PRESSING SKIP UP OR SKIP DOWN BUTTON TO SELECT THE
CORRECT MINUTE, THEN PRESS TIMER BUTTON AGAIN TO CONFIRM.
4. SETTING ALARM MODE: “TUNE” IS LIGHTING UP ON THE DISPLAY:
i. PRESSING SKIP UP OR SKIP DOWN BUTTON TO SELECT THE ALARM MODE.
ii. SEQUENCE IS TUNE > CD > USB, PRESS TIMER BUTTON AGAIN TO CONFIRM.

4
5. SETTING ALARM VOLUME: “V - ” IS LIGHTING UP ON THE DISPLAY:
i. PRESSING SKIP UP OR SKIP DOWN BUTTON TO SELECT THE ALARM VOLUME,
PRESS TIMER BUTTON AGAIN TO CONFIRM.
6. SETTING ALARM IS COMPLETED, THE DISPLAY WILL SHOW THE SETTING AGAIN FOR USER’S
CHECKING
7. “CLOCK” ICON IS FLASHING WHEN ALARM IS IN ACTIVE. “CLOCK” ICON LIGHTS UP WHEN
ALARM IS SETTING IS STORED BUT NOT IN ACTIVE YET.
8. CANCEL ALARM: DURING STANDBY MODE, WHEN “CLOCK” ICON IS ON, PRESS TIMER
BUTTON, “CLOCK” ICON WILL BE OFF.
TIMER FUNCTION
1. PUSH THE STANDBY KNOB TILL THE STANDBY INDICATOR (RED COLOR) LIGHT OFF. UNIT IS
TURNING FROM STANDBY MODE TO OPERATION MODE.
2. WHEN THE UNIT IS TURNED ON, PRESS SLEEP BUTTON REPEATEDLY TO CHOOSE THE
SLEEP TIME MINUTES FROM 90>80>70…..>10 OFF.
3. SLEEP TIME SETTING IS STORED WHEN THE “SLEEP” ICON LIGHTS UP ON THE DISPLAY.
4. WHEN THE SLEEP TIME MINUTES IS OVER, UNIT WILL BE SWITCHED TO STANDBY MODE
AUTOMATICALLY.
LISTENING TO FM/AM RADIO
RADIO TUNING
1. PRESS FUNCTION BUTTON REPEATEDLY TO ACTIVATE “FM” OR “AM” MODE.
2. TUNE TO THE REQUIRED STATION BY TURNING TUNING KNOB TO TUNE THE RADIO
FREQUENCY, WHICH IS SHOWN ON THE RADIO DIAL SCALE.
3. SELECT DESIRED VOLUME BY TURNING VOLUME KNOB.
HINTS FOR BETTER RECEPTION
1. AM: THERE IS A BUILT-IN AM BAR ANTENNA. IF AM RECECPTION IS WEAK, SLIGHTLY
ROTATING OR RE-POSITIONING OF THE UNIT WILL USUALLY IMPROVE THE AM RECEPTION.
2. FM : THE RECEIVER HAS A BUILT-IN FM WIRE ANTENNA HANGING AT THE REAR CABINET.
THIS WIRE SHOULD BE TOTALLY UNRAVELED AND EXTENDED FOR BEST RECEPTION.
FM RADIO ENCODING
1. PRESS FUNCTION BUTTON REPEATEDLY TO ACTIVATE “FM” MODE.
2. INSERT MEMORY DEVICE (USB DRIVE)
3. PRESS THE REC BUTTON, IT WILL TAKE 3-5 SECONDS TO READ MEMORY DEVICE. THEN USB
ICON WILL BE FLASHING.
4. THE USB OR SD ICON WILL BE FLASHING ON THE DISPLAY DURNIG ENCODING.
5. TO FINISH ENCODING, PRESS STOP BUTTON AND DISPLAY WILL SHOW “END” AND
RETURN TO “FM” MODE.
REMARK:-
- THE RECORDING SPEED IS 1:1 AND ACCORDING TO THE ACTUAL PLAYING TIME OF FM OR
FM-ST RADIO
- THE RECORDING FORMAT IS PRESET AT – MP3 BIT RATE : 128 KBPS
- DURING FM RADIO ENCODING, RADIO FREQEUNCY IS FXIED AND CANNOT BE TUNED
- THE ENCODING QUALITY DEPENDS ON THE RADIO RECEPTION. IF THE RADIO RECEPTION
IS NOT CLEAR, IT MAY AFFECT THE FM RADIO ECODING QUALITY.
PHONO & ENCODING
NOTED:
-REMOVE THE STYLUS PROTECTOR.
-BE SURE THAT THE TONE ARM IS BEING DETACHED FROM THE
TONE ARM REST BEFORE OPERATING AND RE-SECURED AGAIN
AFTERWARDS.

5
1. PRESS FUNCTION BUTTON TO SELECT “PHON” ON DISPLAY.
2. PRESS 33RPM/45RPM SPEED BUTTON TO THE PROPER POSITION DEPENDING ON THE
RECORD TO BE PLAYED. DISPLAY LCD WILL SHOW 33rM for 33RPM and 45rM for 45RPM.
3. PLACE THE RECORD ON THE PLATTER, USE THE 45 RPM ADAPTOR IF
REQUIRED.
4. PUSH THE LIFT LEVER UPWARD TO RAISE THE TONE ARM FROM THE ARM
PARK, AND THEN SLOWLY MOVE IT TO THE RECORD SIDE. THE PLATTER
WILL START TO ROTATE.
5. PUT DOWN THE LIFT LEVER TO DROP THE TONE ARM AND TOUCH THE
RECORD GENTLY. PHONO PLAYING STARTS NOW.
6. PUSH THE LIFT LEVER UPWARD TO RAISE THE TONE ARM FROM THE ARM PARK, NOW
PLATTER WILL STILL BE ROTATING BUT PHONO PLAYING WILL STOP. TO CONTINUE THE
PLAYING, THE USER NEEDS TO PUT DOWN THE LIFT LEVER.
7. ADJUST THE VOLUME TO THE DESIRED LEVEL.
8. STROB DOTS ON THE TURNTABLE PLATTER FOR SPEED CHECKING. UPPER ROWS OF
BIGGER DOTS. FOR 33RPM, UPPER ROWS OF SMALLER DOTS FOR 45RPM. ADJUST SPEED
BY PITCH CONTROL KNOB IF NECESSARY. SUITABLE DOTS WILL KEEP STABLIZED UNDER
STROB LIGHT IF THE SPEED IS CORRECT.
9. AT THE END OF RECORD, TURNTABLE WILL STOP AUTOMATICALLY. PUSH THE LIFT LEVER
UPWARD TO RAISE THE TONE ARM AND MOVE IT TO THE ARM PARK, THEN PUT DOWN THE
LIFT LEVER AND RETURN IT TO THE ARM PARK.
PHONO ENCODING
1. PRESS FUNCTION BUTTON TO ACTIVATE “PHON” ON DISPLAY AND THEN INSERT MEMORY
DEVICE (USB DRIVE).
2.PRESS THE REC BUTTON, IT WILL TAKE 3-5 SECONDS TO READ MEMORY DEVICE. THEN USB
ICON WILL BE FLASHING.
3.THE USB ICON WILL BE FLASHING ON THE DISPLAY DURNIG ENCODING.
5.TO FINISH ENCODING, PRESS STOP BUTTON AND DISPLAY WILL SHOW “END” AND RETURN
TO PHONO MODE.
REMARK:-
- THE RECORDING SPEED IS 1:1 AND ACCORDING TO THE ACTUAL PLYING TIME OF THE
PHONO
- THE RECORDING FORMAT IS PRESET AT – MP3 BIT RATE : 128 KBPS
AUX IN JACK & ENCODING
PRESS FUNCTION BUTTON TO ACTIVATE “AUX” ON DISPLAY, THEN CONNECT THE EXTERNAL
AUDIO DEVICE (SUCH AS CD PLAYER) THROUGH THE AUX IN JACK. AUDIO SIGNAL FROM THE
EXTERNAL AUDIO DEVICE CAN BE PLAYED THROUGH THE SYSTEM.
AUX IN ENCODING
1. PRESS FUNCTION BUTTON TO SELECT “AUX” ON DISPLAY, THEN INSERT MEMORY DEVICE
(USB DRIVE)
2.PRESS THE REC BUTTON, IT WILL TAKE 3-5 SECONDSS TO READ MEMORY DEVICE. THEN USB
ICON WILL BE FLASHING.
3.THE USB ICON WILL BE FLASHING ON THE DISPLAY DURNIG ENCODING.
6.TO FINISH ENCODING, PRESS STOP BUTTON AND DISPLAY WILL SHOW “END” AND RETURN
TO “AUX” MODE.
REMARK:-
- THE RECORDING SPEED IS 1:1 AND ACCORDING TO THE ACTUAL PLYING TIME OF THE
EXTERNAL AUDIO DEVICE.
- THE RECORDING FORMAT IS PRESET AT – MP3 BIT RATE : 128 KBPS

6
PLAYBACK OF MP3/WMA SONG VIA USB STORAGE MEDIA OR MEMORY CARD
CONNECTING
THE SYSTEM IS ABLE TO DECODE AND PLAYBACK ALL MP3 / WMA FILE WHICH STORED IN THE
MEMORY MEDIA WITH USB SLOT.
1. PLUG-IN THE USB PLUG WITH THE FACE UP & MAKE SURE IT GOING INTO COMPLETELY,
INSERT STRAIGHT WITHOUT BENDING.
2. CONNECTING THE USB UPSIDE DOWN OR BACKWARDS COULD DAMAGE THE AUDIO
SYSTEM. CHECK TO BE SURE THE DIRECTION IS CORRECT BEFORE CONNECTION.
3. PRESS FUNCTION BUTTON REPEATEDLY TO SELECT “USB” ON DISPLAY.
4. THE SYSTEM WILL START READING THE STORAGE MEDIA AUTOMATICALLY AFTER
FUNCTION SELECTION, AND DISPLAY WILL SHOW THE TOTAL NUMBER OF MP3/WMA FILES
(EG. 016).
5. THEN THE SYSTEM WILL START AUDIO PLAYBACK FROM DESRIED DEVICE (USB OR SD/MMC)
AUTOMATICALLY.
PLAY / PAUSE BUTTON
-PRESS THE “PLAY/PAUSE” BUTTON ONCE TO HALT PLAYING, PRESS IT AGAIN TO
CONTINUE.
STOP BUTTON
-PRESS STOP BUTTON TO END UP AUDIO PLAYBACK, THEN DISPLAY WILL SHOW THE
TOTAL NUMBER OF MP3/WMA FILES. AND THEN USER CAN PRESS “SKIP UP” OR “SKIP
DOWN” BUTTON TO SELECT FILE FORWARD OR BACKWARD.
SKIP UP / SKIP DOWN BUTTON
-DURING MP3/WMA PLAYBACK, PRESS SKIP UP BUTTON ONCE TO PLAY THE NEXT FILE.
PRESS AND HOLD SKIP UP BUTTON CONTINUOUSLY TO SPEED UP SELECTING
FORWARD.
-DURING MP3/WMA PLAYBACK, PRESS SKIP DOWN KNOB ONCE TO PLAY THE
PREVIOUS FILE. PRESS AND HOLD SKIP DOWN BUTTON CONTINUOUSLY TO SPEED UP
SELECTING BACKWARD.
FOLDER SEARCHING
PRESS ALBUM DOWN OR ALBUM UP BUTTON TO SEARCH FOLDER BACKWARD OR
FORWARD.
REPEAT FUNCTION
DURING AUDIO PLAYBACK, PRESS MODE BUTTON REPEATEDLY TO CHOOSE DIFFERENT
PLAYBACK MODE AS BELOW:
REPEAT ONCE > REPEAT ALBUM > REPEAT ALL > RANDOM > INTRODUCTION
REMARK
- IF CONNECT THE SYSTEM TO MP3 PLAYER VIA THE USB SOCKET, DUE TO VARIANCES IN
MP3 ENCODING FORMAT, SOME MP3 PLAYER MAY NOT BE ABLE TO PLAY VIA THE USB
SOCKET. THIS IS NOT A MALFUNCTION OF THE SYSTEM.
- THERE ARE NUMEROUS USB DEVICE PRODUCERS ARE. SOLUTION AND FORMAT ARE
VARIABLE BETEEN EACH OTHER. THEREFORE, WE DO NOT GARANTTEE THIS UNIT CAN
SUPPORT ALL USB DEVICE FROM EVERY BRAND.
TRACKS PROGRAMMING
UP TO 99 TRACKS CAN BE PROGRAMMED FOR MP3/WMA FILE AND PLAY IN ANY ORDER.
BEFORE USE, BE SURE THE SYSTEM IS AT STOP MODE BEFORE PROGRAMMING:
1. SET AT “USB” FUNCTION, THEN PRESS STOP BUTTON.
2. PRESS MODE BUTTON, “MEM” WILL BE FLASHING ON LCD DISPLAY. MOREOVER, IT WILL
INDICATE PROGRAM NO. AND DIGITS FOR TRACK NO. TO BE PROGRAMMED.
3. SELECT A DESIRED FOLDER (IF NECESSARY) BY PRESSING ALBUM DOWN AND UP BUTTON,
THEN SELECT DESIRED TRACK BY PRESSING SKIP UP OR SKIP DOWN BUTTON,
PRESS MODE BUTTON TO CONFIRM.

7
4. REPEAT STEPS 3 TO ENTER ADDITIONAL TRACKS INTO THE MEMORY IF NECESSARY.
5. WHEN ALL THE DESIRED TRACKS HAVE BEEN PROGRAMMED, PRESS “PLAY/PAUSE”
BUTTON TO PLAY THE TRACKS IN ASSIGNED ORDER.
6. PRESS STOP BUTTON TO STOP PLAYING OF PROGRAMMED TRACKES, PRESS STOP
BUTTON AGAIN TO CANCEL PROGRAMMING.
FILE DELETE FROM USB / SD CARD
THE SYSTEM IS ABLE TO ERASE THE FILE STORED INSIDE THE USB DRIVE OR SD CARD BY
FOLLOWING:-
I) DELETE 1 TRACK
1. PRESS AND HOLD DEL BUTTON FOR 3-5 SECONDS DURING THE PLAYBACK OF THE
DESIRED TRACK, THEN “ONE” WILL BE FLASHING ON THE DISPLAY. PRESS DEL BUTTON AGAIN
TO CONFIRM.
2. “DEL” WILL BE SHOWN ON THE DISPLAY.
3. “DEL” WILL DISAPPEAR ON THE DISPLAY, IT MEANS THE TRACK IS DELETED.
II) DELETE 1 FOLDER
1. INSERT THE USB STORAGE MEDIA OR SD/MMC CARD, SET IN “USB” OR “CARD” MODE & SET
AT STOP MODE AFTER UNIT READING.
2. PRESS ALBUM DOWN OR ALBUM UP TO SEARCH DESIRED FOLDER FOR DELETING.
3. PRESS AND HOLD DEL BUTTON FOR 3-5 SECONDS, “DEL” WILL SHOW ON THE DISPLAY.
PRESSING SKIP UP / SKIP DOWN BUTTON TO SELECT “DIR” ON THE DISPLAY.
PRESS DEL BUTTON AGAIN TO CONFIRM.
4. “DEL” WILL BE SHOWN ON THE DISPLAY. AFTER “DEL” DISAPPEARS IT MEANS THE DESIRED
FOLDER IS DELETED.
II) DELETE ALL TRACK
1. INSERT THE USB STORAGE MEDIA OR SD/MMC CARD, SET IN “USB” OR “CARD” MODE & SET
AT STOP MODE AFTER UNIT READING.
2. PRESS AND HOLD DEL BUTTON FOR 3-5 SECONDS, THEN “ONE” WLL BE FLASHING ON THE
DISPLAY. PRESSING SKIP UP / SKIP DOWN BUTTON TO SELECT “ALL” ON THE
DISPLAY. PRESS DEL BUTTON AGAIN TO CONFIRM.
3. USB OR SD ICON WILL BE FLASHING ON THE DISPLAY. DELETING IS PERFORMING NOW.
4. WHEN THE USB OR SD ICON STOPS FLASHING, IT MEANS THAT ALL TRACK COPYING IS
COMPLETED.
REMARK : ALL THE FILES INSIDE THE USB STORAGE MEDIA WILL BE DELETED COMPLETELY
AFTER CONFIRMING TO “DEL” BUTTON.
COMPACT DISC (CD) PLAYBACK & ENCODING
1. PRESS FUNCTION BUTTON REPEATEDLY TO SELECT “CD” ON DISPLAY.
2. PRESS CD DOOR OPEN/CLOSE BUTTON, CD DOOR WILL BE OPENED, PUT THE CD IN THE
TRAY AND PRESS CD DOOR BUTTON AGAIN, CD DOOR WILL BE CLOSED.
3.THE SYSTEM WILL START READING THE CD:
PLAY / PAUSE BUTTON
-PRESS THE PLAY/PAUSE BUTTON ONCE TO HALT PLAYING, PRESS IT AGAIN TO
CONTINUE.
STOP BUTTON
-PRESS THE STOP BUTTON TO END UP AUDIO PLAYBACK, THEN DISPLAY WILL SHOW
THE TOTAL NUMBER OF TRACKS. AND THEN USER CAN PRESS SKIP UP / SKIP DOWN
BUTTON TO SELECT TRACKS.
SKIP UP / SKIP DOWN BUTTON
-DURING CD PLAYBACK, PRESS SKIP UP BUTTON ONCE TO PLAY THE NEXT FILE.
PRESS AND HOLD SKIP UP BUTTON CONTINUOUSLY TO SPEED UP SELECTING
FORWARD
-DURING CD PLAYBACK, PRESS SKIP DOWN BUTTON ONCE TO PLAY THE PREVIOUS

8
FILE. PRESS AND HOLD SKIP DOWN BUTTON CONTINUOUSLY TO SPEED UP
SELECTING BACKWARD.
-
FOLDER SEARCHING
-PRESS ALBUM DOWN OR ALBUM UP TO SEARCH FOLDER BACKWARD OR FORWARD.
REPEAT FUNCTION
DURING AUDIO PLAYBACK, PRESS MODE BUTTON REPEATEDLY TO CHOOSE DIFFERENT
PLAYBAC MODE AS BELOW:
REPEAT ONCE > REPEAT ALBUM (MP3/WMA FORMAT ONLY) > REPEAT ALL > RANDOM >
INTRODUCTION
TRACKS PROGRAMMING
UP TO 99 MP3 TRACKS & 20 CD AUDIO FORMAT TRACK CAN BE PROGRAMMED AND PLAYED IN
ANY ORDER. BEFORE USE, BE SURE THE SYSTEM IS AT STOP MODE BEFORE PROGRAMMING:
1. PRESS FUNCTION BUTTON REPEATEDLY TO SELECT “CD” AND SET AT STOP MODE
2. PRESS MODE BUTTON, “MEM” WILL BE FLASHING ON LCD DISPLAY. MOREOVER, IT WILL
INDICATE PROGRAM NO. AND DIGITS FOR TRACK NO. TO BE PROGRAMMED.
3. SELECT A DESIRED FOLDER (FOR MP3/WMA DISC ONLY) BY PRESSING ALBUM DOWN AND
UP BUTTON, THEN SELECT DESIRED TRACK BY PRESSING SKIP UP OR SKIP DOWN
BUTTON, PRESS MODE BUTTON TO CONFIRM.
4. REPEAT STEPS 3 TO ENTER ADDITIONAL TRACKS INTO THE MEMORY IF NECESSARY.
5. WHEN ALL THE DESIRED TRACKS HAVE BEEN PROGRAMMED, PRESS “PLAY/PAUSE”
BUTTON TO PLAY THE TRACKS IN ASSIGNED ORDER.
6. PRESS STOP BUTTON TO STOP PLAYING OF PROGRAMMED TRACKES, PRESS STOP
BUTTON AGAIN TO CANCEL PROGRAMMING.
COPYING OF CD
THE SYSTEM ALLOWS YOU TO COPY THE TRACK FROM CD TO USB OR SD BY 1 TRACK, 1
FOLDER OR ALL FILES.
I) COPY 1 TRACK
1.INSERT THE USB STORAGE MEDIA, PRESS FUNCTION BUTTON REPEATEDLY TO SELECT “CD”
MODE.
2.PRESS REC BUTTON DURING THE PLAYBACK OF THE COPYING TRACK FROM CD, THEN “ONE”
WILL BE FLASHING ON THE DISPLAY. PRESS REC BUTTON AGAIN TO CONFIRM.
3.THE USB ICON WILL BE FLASHING ON THE DISPLAY. COPYING IS PERFORMING NOW.
4.AFTER COMPLETING OF COPY, UNIT WILL STOP PLAYBACK AUTOMATICALLY.
5.DISPLAY WILL SHOW “END” AND BACK TO CD MODE.
II) COPY 1 FOLDER (FOR MP3/WMA DISC ONLY)
1.INSERT THE USB STORAGE MEDIA, SET IN CD & STOP MODE AFTER UNIT READING.
2. PRESS ALBUM DOWN OR ALBUM UP BUTTON TO SEARCH FOLDER FOR COPYING.
3. PRESS REC BUTTON, THEN “ONE” WILL BE FLASHING ON THE DISPLAY. PRESS SKIP UP /
SKIP DOWN BUTTON TO SELECT “DIR” ON THE DISPLAY. PRESS REC BUTTON AGAIN TO
CONFIRM.
4. USB ICON WILL BE FLASHING ON THE DISPLAY. COPYING IS PERFORMING NOW.
5. WHEN THE USB ICON STOPS FLASHING, IT MEANS THAT THE FOLDER COPYING IS
COMPLETED.
III) COPY ALL TRACK
1.INSERT THE USB STORAGE MEDIA, SET IN CD & STOP MODE AFTER UNIT READING.
2. PRESS REC BUTTON, THEN “ONE” WLL BE FLASHING ON THE DISPLAY. PRESS SKIP UP /
SKIP DOWN BUTTON TO SELECT “ALL” ON THE DISPLAY. PRESS REC BUTTON AGAIN TO
CONFIRM.
4. USB ICON WILL BE FLASHING ON THE DISPLAY. COPYING IS PERFORMING NOW.
5. WHEN THE USB ICON STOPS FLASHING, IT MEANS THAT ALL TRACK COPYING IS COMPLETED.

9
BLUETOOTH CONNECTION
-THIS UNIT HAVE BLUETOOTH FUNCTION, WHICH CAN CONNECT AND PLAY MUSIC FROM
YOUR BLUETOOH DEVICE (SUCH AS MOBILE PHONE).
-PRESS FUNCTION BUTTON REPEATEDLY TILL DISPLAY SHOWS “BT”, THEN “BT” WILL BE
FLASHING, IT MEANS THE UNIT IS READY FOR CONNECTION WITH YOUR BLUETOOH
DEVICE.
-SWITCH ON THE BLUETOOTH FUNCTION OF YOUR BLUETOOH DEVICE, AND SELECT
“COMMANDER” BLUETOOTH EQUIPMENT FOR CONNECTION.
-AFTER YOUR BLUETOOH DEVICE IS CONNECTED WITH THE UNIT, “BT” IN LCD DISPLAY WILL
STAY ON, THEN START TO PLAYBACK YOUR DEVICE.
-SWITCH TO OTHER MODE TO DISCONNECT THE BLUETOOTH CONNECTION.
EARPHONE JACK & LINE OUT SOCKET
-THIS SYSTEM CAN BE CONNECTED WITH HEADPHONE OR EXTERNAL AMPLIFIER /
SPEAKER BY 3.5MM EARPHONE JACK.
-THIS SYSTEM CAN BE CONNECTED WITH EXTERNAL DEVICE (EG. AMPLIFIER AND
SPEAKER) BY LINE-OUT RCA JACK AT REAR CABINET.
POWER SAVING FEATURE:
TO SAVE ENERGY, IF THERE IS NO AUDIO SIGNAL FROM CD / TURNTABLE / AUX IN / USB /
BLUETOOTH FOR A PERIOD OF OVER 10 MINUTES, THEN THE UNIT WILL AUTOMATICALLY
SWITCH TO STANDBY MODE.

10
REMOTE CONTROL
BATTERY INSTALLATION
THE INFRA-RED TRANSMITTER REQUIRES 1 PC CR2025 LITHUM BATTERY FOR OPERATION
BUTTON DESCRIPTION
1 STANDBY: TRIGGER BETWEEN STANDBY MODE AND OPERATION MODE.
2 PRESET/ALBUM DN: PERFORM SAME FUNCTION AS “ALBUM DOWN / PRESET DOWN”
BUTTON ON THE UNIT.
3PRESET/ALBUM UP: PERFORM SAME FUNCTION AS “ALBUM UP / PRESET UP”
BUTTON ON THE UNIT.
4TIMER / SLEEP: PERFORM SAME FUNCTION AS “TIMER / SLEEP” BUTTON ON THE UNIT.
5MUTE: TO MUTE AUDIO PLAYBACK.
6OP/CL: OPEN AND CLOSE THE CD DOOR.
7 REC/DEL: PERFORM SAME FUNCTION AS “REC/DEL” BUTTON ON THE UNIT.
8 FM/AM: SWITCH BETWEEN FM AND AM RADIO.
9 FUNCT: SELECT FUNCTION BETWEEN CD/USB/SD/PHONO/AUX/BT/RADIO FUNCTION
10 MODE/CLOCK: PERFORM SAME FUNCTION AS “MODE/CLK” BUTTON ON THE UNIT.
11 (PLAY/PAUSE): PERFORM SAME FUNCTION AS “ PLAY/PAUSE” BUTTON ON
THE UNIT.
12 (STOP)/BAND: PERFORM SAME FUNCTION AS “ STOP” BUTTON ON THE UNIT. AND
IT CAN SELECT BETWEEN AM AND FM BAND DURING RADIO MODE.
13 (SKIP DOWN): PERFORM SAME FUNCTION AS “ SKIP DOWN” BUTTON ON THE
UNIT. BESIDES, IT CAN BE USED FOR RADIO FREQUENCY SEARCHING DURING TUNER
MODE.
14 (SKIP UP): PERFORM SAME FUNCTION AS “ SKIP UP” BUTTON ON THE UNIT.
BESIDES, IT CAN BE USED FOR RADIO FREQUENCY SEARCHING DURING TUNER
MODE.
15 VOLUME +/- : CONTROL VOLUME LEVEL.

FCCWarningStatement
Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould
voidtheuser’sauthoritytooperatetheequipment.Thisequipmenthasbeentestedandfoundto
complywiththelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.These
limitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidential
installation.Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot
installedandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio
communications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticular
installation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,
whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotryto
correcttheinterferencebyoneormoreofthefollowingmeasures:
‐‐ Reorientorrelocatethereceivingantenna.
‐‐ Increasetheseparationbetweentheequipmentandreceiver.
‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris
connected.
‐‐ Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowing
twoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesiredoperation.
RF Exposure Statement
To maintain compliance with FCC's RF Exposure guidelines, This equipment should be installed and
operated with minimum distance of 20 cm the radiator your body. This device and its antenna(s) must
not be co-located or operation in conjunction with any other antenna or transmitter.
