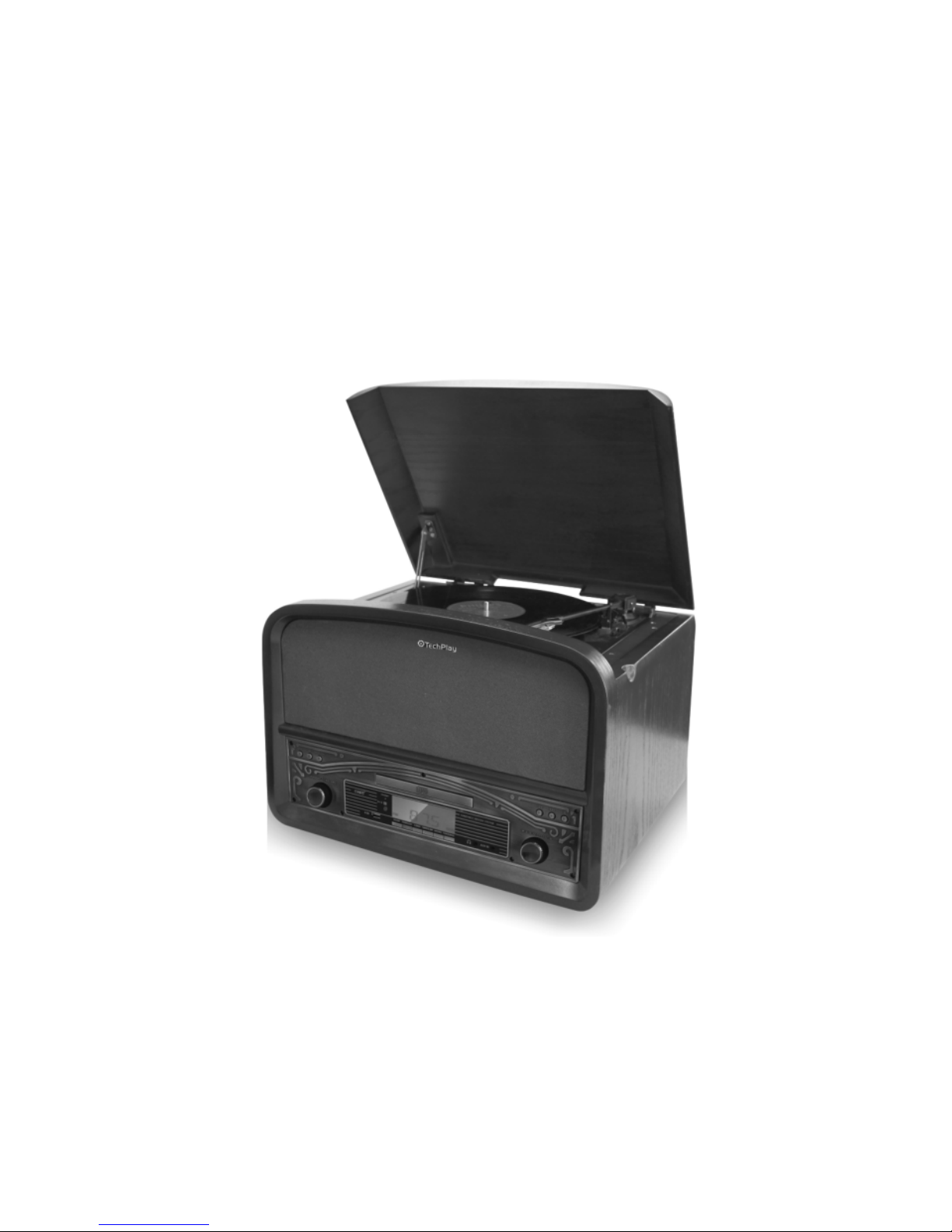

TechPlay RT-95 User manual

1
RT-95
RETRO WOODEN TURNTABLE WITH CD/MP3 PLAYER, AM/FM RADIO,
AUX IN, USB RECORDING AND BLUETOOTH
\
INSTRUCTION MANUAL
READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE

2
PRODUCT FEATURES
- 33/45/78 RPM SELECTABLE TURNTABLE
- AUTOMATIC / MANUAL STOP TURNTABLE
- BELT DRIVEN SYSTEM
- BLUETOOTH WIRELESS MUSIC STREAMING WITH NFC FUNCTION
- PRORAMMABLE CD/MP3 PLAYER
- DIRECT USB ENCODING FOR CD, TURNTABLE, FM RADIO & AUX IN
- AUX IN FOR CONNECTION OF OTHER DEVICE (EG. CD & MP3 PLAYER)
- USB SLOT FOR MP3 PLAYBACK
- PLL RADIO WITH PRESET 20AM & 30 FM STATIONS
- CLOCK ALARM
- TIMER TO SWITCH ON AND OFF
- ‘CD DISPLAY WITH BLUE BACKLIGHT
- RCA LINE-OUT
- STEREO BUILT-IN SPEAKER
- 45RPM ADAPTOR, EXTERNAL POWER
- ADAPTOR & REMOTE CONTROL

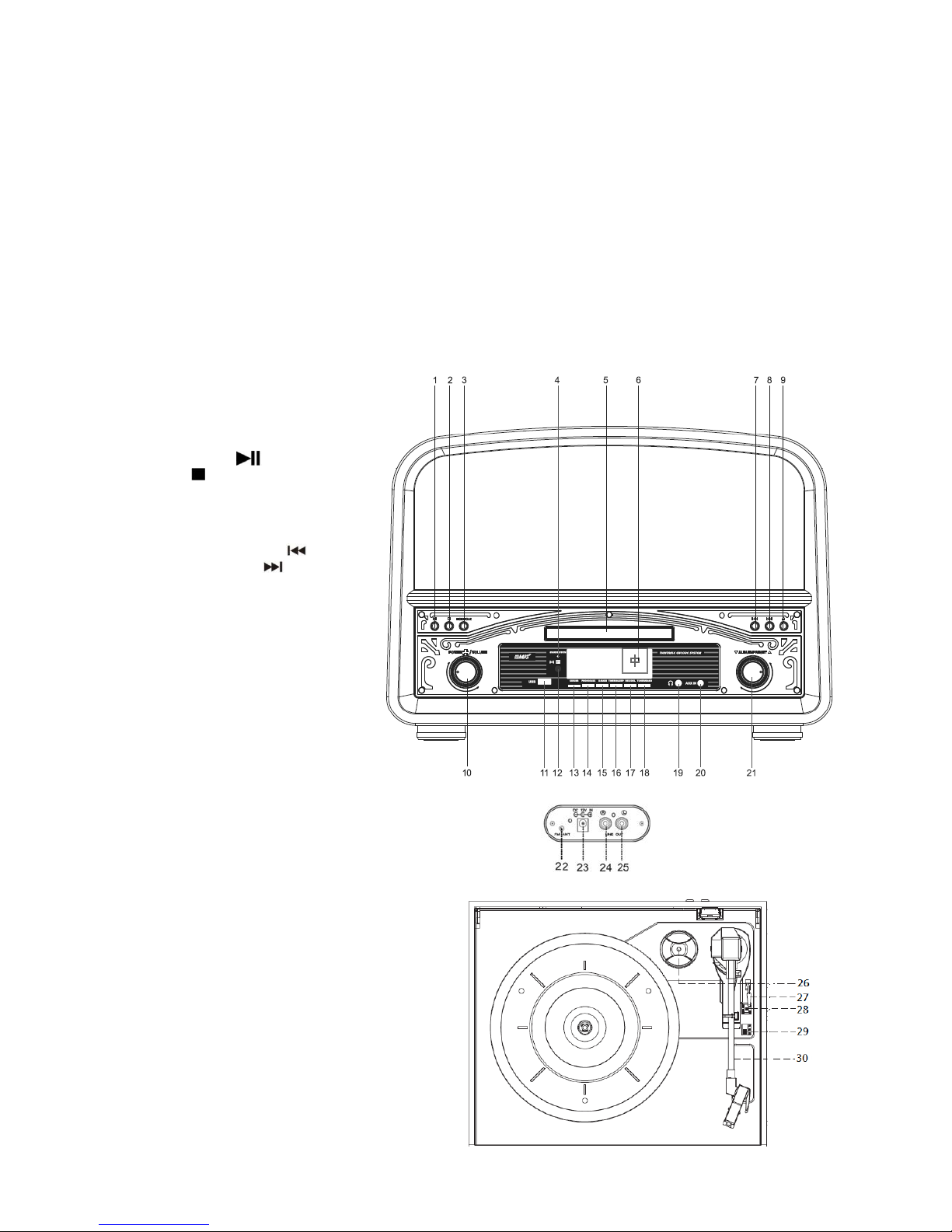

LOCATION OF CONTROL
1) PLAY / PAUSE
2) STOP
3) MODE / CLK
4) STANDBY / BT INDICATOR
5) CD PLAYER
6) LCD DISPLAY
7) TUNING / SKIP DOWN
8) TUNING / SKIP UP
9) OPEN/CLOSE
10) POWER / VOLUME KNOB
11) USB SLOT
12) REMOTE CONTROL RECEIVER
13) CD / USB
14) PHONO / AUX
15) X-BASS
16) TIMER / SLEEP
17) REC / DEL
18) TUNER / BAND
19) EARPHONE JACK
20) AUX IN JACK
21) ALBUM / PRESET UP & DOWN
22) FM WIRE ANTENNA
23) EXTERNAL POWERADAPTOR JACK
24) RCA LINE-OUT JACK
25) RCA LINE-OUT JACK
26) 45 RPM ADAPTOR
27) LIFT LEVER (FOR RECORD PLAY / PUASE)
28) AUTO STOP ON/OFF BUTTON
29) 33/45/78 RPM SPEED SELECTOR
30) TONE ARM

3
CAUTION:
USAGE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULTE IN HAZARDOUS RADIATION EXPOSURE.
THIS UNIT SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT QUALIFIED SERVICE
PERSONNEL.
WARNING:
- THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND THAT NO
OBJECTS FILLED WITH LIQUIDS, SUCHAS VASES, SHALL BE PLACED ON THE APPARATUS.
- BATTERIES (BATTERY PACK OR BATTERIES INSTALLED) SHALL NOT BE EXPOSED TO
EXCESSIVE HEAT SUCHAS SUNSHINE, FIRE OR THE LIKE.
- THE MAINS PLUGS OR AN APPLIANCE COUPLER IS USED AS THE DISCONNECT DEVICE, AND
THE DISCONNECT DEVISE SHALL REMAIN READILY OPERABLE.
PRECAUTIONS FOR USE
INSTALLATION
UNPACK ALL PARTS AND REMOVE PROTECTIVE MATERIAL.
DO NOT CONNECT THE UNIT TO THE MAINS BEFORE CHECKING THE MAINS VOLTAGE AND BEFORE
ALL OTHER CONNECTIONS HAVE BEEN MADE.
DO NOT COVER ANY VENTS AND MAKE SURE THAT THERE IS A SPACE OF SEVERAL CENTIMETERS
AROUND THE UNIT FOR VENTILATION.
CONNECTION
1. CONNECT EXTERNAL POWER ADAPTOR TO EXTERNAL POWER ADAPTOR JACK
2. PUSH THE POWER KNOB TO SWITCH ON THE UNIT, STANDBY INDICATOR (RED COLOR) WILL BE OFF.
IF THE BACKLIGHT ON THE LCD DISPLAY LIGHTS UP, IT MEANS THE POWER SUPPLY IS NORMAL, NOW
YOUR SYSTEM IS READY FOR USE.
SETTING THE CLOCK
1 WHEN THE STANDBY INDICATOR (RED COLOR) LIGHT UP, UNIT IS IN THE STANDBY MODE.
2 DURING STANDBY MODE, SELECT BETWEEN 12H OR 24H MODE: PRESS AND HOLD MODE BUTTON
FOR 3-5 SECONDSS, 12H / 24H WILL BE FLASHING. TURNING SKIP UP OR SKIP DOWN KNOB TO SELECT
12H / 24H MODE. PRESS MODE BUTTON AGAIN TO CONFIRM.
3 SETTING HOUR: TURNING SKIP UP OR SKIP DOWN KNOB TO SELECT THE CORRECT HOUR, THEN
PRESS MODE BUTTON AGAIN TO CONFIRM.
4 SETTING MINUTE: AFTER STEP 3 IS COMPLETED, TURNING SKIP UP OR SKIP DOWN KNOB TO SELECT
THE CORRECT MINUTE, THEN PRESS MODE BUTTON AGAIN TO CONFIRM.
SETTING ALARM
1. DURING STANDBY MODE, HOLD TIMER BUTTON FOR 3-5 SECONDS. SETTING ALARM SEQUENCE IS
“ALARM ON TIME >ALARM OFF TIME >ALARM MODE > ALARM VOLUME”.
2. SETTINGALARM ON TIME: “ON” IS LIGHTING ON THE DISPLAY
i. SETTING HOUR: TURNING SKIP UP OR SKIP DOWN KNOB TO SELECT THE CORRECT
HOUR, THEN PRESS TIMER BUTTON AGAIN TO CONFIRM.
ii. SETTING MINUTE: TURNING SKIP UP OR SKIP DOWN KNOB TO SELECT THE CORRECT
MINUTE, THEN PRESS TIMER BUTTON AGAIN TO CONFIRM.
3. SETTINGALARM OFF TIME: “OFF” IS LIGHTING ON THE DISPLAY:
i. SETTING HOUR: TURNING SKIP UP OR SKIP DOWN KNOB TO SELECT THE CORRECT
HOUR, THEN PRESS TIMER BUTTON AGAIN TO CONFIRM.
ii. SETTING MINUTE: TURNING SKIP UP OR SKIP DOWN KNOB TO SELECT THE CORRECT
MINUTE, THEN PRESS TIMER BUTTON AGAIN TO CONFIRM.
4. SETTING ALARM MODE: “TUNE” IS LIGHTING UP ON THE DISPLAY:
i. TURNING SKIP UP OR SKIP DOWN KNOB TO SELECT THE ALARM MODE.
ii. SEQUENCE IS TUNER > CD > USB, PRESS TIMER BUTTON AGAIN TO CONFIRM.
5. SETTING ALARM VOLUME: “V - ” IS LIGHTING UP ON THE DISPLAY:
i. TURNING SKIP UP OR SKIP DOWN KNOB TO SELECT THE ALARM VOLUME, PRESS TIMER
BUTTON AGAIN TO CONFIRM.
6. SETTING ALARM IS COMPLETED, THE DISPLAY WILLSHOW THE SETTING AGAIN FOR USER’S
CHECKING

4
7. “CLOCK” ICON IS FLASHING WHEN ALARM IS IN ACTIVE. “CLOCK” ICON LIGHTS UP WHEN ALARM IS
SETTING IS STORED BUT NOT IN ACTIVE YET.
8. CANCEL ALARM: DURING STANDBY MODE, WHEN “CLOCK” ICON IS ON, PRESS TIMER BUTTON,
“CLOCK” ICON WILL BE OFF.
SNOOZE FUNCTION
PRESS “SNOOZE” BUTTON ON THE REMOTE CONTROL WHEN ALARM IN ACTIVE, ALARM WILL BE SLIENT
FOR 10 MINUTES. AFTER 9-10 MINUTUE SNOOZE INTERVAL, ALARM WILL BE ACTIVE AGAIN. SNOOZE CAN
BE USED FOR REPEATEDLY WITHIN THE 1-HOUR ALARM ACTIVE INTERVAL.
TIMER FUNCTION
1. PUSH THE POWER KNOB TILL THE STANDBY INDICATOR (RED COLOR) LIGHT OFF. UNIT IS TURNING
FROM STANDBY MODE TO OPERATION MODE.
2. WHEN THE UNIT IS TURNED ON, PRESS SLEEP BUTTON REPEATEDLY TO CHOOSE THE SLEEP TIME
MINUTES FROM 90>80>70…..>10 OFF.
3. SLEEP TIME SETTING IS STORED WHEN THE “SLEEP” ICON LIGHTS UP ON THE DISPLAY.
4. WHEN THE SLEEP TIME MINUTES IS OVER, UNIT WILL BE SWITCHED TO STANDBY MODE
AUTOMATICALLY.
LISTENING TO RADIO
RADIO TUNING
1. PRESS TUNER BUTTON TOACTIVATE “TUNER” MODE.
2. SELECT THE DESIRED BAND BY RADIO TUNRER BUTTON (AM OR FM) AGAIN.
3. TUNE TO THE REQUIRED STATION BY PRESSING TUNING DOWN & SKIP UP BUTTON FOR 1-2
SECONDS, AND THEN RELEASE.
4. THE UNIT WILLSTART SEEKINGAUTOMATICALLY AND STOP WHENA RADIO STATION IS FOUND.
MANUAL PRESET RADIO STATIONS
1. WHEN THE DESIRED RADIO STATION IS FOUND, PRESS MODE BUTTON, PROGRAM NUMBER WILL BE
FLASHING.
2. PRESS PRESET UP OR PRESET DOWN TO CHOOSE THE PROGRAM NUMBER FOR STORING THE
DESIRED RADIO STATION.
3. PRESS MODE BUTTON AGAIN TO CONFIRM, PROGRAM NUMBER WILL STOP TO FLASH.
4. REPEAT STEP 2 & 3 UNTIL ALL DESIRED RADIO STATIONS IS BEING FOUND AND STORED
5. TURN PRESET UP OR PRESET DOWN KNOBTO CHOOSE THE PRESET RADIO STATIONS.
6. THE NUMBER OF STATIONS CAN BE FOUND AND STORED IS DEPENDED ON THE RECEPTION OF
DIFFERENT AREAAND COUNTRIES.
AUTO PRESET RADIO STATIONS
1. DURING RADIO MODE, PRESS THE PLAY BUTTON, THE UNIT WILL AUTOMATICLLY SCAN THE RADIO
FREQUENCY. WHEN THE CLEAR SIGNAL IS FOUND, IT WILL AUTOMATICALLY STORE THE RADIO
STATION, STARTING FROM PROGRAM NUMBER 1.
2. THE NUMBER OF STATIONS CAN BE FOUND AND STORED IS DEPENDED ON THE RECEPTION OF
DIFFERENT AREAAND COUNTRIES.
FM & FM-STEREO RECEPTION
PRESS “FM ST.” BUTTON ON THE REMOTE CONTROL TO SELTECT FM MONO OR FM STEREO MODE. WHEN
STEREO SIGNALARE WEAK. IT IS PREFERABLE TO RECEIVE THE PROGRAM IN MONO.
HINTS FOR BETTER RECEPTION
1. AM: THERE IS A BUILT-IN AM BAR ANTENNA. IF AM RECECPTION IS WEAK, SLIGHTLY ROTATING OR
RE-POSITIONING OF THE UNIT WILL USUALLY IMPROVE THEAM RECEPTION.
2. FM : THE RECEIVER HAS A BUILT-IN FM WIRE ANTENNA HANGING AT THE REAR CABINET. THIS WIRE
SHOULD BE TOTALLY UNRAVELED AND EXTENDED FOR BEST RECEPTION.
FM & FM-STEREO RADIO ENCODING
1. PRESS TUNER BUTTON TO ACTIVATE “TUNER” MODE AND SELECT THE DESIRED BAND BY RADIO
BAND BUTTON (AM OR FM).
2. INSERT MEMORY DEVICE (USB DRIVE)
3. PRESS THE REC BUTTON, IT WILL TAKE 3-5 SECONDS TO READ MEMORY DEVICE. THEN USB ICON
WILL BE FLASHING.
4. THE USB ICON WILL BE FLASHING ON THE DISPLAY DURNIG ENCODING.

5
5. TO FINISH ENCODING, PRESS STOP BUTTON AND DISPLAY WILL SHOW “END” AND RETURN TO
“ TUNER” MODE.
REMARK:-
- THE RECORDING SPEED IS 1:1 AND ACCORDING TO THE ACTUAL PLAYING TIME OF FM OR FM-ST
RADIO
- THE RECORDING FORMAT IS PRESETAT – MP3 BIT RATE : 128 KBPS
- DURING FM & FM-STEREO RADIO ENCODING, RADIO FREQEUNCY IS FXIEDAND CANNOT BE TUNED
PHONO & ENCODING
NOTED:
-REMOVE THE STYLUS PROTECTOR.
-BE SURE THAT THE TONE ARM IS BEING DETACHED FROM THE TONEARM
REST BEFORE OPERATING AND RE-SECURED AGAIN AFTERWARDS.
1. PRESS FUNCTION BUTTON TO SELECT “PHON” ON DISPLAY.
2. SET THE SPEED SELECTOR TO THE PROPER POSITION DEPENDING ON THE RECORD TO BE PLAYED.
3. PLACE THE RECORD ON THE PLATTER, USE THE 45 RPM ADAPTOR IF REQUIRED.
4. PUSH THE LIFT LEVER UPWARD TO RAISE THE TONE ARM FROM THE ARM PARK,
AND THEN SLOWLY MOVE IT TO THE RECORD SIDE. THE PLATTER WILL START TO
ROTATE.
5. PUT DOWN THE LIFT LEVER TO DROP THE TONE ARM AND TOUCH THE RECORD
GENTLY. PHONO PLAYING STARTS NOW.
6. PUSH THE LIFT LEVER UPWARD TO RAISE THE TONE ARM FROM THE ARM PARK,
NOW PLATTER WILL STILL BE ROTATING BUT PHONO PLAYING WILL STOP. TO CONTINUE THE PLAYING,
THE USER NEEDS TO PUT DOWN THE LIFT LEVER.
7. ADJUST THE VOLUME TO THE DESIRED LEVEL.
8. AT THE END OF RECORD, THE PLATTER WILLAUTOMATICALLY STOP ROTATING. PUSH THE LIFT LEVER
UPWARD TO RAISE THE TONE ARM AND MOVE IT TO THE ARM PARK, AND THEN PUT DOWN THE LIFT
LEVER.
9. TO STOP MANUALLY, LIFT THE TONE ARM FROM THE RECORD AND RETURN IT TO THE ARM PARK.
REMARK : AS SOME KIND OF RECORD THE AUTO-STOP AREA WAS OUT OF THE UNIT SETTING, SO IT WILL
STOP BEFORE THE LAST TRACK FINISHES. IN THIS CASE, SELECT THE AUTO-STOP SWITCH TO “ OFF
“ POSITION, THEN IT WILL RUN TO THE END OF THE RECORD BUT WILL NOT STOP AUTOMATICALLY (TURN
OFF THE UNIT BY POWER BUTTON OR SWITCH BACK THE AUTO-STOP SWITCH TO “ ON “ POSITION TO
STOP THE PLATTER ROTATE). THEN PUT BACK THE TONE ARM TO THEARM PARK.
PHONO ENCODING
1. PRESS PHONO BUTTON TOACTIVATE “PHONO” ON DISPLAY AND THEN INSERT USB MEMORY DEVICE.
2. INSERT MEMORY DEVICE (USB DRIVE)
3. PRESS THE REC BUTTON, IT WILL TAKE AROUND 5-10 SECONDS TO READ MEMORY DEVICE. THEN
USB ICON WILL BE FLASHING.
4. THE USB ICON WILL BE FLASHING ON THE DISPLAY DURNIG ENCODING.
5. TO FINISH ENCODING, PRESS STOP BUTTON AND DISPLAY WILL SHOW “END” AND RETURN TO
PHONO MODE.
REMARK:-
- THE RECORDING SPEED IS 1:1 AND ACCORDING TO THE ACTUAL PLYING TIME OF THE PHONO
- THE RECORDING FORMAT IS PRESETAT – MP3 BIT RATE : 128 KBPS
AUXINJACK&ENCODING
PRESS AUX BUTTON TO ACTIVATE “AUX” ON DISPLAY, THEN CONNECT THE EXTERNAL AUDIO DEVICE
(SUCH AS CD PLAYER) THROUGH THE AUX IN JACK. AUDIO SIGNAL FROM THE EXTERNAL AUDIO DEVICE
CAN BE PLAYED THROUGH THE SYSTEM.
AUX IN ENCODING
1. PRESS AUX BUTTON TO SELECT “AUX” ON DISPLAY, THEN INSERT MEMORY DEVICE (USB
DRIVE)
2. INSERT MEMORY DEVICE (USB DRIVE)

6
3. PRESS THE REC BUTTON, IT WILL TAKE AROUND 5-10 SECONDS TO READ MEMORY DEVICE. THEN
USB ICON WILL BE FLASHING.
4. THE USB ICON WILL BE FLASHING ON THE DISPLAY DURNIG ENCODING.
5. TO FINISH ENCODING, PRESS STOP BUTTON AND DISPLAY WILL SHOW “END” AND RETURN TO
“AUX” MODE.
REMARK:-
- THE RECORDING SPEED IS 1:1 AND ACCORDING TO THE ACTUAL PLYING TIME OF THE EXTERNAL
AUDIO DEVICE.
- THE RECORDING FORMAT IS PRESETAT – MP3 BIT RATE : 128 KBPS
PLAYBACK OF MP3/WMA SONG VIA USB STORAGE MEDIA
CONNECTING
THE SYSTEM IS ABLE TO DECODE AND PLAYBACK ALL MP3 / WMA FILE WHICH STORED IN THE MEMORY
MEDIA WITH USB CONNECTING PORT.
1. PLUG-IN THE USB PLUG WITH THE FACE UP & MAKE SURE IT GOING INTO COMPLETELY, INSERT
STRAIGHT WITHOUT BENDING.
2. CONNECTING THE USB UPSIDE DOWN OR BACKWARDS COULD DAMAGE THE AUDIO SYSTEM OR THE
STORAGE MEDIA (USB DRIVE). CHECK TO BE SURE THE DIRECTION IS CORRECT BEFORE
CONNECTION.
3. PRESS USB BUTTON TO SELECT “USB” MODE, THEN INSERT USB MEMORY DEVICE.
4. THE SYSTEM WILL START READING THE STORAGE MEDIA AUTOMATICALLY, AND DISPLAY WILL SHOW
THE TOTAL NUMBER OF MP3/WMAFILES (EG. 016).
5. THEN THE SYSTEM WILL START AUDIO PLAYBACK FROM USB DEVICE AUTOMATICALLY.
PLAY / PAUSE BUTTON
-PRESS THE “PLAY/PAUSE” BUTTON ONCE TO HALT PLAYING, PRESS IT AGAIN TO
CONTINUE.
STOP BUTTON
-PRESS STOP BUTTON TO END UP AUDIO PLAYBACK, THEN DISPLAY WILL SHOW THE
TOTAL NUMBER OF MP3/WMAFILES. AND THEN USER CAN PRESS “SKIP UP” OR “SKIP
DOWN” BUTTON TO SELECT FILE FORWARD OR BACKWARD.
SKIP UP / SKIP DOWN BUTTON
-DURING MP3/WMA PLAYBACK, PRESS SKIP UP BUTTON ONCE TO PLAY THE NEXT FILE.
PRESS AND HOLD SKIP UP BUTTON CONTINUOUSLY TO SPEED UP SELECTING
FORWARD.
-DURING MP3/WMA PLAYBACK, PRESS SKIP DOWN BUTTON ONCE TO PLAY THE PREVIOUS
FILE. PRESS AND HOLD SKIP DOWN BUTTON CONTINUOUSLY TO SPEED UP
SELECTING BACKWARD.
FOLDER SEARCHING
TURN ALBUM DOWN & UP KNOB LEFT OR RIGHT TO SEARCH FOLDER BACKWARD OR FORWARD.
REPEAT ONE / REPEAT ALBUM / REPEAT ALL / RANDOM / INTRO PLAYBACK FUNCTION
DURING AUDIO PLAYBACK, PRESS MODE BUTTON TO SELECT REPEAT ONE / REPEAT ALBUM /
REPEAT ALL / RANDOM / INTRO MUSIC PLAYBACK FROM USB DEVICE.
REMARK
- IF CONNECT THE SYSTEM TO MP3 PLAYER VIA THE USB SOCKET, DUE TO VARIANCES IN MP3
ENCODING FORMAT, SOME MP3 PLAYER MAY NOT BE ABLE TO PLAY VIA THE USB SOCKET. THIS IS
NOT A MALFUNCTION OF THE SYSTEM.
- THERE ARE NUMEROUS USB DEVICE PRODUCERS ARE. SOLUTION AND FORMAT ARE VARIABLE
BETEEN EACH OTHER. THEREFORE, WE DO NOT GARANTTEE THIS UNIT CAN SUPPORT ALL USB
DEVICE FROM EVERY BRAND.
TRACKS PROGRAMMING
UP TO 99 TRACKS CAN BE PROGRAMMED FOR MP3/WMA FILE AND PLAY IN ANY ORDER. BEFORE USE, BE
SURE THE SYSTEM ISAT STOP MODE BEFORE PROGRAMMING:

7
1. SETAT “USB” MODE, THEN PRESS STOP BUTTON.
2. PRESS MODE BUTTON, “MEM” WILL BE FLASHING ON LCD DISPLAY. MOREOVER, IT WILL INDICATE
PROGRAM NO. AND DIGITS FOR TRACK NO. TO BE PROGRAMMED.
3. SELECT A DESIRED FOLDER BY PRESSING SKIP UP OR SKIP DOWN BUTTON, THEN
PRESS MODE BUTTON TO CONFIRM.
4. THEN SELECT A DESIRED TRACK BY PRESSING SKIP UP OR SKIP DOWN BUTTON, THEN
PRESS MODE BUTTON TO CONFIRM.
5. REPEAT STEPS 3 AND 4 TO ENTER ADDITIONAL TRACKS INTO THE MEMORY IF NECESSARY.
6. WHEN ALL THE DESIRED TRACKS HAVE BEEN PROGRAMMED, PRESS “PLAY/PAUSE” BUTTON
TO PLAY THE TRACKS IN ASSIGNED ORDER.
7. PRESS STOP BUTTON TO STOP PLAYING OF PROGRAMMED TRACKES, PRESS STOP BUTTON
AGAIN TO CANCEL PROGRAMMING.
FILE DELETE FROM USB DEVICE
THE SYSTEM IS ABLE TO ERASE THE FILE STORED INSIDE THE USB DRIVE BY FOLLOWING:-
I) DELETE 1 TRACK
1. PRESS AND HOLD DEL BUTTON FOR 3-5 SECONDS DURING THE PLAYBACK OF THE DESIRED TRACK,
THEN “ONE” WILL BE FLASHING ON THE DISPLAY. PRESS DEL BUTTON AGAIN TO CONFIRM.
2. “DELETE” WILL BE SHOWN ON THE DISPLAY.
3. “DELETE” WILL DISAPPEAR ON THE DISPLAY, IT MEANS THE TRACK IS DELETED.
II) DELETE 1 FOLDER
1. INSERT THE USB DRIVE, SET IN “USB” MODE & SET AT STOP MODE AFTER UNIT READING.
2. TURN ALBUM DOWN OR ALBUM UP KNOB TO SEARCH DESIRED FOLDER FOR DELETING.
3. PRESS AND HOLD DEL BUTTON FOR 3-5 SECONDS, “DEL” WILL SHOW ON THE DISPLAY. PRESS SKIP
UP / SKIP DOWN BUTTON TO SELECT “DIR” ON THE DISPLAY. PRESS DEL BUTTON AGAIN TO
CONFIRM.
4. “DELETE” WILL BE SHOWN ON THE DISPLAY. AFTER “DELETE” DISAPPEARS IT MEANS THE DESIRED
FOLDER IS DELETED.
II) DELETE ALL TRACK
1. INSERT THE DRIVE, SET IN “USB” MODE & SETAT STOP MODEAFTER UNIT READING.
2. PRESS AND HOLD DEL BUTTON FOR 3-5 SECONDS, THEN “ONE” WLL BE FLASHING ON THE DISPLAY.
PRESS SKIP UP / SKIP DOWN BUTTON TO SELECT “ALL” ON THE DISPLAY. PRESS DEL
BUTTON AGAIN TO CONFIRM.
3. USB ICON WILL BE FLASHING ON THE DISPLAY. DELETING IS PERFORMING NOW.
4. WHEN THE USB ICON STOPS FLASHING, IT MEANS THAT ALL TRACK COPYING IS COMPLETED.
REMARK : ALL THE FILES INSIDE THE USB DRIVE WILL BE DELETED COMPLETELY AFTER CONFIRMING TO
“DEL” BUTTON.
COMPACT DISC (CD) PLAYBACK & ENCODING
1. PRESS CD BUTTON TO SELECT “CD” ON DISPLAY.
2. PRESS OPEN / CLOSE BUTTON, CD DOOR WILL BE OPENED, PUT THE CD IN THE TRAYAND PRESS OPEN
/ CLOSE BUTTON AGAIN, CD DOOR WILL BE CLOSED.
3.THE SYSTEM WILL START READING THE CD:
PLAY / PAUSE BUTTON
-PRESS THE PLAY/PAUSE BUTTON ONCE TO HALT PLAYING, PRESS IT AGAIN TO CONTINUE.
STOP BUTTON
-PRESS THE STOP BUTTON TO END UP AUDIO PLAYBACK, THEN DISPLAY WILL SHOW THE TOTAL
NUMBER OF TRACKS. AND THEN USER CAN TURN SKIP UP / SKIP DOWN KNOB TO SELECT
TRACKS.
SKIP UP / SKIP DOWN BUTTON
-DURING CD PLAYBACK, TURN SKIP UP KNOB DOWNWARDS ONCE TO PLAY THE NEXT
FILE. TURN AND HOLD SKIP UP BUTTON DOWNWARDS CONTINUOUSLY TO SPEED UP
SELECTING FORWARD
-DURING CD PLAYBACK, TURN SKIP DOWN KNOB UPWARDS ONCE TO PLAY THE
PREVIOUS FILE. TURN AND HOLD SKIP DOWN KNOB UPWARDS CONTINUOUSLY TO
SPEED UP SELECTING BACKWARD.
-

8
FOLDER SEARCHING
-TURN ALBUM DOWN & UP KNOB LEFT OR RIGHT TO SEARCH FOLDER BACKWARD OR FORWARD.
REPEAT ONE / REPEAT ALBUM / REPEAT ALL / RANDOM / INTRO PLAYBACK FUNCTION
-DURING AUDIO PLAYBACK, PRESS MODE BUTTON TO SELECT REPEAT ONE / REPEAT ALBUM /
REPEAT ALL / RANDOM / INTRO MUSIC PLAYBACK FROM USB DEVICE.
TRACKS PROGRAMMING
UP TO 99 MP3 TRACKS & 20 CD AUDIO FORMAT TRACK CAN BE PROGRAMMED AND PLAYED INANY ORDER.
BEFORE USE, BE SURE THE SYSTEM ISAT STOP MODE BEFORE PROGRAMMING:
1. SETAT “USB” MODE, THEN PRESS STOP BUTTON.
2. PRESS MODE BUTTON, “MEM” WILL BE FLASHING ON LCD DISPLAY. MOREOVER, IT WILL INDICATE
PROGRAM NO. AND DIGITS FOR TRACK NO. TO BE PROGRAMMED.
3. SELECTADESIRED FOLDER (FOR MP3/WMA DISC ONLY) BY PRESSING SKIP UP OR SKIP DOWN
BUTTON, THEN PRESS MODE BUTTON TO CONFIRM.
4. THEN SELECT A DESIRED TRACK BY PRESSING SKIP UP OR SKIP DOWN BUTTON, THEN
PRESS MODE BUTTON TO CONFIRM.
5. REPEAT STEPS 3 AND 4 TO ENTER ADDITIONAL TRACKS INTO THE MEMORY IF NECESSARY.
6. WHEN ALL THE DESIRED TRACKS HAVE BEEN PROGRAMMED, PRESS “PLAY/PAUSE” BUTTON
TO PLAY THE TRACKS IN ASSIGNED ORDER.
7. PRESS STOP BUTTON TO STOP PLAYING OF PROGRAMMED TRACKES, PRESS STOP BUTTON
AGAIN TO CANCEL PROGRAMMING.
COPYING OF CD
THE SYSTEM ALLOWS YOU TO COPY THE TRACK FROM CD TO USB BY 1 TRACK, 1 FOLDER OR ALL FILES.
I) COPY 1 TRACK
1.INSERT THE USB STORAGE MEDIA, PRESS CD BUTTON TO “CD” MODE.
2.PRESS REC BUTTON DURING THE PLAYBACK OF THE COPYING TRACK FROM CD, THEN “ONE” WILL BE
FLASHING ON THE DISPLAY. PRESS REC BUTTON AGAIN TO CONFIRM.
3.THE USB ICON WILL BE FLASHING ON THE DISPLAY. COPYING IS PERFORMING NOW.
4.AFTER COMPLETING OF COPY, UNIT WILL STOP PLAYBACK AUTOMATICALLY.
5.DISPLAY WILL SHOW “END” AND BACK TO CD MODE.
II) COPY 1 FOLDER (FOR MP3/WMA DISC ONLY)
1.INSERT THE USB STORAGE MEDIA, SET IN CD & STOP MODEAFTER UNIT READING.
2. TURN ALBUM DOWN OR ALBUM UP BUTTON KNOBTO SEARCH FOLDER FOR COPYING.
3. PRESS REC BUTTON, THEN “ONE” WILL BE FLASHING ON THE DISPLAY. TURN SKIP UP / SKIP DOWN
BUTTON TO SELECT “DIR” ON THE DISPLAY. PRESS REC BUTTON AGAIN TO CONFIRM.
4. USB ICON WILL BE FLASHING ON THE DISPLAY. COPYING IS PERFORMING NOW.
5. WHEN THE USB ICON STOPS FLASHING, IT MEANS THAT THE FOLDER COPYING IS COMPLETED.
III) COPY ALL TRACK
1.INSERT THE USB STORAGE MEDIA, PRESS CD BUTTON TO “CD” MODE.
2. PRESS REC BUTTON, THEN “ONE” WLLBE FLASHING ON THE DISPLAY. PRESS SKIP UP / SKIP DOWN
KNOB TO SELECT “ALL” ON THE DISPLAY. PRESS REC BUTTON AGAIN TO CONFIRM.
4. USB ICON WILL BE FLASHING ON THE DISPLAY. COPYING IS PERFORMING NOW.
5. WHEN THE USB ICON STOPS FLASHING, IT MEANS THAT ALLTRACK COPYING IS COMPLETED.
SPLIT TRACK FUNCTION FOR USB RECORDING FOR TURNTABLE/AUX IN
1) MANUAL SPLIT OPERATION PROCEDURE: DURING USB RECORDING, THE USB ICON WILL FLASH ON
THE DISPLAY. IF A NEW TRACK IS REQUIRED, PRESS MODE BUTTON ON THE UNIT OR REMOTE CONTROL,
DISPLAY WILL SHOW “TS”, THEN THE UNIT WILL STOP RECORDING MOMENTARILY AND RESUME AGAIN. A
NEW FILE WILL HAVE BEEN CREATED ON THE USB DEVICE REPRESNTING A NEW TRACK.
2) AUTO SPLIT OPERATION PROCEDURE:
- BEFORE USB RECORDING, SELECT AUDIO SOURCE, THEN PRESS MODE BUTTON ON THE UNIT OR
REMOTE CONTROL, DISPLAY WILL SHOW “T-ON”, WHICH MEANS THE AUTO SPLIT FUNCTION HAS
ACTIVATED. THEN START USB RECORDING, THE UNIT CAN AUTOMATICALLY DETECT THE SILENT PART
BETWEEN EACH TRACK,AND CREATE A NEW FILE TO MOVE ON TO START RECORDING THE NEXT TRACK.
- IF NOT REQUIRED: PRESS MODE BUTTON ON THE UNIT OR REMOTE CONTROL BEFORE USB
RECORDING, DISPLAY WILL SHOW “T-OF”, WHICH MEANS AUTO SPLIT HAS BEEN DEACTIVATED.
- PLEASE NOTE FOR AUTO SPLIT: SEVERAL SECONDS OF THE BEGINNING OF THE NEXT TRACK MAY

9
NOT BE RECORDED, AS THE UNIT MAY TAKE AFEW SECONDS TO CREATE ANEW FILE ON THE USB; AND IT
CAN ADDITIONALLY BE THE CASE THAT SOME MUSIC PRODUCERS INTENTIONALLY ADD SILENT SECTIONS
WITHIN ONE TRACK. AS A RESULT, THIS WILL VERY LIKELY MAKE THE UNIT CONSIDER THIS SILENT PART
THE BREAK BETWEEN TRACKSAND CREATE A NEW TRACK ON THE RECORDING.
- NOTE FOR AUTO SPLIT: DURING USB RECORDING FROM TURNTABLE, WHEN THE UNIT HAS
DETECTED ANY PARTICULAR SILENT PART, THE TURNTABLE WILL STOP MOMENTARILY. THE TURNTABLE
WILL RESUME OPERATION ONCE THE USB DEVICE HAS BEGUN CREATING A NEW FILE TO BE RECORDED.
BLUETOOTOOTH CONNECTION
-PRESS AND HOLD CD/USB BUTTON TILL LCD SHOWS “BT”, THEN THE UNIT IS READY FOR
CONNECTION WITH YOUR BLUETOOH DEVICE (SUCH AS MOBILE PHONE).
-SWITCH ON THE BLUETOOTH FUNCTION OF YOUR BLUETOOH DEVICE, AND SELECT
“TCP9560” BLUETOOTH EQUIPMENT FOR CONNECTION.
-AFTER YOUR BLUETOOH DEVICE IS CONNECTED WITH THE UNIT VIA BLUETOOTH, START
TO PLAYBACK YOUR DEVICE.
-THIS UNIT HAS NFC FUNCTION WHICH CAN ALLOW YOUR BLUETOOH DEVICE (SUCH AS
MOBILE PHONE) CONNECTING WITH THE UNITAUTOMATICALLY.
-SWITCH ON THE BLUETOOTH AND NFC FUNCTION OF YOUR DEVICE, THEN PUT IT NEAR
THE LOGO WITHIN 5MM ON THE FRONT PANEL. YOUR DEVICE CAN
AUTOMATICALLY SEACH AND CONNECT WITH THE UNIT.
-TO DISCONNECT WITH THE UNIT, PUT YOUR DEVICE NEAR THE “BT/N” LOGO WITHIN 5MM
ON THE FRONT PANELAGAIN.
X-BASS
PRESS X-BASS BUTTON, LCD SHOWS “BASS ON”, BASS LEVEL WILL BE ENHANCED DURING
MUSIC PLAYBACK. PRESS X-BASS BUTTON AGAIN, LCD SHOWS “BASS OFF”, BASS BACK TO
NORMAL LEVEL.
ID3 DISPLAYX-BASS
DURING MP3 MUSIC PLAYBACK, PRESS ID3 button ON TH REMOTE CONTROL, IT CAN SWITCH
ON OR OFF ID3 DISPLAY. IF ID3 DISPLAY IS ON, IT CAN SHOW THE MP3 DETAILS INCLUDING TILE
NAME, ARTIST NAME AND ALBUM NAME DURING MP3 PLYBACK.
EARPHONE JACK & LINE OUT SOCKET
-THIS SYSTEM CAN BE CONNECTED WITH HEADPHONE OR EXTERNAL AMPLIFIER /
SPEAKER BY 3.5MM EARPHONE JACK.
-THIS SYSTEM CAN BE CONNECTED WITH EXTERNAL DEVICE (EG. AMPLIFIER AND
SPEAKER) BY LINE-OUT SOCKET AT REAR CABINET.
POWER SAVING FEATURE:
To save energy, if there is no audio signal from CD / Turntable / AUX IN / USB / for a period of over 10 minutes, then
the unit will automatically switch to Standby Mode.

10
REMOTECONTROL
BATTERY INSTALLATION
THE INFRA-RED TRANSMITTER REQUIRES 1 PC CR2025 LITHUM BATTERY FOR OPERATION
BUTTON DESCRIPTION
1 STANDBY: TRIGGER BETWEEN STANDBY MODEAND OPERATION MODE.
2 PRESET/ALBUM DN: PERFORM SAME FUNCTION AS “ALBUM DOWN / PRESET DOWN”
KNOB ON THE UNIT.
3 PRESET/ALBUM UP: PERFORM SAME FUNCTION AS “ALBUM UP / PRESET UP” KNOB
ON THE UNIT.
4 TIMER / SLEEP: PERFORM SAME FUNCTION AS “SLEEP / TIMER” BUTTON ON THE UNIT.
5 MUTE: TO MUTE AUDIO PLAYBACK.
6 OP/CL & SNOOZE: OPEN AND CLOSE THE CD DOOR; SNOOZE FUNCTION FOR ALARM.
7 REC/DEL: PERFORM SAME FUNCTIONAS “REC/DEL” BUTTON ON THE UNIT.
8 FM ST./ID3: SELECT BETWEEN FM STEREO AND MONO RADIO; SWITCH ON OR OFF
THE ID3 DISPLAY.
9 FUNCT: SELECT FUNCTION BETWEEN CD/USB/PHONO/AUX/TUNER (TO ACTIVIATE
BLUETOOTH FUNCTION, PRESSAND HOLD FUNCT BUTTON ON THE REMOTE CONTROL
TILL DISPLAY SHOWS “BT”)
10 MODE/CLOCK: PERFORM SAME FUNCTION AS “MODE/CLK” BUTTON ON THE UNIT.
11 (PLAY/PAUSE): PERFORM SAME FUNCTION AS “ PLAY/PAUSE” BUTTON ON
THE UNIT.
12 (STOP)/BAND: PERFORM SAME FUNCTION AS “ STOP / BAND” BUTTON ON THE
UNIT.
13 (SKIP DOWN ): PERFORM SAME FUNCTION AS “ SKIP DOWN” BUTTON ON THE
UNIT. BESIDES, IT CAN BE USED FOR RADIO FREQUENCY SEARCHING DURING TUNER
MODE.
14 (SKIP UP ): PERFORM SAME FUNCTION AS “ SKIP UP” BUTTON ON THE UNIT.
BESIDES, IT CAN BE USED FOR RADIO FREQUENCY SEARCHING DURING TUNER
MODE.
15 VOLUME +/- : CONTROL VOLUME LEVEL.

11
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: Any changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
