Tecnam P92 Echo Classic Jabiru Technical specifications

1st edition,5th July 2011
i-1
P92 Classic Jabiru
I N T R O D U C T I O N
FLIGHT MANUAL
FLIGHT MANUAL
P92 ECHO CLASSIC JABIRU
MANUFACTURER : COSTRUZIONI AERONAUTICHE TECNAM S.r.l.
AIRCRAFT TYPE :P92 ECHO CLASSIC JABIRU
SERIAL NUMBER :...............................................................
MANUFACTURING DATE :.....................................................................
The Flight Manual must always be kept on board the aircraft. The aircraft
described herein is to be operated in accordance with procedures and limitations
described in this Flight Manual.

1st edition,5th July 2011
i-2
P92 Classic Jabiru
I N T R O D U C T I O N
FLIGHT MANUAL
RECORD OF REVISIONS
All revisions to the current Manual, except for actual weighing data, must be
recorded in the following table.
New text or amendments to revised pages shall be clearly marked by a vertical
black line on the left hand margin, with revision N° and date indicated on left
side of page.
RECORD OF REVISIONS
Rev N°
Affected
Sections
Affected
Pages
Date

1st edition,5th July 2011
i-3
P92 Classic Jabiru
I N T R O D U C T I O N
FLIGHT MANUAL
List of Effective Page
Section
Page
Date
Section
Page
Date
0
i-1
5th July 2011
3
3-1
5th July 2011
i-2
“
3-2
“
i-3
“
3-3
“
i-4
“
3-4
“
i-5
“
4
4-1
5th July 2011
1
1-1
5th July 2011
4-2
“
1-2
“
4-3
“
1-3
“
4-4
“
1-4
“
4-5
“
1-5
“
4-6
“
1-6
“
4-7
“
1-7
“
4-8
“
1-8
“
1-9
“
1-10
“
5
5-1
5th July 2011
5-2
“
2
2-1
5th July 2011
5-3
“
2-2
“
5-4
“
2-3
“
5-5
“
2-4
“
5-6
“
2-5
“
5-7
“
2-6
“
5-8
“
6
6-1
5th July 2011
6-2
“
6-3
“
6-4
“

1st edition,5th July 2011
i-4
P92 Classic Jabiru
I N T R O D U C T I O N
FLIGHT MANUAL
Section
Page
Date
Section
Page
Date
7
7-1
5th July 2011
7-2
“
7-3
“
7-4
“
7-5
“
7-6
“
8
8-1
5th July 2011
8-2
“
8-3
“
8-4
“
8-5
“

1st edition,5th July 2011
i-5
P92 Classic Jabiru
I N T R O D U C T I O N
FLIGHT MANUAL
TABLE OF CONTENTS
General
Section 1
Limitations
Section 2
Emergency procedures
Section 3
Normal procedures
Section 4
Performance
Section 5
Weight and balance
Section 6
Systems description
Section 7
Ground handling and servicing
Section 8

P92 Classic Jabiru
G E N E R A L
FLIGHT MANUAL
1st edition,5th July 2011
1-1
SECTION 1
GENERAL
TABLE OF CONTENTS
INTRODUCTION......................................................................................................2
WARNINGS -CAUTIONS -NOTES........................................................................2
THREE VIEW DRAWING........................................................................................3
DESCRIPTIVE DATA...............................................................................................4
CONTROL SURFACES TRAVEL LIMITS..............................................................4
ENGINE........................................................................................................................5
PROPELLER..................................................................................................................5
FUEL FUEL.................................................................................................................5
OIL ..............................................................................................................................6
COOLING ..................................................................................................................6
WEIGHTS..................................................................................................................6
ABBREVIATIONS AND TERMINOLOGY.............................................................7
UNIT CONVERSION FACTORS............................................................................10

P92 Classic Jabiru
G E N E R A L
FLIGHT MANUAL
1st edition,5th July 2011
1-2
INTRODUCTION
The P92 ECHO CLASSIC JABIRU is a twin seat single engine aircraft with a
strut-braced rectangular high wing, fixed main landing gear and steerable
nose wheel.
This Flight Manual has been prepared to provide pilots and instructors with
information for the safe and efficient operation of this aircraft.
This Flight Manual contains 8 sections. Section 1 provides basic data and in-
formation of general interest in addition to definitions and explanations of
symbols, abbreviations and terminology commonly used.
WARNINGS - CAUTIONS - NOTES
The following definitions apply to warnings, cautions and notes used in the
Flight Manual.
means that the non-observation of the corresponding
procedure leads to an immediate or important degrada-
tion of the flight safety.
means that the non-observation of the corresponding
procedure leads to a minor or to a more or less long
term degradation of the flight safety.
draws the attention to any special item not directly re-
lated to safety but which is important or unusual.
WARNING
CAUTION
NOTE

P92 Classic Jabiru
G E N E R A L
FLIGHT MANUAL
1st edition,5th July 2011
1-3

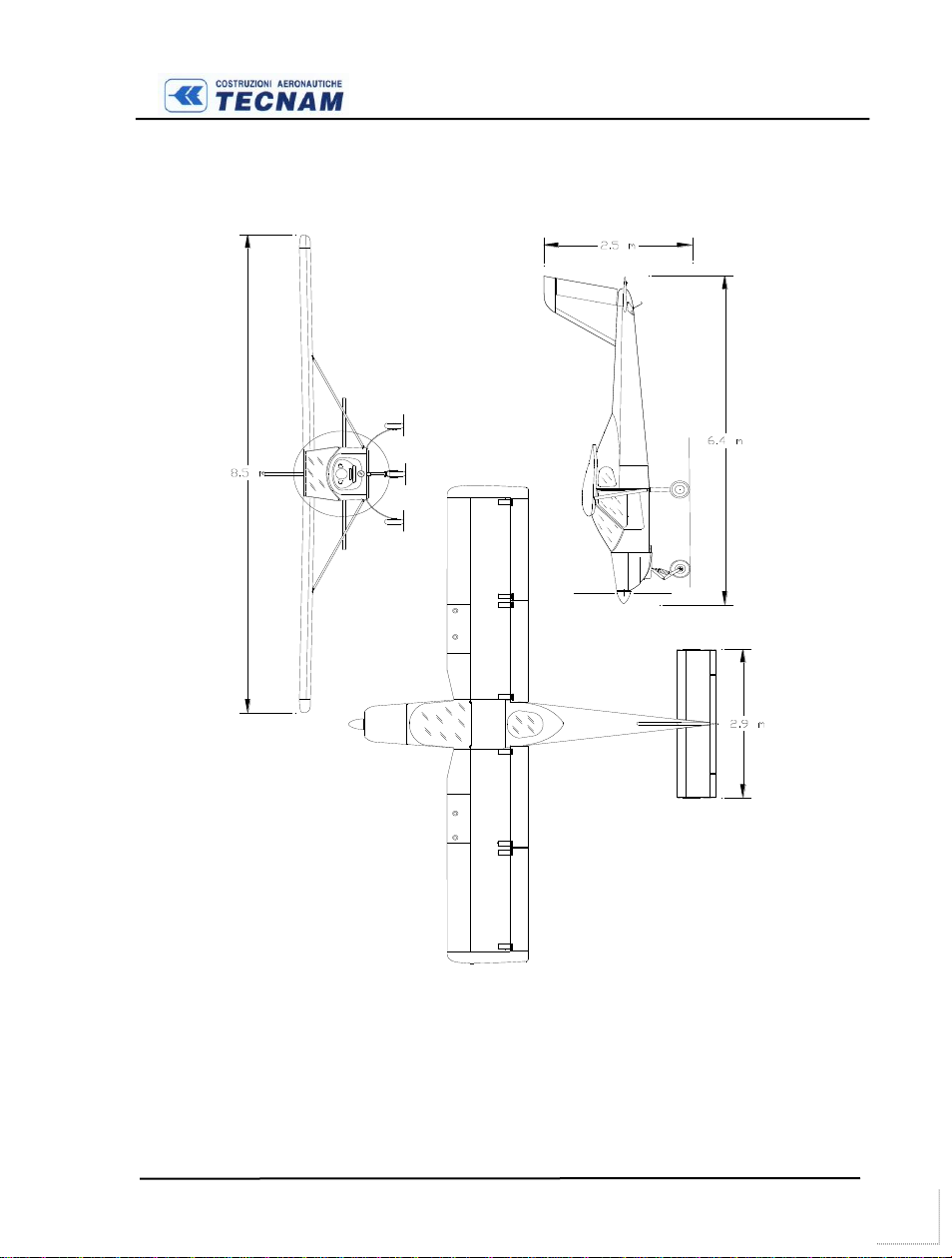

THREE VIEW DRAWING
Dimensions shown refer to aircraft weight of 473 kg and normal operat-
ing tire pressure.
Propeller clearance 360mm
Propeller clearance with deflated front tire and compressed shock absor-
ber 142mm
Minimum ground steering radius 5.5m

P92 Classic Jabiru
G E N E R A L
FLIGHT MANUAL
1st edition,5th July 2011
1-4
DESCRIPTIVE DATA
WING
Wing span:
8.5 m
Wing chord
1.4 m
Wing surface
11.9 m2
Wing loading
39.7 kg/m2
Aspect ratio
6.3
Taper ratio
1.0
Dihedral
1.5°
FUSELAGE
Overall length
6.4 m
Overall width
1.1 m
Overall height
2.5 m
EMPENNAGE
Stabilator span
2.9 m
Vertical tail span
1.2 m
LANDING GEAR
Wheel track:
1.8 m
Wheel base:
1.6 m
Main gear tire. Air Trac
Wheel hub and brake Marc Ingegno
5.00-5
Nose gear tire Sava
4.00-6
CONTROL SURFACES TRAVEL LIMITS
Ailerons
Up 20° down 15° ± 2°
Stabilator
Up 18° down 3° ± 1°
Trim-Tab
2° / 12° 1°
Rudder
RS 25° LS 25° ± 1°
Flaps
0° - 38° 1°

P92 Classic Jabiru
G E N E R A L
FLIGHT MANUAL
1st edition,5th July 2011
1-5
ENGINE
Manuc:
JABIRU AIRCRAFT Pty Ltd
Model
2200 Aero Engine
Engine Type:
4 cylinder horizontally-opposed twins
with overall displacement of 2200 c.c.,
ram-air cooled heads and cylinders
single carburetter, direct drive. Com-
pression ratio 9.5:1.
Maximum power:
80 hp (60kW ) @ 3300 rpm
PROPELLER
Manuc:
F.lli Tonini Giancarlo
& Felice S.n.c.
Model:
GT- ECHO 2/157/100
Blades:
2
Diam:
1570 mm
Type:
fixed pitch - wood
FUELFUEL
Fuel grade:
AVGAS 100LL
MOGAS 95 RON
Fuel tanks:
2 wings tanks integrated within the wing’s leading
edge, with drainage reservoir located in engine
cowling
Capacity of each wing tank
35 liters (45 Optional)
Total capacity
70 liters (90 Optional)

P92 Classic Jabiru
G E N E R A L
FLIGHT MANUAL
1st edition,5th July 2011
1-6
OIL
Oil system:
Pumped with integral sump
Oil:
AeroShell W100 or 15W50 or equivalent
Oil capacity:
2.3 litres
COOLING
Cooling system:
Mixed air and liquid pressurized closed
circuit system
Coolant:
Coolant type and specifications are detailed
into the Jabiru manuals (see sec. D).
WEIGHTS
Maximum takeoff:
473 kg
Wing Loading
39.4 kg/m2

P92 Classic Jabiru
G E N E R A L
FLIGHT MANUAL
1st edition,5th July 2011
1-7
ABBREVIATIONS AND TERMINOLOGY
AIRSPEED TERMINOLOGY AND SYMBOLS
CAS
Calibrated Airspeed is indicated airspeed corrected for position and
instrument error.
IAS
Indicated Airspeed: is the speed shown on the on-board airspeed in-
dicator.
TAS
True Airspeed: is calibrated airspeed corrected for altitude and tem-
perature.
VFE
Maximum Flap Extended Speed: is the highest speed permissible
with wing flaps in a prescribed extended position.
VNO
Maximum Structural Cruising Speed: is the speed that should not be
exceeded except in smooth air, then only with caution.
VNE
Never Exceed Speed: is the speed limit that may not be exceeded at
any time.
VS
Stalling Speed.
VS0
Stalling Speed or the minimum steady flight speed at which the air-
plane is controllable in the landing configuration at the most forward
center of gravity.
VX
Best Angle-of-Climb Speed is the speed which results in the greatest
gain of altitude in a given horizontal distance.
VY
Best Rate-of-Climb Speed is the speed which results in the greatest
gain in altitude in a given time.
Vr
Rotation speed: is the speed at which the aircraft rotates about the
pitch axis during takeoff
Vobs
Obstacle speed: is the speed at which the aircraft flies over a 15m
obstacle during takeoff or landing

P92 Classic Jabiru
G E N E R A L
FLIGHT MANUAL
1st edition,5th July 2011
1-8
METEOROLOGICAL TERMINOLOGY
OAT
Outside Air Temperature is the free air static temperature expressed in
degrees Celsius (°C).
TS
Standard Temperature is 15°C at sea level pressure altitude and de-
creased by 2°C for each 1000 ft of altitude.
HP
Pressure Altitude is the altitude read from an altimeter when the baro-
metric subscale has been set to 1013 mb.
ENGINE POWER TERMINOLOGY
RPM
Revolutions Per Minute: is the number of revolutions per minute of the
propeller, multiplied by 2.273 (912UL) or 2.4286 (912S) yields engine
RPM.
AIRPLANE PERFORMANCE AND FLIGHT PLANNING TERMINOLOGY
Crosswind
Velocity
is the velocity of the crosswind component for which adequate
control of the airplane during takeoff and landing was actually
demonstrated.
Usable fuel
is the fuel available for flight planning.
Unusable fuel
is the quantity of fuel that cannot be safely used in flight.
G
is the acceleration of gravity.
TOR
is the takeoff distance measured from actual start to wheel lif-
toff point
TOD
is total takeoff distance measured from start to 15m obstacle
clearing
GR
is the distance measured during landing from actual touchdown
to stop point
LD
is the distance measured during landing, from 15m obstacle
clearing to actual stop.
S/R
is specific range, that is, the distance (in nautical miles) which
can be expected at a specific power setting and/or flight confi-
guration per kilo of fuel consumed

P92 Classic Jabiru
G E N E R A L
FLIGHT MANUAL
1st edition,5th July 2011
1-9
WEIGHT AND BALANCE TERMINOLOGY
Datum
is an imaginary vertical plane from which all horizontal distances are
measured for balance purposes.
Arm
is the horizontal distance from the reference datum to the center of
gravity (C. G.) of an item.
Moment
is the product of the weight of an item multiplied by its arm.
C. G.
Center of Gravity is the point at which the airplane, or equipment,
would balance if suspended. Its distance from the reference datum is
found by dividing the total moment by the total weight of the airplane.
Standard
Empty
Weight
is the weight of a standard airplane, including unusable fuel, full oper-
ating fuels and full engine oil.
Basic Empty
Weight
is the standard empty weight plus the weight of optional equipment.
Useful Load
is the difference between takeoff weight and the basic empty weight.
Maximum
Weight
is the maximum weight of the aircraft.
Maximum
Takeoff
Weight
is the maximum weight approved for the start of the takeoff run.
Maximum
Landing
Weight
is the maximum weight approved for the landing touch down.
Tare
is the weight of chocks, blocks, stands, etc. used when weighing an
airplane, and is included in the scale readings. Tare is deducted from
the scale reading to obtain the actual (net) airplane weight.

P92 Classic Jabiru
G E N E R A L
FLIGHT MANUAL
1st edition,5th July 2011
1-10
UNIT CONVERSION FACTORS
MULTIPLYING
BY 
YIELDS
TEMPERATURE
Fahrenheit
[°F]
 
5
932 F
Celsius
[°C]
Celsius
[°C]
9
532




C
Fahrenheit
[°F]
FORCES
Kilograms
[kg]
2.205
Pounds
[lbs]
Pounds
[lbs]
0.4536
Kilograms
[kg]
SPEED
Meters per second
[m/s]
196.86
Feet per minute.
[ft/min]
Feet per minute
[ft/min]
0.00508
Meters per second.
[m/s]
Knots
[kts]
1.852
Kilometers / hour
[km/h]
Kilometers / hour
[km/h]
0.540
Knots
[kts]
PRESSURE
Atmosphere
[atm]
14.7
Pounds / sq. in
[psi]
Pounds / sq. in
[psi]
0.068
Atmosphere
[atm]
LENGTH
Kilometers
[km]
0.5396
Nautical miles
[nm]
Nautical miles
[nm]
1.853
Kilometers
[km]
Meters
[m]
3.281
Feet
[ft]
Feet
[ft]
0.3048
Meters
[m]
Centimeters
[cm]
0.3937
Inches
[in]
Inches
[in]
2.540
Centimeters
[cm]
VOLUME
Liters
[l]
0.2642
U.S. Gallons
[US Gal]
U.S. Gallons
[US Gal]
3.785
Liters
[l]
AREA
Square meters
[m2]
10.76
Square feet
[sq ft]
Square feet
[sq ft]
0.0929
Square meters
[m2]

P92 Classic Jabiru
L I M I T A T I ON S
FLIGHT MANUAL
1st edition,5th July 2011
2-1
SECTION 2
LIMITATIONS
TABLE OF CONTENTS
INTRODUCTION......................................................................................................2
AIRSPEED LIMITATIONS.......................................................................................2
AIRSPEED INDICATOR MARKINGS ....................................................................3
POWERPLANT LIMITATIONS...............................................................................4
PROPELLER..............................................................................................................4
POWERPLANT INSTRUMENT MARKINGS.........................................................5
VISCOSITY ...............................................................................................................5
WEIGHT LIMITS......................................................................................................6
CENTER OF GRAVITY LIMITS .............................................................................6
APPROVED MANEUVERS......................................................................................6
FUEL..........................................................................................................................6

P92 Classic Jabiru
L I M I T A T I ON S
FLIGHT MANUAL
1st edition,5th July 2011
2-2
INTRODUCTION
Section 2 includes operating limitations, instrument markings, and basic placards necessary
for safe operation of the P92 ECHO CLASSIC JABIRU, its engine, standard systems and
standard equipment.
AIRSPEED LIMITATIONS
For all model
SPEED Km/h
IAS
REMARKS
VNE
Never exceed speed
260
Never exceed this speed in any operation.
VNO
Maximum Structural
Cruising Speed
200
Never exceed this speed unless in smooth
air, and then only with caution.
VA
Maneuvering speed
150
Do not make full or abrupt control move-
ments above this speed as this may cause
stress in excess of limit load factor
VFE
Maximum flap extended
speed
110
Never exceed this speed for any given flap
setting.

P92 Classic Jabiru
L I M I T A T I ON S
FLIGHT MANUAL
1st edition,5th July 2011
2-3
AIRSPEED INDICATOR MARKINGS
For all model
MARKING
IAS km/h
SIGNIFICANCE
White arc
72 –110
Flap Operating Range (lower limit is 1.1VSO, at maxi-
mum weight and upper limit is maximum speed permiss-
ible with flaps extended at 38°)
Green arc
110 –200
Normal Operating Range (lower limit is VFE at maxi-
mum weight and upper limit is maximum structural
speed VNO).
Yellow arc
200 –260
Operations must be conducted with caution and only in
smooth air.
Red line
260
Maximum speed for all operations.

P92 Classic Jabiru
L I M I T A T I ON S
FLIGHT MANUAL
1st edition,5th July 2011
2-4
POWERPLANT LIMITATIONS
The following table lists operating limitations for aircraft installed engine:
ENGINE MANUFACTURER: Jabiru Aircraft Pty Ltd.
ENGINE MODEL: Jabiru 2200
MAXIMUM POWER:
Max Power (HP)
Max RPM
Max time (minuti)
Takeoff
80
79
3300
3150
5
/
Max continuous
TEMPERATURES:
Maximum Oil:
118° C
Minimum Oil
15° C
OIL PRESSURE:
Minimum
2.2 bar
Maximum
5.2 bar
PROPELLER
MANUFACTURER:
F.lli Tonini Giancarlo & Felice
MODEL:
GT-ECHO 2/157/100
PROP.TYPE:
Wood twin blade fixed pitch
DIAMETER:
1570 mm

P92 Classic Jabiru
L I M I T A T I ON S
FLIGHT MANUAL
1st edition,5th July 2011
2-5
POWERPLANT INSTRUMENT MARKINGS
Powerplant instrument markings and their color code significance are shown below:
P92
INSTRUMENT
RED LINE
Minimum
limit
GREEN ARC
Normal
operating
YELLOW ARC
Caution
RED LINE
Maximum limit
Prop tach
RPM
--------
800-3000
3000=3300
3300
Oil Temp.
°C
15
80-100
100-118
118
Cylinder heads and
coolant temp.
°C
--------
120-160
------
200
Oil pressure
bar
0.8(idle)
2.2-5.2
5.2
Fuel gauge
ltrs
------
------
2 x 5 ltrs
VISCOSITY
Use viscosity grade oil as specified in the following table:
OAT
°C
-17 +25
+15 +35
Over 35
Oil Viscosity
W 80
W 100
W 120
