Tecnam P92 Echo Classic Jabiru User manual

Maintenance
Manual
















3nd Issue, July 04th, 2011
Revision, 0

P92 Classic Jabiru
Maintenance Manual
INTRODUCTION
Date: Issue 3: 4th July 2011
2
efore flying the aircraft we recommend careful reading of this manual, the
flight manual and the engine’s service manual. A thorough knowledge of the aircraft,
of its qualities and of its limitations will allow you to operate with greater safety.
The P92-Classic Jabiru is an uncomplicated and sturdy machine whose features
include simple servicing and superior flying qualities. This manual describes time and
modes for correct servicing procedures. Scrupulously following instructions will
insure that your P92-Classic Jabiru will accompany you dependably for a long time
with optimal performance in absolute safety.
This manual consists of 5 sections; a table of contents at the beginning of each
section will allow you to reach quickly any selection.
Information contained herein is based on available data at time of publication,
possible variations shall be presented in servicing bulletins.
This manual describes correct servicing of parts manufactured by TECNAM and, in
subordinate measure, of the list of components purchased from external suppliers; for
more complete information on individual components it is necessary to refer to the
component’s manufacturer’s manual.
For additional information or explanations contact:
COSTRUZIONI AERONAUTICHE TECNAM s.r.l.
1a Traversa via G. Pascoli
80026 Casoria (NA)
081-7583210 081-7584528
[e-mail]
[email protected]
www.tecnam.com
B
ii

P92 Classic Jabiru
Maintenance Manual
INTRODUCTION
Date: Issue 3: 4th July 2011
2
LIST OF VALID PAGES
Section
Page
Date
Section
Page
Date
0
i
4th July 2011
C
C-1
4th July 2011
ii
“
C-2
“
iii
“
C-3
“
iv
“
C-4
“
C-5
“
C-6
“
C-7
“
A
A-1
4th July 2011
C-8
“
A-2
“
C-9
“
A-3
“
C-10
“
A-4
“
C-11
“
A-5
“
C-12
“
C-13
“
C-14
“
C-15
“
C-16
“
B
B-1
4th July 2011
C-17
“
B-2
“
C-18
“
B-3
“
B-4
“
B-5
“
B-6
“
D
D-1
4th July 2011
B-7
“
D-2
“
B-8
“
D-3
“
B-9
“
D-4
“
B-10
“
D-5
“
B-11
“
B-12
“
B-13
“
E
E-1
4th July 2011
B-14
“
E-2
“
B-15
“
E-3
“
B-16
“
E-4
“
B-17
“
E-5
“
B-18
“
E-6
“
B-19
“
E-7
“
B-20
“
E-8
“
B-21
“
E-9
“
B-22
“
E-10
“
E-11
“
E-12
“
iii

P92 Classic Jabiru
Maintenance Manual
INTRODUCTION
Date: Issue 3: 4th July 2011
2
INDEX OF SECTIONS
General
Sec. A
Inspection and Servicing
Sec. B
Airframe
Sec. C
Powerplant
Sec. D
Systems
Sec. E
iv

P92 Classic Jabiru
Maintenance Manual
GENERAL
Page A-1
Date: Issue 3: 4th July 2011
Section A
SECTION A
GENERAL
TABLE OF CONTENTS
1 - DESCRIPTION AND GENERAL CHARACTERISTICS-------------------------------------------- 4

P92 Classic Jabiru
Maintenance Manual
GENERAL
Page A-2
Date: Issue 3: 4th July 2011
Section A
TABLE I
WING
Wing Span
8.5 m
Wing Area
11.9 m2
Aspect Ratio
6.3
Taper ratio
1.0
Chord
1.4 m
Flap span
1.97 m2
Flap chord
0.385 m
Aileron span
1.97 m2
Aileron chord
0.385 m
FUSELAGE
Length (overall)
6.4 m
Width max.
1.06 m
Height max. (vertical tail end)
2.5 m
EMPENNAGES
Stabilator Span
2.90 m
Stabilator Area
1.972 m2
Stabilator chord
0.680 m
Vertical Tail Span
1.230 m
Vertical Stabilizer Area
0.720 m2
Rudder Area
0.350 m2
LANDING GEAR
Wheel Track
1.8 m
Wheel Base
1.6 m
Nose Wheel Tire Sava
4.00-6
Main Wheel Tires AirTrac A-A1D4
5.00-5
WEIGHTS
Maximum Take Off Weight
473 kg
Wing Loading
39.7 kg/m2

P92 Classic Jabiru
Maintenance Manual
GENERAL
Page A-3
Date: Issue 3: 4th July 2011
Section A
Engine
Manuc:
JABIRU AIRCRAFT Pty Ltd
Model
2200 Aero Engine
Engine Type:
4 cylinder horizontally-opposed
twins with overall displacement
of 2200 c.c., ram-air cooled
heads and cylinders single
carburetter, direct drive.
Compression ratio 9.5:1.
Maximum power:
80 hp (60kW ) @ 3300 rpm
Propeller
Manuc:
F.lli Tonini
Giancarlo & Felice
S.n.c.
Model:
GT- ECHO
2/157/100
Blades:
2
Diam:
1570 mm
Type:
fixed pitch - wood

P92 Classic Jabiru
Maintenance Manual
GENERAL
Page A-4
Date: Issue 3: 4th July 2011
Section A
Fuel
Fuel grade:
AVGAS 100LL
MOGAS 95 RON
Fuel tanks:
2 wings tanks integrated within the wing’s
leading edge, with drainage reservoir
located in engine cowling
Capacity of each wing tank
45 Optional
Total capacity
90 Optional
Oil
Oil system:
Pumped with integral sump
Oil:
AeroShell W100 or 15W50 or
equivalent
Oil capacity:
2.3 litres
COOLING
Cooling system:
Mixed air and liquid pressurized closed circuit
system
Coolant:
Coolant type and specifications are detailed into
the Jabiru manuals (see sec. D).

P92 Classic Jabiru
Maintenance Manual
GENERAL
Page A-5
Date: Issue 3: 4th July 2011
Section A
1 - DESCRIPTION AND GENERAL CHARACTERISTICS
FIGURE A-1 P92 CLASSIC -THREE VIEWS

P92 Classic Jabiru
Maintenance Manual
INSPECTIONS
AND SERVICING
Page B-1
Date: Issue 3: 4th July 2011
Section B
SECTION B
INSPECTIONS AND SERVICING
TABLE OF CONTENTS
1. GROUND HANDLING..........................................................................................................2
2. PARKING AND TIE DOWN................................................................................................2

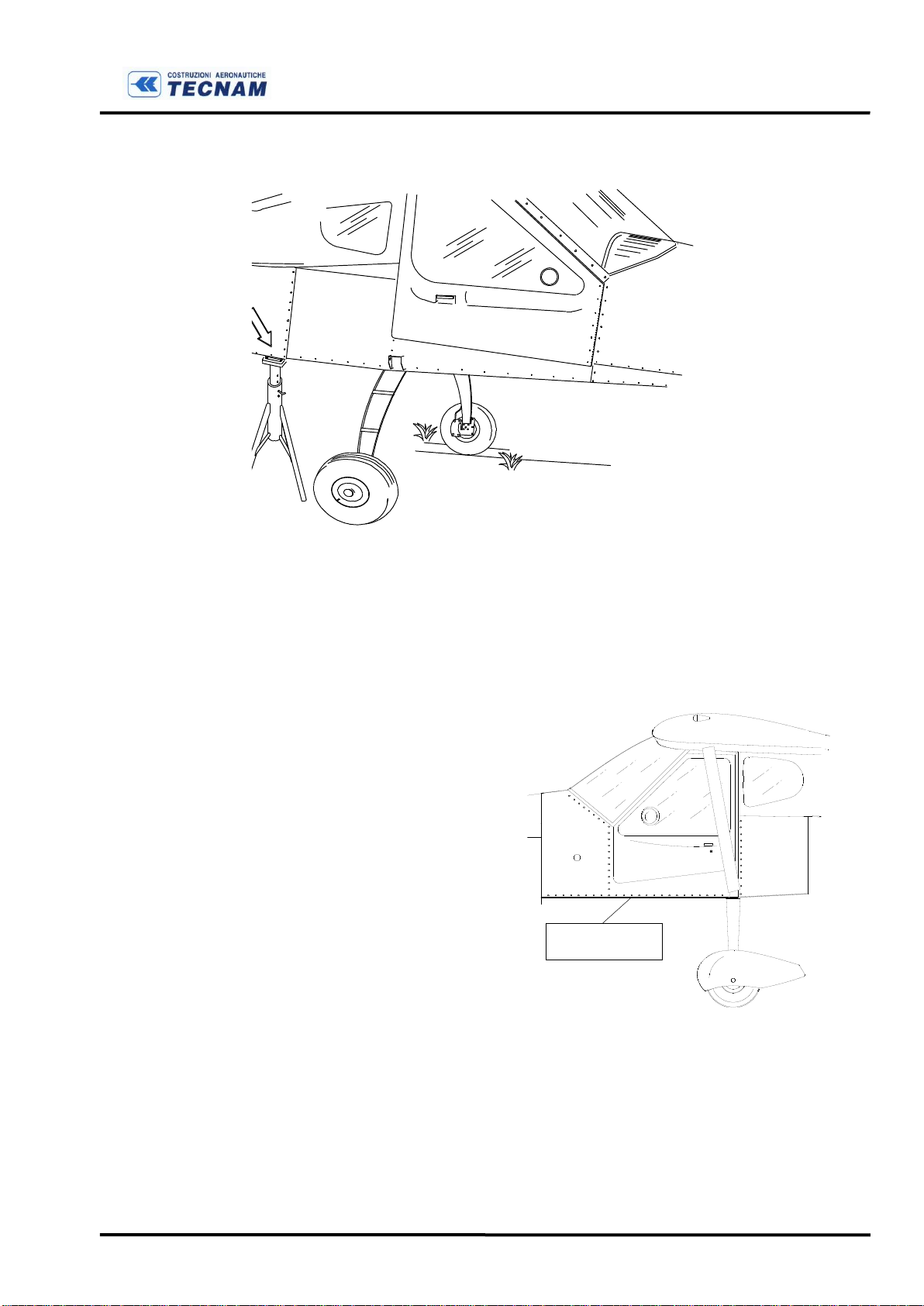

3. JACKING................................................................................................................................2
4. LEVELING.............................................................................................................................3
5. CONTROL SETTINGS.........................................................................................................4
6. TRIM-TAB ADJUSTMENT.................................................................................................4
7. AIRCRAFT ALIGNMENT...................................................................................................5

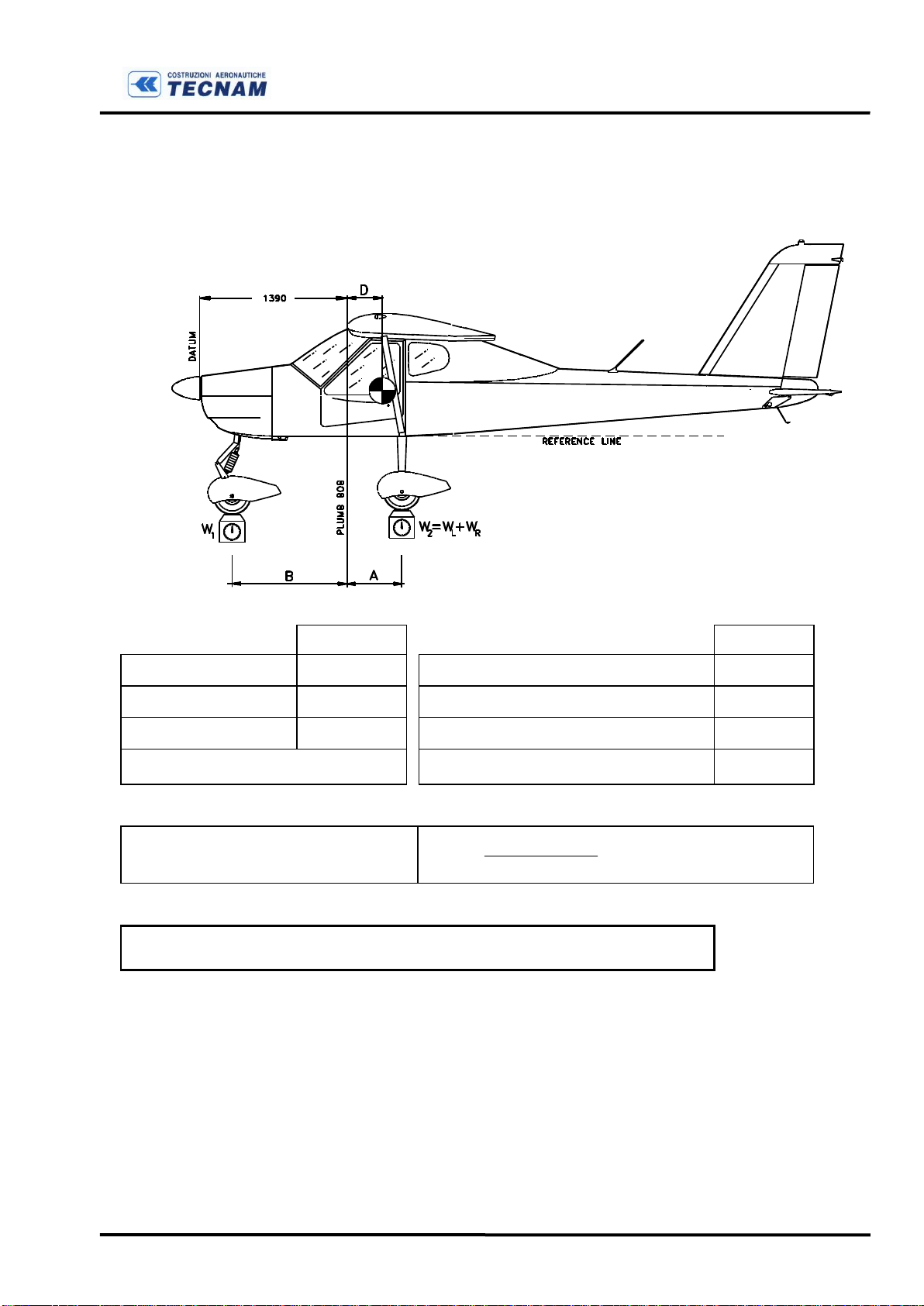

8. WEIGHING AND DETERMINATION OF THE C.G. VERTICAL ................................6
TABLE OF WEIGHTS AND DETERMINATION OF C.G..............................................................7
9. CORROSION PREVENTION..............................................................................................8
10. SERVICE BULLETINS....................................................................................................9
11. SERVICING.....................................................................................................................10
12. LUBRICATION...............................................................................................................11
INTRODUCTION ...........................................................................................................................11
LUBRICATION POINTS (SEE FIG.B-5)........................................................................................12
13. INSPECTION’S POINT .................................................................................................15
14. INSPECTIONS ................................................................................................................16
FOREWORD...................................................................................................................................16
PERIODIC INSPECTIONS.............................................................................................................17
