TECshow Alfie User manual

TABLE OF CONTENTS
WHAT IS INCLUDED.......................................................................................................................................... 3
UNPACKING INSTRUCTIONS ........................................................................................................................... 3
AC POWER...................................................................................................................................................... 3
SAFETY INSTRUCTIONS.................................................................................................................................. 4
1. BEFORE YOU BEGIN.............................................................................................................. 3
2. INTRODUCTION ................................................................................................................... 5
FEATURES....................................................................................................................................................... 5
DMX CHANNEL SUMMARY 12 CHANNEL MODE FOR WASH............................................................................... 5
DMX CHANNEL SUMMARY 4 CHANNEL MODE FOR WASH................................................................................. 6
PRODUCT OVERVIEW ..................................................................................................................................... 6
3. SETUP ................................................................................................................................. 7
FUSE REPLACEMENT....................................................................................................................................... 7
FIXTURE LINKING ............................................................................................................................................ 7
Data Cabling ..................................................................................................................................................7
DMX Data Cable...........................................................................................................................................7
Cable Connectors ........................................................................................................................................8
3-Pin to 5-PinConversion Chart ....................................................................................................................8
SETTING UP A DMX SERIAL DATA LINK............................................................................................................. 8
MASTER/SLAVE FIXTURE LINKING................................................................................................................... 9
MOUNTING ...................................................................................................................................................... 9
Orientation .................................................................................................................................................. 9
Rigging ....................................................................................................................................................... 9
4. OPERATING INSTRUCTIONS.................................................................................................10
NAVIGATING THE CONTROL PANEL ................................................................................................................10

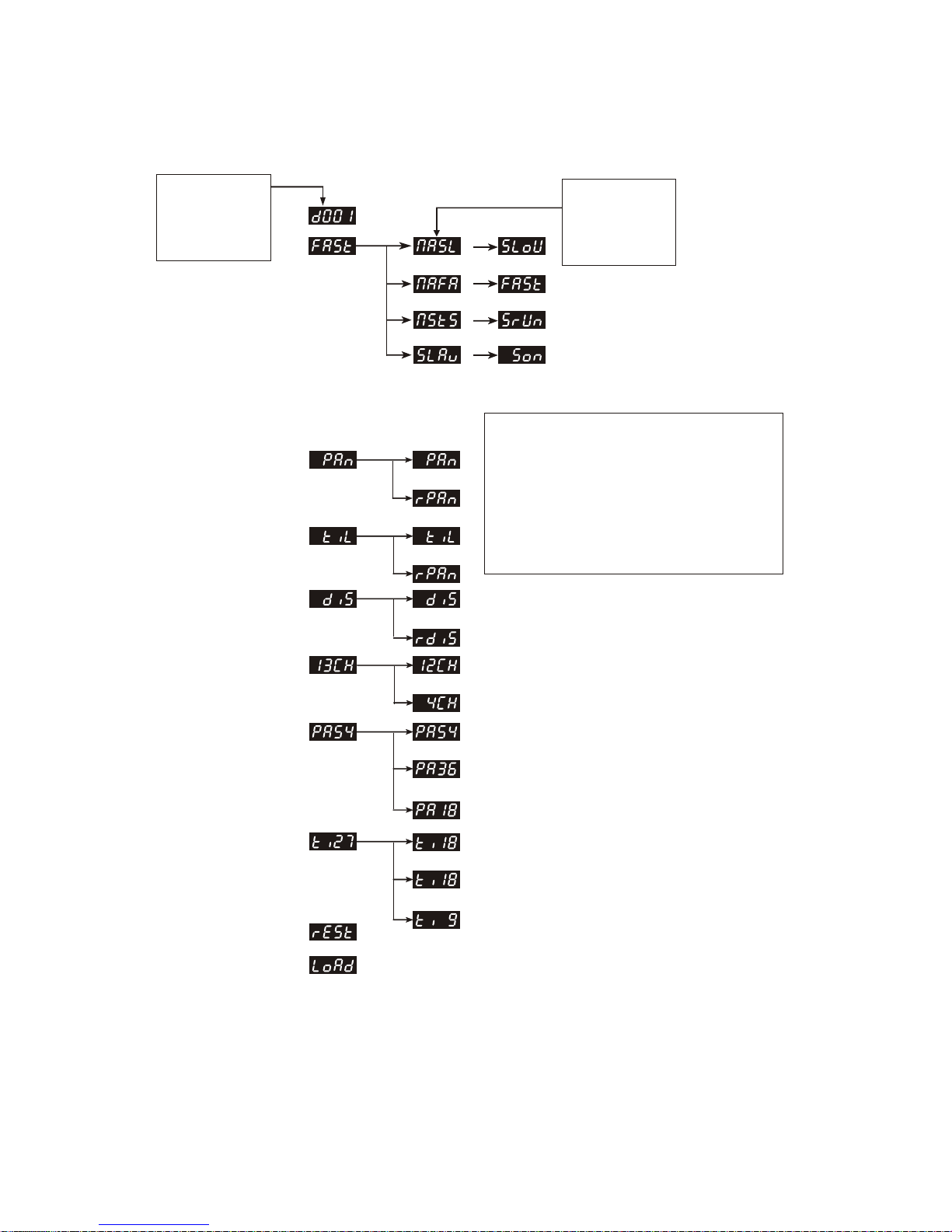

MENU MAP...................................................................................................................................................... 11
USER CONFIGURATIONS ................................................................................................................................11
USER CONFIGURATIONS ............................................................................................................................... 12
To set the pan to inverting or non-inverting: ................................................................................................... 12
To set the tilt to inverting or non-inverting:..................................................................................................... 12
To set the LED Readout to Inverting or Non-Inverting: .................................................................................... 12
To set the DMX channel configuration:...........................................................................................................12
To set the maximum pan angle: .................................................................................................................... 12
To set the maximum tilt angle: ...................................................................................................................... 12
Service Functions .......................................................................................................................................... 12
To reset the fixture:......................................................................................................................................12
To restore all settings to their factory defaults: ...............................................................................................12
OPERATION.................................................................................................................................................... 13
Stand-Alone Mode (Sound-Active, Auto Mode): .................................................................................................13
Master/Slave Mode (Master Sound, Master Auto): .............................................................................................13
DMX Mode .....................................................................................................................................................13
DMX CHANNEL VALUES (12 CHANNEL) ........................................................................................................ .14
DMX CHANNEL VALUES (4 CHANNEL ) .......................................................................................................... 15
5. APPENDIX...........................................................................................................................16
TECHNICAL SPECIFICATIONS ........................................................................................................................16
2

1 x Mini wash
User Manual
What is included
1. BEFORE YOU BEGIN
Unpacking Instructions
Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that
all parts are present, and have been received in good condition. Notify the shipper immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture
must be returned to the factory, it is important that the fixture be returned in the original factory box
and packing.
AC Power
This fixture used switch power supply, it can transform by itself when user input power!
3

Safety Instructions
Please read these instructions carefully, it includes important
information about the installation, usage and maintenance of this
product.
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction booklet.
Always make sure that you are connecting to the proper voltage, and that the line voltage you are
connecting to is not higher than that stated on the decal or rear panel of the fixture.
This product is intended for indoor use only!
To prevent risk of fire or shock, do not expose fixture to rain or moisture. Make sure there are no
flammable materials close to the unit while operating.
The unit must be installed in a location with adequate ventilation, at least 20in (50cm) from adjacent
surfaces. Be sure that no ventilation slots are blocked.
Always disconnect from power source before servicing or replacing fuse and be sure to replace with
same fuse size and type.
Secure fixture to fastening device using a safety chain. Never carry the fixture solely by its head. Use
its carrying handles.
Maximum ambient temperature (Ta) is 104 F (40 C). Do not operate fixture at temperatures higher
than this.
In the event of a serious operating problem, stop using the unit immediately. Never try to repair the
unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center. Always use the same type spare parts.
Don t connect the device to a dimmer pack.
Make sure the power cord is never crimped or damaged.
Never disconnect the power cord by pulling or tugging on the cord.
Avoid direct eye exposure to the light source while it is on.
4

2. INTRODUCTION
Features
4 or 12-channel DMX-512 LED moving yoke
Pan: 540 / tilt: 180
Variable electronic strobe
Variable electronic dimmer (0 100%)
Vector speed channel for pan/tilt, RGBW color mixing and color macros
Built-in movement macros via master/slave or DMX
User-selectable basic or advanced operating modes
User-selectable pan/tilt ranges
Pan: 540 , 360 , 180
Tilt: 180 , 180 , 90
Compact and lightweight
LED display menu with invert
Reset to factory settings option
Display auto on/off
Pan/tilt invert option
Fan cooled
DMX Channel Summary - 12 Channel Mode for Wash
ADDITIONAL FEATURES
CONTROL FEATURES
CHANNEL FUNCTION
1 Pan
2 Pan Fine
3 Tilt
4 Tilt Fine
5 Vector Speed (Pan/Tilt)
6 Dimmer/Strobe
7 Red
8 Green
9 Blue
11 Color Macros
5
10 White
12 Movement Macros

Product Overview
DMX In DMX Out
IEC Power
Connector with
Fuse holder
(Rear)
6
DMX Channel Summary - 4 Channel Mode for Wash
CHANNEL FUNCTION
1 Pan
2 Tilt
3 Dimmer/Strobe
4 Color Macros
LED Readout
Projector Head
Control
Panel
LED lens

3. SETUP
Disconnect the powercord before replacinga fuse andalways
replace with thesame type fuse.

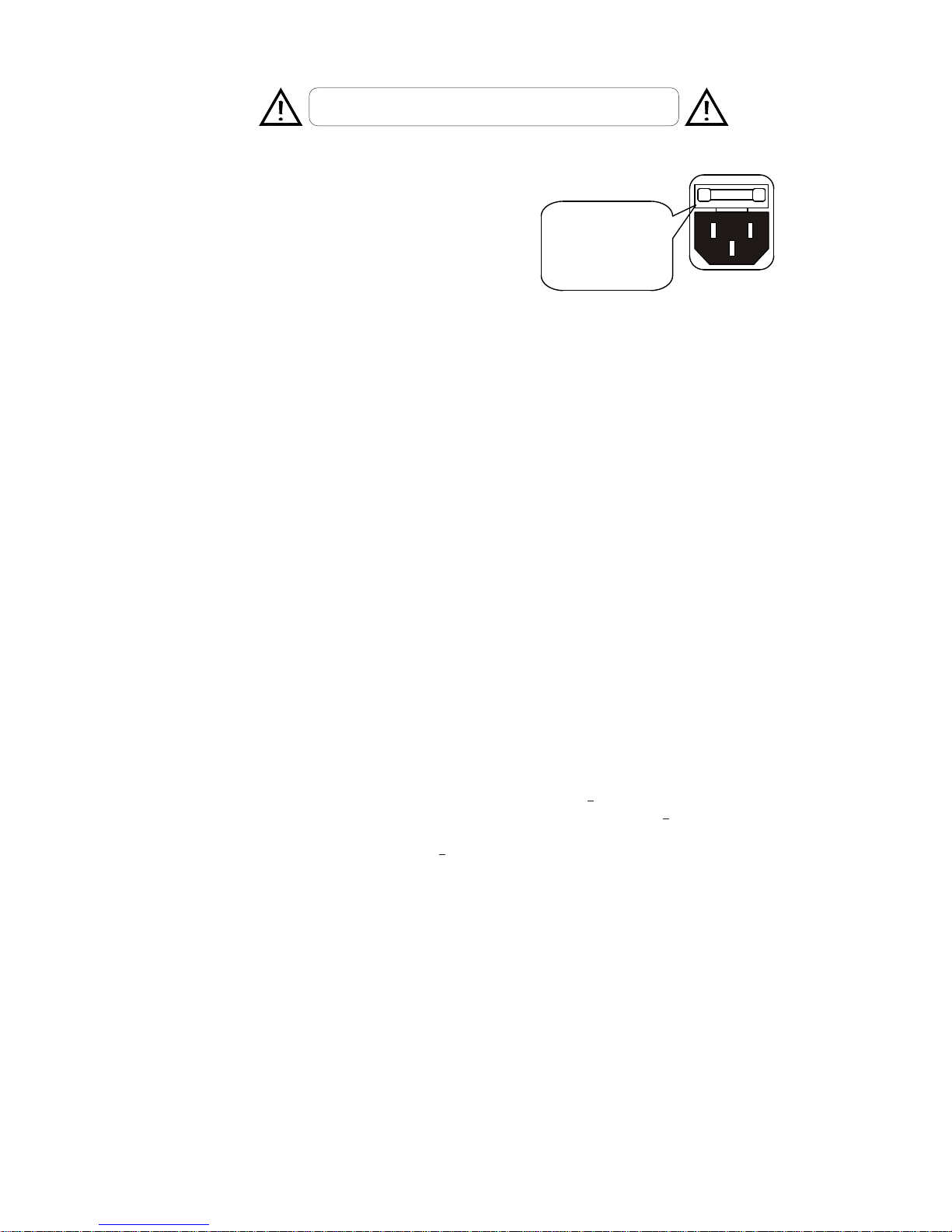

Fuse Replacement
With a flat head screwdriver wedge the fuse
holder out of its housing. Remove the damaged
fuse from its holder and replace with exact
same type fuse. Insert the fuse holder back in
its place and reconnect power.
The fuse islocated
inside this
compartment.
Remove using aflat
head screwdriver.
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller
or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The
combined number of channels required by all the fixtures on a serial data link determines the number
of fixtures the data link can support.
Important: Fixtures on a serial data link must be daisy chained in one single line. To comply with the EIA-485
standard no more than 32 devices should be connected on one data link. Connecting more than 32
fixtures on one serial data link without the use of a DMX optically-isolated splitter may result in
deterioration of the digital DMX signal.
Maximum recommended serial data link distance: 500 meters (1640 ft.)
Maximum recommended number of fixtures on a serial data link: 32 fixtures
Data Cabling
To link fixtures together you must obtain data cables. You can purchase CHAUVET-certified DMX
cables directly from a dealer/distributor or construct your own cable. If you choose to create your own
cable please use data-grade cables that can carry a high quality signal and are less prone to
electromagnetic interference.
DMX DATA CABLE
Use a Belden? 9841 or equivalent cable which meets the specifications for EIA RS-485 applications.
Standard microphone cables cannot transmit DMX data reliably over long distances. The cable will
have the following characteristics:
2-conductor twisted pair plus a shield
Maximum capacitance between conductors 30 pF/ft.
Maximum capacitance between conductor and shield 55 pF/ft.
Maximum resistance of 20 ohms / 1000 ft.
Nominal impedance 100 140 ohms
7

1
3
2
1
3
2
1
3
2
1. Connect the (male) 3 pin connector side of
the DMX cable to the output (female) 3 pin
connector of the controller.
2. Connect the end of the cable coming from
the controller which will have a (female) 3
pin connector to the input connector of the
next fixture consisting of a (male) 3 pin
connector.
3. Then, proceed to connect from the output
as stated above to the input of the following
fixture and so on.
DMX Data Cables
Order Code Description
DMX1.5 DMX Cable 1.5m/4.9ft
DMX4.5 DMX Cable 4.5m/14.8ft
DMX10 DMX Cable 10m/32.8ft
Resistance 120
ohm 1/4w between
pin 2 (DMX-) and
pin 3 (DMX+) of
the last fixture.
DMX connector configuration
COMMON
OUTPUT
Termination reduces signal errors.To
avoid signal transmissionproblems
and interference, itis always
advisable to connecta DMX signal
terminator.
DMX +
DMX -
INPUT
Cabling must have a male XLR connector on one end and a female XLR connector on the other end.
CAB LE C ONN ECTORS
CAUTION Do notallow contact betweenthe common andthe fixture s chassis ground.Grounding the common
can cause aground loop, andyour fixture mayperform erratically. Test cables withan ohm meterto
verify correct polarityand to makesure the pinsare not groundedor shorted tothe shield oreach other.
3-PIN TO 5- PIN CON VE R SION CHAR T
Note! If youuse a controllerwith a 5pin DMX outputconnector, youwill need touse a 5 pin to 3 pin adapter.
CHAUVET Model No: DMX5M, orDMX5F.
The chart below details aproper cable conversion:
3 PIN TO 5 PIN CONVERSION CHART
Setting up a DMX Serial Data Link
Continue the link
This drawing providesa
general illustration ofthe
DMX Input/Output panelof
a lighting fixture
Universal DMX Controller
8
Conductor 3 Pin Female (output) 5 Pin Male (Input)
Ground/Shield Pin 1 Pin 1
Data ( - ) signal Pin 2 Pin 2
Data ( + ) signal Pin 3 Pin 3
Do not use Do not use
Do not use Do not use

It is important never to obstruct the fan or vents pathway. Mount the
fixture using, a suitable C or O type clamp. Adjust the angle of the
fixture by loosening both knobs and tilting the fixture. After finding the
desired position, retighten both knobs.
When selecting installation location, take into consideration lamp
replacement access and routine maintenance.
Safety cables must always be used.
Never mount in places where the fixture will be exposed to rain, high
humidity, extreme temperature changes or restricted ventilation.
Often, the setupfor Master-Slave
and Standalone operationrequires
that the firstfixture in thechain be
initialized for thispurpose via eithe
settings in thecontrol panel or DIP-r
switches. Secondarily,the fixtures
that follow mayalso require a slave
setting. Please consultthe
Operating Instructions section in
this manual forcomplete instructions
for this typeof setup and
configuration.
Master/Slave Fixture Linking
1. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin connector
of the first fixture.
2. Connect the end of the cable coming from the first fixture which will have a (female) 3 pin
connector to the input connector of the next fixture consisting of a (male) 3 pin connector. Then,
proceed to connect from the output as stated above to the input of the following fixture and so on
Mounting
ORIENTATION
This fixture may be mounted in any position provided there is adequate room for ventilation.
RIGGING
Hanging Clamp
Note!
Clamp is soldseparately.
9

Access control panel functions using the four panel buttons located directly underneath the LCD
Display.
ENTER
MODE/ESC UP DOWN
Used to select and store the current menu
or option within a menu
Button Function
<MODE/ESC>
<UP>
<DOWN>
<ENTER>
Used to access the menu or to return to a
previous menu option
Scrolls through menu options in ascending
order
Scrolls through menu options in descending
order
4. OPERATING INSTRUCTIONS
Navigating the Control Panel
The Control Panel LED Display shows the menu items you select from the menu map on page #11.
When a menu function is selected, the display will show immediately the first available option for the
selected menu function. To select a menu item, press <ENTER>.
Press the <MODE/ESC> button repeatedly until you reach the desired menu function. Use the <UP>
and <DOWN> buttons to navigate the menu options. Press the <ENTER> button to select the menu
function currently displayed, or to enable a menu option. To return to the previous option or menu
without changing the value, press the <MODE/ESC> button.
10

Menu Map
Use the <UP>,<DOWN>,
and <ENTER> buttons to
scroll through these menu
items
When navigating the menu:
Use the “UP” button to move up.
Use the “DOWN” button to move down.
Use the “ENTER” button to move right.
Use the “MODE” buton to move left, or
to scroll through the left-most
items in the menu map.
Use the <MODE/ESC>
button to scroll through
these menu items
11

TO SET THE PAN TO INVERTING OR NON- INVERTING:
1) Press the Mode button until it shows or
2) Use the Up/Down buttons to set to the desired inversion, press enter to confirm.
TO SET THE TILT TO INVERTING OR NON- INVERTING:
1) Press the Mode button until it shows or
2) Use the Up/Down buttons to set to the desired inversion, press enter to confirm.
TO SET THE LED READOUT TO INVERTING OR NON- INVERTING:
1) Press the Mode button until it shows or
2) Use the Up/Down buttons to set to the desired inversion, press enter to confirm.
TO SET THE DMX CHANNEL CONFIGURATION:
1) Press the Mode button until it shows or
2) Use the Up/Down buttons to set to the desired inversion, press enter to confirm.
TO SET THE MAX I MUM PAN ANGLE:
1) Press the Mode button until it shows or or
2) Use the Up/Down buttons to set to the desired inversion, press enter to confirm.
TO SET THE MA X I MUM TILT ANGLE:
1) Press the Mode button until it shows or or
2) Use the Up/Down buttons to set to the desired inversion, press enter to confirm.
Service Functions
TO RESET THE FIXTURE:
1) Press the Mode button until the display shows
2) Press enter to confirm your selection.
TO RESTORE ALL SETTINGS TO THEIR FACTORY DEFAULTS:
1) Press the mode button until the display reads
2) Press enter to confirm your selection.
User Configurations
12

Stand-Alone Mode (Auto Mode):
This mode allows a single unit to run to a factory installed program in one of two speeds.
1) To set the fixture in auto mode Fast, select . Once confirmed the display reads
2) To set the fixture in auto mode Slow, select Once confirmed the display reads
Master/Slave Mode (Master Sound):
This mode will allow you to link up to 32 units together without a controller.
1) Use standard DMX cables to daisy chain your units together via the DMX connector on the rear
of the units. Proper performance it may be necessary to use a terminator at the last fixture. For
more information about terminators, see page 8.
2) Choose a unit to function as the Master. Select NAFA/NASL or NStS (see below for readout)
depending upon which master mode you require. The master unit must be the first unit in line.
Finally, chain the units together using DMX cable.
Master Auto or
Master Sound becomes when confirmed
3) Select slave function by using the Up/Down keys to reach SLAv in the Master/Auto menu on the
slave units, and they will react in the same as the Master.
Slave becomes when confirmed
DMX Mode
Operation
13
This mode allows the unit to be controlled by any universal DMX controller. If you are unfamiliar with
DMX, please read the DMX Primer on page #19.
1) The default mode for the fixture is DMX, which appears as on the LED Readout.

1 000 255 Pan
CHANNEL VALUE FUNCTION
2 000 255 Pan Fine
3 000 255 Tilt
4 000 255 Tilt Fine
5 000 255 Vector Speed:(Normal Slow)
Dimmer/Strobe
000 007 Closed
008 134 100-0%
6 135 239 Strobe (slow fast)
240 255 Open
7 000 255 0-100%
8 000 255 0-100%
9 000 255 0-100%
Color Macros
000 010 No Function
011 031 Macro 1
032 052 Macro 2
053 073 Macro 3
074 094 Macro 4
095 115 Macro 5
11 116 136 Macro 6
137 157 Macro 7
158 178 Macro 8
179 199 Macro 9
200 220 Macro 10
221 241 Macro 11
242 252 Macro 12
253 255 Macro 13
Movement Macros
000 007 No Function
008 023 Auto Program 1
024 039 Auto Program 2
040 055 Auto Program 3
056 071 Auto Program 4
072 085 Auto Program 5
086 0101 Auto Program 6
102 117 Auto Program 7
12 118 133 Auto Program 8
134 149 Sound Active1
150 165 Sound Active 2
166 181 Sound Active 3
182 197 Sound Active 4
198 213 Sound Active 5
214 229 Sound Active 6
230 245 Sound Active 7
246 255 Sound Active 8
DMX Channel Values (12 Channel for Wash)
14
Blue
Red
Green
10 000 255 0-100%
White

DMX Channel Values (4 Channel for Wash)
1 000 255 Pan
CHANNEL VALUE FUNCTION
2 000 255 Tilt
Dimmer/Strobe
000 007 Closed
008 134 100-0%
3 135 239 Strobe (slow fast)
240 255 Open
15
Color Macros
000 010 No Function
011 031 Macro 1
032 052 Macro 2
053 073 Macro 3
074 094 Macro 4
095 115 Macro 5
4 116 136 Macro6
137 157 Macro 7
158 178 Macro 8
179 199 Macro 9
200 220 Macro 10
221 241 Macro 11
242 252 Macro 12
253 255 Macro 13

Length....................................................................................................................... 12in (300 mm)
Width ........................................................................................................................ 9.5 in (240 mm)
Height ....................................................................................................................... 9.5 in (240 mm)
Weight ........................................................................................................................ 8.3 lbs (3.8 kg)
Switch-selectable power settings ............................................................100-240V 50/60Hz
Fuse..................................................................................................... 3A250V
Power Consumption .............................................................................. 68.1W (0.30A) Max at 230V
Inrush Power ........................................................................................ 83.6W (0.71A) inrush at 230V
Power Factor .......................................................... ..............................0.92
LED................................................................................................................ 10W RGBWx4pcs
Beam Angle ............................................................................................................ 7.5
Pan ......................................................................................................................................... 540
Tilt........................................................................................................................................... 180
Maximum ambient temperature................................................................................ .....104 F (40 C)
Data input .......................................................................................... locking 3-pin XLR male socket
Data output ........................................................................................ locking 3-pin XLR female socket
Data pin configuration ..........................................................................pin 1 shield, pin 2 (-), pin 3 (+)
Protocols............................................................................................ DMX-512 USITT
DMX Channels ................................................................................... 4 or 12
Warranty ........................................................................................................ 1-year limited warranty
Technical Specifications
WEIGHT & DIMENSIONS
POWER
LIGHT SOURCE
PHOTO OPTIC
RANGE
THERMAL
CONTROL & PROGRAMMING
WARRANTY INFORMATION
16
5. APPENDIX
