TEFAL EASYGLISS User manual

EN
EASYGLISS
www.tefal.com
1800134689-01FV40XXUK.qxp_110x15431/03/1510:05Page1

2
1800134689-01FV40XXUK.qxp_110x15431/03/1510:05Page2

3
mportant safety recommendations ........................................................ p. 6
Before first use................................................................................................. p. 10
Which water should use?.......................................................................... p. 11
Filling the water tank .................................................................................... p. 11
Adjusting the temperature and steam.................................................. p. 12
Dry ironing ........................................................................................................ p. 13
Getting more steam...................................................................................... p. 13
Vertical steam ironing .................................................................................. p. 14
Dampening clothing (Spray) ..................................................................... p. 15
While ironing ................................................................................................... p. 15
Auto-Stop Function (according to model)............................................ p. 15
ron storage ...................................................................................................... p. 16
Cleaning the anti-limescale collector (once per month) ................ p. 17
Descaling the steam chamber (once per month).............................. p. 18
Cleaning the soleplate................................................................................... p.19
Problems, possible causes, solutions....................................................... p. 20
P EPA ATION
USE
I ON STO AGE AND MAINTANANCE
IS THE E A P OBLEM WITH YOU I ON?
IMPO TANT SAFETY ECOMMENDATIONS
SUMMA Y
1800134689-01FV40XXUK.qxp_110x15431/03/1510:05Page3

4

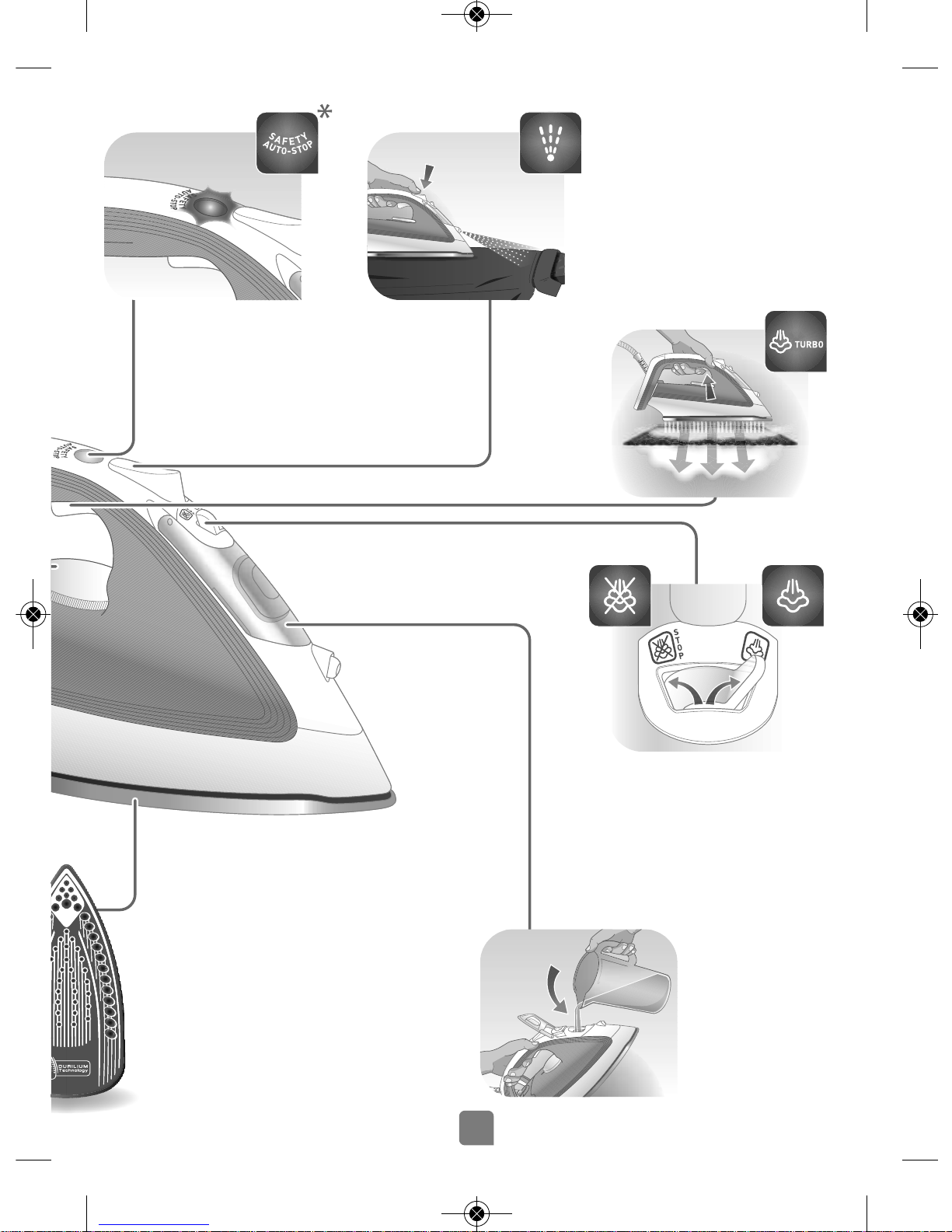

EN Accordin to model
*
1800134689-01FV40XXUK.qxp_110x15431/03/1510:05Page4

5
1800134689-01FV40XXUK.qxp_110x15431/03/1510:05Page5

6
IMPO TANT SAFETY ECOMMENDATIONS
• Ple se re d these instructions c refully before
first use. This product h s been designed for
domestic nd indoor use only. Any commerci l
use, in ppropri te use or f ilure to comply with
the instructions, the m nuf cturer ccepts no
responsibility nd the gu r ntee will not pply.
• Never unplug the ppli nce by pulling the power
cord. Alw ys unplug your ppli nce: before filling
the w ter t nk or rinsing the w ter t nk, before
cle ning the ppli nce, fter e ch use.
• The ppli nce must be used nd pl ced on fl t,
st ble, he t-resist nt surf ce. When you pl ce
the iron on the iron rest, m ke sure th t the
surf ce on which you pl ce it is st ble.
• This ppli nce is not intended to be used by
persons (including children) with reduced or
imp ired physic l, sensory or ment l c p bilities
or persons l cking ppropri te knowledge or
experience, unless person responsible for their
s fety provides either supervision or ppropri te
instructions concerning use of the ppli nce
prior to its use.
• Children should be supervised to ensure they do
not pl y with the ppli nce.
1800134689-01FV40XXUK.qxp_110x15431/03/1510:05Page6

7
• This ppli nce m y be used by children ged 8
or over nd persons l cking ppropri te
knowledge or experience or persons with
reduced or imp ired physic l, sensory or ment l
c p bilities provided th t they h ve been
thoroughly instructed reg rding the use of the
ppli nce, re supervised, nd underst nd the
risks involved. Children sh ll not pl y with the
ppli nce. Cle ning nd user m inten nce sh ll
not be m de by children without supervision.
Keep the iron nd its cord out of re ch of
children less th n 8 ye rs of ge when it is
energized or cooling down.
• The surf ces of your ppli nce c n re ch
very high temper tures when functioning,
which m y c use burns. Do not touch the
hot surf ces of the ppli nce ( ccessible
met l p rts nd pl stic p rts dj cent to the
met llic p rts).
• Never le ve the ppli nce un ttended when it is
connected to the m ins. Before storing the
ppli nce, once it is unplugged, ple se w it until
it h s cooled down ( round 1 hour).
• The ppli nce must not be used if it h s been
dropped, if it h s ny visible d m ge, if it le ks,
1800134689-01FV40XXUK.qxp_110x15431/03/1510:05Page7

8
or if it functions bnorm lly in ny w y. Do not
ttempt to dism ntle your ppli nce: h ve it
ex mined t n Approved Service Centre to
void ny d nger.
• Do not llow the power cord to rest close to or
come into cont ct with sources of he t or sh rp
edges.
• Check the electric l power cord for signs of we r
or d m ge prior to use. If the electric l power
cord is d m ged, it must be repl ced t n
Approved Service Centre to void ny d nger.
• For your s fety, this ppli nce conforms to ll pplic ble regul tions
(Low Volt ge Directive, Electrom gnetic Comp tibility, Environment,
etc).
• Your ste m iron is n electric l ppli nce: it must be used under
norm l conditions of use. It is designed for domestic use only.
• Alw ys plug your ste m iron:
- into m ins circuit with volt ge between 220 V nd 240 V,
- into n e rthed electric l socket.
Connecting to the wrong volt ge m y c use irrep r ble d m ge to
the ppli nce nd will inv lid te your gu r ntee. If you re using
m ins extension le d, ensure th t it is correctly r ted (16A) with n
e rth, nd is fully extended.
• Completely unwind the power cord before plugging into n e rthed
socket.
• The solepl te of your iron c n re ch extremely high temper tures,
nd c n c use burns: do not touch them. Never touch the electric l
power cords with the solepl te of the iron.
• Your ppli nce emits ste m, which c n c use burns. Alw ys h ndle
the iron with c re, especi lly when ironing vertic lly. Never direct the
1800134689-01FV40XXUK.qxp_110x15431/03/1510:05Page8

9
ste m tow rds people or nim ls.
• Never immerse your ste m iron in w ter or ny other liquid. Never
pl ce it under running t p.
• The plug must be removed from the power socket outlet before the
w ter reservoir is filled with w ter.
PLEASE ETAIN THIS INST UCTION
BOOKLET FO FUTU E EFE ENCE
Environment protection first !
iYour ppli nce cont ins v lu ble m teri ls which c n be
recovered or recycled.
‹Le ve it t loc l civic w ste collection point.
1800134689-01FV40XXUK.qxp_110x15431/03/1510:05Page9

10
Remove any labels from the soleplate before
heatin the iron.
Before usin the steam function in your iron for
the rst time, we recommend that you allow the
iron to operate a few moments in a horizontal
position without comin into contact with your
laundry. Keepin the iron in this position, push
the steam button several times.
Durin the rst few uses, the appliance may
produce smoke, a harmless odour and a li ht
emission of particles. These are simply the
en ineerin residues from the manufacturin
process burnin off. These are harmless and will
quickly disappear.
BEFO E FI ST USE
1800134689-01FV40XXUK.qxp_110x15431/03/1510:05Page10

11
f your water is very hard, mix 50% untreated tap water
with 50% distilled water (available in hardware stores).
P EPA ATION
Which water should I use?
Fillin the water tank
• Your appliance was designed to operate using untreated tap water.
However, it is necessary to periodically clean the steam chamber to
remove any mineral deposits.
• Do not use pure demineralised or pure distilled water, water from
clothes dryers, scented or softened water, rain water, filtered,
bottled or boiled water, water from refrigerators, batteries or air
conditioners, pure distilled water or rain water as these may
damage the iron. These types of water contain organic waste,
mineral elements that become concentrated when heated and
cause spitting, brown staining, leaking or premature wear on your
iron
• Unplug the iron before filling it.
• Set the steam control to
• Lift the iron and, holding it at a slight incline, point the soleplate
up.
• Open the water tank cover.
• Fill the water tank to the mark “MAX”.
• Close the water tank cover.
Max.
1800134689-01FV40XXUK.qxp_110x15431/03/1510:05Page11

12
USE
Adjustin the temperature and steam
• Set the steam control to
• Adjust the temperature control, referring to the table below.
• The temperature indicator light turns on.
• t will turn off automatically once the soleplate achieves the desired
temperature.
FABR C TEMPERATURE CONTROL
POS T ON
L NEN MAX
COTTON •••
WOOL ••
S LK/SYNTHET C
(Polyester, Acetate, Acrylic,
Polyamide)) •
OK
= STEAM ZONE
Set the temperature control dial to match the type of fabric
you wish to iron. Your iron automatically and accurately
determines the exact temperature and steam flow that are
suitable, in order to guarantee the best results.
• Plug in the appliance.
1800134689-01FV40XXUK.qxp_110x15431/03/1510:05Page12

13
Dry ironin
Gettin more steam
max.
1
sec.
Your iron heats quickly: be in with fabrics that require
lower temperatures.
When ironin fabrics with most delicate bres: set the
ironin temperature for the most fra ile bre.
The iron will not heat up if the thermostat control is set to
"MIN".
• Set the temperature according to the fabric to be ironed.
• Set the steam control to
• You may continue to iron when the indicator light turns off.
• Set the thermostat control to “MAX” or “•••”.
• Press the turbo steam button periodically (turbo steam).
• To avoid water dripping on the laundry, maintain an interval of a
few seconds in between each press.
1800134689-01FV40XXUK.qxp_110x15431/03/1510:05Page13

14
Vertical steam ironin
• Hang the item on a hanger and keep the fabric taut with one
hand. The steam is very hot; never steam iron clothing while
it is being worn - always use a hanger.
• Set the thermostat control to “MAX”
• Press the turbo steam button (turbo steam) in pulses, moving
the iron from top to bottom.
• Hold the iron at a distance of a few centimetres from the
clothing to avoid burning delicate fabrics.
max.
1
sec.
NO
1800134689-01FV40XXUK.qxp_110x15431/03/1510:05Page14

15
Dampenin clothin (Spray)
• When dry or steam ironing, press repeatedly on the spray
button to moisten clothing and remove stubborn creases.
• Ensure that there is water in the tank before using the spray
button.
Auto-Stop Function (accordin to model)
• f the iron remains unused for more than 8 minutes on the heel
rest or more than 30 seconds laid flat or on its side, the
electronic system will cut the power, the iron will stop heating
and the auto-stop indicator will begin to flash.
• To restart the iron, move it gently until the indicator stops
flashing.
While ironin
• Do not lay the iron down on the soleplate; use the heel rest for
this purpose.
NO
OK
OR
1800134689-01FV40XXUK.qxp_110x15431/03/1510:05Page15

16
I ON STO AGE AND
MAINTANANCE
Storin your iron
• Unplug the iron and wait for the soleplate to cool (approx. 45 min.).
• Empty the water tank.
• Set the steam control to .
• Wrap the cord around the bottom of the iron's body. Store the iron
on its heel rest.
45 min.
1800134689-01FV40XXUK.qxp_110x15431/03/1510:05Page16

17
Cleanin the anti-limescale collector
(once per month)
• Unplug your iron and empty the water tank.
• To remove the anti-limescale collector, open the water tank cover
and pull on the collector near the steam control.
• Soak the collector for 4 hours in a glass of water with lemon juice.
• Rinse the collector under the tap.
• nsert the collector in place, pushing it until you hear a click.
Beware!
Never touch the end of the collector.
The iron will not function without the anti-limescale collector.
Click
4h
1800134689-01FV40XXUK.qxp_110x15431/03/1510:05Page17

18
Descalin the steam chamber
(once per month)
• Allow your iron to heat up with a full water tank while on its heel
rest and with the temperature control set to maximum.
• Once the indicator light switches off, unplug the iron and place it
over a sink.
• Remove the anti-limescale collector.
• Shake the iron gently in a horizontal position above the sink until
some of the water (containing the impurities) leaks from the
soleplate.
• To finish the process, replace the anti-limescale collector, pushing
it until you hear a click.
• Plug in your iron for 2 minutes on the heel rest to dry the soleplate.
Max.
Click
2
min.
1800134689-01FV40XXUK.qxp_110x15431/03/1510:05Page18

19
• Unplug your iron and, once cooled, wipe it with a soft cloth.
• Never use chemical or abrasive products.
Cleanin the soleplate
• While the soleplate is still cool, clean it with a damp non-metallic
pad.
• Never use chemical or abrasive products.
NO
NO
During the next use, turn on your iron in a horizontal position
without putting it into contact with your laundry in order to
eliminate any water containing mineral residues that remain
in the soleplate.
1800134689-01FV40XXUK.qxp_110x15431/03/1510:05Page19

20
IS THE E A P OBLEM WITH YOU I ON?
P OBLEMS POSSIBLE CAUSES SOLUTIONS
Water is leaking
from the holes in
the soleplate.
You re using the ste m when
the iron is not hot enough.
W it for the indic tor light to turn
off.
You re using the turbo ste m
button (turbo ste m) too often.
W it few seconds between e ch
use.
You h ve stored the iron
horizont lly without emptying
the w ter t nk or setting the
ste m control to .
See the ch pter on "Storing your
iron".
The iron leaks at
the start of
ironing.
You h ve removed the nti-
limesc le collector to fill up your
iron.
Do not remove the nti-limesc le
collector when filling the iron.
The ste m control di l is not set
to when filling the w ter
t nk.
Ensure th t the ste m control di l is
set to when filling the w ter t nk.
A brown
discharge coming
from the
soleplate is
staining the
clothing.
You re using chemic l
desc ling gents.
Do not introduce desc ling gent
into the w ter t nk.
You re not using the right type
of w ter.
Cle n the ste m ch mber nd see
the ch pter on "Wh t w ter should
I use?"
Clothing fibres re building up in
the holes of the solepl te nd
burning.
Cle n the ste m ch mber nd the
solepl te with d mp sponge.
Periodic lly v cuum the holes the
holes in the solepl te.
The soleplate is
dirty or brown
and may stain
clothing.
The temper ture of the iron is
too hot.
Cle n the solepl te s indic ted
bove. Consult the t ble of
temper tures to djust the
temper ture.
You re using st rch. Cle n the solepl te s indic ted
bove. Spr y the st rch on the
reverse side of the clothing to be
ironed.
Your l undry h s not been
rinsed sufficiently or you re
ironing new item of clothing
before w shing it.
Ensure th t your l undry is
sufficiently rinsed to elimin te
potenti l so p deposits or chemic l
products on new items of clothing.
1800134689-01FV40XXUK.qxp_110x15431/03/1510:05Page20
