• Please read these instructions carefully before first
use. his product has been designed for domestic
and indoor use only. Any commercial use,
inappropriate use or failure to comply with the
instructions, the manufacturer accepts no
responsibility and the guarantee will not apply.
• Never unplug the appliance by pulling the power
cord. Always unplug your appliance: before filling
the water tank or rinsing the water tank, before
cleaning the appliance, after each use.
• he appliance must be used and placed on a flat,
stable, heat and water resistant surface. When you
place the iron on the iron rest, make sure that the
surface on which you place it is stable.
• his appliance is not intended to be used by
persons (including children) with reduced or
impaired physical, sensory or mental capabilities or
persons lacking appropriate knowledge or
experience, unless a person responsible for their
safety provides either supervision or appropriate
instructions concerning use of the appliance prior
to its use.
• Children should be supervised to ensure they do
not play with the appliance.
• his appliance may be used by children aged 8 or
over and persons lacking appropriate knowledge
or experience or persons with reduced or impaired
IMPORTANT AFETY IN TRUCTION
1800138722 FV49XX UK_110x154 07/04/2016 16:56 Page5

6
physical, sensory or mental capabilities provided
that they have been thoroughly instructed
regarding use of the appliance, are supervised, and
understand the risks involved. Children shall not
play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision. Keep the iron and its cord out of reach
of children less than 8 years of age when it is
energized or cooling down.
• he surfaces of your appliance can reach very
high temperatures when functioning, which
may cause burns. Do not touch the hot
surfaces of the appliance (accessible metal
parts and plastic parts adjacent to the metallic
parts).
• Never leave the appliance unattended when it is
connected to the mains. Before storing the
appliance, once it is unplugged, please wait until it
has cooled down (around 1 hour).
• he appliance must not be used if it has been
dropped, if it has any visible damage, if it leaks, or if
it functions abnormally in any way. Do not attempt
to dismantle your appliance: have it examined at an
Approved Service Centre to avoid any danger.
• he iron should only be used with the base
provided (for cordless irons).
• Check the electrical power cord for sign of wear or
1800138722 FV49XX UK_110x154 07/04/2016 16:56 Page6

7
damage prior to use. If the electrical power cord is
damaged, it must be replaced at an Approved
Service Centre to avoid any danger.
• he iron must always be placed on its base and never on its heel (for cordless irons) .
• Your iron and its base must be used and placed on a stable surface. When you place the iron
on its base, ensure that the surface on which the base is placed is stable.
• For your safety, this appliance conforms to all applicable regulations (Low Voltage Directive,
Electromagnetic Compatibility, Environment, etc).
• Your steam iron is an electrical appliance: it must be used under normal conditions of use. It is
designed for domestic use only.
• Always plug your steam iron:
- into a mains circuit with voltage between 220 V and 240 V,
- into an earthed electrical socket.
Connecting to the wrong voltage may cause irreparable damage to the appliance and will
invalidate your guarantee. If you are using a mains extension lead, ensure that it is correctly
rated (16A) with an earth, and is fully extended.
• Completely unwind the power cord before plugging into an earthed socket.
• he soleplate of your iron can reach extremely high temperatures, and can cause burns: do not
touch them. Never touch the electrical power cords with the soleplate of the iron.
• Your appliance emits steam, which can cause burns. Always handle the iron with care,
especially when ironing vertically. Never direct the steam towards people or animals.
• Never immerse your steam iron in water or any other liquid. Never place it under a running tap.
• he plug must be removed from the socket-outlet before the water tank is filled with water.
PLEA E RETAIN THI IN TRUCTION
BOOKLET FOR FUTURE REFERENCE
Environment protection first !
i Your appliance contains valuable materials which can be recovered or
recycled.
‹ Leave it at a local civic waste collection point.
1800138722 FV49XX UK_110x154 07/04/2016 16:56 Page7

8
Remove any labels from the soleplate before
heating the iron.
Before using the steam function in your iron
for the rst time, we recommend that you
allow the iron to operate a few moments in
a horizontal position without coming into
contact with your laundry. Keeping the iron
in this position, push the steam button seve-
ral times.
During the rst few uses, the appliance may
produce smoke, a harmless odour and a light
emission of particles. hese are simply the
engineering residues from the manufactu-
ring process burning off. hese are harmless
and will quickly disappear.
BEFORE FIR T U E
1800138722 FV49XX UK_110x154 07/04/2016 16:56 Page8

9
If your water is very hard, mix 50% untreated tap water
with 50% distilled water (available in hardware stores).
PREPARATION
Which water should I use?

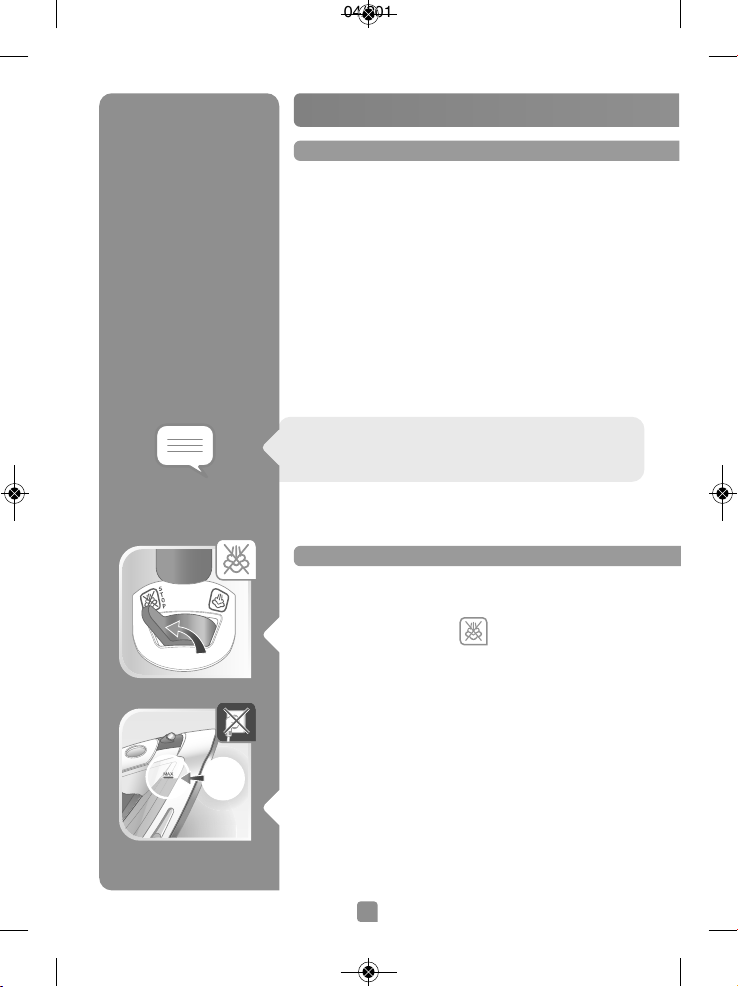

Filling the water tank
• Your appliance was designed to operate using untreated
tap water. However, it is necessary to periodically clean
the steam chamber to remove any mineral deposits.
• Do not use pure demineralised or pure distilled water,
water from clothes dryers, scented or softened water,
rain water, filtered, bottled or boiled water, water from
refrigerators, batteries or air conditioners, pure distilled
water or rain water as these may damage the iron. These
types of water contain organic waste, mineral elements
that become concentrated when heated and cause
spitting, brown staining, leaking or premature wear on
your iron
• Unplug the iron before filling it.
• Set the steam control to
• Lift the iron and, holding it at a slight incline, point the
soleplate up.
• Open the water tank cover.
• Fill the water tank to the mark “ ax”.
• Close the water tank cover.
Max.
1800138722 FV49XX UK_110x154 07/04/2016 16:57 Page9

10
U E
Adjusting the temperature and steam
• Set the steam control to
• Set the slider on the "normal" or "eco" setting.
• The Smart Technology of your iron provides one
optimum combination of temperature and steam
output to iron all types of fabrics. In normal conditions
of use, with the normal or eco settings, you can iron
all the fabric types shown in the pictograms above, e.g.
linen denim silk cotton polyester wool viscose…
Except the fabrics that cannot be ironed.
In eco setting, you save 20% energy vs the normal
setting.
• The temperature indicator light turns on.
• It will turn off automatically once the soleplate
achieves the desired temperature.
OK
• Plug in the appliance.
1800138722 FV49XX UK_110x154 07/04/2016 16:57 Page10

11
Dry ironing
• Set the steam control to
• You may continue to iron when the indicator light
turns off.
Getting more steam
• Set the slider on the "normal" or "eco" setting.
• Press the turbo steam button periodically (turbo
steam).
• To avoid water dripping on the laundry, maintain an
interval of a few seconds in between each press.
1
sec.
1800138722 FV49XX UK_110x154 07/04/2016 16:57 Page11

12
Vertical steam ironing
• Set the thermostat control to “Normal”
• Press the turbo steam button (turbo steam) in pulses,
moving the iron from top to bottom.
• Hold the iron at a distance of a few centimetres from
the clothing to avoid burning delicate fabrics.
• Repeat the action if needed.
• Hang the item on a hanger and keep the fabric taut
with one hand. The steam is very hot; never steam iron
clothing while it is being worn—always use a hanger.
1
sec.
NO
1800138722 FV49XX UK_110x154 07/04/2016 16:57 Page12

13
Dampening clothing (Spray)
• When dry or steam ironing, press repeatedly on the
spray button to moisten clothing and remove stubborn
creases.
• Ensure that there is water in the tank before using the
spray button.
Auto-Off Function
• If the iron remains unused for more than 8 minutes on
the heel rest or more than 5 min. laid flat or on its side,
the electronic system will cut the power, the iron will
stop heating and the temperature indicator light will
begin to flash.
• To restart the iron, move it gently until the indicator
stops flashing.
While ironing
• Do not lay the iron down on the soleplate; use the heel
rest for this purpose.
NO
OK
1800138722 FV49XX UK_110x154 07/04/2016 16:57 Page13

14

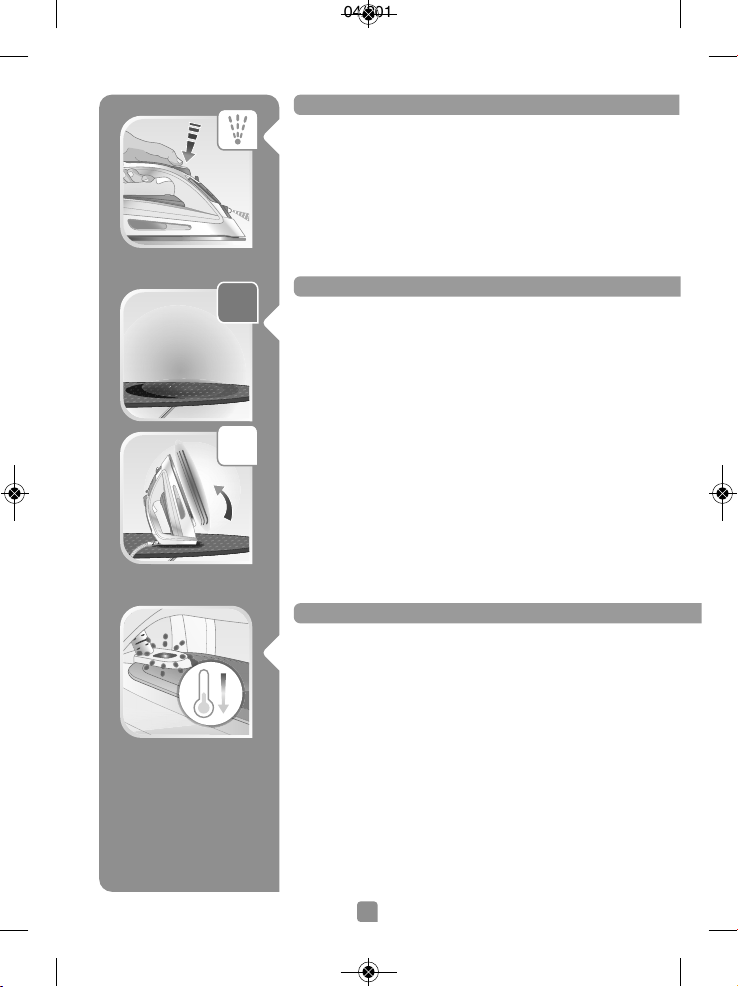

IRON TORAGE AND
MAINTENANCE
Storing your iron
• Unplug the iron and wait for the soleplate to cool
(approx. 1 hour).
• Empty the water tank.
• Set the steam control to .
• Wrap the cord around the bottom of the iron's body.
Store the iron on its heel rest.
1H
1800138722 FV49XX UK_110x154 07/04/2016 16:57 Page14

15
• Unplug your iron and empty the water tank.
• To remove the anti-calc valve, open the water tank
cover and pull on the valve near the steam control.
• Soak the valve for 4 hours in a glass of water with
lemon juice.
• Rinse the valve under the tap.
• Insert the valve in place, pushing it until you hear a
click.
Beware!
Never touch the end of the valve.
The iron will not function without the anti-calc valve.
Click
4h
Cleaning the anti-calc valve (once per month)
1800138722 FV49XX UK_110x154 07/04/2016 16:57 Page15

16
• Allow your iron to heat up with a full water tank while
on its heel rest and with the thermostat control set to
normal.
• Once the indicator light turns off, unplug the iron and
place it over a sink.
• Remove the anti-calc valve.
• Shake the iron gently in a horizontal position over the
sink until some of the water (containing the impurities)
leaks from the soleplate. You may push the turbo
steam trigger to help flush out the minerals.
• To finish the process, replace the anti-calc valve,
pushing it until you hear a click.
• Plug in your iron for 2 minutes on the heel rest to dry
the soleplate.
Max.
Click
2
min.
Descaling the steam chamber (once per month)
1800138722 FV49XX UK_110x154 07/04/2016 16:57 Page16

17
• Unplug your iron and, once cooled, wipe it with a soft
cloth.
• Never use chemical or abrasive products.
Cleaning the soleplate
• While the soleplate is still warm, clean it with a damp
non-metallic pad.
• Never use chemical or abrasive products.
NO
NO
During the next use, turn on your iron in a horizontal
position without putting it into contact with your
laundry in order to eliminate any water containing
mineral residues that remain in the soleplate.
1800138722 FV49XX UK_110x154 07/04/2016 16:57 Page17

18
PROBLEM PO IBLE CAU E OLUTION
Water is leaking
from the holes in
the soleplate.
You are using the steam
when the iron is not hot
enough.
Wait for the indicator light to turn
off.
You are using the turbo
steam button (turbo steam)
too often.
Wait a few seconds between each
use.
You have stored the iron
horizontally without
emptying the water tank or
setting the steam control to
.
See the chapter on "Storing your
iron".
The iron leaks at
the start of
ironing.
You have removed the
anti-calc valve to fill up
your iron.
Do not remove the anti-calc valve
when filling the iron.
The steam control dial is
not set to when filling
the water tank.
Ensure that the steam control dial is
set to when filling the water tank.
A brown
discharge
coming from
the soleplate
is staining the
clothing.
You are using chemical
descaling agents.
Do not introduce a descaling agent
into the water tank.
You are not using the right
type of water.
Clean the steam chamber and see
the chapter on "What water should I
use?"
Clothing fibres are building
up in the holes of the
soleplate and burning.
Clean the steam chamber and the
soleplate with a damp sponge.
Periodically vacuum the holes the
holes in the soleplate.
The soleplate is
dirty or brown
and may stain
clothing.
You are using starch.. Clean the soleplate as indicated
above. Spray the starch on the reverse
side of the clothing to be ironed.
Your laundry has not been
rinsed sufficiently or you are
ironing a new item of
clothing before washing it.
Ensure that your laundry is
sufficiently rinsed to eliminate
potential soap deposits or chemical
products on new items of clothing.
I THERE A PROBLEM WITH YOUR IRON?
1800138722 FV49XX UK_110x154 07/04/2016 16:57 Page18

19
I THERE A PROBLEM WITH YOUR IRON?
PROBLEM PO IBLE CAU E OLUTION
Your iron
produces little to
no steam.
The water tank is empty. Fill it up.
The anti-calc valve is dirty. Clean the anti-calc valve.
Your iron is clogged up with
limescale.
Clean the anti-calc valve and steam
chamber.
Your iron has been used for
too long in the dry ironing
function.
Clean the steam chamber.
The soleplate is
scratched or
damaged.
You have placed your iron
on a metallic iron rest or
ironed over metal zips or
fastners.
Always place your iron on its heel
rest when not in use.
Do not iron over metal zips or
fastners.
The iron steams
once the water
tank has been
filled.
The steam control dial is
not set to .
Ensure that the steam control dial is
set to .
The water tank is too full. Do not exceed the max level for
filling.
The spray does
not spray water.
The water tank is not full
enough.
Add water to the water tank.
If you have any problems or queries please call our Customer
Relations team first for expert help and advice.
ee Helpline number in the separate guarantee
and country list leaflet.
1800138722 FV49XX UK_110x154 07/04/2016 16:57 Page19
