Teison TS-EVC07-001 User manual

Product View
1.1 Appearance ..............................................................4
1.2 Product Specification ................................................6
1.3 Reference Standard ..................................................7
1.4 Product Package .......................................................7
1.5 Charging Principle .....................................................7
Installation Instruction
2.1 Safety tip ...................................................................8
2.2 Installation Guide ......................................................8
Charging Instruction .............................................10
Malfunction and Maintenance ...........................11
4.1 Maintenance caution ..............................................11
4.2 Breakdown and Maintenance ................................12
After Sale Service ........................................................14

Application
EV charger is used to offer the AC power for the vehicle with an battery
charger.
EV charger can be assembled in all kind of parking lot public, company and
community.
It is also can be assembled in kind of large, medium and small charge
station.
It is adopted self-service way.
It is suitable all kinds of parking lot unmanned, users can charge, etc.
independently.
Main Function
Supporting button or key to start/stop charging, LCD screen Display Shows
information such as charging status, charging current, voltage, Kwh and
charging time etc.
WARNING
It may cause danger and harm, or damage the device if you don't operate in
accordance with safety guide.
Electrical and fire risk:
Don' use damaged and smudgy charge connector.
The electrical system for the connection of the EV charger must be inspected
by professional ,Meet the current requirements of the station, also installed a
residual current short circuit (RCB).
Not following the safety instructions can result in danger and injury, as well
as damage to the equipment.
Check the charging station and connector and see if there are any visible
damage before each use.
EV chargers can only be used to charge electric vehicles (EVs) or hybrid
vehicles (PHEVs)
Do not install the charging station in a closed container to avoid overheating.
Product View
Teison AC EV Charging Station is an electric car charging equipment. Its
appearance is shown in Figure 1. The product meets the requirements of IEC
61851-1:2017 AC charging system. The maximum output current can be
32A, and press the button to start/stop charging.

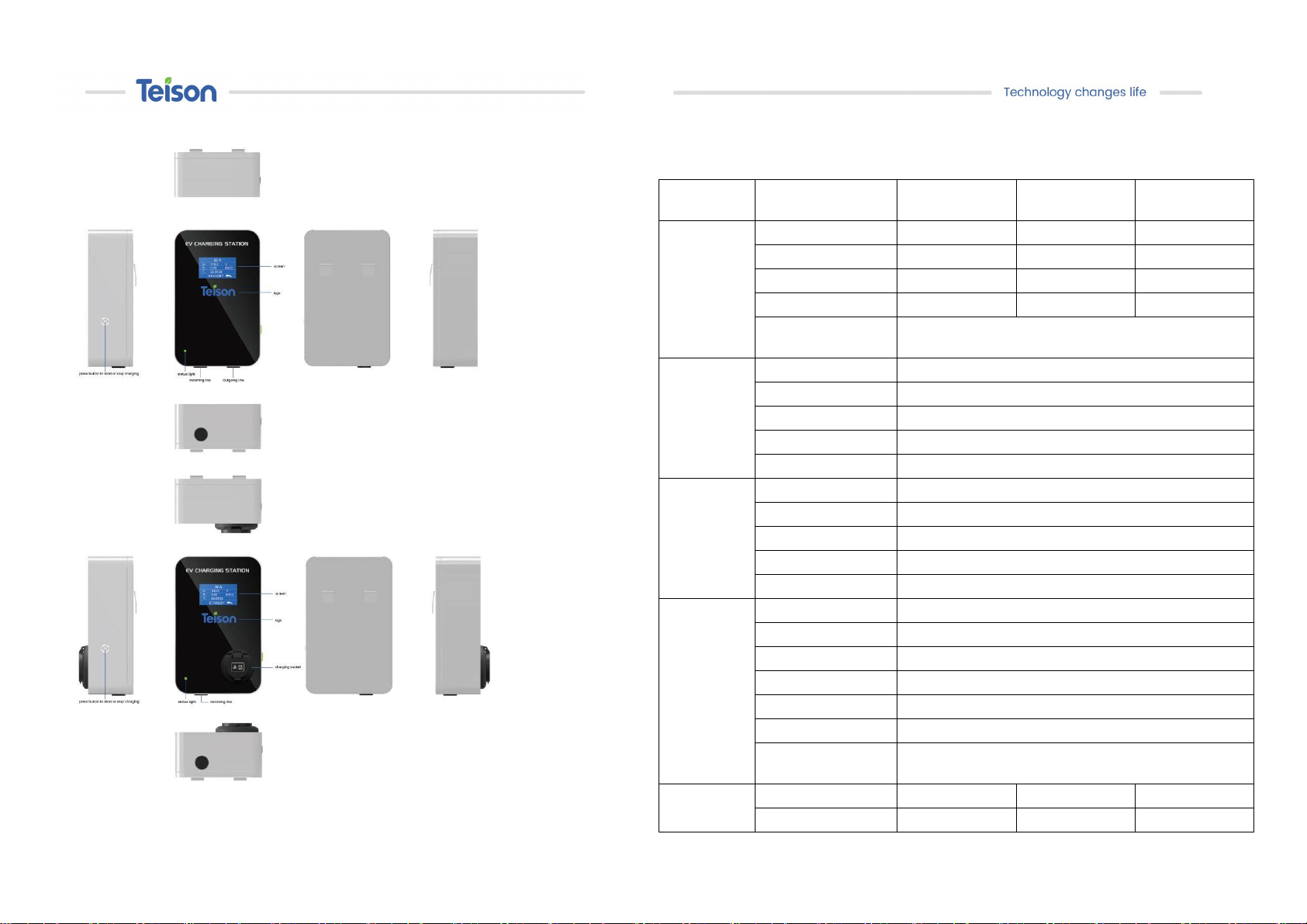

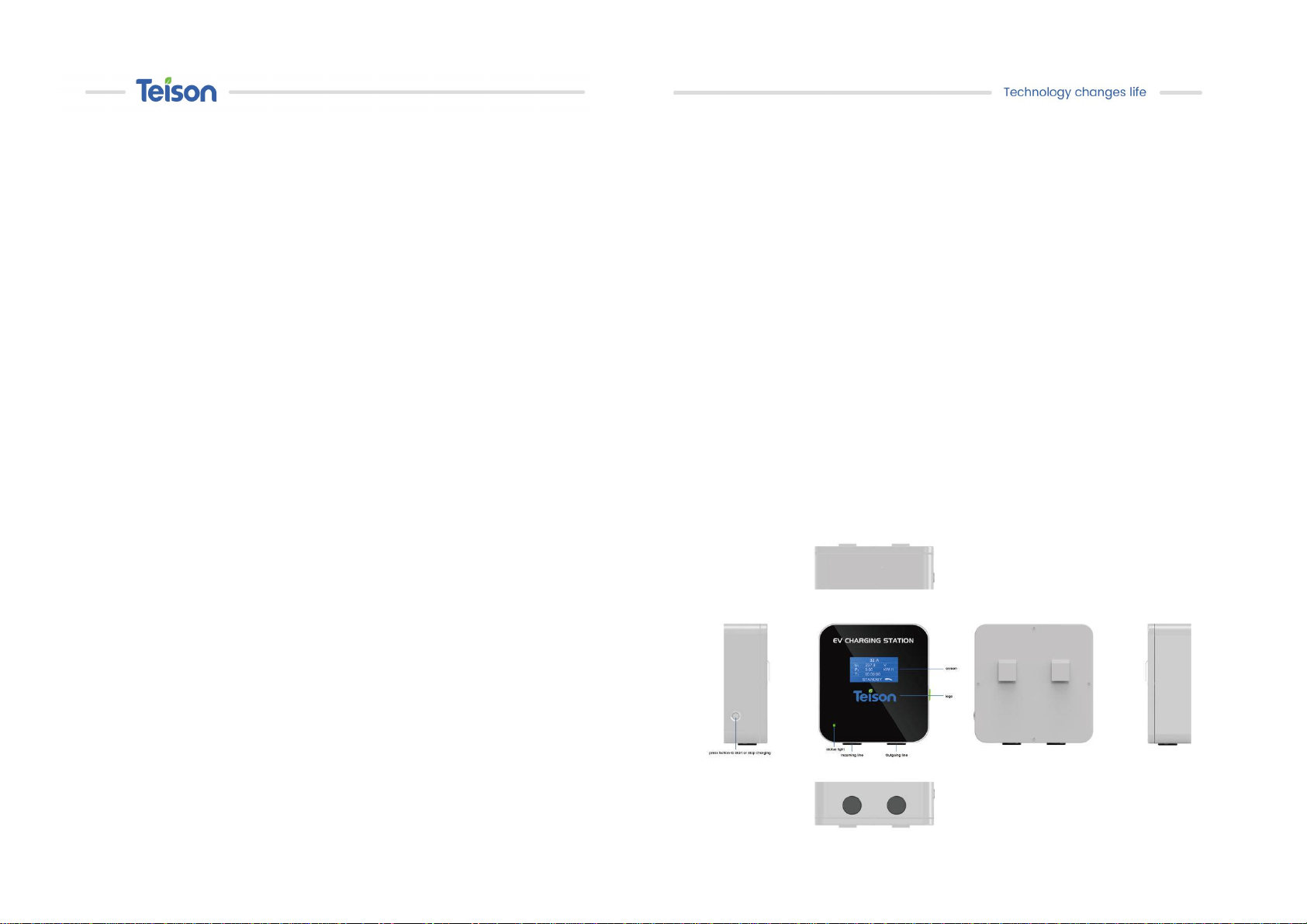

1.1 Appearance

Figure 1：7/11/22KW AC EV Charging Station
1.2 Product Specification
Specification Model TS-EVC07-001
（S）TS-EVC11-001 （S）TS-EVC22-001 （S）
Electrical
Properties
Voltage 230VAC ±10% 380VAC ±10% 380VAC ±10%
Output Current 32A 16A 32A
Frequency 50/60Hz 50/60Hz 50/60Hz
Output Power 7kw 11kw 22kw
Residual current
protection TYPE A 30mA+DC6mA
Structure
Design
Display 4.3" LCD screen
Charging Outlet One charging socket （Type 2）/4.5M charging cable
Housing Material Galvanized steel
Front Panel PC
Installation Method Wall-mount/Floor-stand
Security
Protection
Safety Standard EN 61851-1
MTBF 100000 Hours
Warranty 2years
Protection Level IP65 for wallbox
Application Site Indoor/Outdoor
Environmental
Performance
Working temperature -30 ~60℃ ℃
Storage temperature -40 ~70℃ ℃
Working humidity 5%~95%, No condensation
Working Altitude ＜2000m
Salt spray test Meet IEC 61851-1：2017
Atmospheric pressure 80kPa~101kPa
Temperature and
humidity cycle Meet IEC 61851-1：2017
Packing
Details
Product Size 200*200*81mm 200*320*95mm 200*320*95mm
Product Weight 4.46/3.51kg 6.47/3.85kg 6.47/3.85kg

1.3 Reference Standard
NO. Standard No. Statement
1 IEC 61851-1:2017 Electric vehicle conductive charging system –Part 1:
General requirements
2 EN 62196-2:2017
Plugs, socket-outlets, vehicle connectors and vehicle
inlets –Conductive charging of electric vehicles –Part 2:
Dimensional compatibility and interchangeability
requirements for a.c. pin and contact-tube accessories
3 SAE-J1772-2017 SAE Electric Vehicle and Plug in Hybrid Electric Vehicle
Conductive Charge Couple
1.4 Product Package
Five-layer corrugated carton packaging is used for transportation，measured 410mm（L）x
285mm（W）x 170mm（H）or 490mm（L）x 385mm（W）x 190mm. 1PC/CTN, together
with a product manual in it.
1.5 Charging Principle
Charging
status
Charging
connection
connected
or not
S2 Successful
charging or
not
CP signal
voltage①Explanation
Status1 No disconn
ect No 12±1V Fail to connect to
the vehicle
Status2 Yes disconn
ect No 9±1V S1 switches to the PWM
connected state,
and R3 is detected.
Status3 Yes connect Yes 6±1V Both OBS and power supply are in
working condition
Figure 2: CP signal control
Note : ①According to IEC 61851-1：2017, high level maximum error ± 1V;
Installation Instructions
2.1 Safety Tip
The people who assemble and use the EV charger must response the follow
principle and rule, to confirm the relevant people and device operation normally:
Before device power on, please confirm the device is good earth, to avoid the
unnecessary accident.
All of the tools must be insulation treatment to avoid the sort circuit or personal
injury due to uncovered metal touches metal frame.
Confirm the EV charger using life and operation steadily, the device should keep
cleaning, constant temperature and constant humidity.
The EV charger can’t be used in the environment that contain volatile gas or
flammable-explosive .
Children mustn’t touch EV charger.
2.2Installation Guide
Wall Installation
For operation conveniently,
the lowest point and the
highest point of EV charger
should keep 0.4m-1.5m
distance from ground.

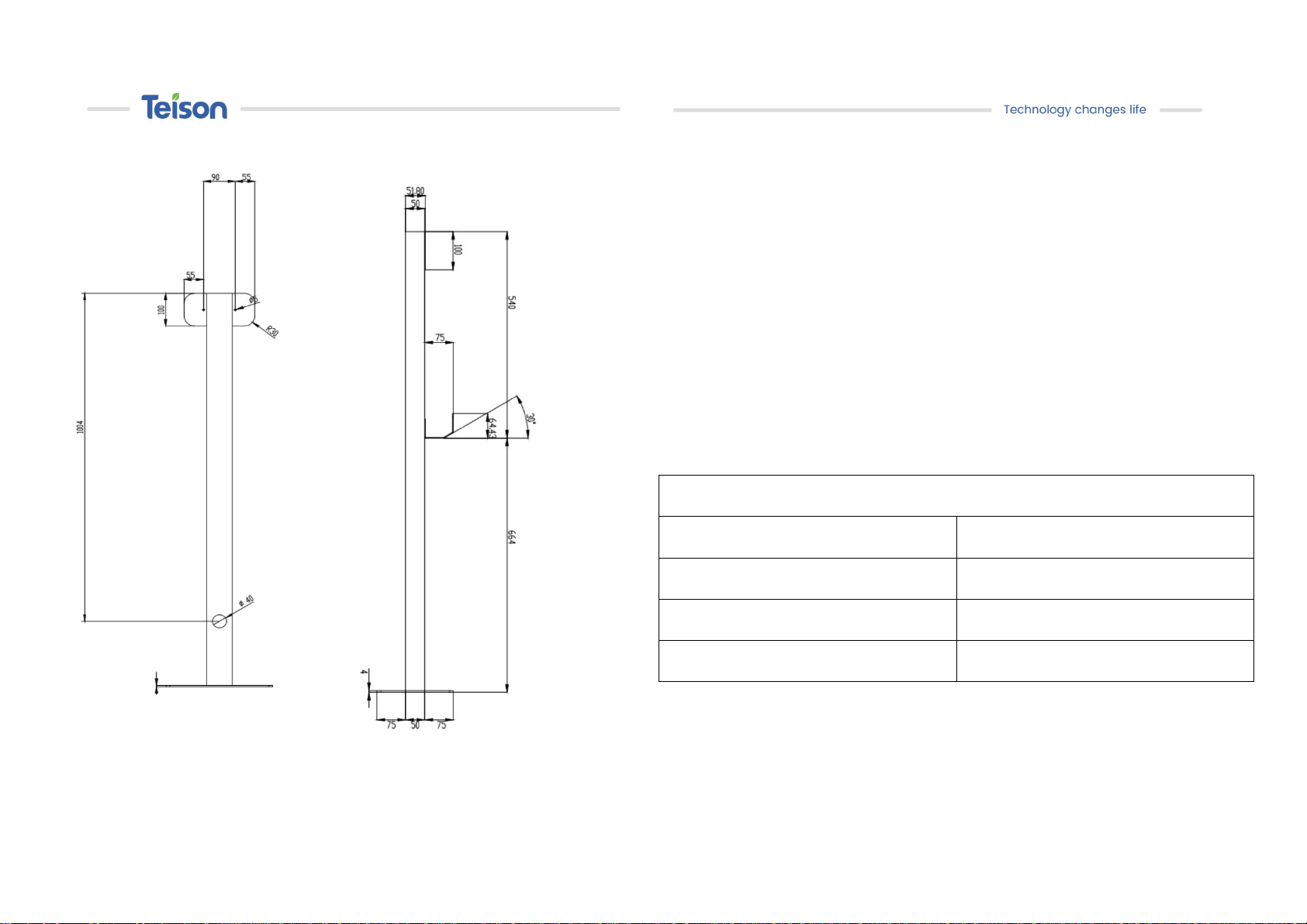

Pedestal installation dimension
Warning:
The wall that assemble hanging back plate thickness is more than 200mm.
Charging Instruction
3.1 . After Connect with the power, the wall box starts to be energized, the blue
light is always on, and the screen will display the gear and status.
3.2 . Connect the vehicle and insert the plug into the vehicle socket. The control
panel will automatically detect the connection status of the vehicle. After the
connection is successful, the connection indicator (green) will be turned on and
kept constant, and the screen will display the connecting status.
3.3 . After connecting ok, press the button on the side of wallbox to start charging,
he indicator (green)will flash, and the screen will display voltage, current, Kwh,
charging time etc.
LED Status
Standby indicator Blue light is on constantly
Connecting indicator Green light is on constantly
Charging indicator Green light flashes
Fault notification Red light flashes

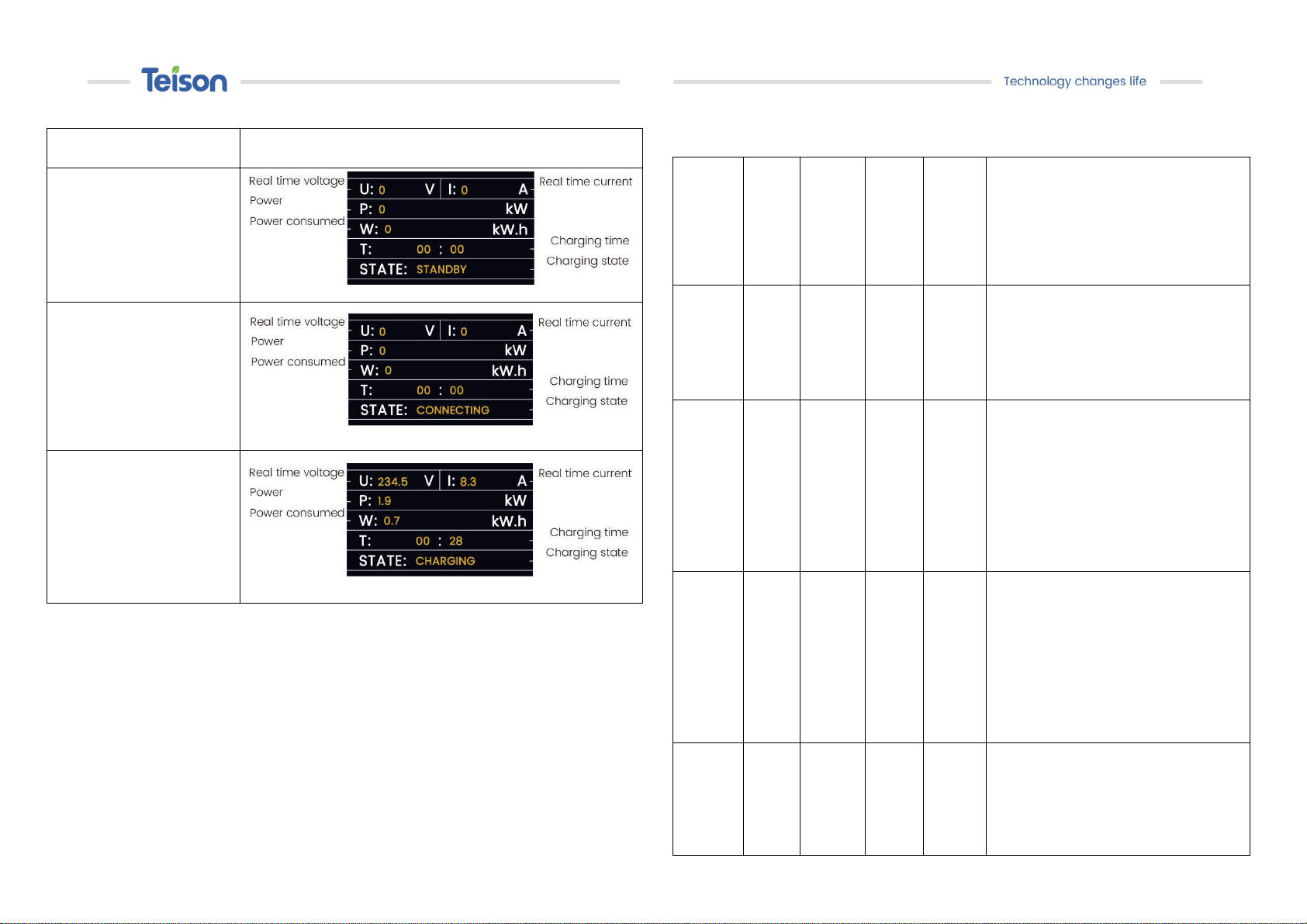

LCD display instruction
Status of Standby
Status of Connecting
Status of charging
Malfunction and Maintenance
4.1 Maintenance caution
Check whether the line is aging with the monthly power cut.
Conduct leakage test on the external leakage protector to ensure
the normal operation of the leakage protector.
Observe incoming lines to make sure no wire is damaged.
4.2 Breakdown and Maintenance
Conditi
on
Displ
ay
code
LCD
display
Statu
s
indica
tor
light
Status
indicat
or
light
Solution
Leakag
e
Protecti
on
0x000
1
Creepa
ge flash 1
The red light flashes once at 1.5S
interval, indicating that it is a leakage
fault. Please cut off the power supply
and check the charging facilities
Over
Voltage
protecti
on
0x000
2
Over
Voltage flash 2
The red light flashes twice at an interval
of 1.5S, indicating that it is overvoltage
protection at this time, indicating that
the phase voltage exceeds the
maximum limit voltage of the charging
device. Please pull out the charging
plug and check that the phase voltage
of the power supply does not exceed
254V.
Less
voltage
protecti
on
0x000
4
Under
Voltage flash 3
The red light flashes three times at an
interval of 1.5S, indicating that it is
under voltage protection at this time,
indicating that the phase voltage is less
than the minimum limit voltage of the
charging device. Please pull out the
charging plug and check that the phase
voltage of the power supply is not less
than 100V.
Over
Current
protecti
on
0x000
8
Over
Current flash 4
The red light flashes four times at an
interval of 1.5S, indicating that it is
over-current protection at this time,
indicating that the charging current
exceeds the maximum current limit of
the charging device by more than 2A.

Please pull out the charging plug and try
to charge again.
Over
tempera
ture
protecti
on
0x001
0
Over
Temper
ature
flash 5
The red light flashes five times at an
interval of 1.5S, indicating that it is
over-temperature protection at this time,
indicating that the current charging
device temperature exceeds 85
degrees, please pull out the charging
plug after a period of time and try
charging again.
NTC
brake
0x002
0
Temp
Brake flash 9
The red light flashes nine times at an
interval of 1.5S, indicating that the
temperature detection sensor of the
charging device is faulty and needs to
be returned to the factory for repair.
NTC
short
0x004
0
Temp
Short flash 8
The red light flashes eight times at at an
interval of 1.5S, indicating that the
temperature detection sensor of the
charging device is faulty and needs to
be returned to the factory for repair.
CP
commu
nication
0x008
0
Gun
Fault flash 7
The red light flashes seven times at an
interval of 1.5S, indicating that the
charging plug is faulty, disconnect the
charging device power supply and
check the charging gun head.
MID 0x010
0
Meter
Fault flash 6
The red light flashes six times at an
interval of 1.5S. The battery information
sensor of the charging device is faulty
and needs to be returned to the factory
for repair.
After Sale service
Teison New Energy company, ensure the production lines of EV Charging are
through strict quality inspection, within two years from the date of purchase
under the correct use of caused by product quality problems, the company will
give users the quality maintenance.
Product warranty policy:
1、Any failure happens within 7 days, we provide free return service, users need
to provide purchase invoice, warranty card, the original product package and
original accessories.
2、During the warranty period to apply for a free warranty service, you need to
provide pictures, product invoice, warranty card, the original product package
and original accessories.
3、All repair and install must be under the instruction of professional staff,
warranty service will not be enjoy if install or repair by yourself and at your own
ricks.
Product warranty does not include the following：
1、All man-made damage or damage to transport.
2、Users and unauthorized service agencies to dismantle and repair their own
products.
3、Demolition of the standard, the use of improper use, such as damage caused
by the appearance of the product.
4、In the non-product under the provisions of the work environment caused by
the failure or damage, including beyond the workload.
5、Due to improper custody of the user caused by the failure and damage.

Warranty card
Information register
Product name
Model
Warranty date
User name
Contact phone
Mail address
Dealers shop
Email address
