FLUXE M3P U Series User manual

M3P U-SERIES LEVEL 2 AC EV CHARGER | MODEL FX-EV-002-BLK
USER MANUAL
Engery for the Future

FLUXE M3P U-Series
Level 2 AC EV Charger User Manual
- 1 -
IMPORTANT SAFETY INSTRUCTIONS
WARNING- When using electric products, basic precautions should always be followed,
including the following. This manual contains important instructions for Models M3P132U and
M3P140U that shall be followed during installation, operation, and maintenance of the unit.
1. Read all the instructions before using this product.
2. This device should be supervised when used around children.
3. Do not put fingers into the electric vehicle connector.
4. Do not use this product if the flexible power cord or EV cable is frayed, has broken
insulation, or any other signs of damage.
5. Do not use this product if the enclosure or the EV connector is broken, cracked, open, or
shows any other indication of damage.
6. Indicate the ambient temperature rating, -30°C to 55°C.
7.
"CAUTION" and the following or equivalent:
"To reduce the risk of fire, connect only to a
circuit provided with @ amperes maximum branch circuit overcurrent protection in
accordance with the National Electrical Code, ANSI/NFPA 70, and the Canadian Electrical
Code, Part I, C22.1."
Note (@)
Model Current Rating
M3P140U 50 A
M3P132U 40 A

FLUXE M3P U-Series
Level 2 AC EV Charger User Manual
- 2 -
CONSIGNES DE SÉCURITÉ IMPORTANTES
AVERTISSEMENT- Lors de l'utilisation de produits électriques, des précautions de base
doivent toujours être suivies, y compris les suivantes. Ce manuel contient des instructions
importantes pour les modèles M3P132U et M3P140U qui doivent être suivies pendant
l'installation, l'utilisation et la maintenance de l'unité.
1. Lisez toutes les instructions avant d'utiliser ce produit.
2. Cet appareil doit être surveillé lorsqu'il est utilisé à proximité d'enfants.
3. Ne mettez pas les doigts dans le connecteur du véhicule électrique.
4. N'utilisez pas ce produit si le cordon d'alimentation flexible ou le câble EV est effiloché, a
une isolation cassée ou tout autre signe de dommage.
5. N'utilisez pas ce produit si le boîtier ou le connecteur EV est cassé, fissuré, ouvert ou
montre toute autre indication de dommage.
6. Indiquez la température ambiante, de -30 ° C à 55 ° C.
7.
"MISE EN GARDE" et ce qui suit ou équivalent:
"Pour réduire le risque d'incendie,
connectez uniquement à un circuit équipé d'une protection maximale contre les
surintensités de circuit de dérivation de @ ampères conformément au Code national de
l'électricité, ANSI / NFPA 70 et au Code canadien de l'électricité, Partie I, C22.1. "
Noter (@)
Modèle Note actuelle
M3P140U 50 A
M3P132U 40 A

FLUXE M3P U-Series
Level 2 AC EV Charger – FX-EV-002-BLK User Manual
- 3 -
CONTENTS
1. ABBREVIATIONS...............................................................................................................................................5
2. SAFETY NOTES..................................................................................................................................................6
2.1. Safety signs used..................................................................................................................................................................6
2.2. Installation ..............................................................................................................................................................................7
2.3. Maintenance ..........................................................................................................................................................................8
2.4. Operation................................................................................................................................................................................8
3. STANDARDS COMPLIANCE..........................................................................................................................9
3.1. Standard(s) for safety..........................................................................................................................................................9
3.2. AC Level 2 Charging ...........................................................................................................................................................9
3.3. Charging mode and connection.....................................................................................................................................9
3.4. Charging interface.............................................................................................................................................................10
4. PRODUCT INFORMATION ...........................................................................................................................11
4.1. General ...................................................................................................................................................................................11
4.2. Specifications.......................................................................................................................................................................12
4.3. Nameplate............................................................................................................................................................................14
5. INSTALLATION................................................................................................................................................ 15
5.1. Unpacking.............................................................................................................................................................................15
5.2. Prepare..................................................................................................................................................................................16
5.3. Installation of SIM Card....................................................................................................................................................17
5.4. Installation steps.................................................................................................................................................................19
5.5. Empty socket .......................................................................................................................................................................21
6. OPERATION .................................................................................................................................................... 22
6.1. Power on..............................................................................................................................................................................22
6.2. Human-Machine Interface............................................................................................................................................. 22
6.3. Config WiFi network.........................................................................................................................................................24
6.4. Config the parameters .................................................................................................................................................... 25
6.5. Start Charging.................................................................................................................................................................... 27

FLUXE M3P U-Series
Level 2 AC EV Charger – FX-EV-002-BLK User Manual
- 4 -
6.6. Normally stop charging.................................................................................................................................................. 28
6.7. Abnormally stop charging ............................................................................................................................................. 28
7. FAULT HANDLING AND MAINTENANCE.............................................................................................. 29
7.1. Fault Handling.................................................................................................................................................................... 29
7.2. Maintenance........................................................................................................................................................................31
WARRANTY AGREEMENT ................................................................................................................................... 32

FLUXE M3P U-Series
Level 2 AC EV Charger – FX-EV-002-BLK User Manual
- 5 -
1. ABBREVIATIONS
S/N Abbreviations Description
1
IEC
International Electrotechnical Commission
2
EV
Electrical Vehicle, this can be BEV (battery EV) or PHEV (plug-in hybrid EV)
3
EVSE
Electric Vehicle Supply Equipment
[IEC61851-1]
4
OBC
On-board charger (of an EV)
5
kW
Kilo Watt (unit of Power)
6
A
Ampere (unit of Current)
7
V
Volt (unit of Voltage)
8
Hz
Hertz (unit of Frequency)
9
LCD
Liquid Crystal Display
10
LED
Light-emitting Diode
11
RFID
Radio Frequency Identification
12
CMS
Central Management System, manages EVSE and has the information for
authorizing users for using its EVSE.
13
OCPP
Open Charge Point Protocol
A standard open protocol for communication between EVSE and a Central
System and is designed to accommodate any type of charging technique.
(www.openchargealliance.org)
14
HMI
Human-Machine Interface
15
CCID
Charging Circuit Interrupting Device
16
GM/I
Ground Monitor Interrupter
17
GFCI
Ground Fault Circuit Interrupter

FLUXE M3P U-Series
Level 2 AC EV Charger – FX-EV-002-BLK User Manual
- 6 -
2. SAFETY NOTES
2.1. Safety signs used
The following warning signs, mandatory signs and information signs are used in this manual, on and in the AC
EV Charger.
Les panneaux d'avertissement, panneaux obligatoires et panneaux d'information suivants sont utilisés dans le
manuel d'utilisation, sur et dans la station de charge M3P EV:
CAUTION: Warning of electrical hazards.
This sign is intended to alert the user that severe personal injury or substantial property
damage can result if the device is not operated as requested.
MISE EN GARDE: Avertissement de risques électriques.
Ce signe est destiné à alerter l'utilisateur que des blessures graves ou des dommages
matériels importants peuvent survenir si l'appareil n'est pas utilisé comme demandé.
ATTENTION: Warning of a danger spot or dangerous situation.
This sign is intended to alert the user that minor personal injury or material damage can
result, if the device is not operated as requested.
ATTENTION: Avertissement d'un point de danger ou d'une situation dangereuse.
Ce signe est destiné à alerter l'utilisateur que des blessures légères ou des dommages
matériels peuvent survenir si l'appareil n'est pas utilisé comme demandé.
CAUTION
:
Do not touch by hands in case of ESD.
Indicates the possible consequences of touching electrostatically sensitive components.
MISE EN GARDE: En cas de décharge électrostatique, ne touchez pas à la main.
Indique les conséquences possibles du contact avec des composants sensibles à l'électricité
statique.
No access for unauthorized persons.
Pas d'accès pour les personnes non autorisées.

FLUXE M3P U-Series
Level 2 AC EV Charger – FX-EV-002-BLK User Manual
- 7 -
Use protective footwear.
Utilisez des chaussures de protection.
Must wear a safety helmet.
Doit porter un casque de sécurité.
Indicates important texts, notes, or tips.
Représente un texte, une note ou un indice important.
2.2. Installation
Safety protection must be done when installing the EV Charger.
Une protection de sécurité doit être effectuée lors de l'installation de la
station de charge EV.
▷Installation must be carried out by personnel with professional qualification, otherwise
there is a risk of electric shock.
L'installation doit être effectuée par du personnel qualifié, faute de quoi il y a un risque
d'électrocution.
▷It shall be installed in the place without violent vibration and impact, and placed
vertically to facilitate ventilation.
Il doit être installé à l'endroit sans vibrations et chocs violents, et placé verticalement
pour faciliter la ventilation.
▷It shall be installed on noncombustible materials, or there is a risk of fire.
Il doit être installé sur des matériaux incombustibles, ou il existe un risque d'incendie.
▷Do not drop any foreign objects, especially metal objects, into the inside of the
Charger or there is a risk of fire.
Aucun objet étranger, en particulier un objet métallique, ne doit être placé dans le
chargeur sans risque d 'incendie.

FLUXE M3P U-Series
Level 2 AC EV Charger – FX-EV-002-BLK User Manual
- 8 -
2.3. Maintenance
2.4. Operation
▷The lead nose of the Charger must be securely attached or there is a risk of damaging
the equipment.
Les fils du chargeur doivent être solidement connectés, faute de quoi le matériel risque
d'être endommagé.
Personnel must always use protective footwear when maintenance work.
Le personnel doit toujours porter des chaussures de protection lors des
travaux de maintenance.
▷It is recommended that routine safety inspection visits to Charger be conducted at
least once a week.
Il est recommandé que le chargeur fasse l'objet d'un contrôle de sécurité au moins
une fois par semaine.
▷Do not put inflammable, explosive, or combustible materials, chemicals, combustible
steam, and other dangerous goods near the Charger, otherwise there is a risk of fire.
Il est interdit de placer des substances dangereuses telles que des matières
inflammables, explosives ou inflammables, des produits chimiques, des vapeurs
inflammables à proximité des chargeurs, faute de quoi il y a un risque d'incendie.
▷Keep the charging adapter clean and dry and wipe with a clean, dry cloth if soiled. Do
not touch the Charger with your hand when charged.
Maintenir l 'adaptateur de charge propre et sec, en cas de saleté, et l' essuyer avec
une toile sèche propre.Ne touche pas le chargeur avec la main.
▷Strictly forbidden for minors or persons of restricted capacity to approach the Charger
to avoid injury.
Il est strictement interdit aux mineurs ou aux personnes dont la capacité de
mouvement est limitée d'avoir accès au chargeur pour éviter les blessures.

FLUXE M3P U-Series
Level 2 AC EV Charger – FX-EV-002-BLK User Manual
- 9 -
3. STANDARDS COMPLIANCE
3.1. Standard(s) for safety
Conformer to UL 2594, 2nd, Ed., Issue Date: 2016-12-21.
3.2. AC Level 2 Charging
According to SAE J 1772, M3P U-series product (the maximum output current is 40 A) was designed for
AC Level 2 charging.

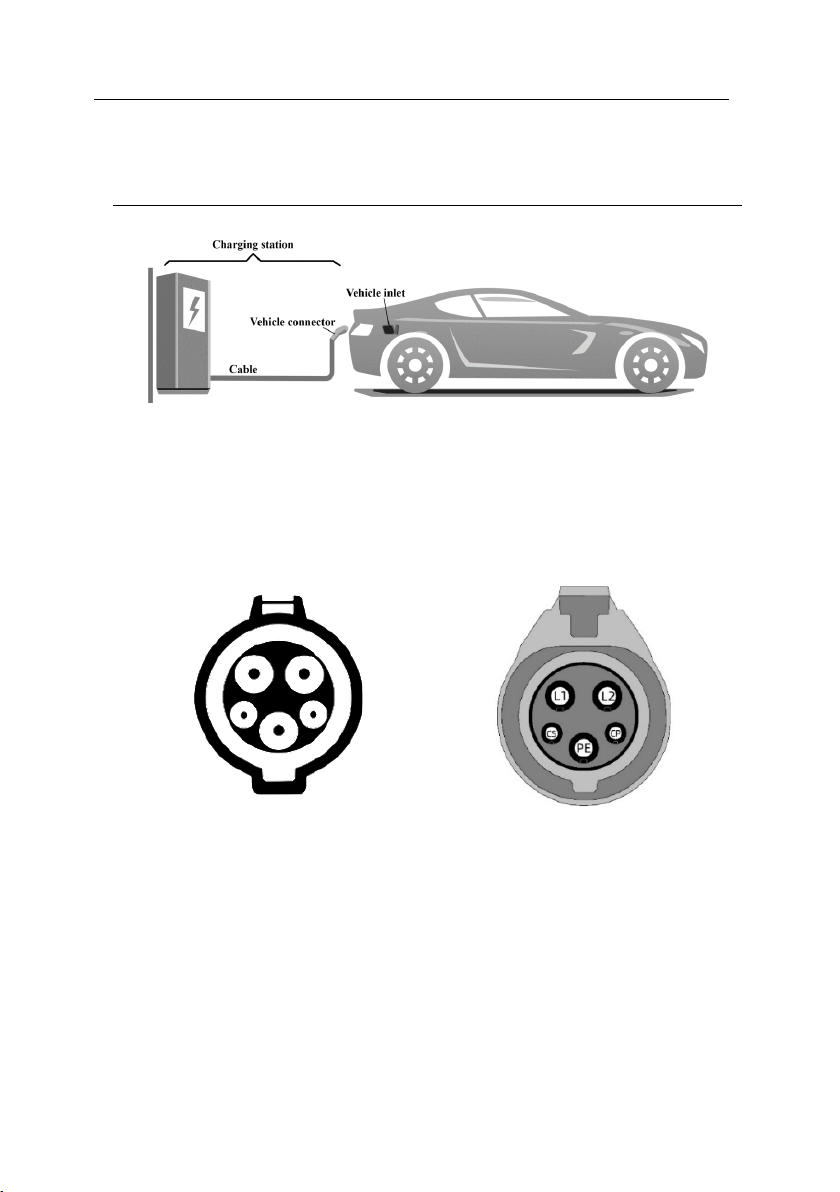

3.3. Charging mode and connection
According to IEC 61851-1, the Charging mode of M3P U-series product is Mode 3, and charging
connection is the Case C.
▷Forced charging is strictly forbidden when the electric vehicle or Charger fails.
La charge forcée est interdite en cas de panne du véhicule électrique ou du chargeur.
▷Electric vehicle can only be charged with the engine off and stationary. Do not charge
in rainy and thunderous weather.
Le véhicule électrique ne peut être rechargé que si le moteur est éteint et statique.Il
ne faut pas recharger les jours de pluie et les orages.
▷It is strictly prohibited to use the Charger when the charging adapter or charging
cables are defective, cracked, worn, broken or the charging cables is exposed. If you
find any, please contact the supplier in time.
L'utilisation de chargeur est strictement interdite lorsque l'adaptateur de charge ou le
câble de charge présente des défauts, des défauts, des défauts, de l'usure, de la
rupture ou de la nudité.En cas de découverte, veuillez contacter le fournisseur en
temps voulu.
Mode 3：
a method for the connection of an EV to an AC EV supply equipment permanently
connected to an AC supply network, with a control pilot function that extends from the AC
EV supply equipment to the EV.

FLUXE M3P U-Series
Level 2 AC EV Charger – FX-EV-002-BLK User Manual
- 10 -
3.4. Charging interface
The charging plug of M3P U-series products meet SAE J1772/IEC 62196-2, Type 1.
M3P U-series products provide a Type 1 female plug with charging cable, it only charging an EV with a
Type 1 charging socket (vehicle inlet).
Case C:
Connection of an EV to a supply network utilizing a cable and vehicle connector permanently
attached to the EV charger.
Fig. 3-1 Schematic diagram of CASE C connection
(a) Socket
(b) Plug
Fig. 3-2 Schematic diagram of Type 1 interface

FLUXE M3P U-Series
Level 2 AC EV Charger – FX-EV-002-BLK User Manual
- 11 -
4. PRODUCT INFORMATION
4.1. General
Welcome to use Level 2 AC EV Charger produced by our company.
4.1.1. Shape & dimensions
The shape & dimensions of AC EV charger shown as Fig. 4-1.
Fig. 4-1 The shape & dimensions of M3P
4.1.2. Block diagram
The block diagram of M3P AC EV charger is shown as Fig. 4-2.
Fig. 4-2 Block diagram of products
It is widely used in various household electric vehicle charging in North America, as well as various
chargers, parking lots, community garages and public electric vehicle charging places.

FLUXE M3P U-Series
Level 2 AC EV Charger – FX-EV-002-BLK User Manual
- 12 -

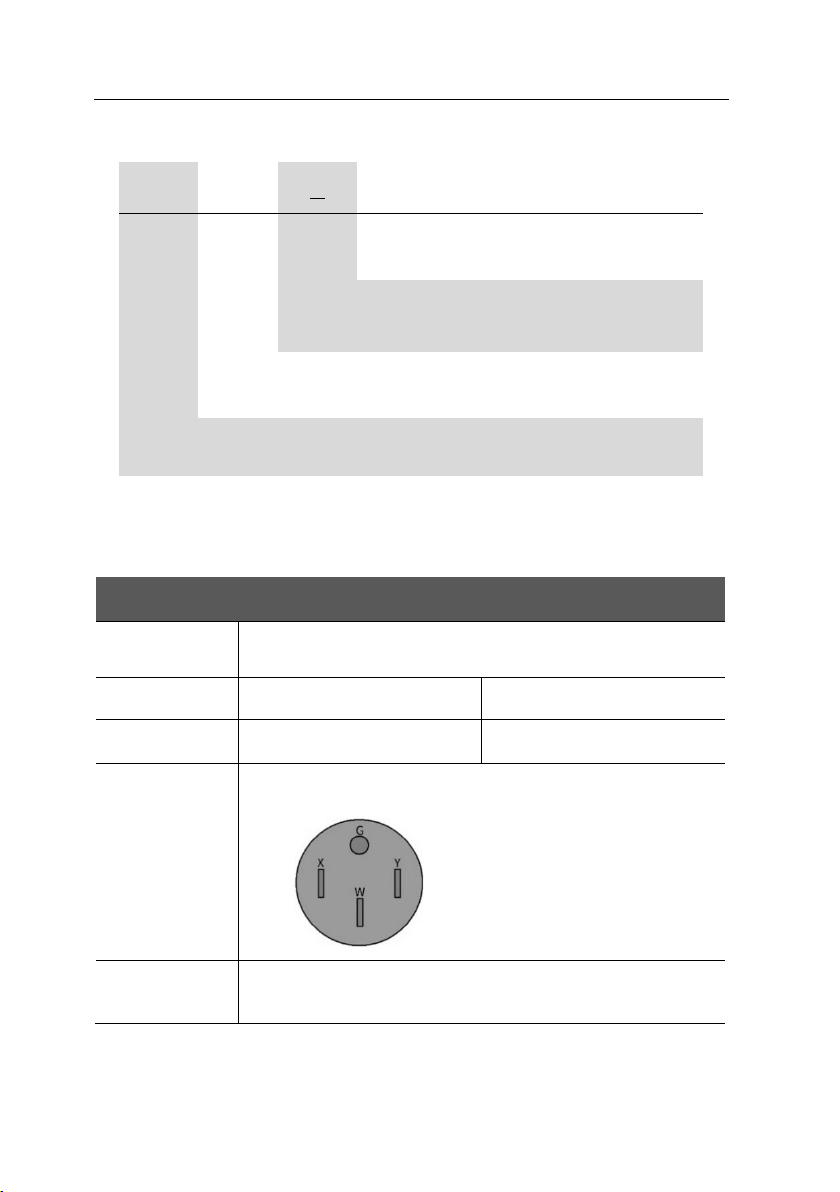

4.1.3. Model number definition
The model number definition of charger follows the rules as shown in Fig. 4-3.
M3P
1
□
U
U: Designed according to US standards
Rated output current
32: 32A; 40: 40A
1: AC Level 2 Charging
M3P: Wallbox shell code
Fig. 4-3 Model number definition
4.2. Specifications
4.2.1. Electrical specifications
Model Number M3P132U M3P140U
Rated Voltage 240V/208V (AC Level 2 Charging), 50/60Hz
Rated Current 32A 40A
Rated Power 7.6kW (@240VAC) 9.6kW (@240VAC)
Input plug & cable
Plug: NEMA 14-50P; Cable: 4×8 AWG, 300mm, copper.
X: L1;
Y: L2;
W: No connect terminal;
G: Ground.
Charging interface
IEC 62196-2, Type 1 plug with 5m cable
Note: That cord extension sets are not be used.

FLUXE M3P U-Series
Level 2 AC EV Charger – FX-EV-002-BLK User Manual
- 13 -
4.2.2. Functional description
Charging Mode Mode 3
Charging Control Remote: “APP-controlled”
Local: “Plug and charging” or “Card-controlled”
Indicator Lights
4 LED lights;
Indicate 4 statuses include standby, charging, fault, and network
Communication interface
WiFi (2.4GHz), Ethernet (RJ-45 interface).
And support OCPP 1.6J Protocol (Optional)
Communication interface
(Optional)
4G Nano SIM card (LTE Cat 4, suitable for AT&T/ Verizon, LTE-FDD:
B2/B4/B5/B12/B13/B14/B66/B71; WCDMA: B2/B4/B5).
And support OCPP 1.6J Protocol (Optional).
Communication interface
(Optional)
RS-485 with special communication protocol
Safety Protection
Surge protection, over temperature, over/under voltage, over current, ground
protection
CCID built-in Yes, CCID 20
4.2.3. Mechanical parameters
Mounting Wall-mounted or pole-mounted (mounting pole is optional)
Net Weight ≤ 6kg
Dimension H×W×D = 310mm × 220mm × 95mm
Color & Material Front cover: White, PC; Back cover: Gray, PC
Enclosure rated Type 4
4.2.4. Ambient conditions
Altitude ≤2000m
Storage temperature -40 ~ 75℃
Operation temperature -30 ~ 55℃
Relative humidity ≤95%RH, no water droplet condensation
Vibration ＜0.5G, no acute vibration and impaction
Installation location Indoor or outdoor, good ventilation, no flammable, explosive gases

FLUXE M3P U-Series
Level 2 AC EV Charger – FX-EV-002-BLK User Manual
- 14 -
4.3. Nameplate
On the wallbox shell, there is a nameplate identifying the model and specification of the charger, the content is
shown as Fig. 4-4.
-

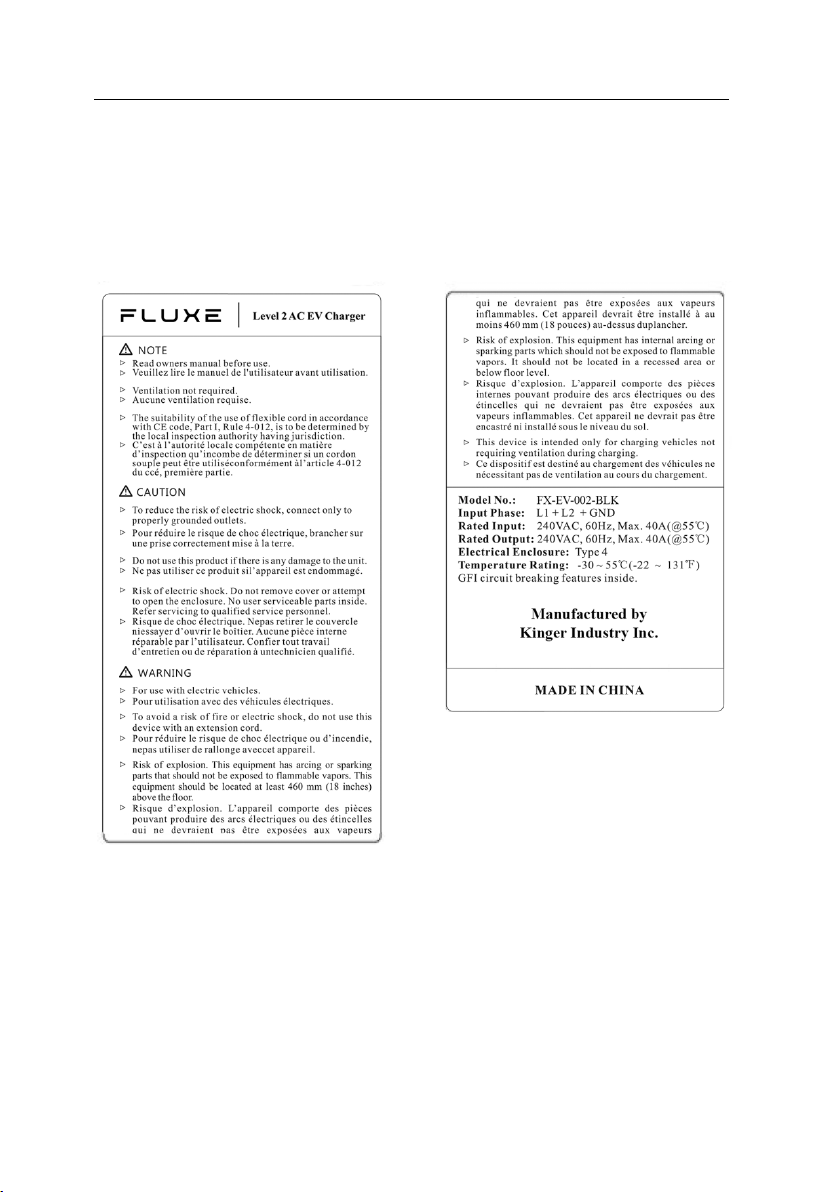

Fig. 4-4 The content of the nameplate

FLUXE M3P U-Series
Level 2 AC EV Charger – FX-EV-002-BLK User Manual
- 15 -
5. INSTALLATION
5.1. Unpacking
5.1.1. Packing list
Package Quantity
AC EV Charger 1 pc
Empty socket 1 pc
RFID card 2 pcs
Wall-mounting accessories (including A+B+C+D as Fig. 5-1 shown) 1 set
User manual 1 pc
Quality certificate 1 pc
Fig. 5-1 Wall-mounting accessories
5.1.2. Inspection & confirm
When unpacking, please carefully confirm the following points:
Whether the accessories are missing according to the packing list.
Whether there is any damage during transportation.
Whether the model and specification of the machine's nameplate are consistent with the order
requirements.

FLUXE M3P U-Series
Level 2 AC EV Charger – FX-EV-002-BLK User Manual
- 16 -
5.2. Prepare
When transporting or moving the EV charger, pay attention to the following points to ensure product
safety:
In order to ensure the long-term stable operation of the product, it is recommended to avoid installing
chargers in extreme weather as far as possible, especially low or high ambient temperature may affect
the installation effect due to thermal expansion and cold contraction.
The electrical power supply socket (NEMA 14-50R) must be prepared.
Space requirement: When the charger is fixed on the wall, the minimum space requirements are shown
in Fig. 5-2.
▷If any damage or missing parts are found, please do not start the machine, and contact
the supplier as soon as possible.
▷Please keep the packing box and packing materials 1 month for future handling.
▷The paper packaging is recyclable.
▷This product is electrical equipment. It should be handled with care to avoid violent
vibration and impact.
▷The charger shall not be transported by dragging the charging connector and the
charging cable.

FLUXE M3P U-Series
Level 2 AC EV Charger – FX-EV-002-BLK User Manual
- 17 -

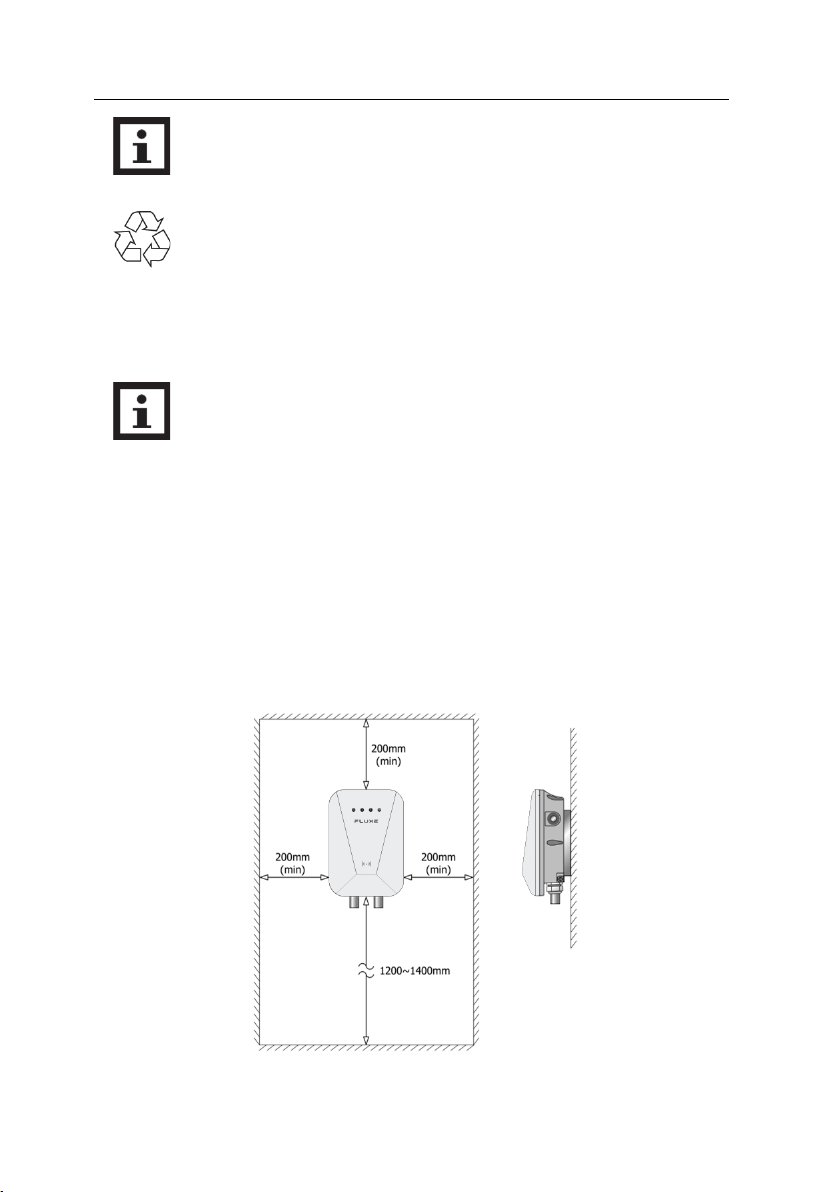

Fig. 5-2 Minimum space requirements for wall mounting
It is suggested that the charger should be installed in a place with good ventilation, no direct sunlight
and shelter from wind and rain. In order to ensure good ventilation condition, you should mount the
charger vertically and leave enough space.

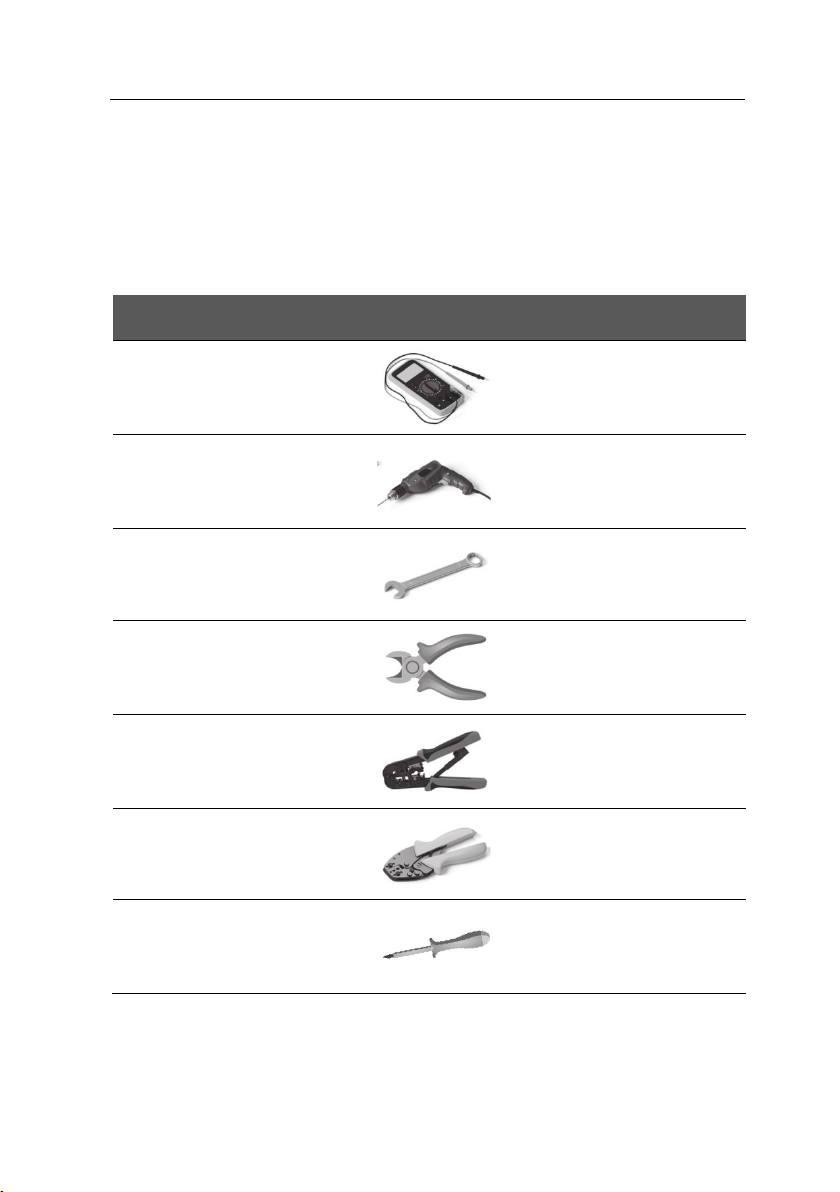

Tools for installation
Prepare the following tools at least before installing the AC EV charger.
No. Tools’ Name Schematic Picture Main Uses
1 Multimeter
Check the electrical connection and
measure the voltage
2 Electric Impact drill Drill fixing holes in the wall
3 Wrench Fastening bolt
4 Diagonal plier Cut the cable
5 Wire stripper Peeling cables
6 Crimping plier Pressed cable terminal
7 Cross screwdriver Fastening screw
5.3. Installation of SIM Card
If you purchase a 4G version of EV charger, please follow the steps below to complete the installation
of SIM card (ignore this step if there is not 4G version of EV charger).

FLUXE M3P U-Series
Level 2 AC EV Charger – FX-EV-002-BLK User Manual
- 18 -
Step 1: Open the front cover
Fig. 5-3 Open the front cover
As shown in Fig. 5-3, remove the six screws securing the cover in the direction of arrow [A], and then
open the cover in the direction of arrow [B].
Step 2: Insert Nano SIM card
Fig. 5-4 Install SIM card
As shown in Fig. 5-4, insert the Nano SIM card into the card slot along the direction of arrow [A].
Step 3: Reset the front cover
