Teison Ts-evc07-003(s) User manual

Smart Mini EV

Charger

INSTALLATION AND USER GUAID

TEISON


Copyright © Teison Energy Technology Co.,Ltd. All Rights Reserved. 1 | P a g e

Table of Contents
About TEISON Charger Box..................................................................... 3
Usage................................................................................................... 3
Warning............................................................................................... 3
Safety Instructions .............................................................................. 3
Product Specification.......................................................................... 5
Transportation and Storage................................................................ 6
Installation Instruction............................................................................ 6
Safety Tip............................................................................................. 6
Installation steps................................................................................. 7
Installing Tips: ..................................................................................... 8
Wiring Diagram:.................................................................................. 8
Configure Your TEISON Charger.............................................................. 9
LED Lights Indicators:.......................................................................... 9
Getting Your APP Ready.................................................................... 10
Setup MyTeison App:........................................................................ 11
Manage MyTeison APP: .................................................................... 13
Connect Your EV Charger to Wi-Fi:................................................... 16
Configure your Local Device: ............................................................ 19
Pin Query....................................................................................... 19
Unbinding:..................................................................................... 20
Configure your Online Device:.......................................................... 21
Charging Record............................................................................ 21
IC Management............................................................................. 22


Copyright © Teison Energy Technology Co.,Ltd. All Rights Reserved. 2 | P a g e

Online Device Settings: ..................................................................... 25
Working current............................................................................ 27
Household Current........................................................................ 28
Time Zone: .................................................................................... 29
Off-Peak Charging: ........................................................................ 30
Solar Mode:................................................................................... 31
Plug and play:................................................................................ 32
How To Use Your TEISON Charger:....................................................... 33
Start Charging Your EV...................................................................... 33
Using Your MyTeison APP............................................................. 33
Using RFID Card:............................................................................ 36
Stop Charging Your EV ...................................................................... 37
Using MyTeison APP: .................................................................... 37
Using RFID Card:............................................................................ 38
Suspended EV: .................................................................................. 39
Reserve Charging Session: ................................................................ 40
Red Light Troubleshooting:................................................................... 44
Restore factory settings:....................................................................... 45





About TEISON Charger Box

Usage

An EV charging station is a device that is connected to the AC grid and provides

AC power to the electric vehicle's on-board charger. It can charge different

types of electric vehicles based on different voltage levels. The input end of the

EV charging station is directly connected to the AC grid, while the output end is

equipped with a charging plug or socket that is used to charge the electric

vehicle.

The main function of the EV charging station is to offer smart control through

the mobile app. This control includes scheduled charging, start, and stop

charging, memorable current adjustment, plug-and-play mode, and mobile app

charging status display. When connected to a Wi-Fi or 4G network, additional

features include saving charging records on the cloud, checking the charging

status on the mobile app, viewing, and updating the PIN code, firmware

updates, and controlling multiple TEISON EV Chargers wallboxes.

Warning

It's important to note that if you don't operate the EV charging station in

accordance with the safety guide, it may cause danger, harm, or even damage

the device.

Safety Instructions

Please observe the following principles and regulations to ensure your safety

while installing and using chargers:

- Before using the charger, make sure to have a qualified electrician check the

electrical infrastructure for suitability and compliance with charger

specifications.

- Properly ground the unit before turning it on to avoid accidents.

- Always conduct a visual inspection for damage before charging. Ensure that

the contact area of the charging plug is free from dirt and moisture, the

charging cable is free of cuts or abrasions, and the cable outlet of the charger is

firmly seated.

- Unauthorized modifications, changes, or repairs of the charger are strictly

prohibited and will result in immediate exclusion from the warranty.

- Do not use the charger near volatile gases or flammable objects.

- Keep children away from the TEISON EV Charger as it is not meant for their

use.

- Disconnect the charger only by the plug and not the cable. Do not disconnect

the charger during charging.

- Only remove the charging label by the plug and not the cable of the power

outlet.

- Change the accessory adapters only when the power supply is disconnected.

- Stop using the TEISON EV Charger immediately if charging failure or

abnormality occurs.

- Do not use the equipment in thunder and lightning weather. Protect it from

moisture, rain, sunlight, and corrosive environments. Do not submerge the AC

charging device in water.

Remember, this product is only used for charging electric vehicles and should

not be used for any other purposes.

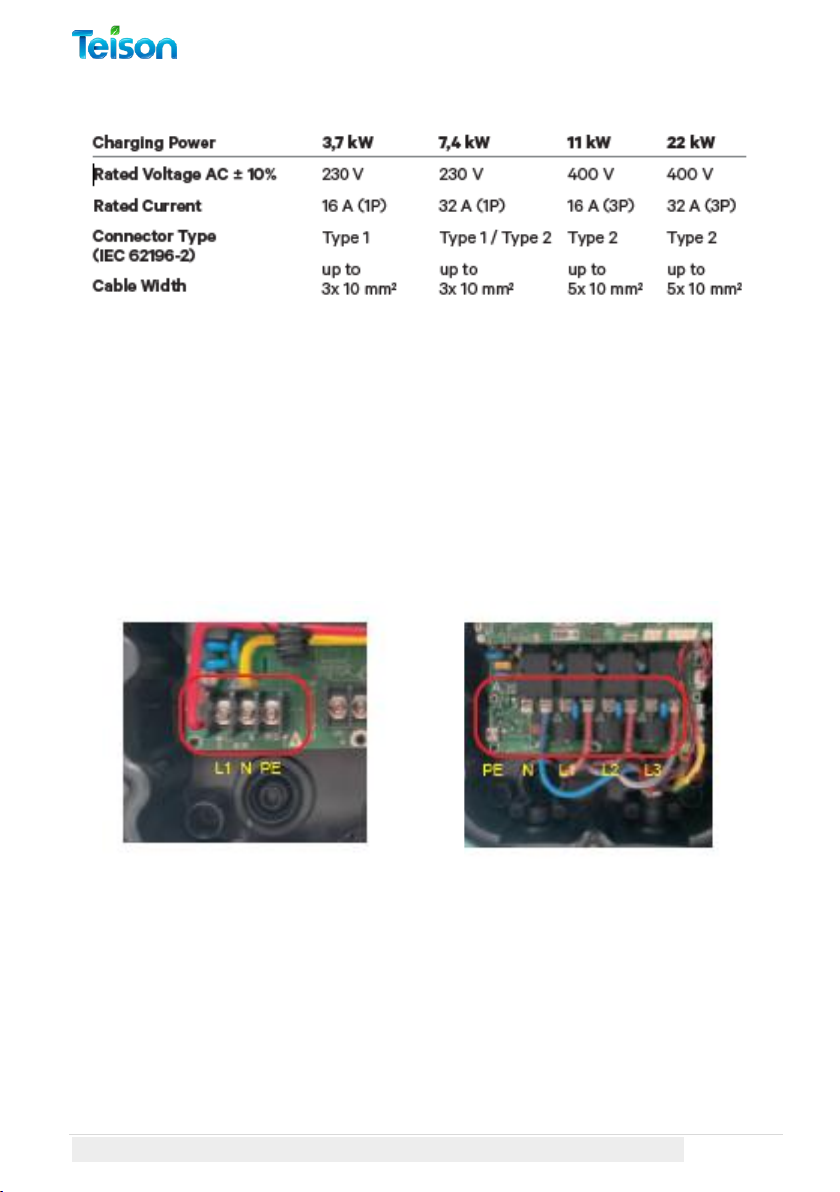

Product Specification

Transportation and Storage

It is strictly forbidden to use the equipment during thunder and lightning

weather. It should be protected from moisture, rain, sunlight, and corrosive

environments. It is also strictly forbidden to submerge the AC charging device

in water. This product is solely intended for charging electric vehicles and

should not be used for any other purposes.

Installation Instruction

Safety Tip

Please note the following safety tips when using the charger:

- The charger should not be installed or repaired by the user as it contains no

user-serviceable parts. All repairs should be done under the guidance of a

professional salesperson.

- The installation, maintenance, and servicing of the charger should only be

performed by qualified personnel in accordance with applicable local

regulations.

- The charger should be protected from any external impact.

- Appropriate precautions should be taken with electronic medical implants.

- Before cleaning the unit, disconnect the main service power to your charger.

Do not use cleaning solvents to clean any part of the charger. Use a clean, dry

cloth to remove accumulated dust and dirt.

- Do not over-tighten the connecting cable while it is connected to the vehicle.

- Ensure that the charging cable is positioned in such a way so that it will not be

stepped on, tripped over, or subjected to damage or stress. Also, do not close

your garage door on the charging cord.

Installation steps

For convenient operation, the EV charger's lowest and highest point should be

installed between 0.4m-1.5m above the ground.

Installing Tips:

This EV Charger is equipped with internal Residual current protection: TYPE B

(AC 30MA + DC 6 MA).

External RCCB is required: Type A or Type B according to local regulations.

Wiring Diagram:

Single Phase:

Three Phase:

Configure Your TEISON Charger

LED Lights Indicators:

Getting Your APP Ready.

But before you install the app, make sure you've checked the following:

1. Ensure that the Bluetooth service is turned on in the mobile or tablet where

you plan to install the app.

2. Make sure that the location service is also turned on.

3. Stay within a close distance of your charger (less than 5 meters) to allow the

Bluetooth signal to be detected.

4. Make sure that you have a strong Wi-Fi signal at the location where you have

the charger Installed.

5. Ensure that your mobile device is linked to your household Wi-Fi signal.

Please note that only a 2.4 GHz Wi-Fi signal is accepted.

6. Keep your household Wi-Fi password handy before you start configuring the

charger network.

Download "MyTeison" from the App Store, for your iOS, Android, or Harmony

device after you power on your Newly installed EV Charger.

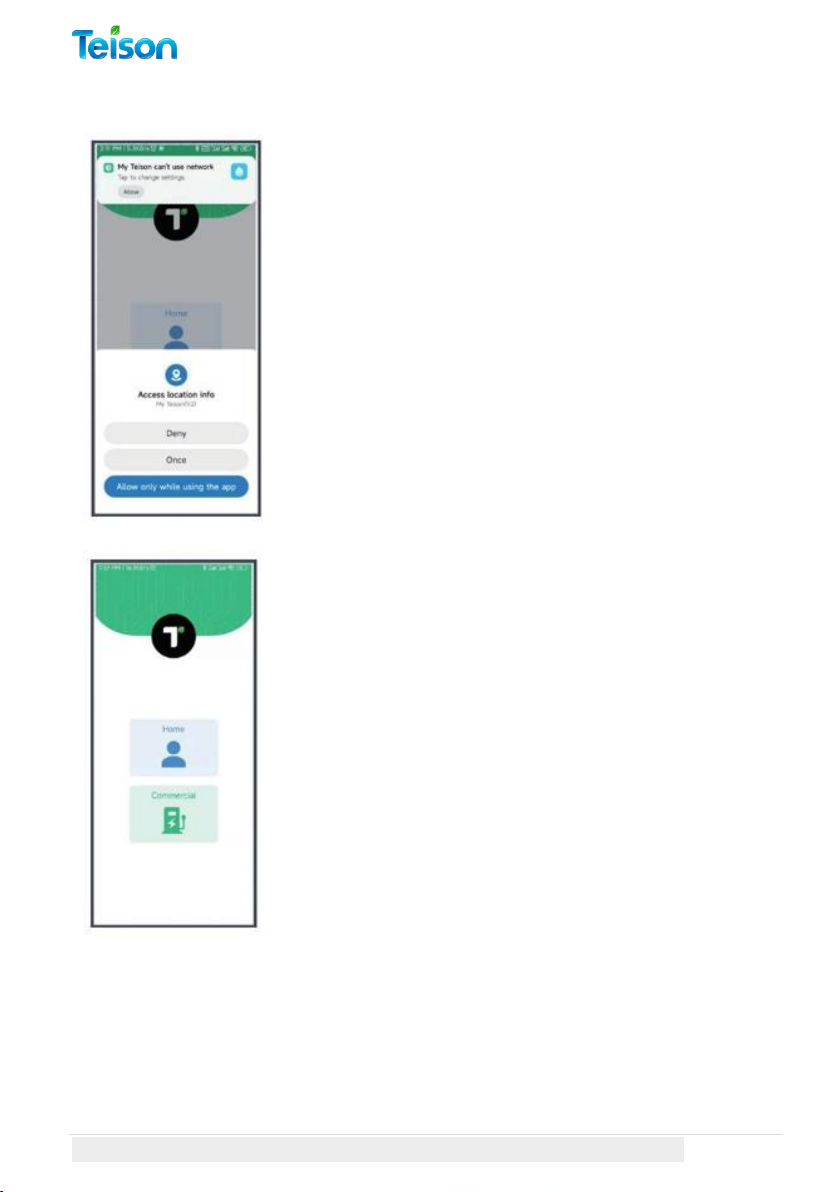

Setup MyTeison App:

Before using the app, you need to grant it

permission to access your location and Bluetooth.

Home: Smart Mini OCPP charger for home users

with Bluetooth and remote control.

Commercial: to be used for commercial use in

public EV charging stations to manage operations

and stations.

To use MyTeison, please create an account by

providing your essential details.

After creating the account, you will receive an email

confirmation. Please activate your account by

clicking on the link provided in the email.

Once you have activated the account, log in with the

same credentials. Please ensure that all the

information is accurate and complete.

1. The "Local Devices" list allows you to access

your devices directly” controlled by Bluetooth

connection”. Simply press "Use immediately" to

enter the EV charger page.

2. The "Online Devices" list displays all online

chargers linked to your account, along with relevant

information such as device name, serial number,

status, and type. To access an online charger's user

interface, press "Use immediately".

3. To configure a new TEISON EV Charger via the

web, click "+Add device".

4. The "Devices selected" area helps you locate the

correct charging station for your needs.

Manage MyTeison APP:

You can Get to your APP settings by clicking on ( ) on the op left corner on the

home page of MyTeison APP.

A sidebar showing the app Avatar and the email

address for your Account.

About APP

Rates

Add Device

From the About APP, you could check the MyTeison

APP version and Update.” This to Update the APP

and not to Update Your TEISON Charger Firmware”.

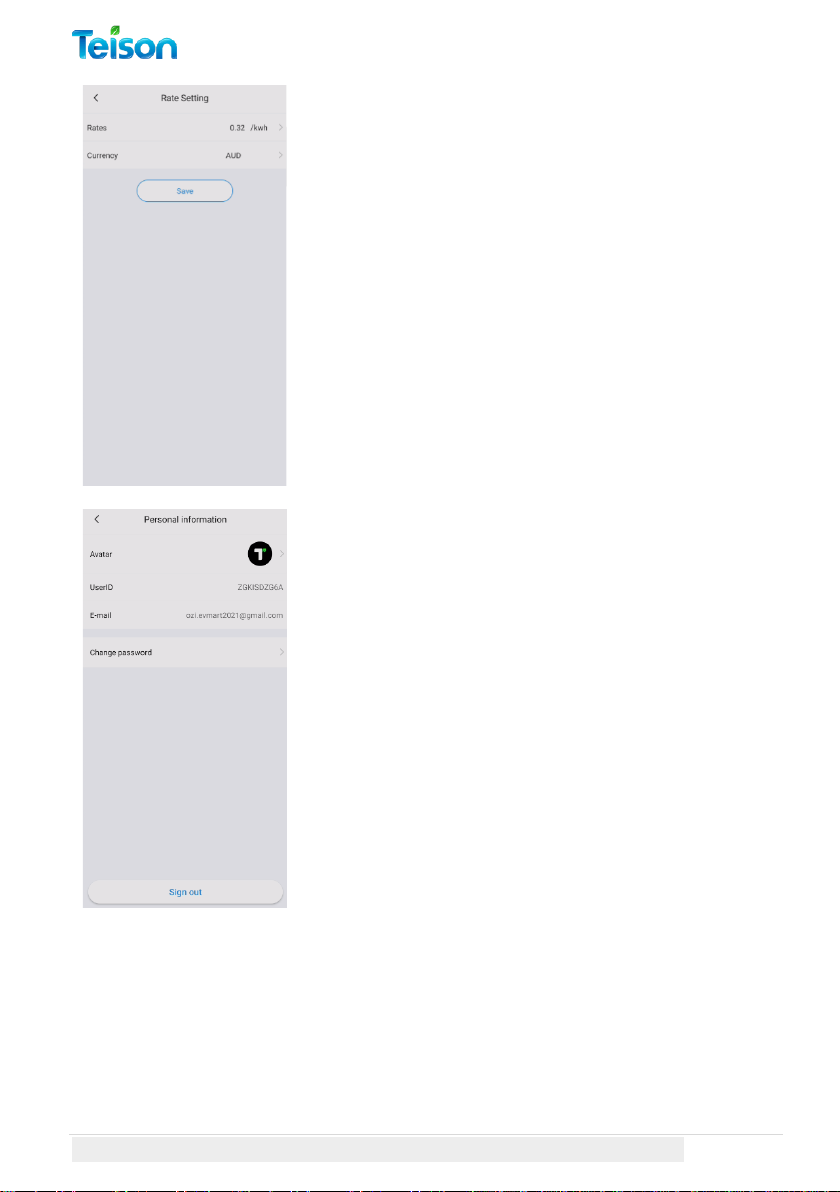

From Rates, you can set and Update your Charging

Rate per KWh.

You need Set Your Country Currency.

Those Information will show on help to calculate

the cost on your charging records.

Click On The APP logo “Avatar” to get to:

1- UserID

2- E-mail

3- Change Password

4- Logout

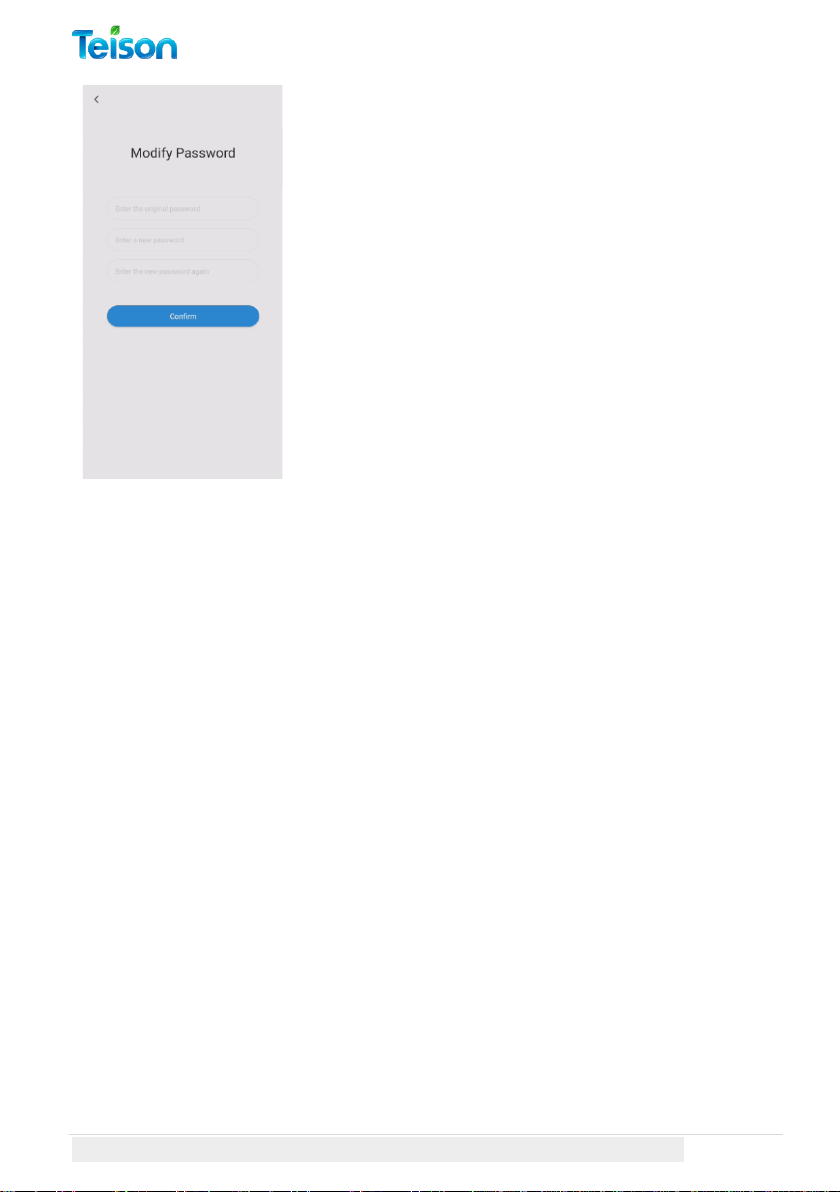

Change Password:

To Be able to change the password you need to

Enter both the Current and the New Password.

Connect Your EV Charger to Wi-Fi:

When you power on your newly installed TEISON EV Charger, you will be able to

control it through the app via Bluetooth connection. Please ensure that your

Bluetooth is turned on and that you are standing close to the charger. This is

known as a local device.

But to get the most out of your New EV Charger it's required to get connected

online using a Wi-Fi connection.

To configure your TEISON EV Charger 's network, follow these steps:

1. On the App's Devices Page,

select "Use Immediately" for your

local device.

2. Click the "..." button at the top

right corner of the local charger

page.

3. Select "Config Network".

4. Choose Wi-Fi (only supports

2.4G Wi-Fi): select your household

Wi-Fi, and enter your Wi-Fi

password, and select the save

password option.

5. The network configuration will

finish in 30 seconds. (If you use

the OCPP platform by a third

party, it will show success by step

2. You will have to confirm it by

your platform.)

6. If the configuration is

successful, you can name your

online charger. And then click on

“Start Experience”.

7. Go back to the homepage. The

device, after successful network

configuration, will show in the list

as an Online device. (In case it

doesn't pull down the page to

refresh the list).

Configure your Local Device:

Pin Query

After configuring your network and connecting to the internet, the charger's plug

and play feature remains inactive. This means that no one can access or use

the charger unless they are logged in with the same account used to configure

your Teison Charger online. However, if you wish to share your Teison charger

with someone else without giving them access to your app account, you can

use the PIN code feature.

Here's how you can do it:

1. Ask the new user to download and create an account for MyTeison app.

2. Request them to turn on Bluetooth on their phone.

3. Once your TEISON EV Charger appears on their local devices list, they can

immediately click on "Use".

4. They will receive a prompt requesting the PIN number.

5. Share this number with them.

6. After the new user finishes using your Teison charger, remember to update

the PIN number if you don't want them to use it again.

To set up a PIN code for your charger, follow these steps:

This manual suits for next models

Table of contents

Other Teison Automobile Batteries Charger manuals

Teison

Teison TS-PEC-002 User manual

Teison

Teison TS-EVC07-001 User manual

Popular Automobile Batteries Charger manuals by other brands

ZJBENY

ZJBENY BCP Series manual

TecMate

TecMate optimate TM470 Instructions for use

BMW

BMW Wallbox Pure owner's manual

APA

APA 16626 manual

ABL

ABL eMH1 WALLBOX installation manual

Juicy Power

Juicy Power AP4-0004A user manual

ZAPTEC

ZAPTEC Go user manual

GARO

GARO GLB-SMART Quick start user guide

ABL

ABL Wallbox eMH2 quick start guide

Ecotap

Ecotap DC150 manual

EVBOLT

EVBOLT POWERHAUL 3 user manual

Optimate

Optimate Pro-4 ampmatic TS-52 Instructions for use

I.SOUND

I.SOUND 5913 user guide

Teison TS-EVC07-003(S) User manual

Popular Automobile Batteries Charger manuals by other brands
