Tekno RC ET410 Instruction Manual

Introduction
Additional equipment and parts needed:
•
2 Channel radio and receiver
•
1/10th scale ESC
•
Motors: 540 size 6.5-8.5 turn OR 540 size 4-pole 4000-4600kv (550 size motors not recommended)
•
Standard size high torque steering servo (at least 200 oz/in)
* Running less than the recommended rating will increase the chance of premature servo failure.
•
2S (2 cell, 7.4v) shorty LiPo battery, 5000 mAh or higher recommended
•
Paint for body and CA Glue for wheels/tires
•
1/10th scale Associated oset stadium truck OR Traxxas Slash SC oset wheels & tires
(Losi oset is NOT COMPATIBLE)
•
32 pitch pinion 10 tooth - 25 tooth (see gearing recommendations on page 20 or 26 for more guidance)
Tools needed:
•
Hex drivers 1.5mm (TKR1104), 2.0mm (TKR1105), 2.5mm (TKR1106)
•
Nut drivers 5.5mm (TKR1108), 7.0mm (TKR1109)
•
Hobby knife
•
Needle-nose pliers
•
Shock tool (TKR1115) OR adjustable (Crescent) wrench (for shock assembly)
•
4mm turnbuckle wrench (TKR1103) AND 5.5/7.0 two sided wrench (TKR1119)
•
1/16th (or 1.6mm) drill bit for shock cap emulsion hole
•
Body reamer
Disclaimer: Tekno RC is not responsible or liable for any property or personal damage, loss, or injury incurred as a
result of using this product. This kit is meant for use by persons 14 years of age or older and in the strict connes of
a legally permitted RC track or facility.
Warnings: Always double-check that your radio gear is working properly before operating vehicle. Never operate the
vehicle indoors (unless the RC track is an indoor facility). Use caution while operating vehicle so as not to collide with
people who may be turn marshalling or who might otherwise not be aware that a fast moving RC vehicle is in the vicinity.
Warranty: We warrant that the parts included in this kit are free from defects. If you nd a defective part in your kit,
please contact us @ [email protected] and we will help you to resolve the issue. We do not warranty parts that may be
broken during operation of the vehicle or otherwise. Refer to the end of this instruction manual for a listing of
spare/replacement and option parts. All spare parts and other info are available on our website (www.teknorc.com)
and through our network of domestic and international dealers and distributors.
Thank you for purchasing the Tekno RC ET410 1/10th Scale 4WD Competition Electric Truggy kit.
We are always working on new projects, so please check our website regularly at www.teknorc.com
or visit us on Facebook at www.facebook.com/teknorc for all the latest news, parts, and kits.
Take your time! When you work your way through these building instructions, keep an eye out
for the following important indicators below:
•
RED TEXT - This indicates important areas of the build process that should be observed.
•
YOUTUBE - We also have many useful build videos on Youtube, so be sure to check these out!
https://www.youtube.com/c/teknorc
Thread Lock icons
Thread lock is always used when a screw is inserted into any metal part. (Included with kit)
Thread
Lock
Grease icons
Grease is usually used on areas with movement and for sealing. (Included with kit)
Grease

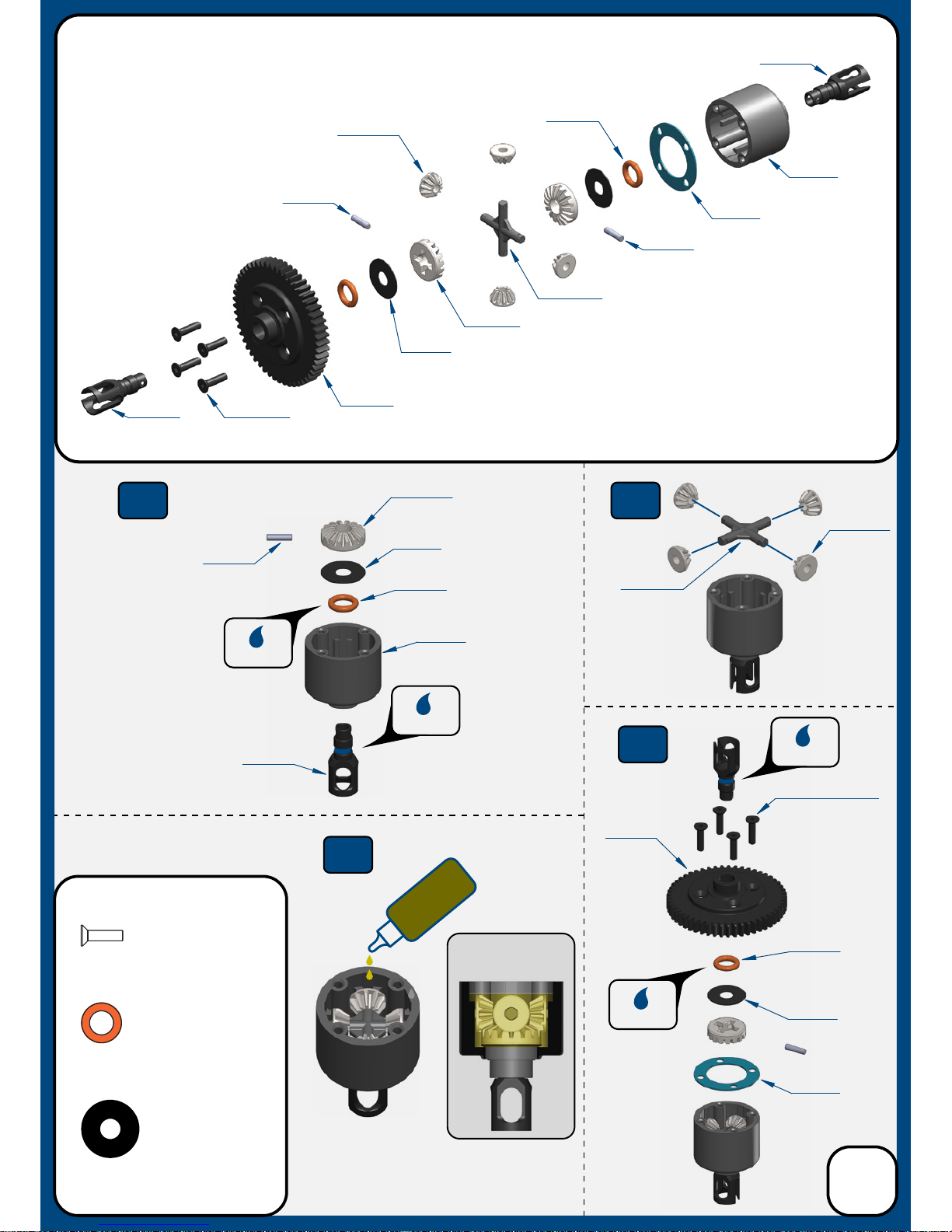

TKR6517
TKR5144

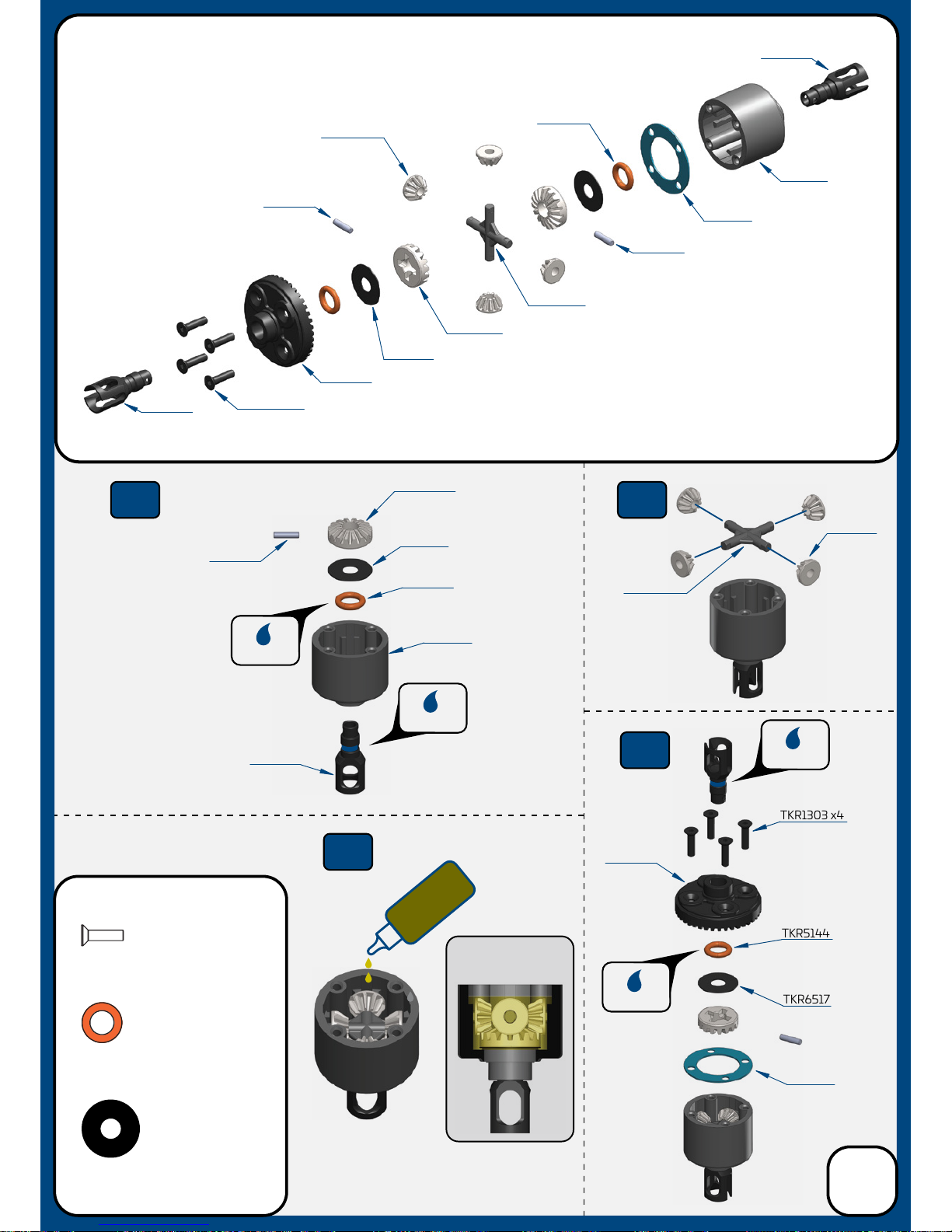

Bag A
Center Dierential
(overview)
TKR7253
TKR6513X
TKR6550
TKR6550
TKR6515
TKR6511
TKR5144
TKR6517
TKR6515
Step
A-2
Step
A-4
Fill Level
Step
A-3
Step
A-1
TKR5144
Dierential 0-rings
x2
TKR6517
Dierential Shims (5x14mm)
x2
TKR1303
M2.5x10mm Flat Head Screw
x4
TKR1303 x4
TKR5113
TKR6550
TKR6513X
Di
Oil
TKR7253
TKR6514
TKR6514
TKR6514
TKR6514
TKR6517
TKR6550
TKR5144
TKR1303 x4
3
Grease
Grease
Grease
Grease
Fill with #30,000 CST oil to
1mm below full
DO NOT OVER FILL
Note: Apply grease to the
groove in the outdrive.
Note: These screws
only need to be snug.
Do not over-tighten
or the internal gears
may bind up.
Note: Apply grease to the
recess inside TKR5113,
where the o-ring is placed
as well as the o-ring itself.
TKR6514
TKR6514

Bag B
Front and Rear Dierential
(overview)
TKR7221
TKR6513X
TKR6550
TKR6515
TKR6511
TKR5144
TKR6517
TKR1303 x4
TKR6514
TKR6514
TKR6515
TKR5144
TKR1303 x4
4
Grease
Step
B-1
Step
B-2
Repeat for rear di
Fill Level
Di
Oil
Step
B-3
Step
B-4
Repeat for rear di
TKR5144
Dierential 0-rings
x4
TKR6517
Dierential Shims (5x14mm)
x4
TKR1303
M2.5x10mm Flat Head Screw
x8
Grease
TKR6513X
Repeat for rear di
Fill FRONT with #30,000 CST oil
Fill REAR with #10,000 CST oil
to 1mm below full
DO NOT OVER FILL
Repeat for rear di
TKR6517
TKR5144
Grease
Grease
TKR6550
TKR6514
TKR6514
TKR7221
TKR6514
TKR6514
Note: Apply grease to the
groove in the outdrive.
TKR6550
TKR6517
TKR6550
TKR5113
Note: Apply grease to the
recess inside TKR5113,
where the o-ring is placed
as well as the o-ring itself.

TKR6627
TKR6627
TKR6627
TKR1402
TKR1402
TKR1402
TKR6526B
TKR6526B
TKR6207
TKR6207
TKRBB040725
TKRBB040725
TKR6526B
TKR6526B
TKR6208
TKR6208
TKR6208
TKRBB040725
TKRBB040725
TKRBB040725
TKRBB040725
TKRBB040725
TKRBB040725
TKR6526B
TKR6526B
TKR6526B

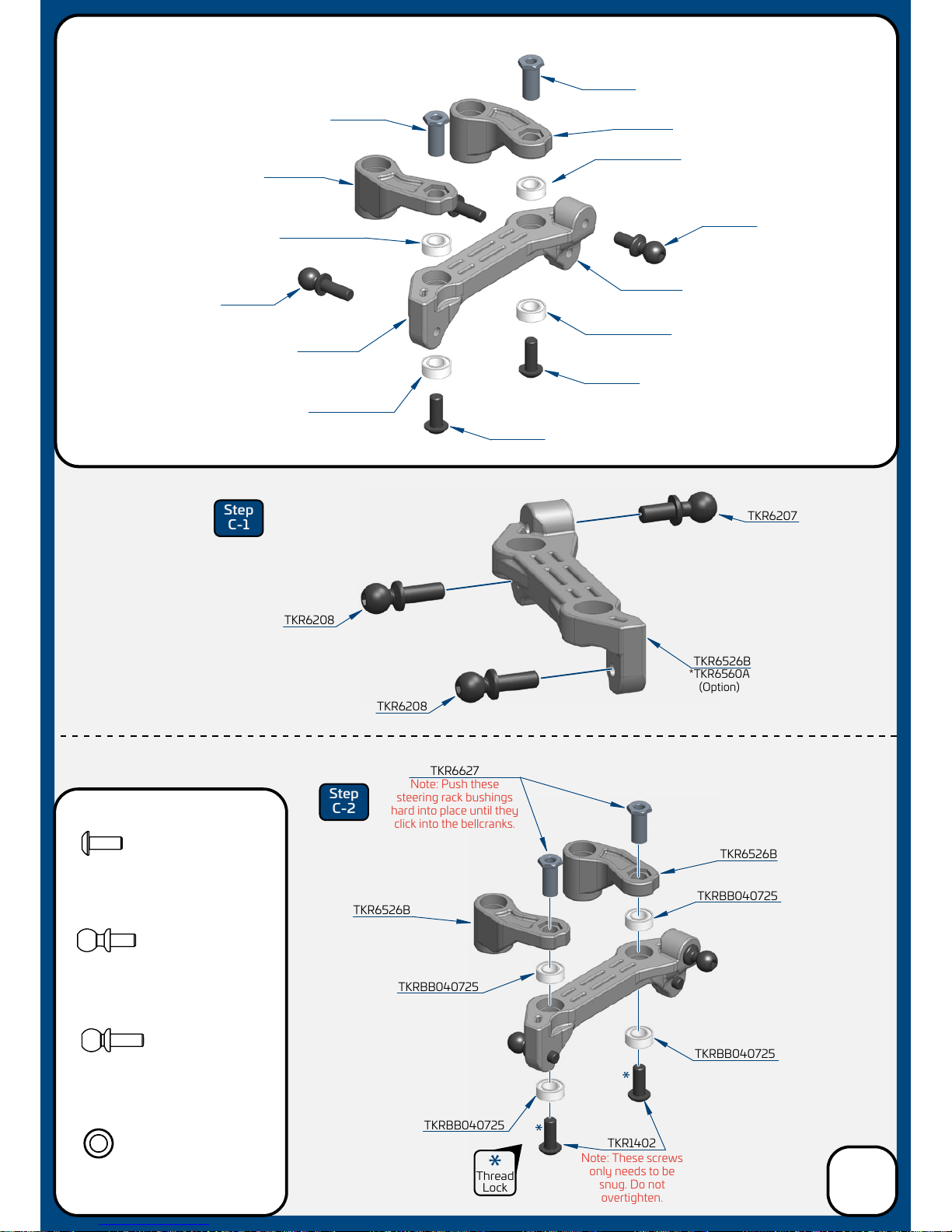

Step
C-1
Step
C-2
TKRBB040725
Ball Bearing (4x7x2.5)
x4
Thread
Lock
TKR6207
M3x6mm Ball Stud
x1
TKR6208
M3x8mm Ball Stud
x2
TKR1402
M3x8mm Button Head Screw
x2
Note: These screws
only needs to be
snug. Do not
overtighten.
Note: Push these
steering rack bushings
hard into place until they
click into the bellcranks.
*TKR6560A
(Option)
*TKR6560A
(Option)
Bag C
Steering Assembly
(overview)
5

TKR1301
TKRBB10154
TKRBB10154
TKR1602
TKRBB10154
TKRBB10154
TKR6519B
TKR1301
TKRBB05114
TKR6629
TKR7222
TKRBB05114
TKRBB05114
TKRBB05114
TKR7222
TKR6547
TKR6519B
TKR6597
TKR6547
TKRBB05114
Ball Bearing (5x11x4)
x2
TKR1602
TKR6597
(assembly from previous page)
Step
C-3
Step
C-4
Step
C-5
Step
C-6
TKR1301
M2.5x6mm Flat Head Screw
x2
TKR1402
M3x8mm Button Head Screw
x4
TKR1602
M4x4mm Set Screw
x1
TKRBB10154
Ball Bearing (10x15x4)
x2
TKRBB040725
Ball Bearing (4x7x2.5)
x4
TKRBB040725
TKRBB040725
TKR1402
Thread
Lock
Grease
TKR6519B
TKR1402
TKR1402
Note: Use a
5.5mm nut
driver to install
steering posts.
Note: Screw the TKR1402’s all the
way down, then back o 1/4 turn.
Bag C
Front Bulkhead Assembly
(overview)
6

Step
D-1
Step
D-2
Step
D-3
Step
D-4
Step
D-5
Step
D-6
TKRBB05114
Ball Bearing (5x11x4)
x2
TKR1201
M3 Locknut Black
x2
TKR1301
M2.5x6mm Flat Head Screw
x2
TKR1402
M3x8mm Button Head Screw
x4
TKR1403
M3x10mm Button Head Screw
x4
TKR1405
M3x14mm Button Head Screw
x4
TKR1411
M3x25mm Button Head Screw
x2
TKR1602
M4x4mm Set Screw
x1
TKRBB10154
Ball Bearing (10x15x4)
x2
TKR6210
M3x10mm Ball Stud
x2
CA
Glue
TKR1221
M3x8mm Washer
x12

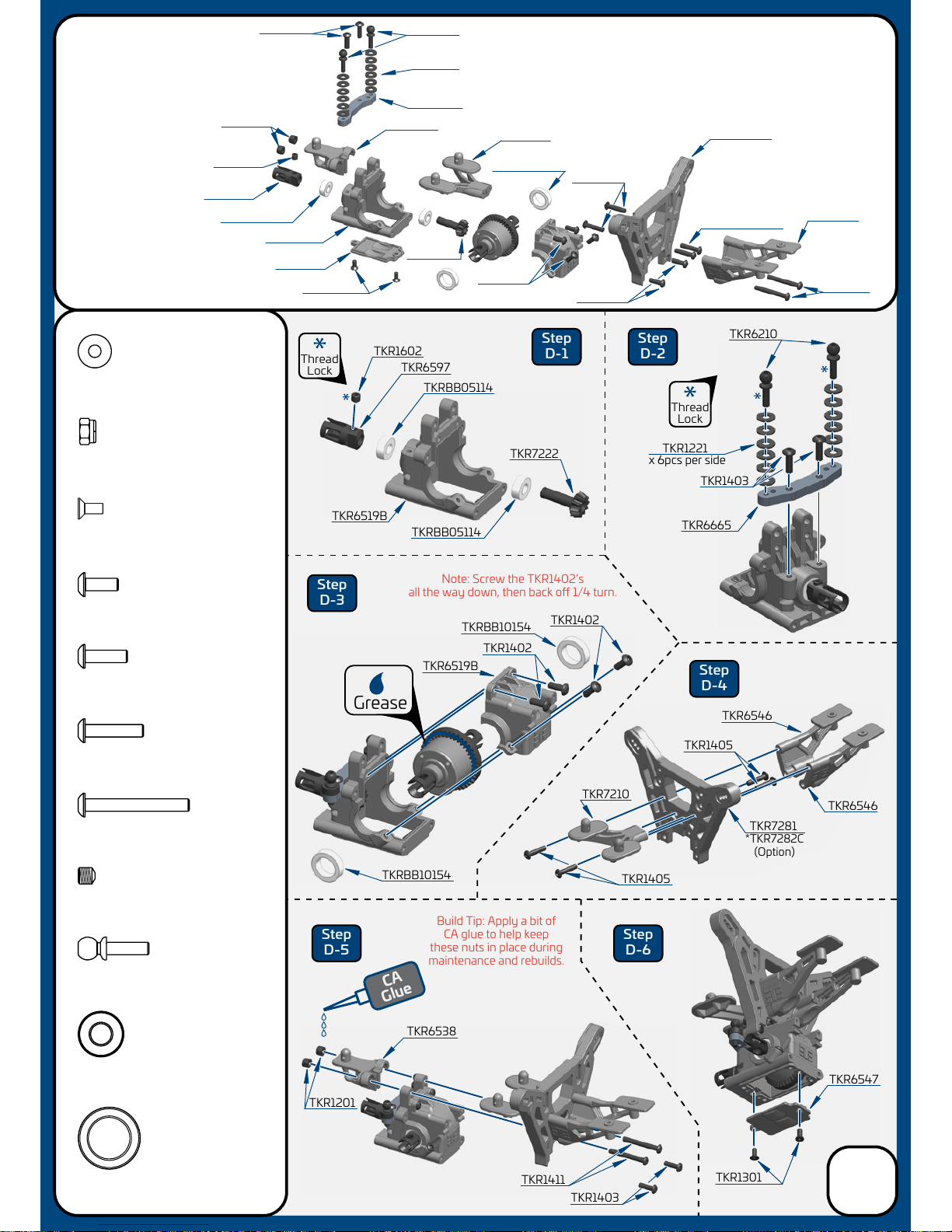

Bag D
Rear Bulkhead/
Wing Mount
Assembly
(overview)
Thread
Lock
Thread
Lock
TKR6210
TKR6538 TKR7210 TKR7281
TKR6546
TKR1405x2pcs
TKR1201
TKR1602
TKR6597
TKR1403 TKR1411
TKR1221
TKR6547
TKR6519B
TKRBB05114
TKR7222
TKRBB05114
TKR6597
TKR1602
TKRBB05114
TKR7222
TKR6665
TKR1221
TKR6665
TKR1405
TKR6210
TKR1403
TKR1403
TKR6519B
TKR6519B
TKRBB10154
TKRBB10154
TKR1402
TKR1402
TKR7281
TKR7210
TKR6547
TKR6546
TKR6538
TKR6546
TKR1405
TKR1403
TKR1405
TKRBB10154
TKR1301
TKR1301
TKR1411
TKR1402
4pcs
x 6pcs per side
Grease
*TKR7282C
(Option)
*TKR7282C
(Option)
TKR1201
Build Tip: Apply a bit of
CA glue to help keep
these nuts in place during
maintenance and rebuilds.
Note: Screw the TKR1402’s
all the way down, then back o 1/4 turn.
7

Stock Position
(”D” Block)
Stock Position
(”C” Block)
TKR1601
TKR7224
TKR6610 - 1.5mm
TKR6547
Note: With these center dot
inserts, Rear Toe = 1.5° per side
Note: Refer to page
25 for setting droop.
Note: With these center dot
inserts, Anti-Squat = 2°
Note: Do not over-tighten.
TKR6544
TKR6544
TKR6547
TKR6542
TKR1601
TKR6544
TKR1463
TKR6544
TKR6544

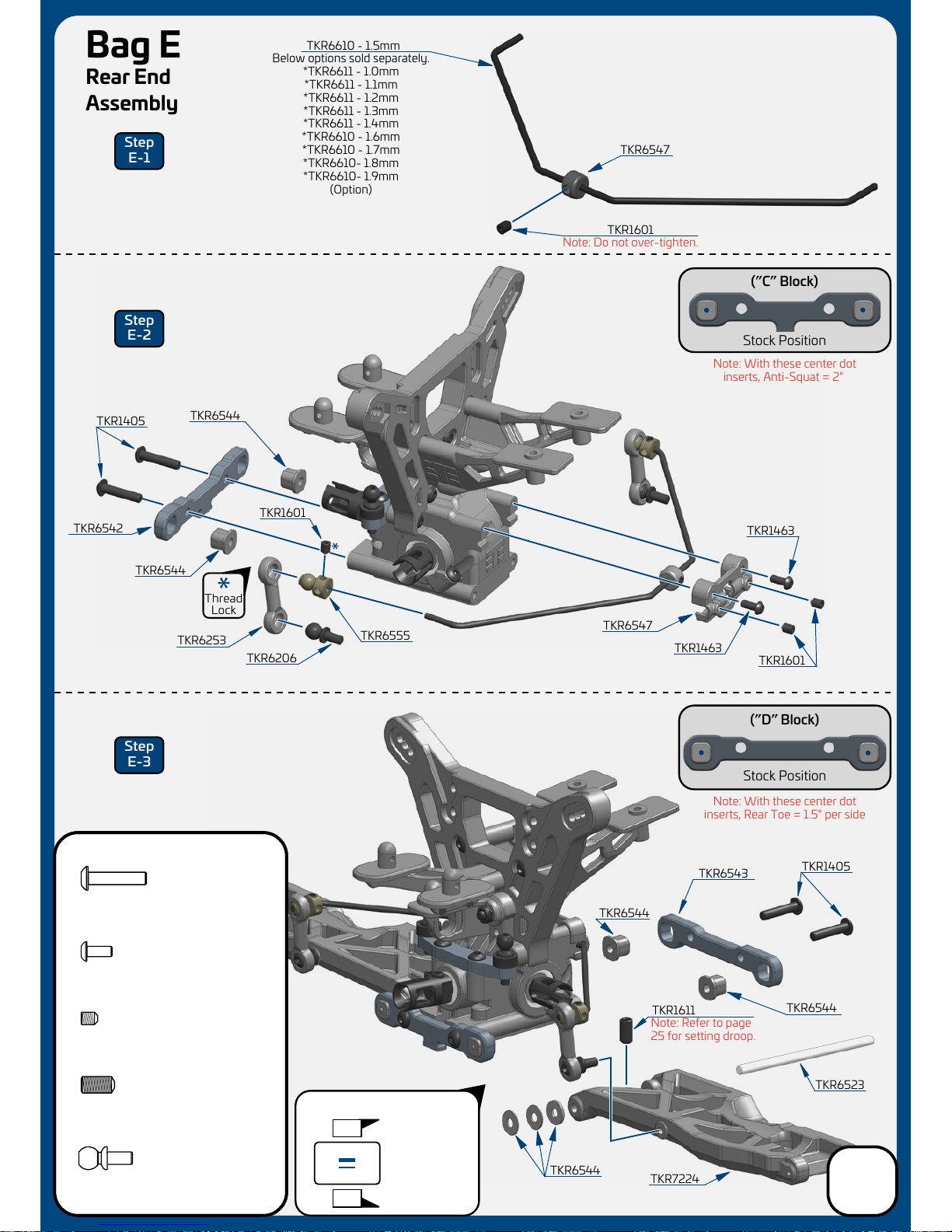

Bag E
Rear End
Assembly
Below options sold separately.
*TKR6611 - 1.0mm
*TKR6611 - 1.1mm
*TKR6611 - 1.2mm
*TKR6611 - 1.3mm
*TKR6611 - 1.4mm
*TKR6610 - 1.6mm
*TKR6610 - 1.7mm
*TKR6610- 1.8mm
*TKR6610- 1.9mm
(Option)
Thread
Lock
TKR1405
TKR1405
TKR6523
TKR6543
TKR1601
TKR6555
TKR6206
TKR6253
TKR1611
x5
TKR1601
M3x4mm Set Screw
Step
E-1
Step
E-2
Step
E-3
TKR1405
M3x14mm Button Head Screw
x4
TKR1463
M2.5x6mm Button Head Screw
x2
TKR1611
M4x8mm Set Screw
x2
TKR6206
M3x6mm Ball Stud
x2
TKR1463
8
all shims
go toward
the front
Wheelbase Shims
2mm
0mm
large 1mm
front
rear
small .5mm

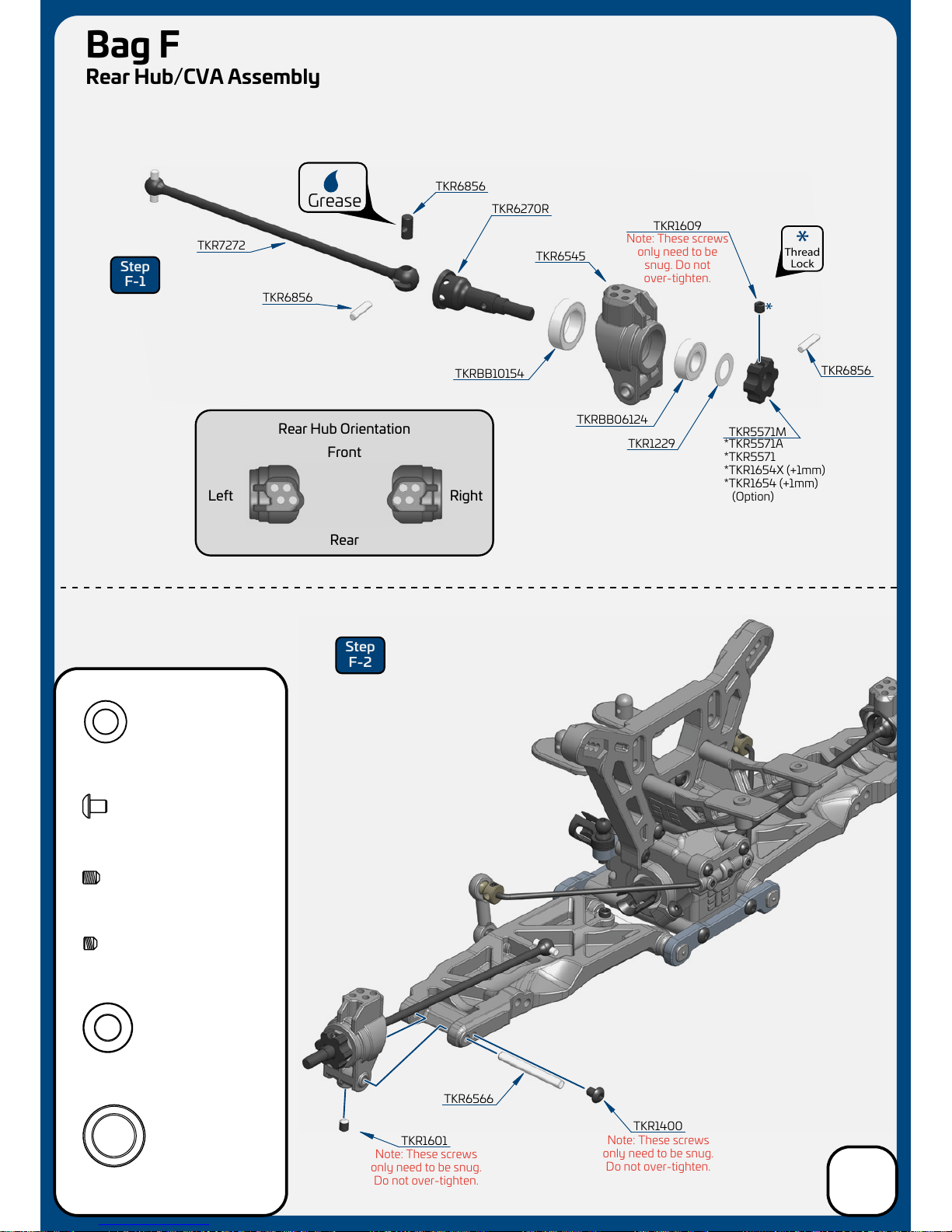

TKR6856
TKR6856
TKR6270R
TKR6545
TKRBB10154
TKRBB06124
TKR5571M
TKR1609
TKR1229
TKR7272
TKR6856
TKRBB10154
Ball Bearing (10x15x4)
x2
*TKR5571A
*TKR5571
*TKR1654X (+1mm)
*TKR1654 (+1mm)
(Option)
Note: These screws
only need to be
snug. Do not
over-tighten.
TKR1229
6x10x0.2mm Shim
x2
x2
TKR1601
M3x4mm Set Screw
TKR1609
M3x3mm Set Screw
x2
Step
F-1
Step
F-2
TKRBB06124
Ball Bearing (6x12x4)
x2
Grease
TKR1400
M3x4mm Button Head Screw
x2
Thread
Lock
TKR1601
TKR1400
TKR6566
Note: These screws
only need to be snug.
Do not over-tighten.
Note: These screws
only need to be snug.
Do not over-tighten.
Rear Hub Orientation
RightLeft
Rear
Front
Bag F
Rear Hub/CVA Assembly
9

TKR7250
TKR6253
49.50mm
Note: Notch always
goes on left side of vehicle.
Note: Always press
on with T logo visible.
Stock position is 2/B
6
0
Actual Size
Left/Right x 2pcs
TKR6253
TKR6208
Step
F-3
Step
F-4
DCBA
1 2
WASHERS
WASHERS
TKR6208
M3x8mm Ball Stud
x2
Build Note: Hold the turnbuckle stationary
with pliers and push the rod end hard onto the
turnbuckle while turning at the same time.
Keep in mind that one end of the turnbuckle has
normal threads and the other has reverse threads.
Start the rod end straight and it will thread on straight.
Build Tip: Use some grease or Chapstick
on the threads to help prevent “pop-o” when
adjustments are being made.
Bag F
Rear Camber Links
10

TKR1601
TKR6624 - 1.6mm
TKR6547
Note: Do not over-tighten.
Below options sold separately.
*TKR6623 - 1.0mm
*TKR6623 - 1.1mm
*TKR6623 - 1.2mm
*TKR6623 - 1.3mm
*TKR6623 - 1.4mm
*TKR6624 - 1.5mm
*TKR6624 - 1.7mm
*TKR6624- 1.8mm
*TKR6624- 1.9mm
(Option)
Stock Position
(”B” Block)
Stock Position
(”A” Block)
TKR1409
Bag G
Front End
Assembly
TKR1405
Note: With these center/upper dot
inserts, Arm Sweep = 0°
Note: With these center/lower dot
inserts, Kick Up is: 11°
For reference: With center dot
inserts, Kick Up = 10°
Step
G-2
Step
G-1
Step
G-3
TKR1409
M3x20mm Button Head Screw
x4
TKR1611
M4x8mm Set Screw
x2
TKR6523
TKR7225
TKR6540B
TKR6541B
TKR6544
TKR1611
TKR1409
TKR6544
Note: Refer to page 25 for setting droop.
TKR6544
TKR6544
TKR6547
TKR1601
TKR1463
Thread
Lock
TKR1601
TKR6555
TKR6548
TKR6253
TKR1405
M3x14mm Button Head Screw
x2
TKR1463
M2.5x6mm Button Head Screw
x2
x5
TKR1601
M3x4mm Set Screw
TKR1463
11
all shims
go toward
the front
Wheelbase Shims
2mm
0mm
large 1mm
front
rear
small .5mm

TKR1601
TKR6565
Bag H
Front CVA / Spindle &
Carrier Assembly
TKR1400
Step
H-1
Step
H-2
Step
H-3
Step
H-4
Step
H-5
TKR6856
TKR6856
TKR6270R
TKR6553
TKRBB10154
TKRBB06124
TKR5571M
TKR1609
TKR1229
TKR6596
TKR6596
TKR7272
TKR6856
TKR6552
TKR1601
Grease
Note: This screw
only needs to be
snug. Do not
over-tighten.
Repeat for
both sides
Note: These screws
only need to be
snug. Do not
over-tighten.
Note:
These screws
only need to be
snug. Do not
over-tighten.
Note:
These screws only
need to be snug.
Do not over-tighten.
TKRBB10154
Ball Bearing (10x15x4)
x2
x6
TKR1601
M3x4mm Set Screw
TKR1609
M3x3mm Set Screw
x2
TKRBB06124
Ball Bearing (6x12x4)
x2
TKR1400
M3x4mm Button Head Screw
x4
DO NOT SKIP
THIS STEP!
Note: These are steering
stop screws. They provide
a mechanical limit to the
steering throw and make
the car easier to drive
by greatly improving the
consistency of the steering.
TKR1221
TKR1400
Thread
Lock
TKR1229
6x10x0.2mm Shim
x2
TKR1221
M3x8mm Washer
x12
*TKR5571A
*TKR5571
*TKR1654X (+1mm)
*TKR1654 (+1mm)
(Option)
TKR6210
TKR1221
X 4pcs
TKR1201
TKR1201
TKR6208
TKR1221 x 4pcs
TKR6210
TKR6208
TKR1601
Note: This screw
is included to
keep the hole
from deforming.
Install before
TKR6208.
TKR1601
Note: This screw is
included to keep the
hole from deforming.
Install before TKR6208.
TKR6208
M3x8mm Ball Stud
x2
TKR1201
M3 Lock Nut Black
x2
TKR6210
M3x10mm Ball Stud
x2
12

TKR1201
M3 Lock Nut Black
x2
TKR6250
TKR6253
Right
Left
Right
Front Camber Links Steering Links
Left
TKR6253
TKR6253
TKR6253
TKR6250
TKR6250
TKR6250
TKR6253
TKR6253
TKR6253
TKR6253
Right
Left
TKR6208
TKR6664
TKR6208
TKR1201
TKR1201

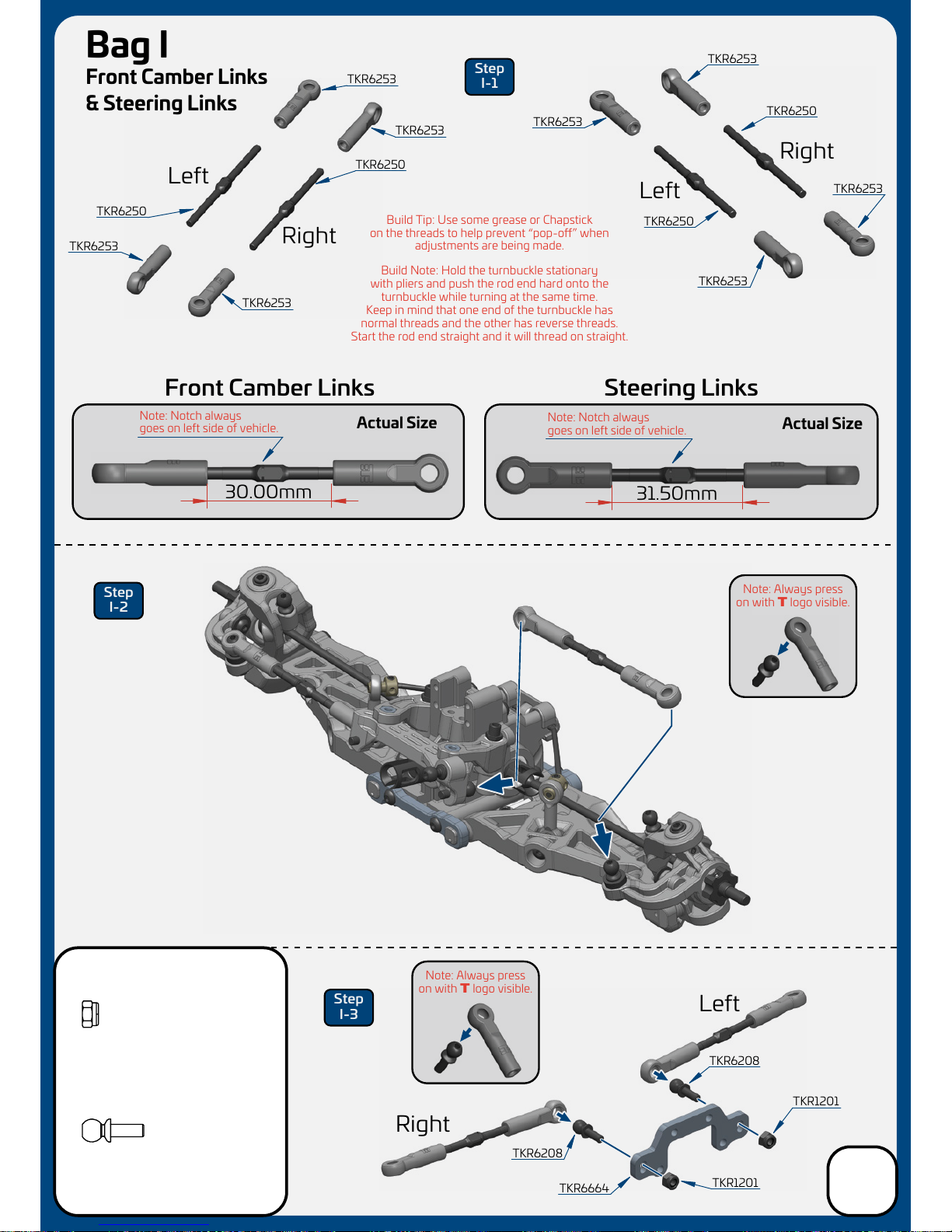

Bag I
Front Camber Links
& Steering Links
Step
I-1
Step
I-2
Step
I-3
TKR6208
M3x8mm Ball Stud
x2
31.50mm
Note: Notch always
goes on left side of vehicle.
Actual Size
Note: Always press
on with T logo visible.
Note: Always press
on with T logo visible.
Build Note: Hold the turnbuckle stationary
with pliers and push the rod end hard onto the
turnbuckle while turning at the same time.
Keep in mind that one end of the turnbuckle has
normal threads and the other has reverse threads.
Start the rod end straight and it will thread on straight.
Build Tip: Use some grease or Chapstick
on the threads to help prevent “pop-o” when
adjustments are being made.
30.00mm
Note: Notch always
goes on left side of vehicle.
Actual Size
13

AB
WASHERS
Stock position is 1/A
Bag I
Front Tower Assembly
Step
I-4
Step
I-5
TKR1403
TKR1409
TKR7210
TKR7210
TKR1405
TKR1405
TKR1403
M3x10mm Button Head Screw
x2
TKR1409
M3x20mm Button Head Screw
x2x2
0
TKR7281
Note: These screws
only need to be
snug. Do not
over-tighten.
*TKR7281C
(Option)
Note: Always press
on with T logo visible.
1
2
TKR1405
M3x14mm Button Head Screw
x4
14

A Block Inset
Note: It is nessesary to slightly loosen both screws holding
the A block in place before attaching the front clip to the
chassis. This is due to the fact that the A block is now
keyed into the front of the chassis. This feature helps
secure the front clip and improves durability.
CHASSIS
CHASSIS
A
BLOCK
A
BLOCK
TKR1323
TKR6501B
TKR6586
TKR1323
TKR1322
TKR1401
TKR6546
TKR1323
TKR6530
TKR6634
TKR6538
Step
J-1
Step
J-2
Step
J-3
TKR1322
M3x8mm Flat Head Screw
x2
TKR1401
M3x6mm Button Head Screw
x2
TKR1323
M3x10mm Flat Head Screw
x10
Thread
Lock
Thread
Lock
Bag J
Front/Center
Assembly
15

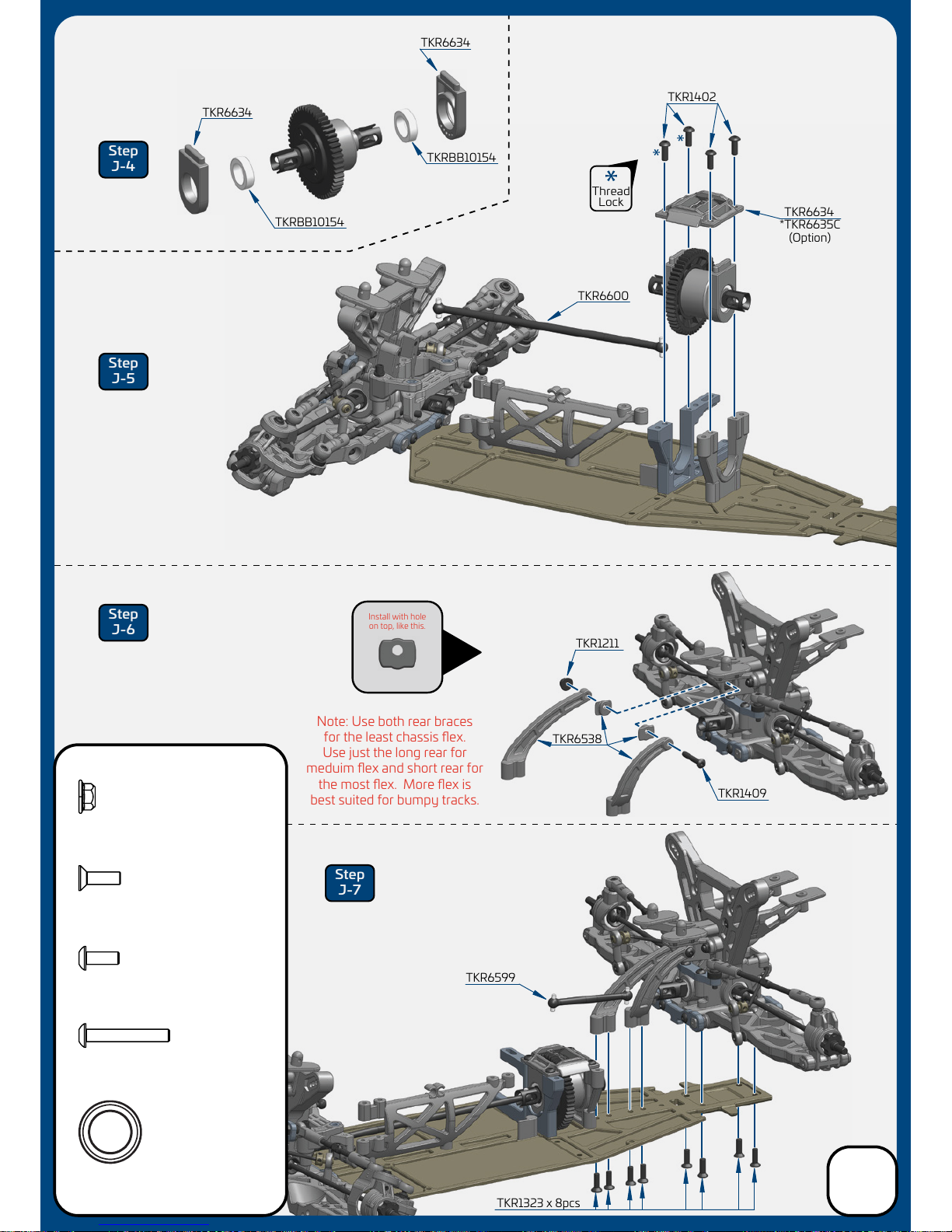

Install with hole
on top, like this.
Thread
Lock
Step
J-4
Step
J-5
Step
J-6
Step
J-7
TKR1402
TKR6634
TKR6634
TKR6600
TKR1211
TKR1409
TKR1323 x 8pcs
TKR6634
TKRBB10154
TKRBB10154
TKRBB101504
Ball Bearing(10x15x4mm)
x2
TKR1211
M3 Lock Nut Flange Black
x1
TKR1409
M3x20mm Button Head Screw
x1
TKR1323
M3x10mm Flat Head Screw
x8
TKR1402
M3x8mm Button Head Screw
x4
TKR6599
TKR6538
Note: Use both rear braces
for the least chassis flex.
Use just the long rear for
meduim flex and short rear for
the most flex. More flex is
best suited for bumpy tracks.
*TKR6635C
(Option)
Bag J
Center/Rear
Assembly
16

#550 cst
shock oil
TKR1240
TKR1211
Note: Slot in spring
perch should face
outside of car.
Note: Black screw
is RH threaded.
It goes on the left
side of the car.
Silver screw is
LH threaded.
It goes on the right
side of the car.
TKR1211
TKR6712 TKR6527
Thread
Lock
TKR6712
TKR6711
TKR6712
TKR6709
TKR6709
TKR6708
TKR6708
TKR1245
TKR6705
TKR6704
TKR6701
TKR6548
*TKR6704T
(Option)
*TKR6731
*TKR6732
*TKR6735
(Option)
Note: Use green
slime or oil on
shock shaft
threads AND
O-rings to
prevent tearing
and leaking.
Note: Screw rod end on
until distance measures
28mm at full extension.
TKR1604
TKR6701
TKR7235
*TKR7233
*TKR7234
*TKR7236
*TKR7237
(Option)
TKR6712
*TKR6712A
(Option)
#550
Refer to filling
instructions on
page 19 during
this step.
Step
K-1
Step
K-2
Step
K-3
Step
K-4
Step
K-5
TKR1240
M3x18mm Shock Mnt Screw
x2
TKR1248
M2x4mm Emulsion Screw
x2
TKR1245
M2x5mm Piston Screw
x2
TKR1211
M3 Lock Nut Flange Black
x4
TKR1604
M3x8mm Set Screw
x2
28.00mm
TKR6719A
Note: 1.7mm
piston with
writing up.
Note: Do not
over-tighten
Bag K
Front Shock
Assembly
17
Stock shock position is outside
hole on the arm and middle
hole on the tower (2/B)
Shock length (droop) is 88mm
Stock front ride height is 27mm with ST tires/31mm with SC tires

TKR1240
TKR1211
Note: Slot in spring
perch should face
outside of car.
TKR1211
TKR6712 TKR6527
TKR6712
TKR6709
TKR6756
TKR6709
TKR6708
TKR6708
TKR1245
TKR6701
TKR6548 TKR1604
TKR6701
TKR7245
*TKR7243
*TKR7244
*TKR7246
*TKR7247
(Option)
TKR6712
*TKR6712A
(Option)
TKR6719A
Step
L-1
Step
L-2
Step
L-3
Step
L-4
Step
L-5
TKR1240
M3x18mm Shock Mnt Screw
x2
TKR1248
M2x4mm Emulsion Screw
x2
TKR1245
M2x5mm Piston Screw
x2
TKR1211
M3 Lock Nut Flange Black
x4
TKR1604
M3x8mm Set Screw
x2
#350 cst
shock oil
Note: Screw rod end on
until distance measures
38mm at full extension.
#350
38.00mm
TKR6712
Note: Black screw
is RH threaded.
It goes on the right
side of the car.
Silver screw is
LH threaded.
It goes on the left
side of the car.
TKR6757
*TKR6757T
(Option)
Thread
Lock
Note: Use green
slime or oil on
shock shaft
threads AND
O-rings to
prevent tearing
and leaking.
Note: 1.8mm
piston with
writing up.
Refer to filling
instructions on
page 19 during
this step.
Note: Do not
over-tighten
TKR6705
*TKR6731
*TKR6732
*TKR6735
(Option)

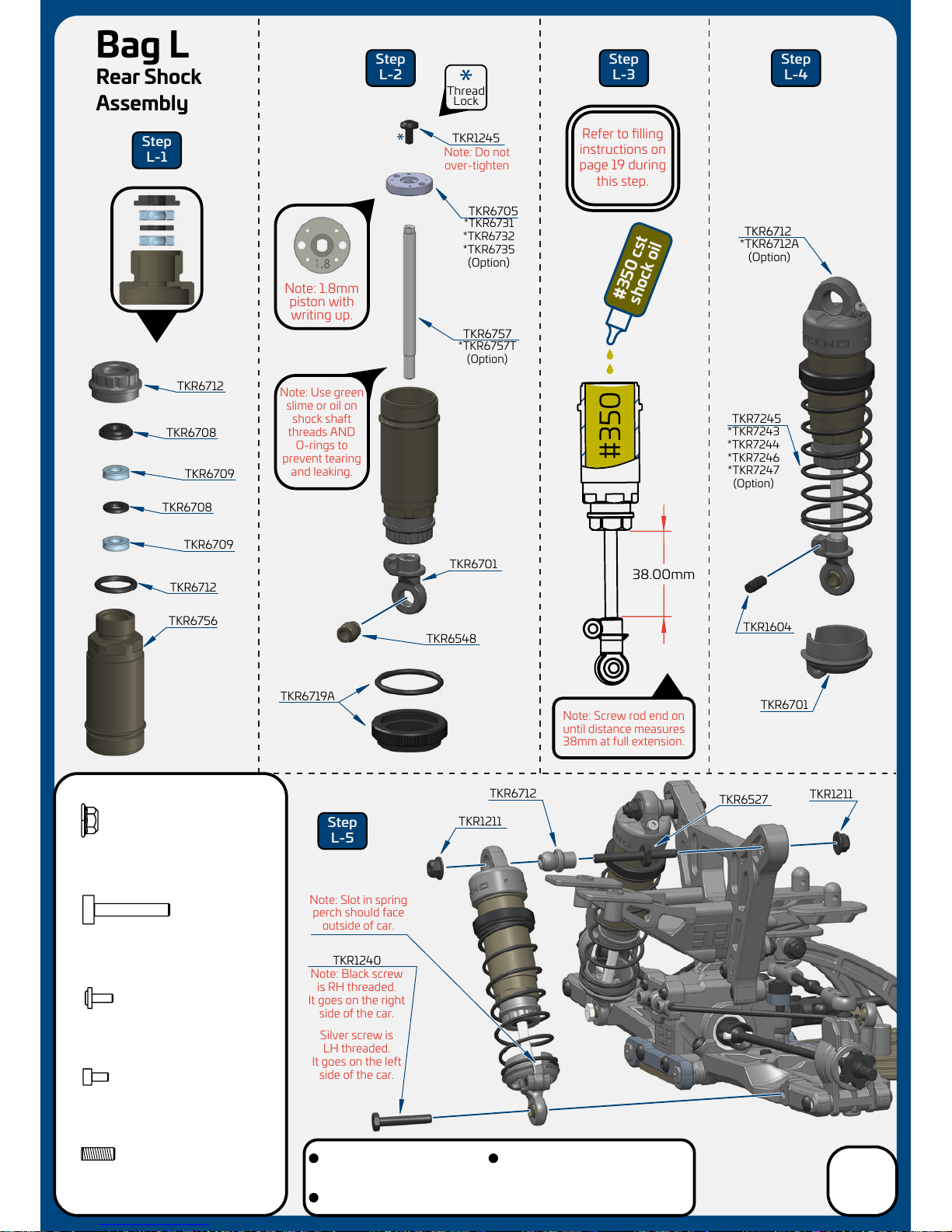

Bag L
Rear Shock
Assembly
18
Stock shock position is inside
hole on the arm and middle
hole on the tower (2/A)
Shock length (droop) is 108mm
Stock rear ride height is 27mm with ST tires/31mm with SC tires

Shock Filling Instructions
For both front and rear shocks
Step 1. Start by drilling out the emulsion hole. Use a 1/16th (or 1.6mm) drill bit to drill all the way through and
clear any flashing created by this. Insert the four larger o-rings into the emulsion caps and set aside.
Install the small o-rings onto the small emulsion screws by placing the o-rings on a pit mat or towel and
pressing the screws into the o-rings (add 1 small drop of oil onto the seal to help make the screw slide in easier).
Step 2. Fill shock with oil all the way to the top and pump the shock shaft up and down 3-5 times.
Step 3. Screw on the cap all the way tight (shock tool TKR1115 is helpful for holding the shock body).
Be careful to not cross-thread the caps. Start by turning in the oposite direction before tightening.
Step 4. With the shock at about a 45° angle, push and hold the shock shaft to the top of the stroke and
insert the prepared emulsion screw/seal. Oil should leak out during this process. If it does not, add more oil.
Tighten the screw until snug (do not over-tighten). Wipe o excess oil before moving on to step 5.
Step 5. Pump the shock shaft up and down about 20 times vigorously. This emulsifies the oil.
Step 6. With the shock shaft fully extended, remove the emulsion screw from the cap to do the final bleed.
Step 7. With the shock at about a 45° angle, push and hold the shock shaft to the top and insert the
prepared emulsion screw/seal again. Oil will leak out during this process. Finish by tightening the screw
until snug (do not over-tighten).
We've found it's easiest to complete steps 1 & 2 on each shock before moving on to step 3.
By the time you've finished step 2 on the last shock, the first one will be ready for step 3.
Fill with oil,
Pump up and down
3-5 times,
Then screw on cap
Fill with oil,
Pump up and down
3-5 times,
Then screw on cap
Pump up
and down
30 times
Pump up
and down
20 times
Prepare caps by
drilling emulsion hole
AND
inserting seals
AND
Push smaller
screws into small
o-rings
Push shaft up
to bleed air out
THEN
Insert screw snug
(do not over-tighten)
TKR6714
TKR6712
TKR1248
TKR6714
Pull shaft down,
remove screw
THEN
Push shaft up to bleed air,
insert screw snug
(do not over-tighten)
Step
1
Step
2-3
Step
4
Step
5
Step
6-7
19
1/16th Drill Bit
Note: Do not
over-tighten
Note: Do not
over-tighten

TKR1323
M3x10mm Flat Head Screw
x6
TKR1221
M3X8mm Washer
x4
TKR1522
M3x8mm Cap Head Screw
x2
TKR1403
M3x10mm Button Head Screw
x2
TKR1409
M3x20mm Button Head Screw
x2
TKR1409
Steering servo (not included)
TKR1323
TKR1323
TKR1409
TKR1221 TKR6586
TKR6685
TKR1221
TKR6586
TKR6539
TKR1522
TKR1403
Motor (not included)
Step
M-1
Step
M-2
Step
M-3
TKR1221
Thread
Lock
Note: We recommend using a full
size servo with at least 200 oz/in
torque and metal gears. Running less than
our recommended rating will increase
the chance of premature servo failure.
IMPORTANT RADIO SETUP TIPS, MUST READ:
The Tekno RC ET410 is highly tunable, but can be very
aggressive depending on track conditions and tires used.
To help with this, we recommend that you are well informed
about setting up your Steering EPA, Servo Speed, Dual Rate,
and Exponential Curves.
PLEASE READ PAGE 27 FOR MORE DETAILS.
Vehicle
(2 cell)
(50-80 ft Straight)
Small Track
(pinion)
Large Track
(pinion)
(80-150 ft Straight)
ET410
Motor
540 2-Pole or
540 4-Pole
Gearing Recommendations
6.5T
7.5T
8.5T
16 tooth
17 tooth
18 tooth
17 tooth
18 tooth
19 tooth
4000kv 17 tooth 18 tooth
4600kv 16 tooth 17 tooth
Bag M
Final Assembly
20
