Hunter Products TR1403 User manual

CHILDREN'S
ELECTRONIC
TOY
MOTORCYCLE
Item No: 1091
•Suitable for 3+
years
•Maximum user
weight:
30kg
•Adult
assembly
required
OWNER'S MANUAL
Read and understand this entire manual before using!
Please
kee
this manual for future reference as it contains
im ortant
information.
Before first time use,
charge
the
battery
for at least 8-12 hours no more
than 16 hours.
2x1.5AA Batteries
Required.
AA Batteries not included.

Table of Contents
1.
About
Your
New
Motorcycle
2. Parts
List
3. Parts
Diagram
4.
Assembly
Steps
5.
How
o Operation
Your
Motorcycle
6.
Charging
he
Motorcycle
7.
roubleshooting
Guide
8.
Maintaining
Your
Motorcycle
9.
Disposal
Of
Battery
About Your New Motorcycle
Thank you for your purchasing our products, we wants your child to enjoy this product for years to
come. Keep these points in mind as you read this guide:
Suitable age: 3+years Battery: DC 6V 4.5AH *1
Load Capacity: Under 30Kg Size of car: 1090*560*720mm
Speed: 2.5-3Km/h Carton size: 800*320*520mm
Material: PP Optimum
Temperature: elow 40°C
Charger:
Input: Shown on the charger Charging time:8-12 hours,at most 16 hours
Output: DC 6V Fuse: F 5A, Self-resetting
Current: DC 0.5A
WARNING!
FOR THE SAFETY OF YOUR CHILD, PLEASE READ ALL WARNINGS AND
ASSEMBLY/USE INSTRUCTIONS. KEEP THIS GUIDE FOR FUTURE REFERENCE.
•ADULT ASSEMBLY REQUIRED. The product contains small parts, which are for
adult assembly only. Keep small children away when assembling.
•Always remove protective material and poly bags and dispose before assembly.
FOR CUSTOMER SERVICE ENQUIRIES & SPARE PARTS
PLEASE CONTACT HUNTER PRODUCTS TOLL FREE 1800 224 094
OR
VISIT
WWW.ELECTRICRIDEON.COM.AU
-1-

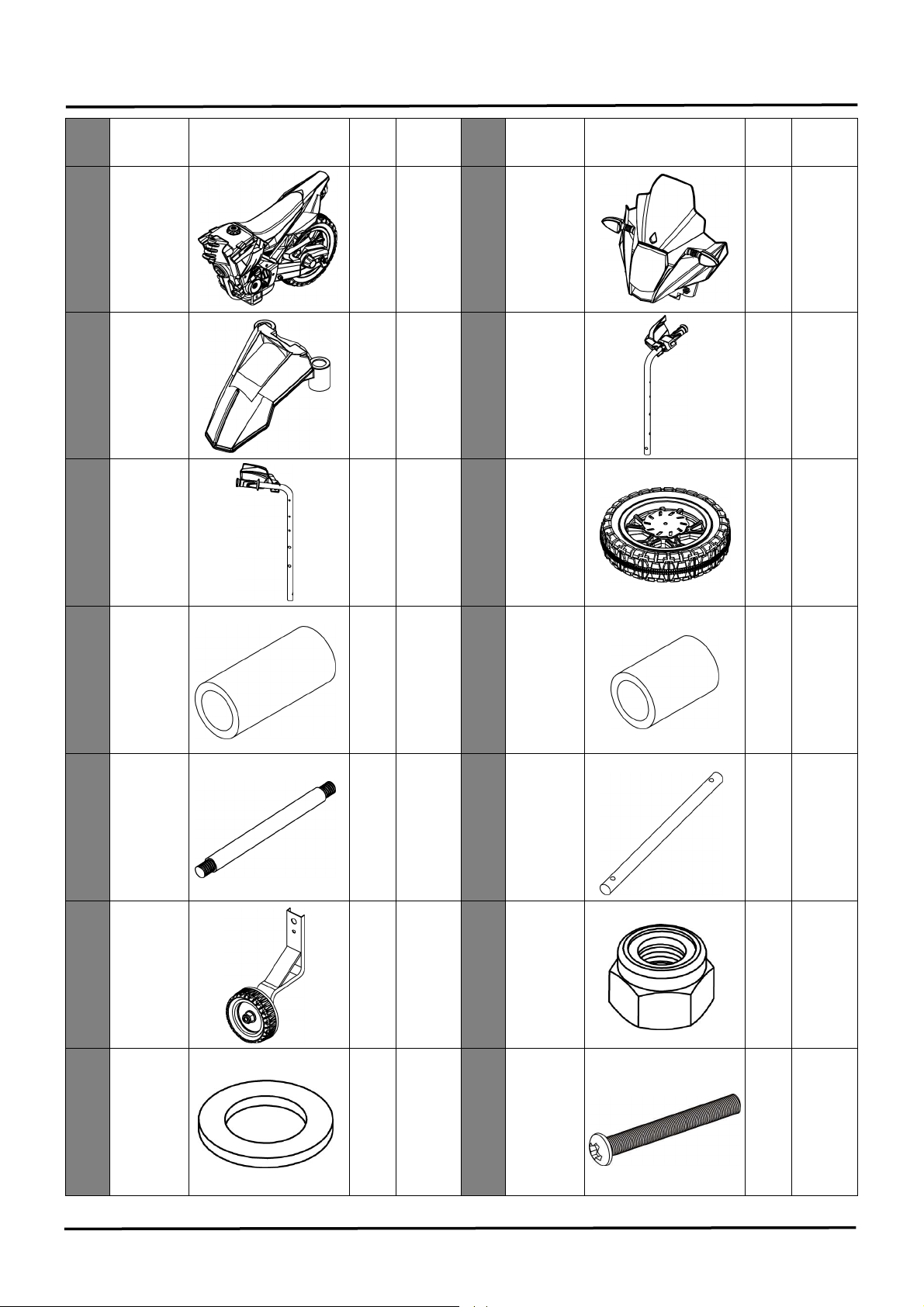

Parts List
PART
NO
PART
NAME PICTURE Q,ty (pcs)
REMARKS
PART
NO
PART
NAME PICTURE Q,ty (pcs)
REMARKS
1Vehicle
body 12Head
cover 1
3Mudguard 14Right
handle 1
5Left
handle 16Wheel 1
7
Long
shaft
sleeve
1
Placed
in the
front
axle
8
Short
shaft
sleeve
1
Placed
in the
front
axle
9Front
axle 110 Central axis 1
11 Training
wheel 212 M8 Nut 4
Placed
in the
rear and
front
axle
13 M1
Washer 6
Placed
in the
rear and
front
axle
14 M5X3
Bolt 6
Placed
on the
head
cover
and the
body
FOR CUSTOMER SERVICE ENQUIRIES & SPARE PARTS
PLEASE CONTACT HUNTER PRODUCTS TOLL FREE 1800 224 094
OR
VISIT
WWW.ELECTRICRIDEON.COM.AU
-2-

Parts List
PART
NO
PART
NAME PICTURE Q,ty (pcs)
REMARKS
PART
NO
PART
NAME PICTURE Q,ty (pcs)
REMARKS
15 M5 Nut 6
Placed
on the
head
cover
and the
body
16 Shield 1
Assembly package
PART
NO
PART
NAME PICTURE Q,ty
(pcs)
REMARKS
PART
NO
PART
NAME PICTURE Q,ty
(pcs)
REMARKS
17
Front
shockproof
sleeve
218
Back
shockproof
sleeve
2
19 Decorative
cover 220 Pedal 2
21 Music
box 1
Not
included
AA1.5V
battery
22 M4X12
screw 6
23 M4X16
screw 224 M8X122 Bolt 1
25 M8 Nut 126 Charger 1
27 Instruction
manual 128 Spanner 2
FOR CUSTOMER SERVICE ENQUIRIES & SPARE PARTS
PLEASE CONTACT HUNTER PRODUCTS TOLL FREE 1800 224 094
OR
VISIT
WWW.ELECTRICRIDEON.COM.AU
-3-

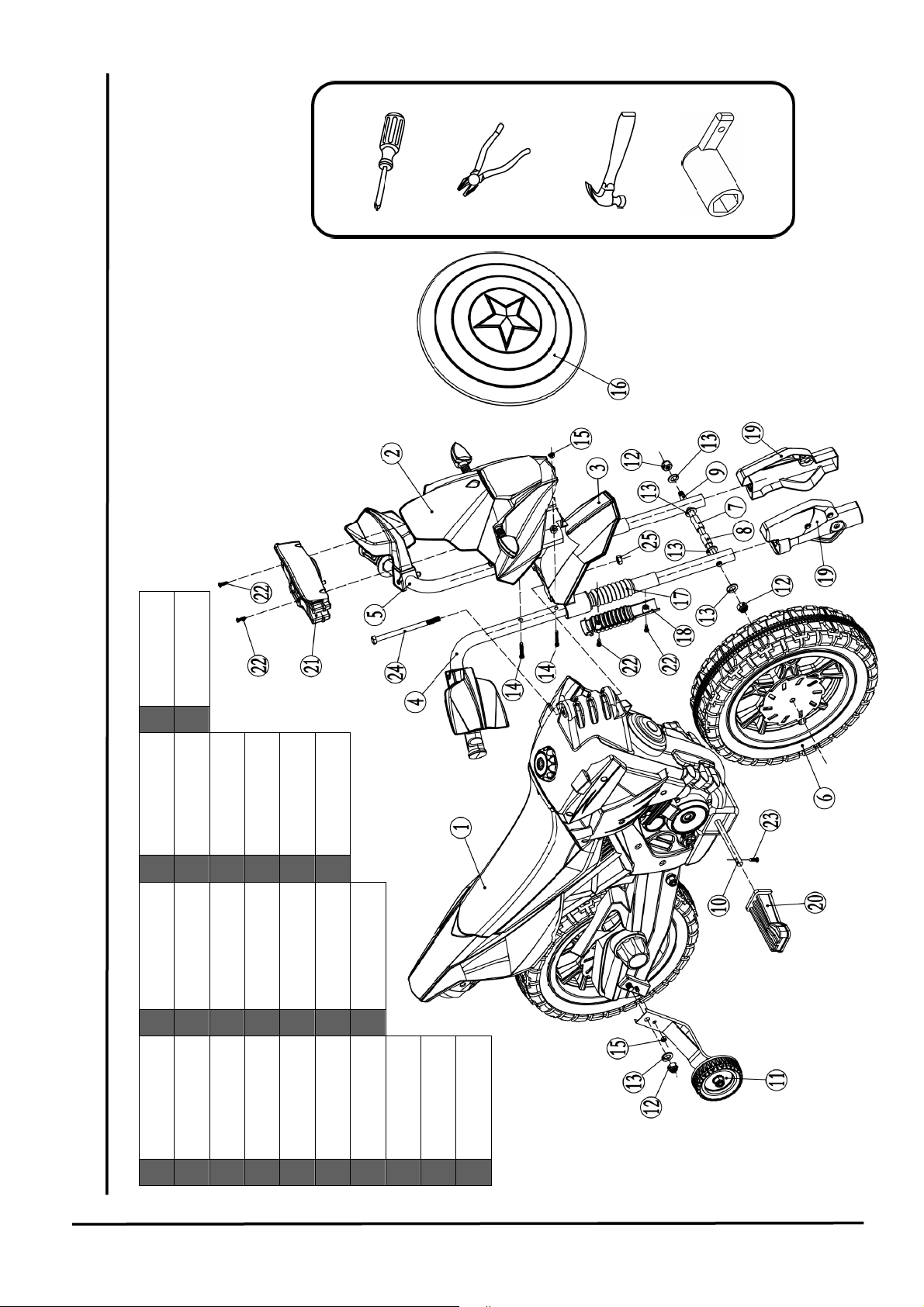

Parts Diagram
NOTE: Some Parts Shown are assembled
on both sides of vehicle
1Vehicle body *12Head cover*13Mudguard*14Right handle*1 5Left handle*16Wheel*17Long shaft sleeve*1 8Short shaft
sleeve*1
9Front axle*110 Central axis*111 Training wheel *2
12 M8 Nut*413 M10 Washer*614 M5X30 olt*6 15 M5 Nut *616 Shield*117 Front shockproof
sleeve*2
18 Back shockproof
sleeve*219 Decorative cover*220 Pedal*2
21 Music ox*122 M4X12 screw*6 23 M4X16 screw*2 24 M8X122 Bolt*1 25 M8 Nut*1
Hammer(not included
Pliers(not inclued
Screwdriver(not included)
Tools Required
Spanner
FOR CUSTOMER SERVICE ENQUIRIES & SPARE PARTS
PLEASE CONTACT HUNTER PRODUCTS TOLL FREE 1800 224 094
OR
VISIT
WWW.ELECTRICRIDEON.COM.AU
-4-

Assembly Steps
Your new motorcycle requires adult assembly. Please set aside at least 40 minutes for
assembly. Children can be harmed by small parts, sharp edges and sharp points in the
vehicle's unassembled state. Care should be taken in unpacking and assembly of the
vehicle. Children should not handle parts, or help in assembly of the vehicle.
Please identify all parts before assembly and save all packaging material until assembly
is complete to ensure that no parts are discarded.
ssembly tool for need: screwdriver(not included), pliers(not included), hammer(not
included), spanner.
1. Install the
training
wheel
Remove two nuts and one washer
from the side of the rear axle.
Install the training wheel, and then
load on the washer, tighten the nut.
Fix another wheel on the other side.
2. Install the pedal.
As shown in the picture,the axle
passes through the body.
Install the pedal,and fasten with the
screws.
The other side is same as above .
FOR CUSTOMER SERVICE ENQUIRIES & SPARE PARTS
PLEASE CONTACT HUNTER PRODUCTS TOLL FREE 1800 224 094
OR
VISIT
WWW.ELECTRICRIDEON.COM.AU
-5-

Assembly Steps

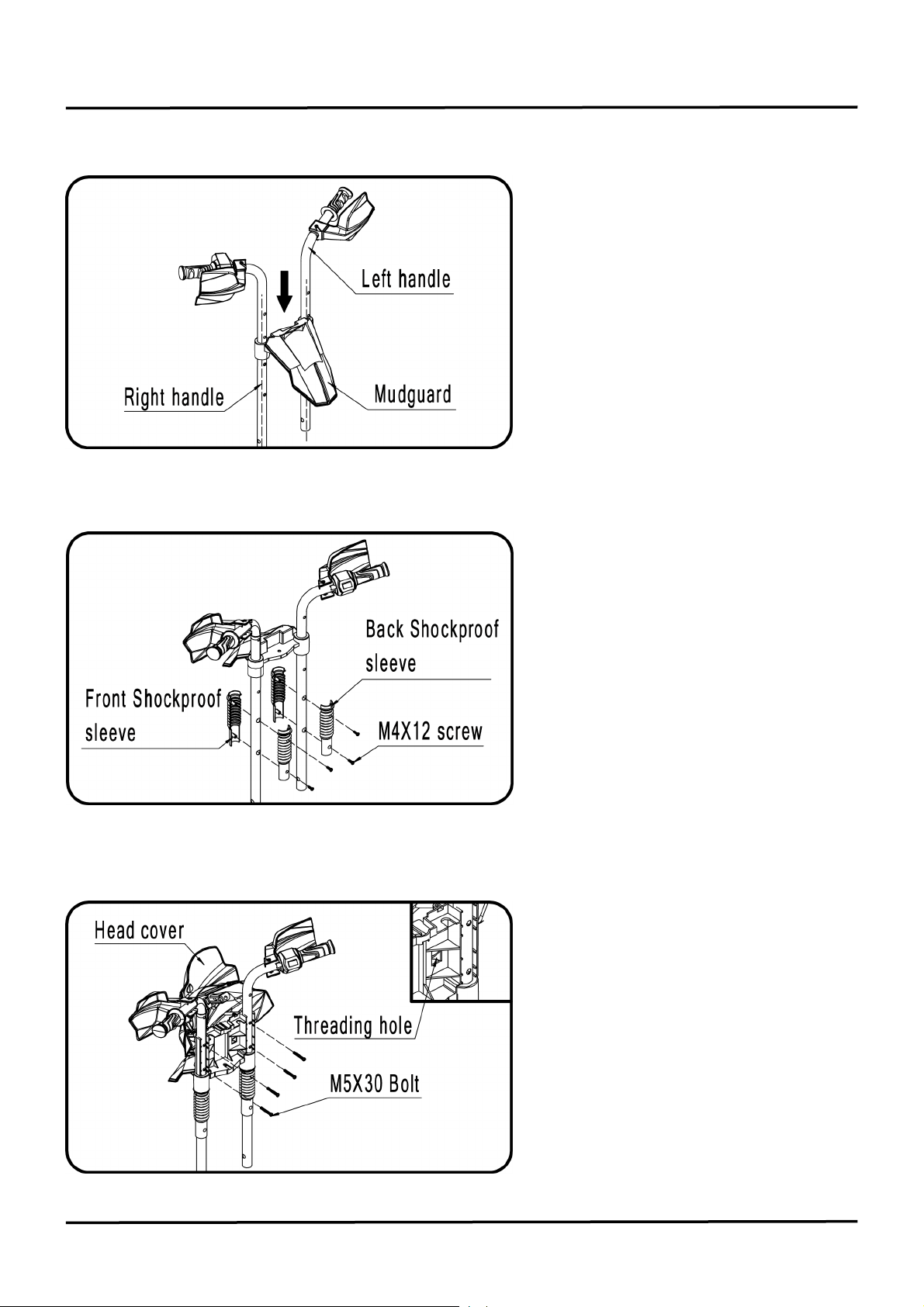

3. Install the mudguard
Put the left handle and the right
handle inserted into the mudguard
respectively .
4. Install the shockproof sleeve.
As shown in the picture,Install the
front and back shockproof
sleeves,and fasten with the screws.
5. Install the head cover.
Remove the bolt from the head cover.
Install the head cover to the
corresponding place,and fasten with
the bolts.
Put the wire plug through the
threading holes.
FOR CUSTOMER SERVICE ENQUIRIES & SPARE PARTS
PLEASE CONTACT HUNTER PRODUCTS TOLL FREE 1800 224 094
OR
VISIT
WWW.ELECTRICRIDEON.COM.AU
-6-

Assembly Steps
6. Install the decorative cover.
As shown in the picture,Install the
decorative cover.

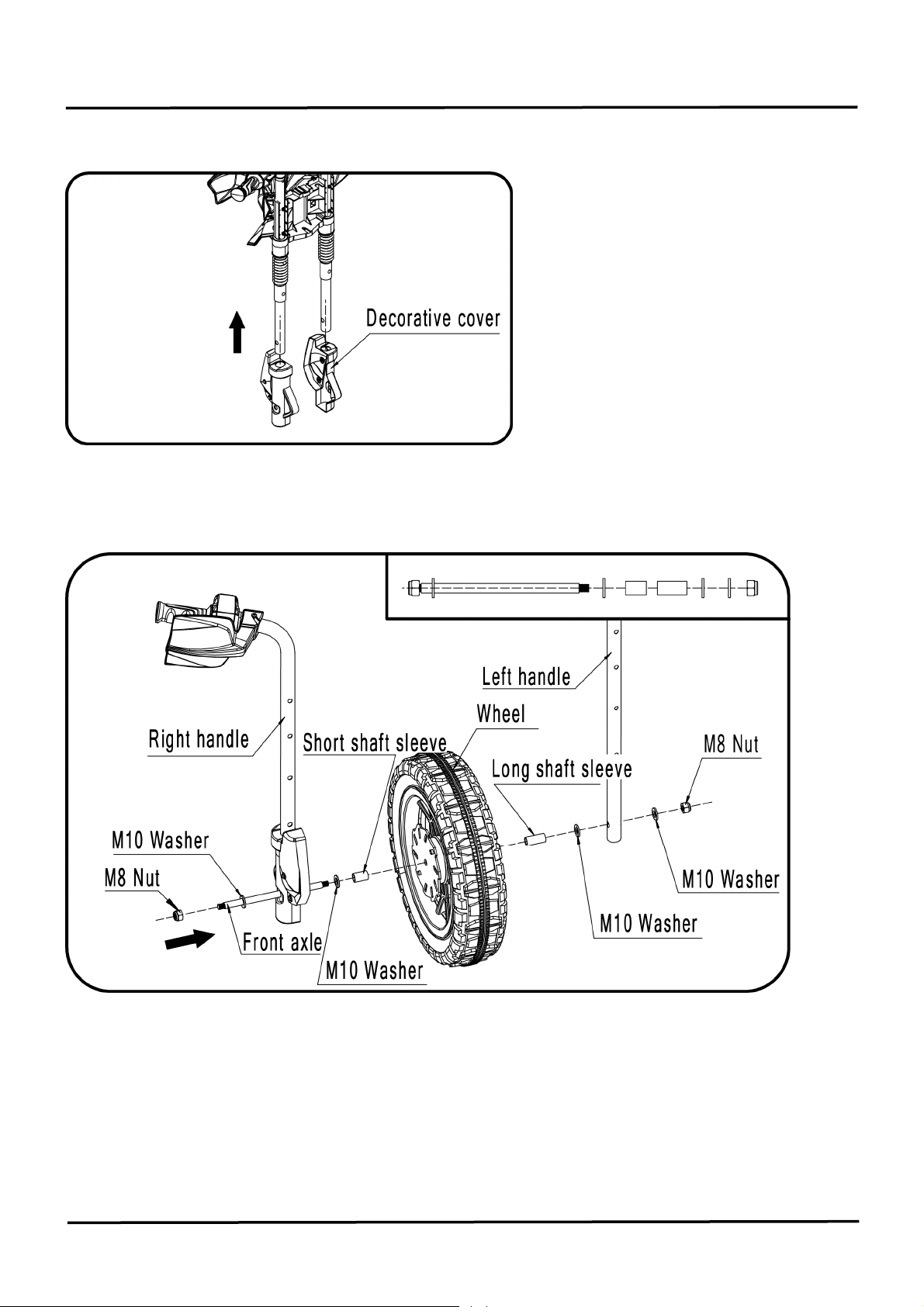

7. Install the front wheel .
Disconnect the front axle parts.
Put the front axle through the right handle,sequentially install washer, short shaft sleeve, wheel,
long shaft sleeve, washer.
Then through the left handle,install the washer, and tighten the nut.
FOR CUSTOMER SERVICE ENQUIRIES & SPARE PARTS
PLEASE CONTACT HUNTER PRODUCTS TOLL FREE 1800 224 094
OR
VISIT
WWW.ELECTRICRIDEON.COM.AU
-7-

Assembly Steps
8. Install the headstock.
Put the bolt through the headstock,
and tighten the nut.
9. Connect the power supply.
Plug the wire connector into the motor
connector.
Plug the headlight line plug together.
10. Install the music box.
Install the music box to the
corresponding place,and fasten with
the screws.
FOR CUSTOMER SERVICE ENQUIRIES & SPARE PARTS
PLEASE CONTACT HUNTER PRODUCTS TOLL FREE 1800 224 094
OR
VISIT
WWW.ELECTRICRIDEON.COM.AU
-8-

Assembly Steps
11. Install the Battery.
Loosen the battery cover screws of music box control and remove the cover. Insert two AA1.5V
batteries(See above photo). eplace battery cover .
non-rechargeable batteries are not to be recharged;
different type of batteries or new and used batteries are not to be mixed;
batteries are to be inserted with the correct polarity;
exhausted batteries are to be removed from the toy;
the supply terminals are not to be short-circuited.
rechargeable batteries are only to be charged under adult supervision;
rechargeable batteries are to be removed from the toy before being charged;
The transformers or battery charger used with the toy are to be regularly examined for damage to the cord,
plug, enclosure and other parts, and in the event of such damage, they must not be used until that damage
had been repaired.
IMPORTANT SUPPLEMENT TO INSTRUCTION MANUAL
After assembling any wheel to the axles, please check the gap
between the screw thread and the collapsible (refer to below
picture), if the gap is too big, please add two or three washers inside
the wheel, But after tightening the nut outside the wheel, please turn
the wheel by your finger to check if the wheel can run smoothly, this
is very important, because if the wheel can run smoothly, it is ok, but
if the nut press the wheel and the wheel can’t run smoothly, the
motor will be broken easily! Then you need to decrease one or two
washers to make sure the wheel can run smoothly!
FOR CUSTOMER SERVICE ENQUIRIES & SPARE PARTS
PLEASE CONTACT HUNTER PRODUCTS TOLL FREE 1800 224 094
OR
VISIT
WWW.ELECTRICRIDEON.COM.AU
-9-

How
To
Operate Your Motorcycle
T
e c arger needs
to
be disconnected
from
t e
bike
before operating!
Confirm before using
this
bike
the
following
work
has been completed:
•
Important!
Before
using
the vehicle for the first time, the
battery
needs to be
charged
for 8 to 12 hours,
no more than 16 hours.
Only
an adult can
charge
or
recharge
the
battery.
Rules
for
Safe Riding
READ THESE RULES ALOUD TO YOUR CHILD AND THEIR PLAYMATES AND MAKE
SURE THEY UNDERSTAND THEM!
•
Always
wear a helmet and protective
clothing
when
riding.
•Direct
Adult
upervision Required.
•Keep Children within afe Riding
Areas
.
•Never use in
roadway,
near motor vehicles, on or near steep inclines or steps,
swimming
pools or other bodies of water.
•Use the toy only on flat surfaces. such as inside your house, garden or playground.
•Never use in the dark.
A
child could encounter unexpected obstacles and have an accident. Operate the
vehicle
only
in the
daytime
or a
well-lit
area.
•It is not recommended to drive the vehicle on wet surfaces or on of greater than 15 degrees.
•Do not use this vehicle outdoors when it is
raining
or
snowing.
•Make sure
you
come to a complete stop before
changing
directions from forward to back.
•Please follow the correct weight and age limits allowed to drive this vehicle.
•It is prohibited to
change
the circuit or add other electric parts
•Inspect wires and connections of the vehicle
periodically.
•In order to avoid accidents, please ensure the vehicle is safe before riding.
•Do not let
any
child touch the wheels or be near them when the bike is
moving
.
WARNING!
PREVENT INJURIES AND DEATHS:
•NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS
REQUIRED. Always keep child in view when child is in vehicle.
•Never use in roadways, near cars, on or near steep inclines or steps,
swimming pools or other bodies of water.
•Always wear shoes.
•Always sit on the seat.
•Suitable for age 3+years; Maximum user weight is 3 kgs.
•Not to be used in traffic .
FOR CUSTOMER SERVICE ENQUIRIES & SPARE PARTS
PLEASE CONTACT HUNTER PRODUCTS TOLL FREE 1800 224 094
OR
VISIT
WWW.ELECTRICRIDEON.COM.AU
-10-

How To Operate Your Motorcycle
IMPORTANT!
Always stop vehicle
when changing the speed or
direction to avoid damage the
gear box and motor.
(1) Press the "Forward Button" ,the vehicle forwards.
(2) Release "Forward Button" ,the vehicle stops.
(3) You can en oy music by push any music button.
Circuit
diagram
FOR CUSTOMER SERVICE ENQUIRIES & SPARE PARTS
PLEASE CONTACT HUNTER PRODUCTS TOLL FREE 1800 224 094
OR
VISIT
WWW.ELECTRICRIDEON.COM.AU
-11-

C arging Your Motorcycle
ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY!
WARNING!
•PREVENT FIRE AND ELECTRIC SHOCK:
- Use the only rechargeable battery and charger supplied with your vehicle. NEVER substitute
the battery or the charger with another brand. Using another battery or charger my cause a fire
or explosion.
- Do not use the battery or charger for any other product. Overheating fire or explosion could
occur.
- NEVER modify the electric circuit system. Tampering with the electric system may cause
a shock fire or explosion or my permanently damage the system.
- Do not allow direct contact between battery terminals. Fire or explosion can occur.
- Do not allow any type of liquid on the battery or its components.
- Explosive gasses are created during charging. Do not charge near heat or flammable materials.
Charge the battery in a well-ventilated area ONLY.
- NEVER pick up the battery by the wires or charger. Damage can occur to the battery and may
cause a fire. Pick up the battery by the case ONLY.
- Charge the battery in a dry area ONLY.
•Battery posts terminals and related accessories contain lead and lead compounds chemicals
known to the State of California to cause cancer and reproductive harm.
Wash hands after handling.
•Do not open the battery. Battery contains lead acid and other materials that are toxic and
corrosive.
•Do not open the charger. Exposed wiring and circuitry inside case may cause electric shock.
Only adults may handle or charge the battery. NEVER allow child to handle or charge the
battery. Battery is heavy and contains lead acid (electrolyte).
•Do not drop the battery. Permanent damage to the battery could occur or cause serious injury.
•Before charging the battery check for wear or damage to the battery charger its supply cord
and the connectors. DO NOT charge the battery if any damage to parts has occurred.
•Do not allow the battery to drain completely. Recharge the battery after each use or once
a month if not used regularly.
•Do not charge battery upside down.
•Always secure the battery with the bracket.
•The toy should be used with caution since skill is required to avoid falls or collisions causing
injury to the user or third parties.
FOR CUSTOMER SERVICE ENQUIRIES & SPARE PARTS
PLEASE CONTACT HUNTER PRODUCTS TOLL FREE 1800 224 094
OR
VISIT
WWW.ELECTRICRIDEON.COM.AU
-12-

C arging Your Motorcycle
•The charging input socket is LOCATED IN THE ENGINE HOOD .
•The POWER SWITCH must be turned in OFF position when charging.
•Before the first use, you should charge the battery for 8-12 hours. Do not recharge the battery for
more than 16 hours to a oid o erheating the charger.
•When the ehicle begins to run slowly, recharge the battery.
•After each use or once a month minimum recharge time as 8 to 12 hours, no more than 16hours.
1. Open the charging seat co er;
2. Plug the charger port into the input socket;
3. Plug the charger plug into a wall outlet. The battery will begin charging.
WARNING!
This product has CHARGING
PROTECTION:
When charging, all the functions
will e cut off!
FOR CUSTOMER SERVICE ENQUIRIES & SPARE PARTS
PLEASE CONTACT HUNTER PRODUCTS TOLL FREE 1800 224 094
OR
VISIT
WWW.ELECTRICRIDEON.COM.AU
-13-

Troubles ooting Guide
■
PROBLEM:
T e
ve icle
does
not
run
disconnect
c arger
from
bike
before operation
PROBLEM CAUSE: The battery may low on power.
After each use, or once a month minimum, charge the battery for 8-12 hours. Do not leave the
battery on the charger for more than 16 hours.
POSSIBLE CAUSE: Thermal fuse has tr pped.
The vehicle is equipped ith a self-resetting fuse. When the vehicle is overloaded or operated
incorrectly; the self-resetting fuse ill be cut off for 5-20seconds before becoming operational
again. The self-resetting fuse is under the seat (Refer to the picture.)
To avoid the fuse cutting off the power,
follow these guidelines:
DO NOT overload the vehicle, Maximum weight
allowed :30kg
DO NOT tow anything behind the vehicle.
DO NOT drive up teep lope .
DO NOT drive into fixed object , which may cau e
the wheel to pin, cau ing the motor to overheat.
DO NOT drive in very hot weather, component
may overheat.
DO NOT tamper with the electric y tem, Doing
o may create a hort circuit, cau ing the fu e to
trip.
POSSIBLE CAUSE: Wheel nuts are loose.
If the nuts are not
tight,
the wheels will not
engage
the forward
gears.
Tighten
the nut with the nut wrench.
POSSIBLE CAUSE:
Battery
connector or w res are loose.
Make Sure the
battery
connectors are
firmly
plugged
in to each other.
POSSIBLE CAUSE:
Battery
s dead.
Have
you
properly
maintained the
battery
according
to the directions? Is the
battery
old? Your
battery
may
need to be replaced.
POSSIBLE CAUSE: Electr c
system
s
damaged.
ater
may
have corroded the
system,
or loose dirt,
gravel
or sand
might
have
jammed
the switch.
POSSIBLE CAUSE: Motor is
damaged.
The motor needs professional repair.
■
PROBLEM:
T e
battery
will
not
rec arge.
POSSIBLE CAUSE:
Battery
connector or
adapter
connector is loose.
Make sure the
battery
connector and adapter connector are
firmly
plugged
together.
POSSIBLE CAUSE:
Charger
is not
plugged
in.
Make sure the
charger
is
plugged
into the wall outlet and the
power
flow to the outlet is on.
POSSIBLE CAUSE:
Charger
is not
wor ing.
Is the
charger
warm while
charging?
If not, the
charger
may
be broken and
may
need to be
replaced.
FOR CUSTOMER SERVICE ENQUIRIES & SPARE PARTS
PLEASE CONTACT HUNTER PRODUCTS TOLL FREE 1800 224 094
OR
VISIT
WWW.ELECTRICRIDEON.COM.AU
-14-

Troubles ooting Guide
■
PROBLEM:
T e
ve icle
does
not
run
very
long.
POSSIBLE CAUSE: Battery may be undercharged.
You
may
not be
charging
the
battery
long
enough.
After
each use, or once a month minimum,
charge
the
battery
for 8 to 12 hours. Do not leave the
battery
on the
charger
for more than 16hours.
POSSIBLE CAUSE: Battery is old.
The
battery
will
eventually
lose the
ability
to hold a
charge.
Depending
on the amount of use, and
varying
conditions, the
battery
should operate for one to three
years.
eplace the
battery
with a new
One.
■
PROBLEM:
Battery
buzzes or
gurgles
w en
c arging.
This is normal and not a cause for concern. It
may
also be silent when
charging,
which is also normal.
■
PROBLEM: C arger
feels
warm
w en
rec arging battery.
This is normal and not a cause for concern.
Maintaining Your Ve icle
• It is parents'
responsibility
to check main parts of the
toy
before
using
.Must
regularly
examine for potential
hazard, such as the
battery,
charge,
cable or cord,
plug,
screws.
• Make sure the plastic parts of the vehicle are not cracked or broken.
•
Occasionally
use a
lightweight
oil to lubricate
moving
parts such as wheels.
• Park the vehicle indoors or
cover
it with a tarp to protect it from wet weather.
• Keep the vehicle
away
from sources of heat, such as stoves and heaters. Plastic parts
may
melt.
•
echarge
the
battery
after each use.
Only
an adult can handle the
battery.
echarge
the
battery
at least
once a month when the vehicle is not
being
used.
• Do not wash the vehicle with a hose. Do not wash the vehicle with soap and water. Do not drive the
vehicle in
rainy
or
snowy
weather. Water will
damage
the motor, electric
system
and
battery.
• Clean the vehicle with a soft,
dry
cloth. To restore shine to plastic parts, use a
non-wax
furniture polish. Do
not use car wax. Do not use abrasive cleaners.
• Do not drive the vehicle in loose dirt, sand or fine
gravel
which could
damage
moving
parts, motors or the
electric
system.
• When not
using,
the electrical source should be turn off. Turn off the power switch and disconnect the
battery
connection.
FOR CUSTOMER SERVICE ENQUIRIES & SPARE PARTS
PLEASE CONTACT HUNTER PRODUCTS TOLL FREE 1800 224 094
OR
VISIT
WWW.ELECTRICRIDEON.COM.AU
-15-

Disposal Of Battery
Disposal Of Battery
● Your sealed lead-acid battery must be recycled or disposed of in an environmentally
sound manner.
● Do not dispose of your lead-acid battery in a fire. The battery may explode or leak.
● Do not dispose of a lead-acid battery in your regular, household trash. The incineration,
land filling or mixing of sealed lead-acid batteries with household trash is prohibited by
law.
● Return an exhausted battery to your local approved lead-acid battery recycle, such as a
local seller of automotive batteries.
● ontact your local waste management officials for other information regarding the
environmentally sound recycling and disposal of lead-acid batteries.
● The battery must be charged only by adult .Please charge the product before using!
● The toy should not be connected to excessive powers (more than the quantity specified
herein), and it should not be operated during charging process.
● Any rechargeable battery must only be charged under adult's supervision.
● Battery charger shall regularly check the wires, plugs. casing and other parts for damage
and found damage should stop using and restored.
● Open the battery cover on the remote control, and put two pieces of batteries,paying
attention to batteries polarity. Replace the battery cover and lock with screws
(please replace the battery according to the above steps and should be done by adult) .
● All batteries should be inserted with the correct polarity.
● Non-rechargeable battery should not be charged, please remove any running-off battery
from the toy.
● Do not use old and new batteries together, or mix different types of batteries.
● The battery charger used with the toy are to be regularly examined for damage to the cord,
plug, enclosure and other parts, and in the event of such damage, they must not be used
until that damage had been repaired.
FOR CUSTOMER SERVICE ENQUIRIES & SPARE PARTS
PLEASE CONTACT HUNTER PRODUCTS TOLL FREE 1800 224 094
OR
VISIT
WWW.ELECTRICRIDEON.COM.AU
-16-

SERVICE
＆
WARRANTY
Our
goods
come
with
guarantees
that
cannot
be
excluded
under
the
Australian
Consumer
Law.
You
are
entitled
to
a
replacement
or
refund
for
a
major
failure
and
for
compensation
for
any
other
reasonably
foreseeable
loss
or
damage.
You
are
also
entitled
to
have
the
goods
repaired
or
replaced
if
the
goods
fail
to
be
of
acceptable
quality
and
the
failure
does
not
amount
to
a
major
failure.
Where
a
failure
does
not
amount
to
a
major
failure
we
are
entitled
to
choose
between
providing
you
with
a
repair
replacement
or
refund.
To
obtain
compensation
you
would
need
to
provide
documentary
evidence
of
the
loss
or
damage
suffered
and
documentary
evidence
that
such
loss
or
damage
was
a
reasonably
foreseeable
consequence
of
a
failure
by
us
to
comply
with
a
consumer
guarantee
under
the
Australian
Consumer
Law.
Such
evidence
may
include
photographs
statutory
declarations
receipts
or
reports
(e.g.
from
your
doctor)
depending
on
the
loss
or
damage.
In
addition
to
all
rights
and
remedies
to
which
you
may
be
entitled
under
the
Competition
and
Consumer
Act
2010
(Commonwealth)
and
any
other
relevant
legislation
the
manufacturer
warrants
this
product
to
be
free
from
defects
in
materials
or
workmanship
for
a
period
as
stated
on
the
packaging
from
the
date
of
purchase.
In
order
to
claim
under
this
warranty
you
will
need
to
bring
the
product
to
the
store
of
purchase
along
with
proof
of
purchase
(typically
this
will
be
a
receipt).
Any
cost
incurred
by
you
in
bringing
the
product
to
the
service
desk
will
be
borne
by
you.
We
will
then
at
our
option
either
repair
or
replace
the
product
or
refund
your
money
and
take
back
the
product.
Our
liability
under
this
manufacturer
’
s
warranty
is
subject
to
us
being
satisfied
that
a
defect
was
caused
by
defective
workmanship
or
materials
and
was
not
caused
by
or
substantially
contributed
to
by
other
factors
or
circumstances
beyond
our
control
including
(but
not
limited
to)
defective
installation
maintenance
or
repair
alteration
or
modification
of
the
product
in
any
manner
not
recommended
by
the
manufacturer
or
any
neglect
misuse
or
excessive
use.
The
benefits
conferred
by
this
manufacturer
’
s
warranty
are
in
addition
to
all
rights
and
remedies
conveyed
by
the
Competition
and
Consumer
Act
2010
(Commonwealth)
and
any
other
statutory
rights
to
which
you
may
already
be
entitled
and
this
warranty
does
not
exclude
restrict
or
modify
any
such
rights
or
remedies
that
are
implied
by
law
.
HUNTER PRODUCTS
Level 2, 424 Warrigal Road Moorabbin 318
Ph: 1800 224 0 4
Email: [e-mail]
