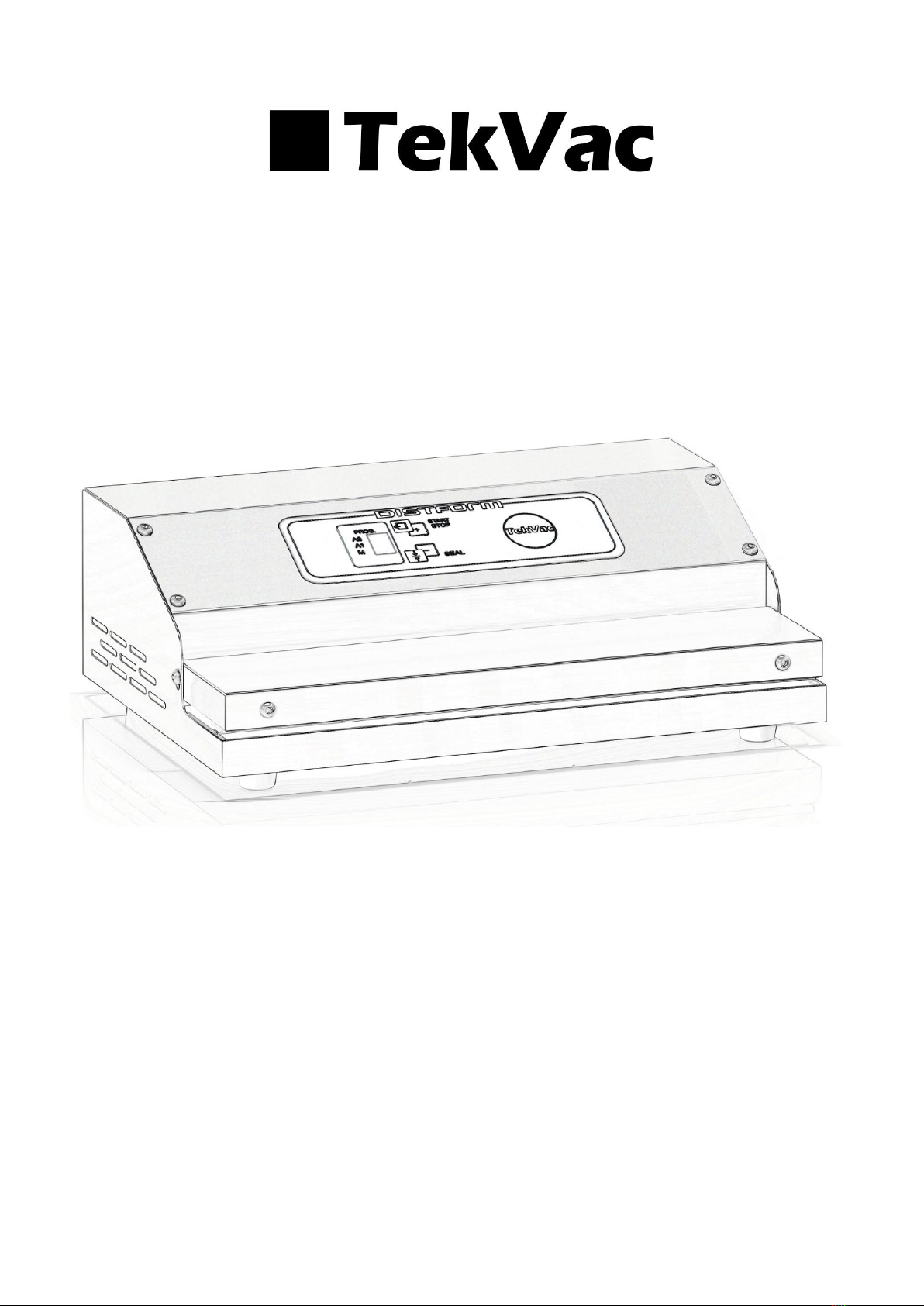

TekVac TVE010T2 Quick start guide

INSTALLATION, USE, AND MAINTENANCE MANUAL
EXTERNAL VACUUM PACKERS
TVE010T2; TVE020T2; TVE040T2

2
Index
1. INTRODUCTION ..................................................................................................................... 3
2. TECHNICAL FEATURES ........................................................................................................... 3
2.1 General measurements................................................................................................. 3
3. GENERAL WARNINGS AND MANUFACTURER DISCLAIMER .................................................. 4
3.1 Warranty ....................................................................................................................... 4
4. INSTALLATION ....................................................................................................................... 4
4.1 Electrical connection ..................................................................................................... 4
5. OPERATION ........................................................................................................................... 5
5.1 Work cycle..................................................................................................................... 5
5.2 Preset programs ............................................................................................................ 5
5.3 STANDARDS................................................................................................................... 5

3
1. INTRODUCTION
This document has been carefully prepared and checked in order to provide reliable and
helpful information regarding the use of the appliance. The manufacturer waives all liability,
express or implied, for possible errors or omissions this document may contain.
Before operating or using this appliance, read this manual carefully and thoroughly.
The owner of the appliance must require that all personnel in charge of use and
maintenance read this manual.
2. TECHNICAL FEATURES
Manufactured in stainless steel.
Length of sealing bar varies by model
(370/470mm)
Double sealing strip
Width of sealing strip 2 x 2.5mm
Flat control panel for easy cleaning.
LED light indicates which program is in
use.
Time-controlled vacuum.
Manual adjustment of vacuum time
Automatic sealing once the programmed
vacuum level has been reached.
Vacuum time can be set from 0.5 to 60
seconds.
Self-lubricating vacuum pump. Power
varies by model (10, 20, 40 l/min).
Opens manually.
Only works with embossed vacuum bags.
Automatic or manual operation
Seal time can be set from 0.5 to 9.9
seconds.
Three programs of operation: two
automatic and one manual.
2.1 General measurements
MODELS
TVE010T2
TVE020T2
TVE040T2
Exterior
measurements
(Width x Depth x
Height)
385x254x125mm
385x254x125mm
485x254x125mm
Pump capacity
10 l/min
20 l/min
20+20 l/min
Voltage
230V/L+N/50Hz
Power
0.3 kW
0.45 kW
Length of sealing
bar
300
300
400

4
3. GENERAL WARNINGS AND MANUFACTURER DISCLAIMER
Failure to observe preventive measures outlined in this manual or failure to heed specified
warnings, inappropriate use of all or some of the appliance components, use of unauthorized
replacement parts, and use of appliance by unauthorized personnel violate each of the safety
standards applied in the project, construction, and manufacture, and absolve DISTFORM, S.L.
of all responsibility in the event of damage to persons or property.
The company, DISTFORM, S.L., is not responsible for any consequences which may result from
the user failing to observe the security measures outlined in this manual.
3.1 Warranty
DISTFORM, S.L. provides a one-year warranty from the date of invoicing for the proper
functioning of the appliance.
Excluded from the warranty is regular physical wear on appliance parts such as:
Sealing bars, teflon, air filters, silicone rubber, gaskets, and all damages resulting from misuse
or negligence.
If a vacuum pump is returned with suction problems or malfunctions, DISTFORM, S.L. reserves
the right to check if the pump has drawn in foreign bodies (liquids, solids, etc.) and, if so, the
problem will be attributed to client negligence during use and not to manufacturer defects.
Changes in the exterior electrical network, or poor connection to electrical networks, may
cause damage to the electronic board, which is not attributable to DISTFORM, S.L.
All replacement materials and labor will be covered during the warranty period.
For any repair or replacement part that is requested at the client domicile, the repair
technician's transportation or travel costs will be the client's responsibility, while labor and
spare and replacement parts will be provided free of charge.
Transportation costs (to or from) will not be reimbursed for appliance procedures carried out
at DISTFORM, S.L., either during the warranty period or after.
Any defective part (pump, board, etc.) that has been manipulated by the client during the
warranty period will no longer be covered by this warranty. DISTFORM, S.L. is solely
responsible for determining that function.
4. INSTALLATION
Place the appliance on a flat surface and ensure that the appliance is level.
The appliance should be placed so that it is protected from water and dirt splatters.
Do not place the appliance near heat sources such as ovens, stoves, griddles, deep-fryers, etc.
4.1 Electrical connection

5
Before connecting the appliance, check that the voltage matches the voltage indicated on the
features plate.
Once the voltage has been checked, connect the two-pole plug to the electrical outlet.
5. OPERATION
5.1 Work cycle
Turn on the main switch, located on the right side of the appliance, and the display lights up.
Place the product inside the bag
Open the lid and place the opening of the bag on the plate inside the machine, without
passing the angled border.
Close the lid and press the START / STOP button, then press down on the lid so that the
vacuum cycle begins. THE LID STAYS SHUT.
When the air has been extracted from the bag, press the SEAL button to seal it. The
packer STOPS AUTOMATICALLY.
In 5/6 seconds, the lid will pop open automatically, AND YOU CAN REMOVE THE BAG.
5.2 Preset programs
MANUAL CYCLE: If you press START/STOP, the cycle does not end. Once the desired vacuuming
has occurred, press the SEAL button to seal the bag.
AUTOMATIC CYCLE: while the machine is running, press SEAL, a line indicating M (manual) will
appear. If you press the button a second time, the line moves to A1 (automatic cycle 1, with a
15-second vacuum time). If you press the button a third time, the line moves to A2 (automatic
cycle 2, with a 30-second vacuum time). The sealing time can be always be changed in
Automatic Cycle.
Pressing START/STOP starts the vacuum cycle that, after the programmed suction cycle, will
automatically seal and end the cycle.
5.3 STANDARDS
-Appendix "I" to the 89/392/CEE directive and its modifications: section 1.7.4
-UNI EN 292/2 –19921 section 5.5.
