Installation & User Guide
Models: 2643-13-01 / 2643-14-01 / 2643-15-01 / 2643-16-01 /
2643-17-01 / 2643-1E / 2643-1G-01 / 2643-1J-01 /
2643-1K-01 / 2643-1M-01 / 2643-1X-01 / 2643-1Y-01

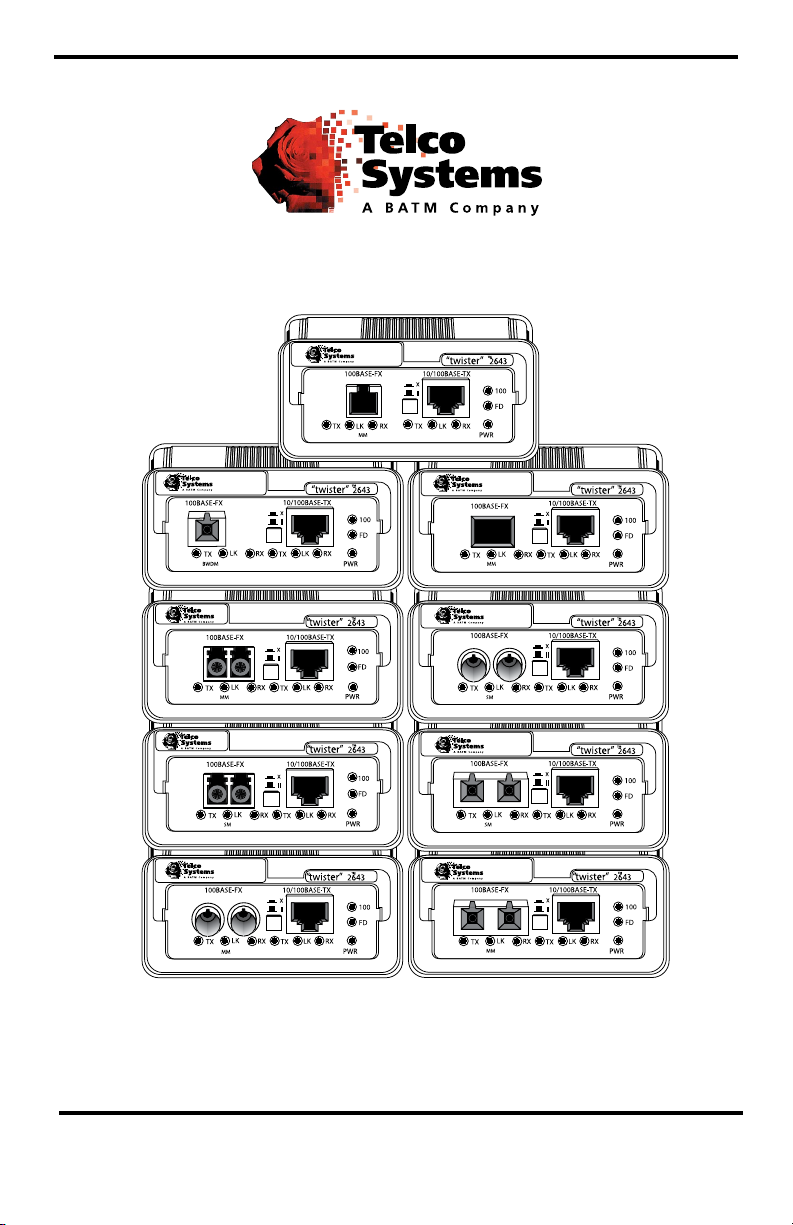

Metrobility® 10/100 AutoTwister®

This publication is protected by the copyright laws of the United States and other countries, with all rights reserved. No
part of this publication may be reproduced, stored in a retrieval system, translated, transcribed, or transmitted, in any
form, or by any means manual, electric, electronic, electromagnetic, mechanical, chemical, optical or otherwise, without
prior explicit written permission of Telco Systems, Inc.
© 2009 Telco Systems, Inc. All rights reserved. Printed in USA.
The Metrobility®10/100 AutoTwister
2643-13-01_____10/100Base-TX to 100Base-FX multimode SC
2643-14-01_____10/100Base-TX to 100Base-FX singlemode SC
2643-15-01_____10/100Base-TX to 100Base-FX multimode ST
2643-16-01_____10/100Base-TX to 100Base-FX singlemode ST
2643-17-01_____10/100Base-TX to 100Base-FX singlemode SC (40km)
2643-1E-01 ____10/100Base-TX to 100Base-FX multimode MT-RJ
2643-1G-01 ____10/100Base-TX to 100Base-FX multimode VF-45
2643-1J-01 ____10/100Base-TX to 100Base-FX singlemode SC (100km)
2643-1K-01 ____10/100Base-TX to 100Base-FX multimode LC
2643-1M-01 ____10/100Base-TX to 100Base-FX singlemode LC
2643-1X-01 ____10/100Base-TX to 100Base-FX singlemode 1550/1310nm
bidirectional wavelength division multiplexed (BWDM) SC
2643-1Y-01 ____10/100Base-TX to 100Base-FX singlemode 1310/1550nm
BWDM SC

Table of Contents
10/100 AutoTwister Installation & User Guide
Overview ....................................................................................................................4
Installation Guide ....................................................................................................5
STEP 1: Unpack the AutoTwister and Accessories ....................................5
STEP 2: Choose an Appropriate Location .................................................5
STEP 3: Set the Switches............................................................................5
STEP 4: Connect to the Network................................................................9
STEP 5: Apply Power ..............................................................................11
User Guide ...............................................................................................................13
LED Indicators..........................................................................................13
Factory Settings ........................................................................................14
Link Loss Return (LLR) ...........................................................................15
Link Loss Carry Forward (LLCF) ............................................................16
Auto-Recovery..........................................................................................17
Auto-Recovery Application Example.......................................................18
Topology Solutions ...................................................................................19
Technical Specications ...........................................................................20
Product Safety, EMC and Compliance Statements...................................22
Warranty and Servicing ............................................................................23
Metrobility, Metrobility Optical Systems, NetBeacon, AutoTwister and “twister” are registered trademarks of Telco
Systems, Inc., a BATM company.
The information contained in this document is assumed to be correct and current. The manufacturer is not responsible for
errors or omissions and reserves the right to change specications at any time without notice.

4
Overview
The Metrobility 10/100 AutoTwister provides seamless migration between
Ethernet and Fast Ethernet networks, in addition to built-in media conversion
allowing high-speed integration of ber optic and twisted-pair segments. A complete
set of LEDs allows for quick status verication, and a bank of DIP switches provides
added versatility on each port. To optimize your Ethernet network, each port operates
independently in either half or full duplex.
The 10/100 AutoTwister standalone units offer the following key features:
• Auto-negotiation switch on the twisted-pair interface.
• Half to full duplex conversion.
• Link loss auto-recovery on the ber optic port.
• Link Loss Return (LLR) functionality to aid in troubleshooting a remote
network connection on the ber optic port.
• Link Loss Carry Forward (LLCF) functionality to aid in troubleshooting a
remote network connection.
• An MDI-II to MDI-X switch that eliminates the need for crossover cables
on the twisted-pair port.
• Full-duplex ow control on each port.
• Store-and-forward switching to improve overall network performance by
buffering packets during times of heavy congestion and to prevent the for-
warding of corrupted packets.
• High-performance switching engine that performs forwarding and ltering
at full wire speed (148,800 packets per second).
• The ability to learn up to 1,024 MAC addresses.
• Low last-bit-in to rst-bit-out delay.
• VLAN tagging support.
• Discards short packets (less than 64 bytes) and packets with CRC or align-
ment errors.
• Maximum transmission unit (MTU) size of 1522 bytes.
• 128K bytes of buffer memory.
• Full compliance with applicable sections of IEEE 802.3, IEEE 802.3u, and
IEEE 802.3x.

Metrobility 10/100 AutoTwister 5
Installation Guide
Follow the simple steps outlined in this section of the guide to install and start
using the Metrobility 10/100 AutoTwister.
Unpack the AutoTwister and Accessories
Check that the following components have been included:
• 10/100 AutoTwister
• Power supply
• Power cord
• Four (4) rubber feet
Your order has been provided with the safest possible packaging, but ship-
ping damage does occasionally occur. Inspect your order carefully. If you
discover any shipping damage, notify your carrier and follow their instruc-
tions for damage and claims. Save the original shipping carton if return or
storage of the unit is necessary.
Choose an Appropriate Location
The 10/100 AutoTwister is intended for use in either ofce or industrial
environments. The unit must be located within six (6) feet of the AC power
source being used and placed as far away as possible from electrical noise
generating equipment such as copiers, electrostatic printers and other motor-
ized equipment. If exposed twisted-pair wiring is used nearby, the wiring
should be routed as far away as possible from power cords and data cables
to minimize interference.
The units may be oriented in any manner which allows you to make physi-
cal connection to the power supply and leaves a minimum of six (6) inches
of space for proper ventilation.
Set the Switches
MDI-II to MDI-X Switch
To eliminate the need for crossover cables, the 10/100 AutoTwister includes
an MDI-II to MDI-X switch for the twisted-pair port. This push-button
switch is located in the center of the front panel and allows setup in either
straight-through or crossover congurations. (See Figure 1.)
When setting the switch, observe the positioning of the following symbols:
3
2
1

6 Installation Guide
A device that is wired straight through needs one crossover connection:
If the cable is…
straight through
crossover
…the MDI-II to MDI-X Switch Setting should be
X
II
A device that is wired crossover needs a parallel connection:
If the cable is…
straight through
crossover
…the MDI-II to MDI-X Switch Setting should be
II
X
• The parallel symbol (II) indicates a straight through or parallel connec-
tion. Switch is out. (default)
• The cross symbol (X) indicates a crossover connection. Switch is in.
Use the tables below as a guide.
Figure 1.
DIP Switches

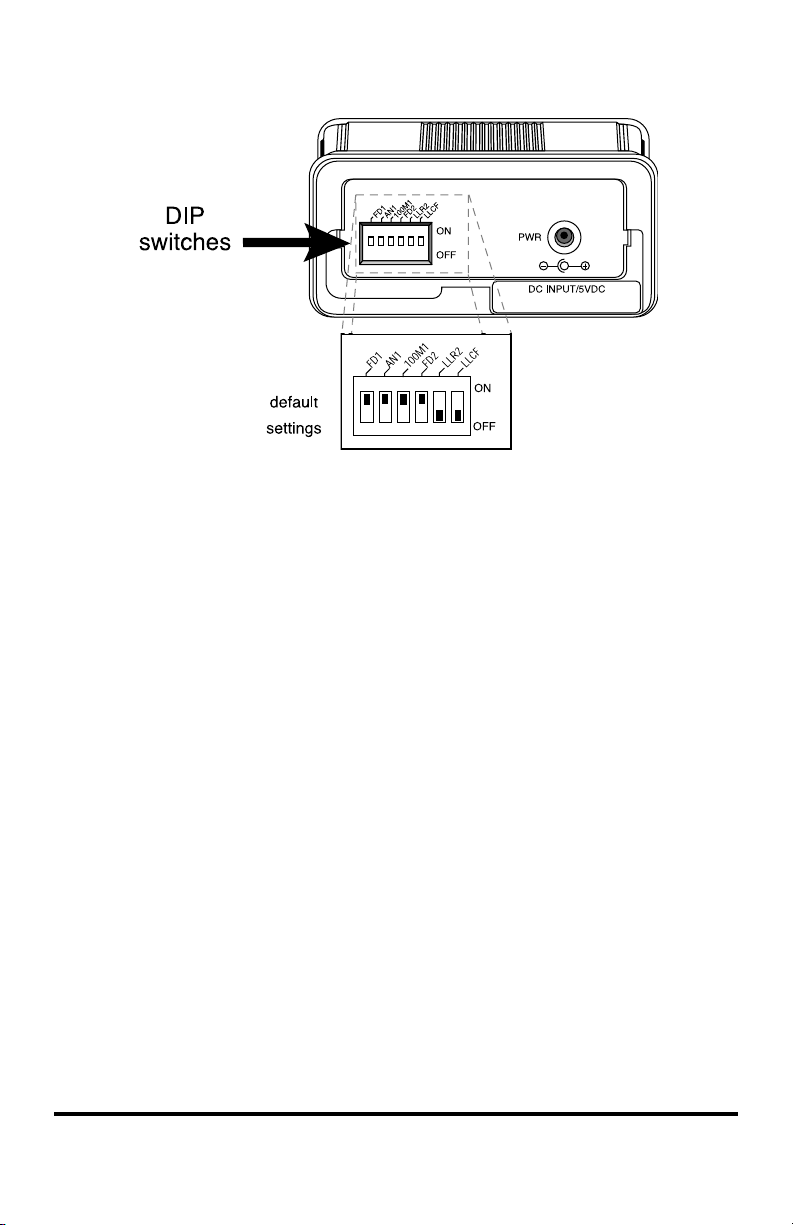

The 10/100 AutoTwister includes a set of six DIP switches located on the
back of the unit. (See Figure 2.) These switches allow you to select the
operational mode best suited to your network’s conguration.
When setting DIP switches, the ON position is when the DIP switch is
pushed up toward the top of the unit. The OFF position is when the DIP
switch is pushed down toward the bottom.

Metrobility 10/100 AutoTwister 7
*Changes to switches AN1, 100M1, FD1 and FD2 only come into effect after the power-cycle initialization.
Auto-Negotiation Switch (AN1)*
Switch AN1 controls the use of auto-negotiation on the copper port. To
enable auto-negotiation, set the switch ON. To disable this function, set the
switch OFF. By default, auto-negotiation is enabled.
When the copper port has auto-negotiation enabled, it advertises 100Mbps
full duplex capabilities. When auto-negotiation is disabled, the port’s duplex
is determined by the FD1 switch, and its speed is set by the 100M1 switch.
10/100Mbps Switch (100M1)*
Switch 100M1 controls the speed setting for the copper port. If auto-ne-
gotiation is disabled, the port speed will be the same as this switch setting,
where ON is 100Mbps and OFF is 10Mbps. The default speed setting is
100Mbps. When auto-negotiation is enabled, the 100M1 switch setting is
ignored.
Half/Full Duplex Switch (FD1, FD2)*
Switch FD1 determines the duplex mode for the copper port if auto-negoti-
ation is disabled. When auto-negotiation is enabled, the FD1 switch setting
is ignored. Switch FD2 determines the duplex mode on the ber optic port.
A port operates at full duplex when its FD switch is ON. It operates at half
duplex when its FD switch is OFF. The default is full duplex enabled.
Figure 2.

8 Installation Guide
Link Loss Return Switch (LLR2)
The 10/100 AutoTwister incorporates Link Loss Return (LLR) functional-
ity as an aid in troubleshooting remote connections on its ber optic port.
When LLR is enabled, the loss of the inbound link pulses on the port stops
the transmission of outbound link pulses on the same port. For example, if
LLR is enabled on port 2 and its receiver (RX) stops detecting link pulses,
then port 2’s transmitter (TX) will stop sending link pulses. LLR is not ap-
plicable to the copper port.
Link Loss Return is enabled on Port 2 when switch LLR2 is ON. The unit
is shipped with LLR disabled. Refer to Link Loss Return in the User Guide
section of this manual for more information.
Link Loss Carry Forward Switch (LLCF)
In addition to LLR, the AutoTwister supports Link Loss Carry Forward
functionality to help with troubleshooting remote connections.
Unlike LLR, which only applies to the ber port, LLCF affects both ports
on the AutoTwister. When LLCF is enabled, the loss of inbound link pulses
on a port stops the transmission of outbound link pulses on the opposite
port. For example, if LLCF is enabled, the loss of incoming link pulses at
Port 1 will stop the transmission of link pulses out of Port 2. Conversely, if
Port 2 stops receiving link pulses, Port 1 will not transmit link pulses.
Link Loss Carry Forward is enabled on both ports when switch LLCF is
ON. The unit is shipped with LLCF disabled. Refer to Link Loss Carry
Forward in the User Guide section of this manual for further details.
Use the following table to set the DIP switches to obtain specic modes of
operation. The conguration column lists the speed and duplex options for
Port 1 on the left and Port 2 on the right. “Auto” denotes that auto-negotia-
tion is enabled.

Metrobility 10/100 AutoTwister 9
Set the switches ON
where indicated.
Set the switches
OFF for the blank
positions.
NA indicates the
switch setting is
not applicable and
can be either ON or
OFF.
noitarugifnoC
1troP2troP
1DF1NA1M0012DF
lluF001-otuAANNOANNO
flaH001-otuAANNOAN
flaH001-flaH01
lluF001-flaH01NO
flaH001-lluF01NO
lluF001-lluF01NONO
flaH001-flaH001NO
lluF001-flaH001NONO
flaH001-lluF001NONO
lluF001-lluF001NONONO
Connect to the Network
The Metrobility 10/100 AutoTwister offers the ease of plug-and-play
installation.
Fiber Optic Connections
• The 2643-13-01, 2643-15-01, 2643-1E-01, 2643-1G-01, and 2643-1K-01
provide one set of FX multimode SC/ST/MT-RJ/VF-45/LC connectors,
respectively, and support a maximum segment length of up to 2km for
remote links.
• The 2643-14-01, 2643-16-01 and 2643-1M-01 provide one set of FX
singlemode SC/ST/LC connectors, respectively, and support a segment
length of up to 20km for remote links.
• The 2643-17-01 provides one set of FX singlemode SC connectors and
supports a maximum segment length of up to 40km for remote links.
• The 2643-1J-01 provides one set of FX singlemode SC connectors and
supports a maximum segment length of up to 100km for remote links.
4

10 Installation Guide
2643-15, -16
ST, RJ-45
2643-13, -14, -17, -1J
SC, RJ-45
2643-1K, -1M
LC, RJ-45
2643-1X, -1Y
BWDM SC, RJ-45
BWDM Connection
The bidirectional wavelength division multiplexed (BWDM) port provides
one singlemode SC connector that supports a maximum segment length of
20km. BWDM line cards must always be used in complementary pairs. That
is, a -1X model must be connected to a -1Y. The -1X cards are designed to
transmit data at a wavelength of 1550nm and receive at 1310nm. Corre-
spondingly, the -1Y cards transmit data at 1310nm and receive at 1550nm.
Twisted-Pair Connection
Each AutoTwister provides one shielded RJ-45 connector that supports
a maximum segment length of up to 100 meters. Use Category 3, 4 or 5
cables for 10Mbps segments; use only Category 5 or 5E cables for 100Mbps
segments.
2643-1G
VF-45, RJ-45
2643-1E
MT-RJ, RJ-45
Figure 3.

Metrobility 10/100 AutoTwister 11
5
NOTE: Be sure to properly set the MDI-II to MDI-X switch located between
the two port connectors. Refer back to Step 3 if necessary.
Once power is applied to the unit, correct connectivity can be veried via
the link (LK) LEDs if a device is connected to the remote end of the cable.
Apply Power
Power is applied to the AutoTwister from the desktop power supply. The
power supply is equipped with an S760 hollow-type plug for insertion into
the DC jack located on the back panel and the standard IEC 320-type AC
power receptacle. All standalone AutoTwister standalone units use a 90-
260V universal desktop power supply.
Connect the DC input jack located on the back of the AutoTwister before
connecting to the AC outlet.
Upon receiving power, the AutoTwister goes into normal operation mode
and automatically provides the appropriate signal translation between the
connected network segments.
Verify valid connections via the link (LK) LEDs on the AutoTwister’s front
panel.
PWR
DC INPUT/5VDC
OFF
ON
FD1
AN1
100M1
LLR2
FD2
LLCF
Figure 4.

12 Installation Guide
If an additional extension cord is used to connect the power supply to the
outlet, follow the guidelines below.
While one end of the AC power cord can be tted with a plug standard for
the country of operation, the end that connects to the AutoTwister’s power
supply must have a female plug that ts this type of AC receptacle.
• AC 115V (North American): Use a UL-listed and CSA-certied
cord set consisting of a minimum No. 18 AWG, type SVT or SJT
three-conductor cord (15 ft. maximum length) and a parallel blade,
grounding-type attachment plug rated 15A, 125V.
• AC 230V (USA): Use a UL-listed cord set consisting of a mini-
mum No. 18 AWG, type SVT three-conductor cord (15 ft. maxi-
mum length) and a Tandem blade grounding-type attachment plug
rated 15A, 250V.
• 240V (outside USA): Use a cord set consisting of a minimum No.
18 AWG cord and grounding-type attachment plug rated 15A,
250V. The cord set should have the appropriate safety approvals
for the country in which the AutoTwister is installed and marked
HAR.

Metrobility 10/100 AutoTwister 13
User Guide
This section contains information regarding the operating features of the
Metrobility 10/100 AutoTwister.
LED Indicators
The Metrobility 10/100 AutoTwister provides several LEDs for the visible verica-
tion of unit status and proper functionality. The LEDs can assist in troubleshooting
and with overall network diagnosis and management. There are separate transmit,
receive and link indicators for each port. The twisted-pair port also has a speed LED
and a duplex LED.
After power is applied to the AutoTwister, verify correct connectivity via the link
LEDs.
LED
Label
LED
Name Color (Status) Function
PWR power green (steady) The unit is ON.
Copper Port LEDs
100 speed green (steady) The speed setting of the port is 100Mbps
when lit. It is 10Mbps when not lit.
FD duplex green (steady) The port is in full-duplex mode when lit.
It is in half-duplex when not lit.
RX receive green (blinking) The port is receiving data.
LK link green (steady) Veries that the port has a valid link.
TX transmit green (blinking) The port is sending data.
Fiber Port LEDs
RX* receive green (blinking) The port is receiving data, or the port is
attempting auto-recovery.
LK* link green (steady) Veries that the port has a valid link.
TX transmit green (blinking) The port is sending data, or the port is
attempting auto-recovery.
*RX and LK LEDs will blinking while Auto-Recovery (AR) is being attempted.

14 User Guide
Factory Settings
This section describes the preset features on the 10/100 AutoTwister. These settings
cannot be changed.
Full-Duplex Flow Control
The AutoTwister supports ow control on each port in full duplex only. Full-duplex
ow control is provided to avoid dropping packets during network congestion. If
there is no buffer space available for incoming packets, the AutoTwister will issue
a PAUSE frame. Full-duplex ow control is only applicable to ports operating in
full duplex with auto-negotiation enabled. Additionally, during auto-negotiation, the
port’s link partner must advertise that it supports PAUSE frames.
For ports operating at half duplex, the AutoTwister does not support any type of ow
control. If there are not enough buffers available, incoming packets will be dropped.
Auto-Recovery
The AutoTwister includes an auto-recovery circuit that allows you to transparently
connect a pair of AutoTwister units between two network devices. This enables you
to design a redundant path between 10Mbps and 100Mbps devices, allowing both
end devices to lose link if any part of the connection is broken.
To activate auto-recovery, all of the following conditions must be met:
• Auto-negotiation is disabled.
• LLR is enabled.
• LLCF is enabled.
When auto-recovery is enabled, the AutoTwister attempts to establish the ber link
between two back-to-back units. Because LLR is enabled on both AutoTwister stand-
alone units, auto-recovery is needed to prevent the two ber ports from ending up in
a deadlock situation with each ber port waiting for the other to transmit rst. Auto-
recovery allows the deadlock to be broken by periodically sending out pulses from
the ber port allowing the AutoTwister to reestablish its ber link if the line is intact.

Metrobility 10/100 AutoTwister 15
Link Loss Return (LLR)
The ber optic ports of the Metrobility AutoTwister have been designed with LLR*
functionality for troubleshooting a remote connection.
When LLR is enabled, the ber port’s transmitter shuts down when its receiver fails
to detect a valid receive link. LLR is normally enabled on one end of the link and is
typically enabled on either the unmanaged or remote device. Setting LLR on both
ends of the link necessitates auto-recovery. See Auto-Recovery on page 17.
The diagram below shows a typical network conguration with good link status us-
ing AutoTwister standalone units for remote connectivity.
If one of the optical conductors is bad (as shown in the diagram box below), the
AutoTwister with LLR enabled will return a no-link condition to its link partner. This
aids the administrator in determining the source of the loss.
PC
Remote
Station
Switch/Hub
w/SNMP
Switch/Hub
w/SNMP
AutoTwisterAutoTwister
TP TPFiber
Cable
LED lit = established link LED unlit = no link
LLR is OFF LLR is ON
PC
Remote
Station
Switch/Hub
w/SNMP
Switch/Hub
w/SNMP
AutoTwisterAutoTwister
Link Loss Returned
LED lit = established link LED unlit = no link
TP TPBroken
Fiber
Conductor
LLR is OFF LLR is ON
*Units are shipped with the LLR function disabled (OFF).

16 User Guide
Link Loss Carry Forward (LLCF)*
The AutoTwister incorporates LLCF for troubleshooting remote connections. When
LLCF is enabled, the ports do not transmit a link signal until they receive a link
signal from the opposite port.
The diagram below shows a typical network conguration with good link status
using Metrobility AutoTwister standalone units for remote connectivity. Note that
LLCF is enabled as indicated in the diagram below.
Management
Station
Management
Station
Switch/Hub
w/SNMP
Switch/Hub
w/SNMP
AutoTwisterAutoTwister
LED lit = established link LED unlit = no link
LLCF is ON LLCF is ON
Remote
Cable
If a connection breaks, the AutoTwister standalone units carry that link loss forward
to the switch/hubs which generate a trap to the management stations. A network
administrator can then determine the source of the problem.
Link Loss Carried Forward Link Loss Carried Forward
LED lit = established link LED unlit = no link
Management
Station
Management
Station
Switch/Hub
w/SNMP
Switch/Hub
w/SNMP
AutoTwisterAutoTwister
LLCF is ON LLCF is ON
Broken
Remote
Cable
Link Loss Carried Forward
LED lit = established link LED unlit = no link
Management
Station
Management
Station
Switch/Hub
w/SNMP
Switch/Hub
w/SNMP
AutoTwisterAutoTwister
LLCF is ON LLCF is ON
Broken
Cable
Remote
Cable
* Units are shipped with LLCF disabled (OFF).

Metrobility 10/100 AutoTwister 17
Auto-Recovery
A typical application of the 10/100 AutoTwister is to use it in pairs to extend a net-
work’s reach between two distant devices.
Switch/Hub
w/SNMP
Switch/Hub
w/SNMP
AutoTwisterAutoTwister
LED lit = established link LED unlit = no link
Fiber
Cable
In this back-to-back setup, it may be desirable to see the entire link down if any of
the connecting segments fails. This means that both copper ports must relay a no link
condition to the switch/hub when any of the cables is broken.
For proper operation in this conguration, auto-recovery must be enabled. In the
standalone AutoTwister, auto-recovery is enabled only when all of the following
switches are set as indicated:
AN1 = disabled (OFF) LLR2 = enabled (ON) LLCF = enabled (ON)
Because LLR is enabled on both units, auto-recovery is required to prevent the two
ber ports from ending up in a deadlock situation, with each waiting for the other to
transmit rst. Auto-recovery allows the deadlock to be broken by periodically send-
ing out pulses from the ber port forcing the AutoTwister to establish its ber link if
the line is intact.
The diagrams below show how the two switch/hubs are alerted to a broken ber
cable. Notice that both LLR and LLCF must be enabled under this condition.
Switch/Hub
w/SNMP
Switch/Hub
w/SNMP
AutoTwisterAutoTwister
LED lit = established link LED unlit = no link
Fiber
Cable
Link Loss
Carried Forward
Link Loss
Returned
Link Loss
Carried Forward
Switch/Hub
w/SNMP
Switch/Hub
w/SNMP
AutoTwisterAutoTwister
LED lit = established link LED unlit = no link
Fiber
Cable
Link Loss
Carried Forward
Link Loss
Returned
Link Loss
Carried Forward

18 User Guide
Auto-Recovery Application Example
A set of four AutoTwister standalone units can be used to provide the redundancy
necessary to ensure that data from a 100Mbps device reaches its destination in a
10Mbps device, as illustrated in the diagram below. In this example, the main link,
which includes the AutoTwister standalones A1 and A2, must be seen as a single
connection. If any of the cables in the main link fails, both switch/hubs must be noti-
ed of the failure so they can activate the backup link, which includes AutoTwister
units B1 and B2.
Since the entire main link must appear
down if any of its connecting seg-
ments fails, the copper ports of Auto-
Twister standalone A1 and A2 must
be able to indicate a no-link condition
to their corresponding switch/hubs.
To do this, auto-recovery must be
enabled on both AutoTwister units.
To enable auto-recovery on the
AutoTwister standalone units, make sure that on each unit AN1 is disabled, LLR2 is
enabled, and LLCF is enabled.
The diagram below illustrates how the two switch/hubs are alerted to a broken ber
cable in the main link, thus activating the backup link with AutoTwister standalones
B1 and B2.
Sequence of events:
• AutoTwister A1 stops transmitting
data to AutoTwister A2.
• AutoTwister A2 senses the loss
of link and stops transmitting link
pulses to AutoTwister A1 and the
10Mbps switch/hub.
• AutoTwister A1 receives the no
link condition and stops transmit-
ting link pulses to the 100Mbps
switch.
• The 100Mbps and 10Mbps switch/hubs detect that the main link is down and
switch trafc to the backup link.
• Trafc resumes via the backup path with AutoTwister standalone units B1 and B2.
• Because auto-recovery is enabled, AutoTwister standalone units A1 and A2 try to
reestablish the ber link by periodically sending out pulses from their ber ports.
100Mbps
Switch/Hub
10Mbps
Switch/Hub
AutoTwister A1 AutoTwister A2
Link Loss
Carried Forward
Link Loss
Returned
Link Loss
Carried Forward
AutoTwister B1 AutoTwister B2
Fiber
Cable
LED unlit = no linkLED lit = established link
100Mbps
Switch/Hub
10Mbps
Switch/Hub
AutoTwister A1 AutoTwister A2
LED lit = established link LED unlit = no link
Fiber
Cable
AutoTwister B1 AutoTwister B2
Fiber
Cable

Metrobility 10/100 AutoTwister 19
Topology Solutions

20 User Guide
Technical Specications
Network Connections
Twisted-Pair Interface
Connector ______________________________________Shielded RJ-45, 8-pin jack
Impedance____________________________________________100 Ohms nominal
Signal Level Output (peak differential) _________________.95 to 1.05V (100Mbps)
___________________2.2 to 2.8V (10Mbps)
Signal Level Input_____________________________ 200mV minimum (100Mbps)
_____________________________ 585mV minimum (10Mbps)
Supported Link Length ____________________________________________ 100m
Cable Type (10Mbps segments) ___________________ Category 3, 4 or 5 UTP/STP
(100Mbps segments) ___________________ Category 5 or 5E UTP/STP
Multimode Fiber Optic Interface
(2643-13-01, 2643-15-01, 2643-1E, 2643-1G-01, 2643-1K-01)
Connector _____________________________________ SC, ST, MT-RJ, VF-45, LC
Wavelength ___________________________________________________ 1310nm
RX Input Sensitivity ___________________________________ -31 dBm maximum
Output Power ___________________________ -23.5 dBm to -14 dBm (50/125 µm)
_________________________ -20 dBm to -14 dBm (62.5/125 µm)
Typical Link Budget ______________________________________________ 17 dB
Supported Link Length ________________________________up to 2km full duplex
Cable Type _____________________________________ 50/125, 62.5/125 µm F/O
Singlemode Fiber Optic Interface
(2643-14-01, 2643-16-01, 2643-1M-01)
Connector __________________________________________________ SC, ST, LC
Wavelength ___________________________________________________ 1310nm
RX Input Sensitivity ___________________________________ -31 dBm maximum
Output Power _______________________________-15 dBm to -8 dBm (9/125 µm)
Typical Link Budget ______________________________________________ 23 dB
Supported Link Length _______________________________up to 20km full duplex
Cable Type _______________________________________________9/125 µm F/O
Singlemode Fiber Optic Interface — long haul distance support
(2643-17-01)
Connector ________________________________________________________ SC
Wavelength ___________________________________________________ 1310nm
RX Input Sensitivity ___________________________________ -31 dBm maximum
Output Power ________________________________ -5 dBm to 0 dBm (9/125 µm)
Typical Link Budget ______________________________________________ 33 dB
Supported Link Length _______________________________up to 40km full duplex
Cable Type _______________________________________________9/125 µm F/O
