TeleAdapt RothDock TA-9600-MH-B User manual

INSTALLATION INSTRUCTIONS
RothDock
|
TA-9600-MH-B
Installing the RothDock with MediaHub HD™
.HHSLQJ<RXU:RUOG&RQQHFWHG
RothDock TA-9600-MH-B Packing List
One each of the following should be
included in the RothDock box:
1
|
iPod®/iPhone®docking base with power plug
2
|
Roth Receiver with audio/power JST-12 cable
3
|
Remote control
4
|
Adhesive pad - for securing RothDock to a surface
5
|
Velcro tabs - for securing receiver
behind TV or under-desk
See page 2 for installation instructions.

RothDock
|
TA-9600-MH-B Installing the RothDock with MediaHub HD
The RothDock can be easily installed and integrated with the
MediaHub HD. Just follow these simple installation instructions.
1
|
If the MediaHub HD is powered on, turn it off by unplugging
the MediaHub HD power supply from the wall outlet.
2
|
Connect the Roth Receiver (audio/power JST-12) cable into
the MediaHub HD’s rear iPod port. (Fgure 1) (note: the JST-12
connector end is keyed to match the MediaHub iPod port)
3
|
Power on the MediaHub HD - the Roth receiver runs off
the MediaHub HD power. (Fgure 2)
4
|
Install the MediaHub HD into the wall or furniture.
5
|
Use the enclosed velcro tabs to secure the Roth receiver to
the TV or nearby table.
6
|
Plug the RothDock base into wall outlet and secure to a
night stand, side table or desk, with or without using the
enclosed adhesive security pad.
Frequently Asked Questions
Q: How does the guest change the TV input to listen
to audio from the RothDock?
A: When used with a MediaHub HD that is configured in auto-switchIng
mode, the RothDock becomes a new input on the MediaHub HD.
Therefore, when you select a music track, the MediaHub HD will
automatically sense it and switch the TV, making the RothDock
the primary source. Another option is to use an on-screen menu to
select the MediaHub HD. In this case, the initial switching of the TV
to the MediaHub/RothDock is done on-screen using the TV system
remote control, but when you play music on the RothDock the
MediaHub HD will still sense it and make it the primary source.
Q: How does the guest charge their iPod or iPhone?
A: Once docked, the iPod or iPhone begin charging immediately,
and will continue until they are fully charged.
Q: Can I connect RothDock Directly to the TV Set?
A: The version you have purchased is designed specifically for use with
MediaHub HD. This version is not designed to work as a stand-alone
with the TV. However, TeleAdapt does sell a stand-alone version,
the RothDock TA-9600-RA-B. Please talk to your customer service
representative to ensure you have the right version for your application.
|
2
.HHSLQJ<RXU:RUOG&RQQHFWHG
Visit our website at: www.teleadapt.com.

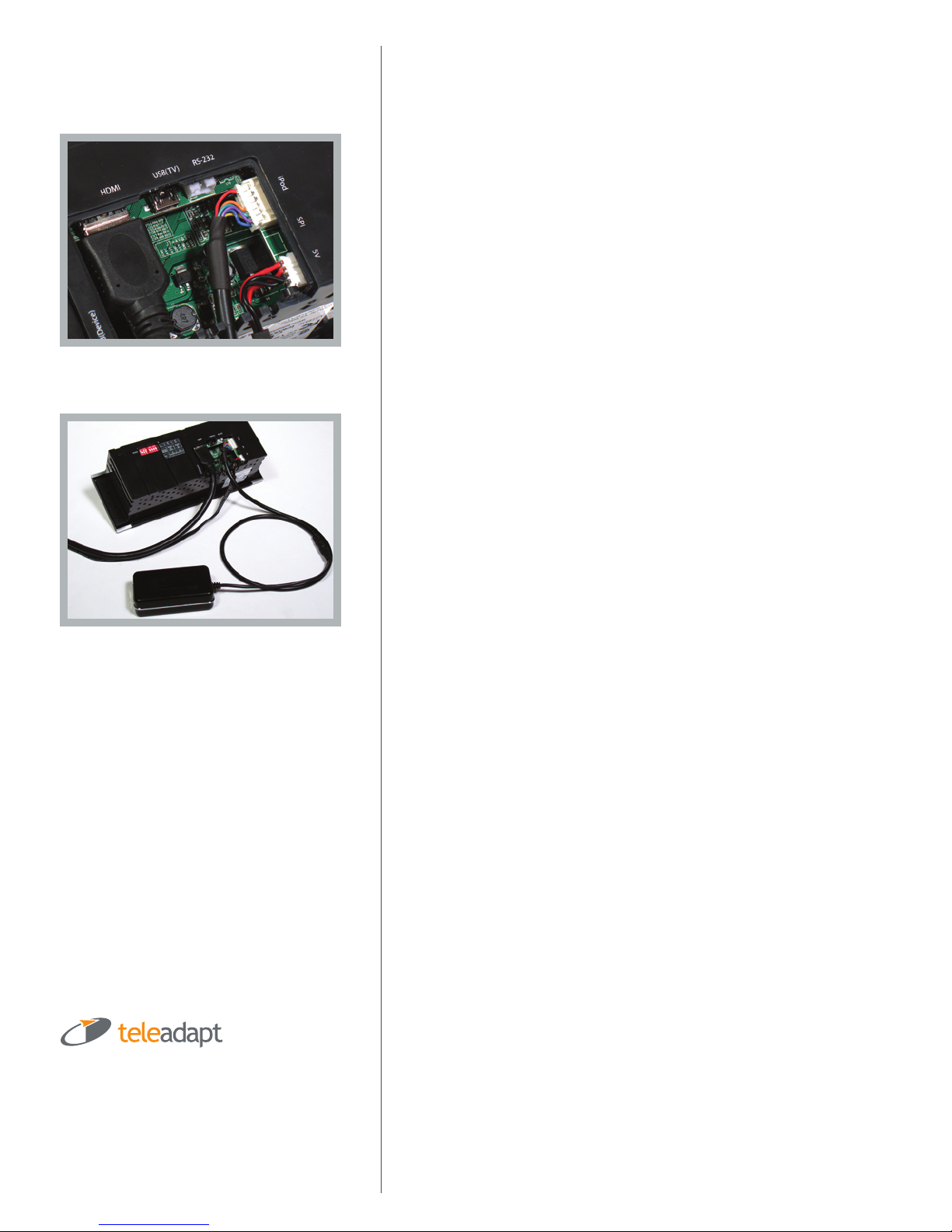

Figure 1
