iRoom surDock-mini User manual

MANUAL
surDock-mini/-iPad10/11/12.9
EnglishDeutsch
intelligence. on.
iRoom surDock 2020 Lineart
iRoom surDock with device
iRoom surDock without device
iRoom surDock simple

Page 2
intelligence. on.
Package Content
• surDock Aluminum Base (1x)
• surDock Glass Bezel (1x)
• Security Screw (2x)
• Heavy Duty Rubber Band (2x)
• Installation Instructions (1x)
• Sucker (1x)
• Allen Key for Security Screws (1x)
• Power Supply High or Low voltage (1x)
• Adapter USB-A to USB-C (1x) - only included with surDock models
for iPads with a USB-C charging port
Introduction
Thank you for purchasing iRoom‘s surDock (surface-mount on-wall docking station).
This MANUAL is designed to guide you through the hardware installation.
The warranty terms are also included in this MANUAL.
For FAQ‘s or user manuals in other languages, please visit: www.iRoomiO.com

ENGLISH
Page 3
for iRoom‘s surDock
MANUAL
Important Information
All connection and installation work must be conducted by certified electricians in compliance with the general rules and directives for electri-
cal installations. The surDock has a smooth and shiny surface which is prone to scratches. Handle with care to avoid damage. We recommend
wearing soft cotton wool gloves during installation.
• Select a suitable place to mount the device.
• Do not install or use the surDock in wet or moist environments.
• The place chosen to mount the device must provide enough recess depth to allow use of the back box and the entry of the leads.
• Mount the device in a place that enables reception of a suitably strong Wi-Fi signal so that the iPad has Internet connectivity when it is
docked.
General Information
The surDock can be installed both vertically and horizontally.
Make sure that the wall mounting surface is level and smooth, so the surDock rests flat on the wall.
Description of Function
The surDock may only be used with a European standard electrical wall box or US Single gang wall box to secure mounting support.

Page 4
intelligence. on.

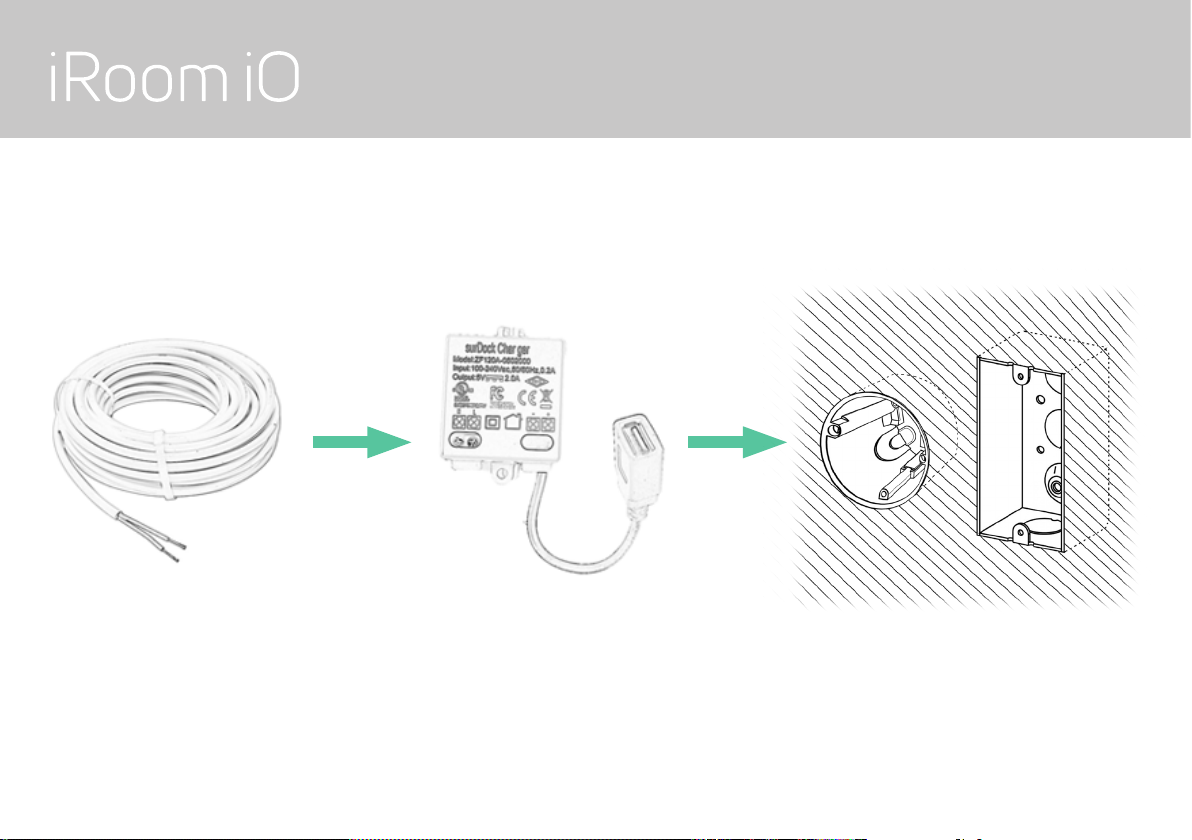

Preparing the Power Connection - Option 1: High Voltage
Connect the AC/USB converter to a 110-240 VAC power line and put it in the EU standard electrical wall box or US single-gang box.
This option requires a certified electrician for installation!

ENGLISH
Page 5
for iRoom‘s surDock
MANUAL
Preparing the Power Connection - Option 2: Low Voltage
1. Plug the included
primary power adapter
110-240 VAC to 36 VDC
into a power outlet.
2. If needed, run a 2-wire extension
cable (not included) from the 36VDC
output to the next converter.
3. Put the second converter (included) in the EU wall box or US single-gang
box and connect the extension cable from the primary power adapter.
CAUTION: Determine correct polarity!

Page 6
intelligence. on.
Installation
1. Feed the USB cable of the power supply through the round
opening of the surDock Aluminum base.
2. Screw the surDock Aluminum base to the EU standard electrical
wall box or US single-gang box. Don‘t tighten the screws before
aligned the Aluminum base horizontally or vertivcally depending
on what orientation of the surDock you choose.
3. Connect the original Apple charging cable to the USB port of the
included 110-240 VAC to 36 VDC power supply.
4. Connect the iPad to charging cable. If you install an iPad with
USB-C charging port use the included USB-A to USB-C adapter.
5. Put the iPad on the backside of the glass bezel and secure it
with the included rubber bands. Pay attention to correct positio-
ning of the rubber band clips.
6. Push the glass bezel into the aluminium base. Make sure you
do not damage the power leads. Ensure a proper locking of the
magnetic mounting system.
7. Use the two included security screws to secure the glass bezel
in order to protect the iPad from theft.
8. Switch on main power supply.
9. To remove the dock from the aluminium frame use the included
sucker.
Rubber Band Clips

ENGLISH
Page 7
for iRoom‘s surDock
MANUAL
Specifications iRoom’s surDock
Type surDock-mini / surDock-iPad10 / surDock-iPad11 / surDock-iPad12.9
Dimensions surDock-mini (WxHxD) 274mm x 175,4mm x 22mm / 10.8“ x 6.9” x 0.9”
Dimensions surDock-iPad10 & 11 (WxHxD) 305mm x 215mm x 22,5mm / 12.0” x 8.5” x 0.9”
Dimensions surDock-iPad12.9 (WxHxD) 359mm x 294mm x 22,5mm / 14.1“ x 11.6“ x 0.9“
Function Description Store & charge the iPad
Low Voltage Power Supply Primary: 100-240VAC to 36 VDC 1A. Secondary: 8-52 VDC to USB 5VDC/2A
High Voltage Power Supply Power Supply 100-240VAC to USB 5VDC/2A
Operating Temperature 0 - 35°C or 32 - 95°F
Operating Humidity 20% - 90% RH non-condensing
Cleaning
The product requires no special care, but only a regular cleaning of the glass. Do not use any abrasive/harsh cleaners
and unplug power supply before cleaning. For general cleaning of the surfaces please use a soft cloth with screen
cleaner. If possible frequently change the cloth so that no dust particles get stuck in the towel causing scratches.
!

Page 8
intelligence. on.
Electrical Safety Information
1.) Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a
different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limita-
tions are not followed.
2.) There are no operator serviceable parts inside this equipment. Service should be provided only by an authorized
service technician.
Protection against Theft
iRoom’s surDock comes with two security screws that secure the glass bezel in order to protect the iPad from theft. However, the security
screws do not provide any protection against theft. Unauthorized and/or forceful removal of the iPad cannot be prevented. iRoom GmbH does
not accept any liability for the theft of an iPad!
Limited Warranty
iRoom GmbH warrants that the product(s) furnished hereunder shall be free from defects in material and workmanship for a period of two (2)
years from the date of purchase made by the original end-customer or for a period of 3 years from the date of shipment by iRoom GmbH under
normal use and operation.
iRoom‘s GmbH sole and exclusive obligation and liability under the foregoing warranty shall be for iRoom GmbH, at its discretion, to repair or
replace any product that fails to conform to the above warranty during the above warranty period. The expense of removal and reinstallation of
any product is not included in this warranty. The warranty period of any repaired or replaced product shall not extend beyond its original term.

ENGLISH
Page 9
for iRoom‘s surDock
MANUAL
Returns
No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from iRoom GmbH
or during the warranty period, and the Products being received at iRoom GmbH facility freight prepaid in accordance with the RMA process
of iRoom GmbH. Products returned without an RMA number will not be processed and will be returned freight collect or subject to disposal.
Information on the RMA process and obtaining an RMA number can be found at: www.iRoomiO.com/support/warranty.
Warranty Conditions
The above warranty does not apply if the product:
1.) has been modified and/or altered, or an addition made thereto, except by iRoom GmbH, or iRoom GmbH
authorized representatives, or as approved by iRoom GmbH in writing;
2.) has been painted, rebranded or physically modified in any way;
3.) has been damaged due to errors or defects in cabling;
4.) has been subjected to misuse, abuse, negligence, abnormal physical, electromagnetic or electrical stress,
including lightning strikes, or accident.
5.) has been damaged or impaired as a result of using third party firmware;
6.) has no original serial number label, or is missing any other original label(s);
7.) has not been received by iRoom GmbH within 30 days of issuance of the RMA.
In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in
accordance, and in all material respects, with the applicable Product documentation.

Page 10
intelligence. on.
iRoom GmbH
Ziegeleistrasse 13
5110 Oberndorf
Austria
Web: www.iRoomiO.com
Email: [email protected]
Phone: +43 6272 20628
©2010-2020 iRoom GmbH. All rights reserved.
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
RoHS/WEEE Compliance Statement
This symbol was placed in accordance with the European Union Directive 2011/65/EU on the Waste
Electrical and Electronic Equipment (the WEEE Directive). If disposed of within the European Union, this product should be
treated and recycled in accordance with the laws of your jurisdiction implementing the WEEE Directive.
Declaration of Conformity
Hereby, iRoom GmbH, declares that this iRoom GmbH device, is in compliance with the essential requirements and other relevant
provisions of Directive 2014/35/EU & 2014/30/EU.
Subject to changes at any time. The technical details and specifications do not equate to any form of guarantee.
All products mentioned protected by international copyright and patent laws.
Apple and iPad are registered trademarks of Apple Inc. Due to periodic product improvement, all features and specifications are subject to change without notice. The tablet is NOT part of the scope of delivery!


Seite 12
intelligence. on.
Verpackungsinhalt
• surDock Aluminiumgehäuse (1x)
• surDock Glasblende (1x)
• Sicherungsschrauben
• Expanderseil (2x)
• Installationsanleitung (1x)
• Saugnapf (1x)
• Inbusschlüssel für Sicherheitsschrauben (1x)
• Netzteil Stark- oder Schwachstrom (1x)
• Adapter USB-A auf USB-C (1x) - nur bei surDock Modellen für
iPads mit USB-C Ladestecker
Einleitung
Danke, dass Sie sich für unsere Wandaufputz-Dockingstation surDock von iRoom entschieden haben.
Dieses Benutzerhandbuch soll Sie bei der Hardware-Installation begleiten.
Die Garantiebedingungen sind ebenfalls in diesem Benutzerhandbuch enthalten.
FAQ‘s und Benutzerhandbücher in anderen Sprachen finden Sie unter: www.iRoomiO.com

DEUTSCH
Seite 13
für iRoom‘s surDock
ANLEITUNG
Wichtige Informationen
Alle Anschluss- und Montagearbeiten müssen von einem lizensierten Elektroinstallateur unter Einhaltung der allgemeinen Vorschriften und
Richtlinen für Elektroinstallationen durchgeführt werden. Die surDock hat eine glatte und glänzende Oberfläche, die anfällig für Kratzer ist.
Diese bitte mit Vorsicht behandeln, um Schäden zu vermeiden. Wir empfehlen während der Installation weiche Stoffhandschuhe zu tragen.
• Wählen Sie einen geeigneten Platz für die Montage der surDock.
• Montieren Sie die surDock nicht in nassen oder feuchten Umgebungen.
• Der Installationsplatz muss genügend Wandtiefe bieten, um die Montage der Unterputzdose zu ermöglichen.
• Montieren Sie das Gerät an einem Ort, der ein entsprechend starkes WLAN-Signal hat, sodass das iPad während es in der Dock ist, wie
gewohnt Internetverbindung hat.
Generelle Informationen
Die surDock kann je nach Belieben horizontal oder vertikal montiert werden.
Wichtig ist, dass die Wandoberfläche eben und glatt ist, damit die Dockingstation flach an der Wand anliegt.
Funktionsbeschreibung
Die surDock sollte nur mit einer Standard EU-Schalterdose oder US Single-Gang Dose installiert werden, um eine ausreichende Befestigigung
und Verschraubung zu gewährleisten.

Seite 14
intelligence. on.
Vorbereiten des Stromanschlusses - Option 1: Starkstrom
Verbinden Sie den AC/USB Konverter mit einem 240 VAC Anschluss und platzieren Sie diesen in der Standard EU-Schalterdose oder US
Single-Gang Dose.
Diese Art der Installation muss von einem Elektro-installateur durchgeführt werden!

DEUTSCH
Seite 15
für iRoom‘s surDock
ANLEITUNG
Vorbereiten des Stromanschlusses - Option 2: Schwachstrom
1. Stecken Sie das beigelegte
primäre Netzteil 110-240VAC
auf 36 VDC in eine 240 Volt
Steckdose.
2. Falls erforderlich, verlängern Sie
Sie das 36 VDC Kabel mit einer
2-Draht-Leitung (nicht enthalten)
zum nächsten Konverter.
3. Legen Sie den beigelegten zweiten Konverter in die Schalterdose
oder Single-Gang Dose und verbinden Sie ihn mit der 36 VDC
Leitung vom primären Netzteil. Achten Sie auf die richtige Polung!

Seite 16
intelligence. on.
Installation
1. Führen Sie das USB-Kabel des Netzteils durch die runde Öffnung
des surDock Aluminiumgehäuses.
2. Befestigen Sie das Aluminiumgehäuse an der Schalterdose oder
Single-Gang Dose. Ziehen Sie die Schrauben erst dann fest, nach-
dem Sie das Gehäuse horizontal oder vertikal ausgerichtet haben,
je nachdem für welche Ausrichtung des iPads Sie sich entscheiden.
3. Stecken Sie das orginal Apple Ladekabel in die USB-Buchse des
mitgeliferten 110-240 VAC auf 36 VDC Netzteil.
4. Stecken Sie das Ladekabel in den Ladeanschluss des iPads. Falls
Sie ein iPad mit USB-C Anschluss installieren, verwenden Sie den
beigelegten USB-A auf USB-C Adapter.
5. Befestigen Sie das iPad mit den beiliegenden Expanderseilen an
der Rückseite der Glasabdeckung und achten Sie auf die korrekte
Positionierung der Seilklemmen.
6. Geben Sie die Glasblende in den Aluminiumrahmen. Stellen Sie
sicher, dass Sie die Stromversorgung nicht beschädigen. Sorgen
Sie dafür, dass die Magneten der Blende ordnungsgemäß am
Aluminiumrahmen aufliegen.
7. Verwenden Sie die beiden Sicherungsschrauben, um die Glasblen-
de zu sichern und das iPad gegen Diebstahl zu schützen
8. Aktivieren Sie die Stromversorgung.
9. Um das iPad von der Dock zu entfernen, verwenden Sie bitte den
beigelegten Saugnapf.
Seilklemmen

DEUTSCH
Seite 17
für iRoom‘s surDock
ANLEITUNG
Technische Daten iRoom’s surDock
Typ surDock-mini / surDock-iPad10 / surDock-iPad11 / surDock-iPad12.9
Abmessungen surDock-mini (BxHxT) 274mm x 175,4mm x 22mm / 10.8“ x 6.9” x 0.9”
Abmessungen surDock-iPad10 & 11 (BxHxT) 305mm x 215mm x 22,5mm / 12.0” x 8.5” x 0.9”
Abmessungen surDock-iPad12.9 (BxHxT) 359mm x 294mm x 22,5mm / 14.1“ x 11.6“ x 0.9“
Funktionsbeschreibung Aufbewahren und Laden des iPads
Schwachstrom-Netzteil Primäres Netzteil: 100-240VAC to 36 VDC 1A. Sekundäres Netzteil: 8-52 VDC to USB 5VDC/2A
Starkstrom-Netzteil Netzteil 100-240VAC auf USB 5VDC/2A
Betriebstemperatur 0 - 35°C or 32 - 95°F
Betriebsfeuchtigkeit 20% - 90% RH nicht kondensierend
Reinigung
Das Produkt bedarf keiner besonderen Pflege, sondern nur einer regelmäßigen Reinigung zur Erhaltung des Glanzes,
der Struktur und dem Zustand der Oberflächen. Keine scheuernden / scharfen Reinigungsmittel verwenden. Trennen
Sie die Stromversorgung vor dem Reinigungsvorgang. Für die allgemeine Reinigung der Oberflächen bitte ein weiches,
sauberes, leicht angefeuchtetes Tuch verwenden.
!

Seite 18
intelligence. on.
Information zur elektrischen Sicherheit
1.) Die auf dem Herstellerschild angegebene Spannung, Frequenz und der Strombedarf müssen eingehalten werden.
Der Anschluss an eine andere als die angegebenen Energiequellen kann den Betrieb beeinträchtigen, Schäden an der Ausstattung zur
Folge haben oder eine Gefahr darstellen, wenn die Grenzwerte nicht eingehalten werden.
2.) Dieses Gerät enthält keine Komponenten, die vom Verwender selbst gewartet werden können. Reparaturen sollten
nur von einem autorisierten Servicetechniker durchgeführt werden.
Diebstahlschutz
iRoom‘s surDock wird mit zwei Sicherungsschrauben geliefert, die die Glasblende sichern, um das iPad gegen Diebstahl zu schützen. Ein unbe-
fugtes, gewaltsames Entfernen des iPads kann jedoch nicht verhindert werden. Im Fall des Diebstahls eines iPads übernimmt die iRoom GmbH
keinerlei Haftung.
Eingeschränkte Gewährleistung
Die iRoom GmbH garantiert, dass das/die Produkt/e, die im Rahmen dieses Vertrages geliefert wurden, für einen Zeitraum von zwei (2) Jahren
ab dem Kaufdatum durch den ursprünglichen Endkunden oder für einen Zeitraum von 3 Jahren ab dem Datum der Auslieferung durch iRoom
GmbH bei normalem Gebrauch und Betrieb keine Material- oder Verarbeitungsfehler aufweisen dürfen.
Im Rahmen dieser Garantie liegt es im Ermessen der iRoom GmbH, das Produkt, das innerhalb der oben angeführten Fristen nicht der hier defi-
nierten Gewährleistung entspricht, zu reparieren oder zu ersetzen. Die Kosten des Aus- und Einbaus sind für alle Produkte nicht in dieser Garantie
enthalten. Die Gewährleistungsfrist für alle reparierten oder ausgetauschten Produkte wird nicht über ihre ursprüngliche Laufzeit hinaus verlängert.

DEUTSCH
Seite 19
für iRoom‘s surDock
ANLEITUNG
Rückgabe
Ohne von iRoom GmbH zugeteilter RMA Nummer (Retourennummer) werden keine zum Austausch oder Reparatur zurückgesendeten Produk-
te angenommen. Sie werden daher nicht bearbeitet sowie unfrei retourniert oder entsorgt. Informationen zum RMA-Vorgang und zum Erhalt
einer RMA-Nummer finden Sie unter: www.iRoomiO.com/support/warranty
Gewährleistungsbedingungen
Die oben angeführte Gewährleistung ist nicht anwendbar, wenn das Produkt:
1.) Durch andere als die von iRoom GmbH ermächtigten Vertreter ohne schriftliche Genehmigung durch iRoom GmbH abgeändert, umgebaut
oder ergänzt wurde;
2.) bemalt, umbenannt oder in der Form verändert wurde;
3.) infolge von Fehlern und Defekten der Verdrahtung beschädigt wurde;
4.) wenn es einem falschen Gebrauch, Missbrauch, Unachtsamkeit, unsachgemäßer physikalischer, elektromagnetischer oder elektrischer
Beanspruchung, inklusive Blitzschlag oder Unfall, ausgesetzt wurde.
5.) infolge der Verwendung einer Firmware eines anderen Herstellers beschädigt oder beeinträchtigt wurde;
6.) nicht über ein Original-Typenschild verfügt oder alle anderen Original-Beschilderungen fehlen;
7.) nicht innerhalb von 30 Tagen nach der Ausstellung der RMA bei iRoom GmbH eingetroffen ist
Des Weiteren gilt die oben angeführte Gewährleistung nur, wenn das Produkt korrekt installiert und stets in Übereinstimmung und unter
Einhaltung der wesentlichen Punkte der geltenden Produktdokumentation verwendet wurde.

Seite 20
intelligence. on.
iRoom GmbH
Ziegeleistrasse 13
5110 Oberndorf
Austria
Web: www.iRoomiO.com
E-Mail: offic[email protected]
Telefon: +43 6272 20628
©2010-2020 iRoom GmbH. All rights reserved.
Apple and iPad are registered trademarks of Apple Inc. Due to periodic product improvement, all features and specifications are subject to change without notice. The tablet is NOT part of the scope of delivery!
FCC-Konformitätserklärung
Dieses Gerät wurde getestet und erfüllt gemäß Teil 15 der FCC-Bestimmungen die Grenzwerte für ein Digitalgerät der Klasse B.
RoHS / WEEE-Konformitätserklärung
Dieses Zeichen wurde in Übereinstimmung mit der EU-Richtlinie 2011/65/EU über Elektro- und Elektronikgeräte-Abfall (die
WEEE-Richtlinie) angebracht. Wenn das Produkt innerhalb der Europäischen Union entsorgt wird, muss es in Übereinstimmung
mit den Gesetzen der Rechtsprechung Ihres Landes unter Anwendung der WEEE-Richtlinie behandelt und recycelt werden.
Konformitätserklärung
Hiermit erklärt iRoom GmbH, dass dieses iRoom GmbH Gerät mit den grundlegenden Anforderungen und mit den
anderen relevanten Bestimmungen der Richtlinie 2014/35/EU & 2014/30/EU übereinstimmt.
Änderungen sind zu jeder Zeit vorbehalten. Die technischen Details und Spezifikationen sind nicht mit jeglicher Form einer Garantie
gleichzusetzen. Alle erwähnten Produkte sind durch internationales Urheberrecht und Patentgesetze geschützt.
This manual suits for next models
9
Table of contents
Languages:
Other iRoom Docking Station manuals

iRoom
iRoom iDock Basic User manual

iRoom
iRoom iDock Portrait User manual

iRoom
iRoom iDock Basic User manual

iRoom
iRoom touchDock User manual

iRoom
iRoom miniDock User manual

iRoom
iRoom iTop OnWall User manual

iRoom
iRoom iTop User manual

iRoom
iRoom iDock Basic User manual

iRoom
iRoom iDock Landscape User manual

iRoom
iRoom iBezel Series User manual
