Telecast THOR-HE-KIT User manual

TH-HDMI-KIT
1
Rev.:2/7/12
HDMI Fiber Extender
User’s Manual for the
THOR-HE-KIT
Contact Information
Headquarters
Telecast Fiber Systems, Inc. a Belden Brand
102 Grove Street
Worcester, MA 01605
P: 508-754-4858
F: 508-752-1520
For technical support, check with the Telecast web site www.telecast-fiber.com or
contact [e-mail]
DISCONTINUED

TH-HDMI-KIT
2
Rev.:2/7/12
Manual Contents
__________________________________________
Manual Contents 2
Welcome! Product Description 2
System Requirements for Setup 3
Installation 3
Troubleshooting, Maintenance, Technical Support 4
Product Specifications 4
Warranty Information 5
Regulatory Statements 6
Pictorials
Figure 1 – Overall Connection of THOR-HE-KIT 2
Figure 2 – Connection of HDMI cable between
Tx box and media receiver 3
Figure 3 – Connection of HDMI cable between
Rx box and display 4
Figure 4 – Connection of one (1) SC single-mode fiber 4
Figure 5 – Connection of AC/DC power adaptor 4
Welcome!
Congratulations on your purchase of the fiber HDMI extender THOR-HE-KIT. This manual contains
information that will assist you in installing and operating the product.
Product Description
The THOR-HE-KIT transmits all HD resolutions up to 1080p at 60Hz of digital graphic data up to 1000
meters (3280 feet) over one (1) SC single-mode fiber, directly connected between HDMI sources and
displays. The transmitter, located in a HDMI source and receiver in a display are connected to each of
them by a 1.0m HDMI copper cable. THOR-HE-KIT model supports HDCP (High Definition Contents
Protection) interface over the same fiber.
The Shipping Group of THOR-HE-KIT is;
Tx and Rx boxes: One (1) Transmitter (Tx) Box and One (1) Receiver (Rx) Box.
AC/DC power adapter: Two (2) +5V units
User’s Manual

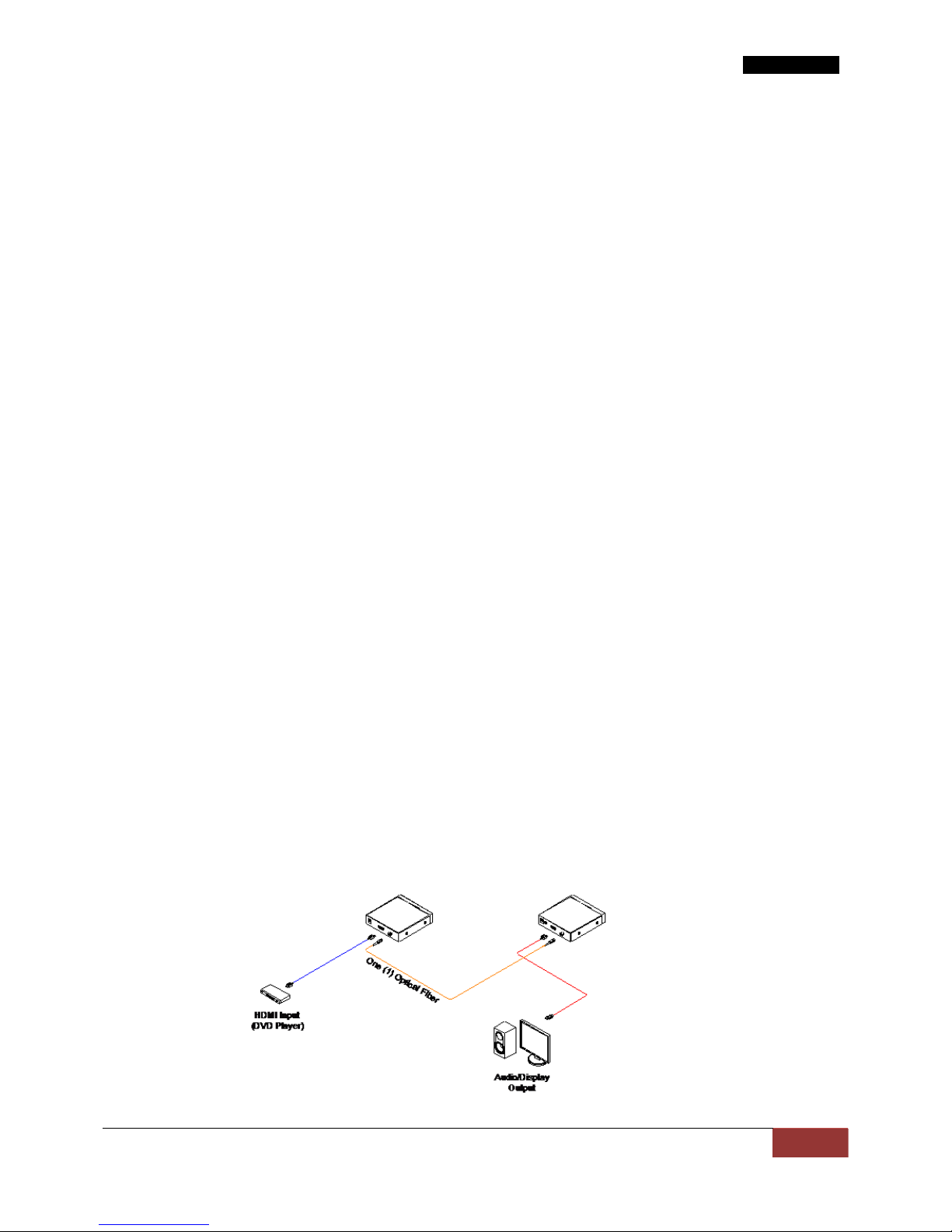

Figure 1
Overall
Connection

TH-HDMI-KIT
3
Rev.:2/7/12
System Requirements for Setup
Hardware requirements
▪ Most of DVD, Blu-ray or media receiver with HDMI ports are compatible with the extender.
▪ In case of using computers as a graphic source, regardless of OS version, HDMI ports are
required to be embedded.
▪ Only HDMI TVs or monitors are applicable.
▪ Proper initial trial of the entire platform with its application using a short length copper cable
is recommended prior to install with the optical link.
Software requirements
▪ No special needs, but make sure that media contents protected by HDCP should be played
with HDCP certified players and TVs.
AC/DC Power Adapter Technical Advisory
▪ The power of THOR-HE-KIT is designed to supply to both boxes of Tx and Rx by plugging
the external powers.
EDID Emulation Advisory
▪ Before use the product, the Smart- EDID procedure should be done as shown in the
Installation (Step 6)
▪ We strongly recommend you to do Smart- EDID procedure again if you want to change
HDMI display. But, it can be displayed without re-emulation between same resolution TVs.
Connection Advisory
▪ We strongly recommend you to connect HDMI media source directly into HDMI display
output via THOR-HE-KIT without connecting any distributor, switcher, selector etc, which
could make incompatibility.
Installation
Important: Please follow the installation procedure below. Improper or no operation may
result if the start-up sequence is not correctly followed.
Step 1
Carefully unpack the contents in the shipping group.
Step 2
Connect the Transmitter to the HDMI sources (DVD, media receiver) over HDMI cable.
Figure 2 – Connection of HDMI ca le etween Transmitter ox and media receiver

TH-HDMI-KIT
4
Rev.:2/7/12
Step 3
Connect the Receiver to the HDMI display over HDMI cable.
Figure 3 – Connection of HDMI ca le etween Receiver ox and display
Step 4
Remove the module dust covers and connect Transmitter and Receiver over SC to SC single-
mode fiber, as shown in Fig. 4. Ensure the SC connector is fully engaged.
Figure 4 – Connection of one (1) SC single-mode fi er ca le
Step 5
Connect the AC/DC power adapters to both of the Transmitter and Receiver and make the
device of source and the display power ON.

TH-HDMI-KIT
5
Rev.:2/7/12
Figure 5 – Connection of AC/DC power adaptor
Notice: Please DO NOT look directly into the SC receptacles of the Transmitter box, while it is powered
on, even though this product is regulated strictly enough to operate under the LASER Class I, classified by
CDRH/FDA for Eye Safety.
Step 6
(This step 6 should be done only when the initial installation of THOR-HE-KIT is done or attached
display is changed.)
1. Disconnect the HDMI cable from the Transmitter
2. Disconnect the AC/DC adapter in Transmitter and connect it again to trigger EDID emulation.
A. Then, the Transmitter start to read EDID from display and write in it while HDCP LED in
Transmitter flash around 10 sec. (This could be repeated up to twice.) HDCP LED in Transmitter will
blink at every 0.5 sec. (It means EDID emulation is done.)
3. Connect Transmitter to HDMI sources over HDMI cable again.
A. Then, HDCP LED will be turned off.
Troubleshooting
The display displays only black screen.
•Check that all AC and DC plugs and jacks used by external power supplies (both Telecast and
others) are firmly connected.
•Ensure that power bars are live.
•Ensure that the Tx and Rx boxes plug correctly to the media receiver or computer and display,
respectively.
•Check if the media receiver or computer and display are powered on and properly booted.
•Re-boot up the system after reconnecting the optical system cable.
Screen is distorted or displays noises.
•Check if the graphic resolution is properly set. Go to the display properties and tap the settings.
Ensure that the resolution sets less than 1080p (1920x1080) at 60Hz refresh ratio.
•Reset the system.
•Power down, disconnect and reconnect the optical system cable or DC power adaptors, and
power up.
Maintenance
No special maintenance is required for the optical system cables and power supplies. Ensure that the
cables and power modules are stored or used in a benign environment free from liquid or dirt
contamination.
There are no user serviceable parts. Refer all service and repair issues to Telecast or its authorized
distributor.

TH-HDMI-KIT
6
Rev.:2/7/12
Technical Support and Service
For commercial, general product support, technical service, contact customer support at
[e-mail] or visit our website at www.telecast-fiber.com
Product Specifications
One fi er HDMI Extender: THOR-HE-KIT.
Compliance with HDMI standard: supports HDMI 1.3a, using fiber-optic communication link
and fully function in HDCP.
Extension limit:
Up to 1000 meters (3280feet) for 1080p at 60Hz over the single-mode fiber
Fiber-optic Connection: The transmitter and receiver boxes of THOR-HE-KIT have SC fiber-
optic connectors and should be used with Single-mode fiber 9/125µm
Initialization Time: Less than 5 sec. after connecting and playing when reconnect any
power/HDMI/fiber optic cable of Tx/Rx while playing.
Mechanical specifications of Tx and Rx boxes
Dimensions: 108mm / 25mm / 115mm (W/H/D)
Environmental Specifications
Operating temperature: 0°C to 50°C
Storage temperature: -10°C to 85°C
Humidity: 5% to 95%
AC/DC Power Adapter
Power Input: Universal AC 100-240V, 50/60Hz, AC power cord with power jack.
Power Output: +5 V, 3.0 A SMPS DC-power Adapter
Cord DC Jack: Core is 5 V and outer cylinder is GND.
Certification : PSE, UL, cUL, FCC, CE, TUV-GS
Warranty Information
1 (One) Year Warranty
Telecast warrants this optical HDMI extension cable to be free from defects in workmanship and materials, under
normal use and service, for a period of one (1) year from the date of purchase from Telecast or its authorized
resellers.
If a product does not work as warranted during the applicable warranty period, Telecast shall, at its option and
expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the
defective item, or refund to customer the purchase price paid for the defective product.
All products that are replaced will become the property of Telecast.

TH-HDMI-KIT
7
Rev.:2/7/12
Replacement products may be new or reconditioned.
Any replaced or repaired product or part has a ninety (90) day warranty or the reminder of the initial warranty
period, whichever is longer.
Telecast shall not be responsible for any software, firmware, information, or memory data of customer contained in,
stored on, or integrated with any products returned to Telecast for repair under warranty or not.
Warranty Limitation and Exclusion
Telecast shall have no further obligation under the foregoing limited warranty if the product has been
damaged due to abuse, misuse, neglect, accident, unusual physical or electrical stress, unauthorized
modifications, tampering, alterations, or service other than by Telecast or its authorized agents, causes
other than from ordinary use or failure to properly use the Product in the application for which said
Product is intended.
Dispose of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate systems)
This symbol on the product or on its packaging indicates that this
pr
oduct shall not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential n
egative
consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
The recycling of materials will help to conserve natural resources. For more detailed information about recycling of
this product, please contact your local city office, your household waste disposal service or the shop where you
purchased the product.
FCC/CE Statement for regulation of Electro-magnetic emission
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 and 2 of FCC Rules, EN 55022/55024/61000-3 for CE certification.
These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and. if
not installed and used in accordance with the instruction guide, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•Re-orient or relocate the receiving antenna.
•Increase the separation between the equipment and the receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult a service representative for help.
Properly shielded and grounded cables and connectors must be used in order to comply with FCC/CE
emission limits. Changes or modifications not expressly approved by the party responsible for compliance
could void the user s authority to operate the equipment.
Certification for Safety
The extension system is certified pursuant to IEC60065 and its AC/DC power adapter is certified by
UL1310, 1950, 60950 for North America, cUL or CSA for Canada, TUV-CE & GS for EU and PSE for
Japan.

TH-HDMI-KIT
8
Rev.:2/7/12
Certification of Eye Safety
This laser product is inside implemented by using 850nm VCSEL (Vertical Cavity Surface Emitting Laser)
Transceivers, manufactured by Telecast Fiber Systems., Ltd., which are all certified by CDRH/FDA
referred in Accession Number 0210774 as classified in LASER Class 1 Eye Safety.
