Teledyne Genie Monochrome Series M640 User manual

Genie™Monochrome
Series
Camera User’s Manual
Genie Framework 2.00
M640
M1024
M1280
M1400
M1410
M1600
GigE Vision Area Scan Camera
CA-GENM-MUM00
www.imaging.com

© 2013 DALSA
All information provided in this manual is believed to be accurate and reliable. No responsibility is assumed by
DALSA for its use. DALSA reserves the right to make changes to this information without notice. Reproduction of
this manual in whole or in part, by any means, is prohibited without prior permission having been obtained from
DALSA.
Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and other
countries. Windows, Windows XP, Windows Vista, Windows 7, Windows 8 are trademarks of Microsoft
Corporation.
All other trademarks or intellectual property mentioned herein belong to their respective owners.
Document Date: April 5, 2013
Document Number: CA-GENM-MUM00
*CA-GENM-MUM00*
About DALSA
DALSA is an international high performance semiconductor and electronics company that designs, develops,
manufactures, and markets digital imaging products and solutions, in addition to providing wafer foundry services.
DALSA Digital Imaging offers the widest range of machine vision components in the world. From industry-leading
image sensors through powerful and sophisticated cameras, frame grabbers, vision processors and software to easy-
to-use vision appliances and custom vision modules.
DALSA is a public company listed on the Toronto Stock Exchange under the symbol “DSA”.
Based in Waterloo, ON, Canada, the company has operations in Montreal, QC; Bromont, QC; Colorado Springs,
CO; Eindhoven, NL; Munich, Germany and Tokyo, Japan.

Genie Monochrome Series-GigE Vision Camera Contents 1
Contents
GENIE MONOCHROME SERIES OVERVIEW .....................................................................................5
DESCRIPTION ............................................................................................................................................5
Genie Application Advantages..........................................................................................................6
PRODUCT PART NUMBERS ........................................................................................................................6
CAMERA PERFORMANCE SPECIFICATIONS ................................................................................................8
Certifications.....................................................................................................................................9
Vibration and Shock Certifications...................................................................................................9
SUPPORTED INDUSTRY STANDARDS........................................................................................................10
GENIE SENSOR OVERVIEW......................................................................................................................10
Genie M640-1/2 Specifications.......................................................................................................11
Genie M640-1/3 Specifications.......................................................................................................12
Genie M1024 Specifications ...........................................................................................................13
Genie M1280 Specifications ...........................................................................................................14
Genie M1400-1/2 Specifications.....................................................................................................15
Genie M1410-2/3 Specifications.....................................................................................................16
Genie M1600 Specifications ...........................................................................................................17
APPLICATION DEVELOPMENT OVERVIEW ...............................................................................................18
Sapera LT Library with optional Processing..................................................................................18
GigE Vision Compliant Environment .............................................................................................18
INSTALLING THE GENIE CAMERA....................................................................................................19
WARNING!(GROUNDING INSTRUCTIONS)...............................................................................................19
GIGENETWORK ADAPTER GUIDELINE ...................................................................................................19
Supported Network Configurations ................................................................................................19
INSTALLATION OVERVIEW &PREPARATIONS .........................................................................................20
Network and Computer Overview...................................................................................................20
Installation Overview......................................................................................................................21
Preventing Operational Faults due to ESD ....................................................................................22
SAPERA LT LIBRARY INSTALLATION ......................................................................................................22
GENIE CD PACKAGE INSTALLATION.......................................................................................................23
Procedure........................................................................................................................................23
GigE Server Verification.................................................................................................................23
CONNECT THE GENIE CAMERA ...............................................................................................................24
Connectors ......................................................................................................................................24
Status LED Codes ...........................................................................................................................25
Typical LED States on Power Up ........................................................................................................... 25
Genie IP Configuration Sequence ..................................................................................................26
GigE Server Status..........................................................................................................................26
OPTIMIZING THE NETWORK ADAPTER USED WITH GENIE .......................................................................27
Running the Network Configuration Tool.......................................................................................27
UPDATING GENIE FIRMWARE..................................................................................................................28
QUICK TEST WITH CAMEXPERT ..............................................................................................................29
About the User-Defined Camera Name ..........................................................................................30
SILENT INSTALLATION OF GENIE FRAMEWORK.......................................................................................31
WINDOWS EMBEDDED 7INSTALLATION .................................................................................................32
OPERATIONAL REFERENCE................................................................................................................33
CAMERA AND SENSOR INFORMATION .....................................................................................................33

2 Contents Genie Monochrome Series-GigE Vision Camera
Access Via CamExpert....................................................................................................................33
Power-up Configuration (Saved User Settings)..............................................................................34
Power-up Parameter List......................................................................................................................... 35
Power-up Control via Sapera LT or GigE Vision Compliant Applications............................................. 35
Camera Information via Sapera LT or GigE Vision Compliant Applications................................36
SENSOR CONTROLS .................................................................................................................................37
Sensor Parameters: Controls Via CamExpert ................................................................................37
Gain and Black Level Controls.......................................................................................................39
Gain and Offset Control via Sapera LT or GigE Vision Compliant Applications..........................39
Partial Scan—Window ROI ............................................................................................................40
Maximum Frame Rate Examples with Vertical Cropping ...................................................................... 40
Window ROI Control via Sapera LT or GigE Vision Compliant Applications...............................43
CamExpert Image Buffer and ROI Parameters ..............................................................................44
Binning............................................................................................................................................45
Binning Control via Sapera LT or GigE Vision Compliant Applications.......................................46
TRIGGER MODES.....................................................................................................................................46
EXPOSURE CONTROLS.............................................................................................................................47
Free-running Programmable Exposure..........................................................................................47
External Trigger Programmable Exposure ....................................................................................48
External Trigger Level-controlled Exposure ..................................................................................50
Exposure Controls via Sapera LT or GigE Vision Compliant Applications...................................51
SYNCHRONIZATION TIMING ....................................................................................................................52
Synchronous Mode..........................................................................................................................52
Reset Mode......................................................................................................................................53
Synchronization Mode via Sapera LT or GigE Vision Compliant Applications.............................53
CAMEXPERT I/O CONTROLS DIALOG......................................................................................................54
GENERAL INPUTS ....................................................................................................................................55
External Input Signal Opto-coupler & Debounce Circuit ..............................................................55
General Inputs: Settings Via CamExpert........................................................................................55
Input Controls via Sapera LT or GigE Vision Compliant Applications .........................................56
STROBE AND GENERAL OUTPUTS............................................................................................................57
General Outputs: Settings via CamExpert......................................................................................57
Open and Close Output Settings ............................................................................................................. 58
Strobe On Start of Exposure Event Mode ............................................................................................... 58
Pulse On Valid Trigger Event Mode ....................................................................................................... 59
Pulse On Invalid Trigger Event Mode..................................................................................................... 59
Pulse On Start of Readout Event Mode................................................................................................... 60
Pulse On End of Readout Event Mode.................................................................................................... 60
Pulse On End of Acquisition Event Mode............................................................................................... 61
Pulse On Input 1 or Input 2 Event Modes ............................................................................................... 61
Output Control via Sapera LT or GigE Vision Compliant Applications ........................................62
GENIE PROCESSING FEATURES................................................................................................................62
Lookup Table (LUT) .......................................................................................................................62
LUT Control via Sapera LT or GigE Vision Compliant Applications ............................................63
Flat Field (Image Shading) Correction ..........................................................................................64
Information on the Flat Field Data File................................................................................................... 64
Set up Dark and Bright Acquisitions with the Histogram Tool............................................................... 64
Flat Field Correction Calibration Procedure ........................................................................................... 66
Using Flat Field Correction..................................................................................................................... 68
Flat Field Correction Control via Sapera LT or GigE Vision Compliant Applications.................68
Image Flip.......................................................................................................................................69
Internal Image Test Patterns ..........................................................................................................70
Test Image Select via Sapera LT or GigE Vision Compliant Applications.....................................71
EVENTS ...................................................................................................................................................71
Sapera Callbacks ............................................................................................................................71
Event Selection via GigE Vision Compliant Applications ..............................................................72

Genie Monochrome Series-GigE Vision Camera Contents 3
USING CAMEXPERT TO SET NETWORK &GIGEVISION PARAMETERS ....................................................73
CamExpert GigE Vision Parameters ..............................................................................................73
Network Controls via Sapera LT or GigE Vision Compliant Applications ....................................75
SAPERA SUPPORTED FEATURES LIST ......................................................................................................76
Accessing Features with Sapera++ LT ..........................................................................................76
Feature Type STRING.....................................................................................................................77
Feature Type ENUM.......................................................................................................................77
Feature Type INT32........................................................................................................................79
Feature Type BOOL........................................................................................................................80
Feature Summary List by Function Group .....................................................................................81
Device ..................................................................................................................................................... 81
User Defined Buffers .............................................................................................................................. 81
Sensor...................................................................................................................................................... 81
Sensor Exposure...................................................................................................................................... 82
Acquisition ROI ...................................................................................................................................... 82
Binning Control....................................................................................................................................... 82
LUT Control............................................................................................................................................ 82
Flat Field Control .................................................................................................................................... 82
Trigger Control........................................................................................................................................ 83
I/O Control .............................................................................................................................................. 83
Time Stamp Control................................................................................................................................ 83
Network Parameters ................................................................................................................................ 84
User Options............................................................................................................................................ 84
Feature Interdependence Diagrams ...............................................................................................85
Trigger Enable - TRUE........................................................................................................................... 86
Trigger Enable - FALSE ......................................................................................................................... 86
Output Selector........................................................................................................................................ 87
Vertical Binning...................................................................................................................................... 87
Horizontal Binning.................................................................................................................................. 87
Pixel Format............................................................................................................................................ 88
Network Configuration Mode ................................................................................................................. 88
Accessing the Genie User Buffer ....................................................................................................89
NETWORK OVERVIEW & TOOLS.......................................................................................................91
GENIE IP CONFIGURATION MODE DETAILS ............................................................................................91
Link-Local Address (LLA)...............................................................................................................91
DHCP (Dynamic Host Configuration Protocol).............................................................................92
Persistent IP....................................................................................................................................93
SAPERA CAMEXPERT GUIDE ..............................................................................................................95
USING CAMEXPERT WITH GENIE MONOCHROME CAMERAS ...................................................................95
CamExpert Panes............................................................................................................................96
CamExpert LUT Controls ...............................................................................................................97
TECHNICAL SPECIFICATIONS............................................................................................................99
MECHANICAL SPECIFICATIONS ...............................................................................................................99
Genie 3D View with C-mount and CS-mount .................................................................................99
Genie C-mount and CS-mount Mechanical Specifications...........................................................100
Genie 3D View with Right-angle C-mount and CS-mount............................................................101
Genie Right-angle C-mount and CS-mount Mechanical Specifications .......................................102
Additional Notes on Genie Mechanical ........................................................................................103
SENSOR ALIGNMENT SPECIFICATION ....................................................................................................103
CONNECTORS........................................................................................................................................104
12-Pin Hirose Connector Signal Details ......................................................................................104
Genie Signal Electrical Details.....................................................................................................105
External Inputs ...................................................................................................................................... 105
External Outputs.................................................................................................................................... 107

4 Contents Genie Monochrome Series-GigE Vision Camera
RJ45 LAN Ethernet Connector Details.........................................................................................108
CAMERA STATUS LED..........................................................................................................................108
OPTICAL CONSIDERATIONS...................................................................................................................109
Illumination...................................................................................................................................109
Light Sources ................................................................................................................................109
Filters............................................................................................................................................109
Lens Modeling...............................................................................................................................109
Magnification and Resolution.......................................................................................................110
LENS SELECTION OVERVIEW ................................................................................................................111
Lens Mount ...................................................................................................................................111
Lens Sensor Size............................................................................................................................111
Additional Lens Parameters (application specific).......................................................................112
SENSOR HANDLING INSTRUCTIONS .......................................................................................................112
Electrostatic Discharge and the CCD Sensor...............................................................................112
Protecting Against Dust, Oil and Scratches .................................................................................113
Cleaning the Sensor Window ........................................................................................................113
Environment..................................................................................................................................113
RUGGEDIZED RJ45 ETHERNET CABLES.................................................................................................114
C/CS-MOUNT NIR AND UV FILTER .....................................................................................................115
Back Focal Variance when using a Filter ....................................................................................116
COMPUTER REQUIREMENTS FOR GENIE CAMERAS................................................................................117
Host PC System.............................................................................................................................117
Ethernet Switch Requirements ......................................................................................................117
IEEE 802.3x Pause Frame Flow Control............................................................................................... 117
Ethernet to Fiber-Optic Interface Requirements ..........................................................................117
EC &FCC DECLARATION OF CONFORMITY .........................................................................................118
TROUBLESHOOTING............................................................................................................................119
OVERVIEW ............................................................................................................................................119
Problem Type Summary................................................................................................................119
Verifying Network Parameters......................................................................................................121
Before Contacting Technical Support ................................................................................................... 121
INSTALLATION ISSUES AND FUNCTIONAL PROBLEMS............................................................................121
The Windows Firewall Service Can Not Start ..............................................................................121
DEVICE AVAILABLE WITH OPERATIONAL ISSUES..................................................................................122
Firmware Updates ........................................................................................................................122
Power Failure During a Firmware Update–Now What? .............................................................122
Cabling and Communication Issues .............................................................................................123
Acquisition Error without Timeout Messages...............................................................................123
No camera exposure when expected ..................................................................................................... 123
Camera is functional but frame rate is lower than expected.................................................................. 123
Camera acquisition is good but frame rate is lower than expected........................................................ 124
Camera is functional, frame rate is as expected, but image is black ..................................................... 124
Other Problems or Issues..............................................................................................................124
Random Invalid Trigger Events ............................................................................................................ 124
Minimum Sapera Version Required...................................................................................................... 124
CONTACT INFORMATION ..................................................................................................................125
GENIE SALES INFORMATION .................................................................................................................125
GENIE TECHNICAL SUPPORT .................................................................................................................126
GLOSSARY OF TERMS .........................................................................................................................127
INDEX........................................................................................................................................................131

Genie Monochrome Series-GigE Vision Camera Genie Monochrome Series Overview 5
Genie Monochrome Series
Overview
Description
The Genie monochrome camera family form a series of affordable, easy to use digital cameras specifically
engineered for industrial imaging applications. Genie cameras combine standard gigabit Ethernet technology with
the DALSA Trigger-to-Image-Reliability framework to dependably capture and transfer images from the camera to
the host PC.
All Genie cameras are supported by DALSA Sapera™ LT software libraries featuring CamExpert for simplified
camera set-up and configuration. Sapera LT is field proven in thousands of robust industrial applications. Hardware
independent, Sapera LT delivers the same reliable performance regardless of the image acquisition device being
used. This unique feature allows OEM’s to start using the Genie without re-writing applications developed for
DALSA frame grabbers. In addition, Sapera LT includes powerful diagnostics and setup utilities for application
development, custom camera configurations and system deployment.

6 Genie Monochrome Series Overview Genie Monochrome Series-GigE Vision Camera
Genie Application Advantages
Available in a number of resolutions
Compact, rugged design
GigE Vision 1.0 compliant
Gigabit Ethernet (GigE) interconnection to a computer via standard CAT5e or CAT6 cables
Connection to the host computer NIC through a GigE network switch
Available in variety of resolutions, each supporting 8-bit or 10-bit acquisitions
Lookup table pre-processing
Real-time shading correction (i.e. Flat Field processing)
Horizontal Flip function
Supports several trigger modes for image capture control
2 opto-isolated inputs
2 opto-isolated outputs
Native Trigger-to-Image Reliability design framework
Visual status LEDs on camera back plate
1µs internal timer to timestamp images and events
Supported by Sapera™ LT software libraries
Product Part Numbers
This manual covers the monochrome Genie models summarized below. See "Camera Performance Specifications"
on page 8 for each Genie model.
Camera Sensor Size Resolution Pixel size (µm) fps
(full frame)
Product Number
Genie M640-1/2 1/2 in 640 x 480 9.9 x 9.9 64 CR-Gxx0-M640x
Genie M640-1/3 1/3 in 640 x 480 7.4 x 7.4 64 CR-Gxx3-M640x
Genie M1024-1/3 1/3 in 1024 x 768 4.65 x 4.65 20 CR-Gxx0-M102x
Genie M1280-1/3 1/3 in 1280 x 960 3.75 x 3.75 24.5 CR-Gxx0-M128x
Genie M1400-1/2 1/2 in 1360 x 1024 4.65 x 4.65 15 CR-Gxx0-M140x
Genie M1410-2/3 2/3 in 1360 x 1024 6.45 x 6.45 21 CR-Gxx3-M141x
Genie M1600-1/1.8 1/1.8 in 1600 x 1200 4.40 x 4.40 15 CR-Gxx0-M160x
Lens Mount Option
The last digit of the Genie product number defines the mechanical lens mount.
(See Mechanical Specifications)
C-Mount = 0
CS-Mount = 1
C-Mount downward right angle = 2
CS-Mount downward right angle = 3

Genie Monochrome Series-GigE Vision Camera Genie Monochrome Series Overview 7
Input Voltage
CR-GM0x-xxxxx models: +11 to +25.2 Volts DC at 0.6 Amp minimum, (over voltage–reverse voltage protected)
CR-GENx-xxxxx models: +11 to +13 Volts DC at 0.6 Amp minimum, (note – these models are being phased out)
Software Product Number
Genie Framework composed of the Sapera Network Imaging Package, Genie Imaging
Driver and latest Genie Firmware. Required installation.
Included with Genie distribution
CD
Sapera Runtime including CamExpert Included and installed if desired
GenICam™ support (XML camera description file) Embedded within Genie
Sapera LT version 6.10 or later (Sapera 7 required for 64-bit support):
Provides everything you will need to develop imaging applications
Sapera documentation in compiled HTML help, and Adobe Acrobat® (PDF) formats.
OC-SL00-0000000
(sold separately)
Sapera Processing Imaging Development Library (sold separately):
Includes over 600 optimized image processing routines.
Contact Sales at
DALSA
Genie Cables & Accessories (sold separately) Product number
Genie I/O and Power breakout cable (Hirose to Euroconnector) CR-GENC-IOP00
Tripod mount bracket (mount to Genie top or bottom—provides ¼-20 socket) CA-GENA-BRA00
Industrial type CAT 6 cable assembly:
Molded shroud with top/bottom thumbscrews on one end with standard Ethernet RJ45
clip on other. Available in various lengths.
See "Ruggedized RJ45 Ethernet Cables" on page 114.
C-mount NIR/UV filter available from Midwest Optical Systems.
See "C/CS-Mount NIR and UV Filter" on page 115.
CA-GENL-BP550

8 Genie Monochrome Series Overview Genie Monochrome Series-GigE Vision Camera
Camera Performance Specifications
Specifications for each available sensor are listed after the general Genie camera specifications.
Camera Controls
Synchronization Modes Free running and Triggered
Synchronous and Reset mode
Software trigger (through Ethernet)
Exposure Modes Programmable (1µs granularity, minimum (see sensor data) – maximum 16s)
Pulse controlled
Trigger Input Opto-isolated, 2V to 12V typical, 2mA min.
Debounce range from 1 µs up to 255 µs
Strobe Output Output opto-isolated: Aligned to the start of exposure with a programmable delay,
duration and polarity
Features
LUT 8-bit / 10-bit
Flip Real-time horizontal flip
Flat Field Correction Real-time on camera
Binning Horizontal (2 pixel) and Vertical (2 line)
Timestamp 1µs internal timer or external signal to timestamp images and events
Test image Internal pattern generator
User settings Select factory default or one user camera configuration
Optical Interface
Back Focal Distance—C-Mount 17.52 mm
Back Focal Distance—CS-Mount 12.52 mm
Mechanical Interface
Camera Size 29(H) x 44(W) x 67(L) in mm, ( see Mechanical Specifications )
Mass < 125g (no lens)
Power connector 12 pin male Hirose
Ethernet connector RJ45
Electrical Interface
Input Voltage CR-GENx-xxxxx models: +11 to +13 Volts DC at 0.6 Amp minimum,
CR-GM0x-xxxxx models: +11 to +25.2 Volts DC at 0.6 Amp minimum,
(over voltage–reverse voltage protected)
Power Dissipation < 4W
Operating Temperature 0 to 45°C (at front plate)
Relative Humidity 5% to 90% non-condensing (operating)
Output Data Configuration Gigabit Ethernet (IEEE 802.3)
Data and Control GigE Vision compliant at 1000 or 100 Mbps

Genie Monochrome Series-GigE Vision Camera Genie Monochrome Series Overview 9
Certifications
CE EN55022, class A, Radio Disturbance Characteristics
EN61000-4-2, Electrostatic discharge immunity test
EN61000-4-3, Radiated, radio-frequency, electromagnetic field immunity test
EN61000-4-4, Electrical fast transient/burst immunity test
EN61000-4-6, Immunity to conducted disturbances, induced by radio-frequency fields
FCC Part 15, class A
see "EC & FCC Declaration of Conformity" on page 118
RoHS Compliancy as per European directive 2002/95/EC
(applies to camera part numbers CR-GENx-xxxxx)
Vibration and Shock Certifications
Test (while operating) Standard Description
Sinusoidal vibrations with identification
of critical frequencies
IEC 68-2-6 (1995)
Test Fc
Frequency range: 10 to 2000 Hz
Amplitude: 5 m/s2
Sweep rate: 1 octave per minute
Duration: 1 sweep cycle (to and fro)
Random vibrations MIL-STD-810E (1989)
method 514.4
Category 10
Levels and frequencies:
0.04 g2/Hz from 20 to 1000 Hz
-6 dB/oct. from 1000 to 2000 Hz
Duration: 1 hour
Shocks IEC 68-2-27 (1987)
Test Ea and guide
Shape: half-sine
Amplitude: 75 g
Duration: 3 ms
Number: 3 shocks (+) and 3 shocks (-)

10 Genie Monochrome Series Overview Genie Monochrome Series-GigE Vision Camera
Supported Industry Standards
Genie cameras are 100% compliant with the GigE Vision 1.0 specification
which defines the communication interface protocol used by any GigE
Vision device. The device description and capabilities are contained in an
XML file. For more information see:
http://www.machinevisiononline.org/public/articles/index.cfm?cat=167
Genie cameras implement a superset of the GenICam™ specification which
defines device capabilities. This description takes the form of an XML
device description file respecting the syntax defined by the GenApi module
of the GenICam™ specification. For more information see
www.genicam.org.
Genie Sensor Overview

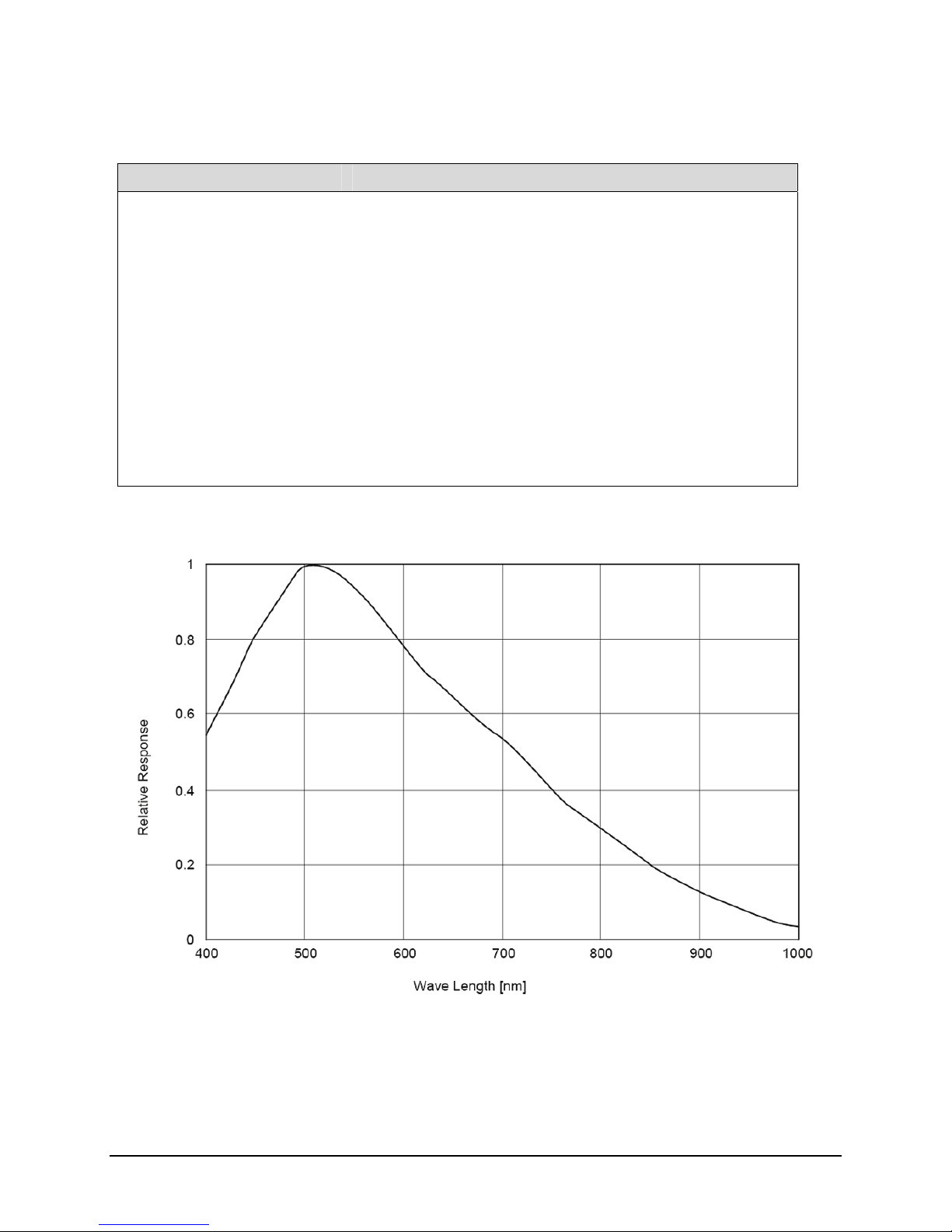

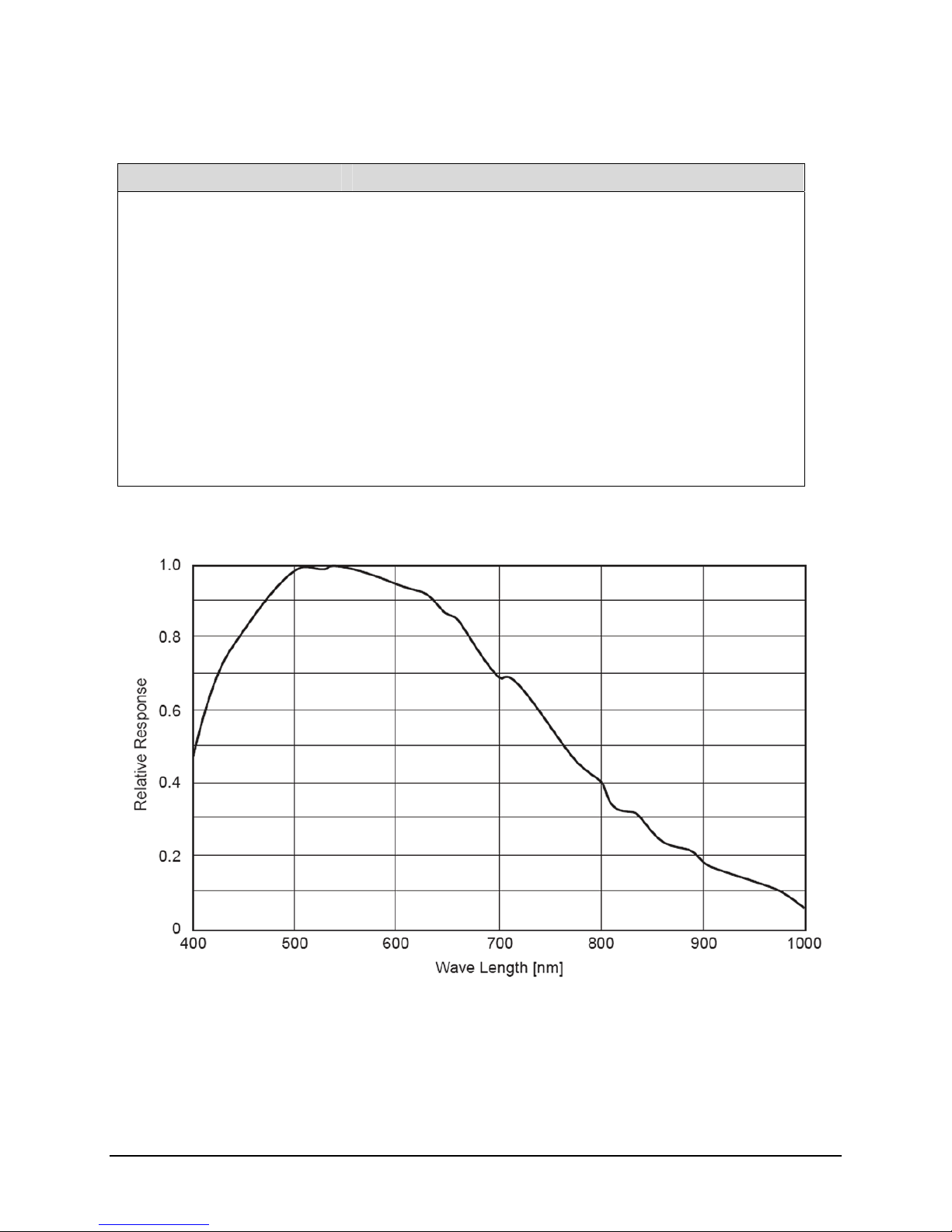

Each sensor description below provides a specification table and response graphic. The graph describes the sensor
response to different wavelengths of light (excluding lens and light source characteristics). Visible light spans
wavelengths between about 390 - 780 nanometers. Wavelengths below 390 nm are termed ultra-violet while those
above 780 nm. are termed infra-red. The peak response is around 500 nanometers typical for each sensor model,
corresponding to a shade of blue-green.

Genie Monochrome Series-GigE Vision Camera Genie Monochrome Series Overview 11
Genie M640-1/2 Specifications
Item / Feature Specification
Imager Format Full frame interline CCD area scan with square pixel (1/2 inch diagonal)
Sensor Sony ICX414AL
Resolution 640 x 480 pixels
Minimum Frame Rate (free-running) 0.1 fps (one frame every 10 seconds)
Maximum Frame Rate (free-running) 64 fps
Minimum Exposure 22μs
Maximum Exposure 16 seconds (note: maximum exposures are susceptible to hot-pixel noise)
Internal Trigger to Start of Exposure 3.8μs
Horizontal Line Time 32μs
Pixel Size 9.9µm x 9.9µm
Pixel Format 8-bit, 10-bit
Shutter Full frame electronic shutter
Gain Range -6dB to +12dB
Genie M640-1/2 Responsivity

12 Genie Monochrome Series Overview Genie Monochrome Series-GigE Vision Camera
Genie M640-1/3 Specifications
Item / Feature Specification
Imager Format Full frame interline CCD area scan with square pixel (1/3 inch diagonal)
Sensor Sony ICX424AL
Resolution 640 x 480 pixels
Minimum Frame Rate (free-running) 0.1 fps (one frame every 10 seconds)
Maximum Frame Rate (free-running) 64 fps
Minimum Exposure 22μs
Maximum Exposure 16 seconds (note: maximum exposures are susceptible to hot-pixel noise)
Internal Trigger to Start of Exposure 3.8μs
Horizontal Line Time 32μs
Pixel Size 7.4µm x 7.4µm
Pixel Format 8-bit, 10-bit
Shutter Full frame electronic shutter
Gain Range -6dB to +12dB
Genie M640-1/3 Responsivity

Genie Monochrome Series-GigE Vision Camera Genie Monochrome Series Overview 13
Genie M1024 Specifications
Item / Feature Specification
Imager Format Full frame interline CCD area scan with square pixel (1/3 inch diagonal)
Sensor Sony ICX204AL
Resolution 1024 x 768 pixels
Minimum Frame Rate (free-running) 0.1 fps (one frame every 10 seconds)
Maximum Frame Rate (free-running) 20 fps
Minimum Exposure 44μs
Maximum Exposure 16 seconds (note: maximum exposures are susceptible to hot-pixel noise)
Internal Trigger to Start of Exposure 7.65μs
Horizontal Line Time 63.5μs
Pixel Size 4.65μm (H) × 4.65μm (V)
Pixel Format 8-bit, 10-bit
Shutter Full frame electronic shutter
Gain Range -6dB to +12dB
Genie M1024 Responsivity

14 Genie Monochrome Series Overview Genie Monochrome Series-GigE Vision Camera
Genie M1280 Specifications
Item / Feature Specification
Imager Format Full frame interline CCD area scan with square pixel (1/3 inch diagonal)
Sensor Sony ICX445ALA
Resolution 1280 x 960 pixels
Minimum Frame Rate (free-running) 0.1 fps (one frame every 10 seconds)
Maximum Frame Rate (free-running) 24.5 fps
Minimum Exposure 13μs
Maximum Exposure 16 seconds (note: maximum exposures are susceptible to hot-pixel noise)
Internal Trigger to Start of Exposure 2.33μs
Horizontal Line Time 42μs
Pixel Size 3.75μm (H) × 3.75μm (V)
Pixel Format 8-bit, 10-bit
Shutter Full frame electronic shutter
Gain Range -6dB to +12dB
Genie M1280 Responsivity

Genie Monochrome Series-GigE Vision Camera Genie Monochrome Series Overview 15
Genie M1400-1/2 Specifications
Item / Feature Specification
Imager Format Full frame interline CCD area scan with square pixel (1/2 inch diagonal)
Sensor ICX267AL
Resolution 1360 x 1024 pixels
Minimum Frame Rate (free-running) 0.1 fps (one frame every 10 seconds)
Maximum Frame Rate (free-running) 15 fps
Minimum Exposure 32μs
Maximum Exposure 16 seconds (note: maximum exposures are susceptible to hot-pixel noise)
Internal Trigger to Start of Exposure 11.87μs
Horizontal Line Time 59.7μs
Pixel Size 4.65µm (H) x 4.65µm (V)
Pixel Format 8-bit, 10-bit
Shutter Full frame electronic shutter
Gain Range -6dB to +12dB
Genie M1400-1/2 Responsivity

16 Genie Monochrome Series Overview Genie Monochrome Series-GigE Vision Camera
Genie M1410-2/3 Specifications
Item / Feature Specification
Imager Format Full frame interline CCD area scan with square pixel (2/3 inch diagonal)
Sensor ICX285AL
Resolution 1360 x 1024 pixels
Minimum Frame Rate (free-running) 0.1 fps (one frame every 10 seconds)
Maximum Frame Rate (free-running) 21 fps
Minimum Exposure 32μs
Maximum Exposure 16 seconds (note: maximum exposures are susceptible to hot-pixel noise)
Internal Trigger to Start of Exposure 4.15μs
Horizontal Line Time 44.2μs
Pixel Size 6.45µm (H) x 6.45µm (V)
Pixel Format 8-bit, 10-bit
Shutter Full frame electronic shutter
Gain Range -6dB to +12dB
Genie M1410-2/3 Responsivity

Genie Monochrome Series-GigE Vision Camera Genie Monochrome Series Overview 17
Genie M1600 Specifications
Item / Feature Specification
Imager Format Full frame interline CCD area scan with square pixel
(1/1.8 inch diagonal)
Sensor Sony ICX274AL
Resolution 1600 x 1200 pixels
Minimum Frame Rate (free-running) 0.1 fps (one frame every 10 seconds)
Maximum Frame Rate (free-running) 15 fps
Minimum Exposure 35μs
Maximum Exposure 16 seconds (note: maximum exposures are susceptible to hot-pixel noise)
Horizontal Line Time 53.3μs
Pixel Size 4.40μm (H) × 4.40μm (V)
Pixel Format 8-bit, 10-bit
Shutter Full frame electronic shutter
Gain Range -6dB to +12dB
Genie M1600 Responsivity

18 Genie Monochrome Series Overview Genie Monochrome Series-GigE Vision Camera
Application Development Overview
Sapera LT Library with optional Processing
Sapera LT is a powerful development library for image acquisition and control. Sapera LT provides a single API
across current and future DALSA hardware. Sapera LT delivers a comprehensive feature set including program
portability, versatile camera controls, flexible display functionality and management, plus easy to use application
development wizards.
Sapera Processing is a comprehensive set of C++ classes for image processing and analysis. Sapera Processing
offers highly optimized tools for image processing, blob analysis, search (pattern recognition), OCR and barcode
decoding.
The following is a Sapera application functional block diagram. The Genie Framework installation includes the
Genie driver and the Sapera Network Imaging Package.
User’s Sapera
Application
Sapera LT SDK
Genie Driver
GigE Server Sapera Network
Imaging Driver
CamExpert
Ethernet Network Interface Card
Network
Configuration Tool
Images
Control
GVSP
GigE Vision
Stream
Protocol
GVCP
GigE Vision
Control
Protocol
single GigE Vision
Camera
Sapera LT
Genie
Framework
smart DHCP
Server (optional)
Sapera
Network
Imaging
Package
Alternatively via a switch
To multiple GigE
Vision Cameras
GigE Vision Compliant Environment
The GigE Vision Compliant XML device description file is embedded within Genie firmware allowing GigE Vision
Compliant applications to know Genie capabilities immediately after connection.
