Teledyne T3AFG5 Series User manual

User Manual
T3AFG5 and T3AFG10 Series Function/Arbitrary
Waveform Generator

I
Declaration
Copyright © Teledyne Test Tools. All rights reserved.
Contents in this Manual are not allowed to be copied, extracted and
translated without permission from Teledyne Test Tools.

II
General Safety Summary
Review the following safety precautions to avoid injury and prevent damage
to this product or any products connected to it. To avoid potential hazards,
use this product only as specified.
Only qualified personnel should perform service procedures.
To Avoid Fire or Personal Injury
l Use proper power line. Only the special power line of the products
approved by the state should be used.
l Ground the instrument. This generator is grounded through the
protective terra conductor of the power cord. To avoid electric
shock, the grounding conductor must be connected to the earth
ground. Make sure that the instrument is properly grounded before
connecting the input or output terminals.
l Observe all the ratings of the terminal. To avoid fire or shock,
observe all the ratings and symbols that marked on the instrument.
Read the user guide carefully before making connections to the
instrument.
l Do not operate without Covers. Do not operate the product with
covers or panels removed.
l Avoid circuit or wire exposed. Do not touch the exposed
connections or components when the power is on.
l Do not operate with suspected failures. If you suspect there is
damage with this product, you should have it inspected by
qualified service personnel authorized by Teledyne Test Tools
before further operations.

III
lProvide proper ventilation.
lDo not operate in wet/damp conditions.
lDo not operate in an explosive atmosphere.
lKeep the product’s surfaces clean and dry.
lNot position the equipment so that it is difficult to operate the
disconnecting device (detachable plug)

IV
If the equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.
This product has been tested to the requirements of
CAN/CSA-C22.2 No. 61010-1, second edition, including Amendment 1,
or a later version of the same standard incorporating the same level of
testing requirements.
Not to use the product for measurements within other measurement
categories, such as CAT II, CAT III, CAT IV.
Not to use the equipment for measurements on mains circuits, not to
use the equipment for measurements on voltage exceed the voltage
range describe in the manual.
Only probe assemblies which meet the manufacturer’s specifications
shall be used.
The Responsible body or operator should refer to the instruction
manual to preserve the protection afford by the equipment. If the
equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.
Any parts of the device and its accessories are not allowed to be
changed or replaced, other than authorized by the manufacturer of his
agent.

V

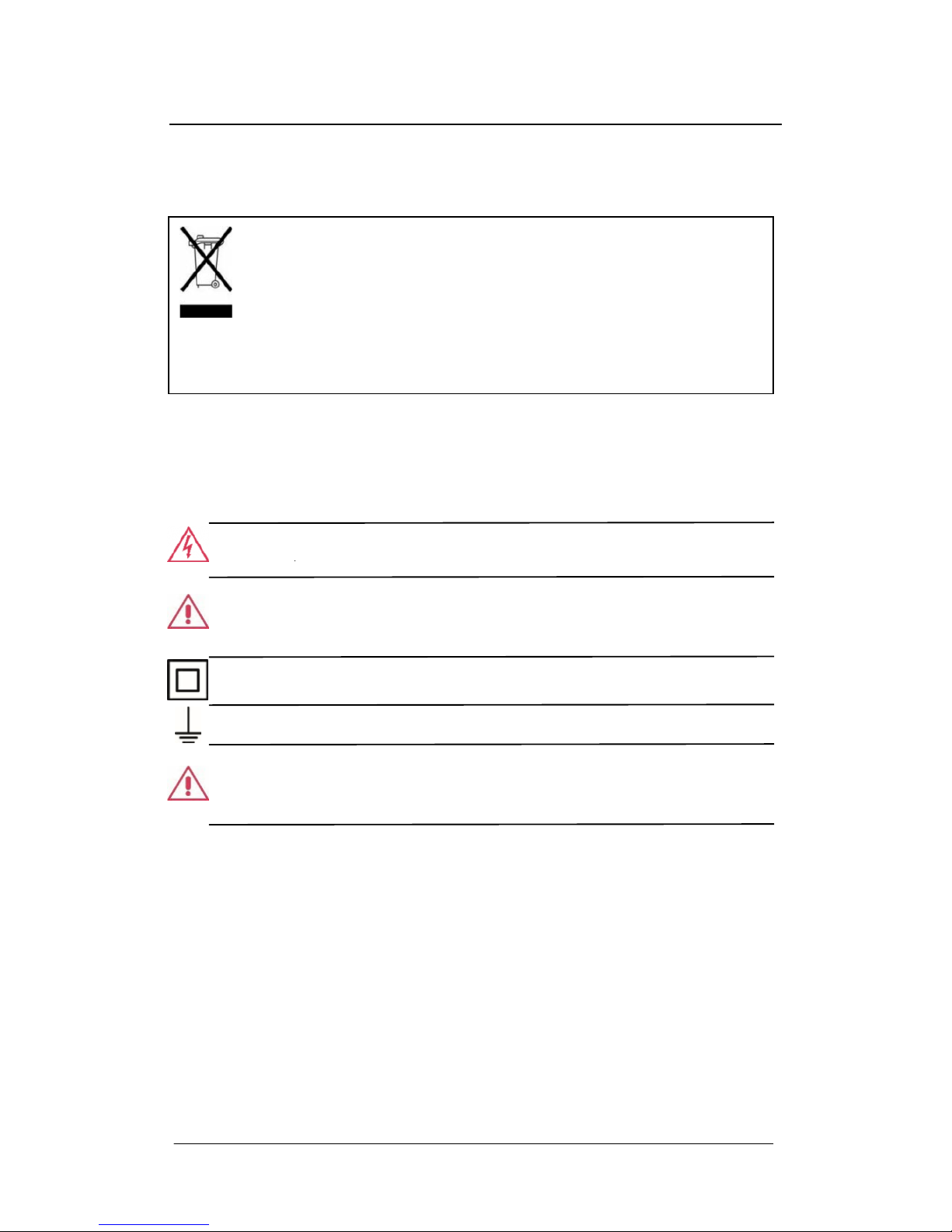

Safety Terms and Symbols
Terms and Symbols
The following symbols appear on the product or in its documentation:
WARNING High Voltage. Risk of electric shock or burn.
WARNING or CAUTION Condition or practice could result in injury or
loss of life, or damage to equipment.
DOUBLE INSULATION
PROTECTIVE (EARTH) TERMINAL
This electronic product is subject to disposal and recycling regulations
that vary by country and region. Many countries prohibit the disposal
of waste electronic equipment in standard waste receptacles. For more
information about proper disposal and recycling of your Teledyne
LeCroy product, visit teledynelecroy.com/recycle.
Rated for indoor use only. Do not operate where conductive pollutants
may be present.

VI
Introduction of T3AFG5-10 Series
The manual covers the following two types of T3AFG5-10 Series
Function/Arbitrary Waveform Generators: T3AFG5 and T3AFG10. It
does not cover the T3AFG40, T3AFG80 or T3AFG120. They have
their own manual.
T3AFG5-10 Series Function/Arbitrary Waveform Generators adopt the direct
digital synthesis (DDS) technology, which can provide stable, high-precision,
pure and low distortion signals. Its combination of excellent system features,
easiness in usage and versatile functions makes this generator a perfect
solution for your job now and in the future.
T3AFG5-10 Series Function/Arbitrary Waveform Generator has a clear and
simple front-panel. The user-friendly panel layout and instructions, versatile
terminals, direct graph interface, built-in instructions and help system have
greatly simplified the operation process, with the help of which, users do not
have to spend a great deal of time learning and familiarizing the operation of
the generator before they can use it proficiently. The built-in AM, DSB-AM,FM,
PM, ASK, FSK and PWM modulation functions generate modulated
waveforms at ease, without the help of a separate modulating source. USB
I/O is a standard accessory, while GPIB is optional. Remote instructions meet
the SCPI specification requirements.
From the characteristics and specifications given below, you will understand
how T3AFG5-10 can satisfy your requirements.

VII
l DDS technology provides precise, stable and low distortional
output signal.
l3.5’TFT color LCD display.
l125MSa/s sampling rate, 14-bit resolution.
lFrequency characteristics:
Sine: 1μHz to 5 MHz / 10 MHz
Square: 1μHz to 5 MHz / 10 MHz
Ramp: 1μHz to 300kHz
Pulse: 500μHz to 5MHz
White Noise: 5 MHz / 10MHz bandwidth (-3dB)
Arbitrary: 1μHz to 5MHz
l5 standard waveforms: Sine, Square, Ramp, Pulse, Noise
lSelf-defined arbitrary waveform
lMultiple modulation function: AM, FM, PM, ASK, FSK, PWM,
DSB-AM, Sweep and Burst.
lMultiple interfaces: USB host & USB device(USBTMC)
lSupport USB storage device. Software updating could also be
performed using USB devices.
l Up to 16k sample points of internal waveform depth, which can
rebuild or simulate any complex waveform.
l 2 languages (English and Chinese) user interface and built-in help
system.
Note:
All the specifications described in this guide are according to T3AFG5-10. If
you need to know the particular specifications about the other types, please
see the data sheet.

VIII
Catalogue
General Safety Summary.................................................................................II
Introduction to the T3AFG5-10 Series .......................................................... VI
1. Getting Started.......................................................................................... 1
1.1. General Inspection ........................................................................... 2
1.2. Handle Adjustment ...........................................................................3
1.3. The Front/Rear Panel.......................................................................4
1.4. To Set a Waveform...........................................................................7
1.5. To Set Modulate/Sweep/Burst ........................................................12
1.6. To Set Output ................................................................................. 14
1.7. To Use Digital Input ........................................................................ 15
1.8. To Use Store/Utility/Help Function..................................................16
2. Operating Your Generator........................................................................17
2.1. To Set Sine Signals ........................................................................18
2.2. To Set Square Signals....................................................................23
2.3. To Set Ramp Signals...................................................................... 26
2.4. To Set Pulse Signals ......................................................................29
2.5. To Set Noise Signals ......................................................................33
2.6. To Set Arbitrary Signals..................................................................35
2.7. To Generate the Modulated Waveform...........................................42
2.8. To Generate Sweep........................................................................51
2.9. To Generate Burst .......................................................................... 53
2.10. To Store and Recall..................................................................... 57
2.11. To Set the Utility Function............................................................63
2.12. Test/Cal .......................................................................................74
2.13. Edition Information ......................................................................79
2.14. Updating Firmware......................................................................81

IX
2.15. How to Use the Built-in Help System .......................................... 82
3. Application and Examples .......................................................................83
3.1. Example 1:Generate a Sine Wave ................................................. 84
3.2. Example 2:Generate a Square Wave............................................. 86
3.3. Example 3:Generate a Ramp Wave............................................... 88
3.4. Example 4:Generate a Pulse Wave ...............................................90
3.5. Example 5:Generate a Noise Wave ...............................................92
3.6. Example 6:Generate an Arbitrary Wave ......................................... 93
3.7. Example 7:Generate a Sweep Linear Wave...................................95
3.8. Example 8:Generate a Burst Wave ................................................ 97
3.9. Example 9:Generate an AM Wave .................................................99
3.10. Example 10:Generate a FM Wave ............................................ 101
3.11. Example 11:Generate a PM Wave ............................................ 103
3.12. Example 12:Generate a FSK Wave .......................................... 105
3.13. Example 13:Generate an ASK Wave ........................................ 107
3.14. Example 14: Generate a PWM Wave........................................ 109
3.15. Example 15: Generate a DSB-AM Wave .................................. 111
4. Troubleshooting ..................................................................................... 113
General Inspecting ................................................................................ 113
Troubleshooting .................................................................................... 114
5. Service and Support .............................................................................. 115
Maintain summary ................................................................................ 115
Contact Teledyne Test Tools .................................................................. 116
6. Appendix................................................................................................ 117
Appendix A: Accessories ...................................................................... 117
Appendix B: Daily Maintain and Cleaning ............................................. 118

1
1. Getting Started
This chapter covers the following topics:
nGeneral Inspection
nHandle Adjustment
nThe Front/Rear Panel
nTo Set a Waveform
nTo Set Modulate/Sweep/Burst
nTo Set Output
nTo Use Digital Input
nTo Use Store/Utility/Help Function

2
1.1. General Inspection
When you get a new T3AFG5-10 Series Function/Arbitrary Waveform Generator,
you are suggested to take the following steps to inspect the instrument.
1. Inspect the shipping container for damage.
If there are damages in the packing or foam, keep them until the whole
machine and the accessories pass the electric and mechanical testing.
2. Check the accessories.
Accessories supplied with the instrument are listed in chapter 6
‘Appendix A: Accessories’.
If the contents are incomplete or damaged, please notify your sales
representative.
3. Inspect the instrument.
In case any mechanical damage or defect, or if the instrument does not
operate properly or pass performance tests, notify your sales
representative. If the shipping container is damaged, or the cushioning
materials show signs of stress, notify the carrier as well as your sales
office. Keep the shipping materials for the carrier’s inspection. Offices
will arrange for repair or replacement at their option without waiting for
claim settlement.

3

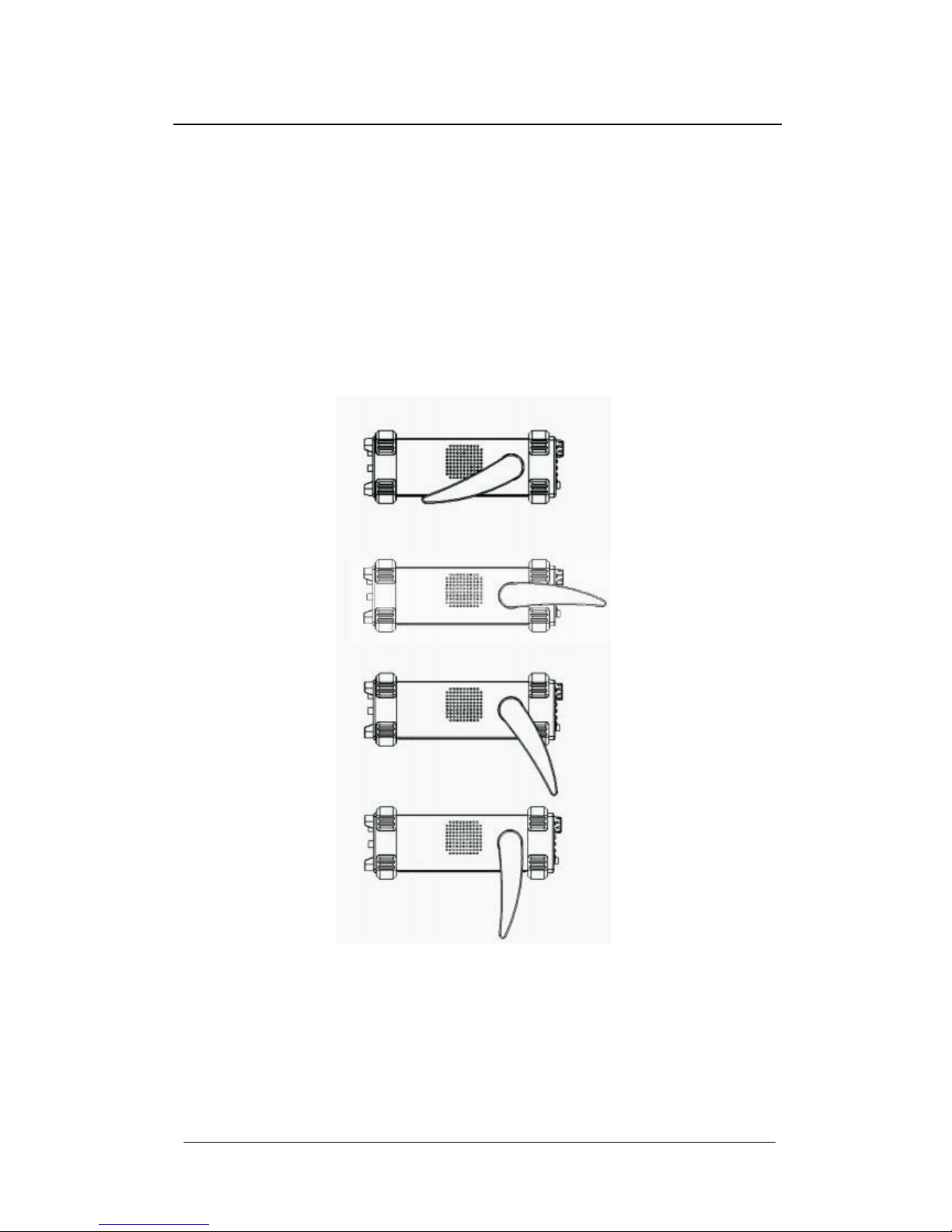

1.2. Handle Adjustment
To adjust the handle position of T3AFG5-10 Function/Arbitrary Waveform
Generator, please grip the handle by the sides and pull it outward.
Then, make the handle rotate to the desired position.
Figure 1- 1 Viewing Position and Carrying Position

4
1.3. The Front/Rear Panel
When you get a new T3AFG5-10 Series Function/Arbitrary Waveform Generator,
first you need to understand how to operate the front/rear panel correctly.
This chapter will make a brief introduction and description for the operation
and functions of the front/rear panel.
The T3AFG5-10 Series Function/Arbitrary Waveform Generator has a clear
and simple front panel. See Figure 1- 2 and Figure 1- 3. The front panel has a
knob and functional keys. The 5 blue grey buttons on the right side of the screen
are menu buttons (named F1 to F5 from top to bottom) with the help of which,
you can enter different functions menu or have direct specific applications. The
signal input and output interfaces are set at the front and rear panels which can
help generating multiple arbitrary waveforms. The various interfaces can meet
the need of the multiple interface communications.
Figure 1- 2 T3AFG5-10 Series

5

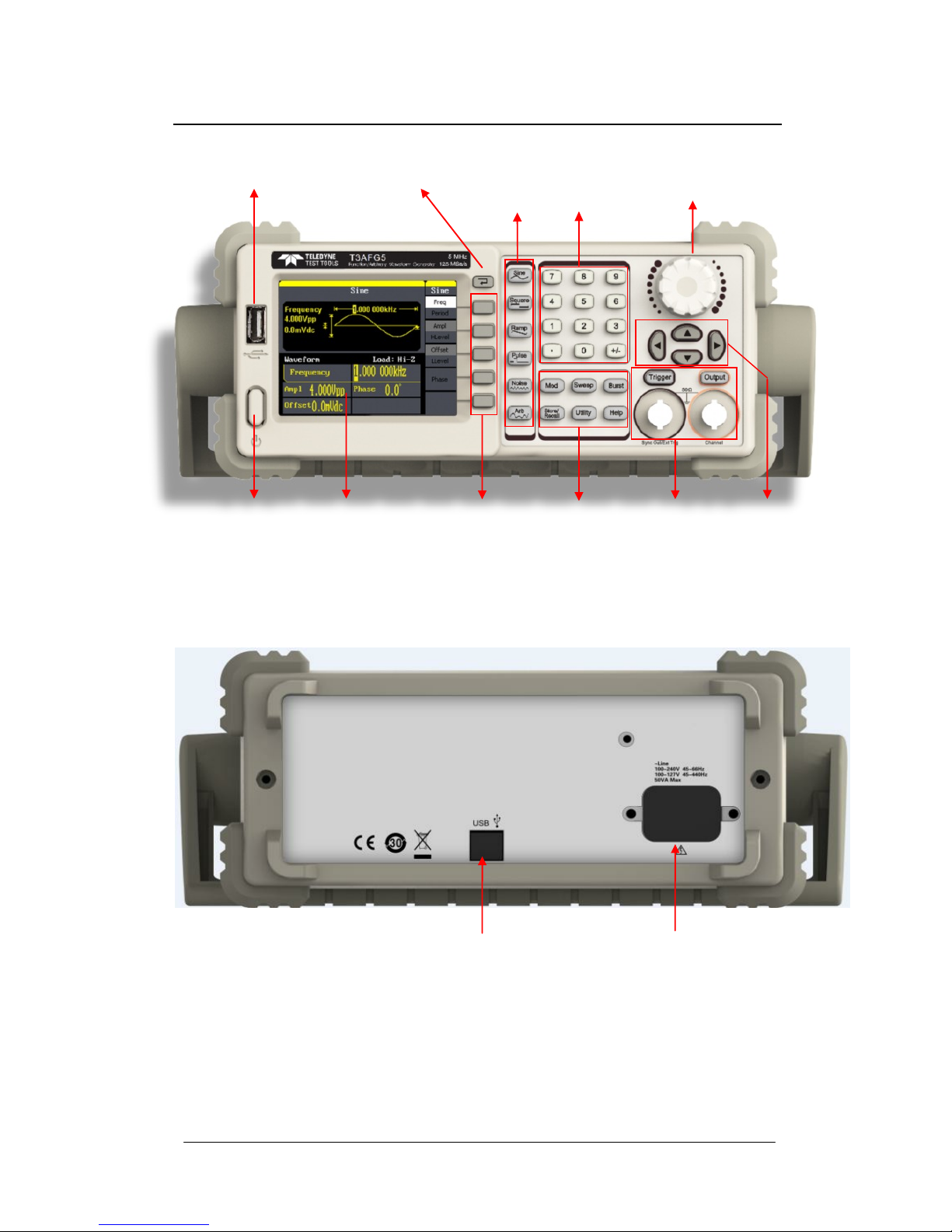

Figure 1- 3 Front Panel of T3AFG5-10 Series
Figure 1- 4 Rear Panel of T3AFG5-10 Series
USB Device
Power Socket
USB Host
Waveform
keys
Number
keys
Knob
Power LCD
Display
Menu Function
Operation keys
Output
Control
Direction
keys
Back

6
Figure 1- 5 Display Interface (Sine Wave is the default display signal)
Character definitions in this User Manual:
The signs for buttons in this manual are the same as the panel buttons.
Please note that, the signs for the functional buttons on the operation panel
are represented by squared words, such as Sine , which represents the
transparent functional key with Sine on it on the front panel, while the menu
buttons are represented by brighten words such as Freq, which means the
frequency option in the Sine menu.
Waveform
Display area
Parameter area
Operation
Menu:

7
1.4. To Set a Waveform

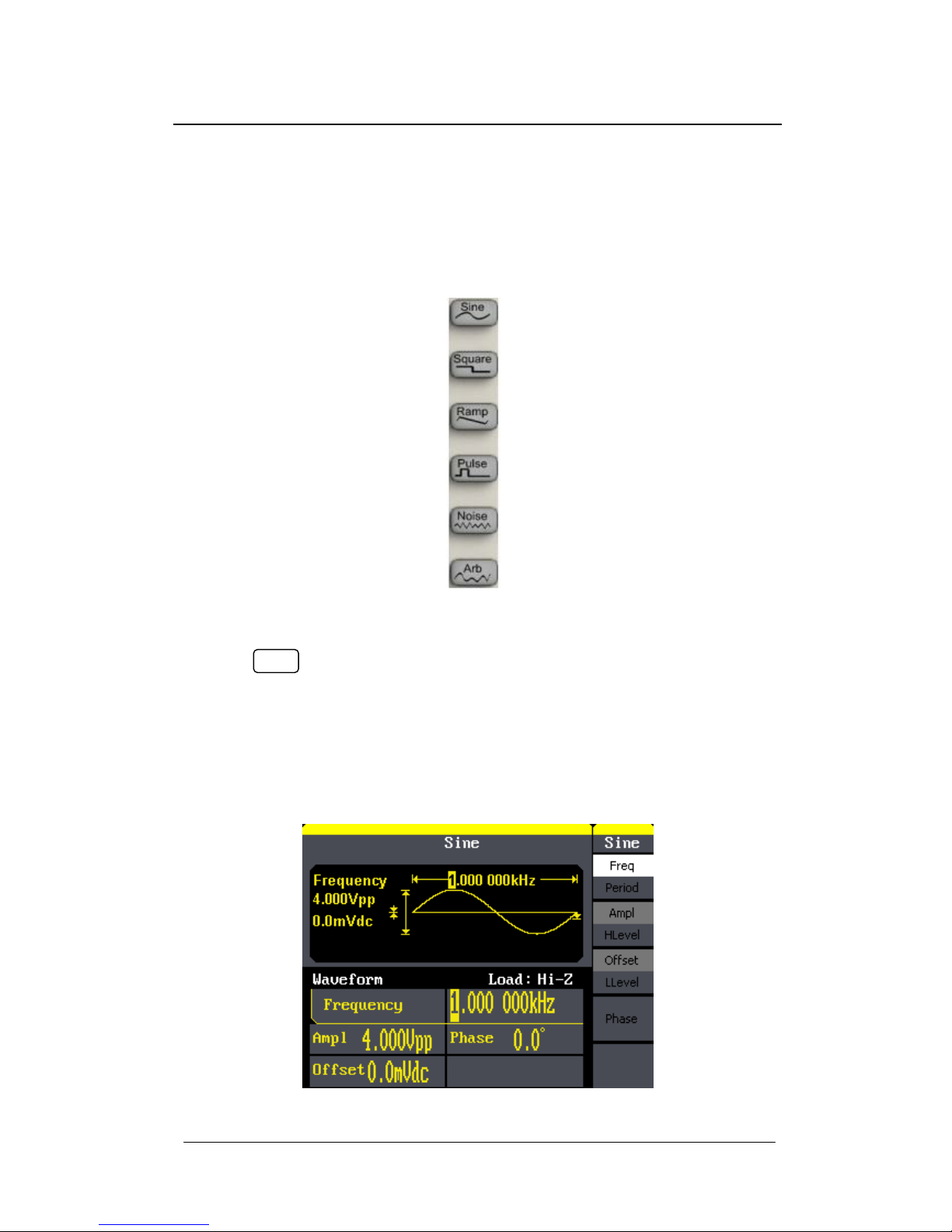

On the operation panel, there is a set of buttons with waveform icon. See
Figure 1- 6. The exercise below will help you familiarize with the waveform
selection settings.
Figure 1- 6 Waveform Selection Buttons
1. Press Sine button and the waveform window will display sine waveform.
T3AFG5-10 Series Generator can generate sine signal with a frequency
from 1μHz to 30MHz. By setting frequency/period, amplitude/high level,
offset/low level, sine signal with different parameters can be generated.
Figure 1- 7 Sine Signal Display Interface

8
As is shown in Figure 1- 7, the default signal parameters are: 1kHz frequency,
4.0Vpp amplitude and 0Vdc offset.
2. Press Square button, and the waveform window displays square
waveform. T3AFG5-10 Series Generator can generate square signal
with a frequency from 1μHz to 5MHz or 10MHz and variable duty
cycle.

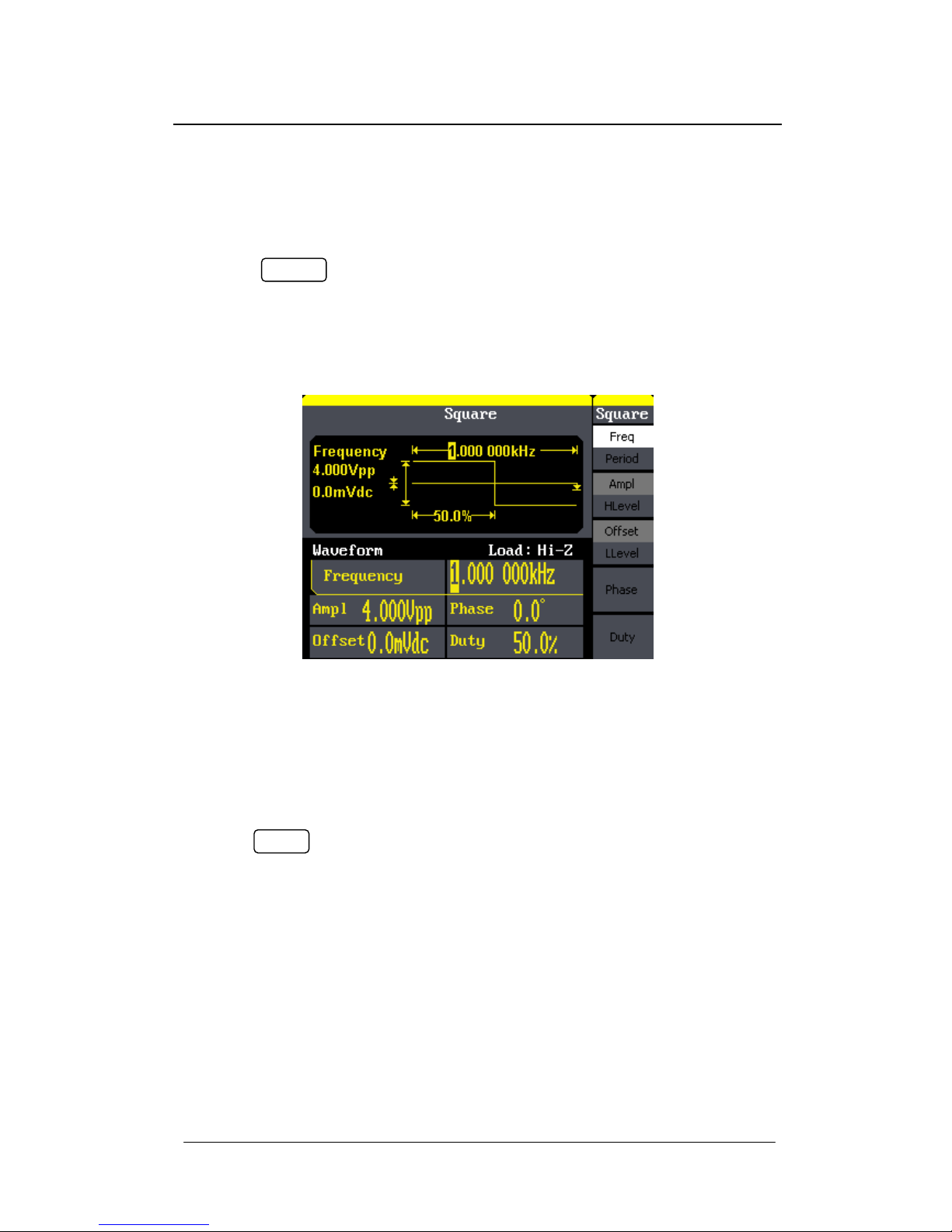

Figure 1- 8 Square Signal Display Interface
As is shown in Figure 1- 8, the default signal parameters are: 1kHz frequency,
4.0Vpp amplitude, 0Vdc offset and 50% duty cycle.
3. Press Ramp button, and the waveform window displays ramp waveform.
T3AFG5-10 Series Generator can generate ramp signal with a frequency of
from 1μHz to 300kHz and variable symmetry.

9
Figure 1- 9 Ramp Signal Display Interface
As is shown in Figure 1- 9, the default signal parameters are: 1kHz frequency,
4.0Vpp amplitude, 0Vdc offset and 50% symmetry.
4. Press Pulse button, and the waveform window displays pulse waveform.
T3AFG5-10 Series Generator can generate pulse signal with a frequency
from 500μHz to 5 MHz and variable pulse width and delay.
Figure 1- 10 Pulse Signal Display Interface

10
As is shown in Figure 1-10, the default signal parameters are: 1kHz
frequency, 4.0Vpp amplitude, 0Vdc offset, 200μs pulse width.
5. Press Noise button, and the waveform window displays noise waveform.
T3AFG5-10 Series Generator can generate noise signal with a band width
up to 5MHz or 10MHz depending on the model.
Figure 1-11 Noise Signal Display Interface
As is shown in Figure 1-11, the default signal parameters are: 128mV Stdev
and 0V Mean.
6. Press Arb button, and the waveform window displays arbitrary waveform.
T3AFG5-10 Series Generator can generate repeatable arbitrary waveform
signals with at most 16K points and 5MHz frequency.
