Tsun TITAN TSOL-MP3000 Original operating instructions

Check the Installation Environment and Position
Installation Steps
Step 1. Fix the microinveer Step 2. Connect the AC cable
DANGER
DANGER
WARNING
CAUTION

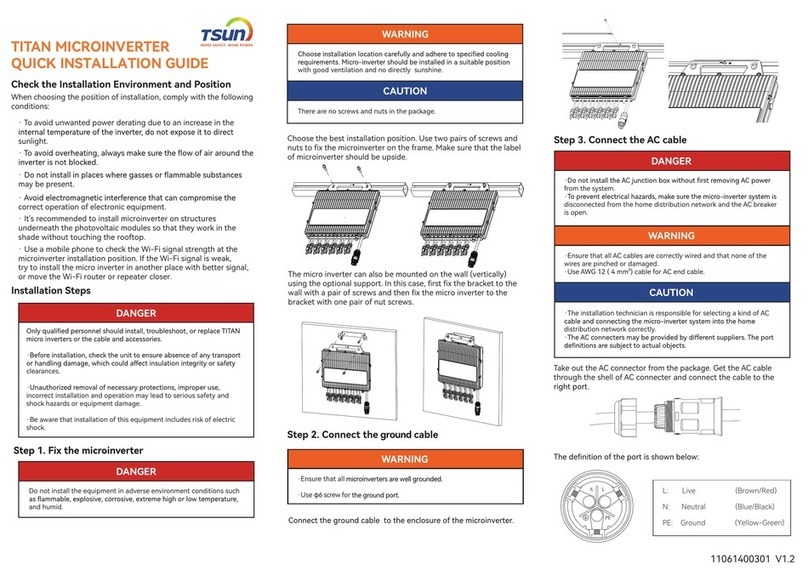

TITAN MICROINVERTER
Quick Installation
When choosing the position of installation, comply with the following
conditions:
Choose an installation position. Using two pairs of screws and nuts
to x the microinveer on the frame. Make sure that the label of
microinveer should be upside.
Take out the AC connector from the package. Get the AC cable
through the shell of AC connecter and connect the cable to the
right po.
The denition of the po is shown below:
Microinveer can also be installed on the wall. Using the bracket
(optional) and x it on the wall. Then using two pairs of screws and
nuts to x the microinveer on the bracket. Make sure that the
label of microinveer should be outside.
· To avoid unwanted power derating due to an increase in the
internal temperature of the inveer, do not expose it to direct
sunlight.
· To avoid overheating, always make sure the ow of air around the
inveer is not blocked.
· Do not install in places where gasses or ammable substances
may be present.
· Avoid electromagnetic inteerence that can compromise the
correct operation of electronic equipment.
· It’s recommended to install microinveer on structures under-
neath the photovoltaic modules so that they work in the shade.
· Use a mobile phone to check the Wi-Fi signal strength at the
installation position. If the Wi-Fi signal is bad, t to install the
microinveer at another position or move the Wi-Fi router.
Only qualied personnel should install, troubleshoot, or replace TITAN
micro inveers or the cable and accessories.
·Before installation, check the unit to ensure absence of any transpo
or handling damage, which could aect insulation integrity or safety
clearances.
·Unauthorized removal of necessa protections, improper use,
incorrect installation and operation may lead to serious safety and
shock hazards or equipment damage.
·Be aware that installation of this equipment includes risk of electric
shock.
Do not install the equipment in adverse environment conditions such
as ammable, explosive, corrosive, extreme high or low temperature,
and humid.
Choose installation location carefully and adhere to specied cooling
requirements. Micro-inveer should be installed in a suitable position
with good ventilation and no directly sunshine.
There are no screws and nuts in the package.
DANGER
WARNING
CAUTION
·Do not install the AC junction box without rst removing AC power
from the system.
·To prevent electrical hazards, make sure the micro-inveer system is
disconnected from the home distribution network and the AC breaker
is open.
·Ensure that all AC cables are correctly wired and that none of the
wires are pinched or damaged.
·Use AWG 12 ( 4 mm²) cable for AC end cable.
·The installation technician is responsible for selecting a kind of AC
cable and connecting the micro-inveer system into the home
distribution network correctly.
·The AC connecters may be provided by dierent suppliers. The po
denitions are subject to actual objects.
L: Live (Brown/Red)
N: Neutral (Blue/Black)
PE: Ground (Yellow-Green)

Step 3. Connect the DC cable
Step 5. Sta the System
Step 4. Make an installation map
Plug the AC connector into the microinveer and connect the AC
cable to the AC distribution box.
While using TSOL-MS3000
microinveer, each DC input of
microinveer can connect two PV
modules in series.
Install the PV modules and
connect the DC cable to the
microinveer.
Take out the SN labels and installation map from the package.
Paste the SN labels on the installation map as below and complete
the information of the solar plant.
While installation is all nished, turn on the main utility-grid AC
circuit breaker. Your system will sta producing power after about
a two-minute wait time.
The LED will ash green and red at sta up. The denition of LED
is shown as below.
Reassemble the AC connector as shown below.
CAUTION
·If there are more than one installation site, please make the
installation map separately and give a clear description about the
installation site.
·The row of the table corresponds the shoer side of PV module and
the column of the table corresponds the longer side of PV module. The
direction on the upper left corner means the actual installation
orientation.
DANGER
WARNING
CAUTION
·When the photovoltaic array is exposed to light, it supplies a DC
voltage to the inveer.
·Ensure that all DC cables are correctly wired and that none of the
wires are pinched or damaged.
·The DC conductors of this photovoltaic system are ungrounded and
may be energized.
·The maximum open circuit voltage of the PV module must not exceed
the specied maximum input DC voltage of the TSOL micro inveer.
·If the DC cable is too sho for installation, use a DC Extension Cable
to connect PV modules to the microinveer.
·Use MC4 compatible DC connectors in the inveer side of DC
extension cable, or get the DC connectors form TSUN.
·Contact PV module manufacturers for the requirements of DC
connectors in the module side of DC extension cable.
DANGER
CAUTION
·Only qualied personnel should connect this system to the utility grid.
·Do not connect micro-inveers to the grid or energize the AC
circuit(s) until you have completed all the installation procedures and
have received prior approval from the electrical utility company.
Status
Solid Green Standby/Waiting/Checking Status
Working normally
Working abnormally
Fault
Fishing Green (1s)
Fishing Red
Solid Red
Indicates
TSUNESS Co,. Ltd
E-MAIL : [email protected]
WEB : www.tsun-ess.com
TEL : [phone]
TSOL-MP3000 TSOL-MS3000 TSOL-MP2250
Step 6. Download the monitoring App
Visit "Google Play" or "Apple Store" and search "Talent Home".
Download and install it in the mobile phone.
Talent Home
Scan the QR code below and get the User Guidance of Talent
Home App.
Follow the user guidance and complete all the operations in
the App.
11061400301 V1.1
