Enercell 150-Watt Power Inverter User manual

Please read this user’s guide before using your
new power inverter.
TM
M
T
150-Watt
Power Inverter
22-134 User’s Guide
2/3

2
Package contents
Features
• Automaticallyshutsdownifthevehicle’s
batteryrunslowtopreventtotalbattery
discharge.
• Converts12VDCpowerfromvehicle
batteryinto115VACpower.
• Idealforcamcorders,videogame
consoles,notebookcomputers,battery
chargers,smallTVs,andDVDplayers.
• Fusedcircuitryandshort-circuitprotection
safeguardyourdevicesintheeventof
poweroverload.
Quick Start
User’s
Guide
Power Inverter

3

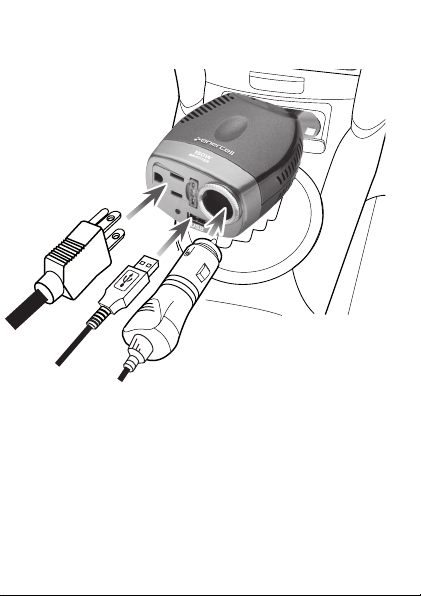

1Plug Inverter into your
vehicle’s power port
Adjustthe
inverterplug
forbetter
positioning.
Power Indicator
Lights when the inverter
is connected.

4
2Plug in device
nNotes:
• Devicemustdraw150Worlessof
continuousACpower.
• Ifnecessary,youcanuseanACextension
cord.Theextensioncord’sratingshould
beequaltoorgreaterthanthedevice’s
rating.

5
Replacing the Fuse
Ifthefusehasblown,replaceitwitha20A,
32Vblade-typefuse(notsupplied).
1. Takeoutthefusewithpliers.
2. Insertthenewfuse.
wCaution: Donotuseafusewitha
differentrating.Doingsocandamageyour
inverter.

6
Troubleshooting
Ifanappliancedoesn’tpowerup,orthe
powerindicatordoesn’tlight,thereareseveral
possiblecauses:
• Defectivedevicepluggedintothe
inverter.
 Tryanotherdevicetoseeiftherstone
isdefective.
• Vehiclebatteryvoltageislowerthan
10V.
 Runthevehicle’senginetorechargethe
battery.
• Temperatureexceeds158°F(70°C).
 Unplugtheapplianceandwaituntilthe
invertercools.See“HeatDispersion”on
page7.Yourdevice’spowerrequirement
mightexceedtheinverter’srating.
• Continuouspowerloadexceeds150
watts.
Disconnectthedevice.Useonlydevices
withacontinuouspowerloadof150
wattsorless.
• Blownfuse.
 See“Replacing the Fuse.”

7
HeatDispersion
Positiontheinverterwhereairowsfreely
aroundittoallowtheheattodisperse.The
inverter’sthermalprotectionpreventsitfrom
operatingifitstemperatureexceeds158°F
(70°C).Iftheinvertergetstoohotwhileworking,
itwillturnoff.Operationresumeswhenthe
temperaturedecreasestoabout104°F(40°C).
SafetyInformation
WARNING! Shock Hazard
This150Winvertergeneratesthesame
potentiallydangerousACvoltageasa
householdwalloutlet.Failuretofollowthese
warningsmayresultinpersonalinjuryor
damagetotheinverter.
Donotinsertforeignobjectsinto
theinverter’sACoutletorvents.
Donotexposetheinverterto
water.

8
w Caution:
• Donotconnectdevicesthatrequirepower
greaterthan150wattstotheinverter.
• Donotusethepowerinverterinapositive-
groundedvehicle.Checkwithyourmechanicto
determineifyourvehicleispositive-grounded.
• Thetotalpowerformultipledevicesconnected
totheAC,DCandUSBsocketcannotexceed
150watts.Ifyoudonotknowthetotalpower
foryourdevices,connectjustonedevice.
• Duringoperation,keeptheinverteraway
frommaterialsthatmaybeaffectedbyhigh
temperatures.
• Makesurethepowerportandplugareclean.A
dirtypowerportcanpreventtheinverterfrom
workingproperly.
• Alwaysremovetheinverterfromthepower
portwhennotinuse.
• Lettheinvertercooldowncompletelybefore
storing.
Specifications
Input............................................................ 11~16VDC
Output............................115VAC(±10V),60Hz(±3Hz)
StandbyCurrent...................................<0.4AMP@13.8V
OutputPower.......................... 150WContinuousPower
Fuse................................................ 20A,32VBlade-Type

9
Dimensions(H×W×D)................ 1.85x2.91x5.43in.
...........................................................(47x74x138mm)
Weight....................................................... 6.5oz(185g)
Specicationsaresubjecttochangeandimprovement
withoutnotice.Actualproductmayvaryfromthe
imagesfoundinthisdocument.
FCCInformation
Thisequipmenthasbeentestedandfoundtocomplywiththelimitsfora
ClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimits
aredesignedtoprovidereasonableprotectionagainstharmfulinterference
inaresidentialinstallation.Thisequipmentgenerates,usesandcanradiate
radiofrequencyenergyand,ifnotinstalledandusedinaccordancewith
theinstructions,maycauseharmfulinterferencetoradiocommunications.
However,thereisnoguaranteethatinterferencewillnotoccurinaparticular
installation.Ifthisequipmentdoescauseharmfulinterferencetoradioor
televisionreception,whichcanbedeterminedbyturningtheequipmentoff
andon,theuserisencouragedtotrytocorrecttheinterferencebyoneor
moreofthefollowingmeasures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
• Connecttheequipmentintoanoutletonacircuitdifferentfromthatto
whichthereceiverisconnected.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
ChangesormodicationsnotexpresslyapprovedbyIgnitionL.P.maycause
interferenceandvoidtheuser’sauthoritytooperatetheequipment.
Thisdevicecomplieswithpart15oftheFCCRules.Operationissubject
tothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmful
interference,and(2)thisdevicemustacceptanyinterferencereceived,
includinginterferencethatmaycauseundesiredoperation.
LimitedWarranty
IgnitionL.P.warrantsthisproductagainstdefectsinmaterialsandworkman-
shipundernormalusebytheoriginalpurchaserforninety(90)days
afterthedateofpurchase.IGNITIONL.P.MAKESNOOTHEREXPRESS
WARRANTIES.
Thiswarrantydoesnotcover:(a)damageorfailurecausedbyorattributable
toabuse,misuse,failuretofollowinstructions,improperinstallationor
maintenance,alteration,accident,ActsofGod(suchasoodsorlightning),
orexcessvoltageorcurrent;(b)improperorincorrectlyperformedrepairs

10
bypersonswhoarenotaIgnitionL.P.AuthorizedServiceFacility;(c)
consumablessuchasfusesorbatteries;(d)ordinarywearandtearor
cosmeticdamage;(e)transportation,shippingorinsurancecosts;(f)costs
ofproductremoval,installation,set-upservice,adjustmentorreinstallation;
and(g)claimsbypersonsotherthantheoriginalpurchaser.
Shouldaproblemoccurthatiscoveredbythiswarranty,taketheproduct
andthesalesreceiptasproofofpurchasedatetotheplaceofpurchase.
IgnitionL.P.will,atitsoption,unlessotherwiseprovidedbylaw:(a)repair
theproductwithoutchargeforpartsandlabor;(b)replacetheproduct
withthesameoracomparableproduct;or(c)refundthepurchaseprice.
Allreplacedpartsandproducts,andproductsonwhicharefundismade,
becomethepropertyofIgnitionL.P.Neworreconditionedpartsand
productsmaybeusedintheperformanceofwarrantyservice.Repaired
orreplacedpartsandproductsarewarrantedfortheremainderofthe
originalwarrantyperiod.Youwillbechargedforrepairorreplacementofthe
productmadeaftertheexpirationofthewarrantyperiod.
IGNITIONL.P.EXPRESSLYDISCLAIMSALLWARRANTIESAND
CONDITIONSNOTSTATEDINTHISLIMITEDWARRANTY.ANYIMPLIED
WARRANTIESTHATMAYBEIMPOSEDBYLAW,INCLUDINGTHE
IMPLIEDWARRANTYOFMERCHANTABILITYAND,IFAPPLICABLE,THE
IMPLIEDWARRANTYOFFITNESSFORAPARTICULARPURPOSE,SHALL
EXPIREONTHEEXPIRATIONOFTHESTATEDWARRANTYPERIOD.
EXCEPTASDESCRIBEDABOVE,IGNITIONL.P.SHALLHAVENO
LIABILITYORRESPONSIBILITYTOTHEPURCHASEROFTHEPRODUCT
ORANYOTHERPERSONORENTITYWITHRESPECTTOANYLIABILITY,
LOSSORDAMAGECAUSEDDIRECTLYORINDIRECTLYBYUSEOR
PERFORMANCEOFTHEPRODUCTORARISINGOUTOFANYBREACH
OFTHISWARRANTY,INCLUDING,BUTNOTLIMITEDTO,ANYDAMAGES
RESULTINGFROMINCONVENIENCEANDANYLOSSOFTIME,DATA,
PROPERTY,REVENUE,ORPROFITANDANYINDIRECT,SPECIAL,
INCIDENTAL,ORCONSEQUENTIALDAMAGES,EVENIFIGNITIONL.P.
HASBEENADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGES.
SomeStatesdonotallowlimitationsonhowlonganimpliedwarrantylasts
ortheexclusionorlimitationofincidentalorconsequentialdamages,sothe
abovelimitationsorexclusionsmaynotapplytoyou.Thiswarrantygives
youspeciclegalrights,andyoumayalsohaveotherrightswhichvaryfrom
StatetoState.YoumaycontactIgnitionL.P.at:
IgnitionL.P.,3102MapleAve.Suite450,Dallas,TX75201 02/09
Forproductsupport,call1-866-315-0426.
