Teledyne QubeFlex User manual

Version 3.2.56
December 2022
2017
EN 55032 - Class A
EN 55035
EN 62368
Teledyne Paradise Datacom
106 Waterhouse Lane, Chelmsford, Essex CM1 2QU, England.
Tel: [phone]
https://www.teledynedefenseelectronics.com/paradisedatacom
Copyright © 2013-2021 Teledyne Paradise Datacom Ltd. All rights reserved.
QubeFlex Satellite Modem
Installation and Operating Handbook

QubeFlex Satellite Modem Installation and Operating Handbook
ii
Table of Contents
Chapter 1 Welcome................................................................................................1-1
Chapter 2 About This Handbook...........................................................................2-1
2.1 Conventions .......................................................................................................2-1
2.2 Trademarks........................................................................................................2-1
2.3 Disclaimer...........................................................................................................2-1
Chapter 3 Safety and Compliance Information....................................................3-1
3.1 Safety Compliance .............................................................................................3-1
3.2 Environmental Compliance.................................................................................3-1
3.3 Electromagnetic Compatibility (EMC) Compliance..............................................3-2
Chapter 4 Installation.............................................................................................4-1
4.1 Unpacking ..........................................................................................................4-1
4.2 Line Supply.........................................................................................................4-1
4.3 Rack Mounting....................................................................................................4-1
4.4 Getting Started ...................................................................................................4-2
Chapter 5 Introduction...........................................................................................5-3
5.1 Overview ............................................................................................................5-3
5.2 Standard-Fit Hardware .......................................................................................5-3
5.2.1 IF and L-band Operation.................................................................................5-3
5.2.2 Ethernet Operation .........................................................................................5-3
5.2.3 Utilities Card...................................................................................................5-3
5.3 Hardware Options...............................................................................................5-4
5.3.1 Terrestrial Interface Hardware ........................................................................5-4
5.3.1.1 EIA-530 Option Card...............................................................................5-4
5.3.1.2 LVDS Option Card ..................................................................................5-4
5.3.2 BUC Power Supply Options............................................................................5-5
5.4 Software Options................................................................................................5-5

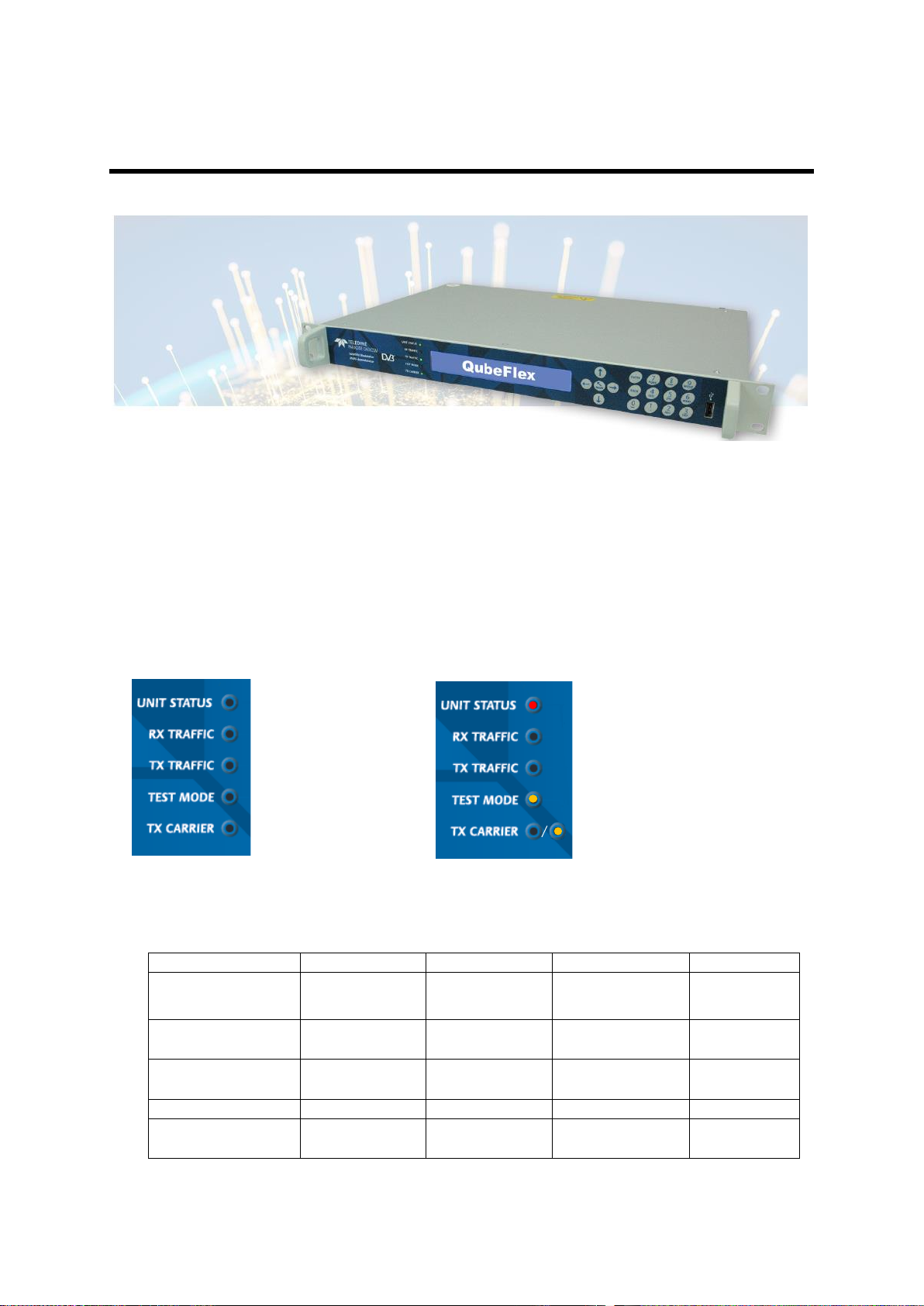

5.5 Front Panel.........................................................................................................5-6
5.5.1 Status Indicators.............................................................................................5-6
5.5.2 LCD Display....................................................................................................5-7
5.5.2.1 Keypad....................................................................................................5-7

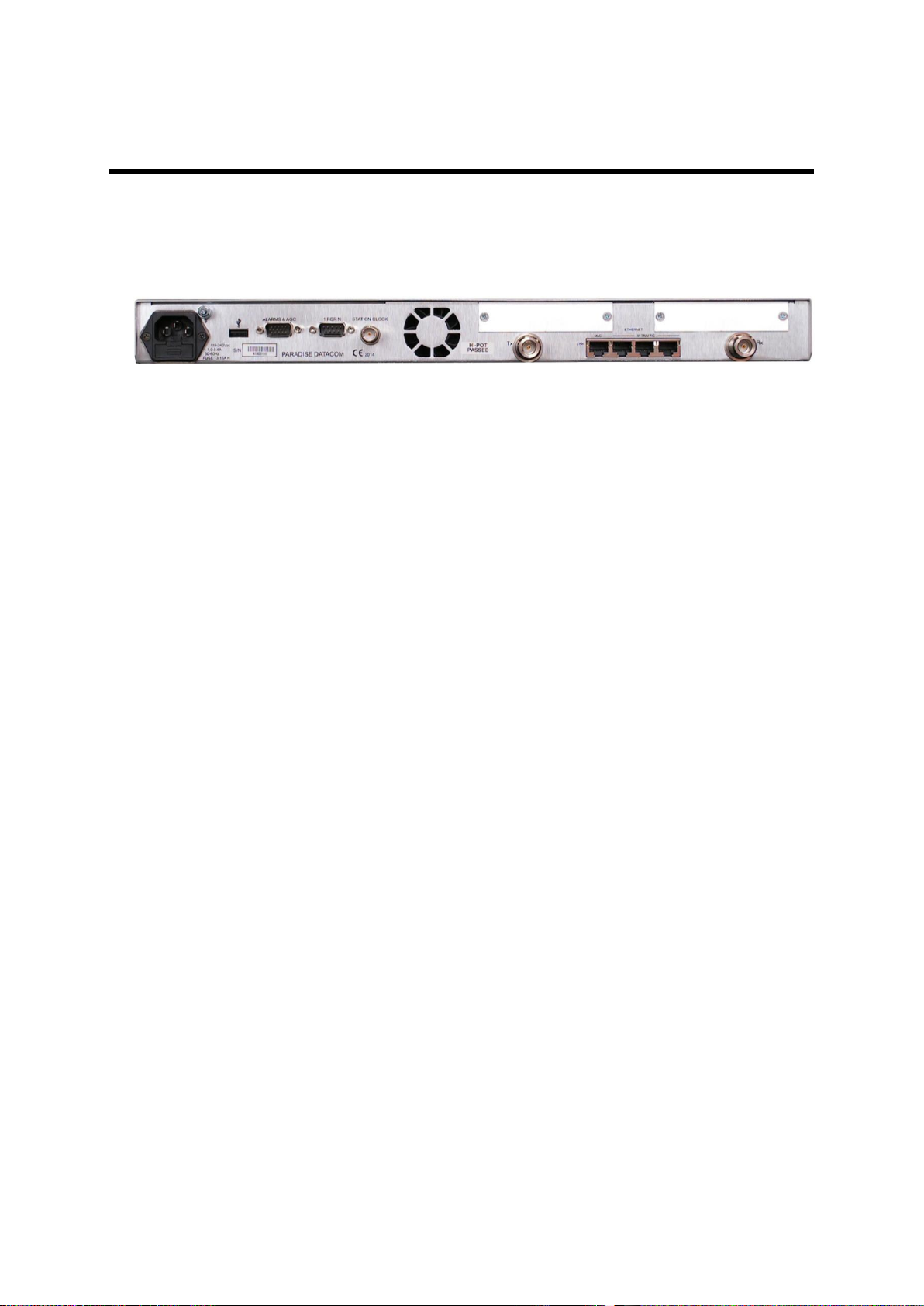

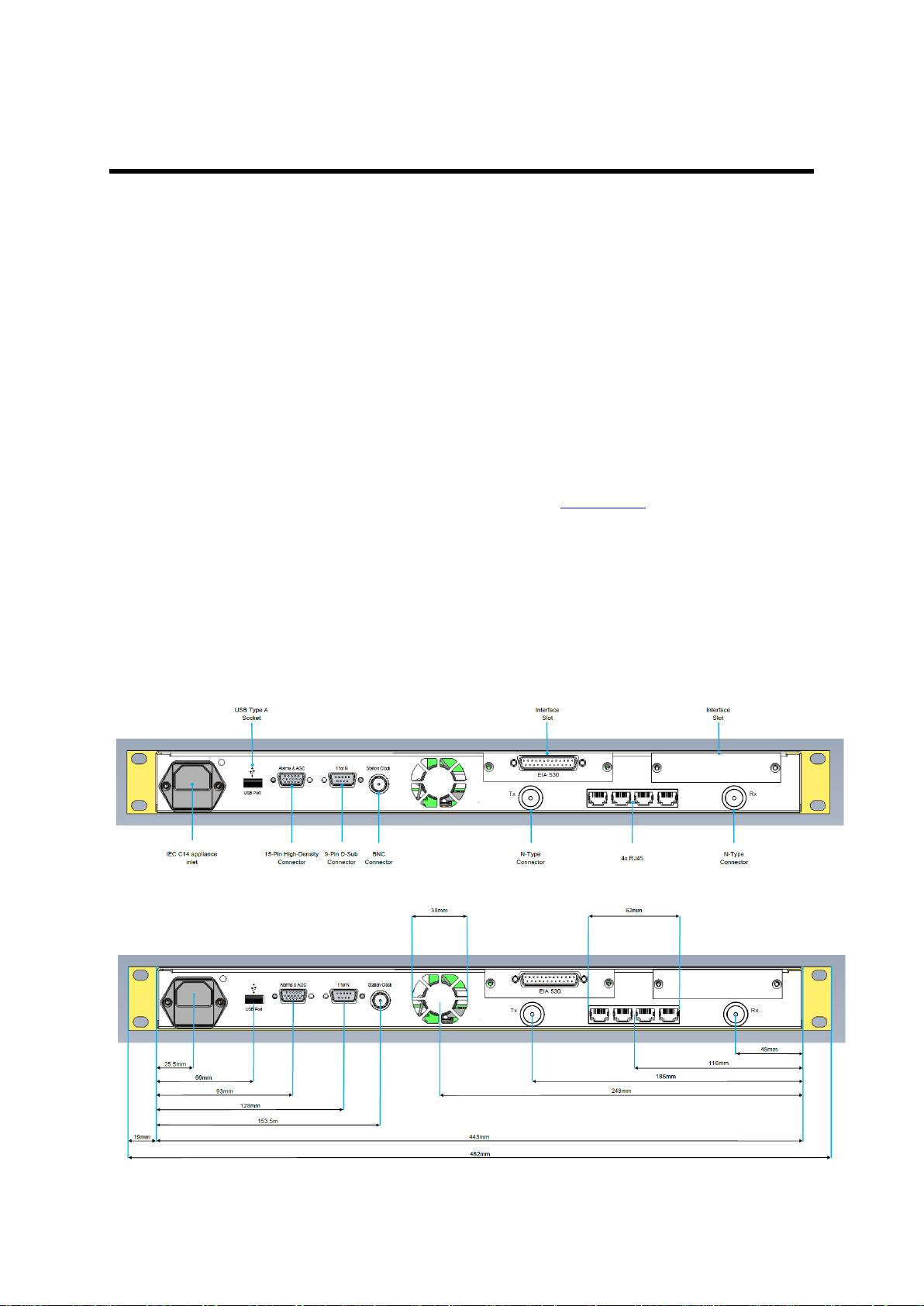

5.6 QubeFlex Rear Panel.........................................................................................5-8
Chapter 6 User Interfaces...................................................................................... 6-1
6.1 User Control.......................................................................................................6-1
6.1.1 Local Mode.....................................................................................................6-1
6.1.2 Local+ Remote Mode......................................................................................6-1
6.2 Web User Interface.............................................................................................6-1
6.2.1 Login Screen ..................................................................................................6-2
6.2.2 Status Screen.................................................................................................6-3
6.2.2.1 Status Setup ...........................................................................................6-4
6.2.2.2 Status Demodulator ................................................................................6-5
6.2.2.3 Status BUC.............................................................................................6-6

QubeFlex Satellite Modem Installation and Operating Handbook
iii
6.2.3 Edit Screen.....................................................................................................6-6
6.2.4 Edit->Tx-Rx->Service Screen .........................................................................6-7
6.2.4.1 Terrestrial Interface.................................................................................6-8
6.2.4.2 Rx Values Track Tx.................................................................................6-8
6.2.4.3 Tx/Rx Rate Control..................................................................................6-8
6.2.4.4 Tx/Rx Data Rate .....................................................................................6-8
6.2.4.5 Tx/Rx Symbol Rate.................................................................................6-9
6.2.4.6 Tx Clock Source......................................................................................6-9
6.2.4.7 Rx Clock Source...................................................................................6-10
6.2.4.8 Tx/Rx Viterbi FEC .................................................................................6-10
6.2.4.9 Tx/Rx modulation..................................................................................6-10
6.2.4.10 Tx/Rx FEC code rate.........................................................................6-10
6.2.4.11 Tx/Rx RS FEC mode.........................................................................6-11
6.2.4.12 Tx/Rx RS CCSDS Code....................................................................6-11
6.2.4.13 Tx/RX Scrambler mode.....................................................................6-11
6.2.4.14 Tx/Rx Scrambler type........................................................................6-11
6.2.4.15 Tx/Rx V.35 scrambler type................................................................6-12
6.2.4.16 Tx/Rx Differential coding/decoding....................................................6-12
6.2.4.17 Tx/Rx Frequency Band......................................................................6-12
6.2.4.18 Tx/Rx Carrier Frequency...................................................................6-12
6.2.4.19 Tx/Rx Spectral Roll-off ......................................................................6-13
6.2.4.20 Tx/Rx Extended roll-off......................................................................6-13
6.2.4.21 Tx/Rx Spectral Inversion...................................................................6-13
6.2.4.22 Tx Output Power...............................................................................6-14
6.2.4.23 Modem/BUC Carrier..........................................................................6-14
6.2.5 Edit->Tx-Rx->Service->Advanced Screen ....................................................6-14
6.2.5.1 Sweep Mode.........................................................................................6-14
6.2.5.2 Sweep Width.........................................................................................6-14
6.2.5.3 Carrier protection..................................................................................6-15
6.2.5.4 Transfer Frame Length .........................................................................6-15
6.2.6 Edit->Tx-Rx->BUC/LNB Screen....................................................................6-15
6.2.6.1 BUC Interface .......................................................................................6-15
6.2.6.2 BUC LO Frequency...............................................................................6-16
6.2.6.3 BUC Attenuation...................................................................................6-16
6.2.6.4 DC to BUC............................................................................................6-16
6.2.6.5 10MHz to BUC......................................................................................6-16
6.2.6.6 Mute BUC Services in Standby.............................................................6-16
6.2.6.7 LNB Type..............................................................................................6-17
6.2.6.8 LNB LO Frequency ...............................................................................6-17
6.2.6.9 DC to LNB.............................................................................................6-17
6.2.6.10 10MHz to LNB...................................................................................6-17
6.2.6.11 Mute LNB Services in Standby..........................................................6-17
6.2.7 Edit->Unit Screen .........................................................................................6-18
6.2.8 Edit->Unit->M&C Screen ..............................................................................6-18
6.2.8.1 Modem Control and Passwords ............................................................6-19
6.2.8.2 RADIUS Server IP Address and Fallback Address................................6-19
6.2.8.3 RADIUS Shared Secret.........................................................................6-19
6.2.8.4 RADIUS Authentication Validity.............................................................6-20
6.2.8.5 RADIUS Server Timeout.......................................................................6-20
6.2.8.6 Remote M&C Interface..........................................................................6-21
6.2.8.7 Modem Identity .....................................................................................6-21
6.2.8.8 Submit Mode.........................................................................................6-21

QubeFlex Satellite Modem Installation and Operating Handbook
iv
6.2.9 Edit->Unit->M&C->SNMP Screen.................................................................6-22
6.2.10 Edit->Unit->M&C->Email Screen...............................................................6-23
6.2.11 Edit->Unit->M&C->HTTPS Screen............................................................6-25
6.2.12 Edit->Unit->M&C->Security Screen...........................................................6-26
6.2.13 Edit->Unit->Alarms Screen .......................................................................6-26
6.2.13.1 LinkGuard™ Interference detection...................................................6-26
6.2.13.2 Tx/Rx AIS Alarm Action.....................................................................6-27
6.2.13.3 Local/Remote Eb/No Alarm Threshold ..............................................6-27
6.2.13.4 Buffer Slip Alarm Threshold...............................................................6-27
6.2.13.5 BUC DC Current Alarm.....................................................................6-27
6.2.13.6 Ethernet Port Down Alarms...............................................................6-28
6.2.14 Edit->Unit->SAF Screen............................................................................6-28
6.2.15 Edit->Unit->Upgrade Screen.....................................................................6-29
6.2.16 Edit->Unit->Miscellaneous->Time Screen.................................................6-32
6.2.17 Edit->Unit->Miscellaneous->Reset Screen................................................6-33
6.2.18 Edit->Unit->Miscellaneous->NTP Screen..................................................6-33
6.2.19 Edit->IP Screen.........................................................................................6-34
6.2.19.1 IP Mode.............................................................................................6-34
6.2.19.2 Bridge M&C.......................................................................................6-34
6.2.19.3 M&C IP Address, Subnet Mask & Modem IP Gateway......................6-35
6.2.19.4 Traffic/Satellite IP Addresses and Subnet Masks..............................6-35
6.2.19.5 Ethernet Speed/Duplex.....................................................................6-36
6.2.19.6 IPv4/IPv6 Mode.................................................................................6-37
6.2.19.7 Ethernet MTU....................................................................................6-37
6.2.19.8 Add Metadata to Packets ..................................................................6-38
6.2.19.9 Serial Conversion to IP......................................................................6-38
6.2.19.10 Destination Address and Destination Port.........................................6-39
6.2.19.11 Edit->Memories->Recall Screen........................................................6-40
6.2.19.12 Edit->Memories->Recall->Advanced Reversionary Control Screen...6-40
6.2.19.13 Edit->Memories->Store Screen.........................................................6-42
6.2.19.14 Edit->Memories->Download Screen..................................................6-42
6.2.19.15 Edit->Memories->Upload Screen ......................................................6-42
6.2.20 View Screen..............................................................................................6-43
6.2.20.1 Rx Spectrum Monitor.........................................................................6-44
6.2.20.2 Rx Constellation Monitor...................................................................6-46
6.2.20.3 IP Graphs..........................................................................................6-48
6.2.20.4 Other Time-based Graphs.................................................................6-49
6.2.20.5 Alarms...............................................................................................6-50
6.2.20.6 System Log.......................................................................................6-50
6.2.20.7 View->Setup Screen .........................................................................6-51
6.2.20.8 View->Unit Screen ............................................................................6-51
6.2.20.9 View->SAF Screen............................................................................6-52
6.3 Front-panel Interface ........................................................................................6-53
6.3.1 Keypad Operation.........................................................................................6-53
6.3.1.1 Cursor...................................................................................................6-53
6.3.1.2 Navigation Keys....................................................................................6-53
6.3.1.3 Alphanumeric Keys...............................................................................6-54
6.3.1.4 Special Function Keys...........................................................................6-54
6.3.2 LCD Screen Layout ......................................................................................6-55
6.4 Front Panel Menu Structure..............................................................................6-55
6.4.1 Main Menu....................................................................................................6-55

QubeFlex Satellite Modem Installation and Operating Handbook
v
Chapter 7 Modem Concepts................................................................................7-57
7.1 System Clocking...............................................................................................7-57
7.1.1 Transmit Clocking.........................................................................................7-57
7.1.1.1 Internal Clock........................................................................................7-57
7.1.1.2 Tx Clock In............................................................................................7-57
7.1.1.3 Receive Reference................................................................................7-58
7.1.2 Receive Clocking..........................................................................................7-59
7.1.2.1 Satellite.................................................................................................7-59
7.1.2.2 Tx Clock In............................................................................................7-59
7.1.2.3 Internal Clock........................................................................................7-60
7.2 1:1 Redundancy Operation...............................................................................7-60
7.2.1 Overview.......................................................................................................7-60
7.2.2 Switching Operation......................................................................................7-61
7.2.3 Setup Procedure...........................................................................................7-61
7.2.4 IP Addressing and Operation in Redundancy Configurations........................7-62
7.2.4.1 1:1 IP Operation....................................................................................7-62
7.2.4.2 1:N IP Operation...................................................................................7-62
7.3 Software Activated Features.............................................................................7-63
7.4 Software Upgrading..........................................................................................7-63
7.5 LinkGuard™ Interference Detection..................................................................7-63
7.6 IP Functionality.................................................................................................7-65
7.6.1 Base Modem IP............................................................................................7-65
7.6.2 IP Addressing...............................................................................................7-65
7.6.2.1 Gateways..............................................................................................7-65
7.6.3 Throughput Performance..............................................................................7-66
7.6.4 M&C VLAN...................................................................................................7-66
7.7 Antenna Control................................................................................................7-66
7.8 Beacon Receiver..............................................................................................7-69
Chapter 8 Remote Control Protocol.................................................................... 8-70
Chapter 9 Data Interfaces......................................................................................9-1
Chapter 10 Connector Pinouts..............................................................................10-1
Chapter 11 Fault Messages................................................................................... 11-1
11.1 Transmit Faults.................................................................................................11-2
11.2 Transmit Warnings ...........................................................................................11-2
11.3 Receive Faults..................................................................................................11-3
11.4 Receive Warnings ............................................................................................11-3
11.5 Unit Faults........................................................................................................11-4
11.6 Unit Warnings...................................................................................................11-4
11.7 Start-up Problems.............................................................................................11-5
Chapter 12 Specification Summary ......................................................................12-6
12.1 Common Main Specifications ...........................................................................12-7
12.2 Tx Modulator Specifications..............................................................................12-8
12.3 Rx Demodulator Specifications.........................................................................12-9
12.4 Clocking and Buffering Specifications...............................................................12-9
12.5 Traffic Log Specifications................................................................................12-10

QubeFlex Satellite Modem Installation and Operating Handbook
vi
12.6 Internet Traffic ................................................................................................12-10
12.7 BUC / LNB facilities ........................................................................................12-10
12.8 Common Specifications..................................................................................12-11
Chapter 13 Glossary ............................................................................................ 13-12
Chapter 14 Technical Support............................................................................. 14-13

QubeFlex Satellite Modem Installation and Operating Handbook
1-1
Chapter 1 Welcome
Figure 1-1 QubeFlex Satellite Modem
The QubeFlex satellite modem (Figure 1-1) embodies a new concept in satellite modem
technology: a short chassis, flexible software-defined modem, which allows an easy future
upgrade path. The Modem provides a flexible hardware platform with support for IF (50 -
180MHz) and L-band (950 –2450MHz) operation in one unit. Its powerful processor is ideal
for handling IP traffic. However, the QubeFlex modem can be fitted with EIA-530 (for X.21,
RS422, V.35 and RS232 operation) or high speed LVDS terrestrial interfaces and will
operate at data rates up to 50Mbps (for IP operation).
The design aim for Paradise’s Q Series modems, of which the QubeFlex is one, was to
create the industry’s most versatile and bandwidth-efficient satellite modem. Core features
available are:
•CCSDS & Intelsat Forward Error Correction, Forward error correction ensures data
is protected against transmission loss
•Spectral roll-off factors down to 5%, saving up to 15% bandwidth compared with
20% roll-off.
•Extended Roll-offs, Extends base modem carrier roll-offs to include up to 60% roll-off
(selectable in 1% increments)
•Extended Doppler, Extends base modem Doppler limits from ±255kHz, ±2.1kHz/s to
±700kHz, ±9kHz/s
•9-tap Rx equaliser, providing compensation for linear distortion in the channel, such
as from group delay. The equaliser is automatically switched on in all modes of
operation above 10Msps.
New levels of usability are provided by a leading set of built-in diagnostic tools including
spectrum and constellation monitors that facilitate the detection of any link degradation. In
addition, LinkGuard™(U.S. patent 8351495) monitors underneath the received carrier for
any interference, while on traffic.
This handbook will guide you through the process of installing and using your QubeFlex
satellite modem.

QubeFlex Satellite Modem Installation and Operating Handbook
2-1
Chapter 2 About This Handbook
2.1 Conventions
This warning symbol is intended to alert the user to the presence
of a hazard that may cause death or serious injury.
This information symbol is intended to alert the user to the
presence of important operating instructions critical to correct
system function.
2.2 Trademarks
All trademarks used in this handbook are acknowledged to be the property of their
respective owners.
2.3 Disclaimer
Although every effort is made to ensure the accuracy and completeness of the information
in this handbook, this cannot be guaranteed, andthe information containedherein does not
constitute a product warranty. A separate product warranty statement is available.
Teledyne Paradise Datacom maintains a program of continuous product improvement and
reserves the right to change specifications without prior notice.

QubeFlex Satellite Modem Installation and Operating Handbook
3-1
Chapter 3 Safety and Compliance Information
PLEASE READ THE FOLLOWING INFORMATION BEFORE
INSTALLATION AND USE.
3.1 Safety Compliance
To ensure operator safety, this satellite modem conforms to the provisions of EMC Low
Voltage Directive 2006/95/EC and complies with the following standard:
•EN 62368-1:2014 Edition 2 ‘Safety of Information Technology Equipment,
Including Electrical Business Equipment’.
Prior to installation and at all points during operation the following points must be observed.
•This satellitemodem must be operated with itscover on at all times
in order to provide protection from potentially lethal internal
voltages. Never operate the unit with the cover removed.
•This satellite modem must be directly connected to a protective
earth ground at all times, using the chassis ground stud situated
on the rear of the unit.
•The power system to which this satellite modem is connected
must provide separate ground, neutral and line conductors. The
power system must have a direct ground connection.
•This satellite modem has double pole/neutral fusing. To ensure
operator safety, fuses should always be replaced with identical
type and rating.
•To allow rapid disconnection from the mains in an emergency,
the equipment should be installed near the mains socket outlet,
which should be easily accessible.
3.2 Environmental Compliance
All Teledyne Paradise Datacom satellite modem products are compliant with the following
EC environmental directives:
•The Reduction of Hazardous Substances (RoHS) Directive 2011/65/EU.
•The Waste Electrical and Electronic Equipment (WEEE) Directive 2012/19/EU
The equipment should not be directly connected to the Public
Telecommunications Network.

QubeFlex Satellite Modem Installation and Operating Handbook
3-2
Operation of the equipment in an environment other than that stated will invalidate the
safety standards.
The equipment must not be operated in an environment in which it
is exposed to:
•Unpressurised altitudes greater than 3000 metres.
•Extreme temperatures outside the stated operating range.
•Excessive dust.
•Moisture or humid atmosphere above 95% relative humidity.
•Excessive vibration.
•Flammable gases.
•Corrosive or explosive atmosphere.
3.3 Electromagnetic Compatibility (EMC) Compliance
This satellite modem conforms to the provisions of EMC Directive 2004/108/EC and
complies with the following EC and FCC standards:
•Emissions: EN 55032:2015 Class A –‘Information Technology Equipment – Radio
Disturbance Characteristics –Limits and Methods of Measurement’.
•Immunity: EN 55035:2017 (incorporating EN61000-3-2:2014 class A) –
‘Information Technology Equipment – Immunity Characteristics –Limits and
Methods of Measurement’.
•Federal Communications Commission (FCC) Federal Code of Regulation Part 15,
Subpart B.
All D-type connectors must have grounding fingers on the plug shell to guarantee
continuous shielding. The back-shells must comply with the requirements of VDE 0871 and
FCC 20708, providing at least 40dB of attenuation from 30MHz to 1GHz. A good quality
cable with a continuous outer shield, correctly grounded, must be used.
Connections to transmit and receive IF interfaces must be made with double-screened
coaxial cable (for example, RG223/U).
The modem Ethernet ports should not be connected directly to outdoor Ethernet cables
that may be subject to transient overvoltages due to atmospheric discharges and faults in
the power distribution network. Instead, the modem should be connected via an Ethernet
switch or router to provide isolation from overvoltages as recommended within EN 61000-
3-2:2014 class A.

QubeFlex Satellite Modem Installation and Operating Handbook
4-1
Chapter 4 Installation
4.1 Unpacking
Prior to unpacking, inspect the exterior of the shipping container for any sign of damage
during transit. If damage is evident, contact the carrier with a view to submitting a damage
report.
Carefully unpack all items, taking care not to discard any packing materials. If the unit needs
to be returned to Teledyne Paradise Datacom then you should use the original packing
carton as it is designed to provide the necessary level of protection during shipment.
Once unpacked, visually inspect the contents to ensure all parts are present and that there
is no visible damage. Other than the unit itself, the shipping container should contain a
power cord and a Quick Start Guide.
4.2 Line Supply
This satellite modem is classified by the EN 62368-1 safety standard as a ‘Pluggable
Equipment Class A’. The mains operating range is 90V to 264V. A 48V DC input option is
available. Power consumption ranges from 40W to amaximum of 300W (when a BUC PSU
is fitted).
A power cord suitable for use in the country of operation is provided.
The installation of the satellite modem and the connection to the power supply must be
made in compliance with local and national wiring regulations for a Category II ‘impulse
over-voltage’ installation. The satellite modem should be positioned to allow a convenient
means of disconnection from the line supply.
4.3 Rack Mounting
If the unit is being installed in a rack, then adequate ventilation and cooling should be
provided. There must beadequate clearance around the side and rear mounted fans and the
ventilation holes on both sides of the unit.
For rack mounting, there are screw positions on the unit’s front panel for attaching it to the
rack, which prevent the unit from moving. These must always be used in conjunction with
full-length L-brackets fitted on both sides of the unit (or a tray underneath the unit) to support
its weight.
A 1U gap between units in the rack is not necessary but if extra space is available then any
gap will help to minimise the temperature inside each unit, which may contribute to improving
long-term reliability (due to the relationship between temperature and reliability of electronic
components).

QubeFlex Satellite Modem Installation and Operating Handbook
4-2
4.4 Getting Started
Connect the appropriate cables to the transmit andreceive connectors at the rear ofthe unit,
along with the cable(s) for the M&C and traffic interface.
Power up the unit and wait for it to complete its initialization when it will display summary
status information.
QubeFlex configuration must be carried out using the Web User Interface (WUI), as not all
settings are available from the front-panel menu (Local User Interface/LUI).
The default M&C IP address is 10.0.70.1/16. This can be accessed from a PC configured
with an IP address in the same subnet, or the Modem’s M&C IP address can be changed
from the LUI. From the front-panel menu, select Main->Edit->IP->Addresses in order to set
the IP configuration prior to operation.
Configuring the unit from a web browser as described in Section 6.2.
When setting up a number of units that have similar configurations, the configuration
settings of one unit can be saved, extracted and then transferred to each of the other units
in turn, using either the web user interface or the USB socket on the modem. This
procedure is explained in Application Note AN_044 ‘Working With Q-Series Modem
Configuration Files’, available from Modem Technical Support.
Getting started is covered in more detail in the QubeFlex modem Quick Start Guide
(provided with the unit).
Figure 4-1 QubeFlex Approximate Dimensions and Cable Interconnect

QubeFlex Satellite Modem Installation and Operating Handbook
5-3
Chapter 5 Introduction
5.1 Overview
The QubeFlex™ground-segment modem has been designed for the low-earth orbit
CubeSat and smallsat markets. It provides CCSDS and Intelsat-compliant Viterbi/Reed-
Solomon operation. Compatible onboard transmitter/transceivers for the satellite are
provided by our partners (please contact us for details).
The QubeFlex™offers the same front-panel and web user interfaces as other Q-Series
modems but with minor modifications to the standard menus as described in this section.
5.2 Standard-Fit Hardware
5.2.1 IF and L-band Operation
The following are provided as standard:
•IF operation, via N-type connectors for Transmit and Receive. 50 to 90MHz and 100
to 180MHz with a resolution of 100Hz.
•L-band operation, via the same transmit and receive L-band N-type connectors
(supporting 50Ωoperation at 950 to 2450MHz). Resolution of 1Hz.
•A high-stability L-band 10MHz reference signal for output to a Block Up Converter
(BUC) or Low-Noise Block (LNB) in order to phase-lock the BUC or LNB’s local
oscillator to a highly stable frequency reference.
5.2.2 Ethernet Operation
Four Gigabit Ethernet RJ45 connectors are fitted as standard. These can be used
concurrently for modem Monitor and Control (M&C) and satellite traffic. These provide a
combined 150,000 packets-per-second processing capability and data rates over satellite
of up to 50Mbps.
Ethernet speed, duplex and cable termination (crossover versus straight-through) are auto-
negotiated. Speed and duplex can also be set to fixed values if desired.
5.2.3 Utilities Card
An add on card that supports the following:
•9-way D type for 1:1 and 1:N redundancy (compatible with Q-NET PDQS
Redundancy Switch) Note: By default the 1:N connector functions as serial M&C
and has to be enabled within the factory menus for 1:N working.
•15-way D type for alarms(4 independent Form C relays for unit, Tx, Rx anddeferred
alarms), Tx Inhibit signal and scalable DC voltage output for antenna pointing.
•USB connector for software upgrades, uploading / downloading configurations etc.
•Additional fan
•A Frequency Shift Keying (FSK) capability for performing FSK communications to
and from a compatible BUC or IF transceiver. This allows remote monitoring and

QubeFlex Satellite Modem Installation and Operating Handbook
5-4
control of the BUC or transceiver via a modulated FSK signal on the Inter-Facility
Link (IFL) cable
5.3 Hardware Options
5.3.1 Terrestrial Interface Hardware
Table 5-1Table 5-1 lists the different terrestrial interface options that are available.
With the exception of IP, which is provided as standard, they require an interface card to
be fitted. Up to two different interface cards can be fitted in addition to the IP interface
provided as standard.
IP
IP traffic can use any of the three RJ45 Ethernet traffic ports.
The maximum data rate is 50Mbps (subject to prevailaing data
rate and symbol rate limits).
RS422
Requires EIA-530 interface card to be fitted.
The maximum data rate for RS422 is 10Mbps (subject to
prevailaing data rate and symbol rate limits).
RS232
Requires EIA-530 interface card to be fitted.
The maximum data rate for RS232 is 100kbps.
V.35
Requires EIA-530 interface card to be fitted.
The maximum data rate for V.35 is 10Mbps (subject to prevailaing
data rate and symbol rate limits).
LVDS
Requires LVDS interface card to be fitted.
The maximum data rate for LVDS is 50Mbps (subject to
prevailaing data rate and symbol rate limits).
Table 5-1 Terrestrial Interface Cards
5.3.1.1 EIA-530 Option Card
The EIA-530 option card (part number P3720) provides selectable RS422, X.21, V.35 and
RS232 operation up to 10Mbps via a 25-way D-type female connector.
5.3.1.2 LVDS Option Card
The Low Voltage Differential Signal (LVDS) option card (part number P3001) provides
LVDS at data rates of up to 50Mbps via a 25-way D-type female connector.

QubeFlex Satellite Modem Installation and Operating Handbook
5-5
5.3.2 BUC Power Supply Options
The QubeFlex satellite modem may optionally be fitted with a BUC Power Supply Unit
(PSU) for powering an associated Block Up Converter (BUC). Refer to Table 5-1for the
available Paradise BUC power supply options.
Part Number
BUC PSU
Type
P3553
200W 24V output
A.C. in/D.C. out
P3554
200W 48V output
A.C. in/D.C. out
P3555
+/-48V input, 200W 24V output
D.C. in/D.C. out
P3556
+/-48V input, 200W 48V output
D.C. in/D.C. out
Table 5-2 BUC Power Supply Options
5.4 Software Options
Several software options, known as Software Activated Features (SAF), are available as
shown in Table 5-3. These can be purchased on a pay-as-you-go basis and retrospectively
activated in deployed units as required. The SAF concept (including time-limited free
access to most features) is explained in Section 7.3.
In the table, the SAF Code column lists the acronyms by which features are referred to on
the modem’s local user interface.
Feature
SAF
Code
Description
Transmit
TX
Enables the Tx service.
Receive
RX
Enables the Rx service.
Terrestrial data rate
0 to 2048kbps
DR0
Enables data rates in the given range.
Terrestrial data rate
0 to 5Mbps
D1L
Enables data rates in the given range.
Terrestrial data rate
0 to 10Mbps
D1H
Enables data rates in the given range.
Terrestrial data rate
0 to 25Mbps
DR2
Enables data rates in the given range.
Terrestrial data rate
0 to 50Mbps
DR3
Enables data rates in the given range. Note: this may
be shown 60Mbps however, the limit is 50Mbps.
Optimised spectral roll-
off
ROFF
Enables 5%, 10% and 15% spectral roll-off options.
(Standard on QubeFlex)
Extended Roll-offs
LRO
Extends base modem carrier roll-offs to include up to
60% roll-off (selectable in 1% increments)
Extended Doppler
DOP
Extends base modem Doppler limits from ±255kHz,
±2.1kHz/s to ±700kHz, ±9kHz/s
Data convert to IP
IPO
Enables data output encapsulated in UDP/IP packets.
Table 5-3 Software Activated Features

QubeFlex Satellite Modem Installation and Operating Handbook
5-6
5.5 Front Panel
The front panel comprises:
•Light Emitting Diodes (LEDs) that provide basic modem status.
•A Liquid Crystal Display (LCD) that acts as the local user interface.
•A keypad for menu navigation and alphanumeric entry.
•USB port for software upgrades, copying configuration memories, etc.
5.5.1 Status Indicators
The five front-panel LEDs display warning and fault information as shown in Figure 5-1 and
as described in Table 5-4.
Figure 5-1 Front-panel Status Indicators
Note: A flashing green Unit Status LED indicates that a temporary SAF is about to expire.
Green
Off
Amber
Red
Unit Status
Unit Ok
(Flashing green:
SAF timeout alarm)
Not used
Not used
Unit fault
Rx Traffic
Rx Ok
Rx fault or Rx
disabled
Not used
Not used
Tx Traffic
Tx Ok
Tx fault or Tx
disabled
Not used
Not used
Test Mode
Not used
Normal mode
Test mode
Not used
Tx Carrier
Carrier enabled
Carrier muted
1:1 / 1:N standby
Not used
Table 5-4 Front-panel LED Status
Red: Unit Fault
Off: Rx off or Traffic Fault
Off: Tx off or Traffic Fault
On: Test Mode on
Off: Carrier muted / Amber: 1:1 or 1:
N Standby
Green: Unit OK
Green: Rx OK
Green: Tx OK
Off: Test Mode off
On: Carrier enabled

QubeFlex Satellite Modem Installation and Operating Handbook
5-7
5.5.2 LCD Display
The backlit LCD is a graphical display formatted to give three lines of 40 text characters
and is highly legible even in strong ambient light. The contrast is adjustable, and the
backlight can be dimmed or brightened as required.
5.5.2.1 Keypad
The keypad (see Figure 5-2) is incorporated into a sealed tactile membrane and allows full
alphanumeric entry and navigation using arrow keys.
Figure 5-2 Front-panel Keypad

QubeFlex Satellite Modem Installation and Operating Handbook
5-8
5.6 QubeFlex Rear Panel
The rear panel, shown in Figure 5-3, provides a full set of terrestrial and satellite data
interfaces. Connector pinouts are defined in Chapter 10 .
Figure 5-3 The Modem Rear Panel
From left to right, the rear panel consists of:
•IEC Mains Power Connector/Voltage Selector/Fuse
The modem is designed to operate from a mains AC supply of 90V to 264V (1A @100V,
0.5A @ 240V, 47 to 63Hz). The IEC connector incorporates two fuses, independently
fusing both live and neutral lines. Access to the fuses is provided by a slide-out tray. Both
fuses are standard 20mm type, rated T3.15A, of the slow-blow (time-delay) type.
•Chassis Ground Stud
There is an M4 stud for connecting a safety earth conductor directly to the chassis of the
unit.
•USB port
This is a USB host, so slave devices can be connected. Available for software upgrades
and transferring configuration memories. USB versions 1 and 2 are supported.
•Alarms and AGC Connector
This is a 15-pin D-type male connector that provides access to four ‘form-C’ relay
contacts that indicate alarm conditions. An AGC output is provided that is suitable for
peaking antenna position.
The alarm relays have the following definitions:
Unit Fault: A fault exists on the unit indicating an equipment failure.
Tx Traffic Prompt: A Tx traffic fault exists.
Rx Traffic Prompt: An Rx traffic fault exists.
Deferred Alarm: One of the following conditions exists:
• The receive Eb/No is lower than the user-defined threshold.
• Buffer slips are more frequent than the user-defined threshold.
• A backward alarm is being received from either the satellite or terrestrial ports.

QubeFlex Satellite Modem Installation and Operating Handbook
5-9
•1:N Redundancy Connector
The modem has a built-in 1:N redundancy controller, facilitated via a 9-pin D-type male
connector. The redundancy controller allows working directly with another Modem in a
1:1 pair or with a 1: N PDQS Redundancy Switch. A 1:1 redundancy system requires two
modems, a 1:1 control cable between the two redundancy connectors, a ‘Y’ cable for
splitting the traffic path and passive splitters and combiners for the IF ports. An overview
of 1:1 operation is provided in Section 7.2
Note: By default, the 1:N connector functions as serial M&C and must be enabled on the
factory menus for 1:N operation.
•Station Clock
The Station Clock connector is not used on QubeFlex.
•Fans
Thereisone rear andone sidemountedhigh performancefan fitted tothe chassis, these
draw air in through the ventilation holes. These holes and the side vents must not be
blocked.
•Tx N Type Connector
This provides both an IF and L-Band output towards the satellite and is provided using
a 50Ω N type connector.
The IF covers 50 to 90Mhz and 100 to 180MHz bands with a resolution of 100Hz.
Transmit output power is variable between 0 to –25dBm in 0.1dB steps.
L-Band covers 950 to 2450MHz with a resolution of 1Hz. Transmit output power levels
conform to the following table, variable in 0.1dB steps.
+5 to –40dBm between 950 to 1950MHz
0 to –40dBm between 1950 to 2150MHz
0 to –30dBm between 2150 to 2450MHz
•Optional Terrestrial Interface Positions
Two terrestrial interface positions support EIA-530 and/or LVDS interface cards.

QubeFlex Satellite Modem Installation and Operating Handbook
5-10
•Ethernet Connectors
Four Gigabit Ethernet RJ45 connectors are provided for modem Monitor and Control
(M&C) and satellite traffic. Ethernet speed, duplex and cable termination (crossover
versus straight-through) are auto-negotiated. Line speed and duplex can also be set to
fixed values. The Ethernet ports can be bridged together under software control. If the
software option to remove the M&C port from the bridge is invoked, then port 1 of the
four-port switch is reserved for M&C only (and the other ports for IP satellite traffic).
When the M&C port is bridged to the other ports, M&C and traffic can be passed using
any port.
M&C control can be via the Simple Network Management Protocol (SNMP), an
embedded web server that sends web pages to a web browser, a Telnet-style terminal
emulation application or via TCP packets that encapsulate Paradise Universal Protocol
(PUP) commands.
SNMP is disabled by default and must be enabled before it can be
used. When enabled, the modem will always respond to SNMP
commands regardless of whether it has been placed in a mode that
restricts user control to the front panel only.
When using the M&C interface, an M&C IP address (including subnet mask and default
gateway) must be set. An IP traffic address is not required when operating in Ethernet
bridging modes. IP addresses are described in Section 7.6.2.
When the M&C Ethernet port is out of the bridge then satellite IP traffic
and M&C traffic are processed separately and therefore the M&C and
traffic Ethernet connectors are no longer interchangeable. Care
should be taken in selecting this mode for a remote modem since if
the cables have been incorrectly fitted then it could result in M&C
communications with the remote modem being lost.
