TeleMann DTR4000CA User manual

DTR4000CA
User Manual
Satellite Solutions
Copyright© 1999 GLOBAL TELEMANN SYSTEMS Inc.
All rights reserved.
This manual is subject to change without prior notice.
GLOBAL TELEMANN SYSTEMS Inc.
TEL:[phone] / FAX:[phone]
2345 Harris Way, Suite 100,
San Jose, CA95131, USA
E-mail : [email protected]
WWW : http://www.telemann.com

DTR4000CA Safety Precautions
Table of Contents
INTRODUCTION.................................................................................................................................................6
ABOUT THIS MANUAL..........................................................................................................................................6
GENERAL DESCRIPTION........................................................................................................................................6
GENERAL FEATURES.............................................................................................................................................6
HARDWARE DESCRIPTION.............................................................................................................................7
FRONT PANEL CONFIGURATION............................................................................................................................7
REAR PANEL CONFIGURATION .............................................................................................................................9
HOW TO CONNECT YOUR DTR4000CATO VARIOUS SYSTEMS .........................................................................10
REMOTE CONTROL........................................................................................................................................12
REMOTE CONTROL UNIT....................................................................................................................................12
SYSTEM SET-UP................................................................................................................................................14
BASIC MENU OPERATION ...................................................................................................................................14
FLOW OF MENU SYSTEM....................................................................................................................................15
AUTOMATIC CHANNEL SET-UP...........................................................................................................................17
Automatic channel set-up for a satellite........................................................................................................17
Automatic channel set-up for a transponder.................................................................................................17
MENU OPERATION..........................................................................................................................................18

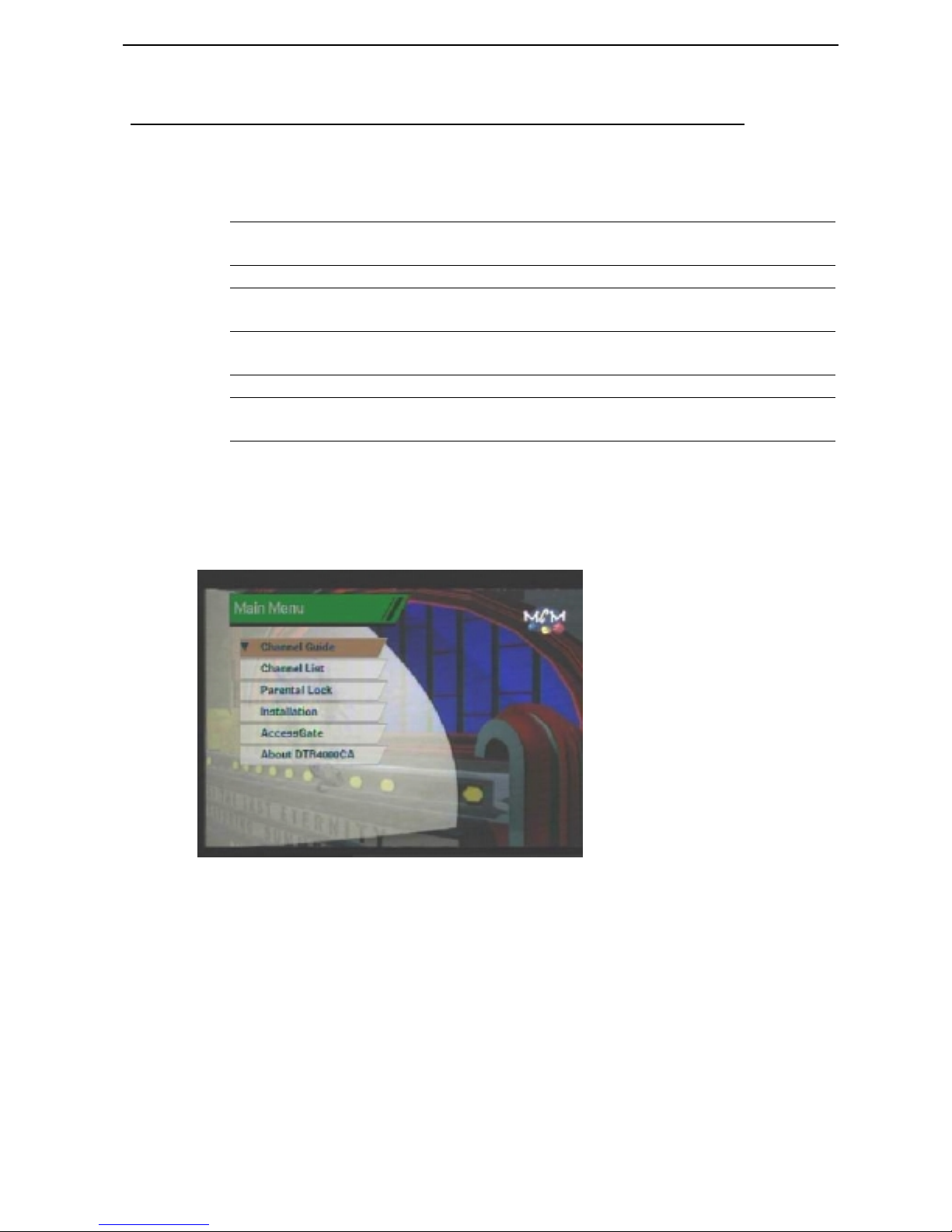

MAIN MENU.......................................................................................................................................................18
CHANNEL GUIDE................................................................................................................................................18

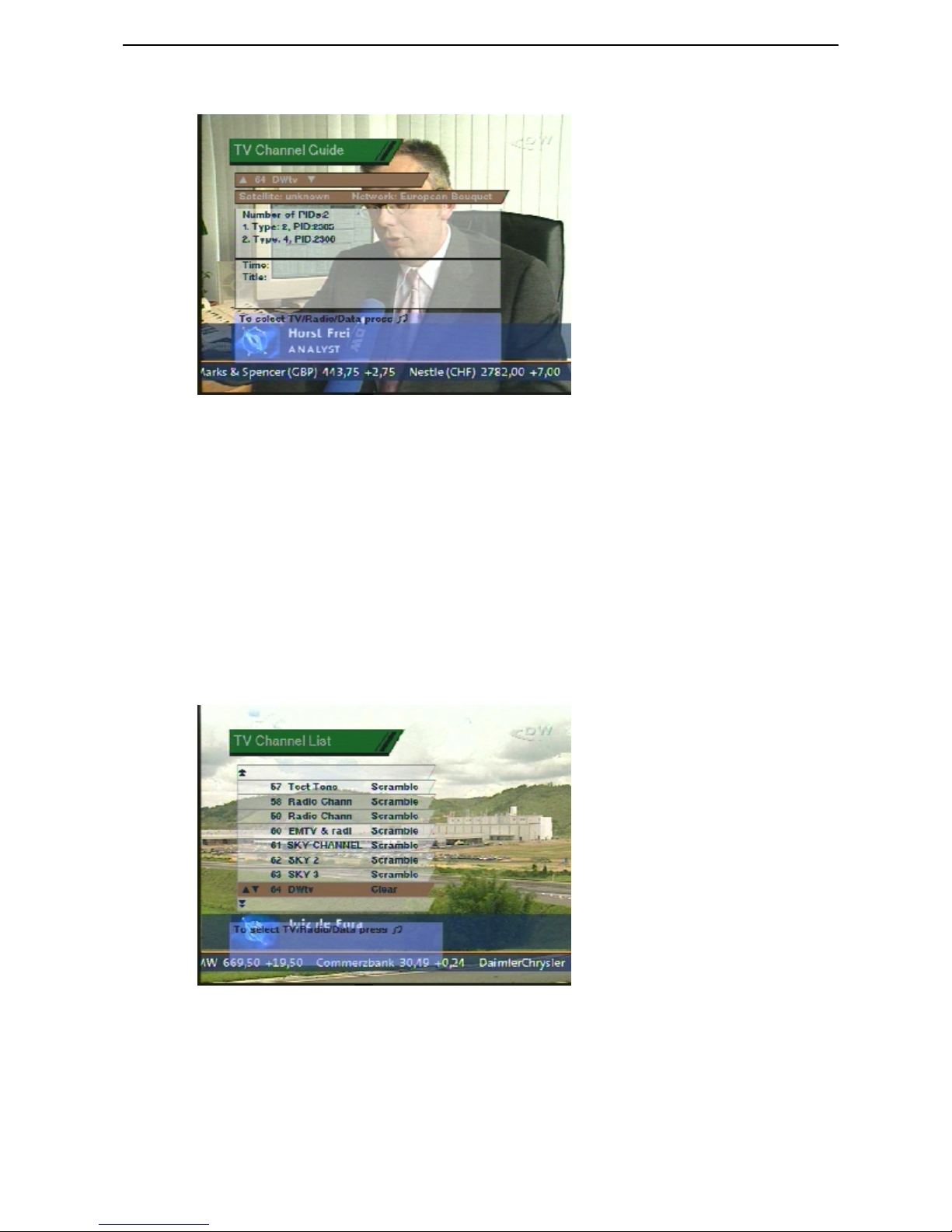

TV and Radio Channel Guide........................................................................................................................18
CHANNEL LIST ...................................................................................................................................................19
TV and Radio Channel List ...........................................................................................................................19
PARENTAL CONTROL..........................................................................................................................................19
PIN Code / TV and Radio Lock.....................................................................................................................19
INSTALLATION ....................................................................................................................................................20
PIN Code ?....................................................................................................................................................20
LNB Configuration........................................................................................................................................21
Channel Search .............................................................................................................................................22
Edit Channels................................................................................................................................................23
Edit TV Channel..........................................................................................................................................................23
Edit Radio Channel......................................................................................................................................................24
Add to Favorite.............................................................................................................Error! Bookmark not defined.
Edit Favorite Channel...................................................................................................Error! Bookmark not defined.
System Settings.................................................................................................Error! Bookmark not defined.
Change PIN......................................................................................................Error! Bookmark not defined.
PIN Code......................................................................................................................Error! Bookmark not defined.
Receiver Update...............................................................................................Error! Bookmark not defined.
Auto Installation...............................................................................................Error! Bookmark not defined.
ACCESSGATE................................................................................................ERROR! BOOKMARK NOT DEFINED.
Entitlement........................................................................................................Error! Bookmark not defined.
Group Entitlement........................................................................................................Error! Bookmark not defined.
Channel Entitlement.....................................................................................................Error! Bookmark not defined.
Remainder Token List...................................................................................................Error! Bookmark not defined.
Usage-record....................................................................................................Error! Bookmark not defined.
Amount of record .........................................................................................................Error! Bookmark not defined.
List of Record...............................................................................................................Error! Bookmark not defined.
Modify Smart Card PIN....................................................................................Error! Bookmark not defined.
TROUBLE SHOOTING...................................................................... ERROR! BOOKMARK NOT DEFINED.
OSD DISPLAY MESSAGE..............................................................................ERROR! BOOKMARK NOT DEFINED.
FRONT PANEL DISPLAY MESSAGE................................................................ERROR! BOOKMARK NOT DEFINED.
TECHNICAL SPECIFICATIONS...................................................... ERROR! BOOKMARK NOT DEFINED.
FACTORY DEFAULT SATELLITE INFORMATION.................... ERROR! BOOKMARK NOT DEFINED.

DTR4000CA Safety Precautions

DTR4000CA Safety Precautions
RADIO FREQUCNCY INTERFERENCE STATEMENT
Note : This equipment has been tested and found to comply with the limits for a Class B
Digital device, pursuant to part 15, Subpart B of the FCC Rules. This equipment generates,
Uses, and can radiate radio frequency energy. If not installed and used in accordance with
The instructions, it may cause interference to radio communications.
The limits are designed to provide reasonable protection against such interference in a
Residential situation. However, there is no guarantee that interference will not occur in a
Particular installation. If this equipment does cause interference to radio or television
Reception, which can be determined by turning the equipment on and off, the user is
Encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna of the
affected radio or television.
Increase the separation between the equipment and
the affected receiver.
Connect the equipment and the affected receiver to
power outlets on separate circuits.
Consult the dealer or an experienced radio/TV
technician for help.

DTR4000CA Safety Precautions
SAFETEY PRECAUTIONS
This IRD has been manufactured to meet international safety standards.
Please read carefully the following safety precautions before you handle the IRD.
MAINS SUPPLY Use only 85-265VAC 50/60Hz.
LOCATION Locate the IRD indoor place properly to prevent any hazards or
malfunctions from lightening, raining and direct sunlight.
CLEANING 1. Disconnect the IRD power cord from the wall socket before
cleaning it.
2. Use a cloth lightly dampened with water (no solvents) to clean
the exterior of the IRD.
OVERLOADING Do not overload wall outlets, extension cords or adapters. These
can cause fire or electrical shock.
VENTILATION 1. Do not block the decoder’s ventilation slots.
2. Ensure that a free airflow is maintained around the IRD.
3. NEVER stand the IRD on soft furnishings or carpets.
4. Do not use or store the IRD where it is exposed to direct
sunlight or near a heater. NEVER stack other electronic
equipment on top of the IRD.
LIQUIDS Keep liquids away from the IRD.
SAMILL OBJECTD Coins or other small objects must be kept away from the IRD. They
can fall through the ventilation slots of the IRD and cause serious
damage.
ATTACHMENTS Do not use any attachments that are not recommended.
These may cause hazards or damage the equipment.
CONDITIONALACCESS
(CAM) and/or COMMON
INTERFACE MODULE
Main power cord must be disconnected before inserting or
removing the CA Module and/or CI Module
CONNECTION TO THE
SATELLITE DISH LNB Before connecting or disconnecting the cable from the satellite dish
to the IRD, disconnect the IRD from the main power.
FAILURE TO DO SO CAN DAMAGE THE LNB.
EARTHING The LNB cable MUST BE EARTHED to the system earth for the
satellite dish.
The earthling system must comply with SABS 061.
LIGHTNING 1. It is recommended that the IRD should remain connected at all
times to the main power supply and satellite dish (except when
working on the LNB).
2. However, the Manufacturer’s instructions for safeguarding
other equipment connected to the IRD, i,e, TV set, etc., must
be followed during lightning storms.
3. Lightning protection devices for the terrestrial antenna, mains,
LNB and the modem telephone line, are essential.
SERVICING 1. Do not attempt to service this product yourself.
2. Refer all servicing to qualified service agents.

DTR4000CA Introduction
Introduction
About This Manual
This manual describes how to install and operate the Model DTR4000CA. Only
qualified personnel should handle any problems beyond this manual.
General Description
The DTR4000CA is a high-performance IRD (Integrated Receiver Decoder).
DTR4000CA is fully compliant with the MPEG2 based DVB transmission
standards for in-home reception of satellite digital broadcast services such as digital
TVs and radio channels.
General Features
Features equipped in DTR 4000CA are as follows :
Fully compliant with MPEG2 based DVB transmission standards
Fully Universal Tuner with 950-2150MHz
QPSK Demodulator
Extended Symbol Rate (2-45MS/s)
SCPC and MCPC, C-/Ku-bands
Automatic Detection of Video Polarity
Automatic Detection of Forward Error Correction
Automatic Channel Surfing Function
Automatic NTSC/PAL Detection
Simple Video Converter (NTSC PAL)
Lip-sync Error Correction Function
Wide PLL Modulator (CH21-69, PAL-B, G, I, D, K)
Useful High Speed System Port for System Diagnostic and Upgrade
DiSEqC1.0 LNB Control Software
TV/VCR scart connectors
Teletext : CCIR/ITU-R Broadcast Teletext System B
Smart Card interface for CAS
Simultaneous decoding of up to Max. 32 PIDs with the exception of A/V
Internal Modem (Optional)
User-friendly defined On-screen-display (OSD)

DTR4000CA Hardware Description
Hardware description
Here, you will be given the explanation of the front and rear panel of DTR4000CA. Each of
display, ports, connections will be explained.

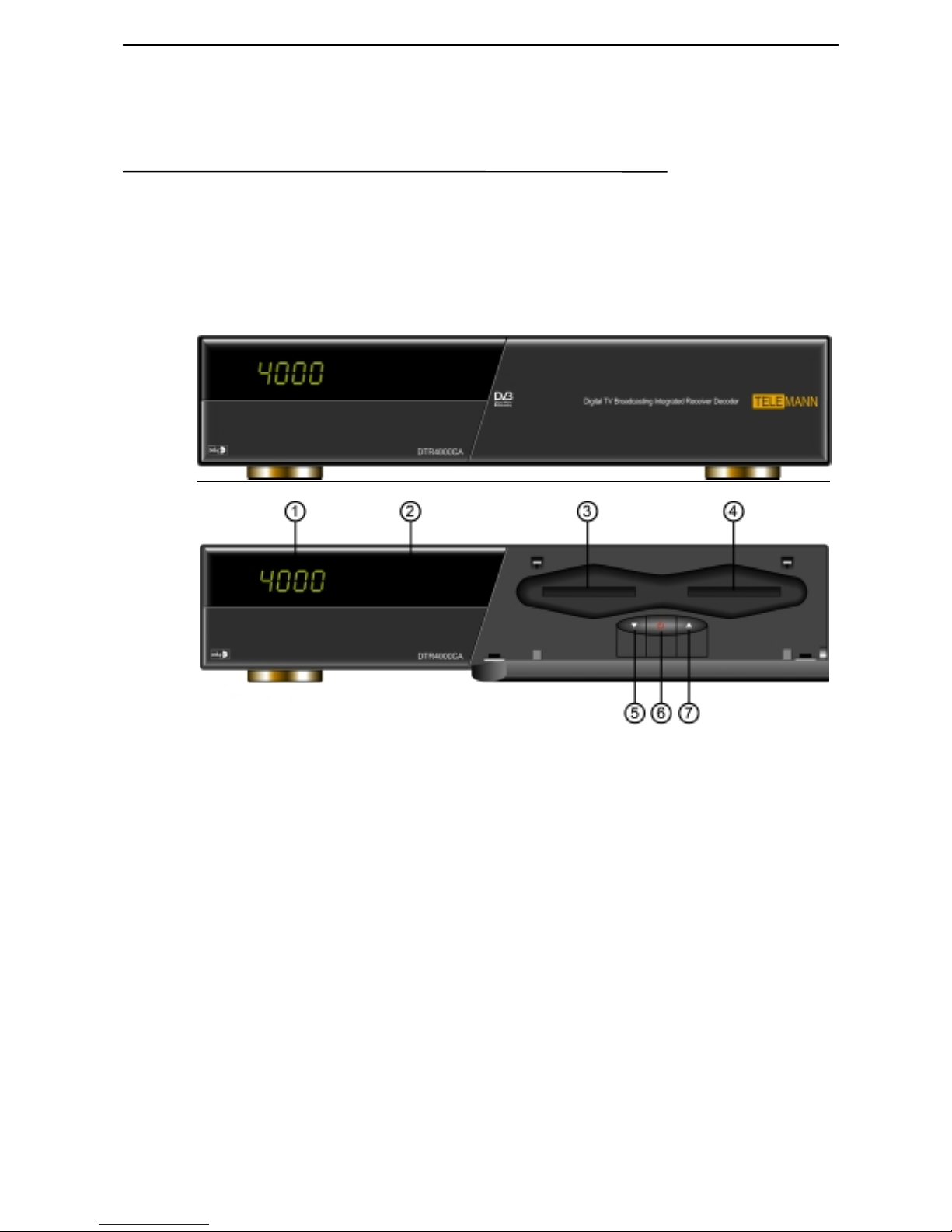

Front Panel Configuration
1LED DISPLAY
This shows the channel number or other information as follows :
During power is off, the dash ‘-‘ will be displayed at each digit, which
indicates that your DTR4000CA is in stand-by mode. Immediately after your
decoder turns on, ‘C . . .’ will light up at each digit, which means that your
DTR4000CA is ready to operate.
If your DTR4000CA locks a channel, its channel number will be displayed.
Whenever you change the channel, the number of the changed channel will be
displayed.
2REMOTE SENSOR
It receives the infrared signal from Remote Control and operates your
DTR4000CA.
3

Smart Card and/or PCMCIA Card Slot (Option), or Not Used
These two slots can be used either for Conditional Access System with Smart
card, or Common Interface Module with PCMCIA card, or may not be used at
all in case of free-to-air only set-top-box according to the option configuration

DTR4000CA Hardware Description
of the DTR5000N.
When you want to watch Pay-per-view TV program or enjoy Internet service
on a usage basis, you should purchase a smart card or PCMCIA card from the
service provider and insert it into this slot. The detailed usage explanation will
come with the card that you purchased.
5CHANNEL DOWN
You can sequentially select the previous service by pressing this DOWN key.
6POWER
This key allows you to turn your DTR4000CAon or off.
7CHANNEL UP
You can use this key to select the next channel sequentially.

DTR4000CA Hardware Description
Rear Panel Configuration
The following diagram shows the DTR4000CA with analog board. Here the dotted line can be
replaced with the Modem board (option) below.
1LNB IN
Satellite antenna input terminal. The LNB power (14/18V) and the switching
signals (22KHz/DiSEqC) are also supplied to LNB through this terminal.
2LNB OUT
It is for connecting another STB to your DTR4000CA. Connect this terminal
to LNB IN terminal of the other STB via RF cable.
3RS-232 serial port
An operator for customer services can use this port for the transmission of the
preprogrammed channel information from a PC to the DTR4000CA. Or this
port can also be used for main board testing and software upgrading.
4AUDIO L/R output terminals
Connect these terminals to audio L/R input terminals of TV, VCR, or Hi-Fi
audio system.
5VIDEO output terminal
Connect this terminal to video input terminal of TV or VCR.
6S-VIDEO output terminal

DTR4000CA Hardware Description
This terminal is connected to S-VIDEO input terminal of TV or VCR to output
S-VIDEO signal.
7TV SCART connector
Connect this connector to that of TV via a SCART cable.
8Modem Port (Option)
When you use Conditional Access System, you should use modem to send
your usage information to the operator.
9VCR SCART connector
Connect this connector to that of VCR via a SCART cable.
10 0/12V OUT
Connect this terminal to an external 0/12Volt switch box.
11 ANT IN
Connect this terminal to a terrestrial UHF antenna via coaxial cable.
12 TV OUT
Connect this terminal to the input of TV or VCR via a coaxial cable.
13 POWER INPUT
Connect the power cord of AC85V to 265V, 50/60Hz
14 Ground
How to Connect Your DTR4000CA to Various Systems
As shown in the figure below, you can connect your DTR4000CA to a TV set, a
VCR and a Hi Fi system. Consult your local supplier for assistance in setting-up
your system best suited to your requirements.
CAUTION !
Please DO NOT plug in the main power supply cord until you have
finished all other connection!

DTR4000CA Hardware Description
Connection of your DTR4000CAto a TV set
Connect your DTR4000CA to a TV set with SCART.
Connection of your DTR4000CAto a VCR
Connect the SCART connector of VCR to that on your DTR4000CA.
Connection of your DTR4000CAto a Hi Fi system
Connect a RCA/Cinch stereo cable from the AUDIO L/R terminals on your
DTR4000CA to the LINE, AUX, SPARE or EXTRA input terminals on your Hi Fi
system.
Connection of the analog decoder SCART to outside scramble decoder
When you watch scrambled analog video, you should connect the analog SCART to
outside scramble decoder.

DTR4000CA Remote Control
Remote Control
Remote Control Unit
This section describes how to operate the DTR4000CA using the buttons on your
Remote Control Unit as shown below.
(1) POWER To turn your DTR4000CA on/off.
(2) TV/SAT To toggle from TV mode to satellite broadcasting mode
and vice versa
(3) Number To select channel number or input parameters on menu.

DTR4000CA Remote Control
(4) RECALL To return back to the previous channel.
(5) iTo display the program information on the screen
(6) MENU To display the main menu on the screen. Or to move back
to previous menu from current menu.
(7) EXIT To get completely out of menu.
(8) LIST To list all channels available on the screen
(9) VOL UP/DN To increase/decrease the volume or select item on menu
(10) OK To confirm your choices
(11) CH UP/DN To select a channel
(12) Page UP To step pages up in the channel list
(13) GUIDE Program Guide on the screen
(14) Page DOWN To step pages down in the channel list
(15) AUDIO To select Audio mode
(16) Language( 

? ) To select the desired language or Audio PID.
(17) MUTE To turn the sound on/off
(18) To select TV and Radio
(19) NTSC/PAL To convert video mode (NTSC/PAL/AUTO).
(20) FAV To display Favorite channel list on the screen
(21) F1 Function Key 1 ( Add channel )
(22) F2 Function Key 2
(23) F3 Function Key 3 ( Delete Channel )

DTR4000CA System Set-up
System Set-up
Here, we will go through the menu system. To manipulate the menu, you use mainly
the following key strokes : UP/DOWN, Left / Right, OK Menu, Exit
Basic Menu Operation
To maneuver the Menu, you can use the following keys
UP/DOWN key (▲▼) Moves menu selection up and down
Left / Right key () Can change option values
Page Up/Down ( ) Move up/down by page ( 6 channels)
OK Key ( OK ) Selects menus or You can move directly to a certain
channel by pressing the channel number.
Menu key Displays main Menu or goes to previous menu
Numeric Key Enters numbers. Or Selects a certain channel by pressing
the channel number.
Exit key Quits the whole Menu
F1, F2, F3 Function Keys. The function varies depending on each
menu

DTR4000CA System Set-up
Flow of Menu System
Here, the following diagram shows the hierarchy of menu system.
For detailed explanation of each menu, refer to the following Menu explanation.
Main Menu
TV, Radio
Parental Lock
TV/Radio Channel GuideChannel Guide
Channel List
Parental Control
Installation
PIN Code ?
PIN Code ?
LNB Configuration
Receiver Upgrade
Auto Installation
Installation
TV/Radio Channel List
About DTR4000CA
Channel Search
System Settings
Change PIN
AccessGate Smart Card PIN Code ?
See next page
Edit TV Channel
Edit Radio Channel
Add to Favorites
Edit Favorite Channel
Edit Channels

DTR4000CA System Set-up
Fig 5. Flow chart of menu system
AccessGate
Edit Channels
Usage-record
Modify Smart Card PIN
Group Entitlement
Channel Entitlement
Remainder Token List
Amount of Record
List of Record
Change PIN
This Menu has several submenus
This menu has a final setting menu
This menu will be added later

DTR4000CA System Set-up
Automatic Channel Set-up
Automatic channel set-up for a satellite
You can automatically detect and save all TV and Radio channels for a Satellite
As follows.
Automatic channel set-up for a transponder
You can automatically detect and save all TV and Radio channels for a transponder
as follows.
System Connection
Power on
Main Menu/Installation/
LNB Configuration
LNB Configuration Setting
Auto Installation
Channel List
Favorite Channel List
Insert all LNB information of your Antenna.
Save changes by pressing O.K button.
DTR4000CA will automatically searches and saves into
channel list all TV and Radio channels from a satellite.
If you push List button of the remote controll,
you should see all channel lists that you saved.
Move to Menu/Installation/Edit Channels/Add to Favorite
Choose Favorite Group on the right side of the screen.
Press F1 to transfer the selected channel from the channel
list to Favorite Channel List.
Connect DTR4000CA with all peripheral devices.
Turn on the power of DTR4000CA and other devices.
Move to the menu of Installation,
and then LNB configuration
Press List to see
the channel list
Main Menu/Installation/
Channel Search
Press List to see
the channel list
At Channel Search Menu, enter all the Transponder
information of a transponder.
Press O.K. The DTR4000CA will automatically
find channel information for that transponder.

DTR4000CA Factory Default Satellite Information
Menu Operation
Main Menu
Main menu shows the following information.
Channel Guide Shows general information about each channel such as
Channel Name, LNB Number, PID Number.
Channel List Shows the whole channel list registered in DTR4000CA
Parental Control Allows only those people with knowledge of the PIN
code to watch the programs.
Installation Allows you to set various parameters on LNB
configuration, System Settings, and etc.
AccessGate Shows information about AccessGate system.
About DTR4000CA Shows the version information of DTR4000CA
software
Turn on TV and your DTR4000CAafter you have connected all peripheral
devices to it.
Press the Menu button of the remote control. You will get the Main Menu on
the TV screen as follows.
You can move into submenus by selecting each menu.
Press the Menu button to return to previous menu. Or press Exit to quit the
Menu system completely.
Channel Guide
TV and Radio Channel Guide
Here you can see the information about Channel Name and Number, Number of
PIDs, and PID Types.
In Main Menu, select Channel Guide. Then you will see TV Guide display as
follows. You can change the channel by pushing the Up/Down keys.
When you push “” on the Remote Control, you can select TV or Radio

DTR4000CA Factory Default Satellite Information
Guide.
Channel List
TV and Radio Channel List
This menu helps you easily select the channel that you want to watch.
In Main Menu, select Channel List. Then you will see TV Channels display as
follows. You can get the information of Channel Number, Channel Name, and
whether the program Scrambled or Clear.
To watch a specific channel, first select a certain channel by pushing the
Up/Down key, Page Up/Down key. Then, hit the OK button on the Remote
Control. This enables you to move into that specific channel.
When you push “” on the Remote Control, you can select TV and Radio
Guide.
Parental Control
PIN Code / TV and Radio Lock
This function prevents children or unauthorized persons from watching programs.
Select the Parental Control on the Main Menu. Then you will be asked to enter

DTR4000CA Factory Default Satellite Information
PID number. The PIN code is four digit numbers. Factory default value is 0000.
Press UP/DOWN key to highlight the program you want, then press OK to
have the channel locked so that others who do not know the PID can not watch
the program.
Once the program is locked, every time you try to watch the program, you will
be asked to enter PIN code.
When you push “” on the Remote Control, you can select either TV or Radio
Guide.
Press the Menu button to return to previous menu. Or press Exit to get out of
Menu completely.
Installation
Installation Menu helps you setup the system and manage channel information.
PIN Code ?
Select the Installation menu from the Main menu. You will then be asked to
enter your PIN.
