Telenetics Flash Poll DSP 9612 User manual

DSP 9612 Flash Poll Modem
User’s Guide
0049−0117−100 Rev. A

Page iii
Contents
CHAPTER 1 INTRODUCTION........................................................ 5
FEATURES .............................................................................................. 6
APPLICATIONS........................................................................................ 7
CHAPTER 2 INSTALLATION ......................................................... 9
UNPACKING YOUR HARDWARE.............................................................. 9
ADDITIONAL ITEMS YOU NEED .............................................................. 9
HARDWARE OVERVIEW........................................................................ 10
Back View ........................................................................................ 10
Front View....................................................................................... 11
INSTALLATION SUMMARY .................................................................... 12
FINDING A SUITABLE LOCATION .......................................................... 12
CONFIGURING THE MODEM .................................................................. 13
SW1 DIP Switch Settings................................................................. 14
SW2 DIP Switch Settings................................................................. 17
SW3 DIP Switch Settings................................................................. 21
CONNECTING TO A TRANSMISSION LINE............................................... 26
CONNECTING TO A VOLTAGE SOURCE.................................................. 27
CONNECTING AN RS-232 DEVICE ........................................................ 28
LEDS................................................................................................... 29
LOOPBACK CONTROL SWITCH.............................................................. 30
APPENDIX A TROUBLESHOOTING .......................................... 31
PROBLEM SOLVING .............................................................................. 31
APPENDIX B DIP SWITCH SUMMARY ..................................... 33
APPENDIX C SPECIFICATIONS.................................................. 35
GENERAL SPECIFICATIONS ................................................................... 35
MECHANICAL SPECIFICATIONS............................................................. 36
INTERFACE CONNECTOR PIN ASSIGNMENTS......................................... 37
RS-232 (DTE) Interface................................................................... 38
ENVIRONMENTAL SPECIFICATIONS....................................................... 38
COMPLIANCES ...................................................................................... 39
APPENDIX D COMPLIANCES...................................................... 41
APPENDIX E LIMITED PRODUCT WARRANTY .................... 43
APPENDIX F RMA PROCEDURE ................................................ 44

Contents
Page iv
NOTES

Page 5
Chapter 1
Introduction
ongratulations for purchasing the finest industrial-grade fast-
poll modem available.
The Telenetics DSP9612 (Flash Poll) modem is a 9600/4800/0-
1800 bps modem designed for 4-wire, full-duplex or 2-wire, half-
duplex operation over a voice-band leased line or private line. The
modem is designed utilizing the latest digital-signal processing (DSP)
technology to achieve high performance. The modem employs
Telenetics’ proprietary modulation and encoding scheme to achieve
fast modem training time. The modem is also backward compatible
with Bell 202 and ITU-T V.23 modems.
The DSP9612 modem is ideally suited for multi-point communication
systems that require fast response time, short training time, and low
throughput delay. The DSP9612 is the most technologically advanced
modem on the market.
This User’s Guide describes both the DSP9612FP (AC-powered)
modem and the DSP9612-LV (DC-powered) modem. This manual is
intended to let you get your modem “up and running” as quickly as
possible. It contains all the information you need to configure and
install your modem. It also contains troubleshooting information in the
unlikely event you encounter a problem with your modem.
C

Introduction
Page 6
Features
The DSP9612 modem is specifically designed for harsh environments
found in utility substations and industrial facilities. Though
functionally similar to commercial modems, the DSP9612 provides the
following unique features that make it well suited for utility and
industrial applications.
Packaged in a rugged, compact enclosure for industrial
applications.
Leased-line interface protected with heavy-duty surge protection
hardware (15KV).
Requires no human intervention, making it ideal for unmanned
locations.
Works within an extended temperature range of -40ºC to +85ºC.
Designed with coupling transformers for high-voltage isolation
and common mode noise rejection in industrial and commercial
environments.
Operate over voice-band conditioned or unconditioned leased line
and pilot wires.
Accepts power from a wide range of AC and DC power supplies.
−DSP9612FP: 85 to 265 VAC or 85 to 400 VDC
−DSP9612-LV: 10 to 53 VDC
Standard industrial connectors for data, analog, and power
interfaces allow reliable interconnection to other industrial
equipment.
Asynchronous data rates (selectable) of 9600, 4800, and 0-1800
bps.
Easily accessible DIP switches for user configuration and option
selection.
DB25 connector for RS-232/V.24 interface.
Local analog, local digital, and remote digital loopback
diagnostics.

Applications
Page 7
Applications
The DSP9612 modem is designed for point-to-point and multipoint
data communications. Figure 1-1 shows a typical multipoint
configuration.
Figure 1-1. Network of Multipoint Configuration
There are a number of factors that can affect the network’s and
modem’s operation and performance. These include:
Operating speed
2-wire or 4-wire configuration
Transmission line characteristics, noise, and line impairments
Network configuration (point-to-point or multipoint)
Number of nodes on the network

Introduction
Page 8
NOTES

Page 9
Chapter 2
Installation
his chapter describes how to install the modem.
Unpacking Your Hardware
Your package should include:
At least one of the following DSP9612 modems:
−Model DSP9612FP for 85 to 265 VAC
−Model DSP9612-LV for 10 to 53 VDC
A leased-line cable
A shielded DC power cable (model DSP9612-LV modem only)
This User’s Guide
If your package contents are damaged or missing, please contact your
place of purchase immediately.
Additional Items You Need
To use your modem, you need the following additional items:
Two- or four-wire transmission line or leased line
A DB25-F data cable for your Data Terminal Equipment (DTE)
port
T

Installation
Page 10
A power supply that provides either:
−85 to 265 Volts AC, 50 to 60 Hz, single phase or 85 to
400 VDC (if you have the model DSP9612FP modem), or
−10 to 53 Volts DC (if you have the model DSP9612-LV
modem)
Hardware Overview
Back View
Figures 2-1 and 2-2 show the back view of the two DSP9612 modem
models. Starting from the left side, these views show:
A 4-wire/2-wire configuration block. See page 26.
A female, 25-pin RS-232 connector, for connecting a standard
DTE (RTU). See page 28.
A POWER ON/OFF switch.
A power connector. See page 27.
Figure 2-1. Back View of Model DSP9612FP Modem

Hardware Overview
Page 11
Figure 2-2. Back View of Model DSP9612-LV Modem

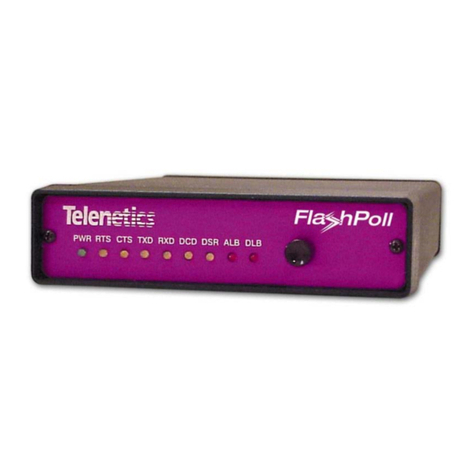

Front View
The Model DSP9612FP and Model 9612-LV modems have identical
front panels. Figure 2-3 shows the front view of the modem. Starting
from the left side, this view shows:
A set of nine LEDs. See page 29.
A loopback test switch. See page 30.
Figure 2-3. Front View of Modem

Installation
Page 12
Installation Summary
The modem installation involves the following steps:
1. Finding a suitable location for the modem. See the section below.
2. Configuring the modem. See page 13.
3. Connecting to a transmission line. See page 25.
4. Connecting to a voltage source. See page 27.
5. Connecting a DTE device. See page 28.
Finding a Suitable Location
The location you select should provide easy access to the back panel
communications interface(s) and front panel power interface. It should
also let you view all the LEDs on the front panel.
Note: Telenetics also offers a rack-mount version of this modem
(Model DSP9612RM) as a plug-in module for the
Telenetics/UDS RM16M Central Site Modem Rack. For more
information, contact Telenetics Corporation’s Sales Department
at [phone].

Configuring the Modem
Page 13
Configuring the Modem
You configure the modem using the three sets of DIP switches on the
bottom of the modem.
,
IMPORTANT
It is important to follow the three steps described
below, in the order shown, to ensure that you configure
your modem properly using the modem DIP switches:
1. Use DIP switch 3 (SW3) to configure the modem
for your host DTE interface and network topology.
Using SW3, you select the modem to operate in
high-speed fast-poll or low-speed (FSK) mode.
2. If you set SW3 for FSK mode in step 1, use DIP
switch 2 (SW2) to configure the modem for either
Bell 202T or ITU-T V.23 compatibility.
Otherwise, you can use the modem in fallback
mode.
3. Use DIP switch 1 (SW1) to select the modem’s
transmitter output level and receiver dynamic
range. The SW1 settings apply for both high-speed
fast-poll and low-speed (FSK) modes.

Installation
Page 14
SW1 DIP Switch Settings
SW1 is an 8-position DIP switch. Table 2-1 shows the modem switch
settings for DIP switch SW1. A description of the SW1 switch settings
follows the table.
Note: SW1 settings apply for both high-speed fast-poll and low-
speed (FSK) modes
Table 2-1. Modem Switch Settings for DIP Switch SW1
Switch SettingsSwitches
ON OFF (Default)
SW1-1 −1-4: Transmit Level (page 15) (see Table 2-2 on page 15)
SW1-5: Receiver Dynamic Range
(page 16)
−10 to −43 dBm +3 to −30 dBm
SW1-6: TX Cable Equalizer (page 16) Enabled Disabled
SW1-7: RX Cable Equalizer (page 16) Enabled Disabled
SW1-8: Anti-streaming (page 16) Active Inactive

Configuring the Modem
Page 15
SW1-1 through SW1-4 −Transmit Level
Switches SW1-1 through SW1-4 adjust the modem’s transmit level.
Table 2-2 shows the transmit levels you can select using these
switches.
Table 2-2. Transmit Levels
SW1 through SW4 Switch Settings
Transmit Level SW1-1 SW1-2 SW1-3 SW1-4
0 dBm OFF OFF OFF OFF
−1 dBm OFF OFF OFF ON
−2 dBm OFF OFF ON OFF
−3 dBm OFF OFF ON ON
−4 dBm OFF ON OFF OFF
−5 dBm OFF ON OFF ON
−6 dBm OFF ON ON OFF
−7 dBm OFF ON ON ON
−8 dBm ON OFF OFF OFF
−9 dBm ON OFF OFF ON
−10 dBm ON OFF ON OFF
−11 dBm ON OFF ON ON
−12 dBm ON ON OFF OFF
−13 dBm ON ON OFF ON
−14 dBm ON ON ON OFF
+3 dBm ON ON ON ON

Installation
Page 16
SW1-5 −Receiver Dynamic Range
SW1-5 ON = −10 to −43 dBm
OFF = +3 to −30 dBm
For a low receive signal level, set SW1-5 to ON (−43 dBm ). For short
distances or to select a strong receive signal, set SW1-5 to OFF.
SW1-6 and SW1-7 −Cable Equalizer (Fast-Poll Mode Only)
SW1-6 ON = Enable TX Cable Equalizer
OFF = Disable TX Cable Equalizer
SW1-7 ON = Enable RX Cable Equalizer
OFF = Disable RX Cable Equalizer
To improve or extend the modem’s polling performance, use the fixed
Compromise Cable Equalizer when polling on long metallic circuits.
The cable equalizer is active only when the modem is in fast-poll mode
(SW3-1 set to OFF).
SW1-8 −Anti-streaming
SW1-8 ON = Anti-streaming active
OFF = Anti-stream inactive
Typically, anti-streaming is used in multi-point applications to prevent
a malfunctioning slave modem from occupying the line indefinitely.
When anti-streaming is active, the modem can transmit data for a
maximum of 27 seconds before the transmitter turns off automatically.
The modem then looks for an ON-to-OFF Request To Send (RTS)
transition before proceeding with normal operation. Anti-streaming can
be selected in either high-speed or low-speed mode.

Configuring the Modem
Page 17
SW2 DIP Switch Settings
SW2 is an 8-position DIP switch. Table 2-3 shows the modem switch
settings for DIP switch SW2. A description of the SW2 switch settings
follows the table.
Table 2-3. Modem Switch Settings for DIP Switch SW2
Switch SettingsSwitches
ON OFF (Default)
SW2-1: FSK Mode (page 18) V.23 Bell 202
SW2-2: Receiver Squelch (page 18)
(valid for FSK mode, 2-wire half-duplex
operation only)
Turnaround
Squelch (Bell
202): 8ms
Turnaround
Squelch (V.23):
150ms
Turnaround
Squelch (Bell 202):
0ms
Turnaround
Squelch (V.23):
0ms
SW2-3: FSK Soft Carrier (page 19) Disabled Enabled
SW2-4 and SW2-5: FSK RTS-CTS
Delay (page 19)
(see Table 2-4)
SW2-6: FSK CD Delay (page 20) 23ms 6ms
SW2-7: Remote Loopback (page 20) Enabled Disabled
SW2-8: Reserved (Test Only) (page 20) Test Normal

Installation
Page 18
SW2-1 FSK Mode
SW2-1 ON = ITU-T V.23 mode
OFF = Bell 202 mode
The modem has two FSK modes:
Bell 202, which supports data rates from 0 to 1800 bps
ITU-T V.23, which supports data rates from 0 to 1200 bps
SW2-1 configures the modem for either of these FSK modes. Setting
SW2-1 to ON selects ITU-T V.23 mode. In this mode, the modem
complies with ITU-T (CCITT) recommendation V.23 with the
following parameters:
Mode 2 modulation only
No backward channel
No provisions for disablement of echo suppressors
DTR (circuit 108) is ignored
Setting SW2-1 OFF selects Bell 202 mode.
SW2-2 Receiver Squelch (FSK Mode 2-Wire Half-Duplex Only)
SW2-2 ON = 8ms for Bell 202, 150ms for ITU-T V.23
OFF = 0ms
SW2-2 configures the turnaround squelch delay and is valid when the
following are active:
FSK mode (SW3-1 ON)
2-wire half-duplex operation (SW3-7 ON)
Setting this switch to OFF configures the modem to enable its receiver
immediately after the Request To Send (RTS) signal is turned off.
When this switch is set to OFF and the modem is configured for 2-

Configuring the Modem
Page 19
wire, half-duplex mode (SW3-7 ON), the modem squelches the
receiver after RTS is turned off to prevent far-end echoes from causing
data errors. The duration that the modem squelches the receiver is
either:
8 milliseconds if the modem is configured for Bell 202 mode
(SW2-1 OFF)
150 milliseconds if the modem is configured for ITU-T V.23 mode
(SW2-1 ON)
SW2-3 FSK Soft Carrier (Bell 202 FSK Mode Only)
SW2-3 ON = None
OFF = 8ms
SW2-3 controls the soft carrier and is valid for Bell 202 FSK mode
only (SW2-1 set to OFF). Setting this switch to OFF configures the
modem to transmit a 900 Hz soft carrier to the remote modem for 8
milliseconds after RTS is turned off. Setting this switch to ON prevents
the modem from transmitting a soft carrier after RTS is turned off.
SW2-4 and SW2-5 RTS-CTS Delay (Bell 202 Mode Only)
Switches SW2-4 and SW2-5 determine the duration of the RTS-CTS
delay in Bell 202 mode. Table 2-4 shows how to set these switches to
select the appropriate setting.
Table 2-4. RTS-CTS Delay Settings in Bell 202 Mode
To Select
a Delay of…
Set SW2-4 to… And Set SW2-5 to…
8ms OFF OFF
33ms OFF ON
59ms ON OFF
219ms ON ON

Installation
Page 20
When the modem is configured for V.23 operation (SW2-1 ON), the
RTS-CTS delay is fixed at 33 ms.
SW2-6 FSK CD Delay (Bell 202 Mode Only)
SW2-6 ON = 23ms
OFF = 6ms
SW2-6 selects the FSK CD delay and is valid when Bell 202 mode is
active (SW2-1 OFF). Setting SW2-6 ON configures the modem to turn
on CD 23 milliseconds after it detects a valid carrier signal. Setting this
switch to OFF configures the modem to turn on CD 6 milliseconds
after it detects a valid carrier signal.
This switch setting is deactivated when the modem is configured for
V.23 mode (SW2-1 ON) and a delay of 18 milliseconds is used instead.
SW2-7 Remote Loopback
SW2-7 ON = Loopback enabled
OFF = Loopback disabled
During instances of channel noise, the modem may mistaken a received
preamble as a request to go into remote digital loopback. Setting SW2-
7 to OFF prevents the modem from participating in a remote digital
loopback with another modem. SW2-7 does not prevent the modem
from sending a remote digital loopback request to a remote modem.
SW2-8 −Reserved (Test Only)
SW2-8 Must be OFF
SW2-8 must be in the OFF position for normal operation.

Configuring the Modem
Page 21
SW3 DIP Switch Settings
SW3 is a 10-position DIP switch. Table 2-5 shows the modem switch
settings for DIP switch SW3. A description of the SW3 switch settings
follows the table.
Table 2-5. Modem Switch Settings for DIP Switch SW3
Switch SettingsSwitches
ON OFF (Default)
SW3-1: Fast Poll/FSK (page 22) FSK Fast Poll Auto-Rate
SW3-2: Data Rate (page 23) 4800 bps 9600 bps
SW3-3: Async Character (page 23) 11 bits 10 bits
SW3-4: Auto RTS (page 23) Enabled Disabled
SW3-5: Transmitter Termination (page
24)
Switched by RTS 600 Ω
SW3-6: Reserved (Test Only)(page 24) Test Normal
SW3-7: 2- or 4-wire (page 24) 2-wire, half-duplex 4-wire, full-duplex
SW3-8: Carrier Control (page 25) Constant Switched
SW3-9: Rx Termination (page25) 600 ΩHigh Rx Impedance
SW3-10: Signal Ground and Earth
Ground Option (page 25)
Connected Separated
