Four-Faith F1003 User manual

F1X03 Series
User Manual
Documentation No.
Product Version
Page
Product Name：
Total:
F1X03 Series User Manual
The user manual is suitable for the following model:
Model
Product Type
F1003
GSM MODEM
F1103
GPRS MODEM
F1203
CDMA MODEM
F1303
EDGE MODEM
F1403
WCDMA MODEM
F1503
TD-SCDMA MODEM
F1603
EVDO MODEM
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J3,3rd Floor,No.44,GuanRi Road,SoftWare
Park,XiaMen,China Zip Code:361008
Tel：[phone]
Fax:[phone]
http://www.fourfaith.com

User Manual
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 2 of 33
Add：J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China
http：//www.fourfaith.com Tel：[phone] 6300325 6300324 Fax：[phone]
Files Revised Record
Date
Version
Remark
Author

User Manual
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 3 of 33
Add：J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China
http：//www.fourfaith.com Tel：[phone] 6300325 6300324 Fax：[phone]
Copyright Notice
All contents in the files are protected by copyright law, and all copyrights are reserved by Xiamen
Four-Faith Communication Technology Co., Ltd. Without written permission, all commercial
use of the files from Four-Faith are forbidden, such as copy, distribute, reproduce the files, etc.,
but non-commercial purpose, downloaded or printed by individual (all files shall be not revised,
and the copyright and other proprietorship notice shall be reserved) are welcome.
Trademark Notice
Four-Faith、四信、 、 、 are all registered trademarks of Xiamen
Four-Faith Communication Technology Co., Ltd., illegal use of the name of Four-Faith,
trademarks and other marks of Four-Faith is forbidden, unless written permission is authorized in
advance.

User Manual
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 4 of 33
Add：J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China
http：//www.fourfaith.com Tel：[phone] 6300325 6300324 Fax：[phone]

User Manual
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 5 of 33
Add：J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China
http：//www.fourfaith.com Tel：[phone] 6300325 6300324 Fax：[phone]
C
Co on nt te en nt ts s
Chapter 1 Brief Introduction of Product...........................................................................................6
1.1 General................................................................................................................................6
1.2 Features and Benefits..........................................................................................................6
1.3 Working Principle ...............................................................................................................7
1.4 Specifications......................................................................................................................7
Chapter 2 Installation Introduction.................................................................................................10
2.1 General..............................................................................................................................10
2.2 Encasement List................................................................................................................10
2.3 Installation and Cable Connection....................................................................................10
2.4 Power ................................................................................................................................11
2.5 Indicator Lights Introduction ............................................................................................11
Chapter 3 Dial-Up Settings.............................................................................................................13
3.1 MODEM Connection........................................................................................................13
3.2 Dial-Up Settings................................................................................................................13
Chapter 4 SMS Test ........................................................................................................................29
Chapter 5Appendix ........................................................................................................................32

User Manual
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 6 of 33
Add：J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China
http：//www.fourfaith.com Tel：[phone] 6300325 6300324 Fax：[phone]
Chapter 1 Brief Introduction of Product
1.1 General
F1X03 series MODEM is a kind of cellular terminal device that provides SMS, dial-up and
CSD function by public cellular network.
It adopts high-powered industrial cellular module and supports RS232 port that can
conveniently connect one device to a cellular network, allowing you to connect to your existing
serial device.
It has been widely used on M2M fields, such as intelligent transportation, smart grid,
industrial automation, telemetry, finance, POS, water supply, environment protection, post,
weather, and so on.
1.2 Features and Benefits
Design for IndustrialApplication
High-powered industrial cellular module
Housing: iron, providing IP30 protection
Power range: DC 5~35V
Stability and Reliability
RS232 port: 15KV ESD protection
SIM/UIM port: 15KV ESD protection
Power port: reverse-voltage and overvoltage protection
Antenna port: lightning protection(optional)
Standard and Convenience
Support standard RS232 port that can connect to a serial device directly
Provide dial-up software that can make it always online
Provide SMS tool software
Support standard AT command
High-performance
Support SMS
Support dial-up（Except F1003）
CSD function(F1003/F1103)

User Manual
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 7 of 33
Add：J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China
http：//www.fourfaith.com Tel：[phone] 6300325 6300324 Fax：[phone]
SupportAPN/VPDN（Except F1003）
1.3 Working Principle
The principle chart of the MODEM is as following:
1.4 Specifications
Cellular Specification
Standard and Band
Bandwidth
TX power
RX
sensitivity
F1003 GSM MODEM
EGSM900/GSM1800MHz,
GSM850/900/1800/1900MHz(optional)
Compliant to GSM phase 2/2+
14.4Kbps CSD
GSM850/900：
<33dBm
GSM1800/1900 ：
<30dBm
<-107dBm
F1103 GPRS MODEM
EGSM900/GSM1800MHz,
GSM850/900/1800/1900MHz(optional)
Compliant to GSM phase 2/2+
GPRS class 10, class 12(optional)
85.6Kbps
GSM850/900：
<33dBm
GSM1800/1900 ：
<30dBm
<-107dBm
F1203 CDMA MODEM
CDMA2000 1xRTT 800MHz,
800/1900MHz(optional),450MHz(optional)
153.6Kbps
<30dBm
<-104dBm
F1303 EDGE MODEM
GSM850/900/1800/1900MHz
GPRS/EDGE Class 12
236.8Kbps
GSM850/900：
<33dBm
<-106dBm
Cellualr Module
Power
RS232 serial
Interface
Indicator lights
User interface

User Manual
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 8 of 33
Add：J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China
http：//www.fourfaith.com Tel：[phone] 6300325 6300324 Fax：[phone]
GSM1800/1900 ：
<30dBm
F1403 WCDMA MODEM
UMTS/WCDMA/HSDPA/HSUPA
850/1900/2100MHz,
850/900/1900/2100MHz(optional)
GSM850/900/1800/1900MHz
GPRS/EDGE CLASS 12
HSUPA:5.76Mbps(Upl
oad speed)/
HSDPA:7.2Mbps(Down
load speed)
UMTS:384Kbps
(DL/UL)
<24dBm
<-109dBm
F1503 TD-SCDMA MODEM
TD-SCDMA/HSDPA/HSUPA
1880-1920/2010-2025MHz
GSM850/900/1800/1900MHz
GPRS/EDGE CLASS 12
Download
speed:2.8Mbps, upload
speed:2.2Mbps
<24dBm
<-108dBm
F1603 EVDO MODEM
CDMA2000 1X EVDO Rev A
800MHz,800/1900MHz(optional),
450MHz (optional)
CDMA2000 1X RTT, IS-95 A/B
Download
speed:3.1Mbps, upload
speed:1.8Mbps
<23dBm
<-104dBm
Interface Type
Item
Content
Serial
1 RS232 port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps
Indicator
"Power", "ACT", "Online"
Antenna
Standard SMA female interface, 50 ohm, lighting protection(optional)
SIM/UIM
Standard 3V/1.8V user card interface, 15KV ESD protection
Power
Standard 3-PIN power jack, reverse-voltage and overvoltage protection
Power Input
Item
Content

User Manual
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 9 of 33
Add：J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China
http：//www.fourfaith.com Tel：[phone] 6300325 6300324 Fax：[phone]
Standard Power
DC 12V/0.5A
Power Range
DC 5~35V
Consumption
<200mA (12V)
Physical Characteristics
Item
Content
Housing
Iron, providing IP30 protection
Dimensions
91x58.5x22 mm
Weight
195g
Environmental Limits
Item
Content
Operating
Temperature
-25~+65ºC （-13~+149℉）
Extended
Operating
Temperature
-30~+75ºC （-22~+167℉）
Storage
Temperature
-40~+85ºC（-40~+185℉）
Operating
Humidity
95% ( Non-condensing)

User Manual
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 10 of 33
Add：J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China
http：//www.fourfaith.com Tel：[phone] 6300325 6300324 Fax：[phone]
Chapter 2 Installation Introduction
2.1 General
The MODEM must be installed correctly to make it work properly.
Warning: Forbid to install the MODEM when powered!
2.2 Encasement List
Name
Quantity
Remark
MODEM host
1
Antenna
1
Power adapter
1
RS232 data cable
1
Manual CD
1
Certification card
1
Maintenance card
1

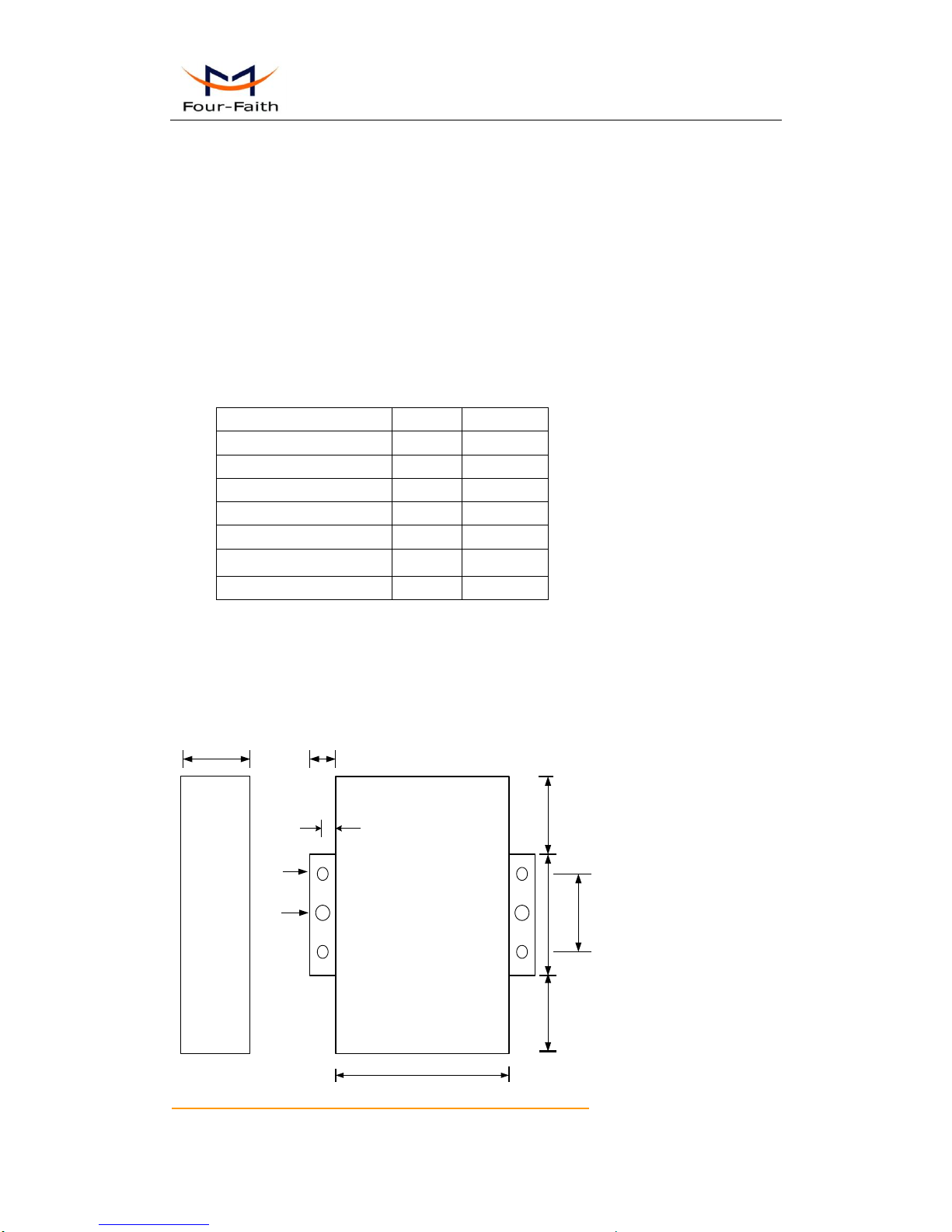

2.3 Installation and Cable Connection
Dimension: (unit: mm)
58.5
35
28
28
22 8
25
Ф3
Ф5
4

User Manual
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 11 of 33
Add：J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China
http：//www.fourfaith.com Tel：[phone] 6300325 6300324 Fax：[phone]
Installation of SIM/UIM card:
Firstly power off the MODEM, and press the out button of the SIM/UIM card outlet with a
needle object. Then the SIM/UIM card sheath will flick out at once. Put SIM/UIM card into the
card sheath (Pay attention to put the side which has metal point outside), and insert card sheath
back to the SIM/UIM card outlet.
Warning: Forbid to install SIM/UIM card when powered!
Installation of antenna:
Screw the SMA male pin of the antenna to the female SMA outlet of the MODEM tightly.
Warning: The antenna must be screwed tightly, or the signal quality of antenna will be influenced!
Installation of cable:
Insert DB9F end of the RS232 data cable into the DB9M interface of MODEM, and connect
the other end with user’s device.
The signal connection of the RS232 data cable is as follows:
2.4 Power
The power range of the MODEM is 5~35V.
Warning: When we use other power, we should make sure that the power can supply power
above 4W.
We recommend user to use the standard DC 12V/0.5A power adaptor.
2.5 Indicator Lights Introduction
The MODEM provides three indicator lights: “Power”, “ACT”, “Online”.
DB9F
DB9F
RS232 data cable
1
RXD 2
TXD 3
4
GND 5
6
7
8
9
1
2 RXD
3 TXD
4
5GND
6
7
8
9

User Manual
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 12 of 33
Add：J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China
http：//www.fourfaith.com Tel：[phone] 6300325 6300324 Fax：[phone]
Indicator
Light
State
Introduction
Power
ON
MODEM is powered on
OFF
MODEM is powered off
ACT
BLINK
Data is communicating
OFF
No data
Online
ON/
BLINK
MODEM has logged on network
OFF
MODEM hasn’t logged on network

User Manual
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 13 of 33
Add：J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China
http：//www.fourfaith.com Tel：[phone] 6300325 6300324 Fax：[phone]
Chapter 3 Dial-Up Settings
3.1 MODEM Connection

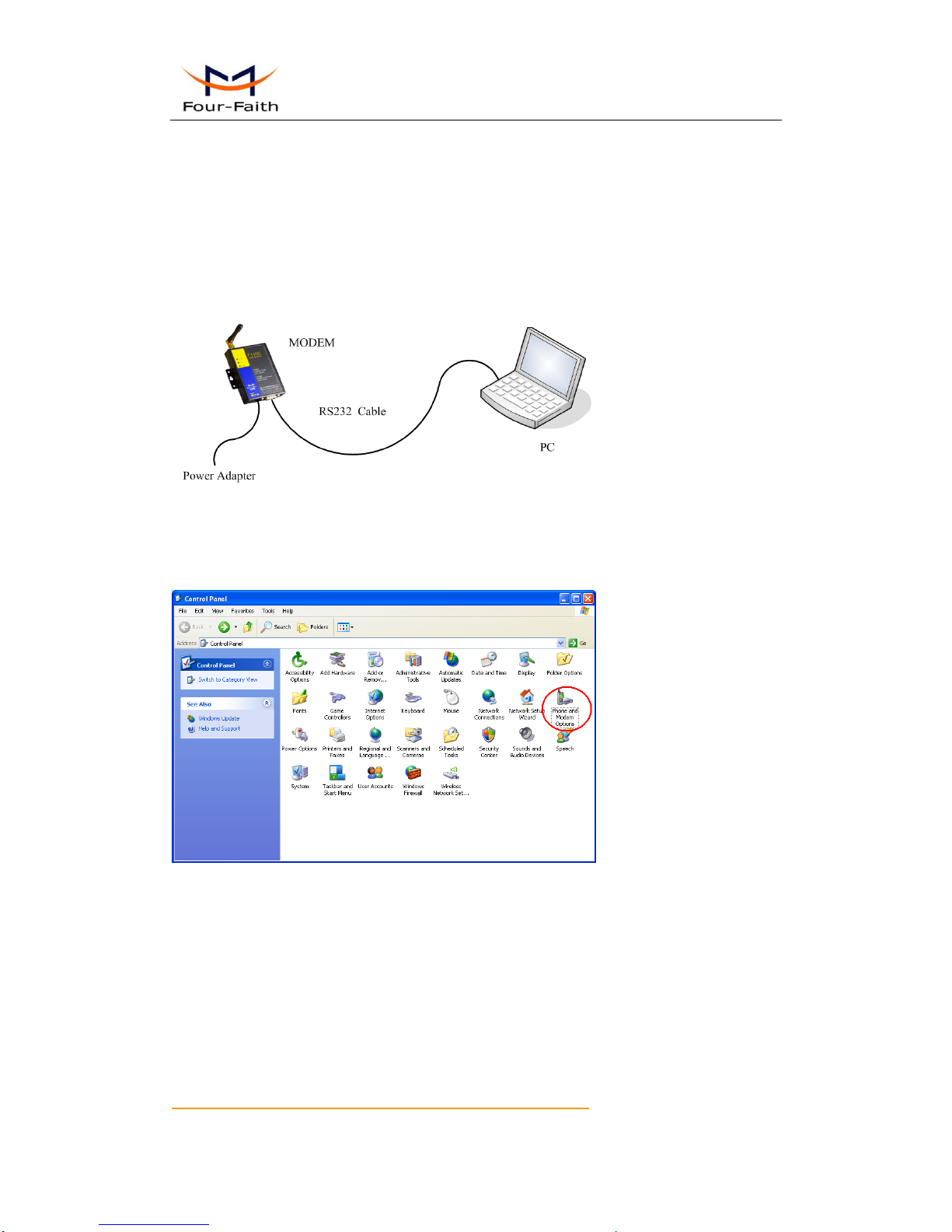

Connect Modem and PC with the shipped RS-232 cable as following:
3.2 Dial-Up Settings
1. Press “start” “Settings” “Control Panel”, Double click “Phone and Modem Options”

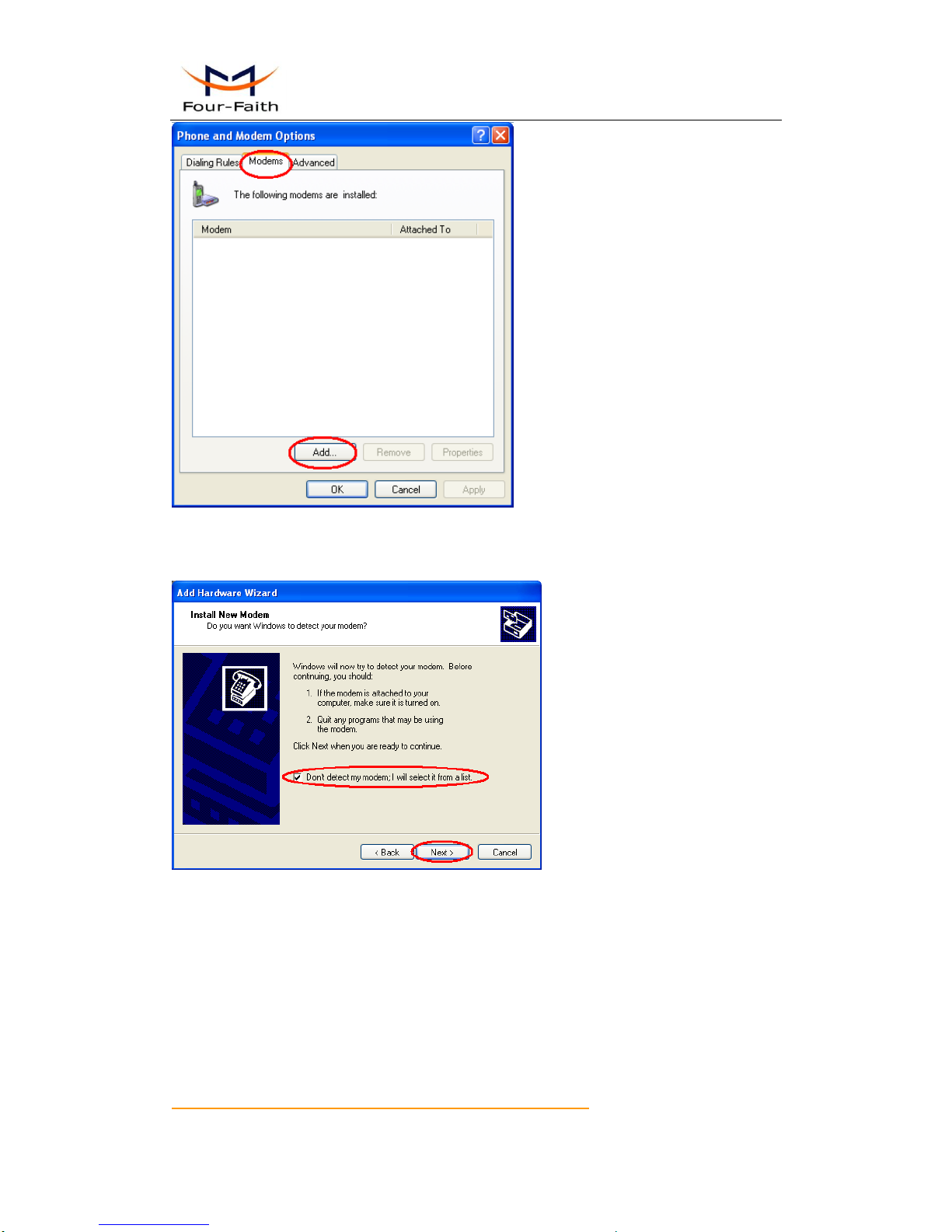

2. Choose “Modems”, Press “Add” button

User Manual
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 14 of 33
Add：J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China
http：//www.fourfaith.com Tel：[phone] 6300325 6300324 Fax：[phone]
3. Choose “Don’t detect my modem;I will select it from a list”, and click “Next”

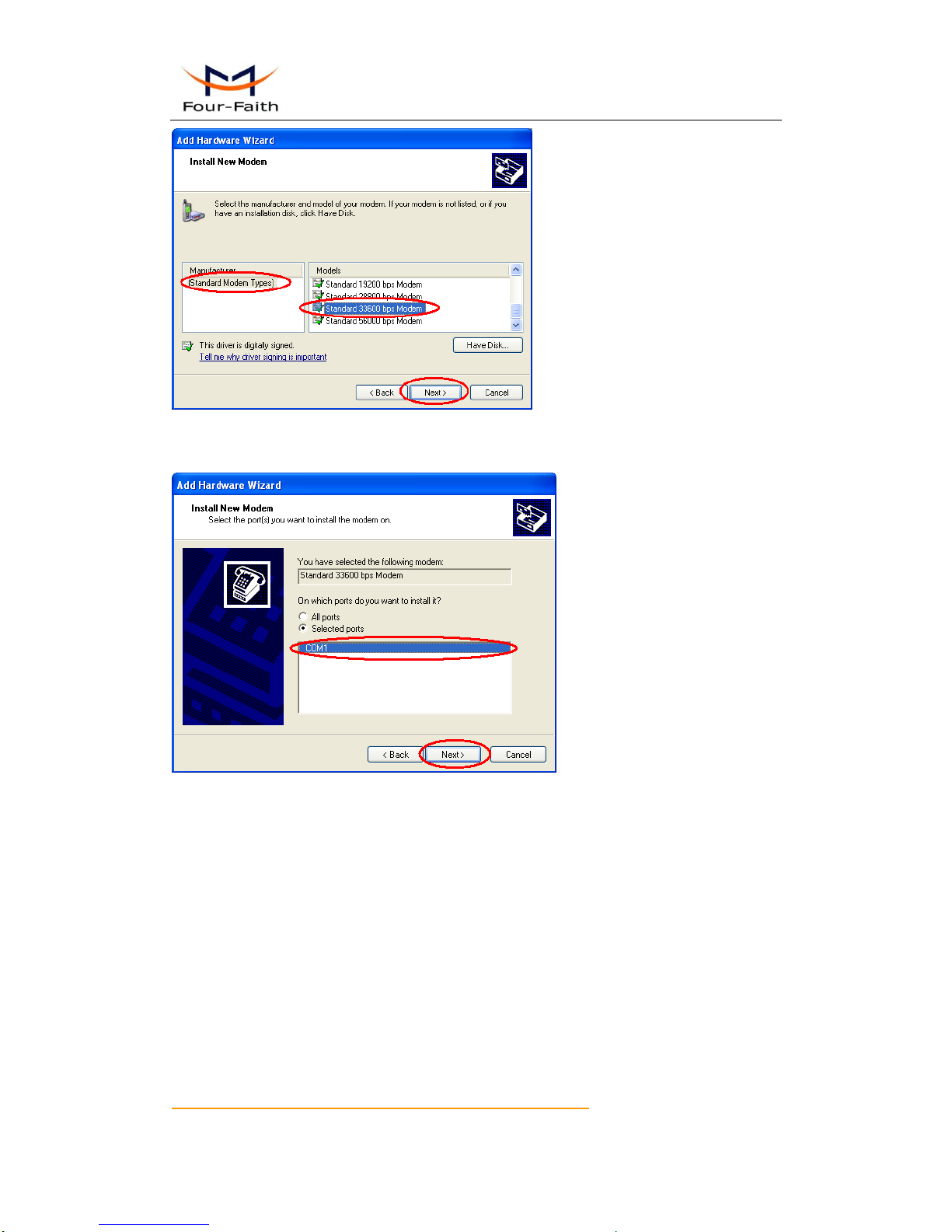

4. Manufacture choose ”Standard Modem Types”, Models choose “Standard 33600 bps Modem”,
click “Next”button

User Manual
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 15 of 33
Add：J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China
http：//www.fourfaith.com Tel：[phone] 6300325 6300324 Fax：[phone]
5. “Selected ports”choose the actual COM port which connects to Modem, click “Next”button.

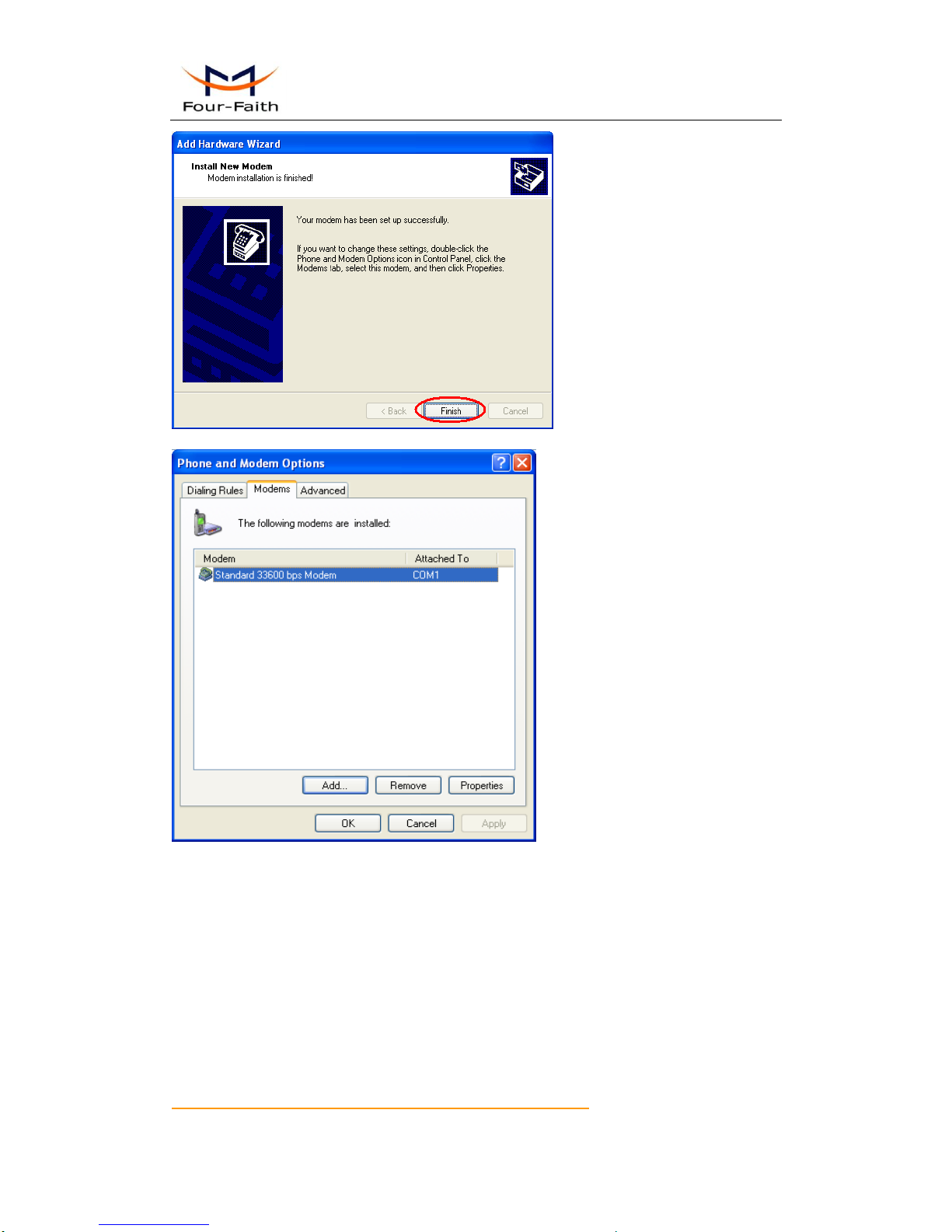

6. click “Finish”button, return back to “Modems”page

User Manual
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 16 of 33
Add：J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China
http：//www.fourfaith.com Tel：[phone] 6300325 6300324 Fax：[phone]
7. Choose the modem you have just installed, click “properties“button to configure the modem
driver

User Manual
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 17 of 33
Add：J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China
http：//www.fourfaith.com Tel：[phone] 6300325 6300324 Fax：[phone]
8. Choose “Modem”page, set Maximum Port Speed as 115200.
9. Choose “Advanced”page, input Extra Initialization commands:
AT+CGDCONT=1,”IP”,”CMNET”, CMNET is the Access Point Name(APN) of China,
please replace it with your own APN name, click “Change Default Preferences”button

User Manual
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 18 of 33
Add：J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China
http：//www.fourfaith.com Tel：[phone] 6300325 6300324 Fax：[phone]
note：
product model
Extraitntiahzation commands
F1103
AT+CGDCONT=1,"IP","CMNET"
F1203
null
F1303
AT+CGDCONT=1,"IP","CMNET"
F1403
AT+CGDCONT=1,"IP","3GNET"
F1503
AT+CGDCONT=1,"IP","CMNET"
F1603
null
10. “Port Speed”choose 115200，”Flow control”choose None, click “OK”button.

User Manual
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 19 of 33
Add：J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China
http：//www.fourfaith.com Tel：[phone] 6300325 6300324 Fax：[phone]

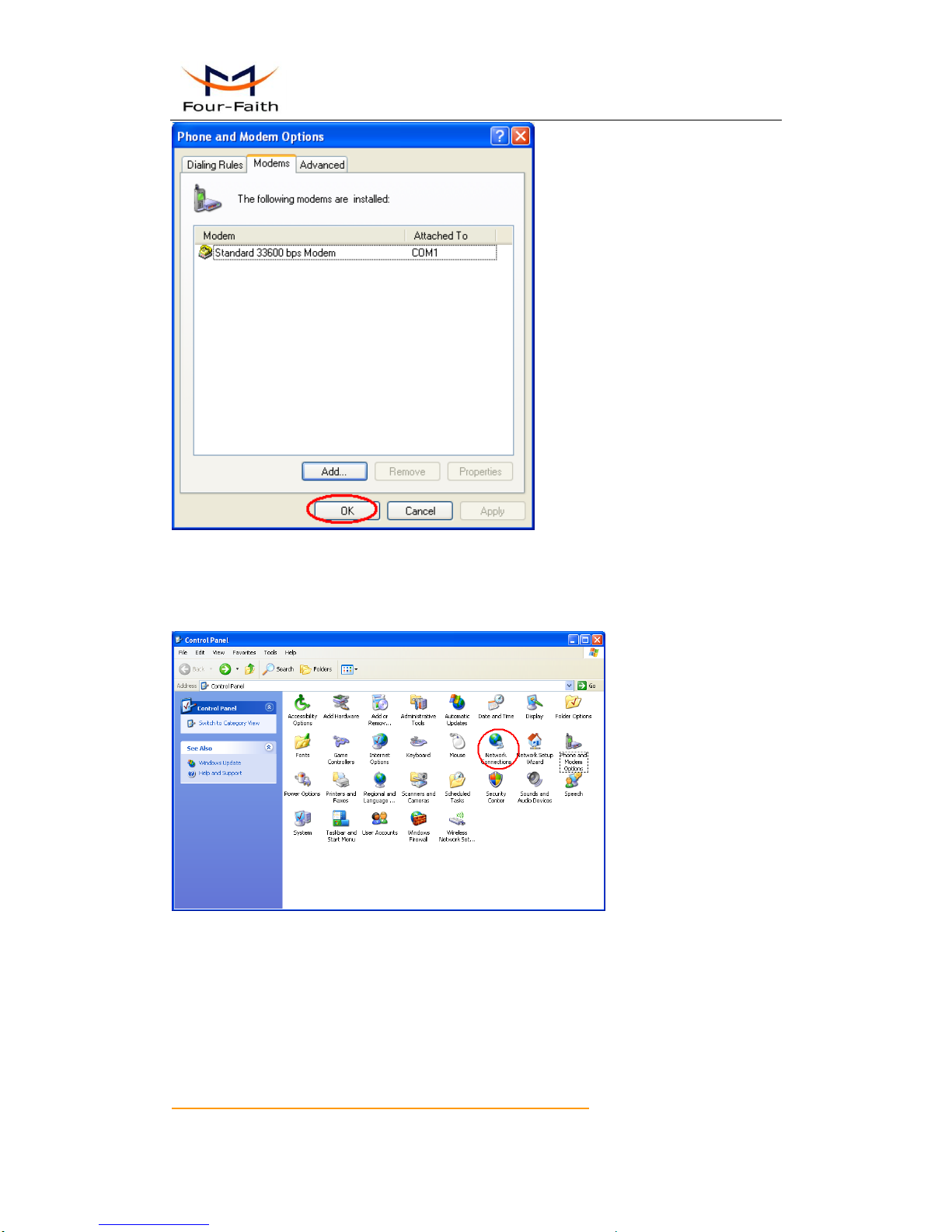

11. On the “Advanced”page, click “OK”button return to “Phone and Modems”page, click “OK”
button to finish the Modem driver installation

User Manual
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 20 of 33
Add：J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China
http：//www.fourfaith.com Tel：[phone] 6300325 6300324 Fax：[phone]
12. Finish installing Modem driver, It’s necessary to install the Dial-Up connection. Open
“Control Panel”, double click “Network connections”
13．Click “Create a new connection”to start creating a new Dial-Up connection.
