Teleste CFO100 User manual

User manual
Single and triple channel video only link
CFO First Mile series consist of fibre optic modems which provide a high
quality and lossless video transmission for variety of CCTV applications.
CFO100 user manual, 59300292, rev003

Contents
CFO100 - Single and triple channel video only link .............................................................................................. 1
General .............................................................................................................................................................. 1
Features ............................................................................................................................................................. 1
CPT101 mini sized stand-alone video transmitter................................................................................................. 2
General .............................................................................................................................................................. 2
Video input ........................................................................................................................................................ 2
Fibre connection ................................................................................................................................................ 2
CPT101 stand-alone installation ........................................................................................................................ 3
CRT103 triple channel video transmitter................................................................................................................ 4
General .............................................................................................................................................................. 4
Frame installation ............................................................................................................................................... 4
Video connections.............................................................................................................................................. 4
Link status indicator LEDs.................................................................................................................................. 4
CRT103 stand-alone installation ........................................................................................................................ 5
Fibre connection ................................................................................................................................................ 6
CRR101/103 single and triple channel video receiver........................................................................................... 7
General .............................................................................................................................................................. 7
Frame installation ............................................................................................................................................... 7
Video connections and indicator LEDs .............................................................................................................. 7
Link status indicator LEDs.................................................................................................................................. 7
CRR101/103 stand-alone installation................................................................................................................. 8
Fibre connection ................................................................................................................................................ 9
Legal declarations .................................................................................................................................................. 10
WEEE directive........................................................................................................................................................ 10
CFO100 user manual
CPT101
Video
Video
Video
Video
CPT101
Video
CPT101
Video
CRR103
CRR103
Video
Video
Video
Video
Video
Video
CRT103
CPT101
VideoVideo
multimode fibres
up to 6.5 km
multimode fibres
up to 6.5 km
multimode fibres
up to 6.5 km
CRR101

CFO100 user manual 1
Welcome, and thank you for purchasing Teleste’s CFO products.
General
CFO100 First Mile series offers a highly cost-effective single channel
composite video transmission over one multimode bre.
High quality video image can be transmitted over distances up to
6.5 km depending on the type of multimode bre in use. A typical
application is a point-to-point transmission from a xed CCTV camera to
a monitoring centre.
CFO100 series consist of mini sized stand-alone video transmitter
followed by standard 5HP size CFO cards for triple channel video
transmitter as well as for single and triple channel receiver operation.
The CPT101 stand-alone transmitter is temperature hardened and is
capable of using both 12 VDC or 24 VAC supply voltage.
CPT101 unit is a compact size housing for special stand-alone
installations requiring minimal installation space. Also as an
optional DIN rail mounting is possible (item code CIK001).
CRT103 and CRR101/103 cards are compatible with all CFO rack
systems. Stand-alone options are available with the CMA015
module adapter and separared CPS25x series mains adapter.
As with all CFO platform products these specic models do meet
all typical EMC as well as other environmental and manufacturing
related requirements. The permitted operational temperature range
is -34...+74°C.
Note! New generation CFO100 products are based on digital
transmission and are not therefore compatible with previous
analog CFO100 series.
Features
>> Low cost video transmission
>> High performance uncompressed zero delay digital video transmission,
SNR 65 dB typical, 10 bit video sampling
>> One CVBS (PAL/NTSC) video channel
>> Transmission over on one or three multimode bre up to 6.5 km
>> Card format applicable both for rack mount and stand-alone installations
>> One and triple channel units available for both transmitter and receiver
>> Transmitter unit available in a special compact-size stand-alone design
>> Feasible for eld hardened operation
>> Mechanically compact and ruggedised
>> EMC and environmental conformance

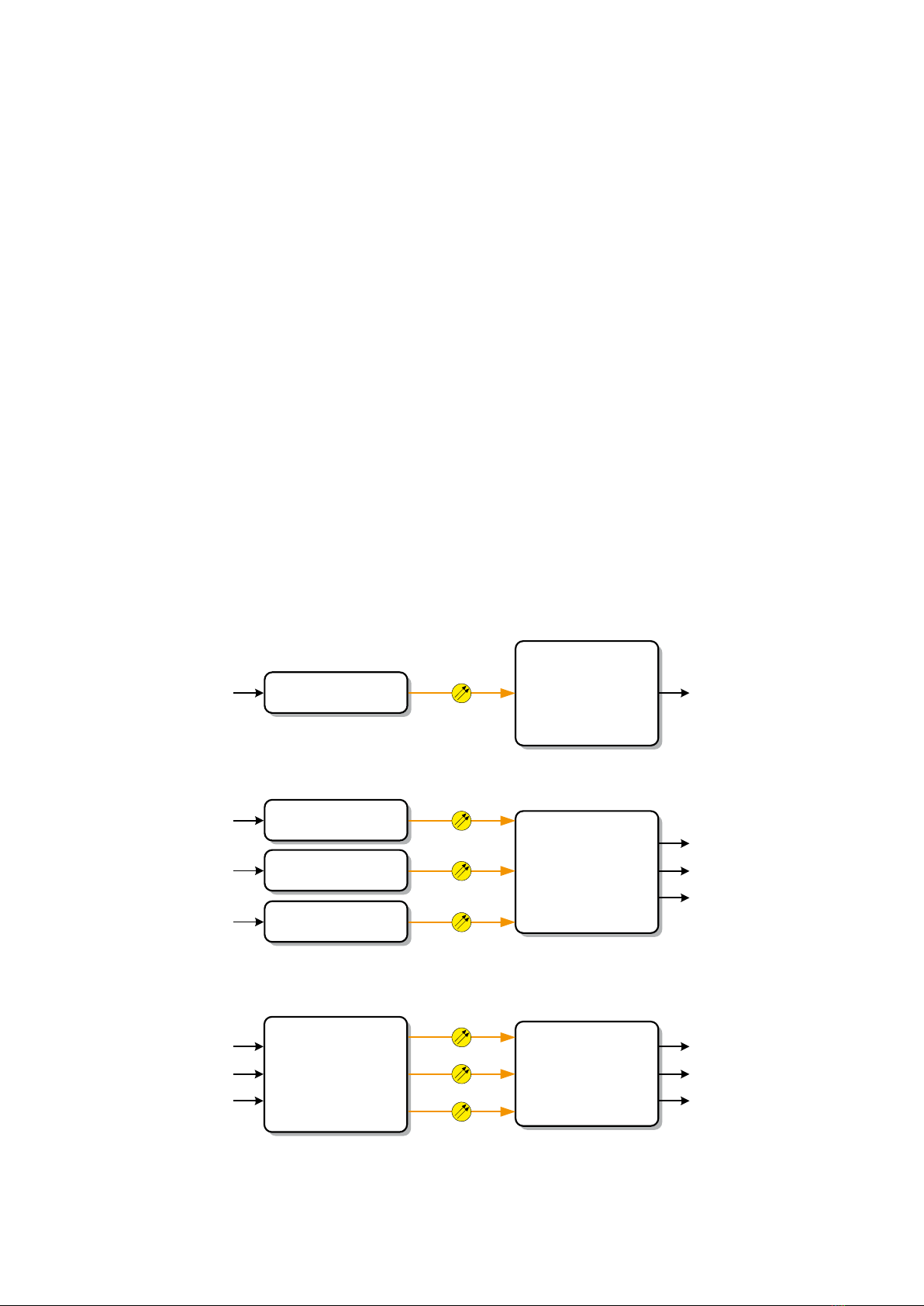

CFO100 - Single and triple channel video only link
CFO100 First Miles series offers a 10-bit video transmission over
one mutimode be / video channel for xed camera applications.
V
x1
V
x1
V
x1
V
x1

2CFO100 user manual
CPT101 mini sized stand-alone video transmitter
General
The CPT101 is a one channel optical transmitter for uni-directional video
transmission in a multimode bre. The current consumption is
max. 130 mA (+12V DC).
Video input
The video input impedance (BNC female) is 75 Ω. The nominal input level
is 1 Vpp.
Fibre connection
The optical connector is of the type ST. The optical output level is
typically -4 dBm. For testing purposes the CFO100 series transmitter
and receicer can be connected with a short bre patch cable.
The operating wavelenght is 1310 nm.
When installing the bre optic cable, do not exceed the minimum bending
radius when connecting cable to the system.
Note! For correct optical operation ensure that all optical
connectors are cleaned immediately before mating. Connectors
should always be cleaned using high purity alcohol (e.g. methyl or
isopropyl alcohol). Dry the surfaces using clean compressed air or
other equivalent pressurised gas. The female ST optical
connectors on the equipment should always be protected with
dustcaps when there is no bre inserted.
Optical connection meets class 1M laser safety requirements of IEC
60825-1: 2001 and US department of health services 21 CFR 1040.10
and 1040.11 (1990) when operated within the specied temperature,
power supply and duty cycle ranges.
CPT101 Optical Transmitter
1) Video input (BNC female)
2) Optical output (ST)
3) Power led
4) Power supply connector
(2-pin screw terminal)
5) Grounding
side view
CAUTION:
THESE OPTICAL UNITS USES CLASS 1M LASER DIODE.
DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL
INSTRUMENTS. APPLICABLE STANDARD
IEC60825-1: 2001
14
2
3
5
CPT101
Digi-Pixi

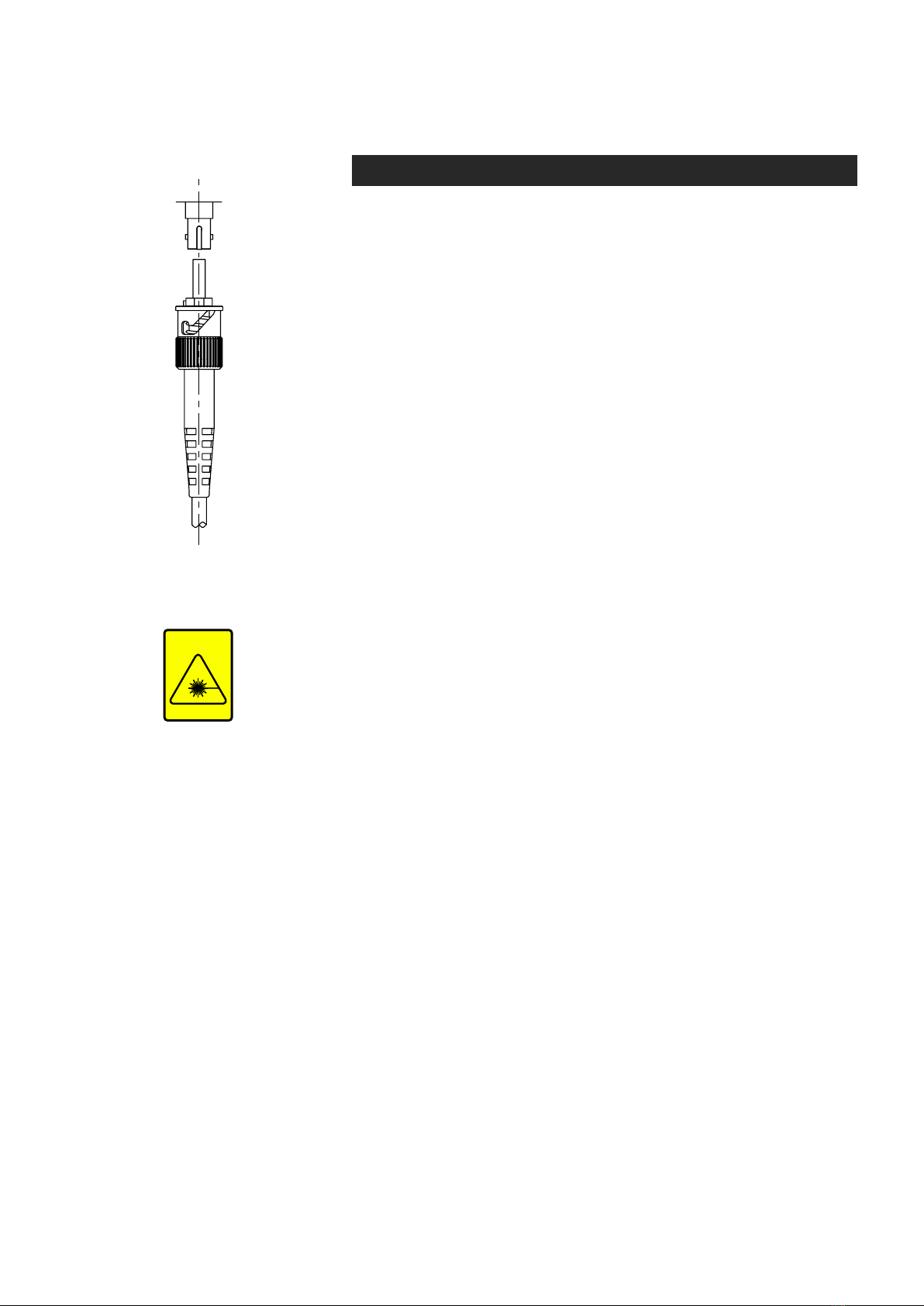

top view
ST Connectors.
Make sure the key is aligned in the slot
properly before tightening!
RADIATION
INVISIBLE LASER
CLASS 1M

CFO100 user manual 3
CPT101 stand-alone installation
The CPT101 units are designed for stand-alone installation. The unit
should be mounted with a help of wall bracket to a installation place.
The supply voltage can be either +12V DC or 24V AC. The supply
voltage is provided by either a surveillance camera unit, or by an external
mains adapter. The permitted supply voltage range are 10.5...14 VDC
and 16...24 VAC. In DC use the +12V DC supply voltage is supplied by
the means of a separate mains adapter with a regulated output, (e.g.
CPS251). The permitted operational temperature range is -34...+74°C.
Wall bracket dimensions.

4CFO100 user manual
CRT103 triple channel video transmitter
CAUTION:
THESE OPTICAL UNITS USES CLASS 1M LASER DIODE.
DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL
INSTRUMENTS. APPLICABLE STANDARD
IEC60825-1: 2001
General
The CRT103 is a three channel optical transmitter for uni-directional
video transmission in a multimode bre. The current consumption is
300 mA (+12 VDC).
Frame installation
The CRT103 module is to be pushed along the guide rails into
the installation frame (e.g. CSR216 or 316 series) and secured with
the two locking screws. The unit can be freely positioned in any slot in
the frame. The empty positions in the frame should be blanked off with
cover plates. The supply voltage is to be provided by a CPS384 or
CPS390 power supply unit which are installed back of frame.
Video connections
The impedance of the video inputs (BNC female) is 75 Ω. The nominal
input level is 1 Vpp.
Link status indicator LEDs
In the (uni-directional) CRT103 units the LINK STATUS led is only
monitored by the optical receiver CRR101/103. Therefore the LINK
STATUS led in CRT103 units has no real value and is always green.

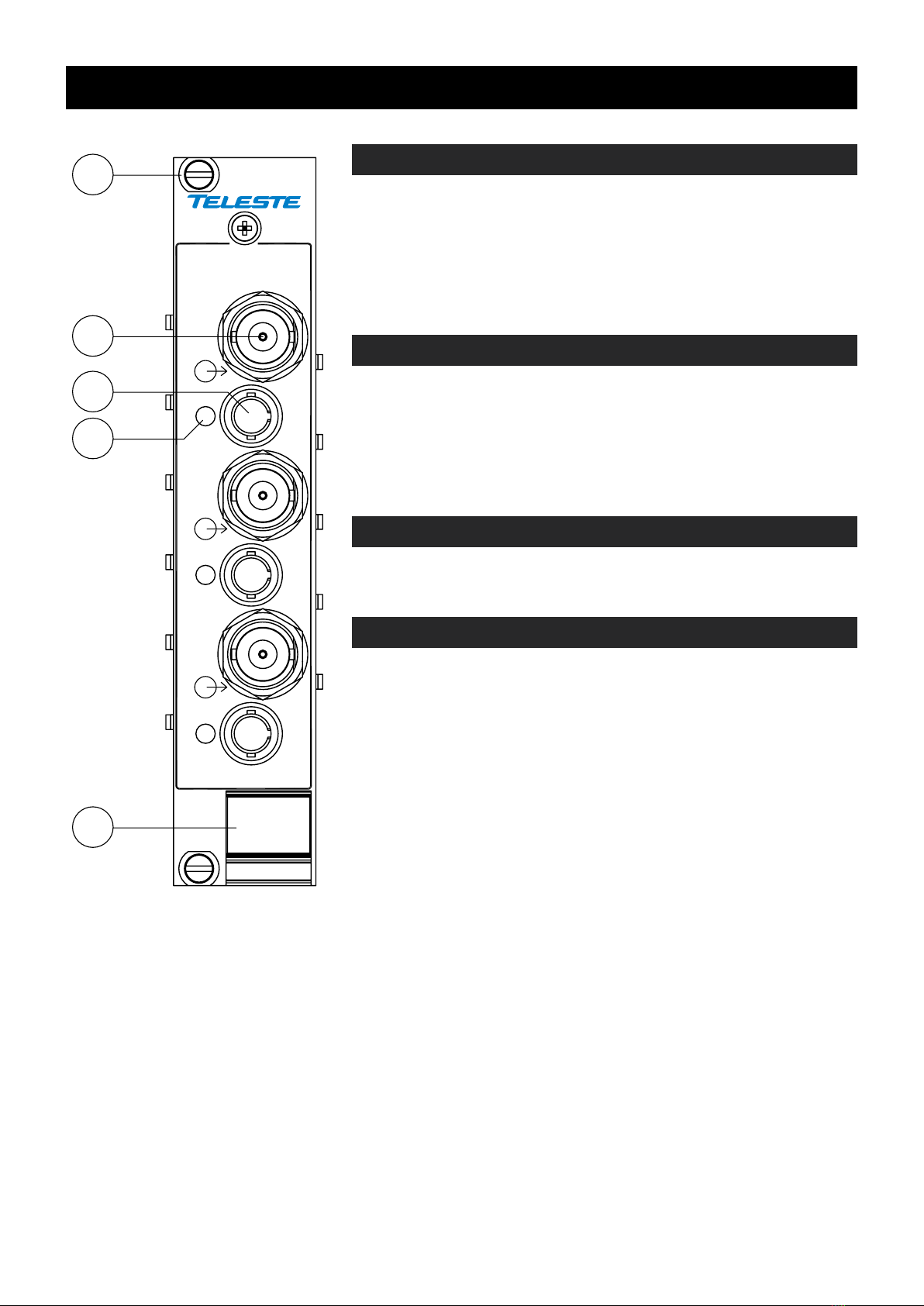

CRT103 Optical Transmitter
1) Locking screw (2 pcs)
2) Video input (BNC female)
3) Optical output (ST)
4) Link status indicator led
5) Handle (with unit information)
See further information on
dedicated sections.
CRT103
OPTICAL
TRANSMITTER
1
2
3
4
5

CFO100 user manual 5

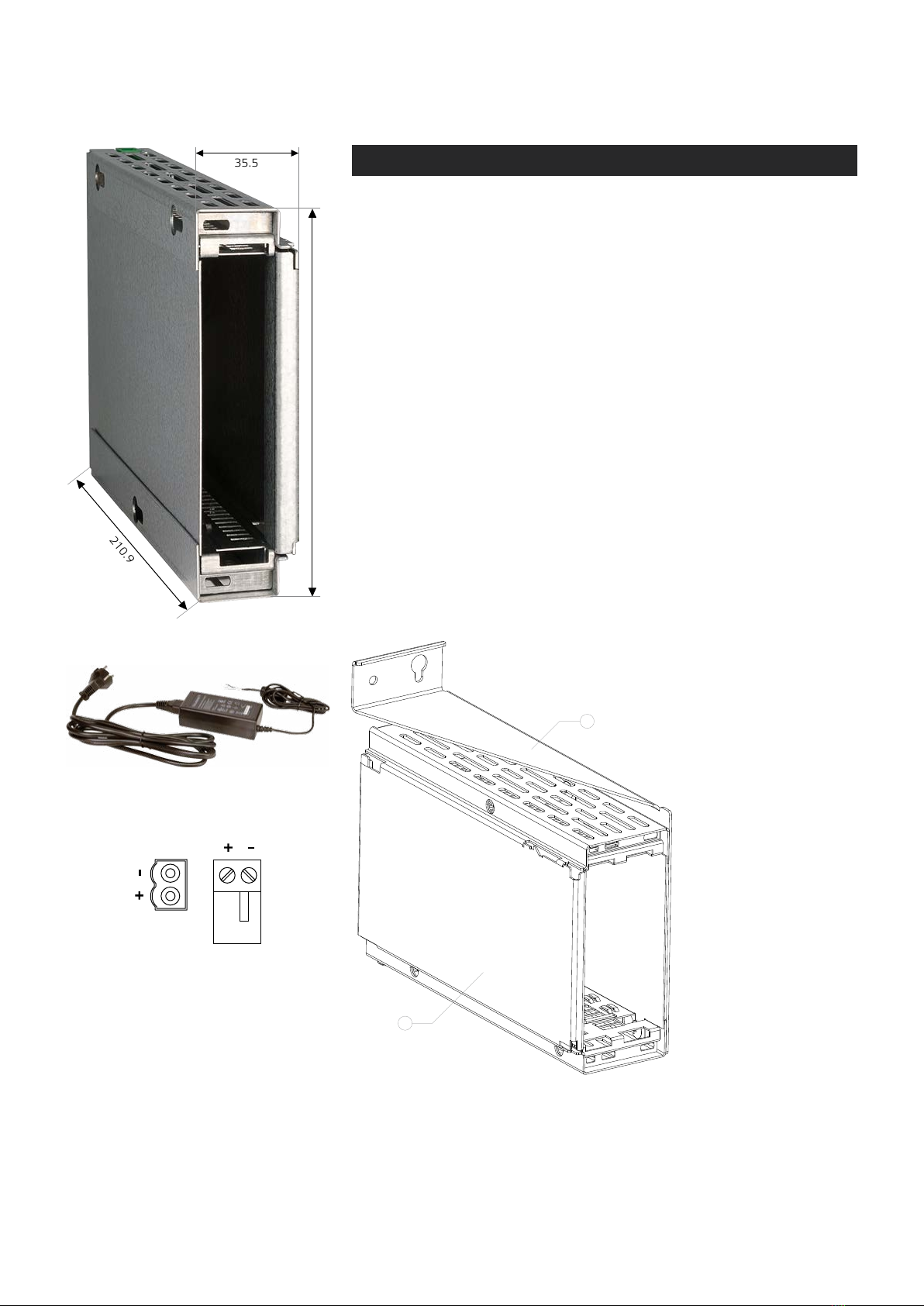

CRT103 stand-alone installation
The units can be installed for stand-alone use by using a CMA015
(installation for one 5HP wide units) module adapters. To insert a
CRT103 card unit into the module adapter, push the unit along the guide
rails into module until the unit is rmly attached. Secure the plug-in unit
with the upper and lower locking screws. The stand-alone unit should be
mounted to a vertical surface.
The permitted supply voltage range is 10.5...14 VDC. The current
consumption is 300 mA. The permitted operational temperature range is
-34...+74°C.
Note! Alternatively the units can be installed for stand-alone use by
using a CMA025 (installation for two 5HP wide units) or CMA035
(installation for three 5HP wide units) module adapters.
The 12V DC supply voltage is supplied by the means of a separate
mains adapter with a regulated output, (e.g. CPS251). Please refer to
separate documention for module adapters and mains adapters.
For limited space installation the CMA015/025/035 module adapters can
be rear-mounted by means of an optional installation kit CIK002.
CPS251 12VDC mains adapter.
CMA015 module adapter.
CMA025 module adapter with CIK002 rear mounting kit.
1. CMA025 module adapter
2. CIK002 rear mounting kit
DC connection polarity
210.9
133
35.5
CMA CPS
1
2

6CFO100 user manual
Fibre connection
The optical connector is of the type ST. The optical output level is
typically -4 dBm. For testing purposes the CFO100 series transmitter
and receicer can be connected with a short bre patch cable.
The operating wavelenght is 1310 nm.
When installing the bre optic cable, do not exceed the minimum bending
radius when connecting cable to the system.
Note! For correct optical operation ensure that all optical
connectors are cleaned immediately before mating. Connectors
should always be cleaned using high purity alcohol (e.g. methyl or
isopropyl alcohol). Dry the surfaces using clean compressed air or
other equivalent pressurised gas. The female ST optical
connectors on the equipment should always be protected with
dustcaps when there is no bre inserted.
Optical connection meets class 1M laser safety requirements of IEC
60825-1: 2001 and US department of health services 21 CFR 1040.10
and 1040.11 (1990) when operated within the specied temperature,
power supply and duty cycle ranges.
top view
ST Connectors.
Make sure the key is aligned in the slot
properly before tightening!
RADIATION
INVISIBLE LASER
CLASS 1M

CFO100 user manual 7
CRR101/103 single and triple channel video receiver
General
The CRR101 is a one channel optical receiver for uni-directional video
transmission in a multimode bre. The current consumption is 130 mA
(+12 VDC).
The CRR103 is a three channel optical receiver for uni-directional video
transmission in a multimode bre. The current consumption is 300 mA
(+12 VDC).
Frame installation
The CRR101/103 module is to be pushed along the guide rails into
the installation frame (e.g. CSR216 or 316 series) and secured with
the two locking screws. The unit can be freely positioned in any slot in
the frame. The empty positions in the frame should be blanked off with
cover plates. The supply voltage is to be provided by a CPS384 or
CPS390 power supply unit which are installed back of frame.
Video connections and indicator LEDs
The impedance of the video outputs (BNC female) is 75 Ω. The nominal
output level is 1 Vpp.
Link status indicator LEDs
When the optical input signal level is adequate and syncronization on
link level is achieved, the LINK STATUS led on the front panel is green.
If optical input signal is missing or it’s level is too low, the LINK STATUS
led is yellow.
CRR103 Optical Receiver
1) Locking screw (2 pcs)
2) Video output (BNC female)
3) Optical input (ST)
4) Link status indicator led
5) Handle (with unit information)
See further information on
dedicated sections.
Note! CRR101 is a single
channel version of CRR103.
CRR103
OPTICAL
RECEIVER
1
2
5
3
4

8CFO100 user manual
CRR101/103 stand-alone installation
The units can be installed for stand-alone use by using a CMA015
(installation for one 5HP wide units) module adapters. To insert a
CRR101/103 card unit into the module adapter, push the unit along the
guide rails into module until the unit is rmly attached. Secure the
plug-in unit with the upper and lower locking screws. The stand-alone
unit should be mounted to a vertical surface.
The permitted supply voltage range is 10.5...14 VDC. The current
consumption for CRR101 is 130 mA and for CRR103 300 mA.
The permitted operational temperature range is -34...+74°C.
Note! Alternatively the units can be installed for stand-alone use by
using a CMA025 (installation for two 5HP wide units) or CMA035
(installation for three 5HP wide units) module adapters.
The 12V DC supply voltage is supplied by the means of a separate
mains adapter with a regulated output, (e.g. CPS251). Please refer to
separate documention for module adapters and mains adapters.
For limited space installation the CMA015/025/035 module adapters can
be rear-mounted by means of an optional installation kit CIK002.
CPS251 12VDC mains adapter.
CMA015 module adapter.
CMA025 module adapter with CIK002 rear mounting kit.
1. CMA025 module adapter
2. CIK002 rear mounting kit
DC connection polarity
210.9
133
35.5
CMA CPS
1
2

CFO100 user manual 9
Fibre connection
The optical connector is of the type ST. Minimum optical intput level is
typically -25 dBm. No adjustments for input are needed. The operating
wavelenght is 1310 nm.
When installing the bre optic cable, do not exceed the minimum bending
radius when connecting cable to the system.
Note! For correct optical operation ensure that all optical
connectors are cleaned immediately before mating. Connectors
should always be cleaned using high purity alcohol (e.g. methyl or
isopropyl alcohol). Dry the surfaces using clean compressed air or
other equivalent pressurised gas. The female ST optical
connectors on the equipment should always be protected with
dustcaps when there is no bre inserted.
Optical connection meets class 1M laser safety requirements of IEC
60825-1: 2001 and US department of health services 21 CFR 1040.10
and 1040.11 (1990) when operated within the specied temperature,
power supply and duty cycle ranges.
top view
ST Connectors.
Make sure the key is aligned in the slot
properly before tightening!
RADIATION
INVISIBLE LASER
CLASS 1M

10 CFO100 user manual
Legal declarations
Copyright © 2015 Teleste Corporation. All rights reserved.
TELESTE is a registered trademark of Teleste Corporation. Other product and service
marks are property of their respective owners.
This document is protected by copyright laws. Unauthorized distribution or reproduction of
this document is strictly prohibited.
Teleste reserves the right to make changes to any of the products described in this
document without notice and all specications are subject to change without notice.
Current product specications are stated in the latest versions of detailed product
specications.
To the maximum extent permitted by applicable law, under no circumstances shall Teleste
be responsible for any loss of data or income or any special, incidental, consequential or
indirect damages howsoever caused.
The contents of this document are provided “as is”. Except as required by applicable law,
no warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and tness for a particular purpose, are made in relation to
the accuracy, reliability or contents of this document.
Teleste reserves the right to revise this document or withdraw it at any time without notice.
WEEE directive
Directive 2002/96/EC of the European Parliament and of the Council on waste electrical
and electronic equipment (WEEE) obliges that producers appropriately mark electrical
and electronic equipment with the symbol indicating separate collection. This obligation
applies to the equipment put on the market in EU after 13 August 2005.
Teleste devices which belong to the scope of the directive have been marked with the
separate collection symbol shown below. The marking is according to the standard EN
50419. The symbol indicates that the device has to be collected and treated separately
from unsorted municipal waste.
User manual revision history note:
The latest version is always available in pdf-format on our web site:
www.teleste.com
