Teletype WorldNav 7300 Installation manual

All rights reserved. No parts of this work may be reproduced in
any form or by any means - graphic, electronic, or mechanical,
including photocopying, recording, taping, or information
storage and retrieval systems - without the written permission
of the publisher.
Products that are referred to in this document may be either
trademarks and/or registered trademarks of the respective
owners. The publisher and the author make no claim to these
trademarks.
hile every precaution has been taken in the preparation of
this document, the publisher and the author assume no
responsibility for errors or omissions, or for damages resulting
from the use of information contained in this document or from
the use of programs and source code that may accompany it. In
no event shall the publisher and the author be liable for any
loss of profit or any other commercial damage caused or alleged
to have been caused directly or indirectly by this document.
Hardware User Guide
© 2010 TeleType GPS

Contents
© 2010 TeleType GPS
3
Table of Contents
Part I Getting Started
..........................................................................1 Disclaimer
..........................................................................82 Accessories
..........................................................................93 Specifications
Part II Basic Operation
12
Part III Main Menu
1
..........................................................................171 Navigation
..........................................................................18
2Bluetooth
..........................................................................20
3Media Player
..........................................................................214 Tools
..........................................................................235 FM Radio
..........................................................................24AV-in
..........................................................................257 System
Part IV Troubleshooting
28
Index 31

Part I
Hardware User Guide
© 2010 TeleType GPS
1 Getting Started
1.1 Disclaimer
Use the orldNav at your own risk. To reduce the
risk of unsafe operation, please carefully review
and understand this user manual.
It is the user's responsibility to use this product
prudently. This product is intended to be used only
as a navigational aid and must not be used for any
purpose requiring precise measurement of
direction, distance, location, or topography.
Statistics provided such as trip time are best
estimates and may not accurately reflect true
conditions.
The Global Positioning System (GPS) is operated by
the United States Government, which is solely
responsible for its accuracy and maintenance. The
system is subject to changes which could affect the
accuracy and performance of all GPS equipment.

© 2010 TeleType GPS
7
Getting Started
For use in vehicles, it is the sole responsibility of the
operator of the TeleType GPS orldNav to place
and secure the GPS unit so that it will not interfere
with the vehicle operating controls and safety
devices, obstruct the driver's view of driving
conditions, or cause damage or personal injury in
the event of an accident. Do not mount the
TeleType GPS orldNav in a place where the driver
or passengers are likely to impact it in an accident
or collision. The mounting hardware supplied by
TeleType Co. is not warranted against collision
damage or the consequences thereof.
It is the sole responsibility of the driver of the
vehicle to operate the vehicle in a safe manner, to
maintain full surveillance of all driving conditions at
all times, and not become distracted by the GPS
system to the exclusion of safe driving practices. It
is unsafe to operate the controls of the GPS system
while you are driving. Failure by the driver of a
vehicle equipped with a TeleType GPS system to
pay full attention to operation of the vehicle and
road conditions while the vehicle is in motion could
result in an accident or collision with property
damage and personal injury.
Hardware User Guide
8
© 2010 TeleType GPS
IN NO EVENT SHALL TELETYPE CO BE LIABLE FOR
ANY INCIDENTAL, SPECIAL, INDIRECT OR
CONSEQUENTIAL DAMAGES, HETHER RESULTING
FROM THE USE, MISUSE, OR INABILITY TO USE THIS
PRODUCT OR FROM DEFECTS IN THE PRODUCT.
SOME STATES DO NOT ALLO THE EXCLUSION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
1.2 Accessories
Before using the GPS, make sure you have all of the
accessories listed below. If any of the accessories
are damaged or missing, contact TeleType.
1. AC ( all) Charger
2. DC (Cigarette Lighter) Charger
3. USB Cord
4. indow Mount (Cradle and Suction Cup)
5. User Manuals

© 2010 TeleType GPS
9
Getting Started
1.3 Specifications
CPU SiRF Atlas IV AT842 533MHz
NAND Flash 4 GB
DDR 128 MB
LCD 7.0 inch TFT screen, resolution:
800 x 480 pixels
Touch Screen High precision touch screen
USB USB Client 2.0,MINI USB interface
Micro SD Micro SD slot, supports Micro SD
card (maximum 32GB)
AV Input Automatic camera detection (sold
separately)
Antenna Internal antenna; External antenna
jack
Precision Position < 10 meters / 32 ft
Audio frequency
1. 2 att Built-in Speaker
2. Hi-Fi stereo sound
3. 20m @32ohm audio output
Bluetooth
Built-in Bluetooth with Bluetooth
1.2 standard; allows for hands-free
cell phone use
Hardware User Guide
10
© 2010 TeleType GPS
FM Transmitter Broadcasts GPS audio through
vehicle speakers
GPS
Cold boot:<42 seconds
Hot boot:<9 seconds (with
unobstructed view of the sky)
arm boot:<18 seconds
Battery Built-in high capacity Lithium back
up battery (1200 mAh)
Battery charging DC 5V (use together with USB-in)
Power Adaptor 100/220V power adaptor, 5V/1.5A
Car Charger Converts 12V to 5V/1.5A
LED status Red light: Charging; Green light:
Fully Charged
Temperature
orking temperature:
0 °C - 60 °C (32°F - 140°F)
Storing temperature:
-20 °C - 60 °C (-4°F - 140°F)
New eight 366 grams / 13 oz
Dimensions 175 x 109.2 x 14.1 mm
6.88” x 4.29” x .55”
System Platform Microsoft indows CE 6.0
Navigation software
location
Internal flash memory or Micro SD
card

Part II
Hardware User Guide
12
© 2010 TeleType GPS
2 Basic Operation
Turning on and off
Turn on or off your GPS by pressing the power
button on the top of the device.
Hardware Reset
Occasionally, you may need to perform a hardware
reset when your GPS stops responding or appears
to be "frozen" or "locked up." You can perform a
reset by pressing the RESET button on the back of
the device.
Power Supply
In addition to the built-in lithium battery, you may
power the device using the cigarette lighter charger
(DC), the wall charger (AC), or the USB charger.
Micro SD Card
This device supports micro SD cards. Be sure the
card is securely inserted before use.
Touch Screen/ Stylus Pen
Your device comes equipped with an LCD touch
screen, allowing you to move the screen using your

© 2010 TeleType GPS
13
Basic Operation
finger or a stylus pen (included). Simply press the
desired icon or location on the map to move the
screen.
Window Mount
Attach your device to the included window mount
and position in a location where it has an
unobstructed view of the sky so it receives a strong
satellite signal. You may choose to provide some
additional cushioning, such as foam on your
dashboard, to help absorb shock.

Part III
Hardware User Guide
1
© 2010 TeleType GPS
3 Main Menu
Main Menu Page 1
Main Menu Page 2
•Navigation - Provides navigation function
•Bluetooth - Allows you to connect you
Bluetooth-enabled cell phone directly to the GPS;
you can then dial numbers and receive calls
directly from your GPS
•Media Player - Allows you to access media files
such as videos, music and eBooks
•Tools - Offers a variety of useful tools such as a
calculator, notepad and calendar

© 2010 TeleType GPS
17
Main Menu
•FM Radio - Allows you to hear your GPS
instructions over your vehicle's speakers
•AV-in - Connect a device such as a rearview
camera to your GPS
•System - Allows you to set your device's system
functions such as volume, power and language
3.1 Navigation
Please carefully read the orldNav Software Guide
for navigation instructions.
Hardware User Guide
18
© 2010 TeleType GPS
3.2 Bluetooth
This GPS device has the ability to sync with a
Bluetooth-enabled cell phone, allowing you to
make and receive calls directly from your GPS.
Instructions for setting up your Bluetooth feature
are below:
1. Begin by enabling the Bluetooth setting on
your cell phone.
2. Click on the <Bluetooth> icon on the GPS Main
Menu screen.
3. Click the icon.

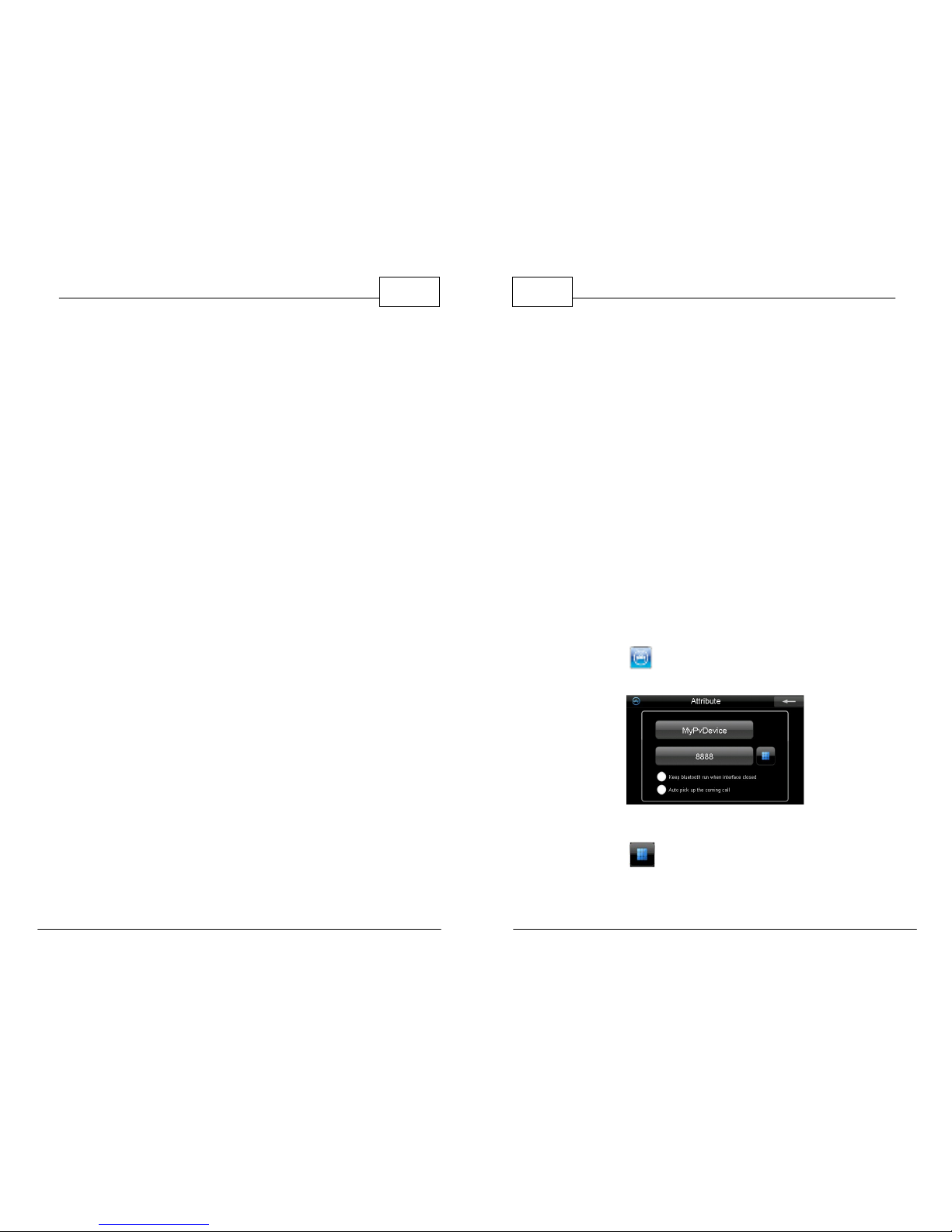

Bluetooth Settings Screen
4. Click the icon and set the pin code, then

© 2010 TeleType GPS
19
Main Menu
press the icon to confirm the pin.

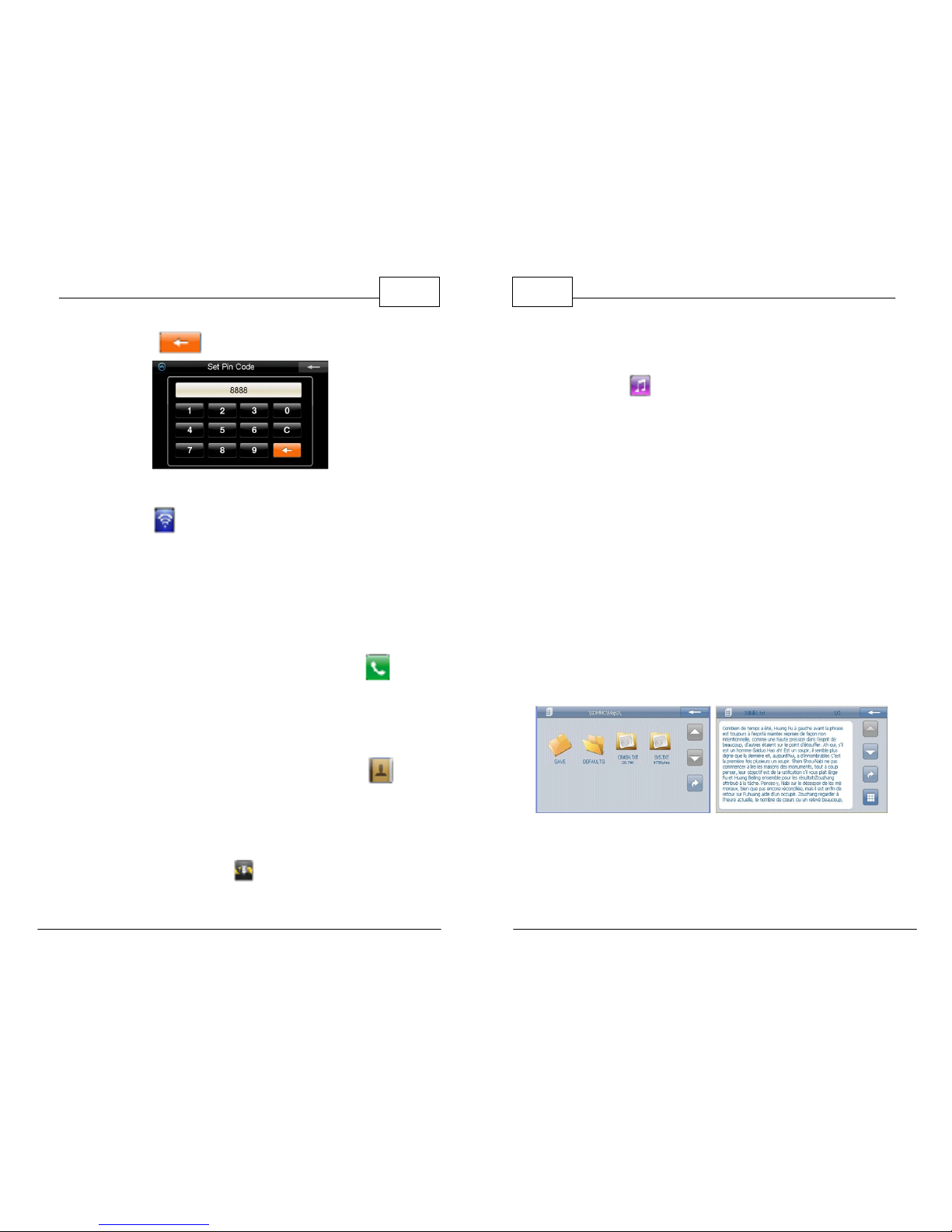

Pin Entry Screen
5. Click the icon. This will pair your phone to
the GPS. This may take a few minutes. Once
the phone recognizes the GPS, it will ask for the
pin code, enter 8888 and then confirm. The
pair is complete.
. To make calls from your GPS, press the
icon. hen receiving calls, the callers phone
number will appear on-screen.
7. Access your Call Log by pressing on the
icon.
8. Display a record of all the devices paired with
you GPS by pressing .
Hardware User Guide
20
© 2010 TeleType GPS
3.3 Media Player
1. Click the icon to access your media player
menu. Here you can select <Music>, <Video>,
<Ebook>, <Photo>, or <Flash>.
2. Select the type of media (music, video, etc)
you want to play. For this example, choose
Ebook. Browse to your memory card folder.
Select the desired file from your selections.
3. You can now view the selected file. You can
scroll from page to page (or song/video/photo)
by using the arrows on the right side.
Ebook Selection Screen Ebook Reader

© 2010 TeleType GPS
21
Main Menu
3.4 Tools
By clicking on the <Tools> icon, you will have access
to features such as a notepad, calculator and
calendar.

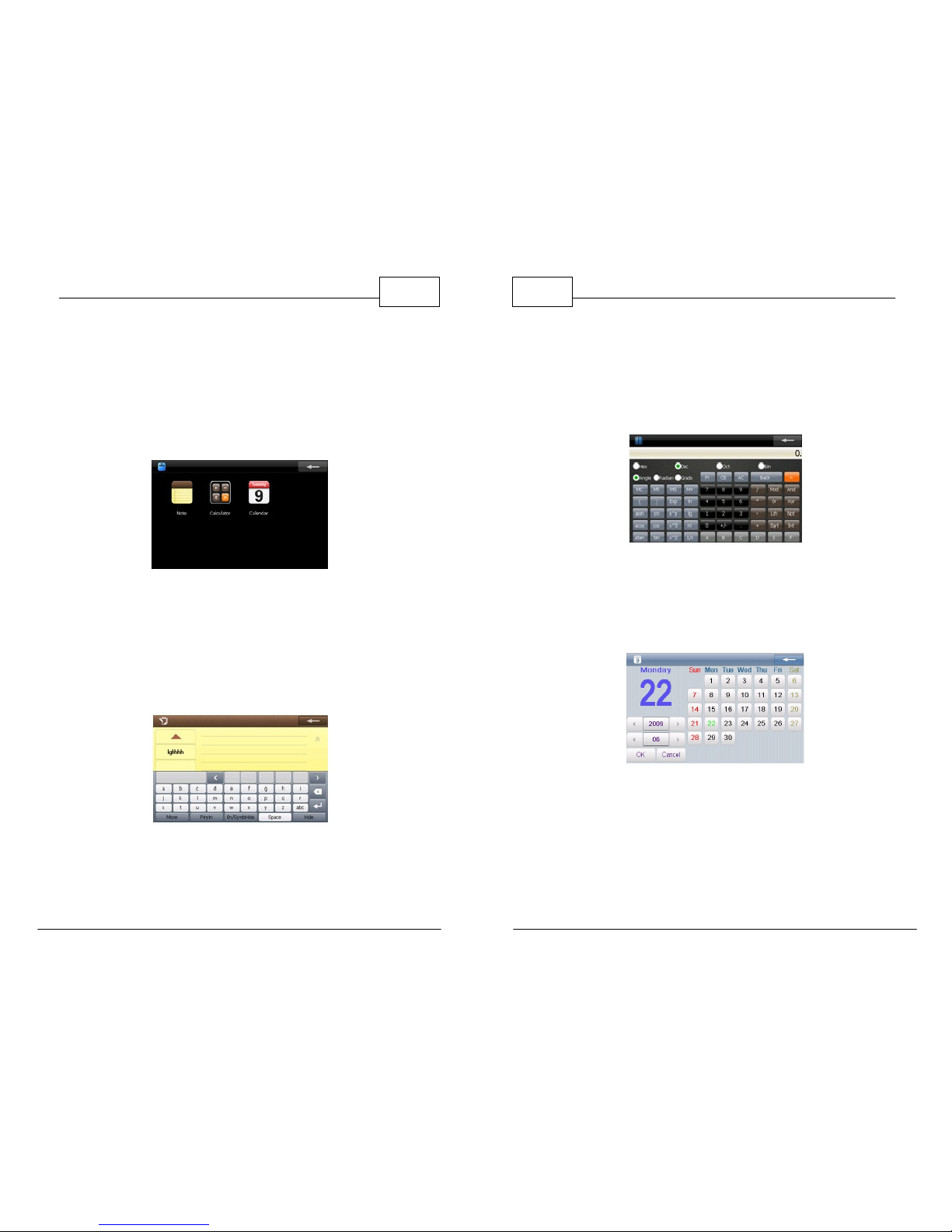

Tools Menu
1. Click on the <Note> icon to access your
Notepad. Here you can manually type in notes.
This is useful as a driver log, address book, or
reminder list.
Notepad Screen
Hardware User Guide
22
© 2010 TeleType GPS
2. Click on the <Calculator> icon to access the
calculator. Here you can switch between a
standard calculator and a scientific calculator.
Calculator Screen
3. Click on the <Calendar> icon to access your
calendar.
Calendar Screen

© 2010 TeleType GPS
23
Main Menu
3.5 FM Radio
The <FM> button enables you to link your device to
an unused radio frequency channel, thereby
allowing you to hear your route instructions over
the radio speakers. Select a frequency from the FM
Page and then set your radio dial to that frequency.
Be sure you have selected <FM Switch>.

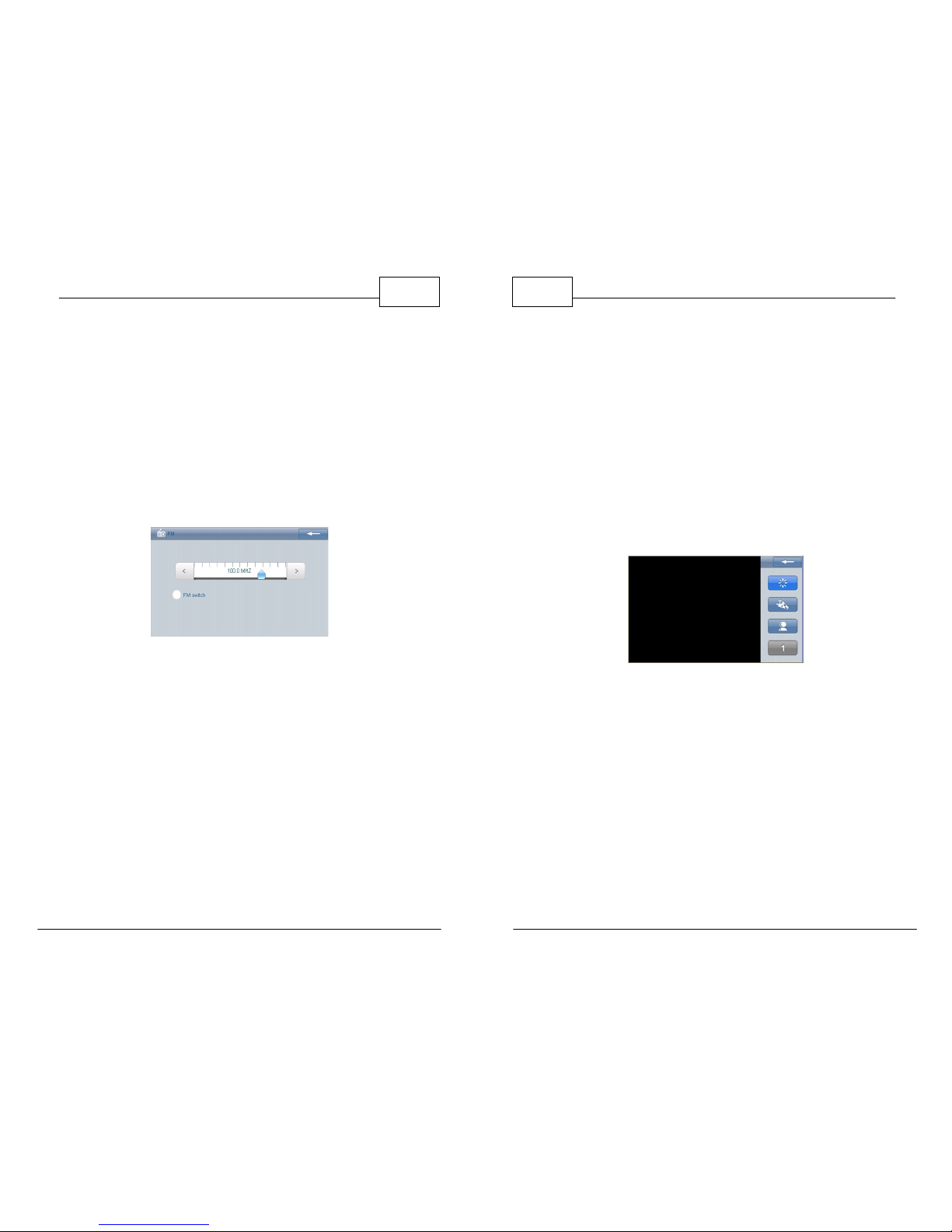

FM Frequency Selection Screen
Hardware User Guide
24
© 2010 TeleType GPS
3. AV-in
<AV> allows you to access audio and/or video
obtained through the AV-input port. Sources such
as rearview cameras (sold separately) or other
media players can be accessed through this
function. Any device that has an AV-out function
can be supported. For questions regarding rearview
cameras or to purchase, contact TeleType GPS.
AV Input Screen

© 2010 TeleType GPS
25
Main Menu
3.7 System
The <System> icon allows you to set several
different system functions. Here you can adjust the
backlight strength, change the language, set the
time and much more.
System Menu
Volume: Adjust the speaker volume* and enable/
disable "screen clicks".
Note: For maximum range of sound adjustment, keep the System
volume setting at 100% and use the software to adjust the volume.
(If you lower the sound in the software, the System will have less
control of the volume.)
Power: Displays battery power remaining and
allows you to set the time for automatic power-off.
Backlight: Adjust screen brightness and set
automatic screen power to "Off".
Hardware User Guide
2
© 2010 TeleType GPS
Date/Time: This function is used to adjust the
internal calendar. Refer to the orldNav Software
Guide for instructions on how to set the time for
navigation.
Language: Set the default language. Please note
that the orldNav software will override these
settings for navigation. Refer to the orldNav
software user guide for details.
System Info: Displays a detailed summary of system
information:
1. Calibration - click this icon to adjust the screen
calibration. Move the [+] by pressing directly in
the center of the icon. Repeat this process as it
moves to the left, right, upper and lower parts
of the screen. Click <OK> when complete.
2. GPS Reset - resets the satellite receiver.
3. Factory Reset - Automatically returns to
default settings. WARNING: Will erase all data!

Part IV
Hardware User Guide
28
© 2010 TeleType GPS
4 Troubleshooting
Problem Reason Solution
GPS will not
power on
Lack of power Plug in the device to AC
or DC power
Power is off Press the Power button
Screen is too
dark
The backlight is
not bright enough
Adjust the backlight to a
brighter setting
The backlight has
been turned off
Touch the screen and
screen will turn on
Touch screen
function is
abnormal
Touch screen
calibration is off
Use System Tools to
recalibrate the screen
No Sound
The volume level
is at its lowest
setting
Increase the volume
using the orldNav
software or the
hardware system
settings
Poor connection
between
earphones and
device
Check the connection to
the earphones

© 2010 TeleType GPS
29
Troubleshooting
Cannot
communicate
with computer
The USB cable is
not connected
well
Connect USB cable;
check ActiveSync
settings
No GPS signal
Poor reception
area such as
inside a building,
an urban area or a
mountainous
region;
interference from
another device in
the vehicle
Mount the GPS on the
windshield with a clear
view of the sky; try
obtaining a signal
outside your vehicle;
note that some
electronics and
windshield treatments
interfere with GPS signal
strength
Unable to use
navigation
function
Contact TeleType GPS Support Staff

Index 31
© 2010 TeleType GPS
Index
- A -
Accessories 8
AV Settings 24
AV-in 24
- B -
Backlight 25
Bluetooth 18
- C -
Calculator 21
Calender 21
Calibration 25
Cell Phone 18
- D -
Date 25
- E -
Ebook 20
- F -
Flash Movie 20
FM 23
Frequency 23
- M -
Movies 20
Music 20
- N -
Navigation 17
Notepad 21
- P -
Photo 20
Power 25
Power Cord 8
- R -
Radio 23
Rearview Camera 24
- S -
Set 23
Specs 9
System Info 25
- T -
Technichal Specfications 9
Time 25
Tools 21
- V -
Volume 25
Printed in China
