Telit Wireless Solutions GG863-SR Installation manual

GG863-SR Gateway
Hardware User Guide
1vv0300835 Rev.0 - 20/07/09

GG863-SR Hardware User Guide
1vv0300835 Rev.0 - 20/07/09
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 2 of 22
DISCLAIMER
The information contained in this document is the proprietary information of Telit Communications
S.p.A. and its affiliates (“TELIT”). The contents are confidential and any disclosure to persons other
than the officers, employees, agents or subcontractors of the owner or licensee of this document,
without the prior written consent of Telit, is strictly prohibited.
Telit makes every effort to ensure the quality of the information it makes available. Notwithstanding the
foregoing, Telit does not make any warranty as to the information contained herein, and does not
accept any liability for any injury, loss or damage of any kind incurred by use of or reliance upon the
information.
Telit disclaims any and all responsibility for the application of the devices characterized in this
document, and notes that the application of the device must comply with the safety standards of the
applicable country, and where applicable, with the relevant wiring rules.
Telit reserves the right to make modifications, additions and deletions to this document due to
typographical errors, inaccurate information, or improvements to programs and/or equipment at any
time and without notice. Such changes will nevertheless be incorporated into new editions of this
document.
Copyright: Transmittal, reproduction, dissemination and/or editing of this document as well as
utilization of its contents and communication thereof to others without express authorization are
prohibited. Offenders will be held liable for payment of damages. All rights are reserved.
Copyright © Telit Communications SpA 2009

GG863-SR Hardware User Guide
1vv0300835 Rev.0 - 20/07/09
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 3 of 22
Applicable Products
Product
GG863-SR ZigBee
GG863-SR Plus
GG863-SR Pro
For further information on how to order GG863-SR specific model,
please contact your Telit representative

GG863-SR Hardware User Guide
1vv0300835 Rev.0 - 20/07/09
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 4 of 22
Contents
1Introduction ......................................................................................................................6
1.1Audience .................................................................................................................................7
1.2Contact Information, Support................................................................................................7
1.3Text Conventions ...................................................................................................................7
1.4Related documents ................................................................................................................7
1.5Document History...................................................................................................................7
2Physical Characteristics..................................................................................................8
2.1Dimensions .............................................................................................................................8
2.2Weight......................................................................................................................................8
3Installation guidelines......................................................................................................9
3.1Power Connector....................................................................................................................9
3.2Supply voltage........................................................................................................................9
3.2.1Battery source................................................................................................................................ 10
3.3Switching the GG863-SR Gateway ON and OFF................................................................10
3.3.1Switching ON................................................................................................................................. 10
3.3.2Switching OFF ............................................................................................................................... 10
4Antenna...........................................................................................................................11
4.1Antenna Output ....................................................................................................................11
4.2Antenna Connector ..............................................................................................................11
4.3GSM Antenna Requirements...............................................................................................11
4.4Short range Antenna Requirements...................................................................................12

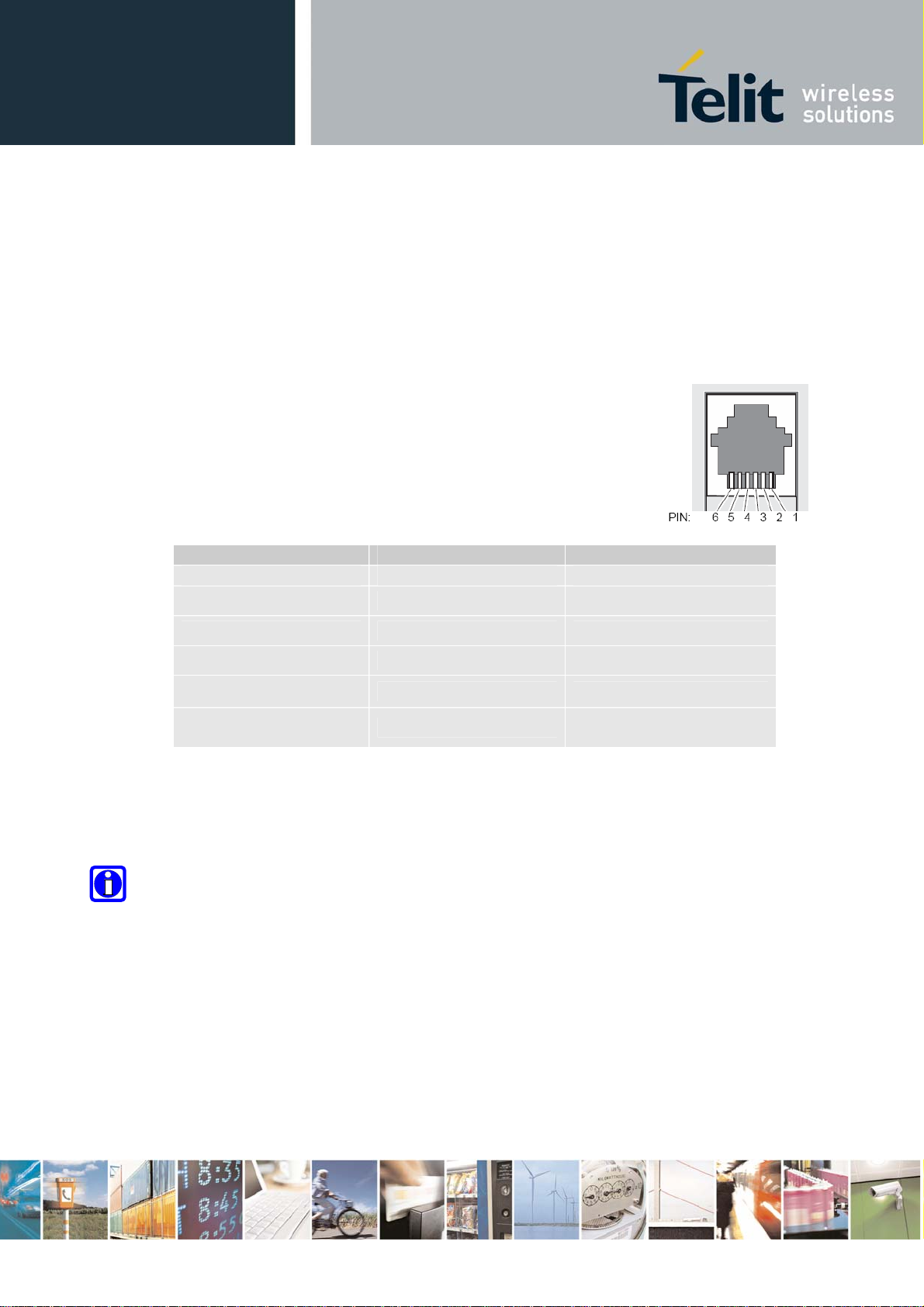

5RJ11 connector ..............................................................................................................13
5.1Logic level specifications....................................................................................................13
6Mini USB type connector...............................................................................................15
7Led indicators.................................................................................................................16
7.1.1GSM Led indicators....................................................................................................................... 16
7.1.2ZB/RF Led indicators..................................................................................................................... 16
8Safety and Product Care................................................................................................17
8.1General precautions.............................................................................................................17
8.2SIM card precautions ...........................................................................................................17
8.3Antenna precautions............................................................................................................18
9Installation of the gateway ............................................................................................19

GG863-SR Hardware User Guide
1vv0300835 Rev.0 - 20/07/09
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 5 of 22
9.1Where to install the gateway ...............................................................................................19
9.2How to install the gateway...................................................................................................19
9.2.1Power supply ................................................................................................................................. 19
9.2.2Securing the gateway.................................................................................................................... 20
9.3Disposal of this product in the European Union...............................................................20
10Conformity Assessment Issues....................................................................................22

GG863-SR Hardware User Guide
1vv0300835 Rev.0 - 20/07/09
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 6 of 22
1 Introduction
The aim of this document is the description of hardware details useful to develop an application or a
solution with the GG863-SR Gateway.
This document will not consider all possible or potential hardware solutions and combinations that may
be designed. General usage and installing recommendations will be accompanied by notices and
warnings of misuse or discouraged use. The information given shall be used as a guide and a starting
point for properly developing your product with the GG863-SR. For further hardware details that may
not be explained in this document, please refer to the relevant application notes and design guidelines
made available by Telit.
NOTICE
(EN) The integration of the GG863-SR within user application shall be done according to the design
rules described in this manual.
(IT) L’integrazione del GG863-SR all’interno dell’applicazione dell’utente dovrà rispettare le indicazioni
progettuali descritte in questo manuale.
(DE) Die integration des GG863-SR in ein Gerät muß gemäß der in diesem Dokument beschriebenen
Kunstruktionsregeln erfolgen.
(SL) Integracija GG863-SR v uporabniški aplikaciji bo morala upoštevati
projektna navodila, opisana v tem piročniku.
(SP) La utilización del GG863-SR debe ser conforme a los usos para los cuales ha sido deseñado
descritos en este manual del usuario.
(FR) L’intégration du GG863-SR dans l’application de l’utilisateur sera faite selon les règles de
conception décri tes dans ce manuel.
הםדומ לש היצרגטניאה ךילהתהב הז ךמסמב תוטרופמה תויחנהה תא םשייל שקבתמ רוטרגטניאה–GG863-SRםע
רצומה
The information presented in this document is believed to be accurate and reliable. However, no responsibility is
assumed by Telit Communication S.p.A. for its use, nor any infringement of patents or other rights of third parties
which may result from its use. No license is granted by implication or otherwise under any patent rights of Telit
Communication S.p.A. other than for circuitry embodied in Telit products. This document is subject to change
without notice.

GG863-SR Hardware User Guide
1vv0300835 Rev.0 - 20/07/09
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 7 of 22
1.1 Audience
This document is intended for customers and operators who are interested in installing GG863-SR
Gateway for wireless network applications.
1.2 Contact Information, Support
For general contact, technical support, to report documentation errors and to order manuals, please
contact Telit Technical Support Center (TTSC) at:
[email protected]
[email protected]
[email protected]
[email protected]
1.3 Text Conventions
Danger – This information MUST be followed or catastrophic equipment failure or bodily injury
may occur.
Caution or Warning – Alerts the user to important points about integrating the module, if these
points are not followed, the module and end user equipment may fail or malfunction.
Tip or Information – Provides advice and suggestions that may be useful when integrating the
module.
1.4 Related documents
[1] 80322ST10058a GG863-Product Description
[2] 1vv0300836 GG863-SR Software User Guide
[3] 80000NT10006a Telit Battery Charger application note
1.5 Document History
Revision Date Changes
ISSUE #0 20/07/2009 First Issue

GG863-SR Hardware User Guide
1vv0300835 Rev.0 - 20/07/09
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 8 of 22
2 Physical Characteristics
2.1 Dimensions
The Telit GG863-SR dimensions are:
•Housing Length: 83 mm (without connectors)
•Overall Length: 107 mm (including fixtures)
•Width: 64 mm
•Thickness: 33 mm

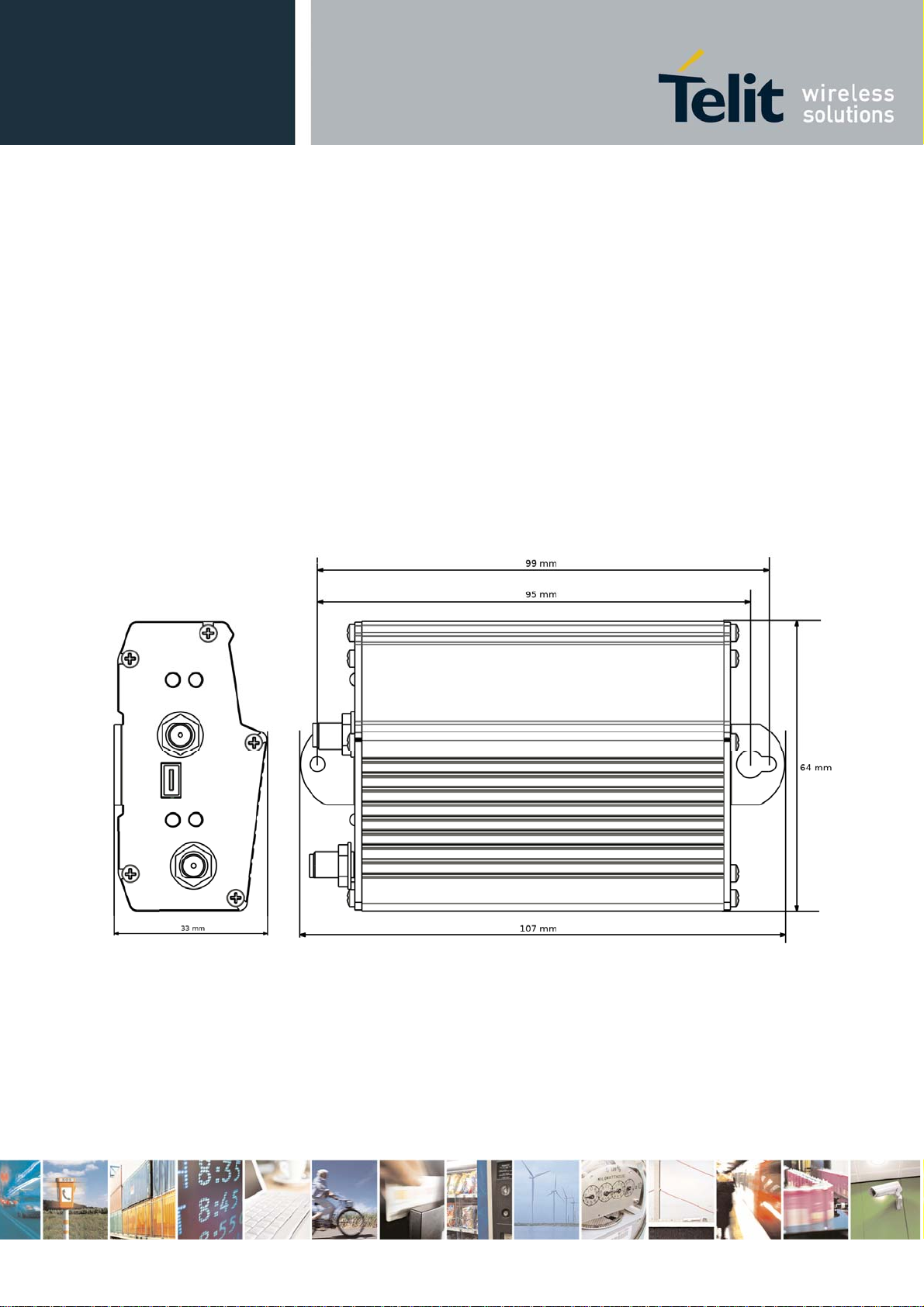

Figure 1 - GG863-SR layout and dimensions
2.2 Weight
The weight of GG863-SR is 150 grams.

GG863-SR Hardware User Guide
1vv0300835 Rev.0 - 20/07/09
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 9 of 22
3 Installation guidelines
The GG863-SR can be fixed on a suitable surface by two screws through the holes (3.3 / 5.8 mm
diam.) in the lids forming part of the front and rear panels. Figure 1 shows the maximum and minimum
inter-axis distance between the fixing holes.
In case of a permanent vertical installation in dusty environment, it is recommended to cover the SIM
slot with a self-adhesive tape.
Caution - When connecting the antenna cables, please ensure sufficient space has been left to
avoid twisting or sharp bends on the coaxial cable.
3.1 Power Connector
The power connector is on the left side of the terminal is Molex 4-pin connector (part no.:43045-0400
male).
Pin description:
•GND = Ground reference (1x POWER, 1x Signal)
•Input Power = 5 – 36 VDC
•Battery Power = 3.7 – 4.2 V
Warning – Only one power source must be electrically connected at a time.
3.2 Supply voltage
The external power supply must be connected to Power supply input as described in the following
subsection and must fulfill the following requirements:
Input
Power
Battery
Power
GND GND
FRONT VIEW

GG863-SR Hardware User Guide
1vv0300835 Rev.0 - 20/07/09
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 10 of 22
Nominal Supply Voltage 12 volts
Min Supply Voltage 5 volts
Max Supply Voltage 36 volts
Table 1 - Supply voltage
DANGER - Operating voltage range must never be exceeded; care must be taken in order to fulfill
Min/Max voltage requirements.
3.2.1 Battery source
Battery voltage range is 3.7V-4.2V.
The battery capacity should be dimensioned on the customer’s application and battery life
requirements.
Please, refer to [3] for further information regarding type and battery usage.
3.3 Switching the GG863-SR Gateway ON and OFF
3.3.1 Switching ON
The GG863-SR Gateway switches on automatically each time the Power Supply is connected the first
time or re-connected.
The gateway operating system is fully operational after 20 seconds. Logging onto a GSM or SR
network may take longer than this and it is beyond the control of the GSM/GPRS and SR modules.
Note – When the power supply cable is disconnected, it is recommended to wait for approximately 5
seconds before applying the power again.
3.3.2 Switching OFF
The GG863-SR can be switched off either by disconnecting the power supply or by software
command.
Warning – Please note that hardware power off should be done only after a proper GSM logoff.
Any GSM device is requested to issue a “detach” request at turning off.
