Tenmars TRIAXIAL ELF User manual

TRIAXIAL ELF Magnetic
Field Meter
TM-192 / TM-192D
HB4TM1920002

Table of Contents
1. Introduction ............................................... 1
2. Application ................................................ 2
3. Features.................................................... 3
4. Identifying Parts ........................................ 4
5. Measurement Procedures......................... 5
6. Clock setup ............................................... 7
7. Auto power off setup ................................. 8
8. Continuity data logging setup.................... 9
9. Clear data logger memory ...................... 10
10. Clear all data logger memory ...................11
11. Single data memory ................................ 12
12. Viewing logged reading control key ........ 12
13. Specifications.......................................... 13
14. Battery replacement................................ 14
15. External DC Power ................................. 14
16. Safety Precaution.................................... 15
17. Software installation (192D) .................... 15
18. Note ........................................................ 17

TM-192/TM-192D
1
1. Introduction
Safety precautions should be taken against electric
appliances in places including medical institutions,
schools and residential districts, where people
usually stay for a long time, to prevent patients,
babies and senior citizens from exposure to high
electromagnetic waves.
An electromagnetic wave simply means the wave
motion of the electromagnetic field (EMF).
The change in electric fields produces magnetic
fields, and the change in magnetic fields can also
generate electric fields. The fluctuation of
correlation between each other is known as
“electromagnetic waves", which is a form of energy
similar to light and heat that can be transmitted
either by radiation in the air or by an electric
conductor.
It is suggested that rearrangements should be
made in homes and work locations where the
strongest electromagnetic fields are detected in
order to avoid prolonged exposure to excessive
electromagnetic fields.

TM-192/TM-192D
2
2. Application
zThis meter is applied to measuring magnetic
fields of extremely low frequency (ELF) of 30 to
2000Hz.
zIt is capable of measuring the magnetic field
radiation intensity that is produced from electric
transmission equipment, power lines, microwave
ovens, air conditioners, refrigerators, computer
monitors, video/audio devices and so forth.
zThe magnetic field unit is Tesla (T), Gauss (G),
milli-Gauss (mG) or micro-Tesla (μT).
1 T＝10,000 G 1 G＝1,000 mG
1μT＝10 mG

TM-192/TM-192D
3
3. Features
zUses three internal orthogonal sensors to test a
wide range of ELF magnetic fields, independent
of measurement angle.
zThe tester is designed to provide a quick, reliable
and easy way to measure magnetic field radiation
levels around power lines, home appliances and
industrial devices.
zThe tester is a cost-effective hand-held
instrument that was designed and calibrated to
measure magnetic field radiation at different
bandwidths from 30Hz to 2000Hz.
zDisplay microTesla(uT) or milliGauss(mG) units.
zData hold (HOLD), maximum Hold (MAX), and
minimum Hold(MIN) function.
zAuto range or manual range select mode.
zDatalogging capacity with Memory Size：500 data
sets (Model 192) or 9999 data sets(Model 192D).
zUSB PC interface (192D).
zTime and calendar function.
zLow battery indication “ ”.
zOver load display “OL”.
zAuto power OFF function .

TM-192/TM-192D
4

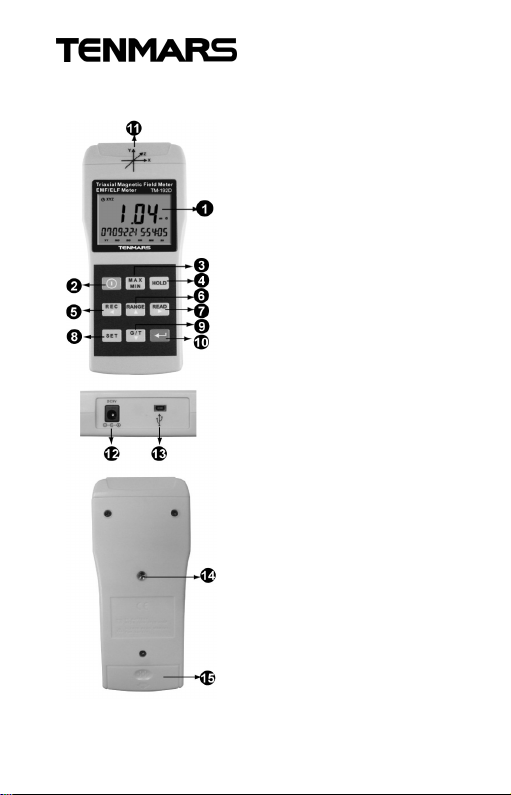

4. Identifying Parts
1. LCD display.
2. Power key.
3. maximum Hold and
minimum Hold key.
4. Data Hold key.
5. Record data and
Setup function left
key.
6. Range and Setup
function up key.
7. Reading and Setup
function right key.
8. Setup function key.
9. Units and Setup
function down key.
10.Enter key.
11.Calibration point for
12.Triple axis.
13.External power DC
9V.
14.USB interface
(TM-192D).
15.Tripod mounting
screw.
16.Battery cover.

TM-192/TM-192D
5
5. Measurement Procedures
zPress “ ” key turn on the meter, press “ ”
key again to turn OFF the meter.
zPress “ ” key to select milli-gauss (mG) or
micro-tesla (µT) unit.
zPosition the front of the meter to measure the
magnetic waves.
zRead the measured value. When manual range
mode is
selected, LCD will shown the mark, The
display of “OL” on the highest position indicates
there is an overload on the reading. Press “ ”
to select a higher range for measurement again.
zThe default value display is triaxial total magnetic
field reading. Press “ ” key to toggle between
independent three single-axis magnetic field
readings and triaxial total magnetic field reading.
zTo lock and keep the reading displayed on the
LCD, press “ ” or press “ ” again to
unlock.

TM-192/TM-192D
6
zTo retain the maximum and minimum value,
press “ ” key and the reading value displayed
on the LCD will keep
zupdating to the maximum value. Press again to
select minimum value, press and hold down
“” key 2 seconds to exit the maximum and
minimum mode.
zDue to the magnetic interference of the
environment field factors, this magnetic field
meter could display a reading value that is
greater than 0.5 mG prior to measuring. This is
not a malfunction of the tester.
zWith the tester in hand, move slowly towards to
the object under measurement until it is
physically touched.
zNotice how the field intensity increases as you
move closer to the object.
zIf the power of object was turned off during the
measurement, the reading of tester should return
to zero, unless an electromagnetic field from
other sources is detected.

TM-192/TM-192D
7

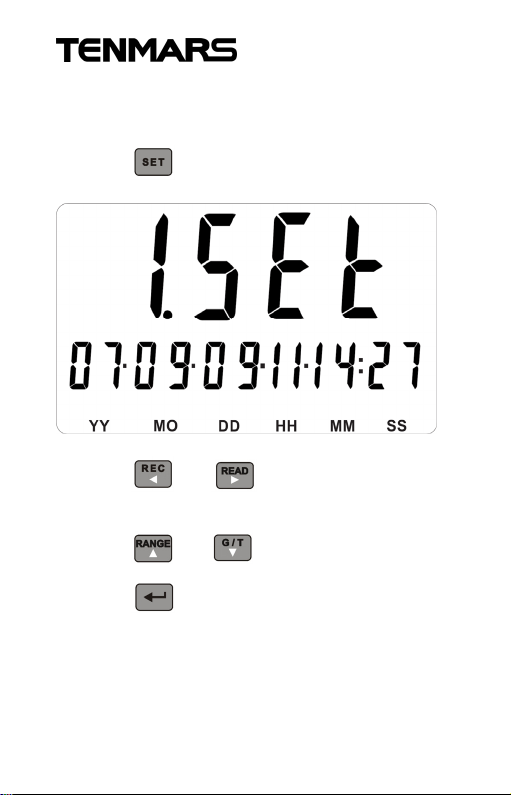

6. Clock setup
zThis meter clock uses 24 hour time.
zPress “ ” key to enter clock setting mode
(1.SET).
zPress “ ” or “ ” key to select option to
adjust.
zPress “ ” or “ ” key to change the digit.
zPress “ ” key to store the setup, exit the
mode.

TM-192/TM-192D
8

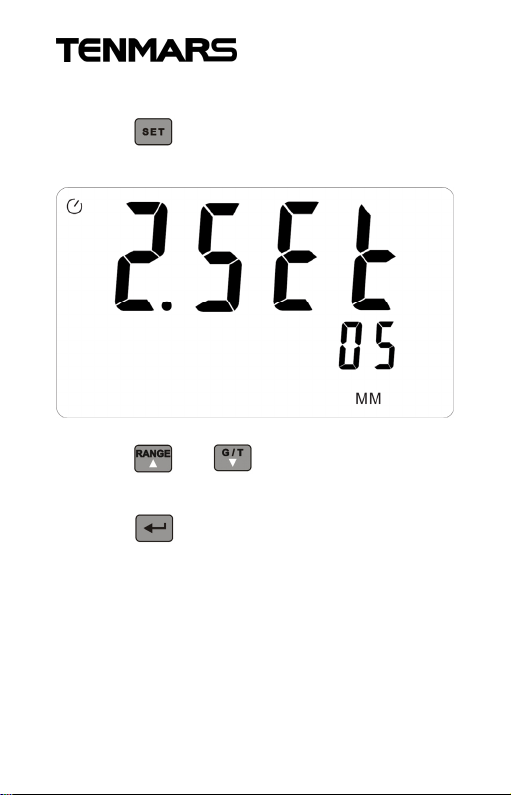

7. Auto power off setup
zPress “ ” key again to auto power off time
settingmode(2.SET).
zPress “ ” or “ ” key to change the auto
power off time.
zPress “ ” key to store the setup, exit the
mode.
zThe auto power off time default value is 5 minutes.
Range is 0 to 99 minutes. To cancel auto power
off, please set time to 0 minutes.

TM-192/TM-192D
9

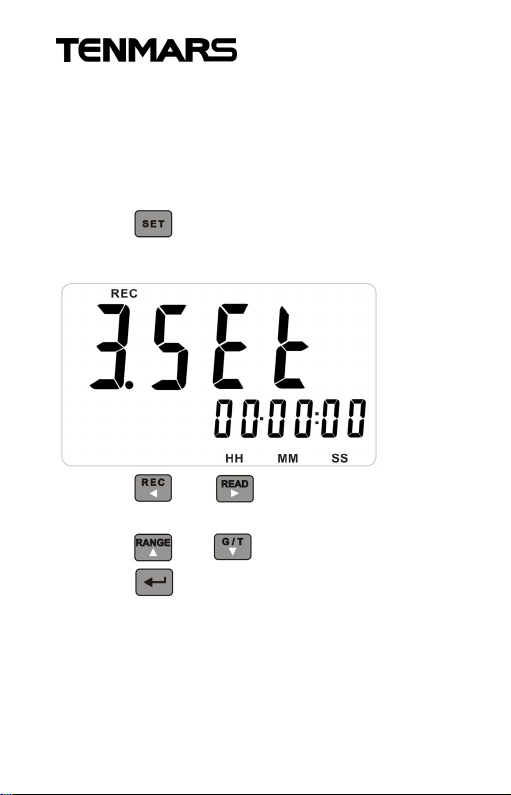

8. Continuity data logging setup
The data logging interval is the time between data
records. To begin data logging, set the logging
interval as per instructions below. To exit data
logging, set logging interval back to 0.
zPress “ ” key again to enter continuous data
logging interval setting mode (3.SET).
zPress “ ” or “ ” key to select option to
adjust.
zPress “ ” or “ ” key to change the value.
zPress “ ” key to store the setup, exit the
mode.
Interval range is 0 seconds (no data logging) to 99
hours, 99 minutes and 99 seconds.

TM-192/TM-192D
10
Clear data logger memory (last data entry)
zPress “ ” key again to clear data logger
memory for last record setting mode (4.CLA)
zPress “ ” key to clear data logger memory for
last record and exit the mode.

TM-192/TM-192D
11
9. Clear ALL data logger memory
zPress “ ” key again to clear data logger
memory for all record setting mode. (5.CLA)
zPress “ ” key to clear data logger memory for
all record.
zPress “ ” key to store the setup, exit the
mode.

TM-192/TM-192D
12
10. Single data memory record
zPress “ ” key each time to store the display
reading and time stamp in memory.
11. Viewing logged reading control
key
zPress “ ” key to view logged readings.
Press or key to scroll through the
readings, Press “ ” key to exit this mode.

TM-192/TM-192D
13
12. Specifications
zDisplay : 4 digits Triple LCD display.
zRange : 20/200/2000 mG, 2/20/200µT.
zResolution : 0.01/0.1/1 mG or 0.001/0.01/0.1 µT.
zFrequency response : 30Hz to 2000Hz.
zSensor : Triple Axis (X, Y, Z).
zAccuracy : 20 mG ±(3.0%+30dgt) at 50Hz/60Hz.
or 3 µT ±(3.0%+30dgt) at 50Hz/60Hz.
zOver load : LCD display “OL”.
zSample rate : 2.5 times per second.
zBattery : 9V NEDA 1604, IEC 6F22 or JIS 006P.
zBattery life : Approximate 100 hours.
zOperating temperature & humidity :
5℃to 40℃, below 80% RH.
zStorage temperature & humidity :
-10℃to 60℃, below 70%.
zWeight : About 230g.
zDimensions : 173(L) X80(W) X32(H) mm.
zAccessories : User’s manual, 9V battery,
Carrying case.(MINI USB 4P(MALE) to USB A
Type cable, CD disk 192D).

TM-192/TM-192D
14
13. Battery replacement
zTurn off the instrument.
zOpen the battery cover and remove the battery.
zReplace with four-9V NEDA 1604, IEC 6F22 or
JIS 006P size battery.
zInstall the battery cover.
14. External DC Power
zExternal AC to DC adapter :
Voltage 9VDC (8~14VDCMax).
zSupply current：＞300Madc.
zSocket：pin Positive, Ground Casing External.
zDiameter 6.3mm ; internal Diameter 2.0 mm.
WARNING
If the symbol “ ” appears on the
LCD, please replace the battery
immediately

TM-192/TM-192D
15
15. Safety Precaution
zFor cleaning the instrument use a soft dry cloth.
Never use a wet cloth, solvents or water, etc.
zOperation Altitude : Up to 2000M.
zOperating Environment : Indoors use.
This instrument has been designed for being
used in an environment of pollution degree 2.
16. Software installation (192D)
zPlease put the CD in the PC that will be
connected to this meter.
zPlease select the USB driver that will be installed,
such as E : \TM-192D\PL-2303 Driver
Installer.exe (windows 2000 SP4/windows XP
SP2), click twice on the left key of the mouse to
install the USB driver.
zSelect the SETUP.EXE i.e.,
E:\TM-192D\SETUP.EXE and installs the
desktop icon.
zRemove the CD from PC after installation
completed.
zUse the USB cable to connect the meter and
computer according to the drawing.
zSelect the desktop icon (TM-192) and click twice
on left key of the mouse to run the procedure.

TM-192/TM-192D
16
PL-2303 Drivers download:
http://www.prolific.com.tw/eng/downloads.asp?id=31
Select:
PL2303_Prolific_DriverInstaller_v1.5.0.zip
Please select the USB driver that will be installed,
such as E:\ PL-2303 Driver Installer.exe (windows
2000 SP4/windows XP SP2), click twice on the left
key of the mouse to install the USB driver.

TM-192/TM-192D
17
17. Note
Caution
This symbol indicates that equipment
and its accessories shall be subject to a
separate collection and correct disposal

TENMARS ELECTRONICS CO., LTD
6F, 586, RUI GUANG ROAD, NEIHU,
TAIPEI 114, TAIWAN.
E-mail : service@ tenmars.com
http: //www.tenmars.com
