Tennant B5 User manual

B5/B7
9011480
Rev. 03 (12-2014)
www.tennantco.com
Walk-Behind Battery Burnisher
*90
11480
*
North America / International
For the latest Parts manuals and other
language Operator manuals, visit:
www.tennantco.com/manuals
English EN
Operator Manual
TennantTrueParts

2Tennant B5/B7 (01- 2014)
INTRODUCTION
This manual is furnished with each new model.
It provides necessary operation and maintenance
instructions.
Read this manual completel
y
and
understand the machine before
operating or servicing it.
A complete illustrated Parts Manual is also furnished
with each new model. Use the Parts Manual to order
replacement parts. To ensure prompt delivery, follow
the “HOW TO ORDER PARTS” instructions printed in
the Parts Manual.
This machine will provide excellent service. However,
the best results will be obtained at minimum costs if:
SThe machine is operated with reasonable care.
SThe machine is maintained regularly - per the
maintenance instructions provided.
SThe machine is maintained with manufacturer
supplied or equivalent parts.
To view, print or download manuals online visit
www.tennantco.com/manuals
PROTECT THE ENVIRONMENT
Please dispose of packaging materials
and used machine components such
as batteries in an environmentally safe
way according to your local waste
disposal regulations.
Always remember to recycle.
Tennant Company
PO Box 1452
Minneapolis, MN 55440
Phone: [phone] or (763) 513- 2850
www.tennantco.com
“Set and Forget” is a trademark of Tennant Company.
Trojan and HydroLINK are registered trademarks of Trojan Battery Company.
Specifications and parts are subject to change without notice.
Original Instructions. Copyright E2014 Tennant Company.
All rights reserved. Printed in U.S.A.
INTENDED USE
The burnisher machine is intended for commercial use,
for example in hotels, schools, hospitals, factories,
shops, offices and rental businesses. It is designed to
burnish smooth dry hard floor surfaces (VCT, terrazzo,
marble, finished hardwood, coated concrete, etc.) in an
indoor environment only. Do not use this machine on
carpeted surfaces. Use only recommended burnishing
pads intended for machine application.Do not use this
machine other than described in this Operator Manual.
MACHINE DATA
IMPORTANT: To ensure full warranty protection, fill out
the attached MACHINE INSTALLATION / WARRANTY
REPORT REPLY CARD and return to Tennant within
30 days of purchase.
Please fill out at time of installation
for future reference.
Model No. -
Serial No. -
Installation Date -

Tennant B5/B7 (12- 2014) 3
TABLE OF CONTENTS
INTRODUCTION 2............................
INTENDED USE 2............................
MACHINE DATA 2............................
OPERATION
IMPORTANT SAFETY INSTRUCTIONS 4.......
SAFETY LABELS 6...........................
MACHINE COMPONENTS 7...................
MACHINE INSTALLATION 8...................
UNCRATING MACHINE 8..................
INSTALLING BATTERIES 8................
HOW THE MACHINE WORKS 9...............
MACHINE SETUP 9..........................
INSTALLING BURNISHING PAD 9..........
PAD PRESSURE SETTING (Models equipped with
mechanical pad pressure adjustment) 10......
INSTALLING DUST COLLECTION BAG
AND HEPA FILTER 11.....................
MACHINE OPERATION 12.....................
PRE- OPERATION 12.......................
OPERATING THE MACHINE 12.............
EMERGENCY SHUT- OFF BUTTON
(Drive Models) 14..........................
CONTROL CONSOLE ALERT SYMBOLS 14..
WHILE OPERATING THE MACHINE 14.......
BATTERY DISCHARGE INDICATOR 15.......
HOUR METER 15..........................
CIRCUIT BREAKERS / FUSE 15.............
SERVICE INDICATOR CODES 16............
MAINTENANCE
MAINTENANCE CHART 18.....................
MACHINE MAINTENANCE 19..................
AFTER DAILY USE 19......................
AFTER WEEKLY USE 19...................
AFTER EVERY 50 HOURS OF USE 20.......
AFTER EVERY 100 HOURS OF USE 20......
AFTER EVERY 200 HOURS OF USE 20......
AFTER EVERY 1000 HOURS OF USE 21.....
MOTOR MAINTENANCE 21.................
BATTERIES 21................................
MAINTENANCE- FREE BATTERIES 21.......
FLOODED (WET) LEAD- ACID BATTERIES 21
CHECKING CONNECTIONS / CLEANING 22..
CHARGING BATTERIES 22.................
BATTERY CHARGER SETTINGS 23.........
HYDROLINKBATTERY WATERING
SYSTEM (OPTION) 25.....................
MACHINE JACKING 26........................
LOADING/UNLOADING MACHINE FOR
TRANSPORTING 26..........................
STORING MACHINE 27........................
TROUBLESHOOTING 28.......................
SPECIFICATIONS
B5 GENERAL MACHINE DIMENSIONS/
CAPACITIES/PERFORMANCE 29..............
B7 GENERAL MACHINE DIMENSIONS/
CAPACITIES/PERFORMANCE 30...............
B5 MACHINE DIMENSIONS 31.................
B7 MACHINE DIMENSIONS 32.................

OPERATION
4Tennant B5/B7 (01- 2014)
IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS
The following warning precautions are used throughout
this manual as indicated in their description:
WARNING: To warn of hazards or unsafe
practices which could result in severe personal
injury or death.
FOR SAFETY: To identify actions which must be
followed for safe operation of equipment.
The following information signals potentially
dangerous conditions to the operator. Know when
these conditions can exist. Locate all safety devices on
the machine. Report machine damage or faulty
operation immediately.
WARNING: To Reduce the Risk of Fire,
Explosion, Electric Shock or Injury:
- Read manual before operating machine.
- Do not use or pick up flammable materials.
- Do not use near flammable liquids, vapors or
combustible dusts.
This machine is not equipped with an
explosion proof motor. The electric motor will
spark upon start up and during operation
which could cause a flash fire or explosion if
machine is used in an area where flammable
vapors/liquids or combustible dusts are
present.
- Batteries emit hydrogen gas. Explosion or fire
can result. Keep sparks and open flame away
when charging.
- Disconnect battery cables and charger cord
before cleaning and servicing machine.
- Do not charge batteries with damaged cord. Do
not modify plug.
If the charger supply cord is damaged or
broken, it must be replaced by the
manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
The use of incompatible battery chargers may
damage the battery and potentially cause a fire
hazard.
- Do not use outdoors or on wet surfaces. Store
indoors. This machine is for dry use only.
- This machine is not suitable for picking up
hazardous dust.
- Spinning pad, keep hands away.
FOR SAFETY:
1. Do not operate machine:
- Unless trained and authorized.
- Unless operator manual is read and
understood.
- Unless mentally and physically capable of
following machine instructions.
- Under the influence of alcohol or drugs.
- While using a cell phone or other types of
electronic devices.
- If not in proper operating condition.
- In outdoor areas. This machine is for
indoor use only.
- With pads or accessories not supplied or
approved by Tennant. The use of other
pads may impair safety.
- In areas with possible falling objects.
- In areas that are too dark to safely see the
controls or operate machine.
- Without dust bag and filters in place.
2. Before operating machine:
- Make sure all safety devices are in place
and operate properly.
3. When operating machine:
- Use only as described in this manual.
- Report machine damage or faulty operation
immediately.
- Wear closed- toe, non- slip work shoes.
- Reduce speed when turning.
- Keep hands away from spinning pad.
- Go slowly on inclines and slippery
surfaces.
- Do not burnish on inclines that exceed 9%
grade or transport on inclines that exceed
19.5% grade.
- Do not carry passengers on machine.
- Use care when reversing machine.
- Keep children and unauthorized persons
away from machine.
- Do not allow to be used as a toy.

OPERATION
Tennant B5/B7 (01- 2014) 5
4. Before leaving or servicing machine:
- Stop on level surface.
- Set the parking brake, if equipped.
- Turn off machine and remove key.
5. When servicing machine:
- Disconnect battery connection and charger
cord before working on machine.
- All work must be done with sufficient
lighting and visibility.
- All repairs must be performed by trained
personnel.
- Use Tennant supplied or approved
replacement parts.
- Do not modify the machine from its original
design.
- Avoid moving parts. Do not wear loose
clothing or jewelry and secure long hair.
- Do not disconnect the off- board charger’s
DC cord from the machine’s receptacle
when the charger is operating. Arcing may
result. If the charger must be interrupted
during charging, disconnect the AC power
supply cord first.
- Do not use incompatible battery chargers
as this may damage battery packs and
potentially cause a fire hazard.
- Inspect charger cord regularly for damage.
- Keep work area well ventilated.
- Avoid contact with battery acid.
- Keep all metal objects off batteries.
- Do not power spray or hose off machine.
- Use a hoist or adequate assistance when
lifting batteries.
- Jack machine up at designated locations
only. Support machine with jack stands.
- Block machine tires before jacking machine
up.
- Use a hoist or jack that will support the
weight of the machine.
- Wear personal protection equipment as
needed and where recommended in this
manual.
For Safety: wear protective gloves.
For Safety: wear eye protection.
For Safety: wear protective dust mask.
6. When loading/unloading machine onto/off
truck or trailer:
- Use a ramp that can support the machine
weight and operator.
- Do not operate the machine on a ramp
incline that exceeds a 19.5% grade level.
- Use a winch if ramp incline exceeds a
19.5% grade level.
- Lower the pad driver after loading.
- Turn machine off and remove key.
- Set parking brake (if equipped).
- Block machine wheels.
- Use tie- down straps to secure machine.

OPERATION
6Tennant B5/B7 (01- 2014)
SAFETY LABELS
The safety labels appear on the machine in the locations indicated. Replace labels if they are missing or become
damaged or illegible.
WARNING LABEL - Located on side of control console.
WARNING LABEL -
Disconnect battery
cables before servicing
machine.
Located on control board
cover.
WARNING LABEL -
Batteries emit
hydrogen gas.
Explosion or fire
can result. Keep
sparks and open
flameawaywhen
charging.
Located on backside
of machine cover.
WARNING LABEL -
Spinning Pad. Keep Hands Away.
Located on burnishing head.

OPERATION
Tennant B5/B7 (01- 2014) 7
MACHINE COMPONENTS
24
14
3
6
8
12
4
13
10 9
5
15
7
11
16
17
19
18
1
2
Mechanical Pad Pressure Console
Automated Pad Pressure Console
21
20
23 22
25
26
27 28 29
30
31 32 33 34
1. Cup Holder
2. On- board Instruction Guide
3. Battery Compartment Hood Latches
4. Circuit Breaker Panel, located near batteries.
5. Battery Compartment Hood
6. Burnishing Pad Motor
7. Head Tilt Lock/Release Knob
8. Bumper/Head Lift Handle
9. Burnishing Head
10. Wall Roller
11. Dust Control Skirt
12. Dust Collection Bag Compartment
13. HEPA Filter (Active Dust Collection Model)
14. Control Handle
15. Start Bail
16. Main Power On/Off Key Switch
17. USB Program Port
18. Emergency Stop Button (Drive Model)
19. Hour Meter
20. On- board Battery Charger Cord
21. On- board Battery Charger Cord Storage Hooks
22. Burnishing Head Lift Pedal
23. Anti- static Strap
24. Parking Brake (Optional)
25. Off- board Battery Charger Receptacle
26. Speed Dial (Drive Model)
27. Pad Pressure Decrease Button (Automated Model)
28. Pad Pressure Indicator (Automatic Model)
29. Pad Pressure Increase Button (Automated Model)
30. Directional Lever (Drive Model)
31. Service Indicator
32. Motor Overheat Indicator
33. Battery Discharge Indicator
34. Check Dust Bag Indicator

OPERATION
8Tennant B5/B7 (01- 2014)
MACHINE INSTALLATION
UNCRATING MACHINE
1. Carefully check machine for signs of damage.
Report damages at once to carrier.
2. Check the contents list. Contact distributor or
Tennant for missing items.
Contents:
DBurnishing Pad (pre- installed)
DDust Collection Bag (pre- installed)
Cloth bag (Option)
DBattery Tray
DBattery Watering System (pre- installed Option)
DOff- Board Battery Charger (Option)
DCharger Cord/off- board charger model
(Option)
DParts Manual
DUse & Care Guide Wall Chart
20 in / 510mm Model:
D3 Batteries (pre-installed Option)
D2 Battery Cables
D6 Battery Post Rubber Boots
D1- 2 Foam Battery Spacers
24 in/610mm, 27 in/690mm Models:
D6 Batteries (pre-installed Option)
D5 Battery Cables
D12 Battery Post Rubber Boots
D2 Foam Battery Spacers (AGM Batteries)
3. To uncrate the machine, remove straps, wheel
blocks and shipping brackets. Using the supplied
ramp carefully back the machine off the pallet
(Figure 1). Make sure the burnishing head is in the
raised position.
ATTENTION: Do not remove machine from pallet
without using ramp, machine damage may occur.

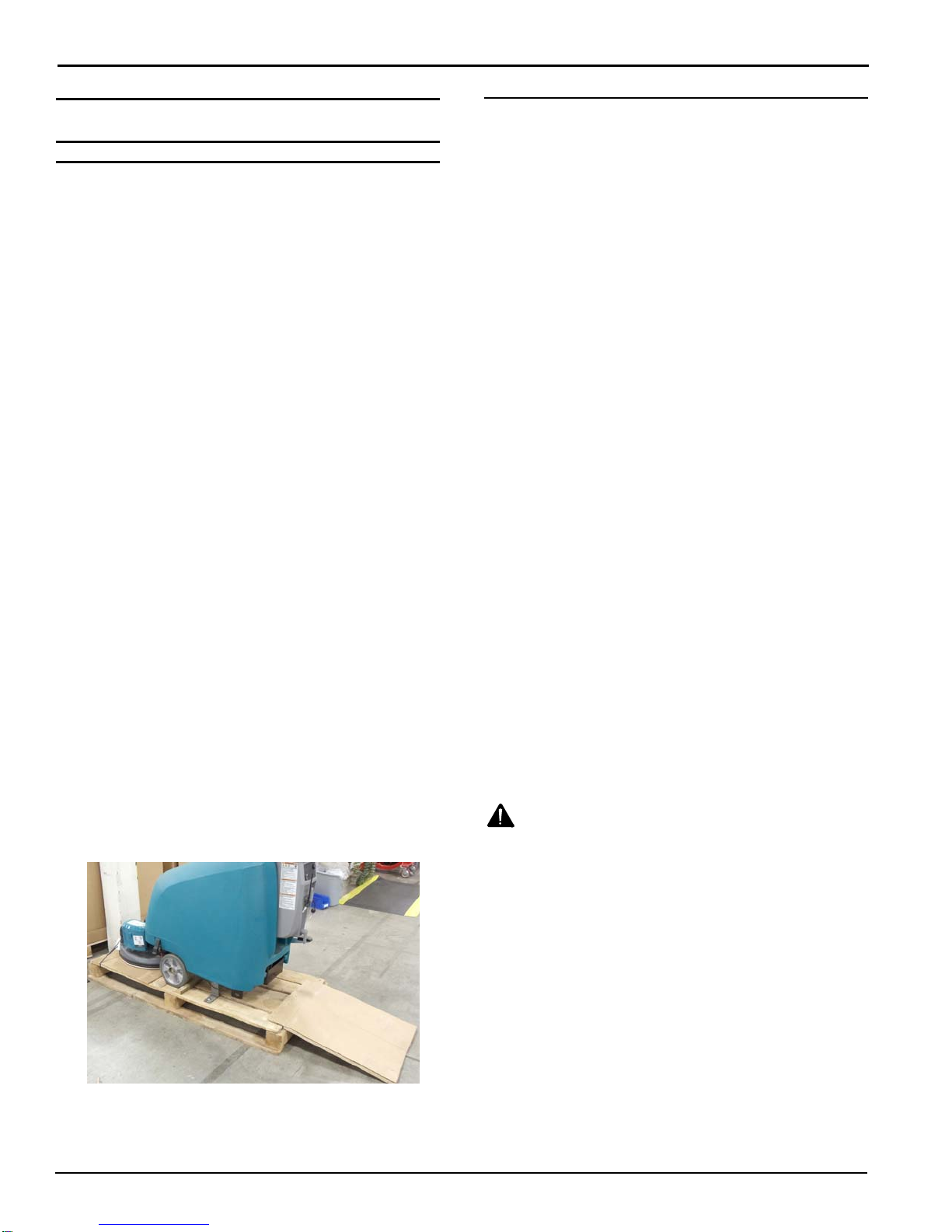

FIG. 1
INSTALLING BATTERIES
Contact distributor or Tennant for battery
recommendations if machine is not supplied with
batteries.
IMPORTANT: For machine’s supplied with batteries
and battery charger, the battery discharge indicator is
factory programmed for battery type supplied. For
machine’s supplied without batteries, the machine’s
battery discharge indicator (BDI) is pre- programmed to
work with wet/lead acid batteries as the default. If
installing a different battery type (i.e. sealed, AGM
batteries, etc.) the battery discharge indicator will need
to be reprogrammed to prevent battery damage. See
BATTERIES for further details.
BATTERY SPECIFICATIONS:
B5 Model -
3- 12 volt, deep cycle, 185 AH wet lead acid batteries
(Push Model).
3- 12 volt, deep cycle, 225 AH wet lead acid batteries
(Drive Model).
3- 12 volt, deep cycle, 234 AH AGM sealed batteries
(Optional, Push and Drive Models)
B7 Model -
6- 6 volt, deep cycle, 240 AH wet lead acid batteries
(24 in/610mm Model).
6- 6 volt, deep cycle, 330 AH wet lead acid batteries
(27 in/690mm Models).
6- 6 volt, deep cycle, 360 AH wet lead acid batteries
(Optional, 24 in/610mm, 27 in/690mm Models).
6 - 6 volt, deep cycle, 312 AH AGM sealed batteries
(Optional, 24 in/610mm, 27 in/690mm Models)
WARNING: Fire Or Explosion Hazard.
Batteries emit hydrogen gas. Explosion or fire can
result. Keep sparks and open flame away when
charging.
FOR SAFETY: When servicing machine, wear
appropriate personal protection equipment as
needed. Avoid contact with battery acid.
1. Park the machine on a level surface, turn machine
off and remove the key.
2. Unlatch the battery compartment hood latches and
lift the hood backwards (Figure 2).
3. With adequate assistance carefully install the
batteries into the battery compartment. Arrange the
batteries as shown (Figure 3).

OPERATION
Tennant B5/B7 (01- 2014) 9
FIG. 2
FOR SAFETY: When servicing machine, use a hoist
or adequate assistance when lifting batteries.
4. To keep the batteries from moving, position the
supplied foam battery spacers as shown (Figure 3).
5. Using the supplied battery post boots, connect the
cables to the battery posts as shown (Figure 3).
Connect the machine’s black (- ) battery cable last.
Use insulated tools when working near batteries.
RED
BLACK
Machine Front
Foam Spacers:
0 - Wet Batteries
2 - AGM Batteries
Machine Front
B7 Model
B5 Model
Foam Spacers:
1 - Wet Batteries
2 - AGM Batteries
RED
BLACK
FIG. 3
HOW THE MACHINE WORKS
The machine is powered by a 36V battery pack (Wet
lead/acid or sealed/AGM batteries). The burnishing
process is accomplished by a high- speed rotating pad
with applied pressure and forward motion creating a
smooth polished floor finish. The push model is
assisted by the rotating pad and the drive model is
equipped with a propel motor. The pad pressure and
burnishing speed can be adjusted for floor type and
floor condition. Depending on model, the pad pressure
is mechanically adjusted or done by an actuator. The
dust is collected with a passive or active dust control
vacuum system. The passive dust control vacuum
system uses centrifugal force from the rotating pad to
create a vacuum for dust collection. The active dust
control vacuum system model consists of a vacuum
motor and a high efficiency HEPA rated filter. The
burnishing function is controlled by a start bail at the
control console.
MACHINE SETUP
INSTALLING BURNISHING PAD
There are many types of burnishing pads to choose
from depending on floor type, finish and floor condition.
Contact an authorized distributor for burnishing pad
recommendations.
Each new machine comes equipped with one
pre- installed burnishing pad.
Replacement Factory Supplied Burnishing Pads:
611788 - 20 in/510mm Hair Blend Burnishing Pad (Qty. 5)
1204254 - 24 in/610mm Hair Blend Burnishing Pad (Qty. 1)
1204255 - 27 in/690mm Hair Blend Burnishing Pad (Qty. 1)
FOR SAFETY: Do not operate machine with pads
or accessories not supplied or approved by
Tennant. The use of other pads may impair safety.
1. Park the machine on a level surface, turn machine
off and remove the key.

OPERATION
10 Tennant B5/B7 (01- 2014)
2. Step down and to the left on the burnishing head lift
pedal to raise head off floor (Figure 4). Pull the
head lift handle upward until head locks into the
pad change position.
FIG. 4
3. Install the burnishing pad on pad driver (Figure 5).
Make sure pad is centered on pad driver. Secure
pad with center- lock. Do not operate machine
without pad center- lock installed.
FIG. 5
4. Pull the head tilt lock knob to release the head from
the pad change position (Figure 6).
FIG. 6
PAD PRESSURE SETTING (Models equipped with
mechanical pad pressure adjustment)
For models equipped with mechanical pad pressure
adjustment, the pad pressure is factory set at the
optimal setting. Many variables come in to play to
achieving optimal burnishing performance; floor type,
floor finish, floor condition and pad type.
To confirm that the factory setting best meets your
burnishing application, it’s recommended to perform the
following procedure. Once the pad pressure is properly
set for your burnishing application, this will provide
consistent performance for your routine burnishing
schedule. This is referred to as the “Set and Forget”
method.
1. To activate the pad pressure mode, locate the
hidden button (small indent) on the left side of the
control panel (Figure 7).
2. Press and hold the hidden button and turn the key
on. Hold the button until a single green light appears
at the battery discharge indicator (Figure 7). When
the button is released, the green light will turn off and
the service indicator symbol will turn on.
The machine is now ready to verify the current pad
pressure.
FIG. 7
3. Pull the start bail and begin burnishing for a
minimum of 10 seconds (Figure 8). The LED’s will
ripple then a single light will appear confirming the
current pad pressure setting. See the following
chart for down pressure settings.
FIG. 8

OPERATION
Tennant B5/B7 (01- 2014) 11
LED Code =On Down Pressure Setting
SSS S Flashing - Too Low
SSS S Low
SSSS Medium Low
SSSS Medium
SSSSMedium High
SSSSHigh
SSSSFlashing - Too High
The medium down pressure setting is recommended.
Determine the burnishing performance at this setting
and adjust as necessary.
To adjust pressure setting proceed to the next step.
4. Raise the burnishing head and remove key. Locate
the pad pressure adjustment cotter pin (Figure 9).
FIG. 9
5. To increase down pressure, move the cotter pin to
the next hole towards the motor. To decrease the
down pressure move the cotter pin in opposite
direction (Figure 10).
FIG. 10
6. Repeat steps 1- 3 and adjust the pin until desired
down pressure is achieved.
INSTALLING DUST COLLECTION BAG AND HEPA
FILTER
Each new machine is equipped with one pre- installed
paper bag. Models equipped with the optional Active
Dust Control system includes a pre- installed HEPA
filter.
Replacement bags/filters:
p/n 1210869 - 1 package/10 paper bags
p/n 1208744 - Cloth bag (optional).
p/n 1203162 - HEPA filter
NOTE: The optional cloth bag is not intended for
models equipped with the Active Dust Control system.
FOR SAFETY: Do not operate machine without
dust bag and filters in place.
1. Park the machine on a level surface, turn machine
off and remove the key.
2. Remove the the cover from the dust collection bag
compartment. Press the two cover tabs to remove
cover (Figure 11).
FIG. 11
3. Install dust bag and HEPA filter as shown. Replace
cover (Figure 12). The HEPA filter is included with
the Active Dust Collection model.
FIG. 12

OPERATION
12 Tennant B5/B7 (07- 2014)
4. The check dust bag indicator will periodically light
up on the control console alerting operator to check
bag for fullness. Replace the bag when it becomes
half full (Figure 13). Restart the key to reset the
check bag indicator.
FIG. 13
5. The HEPA filter requires to be replaced every 200
hours of use (Figure 14).
FIG. 14
MACHINE OPERATION
FOR SAFETY: Do not operate machine unless
operator manual is read and understood.
PRE- OPERATION
-Sweep floor and remove any obstructions.
-Scrub floor from any soil buildup.
-Check that the floor surface is dry.
Do not use machine with spray buffing solution.
-Check battery discharge level indicator.
-Select proper burnishing pad.
-Check condition of burnishing pad.
-Check dust collection bag for fullness.
-Check vacuum hose connection at bag compartment.
-Check machine for proper operation.
OPERATING THE MACHINE
1. Lower the burnishing head to the floor by releasing
the burnishing head lift pedal as shown (Figure 15).
FIG. 15
2. Release the parking brake lever if equipped
(Figure 16)
3. Turnthekeytotheon(I)position(Figure16).
FIG. 16
4. For drive models, push the directional lever to the
forward position (Figure 17). To reverse machine pull
the directional lever backwards.
FORWARD
REVERSE
FIG. 17

OPERATION
Tennant B5/B7 (01- 2014) 13
5. To begin burnishing, pull the start bail (Figure 18).
The burnishing head will draw to the floor by suction.
FIG. 18
6. For push models, slowly push the machine forward.
The rotating brush will help assist the machine
forward.
For drive models, adjust the burnishing speed by
turning the speed dial to the desired speed
(Figure 19).
FIG. 19
7. For models equipped with automated down
pressure, adjust the pad pressure to the desired
setting by pressing the increase or decrease pad
pressure buttons (Figure 20). For optimal
performance set the pad pressure indicator to the
center LED setting.
FIG. 20
For models equipped with mechanical pad
pressure, the pad pressure setting is factory set for
optimal performance. To confirm the pad pressure
is properly set for your burnishing application, see
PAD PRESSURE SETTING in the MACHINE
SETUP section.
8. To stop burnishing, release the start bail (Figure
21). The drive model has an electromagnetic brake
system that will automatically stop the machine
when the bail is released.
FIG. 21
9. To transport the machine from one location to
another, raise the burnishing head to the transport
position (Figure 22).
FIG. 22

OPERATION
14 Tennant B5/B7 (01- 2014)
EMERGENCY SHUT- OFF BUTTON (Drive Models)
Push the emergency shut- off button in the event of an
emergency (Figure 23). This red button shuts off all
power to machine. To regain power, turn the button
clockwise and restart the key.
Only use this button in the event of an emergency. It is
not intended for routine machine shutdown.
FIG. 23
CONTROL CONSOLE ALERT SYMBOLS
The following control console alert symbols will light up
and begin to flash as described below.
123
1- Service Indicator - Machine or battery charger fault
detected. See SERVICE INDICATOR CODES.
2- Pad Motor Overheat Indicator - Motor temperature
is too high. Turn machine off and allow pad motor to
cool down. The fault will clear once motor has cooled.
Likely cause, pad pressure is set too high or wrong pad
type. Reduce pad pressure or change pad type.
3- Check Dust Bag Indicator - Reminder to check
dust bag for fullness. Replace bag when half full.
Recycle key to reset indicator.
WHILE OPERATING THE MACHINE
1. Operate the machine in a straight path where
possible and overlap the burnishing path by a few
inches/centimeters.
2. Reduce the machine speed when making sharp
turns.
3. Do not use machine with spray buffing solution.
4. Avoid any floor fixtures or uneven floor transitions
that may damage the pad, pad driver or dust skirt.
5. Avoid bumping the machine into posts and walls.
6. Do not operate machine on inclines that exceed a
9% grade or a 19.5% grade when transporting.
7. Drive Models: For heavily scuffed floors reduce the
speed and increase the pad pressure to ensure
optimum burnishing performance.
8. Periodically check the pad condition. If loaded with
floor finish or soil buildup turn the pad over or
replace pad as needed.
9. Check dust bag when the check bag indicator
appears. Replace bag when half full.
10. Check condition of dust control skirt. Dry chunks of
floor finish may become lodged in skirt leaving
streaks on floor.
11. Observe the battery charge level indicator.
See BATTERY CHARGE LEVEL INDICATOR.
12. If the drive model becomes disabled, it can be
pushed or towed slowly for a short period.
13. When leaving machine unattended, turn machine
off and remove key.
14. After burnishing, perform the machine maintenance
procedures. See MACHINE MAINTENANCE.

OPERATION
Tennant B5/B7 (01- 2014) 15
BATTERY DISCHARGE INDICATOR
The battery discharge indicator (BDI) displays the
charge level of the batteries. When the batteries are
fully charged, all five indicator lights will be on (Figure
24). As the batteries discharge, the indicator lights will
begin to go out from right to left.
When the discharge level reaches the red light, stop
burnishing and recharge the batteries. If the red light
begins to flash, the burnishing function will
automatically shut off to protect the batteries from total
discharge. Drive Model: The machine will still propel
when red light is flashing. Propel machine to charging
station and recharge batteries.
FIG. 24
The machine’s battery discharge indicator is
programmed for the battery type supplied with your
machine. If you choose to change to a different battery
type or battery capacity (i.e. wet/lead acid, sealed,
AGM batteries, etc.) you will need to have the BDI
reprogrammed to prevent battery damage. See
BATTERIES.
HOUR METER
The hour meter records the number of hours the
machine is in operation. Use the hour meter to perform
specific maintenance procedures and to record service
history. The hour meter is located on the control
console (Figure 25).
FIG. 25
CIRCUIT BREAKERS / FUSE
The machine is equipped with three resettable circuit
breakers to protect the machine from a current
overload. If a breaker should trip, determine the cause
then reset the circuit breaker. If circuit breaker does not
reset or continues to trip contact trained personnel.
The circuit breakers are located near the battery
compartment and identified as described below
(Figure 26).
CIRCUIT BREAKERS:
1(2.5A) Control Board
2(15A) Actuator/Active Dust Control
3(30A) Main/Propel/Pad Drive
FIG. 26
FOR SAFETY: When servicing machine, all repairs
must be performed by trained personnel.

OPERATION
16 Tennant B5/B7 (12- 2014)
SERVICE INDICATOR CODES
When the machine or battery charger detects a fault or warning, the red service indicator and a specific battery
discharge indicator LED code will flash continuously. Refer to following LED codes to determine fault.
Red Service
Indicator
(Flashing) Battery Discharge
Indicator LED fault
codes (Flashing)
LED Fault Codes:
= Flashing CAUSE SOLUTION
 Emergency stop button activated. Turn emergency stop button counter- clock-
wise to reset and restart machine.
SSS Pad motor wiring, connector or control board
problem.
Contact service.
SSSS Pad motor voltage loss. Contact service.
SS Pad motor current is above hardware limit. Restart machine. If fault code persists, contact
service.
SSS Pad motor current too high for extended
period. Pad down pressure too high.
Reduce down pressure. If fault code persists,
contact service.
 SPad motor shorted current load. Contact service.
S SPad motor and control board problem. Contact service.
SSSSHead actuator wiring, connector or control
board problem.
Contact service.
SSSBurnish over current. Contact service.
SSSHead actuator circuit breaker tripped. Turn machine off and reset circuit breaker. If
breaker trip repeats, contact service.
 S Head actuator movement is obstructed. Restart machine to clear code. If fault code
persists, contact service.
 SHead actuator or vacuum motor and control
board problem.
Contact service.
SSSS Vacuum motor wiring, connector or control
board problem
Contact service.
SSSVacuum motor circuit breaker tripped. Turn machine off and reset circuit breaker. If
breaker trip repeats, contact service.
S Vacuum motor current is above hardware limit. Restart machine. If fault code persists, contact
service.
 SSS Vacuum motor current too high for extended
period (current 1 fault).
Restart machine. If fault code persists, contact
service.
 SSVacuum motor current too high for extended
period (current 2 fault).
Restart machine. If fault code persists, contact
service.
 SSVacuum motor shorted current load. Contact service.
SSSPropel control board communication problem. Contact service.
SS Propel wiring, connector or control board
problem.
Contact service.
SSStart bail is pulled before turning machine on. Release start bail before turning machine on.

OPERATION
Tennant B5/B7 (12- 2014) 17
SERVICE INDICATOR CODES - Continued
LED Fault Code:
= Flashing CAUSE SOLUTION
SSSPropel motor short. Contact service.
SS SPropel circuit breaker tripped. Turn machine off and reset circuit breaker. If
breaker trip repeats, contact service.
SS Software load failure. Contact service.
On- Board Battery Charger Service Indicator codes:
LED Fault Code:
= Flashing CAUSE SOLUTION
 SS Charger error condition. Contact service.
S SS Charger is not connected to battery pack. Check cable connections.
SSSS
Charger overheated. Let charger cool. Move to well ventilated area.
Charge batteries in areas with temperatures
80F/27C or less. If fault persists, contact
service.
S SCharger not communicating with machine. Restart charger. If fault code persists, contact
service.
S SCharger timer exceeded maximum charging
time. Interrupts charging cycle.
Replace Batteries.

MAINTENANCE
18 Tennant B5/B7 (12- 2014)
MAINTENANCE CHART
3
4
11
8
2
5
1
6
9
10
7
Interval/
Hours
Person
Resp. Key Description Procedure
Daily O 1 Batteries Charge
O 2 Burnishing pad Check, flip or replace
O 3 Dust collection bag Check, replace
O 4 Vacuum hose Check, clean
O 5 Burnishing head dust skirt Check for dry floor finish chunks
Weekly O 1 Battery electrolyte level Check, add distilled water if low
50 Hours O 5 Burnishing head dust skirt Check for wear and damage
O 6 Burnishing head Clean with air pressure hose
O 7 Machine Clean with damp cloth
100 Hours O 1 HydroLINK Battery watering system
(option)
Check hoses and connections for
damage and wear
200 Hours O 1 Batteries, terminals and cables Check and clean
O 8 Vacuum HEPA filter
(Active Dust Control Model)
Check, clean, replace
750 Hours T 9 Propel motor (Drive Model) Replace carbon brushes
1000 Hours T10 Head lift bushings, 4 points Inspect, replace bushings
T11 Pad motor Replace carbon brushes
O = Operator T = Trained Personnel

MAINTENANCE
Tennant B5/B7 (12- 2014) 19
MACHINE MAINTENANCE
To keep the machine in good working condition, simply
perform the following maintenance procedures.
FOR SAFETY: Before leaving or servicing machine,
stop on level surface, turn off machine, remove key
and set parking brake if equipped.
FOR SAFETY: When servicing machine wear
personal protection equipment as needed. All
repairs must be performed by trained personnel
AFTER DAILY USE
1. Flip the burnishing pad over or change to a new
pad (Figure 27).
FIG. 27
2. Check the dust collection bag for fullness. Replace
bag when half full (Figure 28).
FIG. 28
3. Check vacuum hose for clogging. Clean hose as
necessary (Figure 29).
FIG. 29
4. Charge batteries (Figure 30). See BATTERIES for
charging instructions.
ON- BO
A
RD CHARGER OFF- BOARD CHARGER
FIG. 30
AFTER WEEKLY USE
Check the electrolyte level in all batteries (Figure 31).
See BATTERIES for further details.
FIG. 31

MAINTENANCE
20 Tennant B5/B7 (12- 2014)
AFTER EVERY 50 HOURS OF USE
1. Check the dust skirt for wear or damage
(Figure 32). Replace if worn or damaged.
FIG. 32
2. Clean the burnishing head and pad motor of any
dust buildup using an air pressure hose (Figure
33). Maximum air pressure 100 psi / 690 kPa.
FOR SAFETY: When servicing machine, wear
appropriate personal protection equipment as
needed
FIG. 33
3. Clean the outside surface of the machine with an
all purpose cleaner and damp cloth (Figure 34).
FIG. 34
AFTER EVERY 100 HOURS OF USE
If machine is equipped with the optional HydroLINK
battery watering system, check the watering hoses and
connections for damage and wear (Figure 35). Replace
system if damaged.
FOR SAFETY: When servicing batteries, wear
personal protection equipment as needed. Avoid
contact with battery acid.
FIG. 35
AFTER EVERY 200 HOURS OF USE
1. Clean batteries and check for loose battery cable
connections (See BATTERY MAINTENANCE).
2. Replace the HEPA filter if model is equipped with
the active dust control collection option (Figure 36).
FIG. 36
