nifty 170SD series Assembly instructions
.com
Manufactured by:
Niftylift Limited
Fingle Drive
Stonebridge
Milton Keynes
MK13 0ER
England
www.niftylift.com
e-mail: info@niftylift.com
Tel: +44 (0)1908 223456
Fax: +44 (0)1908 312733
NATIONAL
ACCREDITATION
OF CERTIFICATION
BODIES
REGISTERED COMPANY
ISO 9001
170SD (SD50)
Operating & Safety Instructions
MODEL 170SD (SD50) SERIES
SD Series
Operating & Safety Instructions
English/USA 09/03 1
Table of Contents
1. INTRODUCTION AND GENERAL INFORMATION PAGE
1.1 Foreword 2
1.2 Scope 3
1.3 Introducing the 170SD Self Drive (SD) Series 3
1.4 General Specification 4
1.5 Identification 5-6
2. SAFETY
2.1 Mandatory Precautions 7-10
2.2 Environmental Limitations 10
2.3 Noise & Vibration 10
3. PREPARATION AND INSPECTION
3.1 Unpacking 11
3.2 Preparation for Use 11
3.3 Pre-Operational Safety Check Schedules 12-13
3.4 Placard, Decals and Installation 14-19
3.5 Torque Requirements 20
4. OPERATION
4.1 Control Circuit Components 21-23
4.2 Setting up Procedures 24
4.3 Ground Control Operation 25-26
4.4 Platform Control Operation 27-30
4.5 Driving Controls 31
4.6 Batteries and Charging 32-33
4.7 Transporting, Towing, Storage and Setting to Work 34-36
5. EMERGENCY CONTROLS
5.1 General 37
5.2 Emergency Procedures - Incapacitated Operator 37
5.3 Emergency Procedures - Machine Failure 37
5.4 Incident Notification 37
6. RESPONSIBILITIES
6.1 Changes in Ownership 37
6.2 Inspection/Service/Pre-Hire Check List 38-39
SD Series
Operating & Safety Instructions
English/USA 09/03 2
1. Introduction and General Information
1.1 FOREWORD
The purpose of these manuals is to provide the customer with proper safety operating and
maintenance instructions essential for proper machine operation.
All information in these manuals should be READ and fully UNDERSTOOD before any attempt is
made to operate the machine. THESE MANUALS ARE VERY IMPORTANT TOOLS - Keep them with
the machine at all times.
The manufacturer has no direct control over machine application and use, therefore
conformance with good safety practices is the responsibility of the user and his operating
personnel.
All information in these manuals is based on the use of the machine under proper
operating conditions. Alteration and/or modification of the machine are strictly forbidden.
One of the most important facts to remember is that any equipment is only as safe as
those who operate it.
DANGER, WARNING, CAUTION, IMPORTANT, INSTRUCTIONS AND NOTICE
Any place these topics may appear, either in this manual or on the machine, they are defined as
follows:
DANGER: If not correctly followed there is a high probability of serious injury or death to personnel.
WARNING OR CAUTION:If not correctly followed there is some possibility of serious injury or
death to personnel.
THE 'SAFETY ALERT' SYMBOL IS USED TO CALL ATTENTION TO
POTENTIAL HAZARDS WHICH MAY LEAD TO SERIOUS INJURY OR
DEATH, IF IGNORED.
IMPORTANT AND INSTRUCTIONS: Denotes procedures essential to safe operation
and prevention of damage to or destruction of the machine.
NOTICE: Indicates general safety rules and/or procedures relating to the machine.
It is the owner's/user's responsibility to know and comply with all applicable rules,
regulations, laws, codes and any other requirements applicable to the safe use of
this equipment.
SD Series
Operating & Safety Instructions
English/USA 09/03 3
1.2 SCOPE
These operating instructions contain all the necessary information required to allow the safe
operation of Niftylift 170SD (SD50), powered by electric (DC), diesel or petrol (gasoline) engine, or
a combination of these.
For further technical information, circuit diagrams and specific instructions for all maintenance
which may need to be carried out by specialist trained personnel, see the associated Workshop and
Parts manual for your model of machine.
1.3 INTRODUCING THE 170SD (SD50) SELF DRIVE SERIES
Please note at the time of going to press all information, illustrations, details and descriptions
contained herein are valid. Niftylift reserves the right to change, alter, modify or improve its products
without any obligations to install them on previously manufactured machines.
If you require further information after reading this manual, please do not hesitate to contact us at
your nearest office.
Niftylift Ltd, Fingle Drive, Stonebridge, Milton Keynes MK13 0ER, Great Britain
Tel: (011 44) 1908 223456 Fax: (011 44) 1908 312733
Niftylift Inc, 573 Summerdale Ave, Glen Ellyn, IL 60137-5726 USA
Tel: +01 630 858 2575 Fax: +01 630 858 0520
The Niftylift SD (Self Drive) is a range of extremely versatile articulating boom mounted via a 360º
powered swing mechanism. Driven from the platform, the Niftylift 170SD (SD50) Self Drive
accommodates up to two men and their equipment, and offers a working height of up to 17m (56ft)
or an outreach of 8.7m (28ft 5in) with a maximum capacity of 200kg (440lb) or 500lb for USA
models.
High traction tyres and hydraulic wheel motors give 25% gradeability for 2WD versions or 30% for
4WD models with the option of slow or fast drive speed. Automatic braking and audible alarms
activated by tilt sensor help to prevent the operator from working on unsafe terrain. The outriggers
make a swift set up possible and minimise the weight of the machine. A unique pressure sensitive
micro switch system fitted to each outrigger prevents operation of the machine until all outriggers
have been correctly deployed and also provides a loud audible alarm warning of a possible
hazardous situation
A simple, all-hydraulic proportional control system gives smooth, reliable movement of the platform
and maximum reliability in the harshest environments.
The Niftylift Self Drive provides a fast, safe, cost effective method of access, both inside and out,
for a multitude of applications where overhead working is required.
Models Include the Following:-
E: - D.C. ELECTRIC BE: - BI-ENERGY (DIESEL & BATTERY)
D: - DIESEL PE: - PETROL & BATTERY
P: - PETROL
SD Series
Operating & Safety Instructions
English/USA 09/03 4
1.4 GENERAL SPECIFICATION
FEATURE 170SD
MAXIMUM HEIGHT - WORKING 17.10m
56ft 1in
MAXIMUM HEIGHT - PLATFORM 15.10m
49ft 6in
MAXIMUM HEIGHT - STOWED 2.10m
6ft 11in
MAXIMUM OUTREACH 8.70m
26ft 6in
MAXIMUM WIDTH 1.60m
5ft 3in
MAXIMUM LENGTH - STOWED 5.60m
18ft 4in
MAXIMUM CAPACITY 200kg
440lb
TURRET ROTATION 355º
TURRET TAILSWING Zero
PLATFORM SIZE - LENGTH x WIDTH 0.65m x 1.1m
25in x 44in
CONTROLS Full proportional hydraulic
HYDRAULIC PRESSURE 200bar
GRADEABILITY 25%
TRAVEL SPEEDS Fast: 3mph (4.83kph)
Slow: 1.2mph (1.93kph)
GROUND CLEARANCE 100mm
4in
GROSS VEHICLE WEIGHT 2250kg
4950lb
MAXIMUM GROUND PRESSURE 0.049kN/cm2
10210lb/ft2
POWER OPTIONS E (Electric) models - 4 x 6v 250 AH batteries
P (G) (Petrol/Gasoline) models - Honda Engine
D (Diesel) models - Kubota 722 (4WD)
Kubota OC95 (2WD)
170SD 4WD version: Outriggers become electric over hydraulic controls, Gradeability 30%, Gross
Vehicle Weight 2450kg (Bi-Energy), Maximum Ground Pressure 0.055kN/cm211430lb/ft2
SD Series
Operating & Safety Instructions
English/USA 09/03 5
1.5 IDENTIFICATION (UK PLATE)
!"#$%& %'()*'%(+,&%(+-)#
)
.
/0/
123 4533
3 .3 63 45
/ 1 33 45
/ ./333
/ 1 .333 #78
1 0333 !5
/ 2/0 ./33 9$:
/ 3333
3 .333
0 00 3 /
2 00 33 /
.
This manufacturer’s plate is attached to Boom 1 on each machine at the time of
manufacture on every Niftylift. Please ensure all sections have been stamped and are
legible.
SD Series
Operating & Safety Instructions
English/USA 09/03 6
1.5a IDENTIFICATION (USA PLATE)
! "
#$%&'( ')*+,)'*-.('*-/+%
0 1 2 32 10 $
434
323 5 55
2 00555
10555
!4 043 2455 2
!4 5555
5 2555
3 33 5 4
0 33 55 4
2"

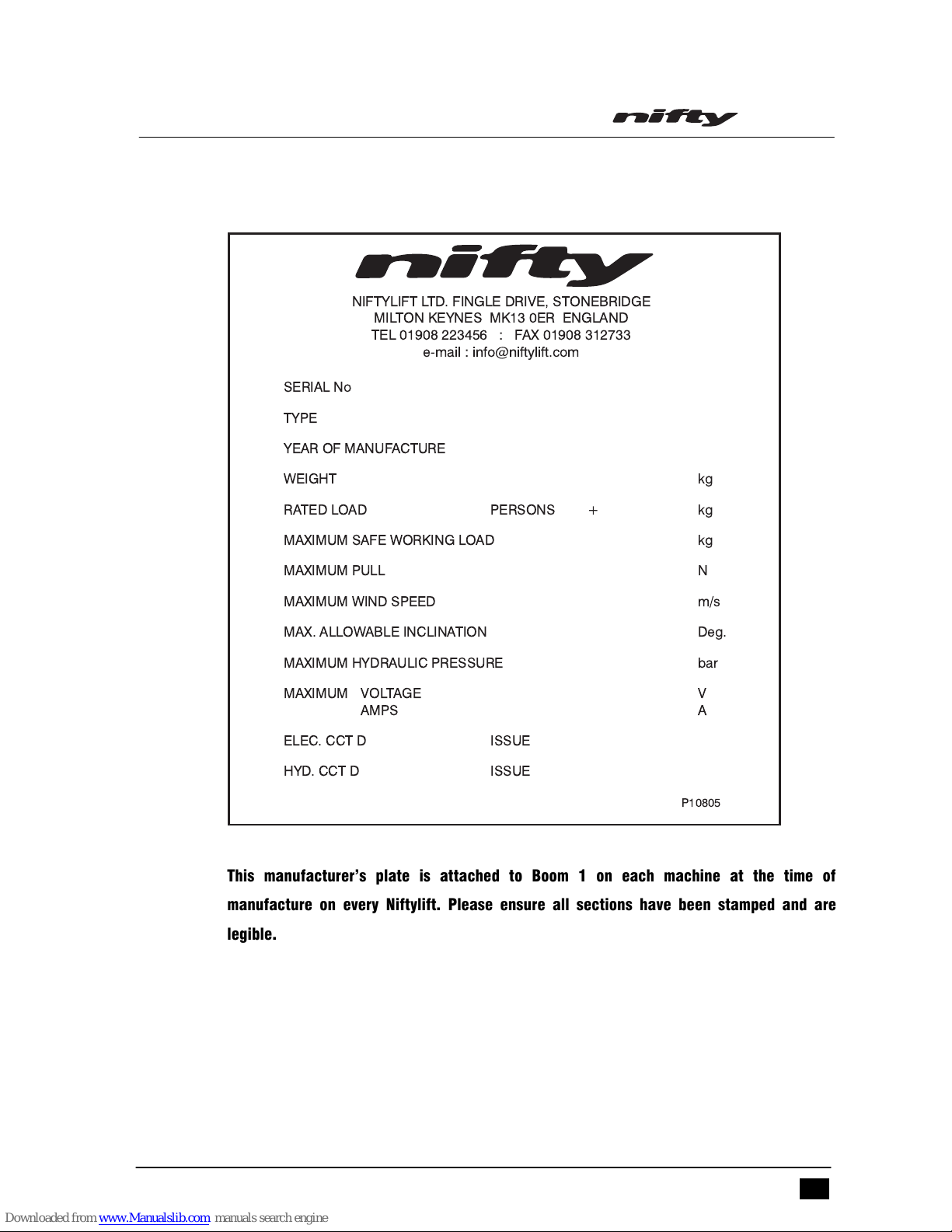

This manufacturer’s plate is attached to Boom 1 on each machine at the time of
manufacture on every Niftylift. Please ensure all sections have been stamped and are
legible.
SD Series
Operating & Safety Instructions
English/USA 09/03 7
2. Safety
2.1 MANDATORY PRECAUTIONS
When operating your Niftylift, your safety is of utmost concern. In order to fully appreciate all
aspects of the machines operation it should be ensured that each operator has READ and fully
UNDERSTOOD the relevant manual covering machine use, maintenance and servicing. If any
doubts exist concerning any points covered in your manual, contact your local dealer or Niftylift Ltd.
Before using any Niftylift, thoroughly inspect the machine for damage or deformation to all major
components. Likewise, check the control systems for hydraulic leaks, damaged hoses, cable faults
or loose covers to electrical components. At no time should damaged or faulty equipment be used -
Correct all defects before putting the platform to work. If in doubt, contact your local dealer or
Niftylift Ltd (see front cover for address).
THE MANUFACTURER HAS NO DIRECT CONTROL OVER THE MACHINE
APPLICATION AND USE. THEREFORE CONFORMATION WITH GOOD
SAFETY PRACTICES IS THE RESPONSIBILITY OF THE USER AND HIS
OPERATING PERSONNEL. FAILURE TO UNDERSTAND AND FOLLOW ALL
SAFETY RULES COULD RESULT IN SERIOUS INJURY OR DEATH.
2.1.1 Only persons trained on the same or a similar model will be permitted to operate the aerial Niftylift.
2.1.2 Always operate the Niftylift in full accordance with the manufacturers Operating & Safety
Instructions for that model.
2.1.3 Before use each day and at the beginning of each shift the Niftylift shall be given a visual inspection
and functional test including, but not limited to, operating and emergency controls, safety devices,
personal protective clothing, including fall protection, air, hydraulic and fuel system leaks, cables
and wiring harness, loose or missing parts, tyres and wheels, placards, warnings, control markings
and Operating and Safety Manuals, guards and guard rail systems and all other items specified by
the manufacturer.
2.1.4 Any problems or malfunctions that affect the safety of operations shall be repaired prior to the use
of the Niftylift.
2.1.5 Always ensure that all warning labels, instructions, placards, control markings and Safety Manuals
are intact and clearly legible. If replacements are required contact your local dealer or Niftylift.
Always observe and obey safety and operating instructions on such labels.
2.1.6 Do not alter, modify or disable in any way the controls, safety devices, interlocks or any other part
of the machine.
2.1.7 Before the Niftylift is used and during use the user shall check the area in which it is to be used for
possible hazards such as, but not limited to, uneven ground drop-offs, holes, bumps, obstructions,
debris, floor and overhead obstructions, high voltage conductors, wind and weather, unauthorised
persons and any other possibly hazardous conditions.
SD Series
Operating & Safety Instructions
English/USA 09/03 8
2.1.8 Never exceed the maximum platform capacity, as indicated on the decals and machine serial plate.
2.1.9 Only operate the Niftylift on a firm, level surface.
2.1.10 Never position any part of the Niftylift within 4.0m, (12ft) not exceeding 66kV. (Minimum span
125m) Other distances for increased voltages and different spans are given in NZECP 34:1993
THIS MACHINE IS NOT INSULATED.
If in doubt, contact the appropriate authorities
2.1.11 On entering the platform, ensure that the drop down entry bar is closed afterwards.
2.1.12 Use of an approved safety belt and lanyard, hard hat and appropriate safety clothing is mandatory.
Fasten harness to designated harness securing points within the platform and do not remove until
leaving the platform whilst in the stowed position.
2.1.13 Always remain standing within the platform. Do not attempt to increase your
height or reach by standing and/or climbing on the platform guard rails or
any other object. KEEP YOUR FEET ON THE PLATFORM FLOOR. Do not
sit, stand or climb on the guard rail, mid rail or boom linkage. Use of planks,
ladders or any other devices on the Niftylift for achieving additional height or
reach shall be prohibited.
2.1.14 Do not use the platform levelling system to artificially increase the outreach of the platform. Never
use boards or ladders in the platform to achieve the same result.
2.1.15 Do not use the platform to lift overhanging or bulky items which may exceed the maximum capacity
or carry objects which may increase the wind loading on the platform.
2.1.16 The Niftylift shall not be operated from a position on trucks, trailers, railway cars, floating vessels,
scaffolds or similar equipment unless the application is approved in writing by Niftylift Ltd in Great
Britain.
2.1.17 Before lowering or slewing, always check below and around the platform to ensure that the area is
clear of personnel and obstructions. Care should be taken when slewing out into areas where there
may be passing traffic. Use barriers to control traffic flow or prevent access to the machine.
2.1.18 Stunt driving and horseplay, on or around the Niftylift, shall not be permitted.
2.1.19 When other moving equipment and vehicles are present, special precautions shall be taken to
comply with local ordinances or safety standards established for the work place. Warnings such as,
but not limited to flags, roped off areas, flashing lights and barricades shall be used.
2.1.20 Before and during driving while the platform is elevated the operator shall maintain a clear view of
the path of travel, maintain a safe distance from obstacles, debris, drop offs, holes, depressions,
ramps and other hazards to ensure safe elevated travel. Maintain a safe distance from overhead
obstacles.
SD Series
Operating & Safety Instructions
English/USA 09/03 9
2.1.21 Under all travel conditions the operator shall limit travel speed according to conditions of ground
surface, congestion, visibility, slope, location of personnel and other factors causing hazards of
collision or injury to personnel.
2.1.22 The aerial platform shall not be driven on grades, side slopes or ramps exceeding those for which
the aerial platform is rated by the manufacturer.
2.1.23 It shall be the responsibility of the user to determine the hazard classification of any particular
atmosphere or location. Aerial platforms operated in hazardous locations shall be approved and
suitable for the duty. (See ANSI/NFPA 505-1987 where applicable).
2.1.24 The operator shall immediately report to his supervisor any potentially hazardous location(s)
(environment) which become evident during operation.
2.1.25 If an operator encounters any suspected malfunction of the Niftylift or any hazard or potentially
unsafe condition relating to capacity, intended use or safe operation, he shall cease operation of the
Niftylift and request further information as to safe operation from his management, or owner, dealer
or manufacturer before further operation of the Niftylift.
2.1.26 The operator shall immediately report to his superior any problems or malfunctions of the Niftylift,
which becomes evident during operation. Any problems or malfunctions that affect the safety of
operation shall be repaired prior to continued use.
2.1.27 The boom and platform of the Niftylift shall not be used to jack the wheels off the ground.
2.1.28 The Niftylift shall not be used as a crane.
2.1.29 The Niftylift shall not be positioned against another object to steady the platform.
2.1.30 Care should be taken to prevent rope, electric cords and hoses from becoming entangled in the
aerial platform.
2.1.31 Batteries shall be recharged in a well ventilated area free of flame, sparks or other hazards which
may cause explosion. Highly explosive hydrogen gas is produced during the charging process.
2.1.32 When checking electrolyte levels great care should be taken to protect eyes, skin and clothing.
Battery acid is highly corrosive and protective glasses and clothing is recommended.
2.1.33 If the platform or elevating assembly becomes caught, snagged or otherwise prevented from
normal motion by adjacent structure or other obstacles, such that control reversal does not free the
platform, all personnel shall be removed from the platform safely before attempts are made to free
the platform using ground controls.
2.1.34
When the machine is not in use always stow the booms correctly. NEVER
LEAVE THE KEYS IN THE MACHINE,if it is to be left for any period of time.
Use wheel chocks if leaving on an incline.
SD Series
Operating & Safety Instructions
English/USA 09/03 10
2.1.35 The engine must be shut down while fuel tanks are being filled. Fuelling must be done in a well
ventilated area free of flame, sparks or any other hazard which may cause fire or explosion.
PETROL (GASOLINE), LIQUID PROPANE AND DIESEL FUELS ARE FLAMMABLE.
2.1.36
NEVER START THE NIFTYLIFT IF YOU SMELL PETROL (GASOLINE),
LIQUID PROPANE OR DIESEL FUEL.THESE FUELS ARE HIGHLY
FLAMMABLE
2.1.37 The operator shall implement means provided to protect against use by unauthorised persons.
2.1.38 Never remove anything that may affect the stability of the machine such as, but not limited to,
batteries, covers, engines, tyres or ballast.
2.2 ENVIRONMENTAL LIMITATIONS
All Niftylift Self Drives are limited to operation as previously described. Unless specifically
configured otherwise, the machine will have short time rating for operation in extreme temperatures,
i.e. reduced battery cycle times for low temperatures, e.g. freezers, food storage etc, cooling
limitations for high temperatures, i.e. oil temperature not to exceed -23 to 93°Celsius.
Extended operation in dusty environments is not recommended, frequent cleaning will be
necessary. All dust, dirt, salt encrustation, excess oil or grease should be removed. Deposits of
paint or bitumen, particularly on legends or labels should be removed.
All standard Niftylift machines are rated for a wind speed of 12.5 m/s, which equates to 45kph /
28mph or force 6 on the Beaufort scale. No attempt should be made to operate a Niftylift in wind
strengths above this limit and if the operator has any doubts over the wind speed he / she should
cease operation immediately until it can be established that the wind speed has fallen to a safe
level.
2.3 NOISE AND VIBRATION
The airborne noise emission on the 170SD range of machines does not exceed 79dB(A), measured
at a perpendicular distance of 4m, under equivalent continuous A-weighted sound pressure test
conditions. This was based on a Diesel powered machine, working on high throttle, and under load.
All other models will exhibit significantly lower emissions than this figure, dependant on power
option.
In normal operation the Vibration level to which the operator is subjected will not exceed a weighted
root mean square acceleration value of 2.5 m/s2.
SD Series
Operating & Safety Instructions
English/USA 09/03 11
3. Preparation and Inspection
3.1 UNPACKING
Since the manufacturer has no direct control over the shipping or carriage of any Niftylift it is the
responsibility of the dealer and/or owner and/or leaser to ensure the Niftylift has not been damaged
in transit and a Pre-operational Report has been carried out by a qualified engineer before the aerial
platform is put into service.
A) Remove all ropes, straps and or chains used to secure the aerial platform during transit.
B) Ensure any ramp, loading dock or fork lift used is capable of supporting or lifting the aerial
platform.
C) If the aerial platform is to be driven off, please ensure that the operator has read and fully
understood this entire manual. Refer to the appropriate section for precise operating
instructions.
***Carry out the Inspection/service/pre-hire check list (see pages 38 & 39) before placing machine
in service.
3.2 PREPARATION FOR USE
Whilst every effort has been made at the Niftylift factory to ensure your machine arrives in a safe
and operable condition it is necessary to carry out a systematic inspection prior to putting the aerial
platform into service.
THIS IS NOT A REQUEST IT IS MANDATORY
To assist the user in this task you will find enclosed a Inspection/service/pre-hire check list, which
must be filled out upon delivery/receipt of the machine.
Before the user carries out the Pre-operational Report he must have read and fully understood all
the contents of the Operating, Safety and Maintenance Manual.
WARNING - FAILURE TO COMPLETE THE INITIAL PRE-OPERATIONAL
REPORT AND RETURN THE TOP COPY TO NIFTYLIFT RENDERS THE
WARRANTY INVALID.
WARNING - DO NOT OPERATE A POTENTIALLY DEFECTIVE OR
MALFUNCTIONING MACHINE. CORRECT AND REPAIR ANY DEFECTS
BEFORE OPERATING YOUR NIFTYLIFT.
SD Series
Operating & Safety Instructions
English/USA 09/03 12
3.3 PRE-OPERATIONAL SAFETY CHECK SCHEDULES
Before use at the beginning of the work shift, the aerial platform shall be given a visual inspection and
functional tests including, but not limited to the following. It is recommended that these be performed at
regular intervals as indicated on each checklist.
3.3.1 DAILY SAFETY CHECKS
1) Check that all labels (decals) are in place and legible.
2) Visually inspect the machine for damaged or loose components.
3) Check that batteries are charged i.e. Charger has a solid green light and a pulsing red light.
4) Check the fuel level (if applicable).
5) Check that canopies/covers and guards are in place and secure.
6) Check that the boom rest switch is operable (if applicable).
7) Check that control levers are secure and operate freely.
8) Check that operating buttons and emergency stop buttons function properly.
9) Check the operation of the emergency hand pump.
10) Visually inspect all hydraulic hoses and fittings for damage or leaks.
11) Check operation of the stabiliser alarm.
12) Check that outrigger footpads are secure.
13) Check that the platform pivot pins and their tag bolts are secure.
14) Check security and operation of the boom clamp.
15) Check that the tilt alarm is functioning properly (On a slope of 50or more the alarm should
sound and drive should be disabled)
3.3.2 WEEKLY SAFETY CHECKS
1) Inspect tyres and wheels for damage and wear.
2) Check tyres for correct pressure. 65psi (4.5 bar)
3) Check battery fluid levels and specific gravity (after charging) and general condition.
4) Check hydraulic oil level (ISO Grade 22).
5) Inspect the engine air filter and clean or replace if necessary.
6) Check operation and security of stabiliser micro switches in conjunction with the alarm
system.
7) Inspect hose track for damage or missing parts.
SD Series
Operating & Safety Instructions
English/USA 09/03 13
3.3.3 MONTHLY SAFETY CHECKS
1) Check the engine oil level (if applicable).
2) Check the wheel nuts (torque 65ft lbs / 86Nm).
3) Check outriggers for condition, security and operation.
4) Check that the slew worm is secure and correctly in mesh. Clean and re-grease.
5) Inspect brakes for operation and wear.
6) Grease the knuckle and centre post.
7) Inspect the engine fuel tank for damage or leaks.
8) Check telescopic boom wear pads and nylon studs (if applicable).
9) Lightly oil the jack pad ball joints and outrigger housings.
10) Check that the bolts holding the wheel motors to the chassis are secure.
3.3.4 ANNUAL SAFETY CHECKS
1) Check that all pivot pins and their tag bolts are secure.
2) Inspect for any cracks or badly rusted areas on booms and chassis.
3) Change the hydraulic oil filters.
4) Inspect the suspension on each rear axle unit.
5) Check that slew ringbolts are secure (torque 155ft lbs. 210Nm).
SD Series
Operating & Safety Instructions
English/USA 09/03 14
3.4 PLACARD, DECALS & INSTALLATION (UK SPEC)
ITEM DESCRIPTION NUMBER QTY
1 'CE' Label P12253 1
2 Outrigger Alarm P14879 2
3 Crush Hazard - Verbal P14783 1
4 Jack/Boom Change Over P15636 1
5 Must Not Operate P11542 2
6 Battery Acid P14872 2
7 ‘Danger HR and Trailers’ P15227 2
8
9 Emergency H/pump P14807 1
10 Trip - Reset P10875 3
11 Outriggers P14855 5
12 Basket Levelling P10853 1
13 Isolator On/Off P12230 1
14 Wheel Release P15550 1
15 Brake Override P12883 1
16 Footswitch P14884 1
17 Harness Points P14883 2
18 Jack Controls (Electric) P11903 1
19 Jack Controls (Manual) P15635 1
20 Cage Rotation P15634 1
21 Fuelling P14900 1
22
23 Battery Charging P14904 1
24
25 Head Protection P14921 1
SD Series
Operating & Safety Instructions
English/USA 09/03 15
ITEM DESCRIPTION NUMBER QTY
26
27 Drive Steer P12850 1
28
29
30
31
32
33 Ground Levers P14926 1
34 Platform Levers P14927 1
35 Pushbuttons P11828 1
36 Platform Capacity P14801 1
37 Base Key Switch P15221 1
38 Diesel Fuel Only P14414 1
39 Identity Plate P15383 1
40 'Niftylift' Logo P14597 4
41 Model Number P14600 2
42 Union Jack P10780 1
SD Series
Operating & Safety Instructions
English/USA 09/03 16

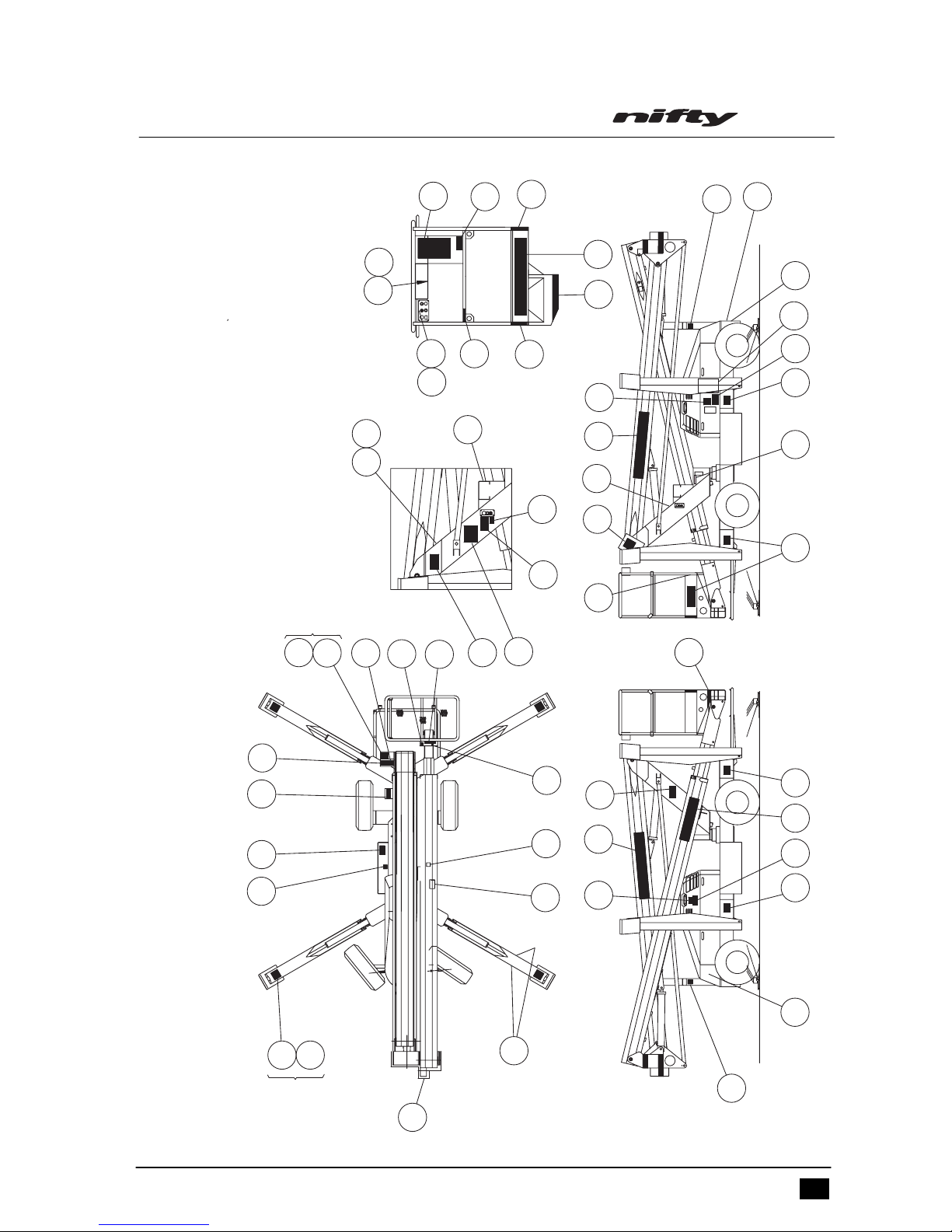

2 0FF-
2 0FF-
UNDER COVER
UNDER COVER
25
25
36
36
11
11
11
11
41
41
2
2
37
37
D80298/3
D80298/3
11
11
23
23
11
11
43
43
35
35
34
34
2
2
17
17
17
17
GROUND CONTROLS
GROUND CONTROLS
PLATFORM CONTROLS
PLATFORM CONTROLS
16
16
14
14
33
33
27
27
4
4
7
7
41
41
9
9
26
26
40
40
29
29
30
30
OPTIONS
OPTIONS
4 POSNS.
4 POSNS.
6
6
28
28
6
6
28
28
12
12
31
31
32
32
22
22
42
42
1
1
43
43
43
43
44
44
OPTIONS
OPTIONS
43
43
ALONG ALL
ALONG ALL
4 BOOM EDGES.
4 BOOM EDGES.
4 POSNS.
4 POSNS.
43
43
13
13
7
7
43
43
22
22
3
3
39
39
10
10
20
20
21
21
38
38
40
40
18
18
19
19
OPTIONS
OPTIONS
15
15
SD Series
Operating & Safety Instructions
English/USA 09/03 17
3.4 PLACARD, DECALS & INSTALLATION (USA SPEC)
ITEM DESCRIPTION NUMBER QTY
1 Emergency Stop P14864 3
2 Outrigger Alarm P14879 2
3 Crush Hazard - Verbal P14783 4
4 Crush Hazard - Pictorial P14782 6
5 Must Not Operate P11542 2
6 Battery Acid P14872 2
7 Rotating Machinery P15010 2
8 Operating Instructions P14892 1
9 Emergency H/pump P14807 1
10 Trip - Reset P10875 3
11 Outriggers P14836 4
12 Boom Clamp P14841 2
13 Isolator On/Off P14021 1
14 Wheel Release P15550 1
15 Pinch Point P14872 5
16 Footswitch P14884 1
17 Harness Points P14883 2
18 Component Stability P15553 1
19 Jack Controls P15635 1
20 Cage Rotation P15634 1
21 Fuelling P14900 1
22 Inspection & Use P14421 1
23 Battery Charging P14904 1
24 No Step (Large) P14785 8
25 Head Protection P11570 1
SD Series
Operating & Safety Instructions
English/USA 09/03 18
ITEM DESCRIPTION NUMBER QTY
26 No Step (Small) P14785 6
27 Drive/Steer P12850 1
28 Ground Controls P11577 1
29 Daily Safety Check List P14908 2
30 Setting Up P14888 1
31 Platform Controls P11581 1
32 Charger Supply P14904 1
33 Ground Levers P14928 1
34 Platform Levers P14927 1
35 Pushbuttons P11828 1
36 Platform Capacity P14781 1
37 Base Key Switch P15221 1
38 Diesel Fuel Only P14414 1
39 Identity Plate P15383 1
40 'Niftylift' Logo P14597 4
41 Model Number P14600 2
42 'British Made' P10780 1
This manual suits for next models
1
Table of contents
Other nifty Boom Lift manuals
nifty
nifty Heightrider HYBRID Series Assembly instructions
nifty
nifty Heightrider HR17N Assembly instructions
nifty
nifty SP45 Assembly instructions
nifty
nifty SD64 Series Assembly instructions
nifty
nifty SD Series Assembly instructions
nifty
nifty TrackDrive TD120T Series Assembly instructions
nifty
nifty 140 Series Quick guide
nifty
nifty Niftylift Heightrider HR15N Series Assembly instructions
nifty
nifty TM Series Quick guide
nifty
nifty SD64 Series User manual
