Operator's Manual
Z®-33
DC Power
from Z3318M-2801
CE
with
Maintenance
Information
Original
Instructions
First
Edition
Second
Printing
Part No.
1257143GT
Front Matter

Operator's Manual First Edition • Second Printing
Introduction
Z®-33 Part No. 1257143GT
Manufacturer:
Terex Global GmbH
Bleicheplatz 2
Schaffhausen, 8200
Switzerland
EU Authorized representative:
Genie Industries B.V.
Boekerman 5
4751 XK OUD GASTEL
The Netherlands
UK Authorized representative:
Genie UK Limited
The Maltings
Wharf Road
Grantham
NG31 6BH
UK
Contents
Introduction ........................................................... 1
Symbol and Hazard Pictorials Definitions............. 5
General Safety ...................................................... 7
Personal Safety................................................... 10
Work Area Safety................................................ 11
Legend ................................................................ 19
Controls............................................................... 20
Inspections.......................................................... 25
Operating Instructions......................................... 38
Transport and Lifting Instructions ....................... 47
Maintenance ....................................................... 50
Specifications...................................................... 52
Copyright © 2014 Terex Corporation
First Edition: Second Printing, April 2022
Genie and "Z" are registered trademarks of Terex South
Dakota, Inc. in the U.S.A. and many other countries.
Complies with EC Directive 2006/42/EC
See EC Declaration of Conformity
Supply of Machinery (Safety) Regulations 2008

First Edition • Second Printing Operator's Manual
Introduction
Part No. 1257143GT Z®-33 1
Introducti on
About this manual
Genie appreciates your choice of our machine for
your application. Our number one priority is user
safety, which is best achieved by our joint efforts.
This book is an operation and daily maintenance
manual for the user or operator of a Genie
machine.
This manual should be considered a permanent
part of your machine and should remain with the
machine at all times. If you have any questions,
contact Genie.
Product Identification
The machine serial number is located on the serial
label.
Serial label
(located under cover)
Serial number stamped on
chassis
Intended Use and Familiarization
Guide
The intended use of this machine is to lift
personnel, including tools, and materials to an
aerial work site. Before operating the machine, it’s
the operator’s responsibility to read and
understand this familiarization guide.
Each person must be trained to operate a
Mobile Elevating Work Platform (MEWP).
Familiarization with the MEWP must be given
to each person who is authorized, competent
and trained.
Only trained and authorized personnel should
be permitted to operate the machine.
The operator is responsible to read,
understand, and obey the manufacturer’s
instructions and safety rules provided in the
Operator’s Manual.
The Operator’s Manual is located in the
manual storage container, at the platform.
For specific product applications, see
Contacting The Manufacturer.

Operator's Manual First Edition • Second Printing
Introduction
2 Z®-33 Part No. 1257143GT
Platform controls symbology and related
machine movement:
Platform level
Primary boom up/down
Turntable rotate
Primary boom extend/retract
Secondary boom up/down
Drive forward/reverse
Steer
right/left
Ground controls symbology and related
machine movement:
Platform level, Primary
boom extend/retract,
Primary boom up/down,
Secondary boom
up/down
Turntable rotate
Sequential functions and movement:
•Drive and steer.
Interlocked functions:
•Elevated drive speed.
•Elevated drive in an off-level condition.
•Drive enable when the boom is rotated past the
non-steer wheels.
•All platform and ground controls.
Limitations of use:
•The intended use of this machine is to lift
personnel, including tools, and materials to an
aerial work site.
•Do not elevate the platform unless the machine
is on firm level ground.

First Edition • Second Printing Operator's Manual
Introduction
Part No. 1257143GT Z®-33 3
Bulletin Distribution and
Compliance
Safety of product users is of paramount
importance to Genie. Various bulletins are used by
Genie to communicate important safety and
product information to dealers and machine
owners.
The information contained in the bulletins is tied to
specific machines using the machine model and
serial number.
Distribution of bulletins is based on the most
current owner on record along with their
associated dealer, so it is important to register
your machine and keep your contact information
up to date.
To ensure safety of personnel and the reliable
continued operation of your machine, be sure to
comply with the action indicated in a respective
bulletin.
Contacting the Manufacturer
At times it may be necessary to contact Genie.
When you do, be ready to supply the model
number and serial number of your machine, along
with your name and contact information. At
minimum, Genie should be contacted for:
Accident reporting
Questions regarding product applications and
safety
Standards and regulatory compliance information
Current owner updates, such as changes in
machine ownership or changes in your contact
information. See Transfer of Ownership, below.
Transfer of Machine Ownership
Taking a few minutes to update owner information
will ensure that you receive important safety,
maintenance and operating information that
applies to your machine.
Please register your machine by visiting us on the
web at www.genielift.com or by calling us toll free
at 1-800-536-1800.

Operator's Manual First Edition • Second Printing
Introduction
4 Z®-33 Part No. 1257143GT
Danger
Failure to obey the instructions and
safety rules in this manual will result
in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator’s
manual.
1 Avoid hazardous situations.
Know and understand the safety rules
before going on to the next section.
2 Always perform a pre-operation inspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
You read, understand and obey the
manufacturer’s instructions and safety rules—
safety and operator’s manuals and machine
decals.
You read, understand and obey employer’s
safety rules and worksite regulations.
You read, understand and obey all applicable
governmental regulations.
You are properly trained to safely operate the
machine.
Safety Sign Maintenance
Replace any missing or damaged safety signs.
Keep operator safety in mind at all times. Use mild
soap and water to clean safety signs. Do not use
solvent-based cleaners because they may
damage the safety sign material.
Hazard Classification
Decals on this machine use symbols, color coding,
and signal words to identify the following:
Safety alert symbol
—
used to alert
you to potential personal injury
hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
Indicates a hazardous
situation
which, if not avoided, will result in
death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in minor or m
oderate injury.
Indicates a property damage
message.

First Edition • Second Printing Operator's Manual
Symbol and Hazard Pictorials Definitions
Part No. 1257143GT Z®-33 5
Symbol and Hazard Pic torials Definiti ons
Crush hazard Explosion hazard Collision hazard Collision hazard Runaway hazard
Tip-over hazard Tip-over hazard Raise platform on
firm, level surface
Electrocution hazard Maintain required
clearance
Color coded direction
arrows
Maximum capacity Wind speed Manual force Access by trained
and authorized
personnel only
Electrocution hazard Grounded AC 3-wire
outlet only
Replace damaged
wires and cords
Batteries used as
counterweights
Burn hazard

Operator's ManualFirst Edition • Second Printing
Symbol and Hazard Pictorials Definitions
6 Z®-33 Part No. 1257143GT

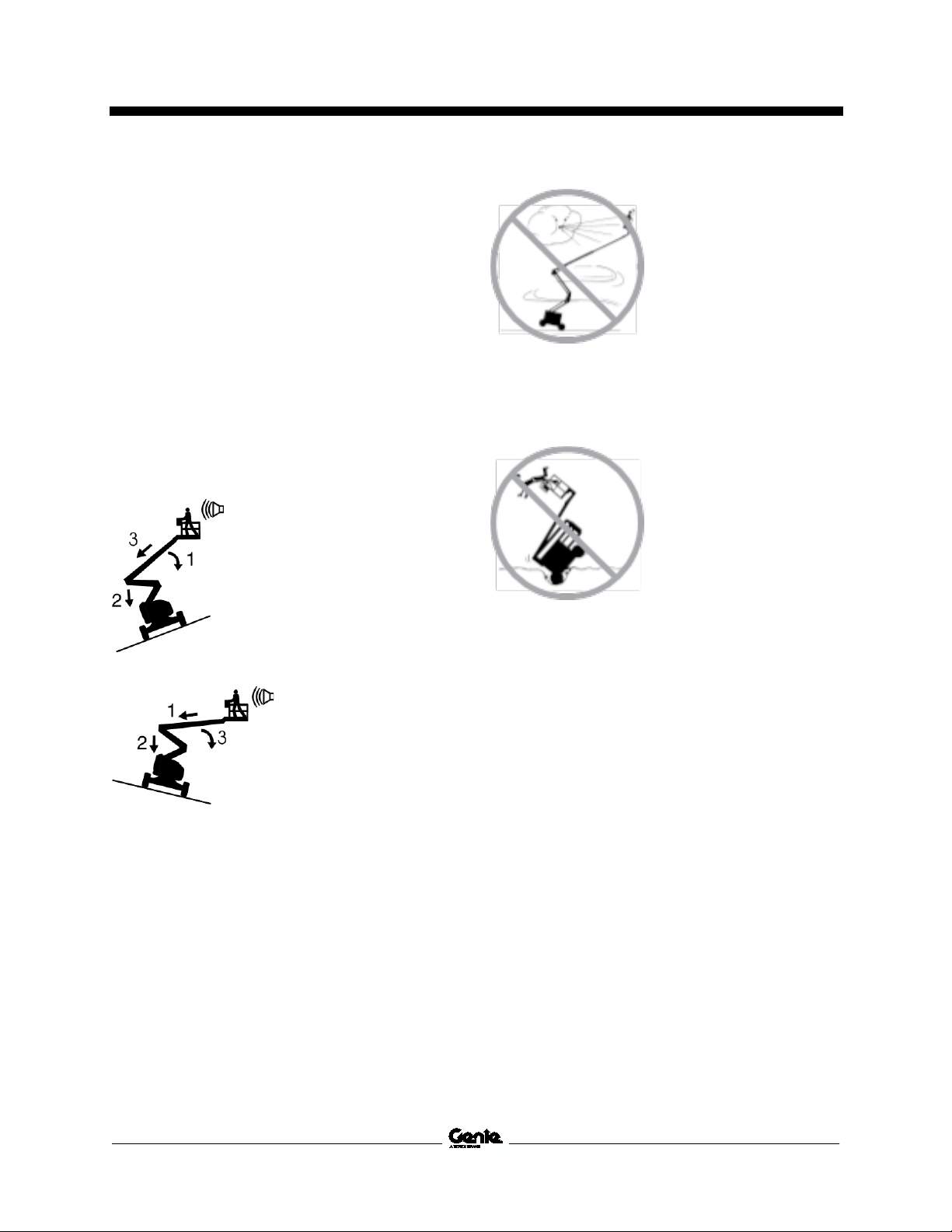

Recovery procedure if tilt alarm sounds
while elevated.
No smoking.
No flame.
Stop engine.
Read the operator’s
manual
Platform uphill:
1 Lower primary.
2 Lower secondary.
3 Retract primary.
Platform downhill:
1 Retract primary.
2 Lower secondary.
3 Lower primary.
Wheel load
Lanyard anchorage
points
Replace tires with
tires of same
specification.
Voltage rating for
power to platform
Pressure rating for air
line to platform
No smoking
Emergency lowering Crush hazard Support the platform
or boom during
maintenance
Lifting point Tie-down point
Platform tie-down
instructions
Lifting and tie down
instructions

First Edition • Second Printing Operator's Manual
General Safety
Part No. 1257143GT Z®-33 7
General Safety

Operator's Manual First Edition • Second Printing
General Safety
8 Z®-33 Part No. 1257143GT

First Edition • Second Printing Operator's Manual
General Safety
Part No. 1257143GT Z®-33 9

Operator's Manual First Edition • Second Printing
Personal Safety
10 Z®-33 Part No. 1257143GT
Personal Safet y
Personal Fall Protection
Personal fall protection equipment (PFPE) is
required when operating this machine.
Occupants must wear a safety belt or harness in
accordance with governmental regulations. Attach
the lanyard to the anchor provided in the platform.
Operators must comply with employer, job site and
governmental rules regarding the use of personal
protective equipment.
All PFPE must comply with applicable
governmental regulations, and must be inspected
and used in accordance with the PFPE
manufacturer’s instructions.

First Edition • Second Printing Operator's Manual
Work Area Safety
Part No. 1257143GT Z®-33 11
Work Area Safet y
Electrocution Hazards
This machine is not electrically insulated and will
not provide protection from contact with or
proximity to electrical current.
Obey all local and
governmental regulations
regarding required
clearance from electrical
power lines. At a minimum,
the
required clearance
contained in the chart
below must be followed.
Line Voltage
Required Clearance
0
to 50KV 10 f
t
3.05
m
5
0 to 200KV 15 f
t
4.60
m
20
0 to 350KV 20 f
t
6.10
m
35
0 to 500KV 25 f
t
7.62
m
50
0 to 750KV 35 f
t
10.67
m
75
0 to 1000KV 45 f
t
13.72
m
Allow for platform movement, electrical line sway
or sag, and beware of strong or gusty winds.
Keep away from the
machine if it contacts
energized power lines.
Personnel on the ground
or in the platform must not
touch or operate the
machine unt
il energized
power lines are shut off.
Do not operate the machine during lightning or
storms.
Do not use the machine as a ground for welding.
Tip-over Hazards
Occupants, equipment and materials shall not
exceed the maximum platform capacity or the
maximum platform capacity of the platform
extension.
Maximum platform capacity
440 lbs/200 k
g
Maximum occupants
2
The weight of options and accessories, such as
pipe cradles, panel cradles and welders, will
reduce the rated platform capacity and must be
subtracted from the platform capacity. See the
decals with the options and accessories.
If using accessories, read, understand and obey
the decals, instructions and manuals with the
accessory.
Do not alter or disable the limit switches.
Do not raise o
r extend the
boom unless the machine
is on a firm, level surface.

Operator's Manual First Edition • Second Printing
Work Area Safety
12 Z®-33 Part No. 1257143GT
Do not depend on the tilt alarm as a level indicator.
The tilt alarm sounds in the platform only when the
machine is on a severe slope.
If the tilt alarm sounds while the boom is lowered:
Do not extend, rotate or raise the boom above
horizontal. Move the machine to a firm, level
surface before raising the platform.
If the tilt alarm sounds when the platform is raised,
use extreme caution. The machine not level
indicator light will come on and the drive function
in one or both directions will not operate. Identify
the condition of the boom on the slope as shown
below. Follow the steps to lower the boom before
moving to a firm, level surface. Do not rotate the
boom while lowering.
I
f the tilt alarm sounds
with the platform uphill:
1
Lower the primary
boom.
2
Lower the
secondary boom.
3
Retract the primary
boom.
If the tilt alarm sounds
with the platform
downhill:
1
Retract the primary
boom.
2
Lower the
secondary boom.
3
Lower the primary
boom.
Do not raise the boom
when wind speeds may
exceed 12.
5 m/s. If wind
speeds exceed 12.
5 m/s
when the boom is raised,
lower the boom and do
not continue to operate
the machine.
Do not operate the machine in strong or gusty
winds. Do not increase the surface area of the
platform or the load. Increasing the area exposed
to the wind will decrease machine stability.
Use extreme care and
slow speeds while driving
the machine in the stowed
position across uneven
terrain, debris, unstable or
slippery surfaces and near
holes and drop
-offs.
Do not drive the machine on or near uneven
terrain, unstable surfaces or other hazardous
conditions with the boom raised or extended.
Do not use the machine as a crane.
Do not push the machine or other objects with the
boom.
Do not contact adjacent structures with the boom.
Do not tie the boom or platform to adjacent
structures.
Do not place loads outside the platform perimeter.

First Edition • Second Printing Operator's Manual
Work Area Safety
Part No. 1257143GT Z®-33 13
Do not push off or pull
toward any object outside
of the platform.
Maxi
mum allowable
manual force:
400 N
Do not alter or disable machine components that
in any way affect safety and stability.
Do not replace items critical to machine stability
with items of different weight or specification.
Do not replace factory-installed tires with tires of
different specification or ply rating.
Do not use air-filled tires. These machines are
equipped with solid tires.
Wheel weight and proper counterweight
configuration are critical to stability.
Do not modify or alter a mobile elevating work
platform without prior written permission from the
manufacturer. Mounting attachments for holding
tools or other materials onto the platform,
toeboards, or guard rail system can increase the
weight in the platform and the surface area of the
platform or the load.
Do not place or attach
fixed or overhanging loads
to any part of this
machine.
Do not place ladders or
scaffolds in the platform or
against any part of this
machine.
Do not transport tools and materials unless they
are evenly distributed and can be safely handled
by person(s) in the platform.
Do not use the machine on a moving or mobile
surface or vehicle.
Be sure the tires are in good condition and the lug
nuts tightened.
Do not use the platform controls to free a platform
that is caught, snagged, or otherwise prevented
from normal motion by an adjacent structure. All
personnel must be removed from the platform
before attempting to free the platform using the
ground controls.
Do not use batteries that weigh less than the
original equipment. Batteries are used as
counterweight and are critical to machine stability.
Each battery must weigh a minimum of
105 lbs/47.6 kg. Each battery box including
batteries must weigh a minimum of
530 lbs/240.4 kg.

Operator's Manual First Edition • Second Printing
Work Area Safety
14 Z®-33 Part No. 1257143GT
Operation on Slopes Hazards
Do not drive the machine on a slope that exceeds
the maximum uphill, downhill or side slope rating
of the machine. Slope rating applies only to
machines in the stowed position.
Maximum slope rating, stowed position, 4WD
Platform downhill
30%
(17°)
Platform uphill
20%
(11°)
Side slope
25%
(14°)
Note: Slope rating is subject to ground conditions
with one person in the platform and adequate
traction. Additional platform weight may reduce
slope rating. See Driving on a Slope in the
Operating Instructions section.
Fall Hazards
Occupants must wear a
safety belt or harness in
accordance with
governmental regulations.
Attach the lanyard to the
anchor provided in the
platform.
Do not sit, stand, or climb
on the platform guard
rails.
Maintain a firm footing on
the platform floor at all
times.
Do not climb down from the
platform when raised.
Keep the platform floor clear of debris.
Lower the platform entry mid-rail or close the entry
gate before operating.
Do not enter or exit the platform unless the
machine is in the stowed position and the platform
is at ground level.
Hazards related with the specific product
application of exiting at height have been
considered in the design of the machine, for
further information contact Genie (see section
Contacting the Manufacturer).

First Edition • Second Printing Operator's Manual
Work Area Safety
Part No. 1257143GT Z®-33 15
Collision Hazards
Be aware of limited sight
distance and blind spots
when driving or operating.
Be aware of the boom position and tailswing when
rotating the turntable.
Check the work area for
overhead obstructions or
other possible hazards.
Be aware of crushing
hazards when grasping
the platform guard rail.
Operators must comply with employer, job site,
and governmental rules regarding use of personal
protective equipment.
Observe and use the color-coded direction arrows
on the platform controls and drive chassis for drive
and steer functions.
Do not lower the boom
unless the area below is
clear of personnel and
obstructions.
Limit travel speed
according to the condition
of the
ground surface,
congestion, slope, location
of personnel, and any
other factors which may
cause collision.
Do not operate a boom in the path of any crane
unless the controls of the crane have been locked
out and/or precautions have been taken to prevent
any potential collision.
No stunt driving or horseplay while operating a
machine.

Operator's Manual First Edition • Second Printing
Work Area Safety
16 Z®-33 Part No. 1257143GT
Bodily Injury Hazard
Do not operate the machine with a hydraulic oil or
air leak. An air leak or hydraulic leak can penetrate
and/or burn skin.
Improper contact with components under any
cover will cause serious injury. Only trained
maintenance personnel should access
compartments. Access by the operator is only
advised when performing a pre-operation
inspection. All compartments must remain closed
and secured during operation.
Explosion and Fire Hazards
Charge the battery only in an open, well-ventilated
area away from sparks, flames and lighted
tobacco.
Do not operate the machine in hazardous
locations or locations where potentially flammable
or explosive gases or particles may be present.
Damaged Machine Hazards
Do not use a damaged or malfunctioning machine.
Conduct a thorough pre-operation inspection of
the machine and test all functions before each
work shift. Immediately tag and remove from
service a damaged or malfunctioning machine.
Be sure all maintenance has been performed as
specified in this manual and the appropriate Genie
service manual.
Be sure all decals are in place and legible.
Be sure the operator's manual is complete, legible,
and in the storage container located on the
machine.
Component Damage Hazards
Do not use the machine as a ground for welding.
Do not expose the motor pump to water.
When the boom is not completely retracted, some
machine components may collide with the ground
or the chassis. Be careful while the platform is
approaching to the ground.

First Edition • Second Printing Operator's Manual
Work Area Safety
Part No. 1257143GT Z®-33 17
Battery Safety
Burn Hazards
Batteries contain acid.
Always wear protective
clothing and eye wear when
working with batteries.
Avoid spilling or contacting
battery acid. Neutralize
battery acid spills with baking
soda and water.
The battery pack must remain in the upright
position.
Do not expose the batteries or the charger to
water or rain.
Explosion Hazards
Keep sparks, flames, and
lighted tobacco away from
batteries. Batteries emit
explosive gas.
The battery pack covers
should remain open during
the entire charging cycle.
Do not contact the battery
terminals or the cable
clamps with tools that may
cause sparks.
Component Damage Hazard
Do not use any battery charger greater than 48V
to charge the function batteries.
Both battery packs must be charged together.
Disconnect the battery pack plug before removing
the battery pack.
Electrocution/Burn Hazards
Connect the battery charger to a
grounded, AC 3
-wire electrical
outlet only.
Inspect daily for damaged cords,
cables and wires. Replace
damaged items before operating.
Avoid electrical shock from
contact with battery terminals.
Remove all rings, watches and
other jewelry.
Tip-over Hazard
Do not use batteries that weigh less than the
original equipment. Batteries are used as
counterweight and are critical to machine stability.
Each battery must weigh a minimum of
105 lbs/47.6 kg. Each battery box including
batteries must weigh a minimum of
530 lbs/240.4 kg.
Lifting Hazard
Use a forklift to remove or install a battery pack.

Operator's Manual First Edition • Second Printing
Work Area Safety
18 Z®-33 Part No. 1257143GT
Contact Alarm Safety
Read, understand and obey all warnings and
instructions provided with the contact alarm.
Do not exceed the rated platform capacity. The
weight of the contact alarm assembly will reduce
the rated platform capacity and must be subtracted
from the total platform load.
The contact alarm assembly weighs 10 lbs/4.5 kg.
Be sure the contact alarm is securely installed.
Lockout After Each Use
1 Select a safe parking location—firm level
surface, clear of obstruction and traffic.
2 Retract and lower the boom to the stowed
position.
3 Rotate the turntable so that the boom is
between the non-steer wheels.
4 Turn the key switch to the off position and
remove the key to secure from unauthorized
use.
