Operator's Manual
Serial Number Range
Z®-45 XC™
from Z4525XCF-1501
from Z4525XCM-
1501
CE
with
Maintenance
Information
Original Instructions
Second Edition
Second
Printing
Part No. 1305353GT

Operator's Manual Second Edition • Second Printing
Z®-45 XC™Part No. 1305353GT
Front Matter
Manufacturer:
Terex Global GmbH
Bleicheplatz 2
Schaffhausen, 8200
SwitzerlandTerex
EU Authorized representative:
Genie Industries B.V.
Boekerman 5
4751 XK OUD GASTEL
The Netherlands
UK Authorized representative:
Genie UK Limited
The Maltings
Wharf Road
Grantham
NG31 6BH
UK
Contents
Introduction ........................................................... 1
Symbol and Hazard Pictorials Definitions............. 6
General Safety ...................................................... 9
Personal Safety................................................... 12
Work Area Safety................................................ 13
Legend ................................................................ 22
Controls............................................................... 23
Inspections.......................................................... 37
Operating Instructions......................................... 51
Transport and Lifting Instructions ....................... 65
Maintenance ....................................................... 68
Specifications...................................................... 72
Copyright © 2017 Terex Corporation
Second Edition: Second Printing, April 2022
Genie and "Z" are registered trademarks of
Terex South Dakota, Inc. in the U.S.A. and many other
countries.
"XC" is a trademark of Terex South Dakota, Inc.
Complies with EC Directive 2006/42/EC
See EC Declaration of Conformity
Supply of Machinery (Safety) Regulations 2008

Second Edition • Second Printing Operator's Manual
Introduction
Part No. 1305353GT Z®-45 XC™1
Introducti on
About this manual
Genie appreciates your choice of our machine for
your application. Our number one priority is user
safety, which is best achieved by our joint efforts.
This book is an operation and daily maintenance
manual for the user or operator of a Genie
machine.
This manual should be considered a permanent
part of your machine and should remain with the
machine at all times. If you have any questions,
contact Genie.
Product Identification
The machine serial number is located on the serial
label.
Serial number stamped
on chassis
Serial label
(located under cover)
Intended Use and Familiarization
Guide
The intended use of this machine is to lift personnel,
including tools, and materials to an aerial work site.
Before operating the machine, it’s the operator’s
responsibility to read and understand this
familiarization guide.
Each person must be trained to operate a
Mobile Elevating Work Platform (MEWP).
Familiarization with the MEWP must be given
to each person who is authorized, competent
and trained.
Only trained and authorized personnel should
be permitted to operate the machine.
The operator is responsible to read,
understand, and obey the manufacturer’s
instructions and safety rules provided in the
Operator’s Manual.
The Operator’s Manual is located in the
manual storage container, at the platform.
For specific product applications, see
Contacting The Manufacturer.

Operator's Manual Second Edition • Second Printing
Introduction
2 Z®-45 XC™Part No. 1305353GT
Platform controls symbology and related
machine movement:
Platform level
Platform rotate
Jib boom up/down
Primary boom up/down
Turntable rotate
Primary boom extend/retract
Secondary boom up/down
Drive forward/reverse
Steer right/left

Second Edition • Second Printing Operator's Manual
Introduction
Part No. 1305353GT Z®-45 XC™3
Ground controls symbology and related
machine movement:
Platform level
Platform rotate
Jib boom up/down
Primary
boom up/down
Turntable rotate
Primary boom extend/retract
Secondary boom up/down
Sequential functions and movement:
•Drive and steer.
Interlocked functions:
•Elevated drive speed.
•Elevated drive in an off-level condition.
•Drive enable when the boom is rotated past the
non-steer wheels.
•All platform and ground controls.
Limitations of use:
•The intended use of this machine is to lift
personnel, including tools, and materials to an
aerial work site.
•Do not elevate the platform unless the machine
is on firm level ground.
Stability enhancing means:
•Foam filled tires
Restricted operating envelope:
•500 lbs/227 kg platform capacity.

Operator's Manual Second Edition • Second Printing
Introduction
4 Z®-45 XC™Part No. 1305353GT
Bulletin Distribution and
Compliance
Safety of product users is of paramount importance
to Genie. Various bulletins are used by Genie to
communicate important safety and product
information to dealers and machine owners.
The information contained in the bulletins is tied to
specific machines using the machine model and
serial number.
Distribution of bulletins is based on the most
current owner on record along with their associated
dealer, so it is important to register your machine
and keep your contact information up to date.
To ensure safety of personnel and the reliable
continued operation of your machine, be sure to
comply with the action indicated in a respective
bulletin.
Contacting the Manufacturer
At times it may be necessary to contact Genie.
When you do, be ready to supply the model
number and serial number of your machine, along
with your name and contact information. At
minimum, Genie should be contacted for:
Accident reporting
Questions regarding product applications and
safety
Standards and regulatory compliance information
Current owner updates, such as changes in
machine ownership or changes in your contact
information. See Transfer of Ownership, below.
Transfer of Machine Ownership
Taking a few minutes to update owner information
will ensure that you receive important safety,
maintenance and operating information that
applies to your machine.
Please register your machine by visiting us on the
web at www.genielift.com or by calling us toll free
at 1-800-536-1800.

Second Edition • Second Printing Operator's Manual
Introduction
Part No. 1305353GT Z®-45 XC™5
Danger
Failure to obey the instructions and
safety rules in this manual will result
in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator’s
manual.
1 Avoid hazardous situations.
Know and understand the safety rules
before going on to the next section.
2 Always perform a pre-operation inspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
You read, understand and obey the
manufacturer’s instructions and safety
rules—safety and operator’s manuals and
machine decals.
You read, understand and obey employer’s
safety rules and worksite regulations.
You read, understand and obey all applicable
governmental regulations.
You are properly trained to safely operate the
machine.
Safety Sign Maintenance
Replace any missing or damaged safety signs.
Keep operator safety in mind at all times. Use mild
soap and water to clean safety signs. Do not use
solvent-based cleaners because they may damage
the safety sign material.
Hazard Classification
Decals on this machine use symbols, color coding,
and signal words to identify the following:
Safety alert symbol
—
used to alert
you to potential personal injury
hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
Indicates a hazardous situation
which, if not avoided, will result in
death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in minor or moderate in
jury.
Indicates a property damage
message.

Operator's Manual Second Edition • Second Printing
Symbol and Hazard Pictorials Definitions
6 Z®-45 XC™Part No. 1305353GT
Symbol and Hazard Pic torials Definiti ons
Crush hazard Keep away from
moving parts
Read the operator’s
manual
Overhead obstruction Collision hazard
Electrocution hazard Maintain required
clearance
Tip-over hazard Tip-over hazard Tip-over hazard
Electrocution hazard Avoid contact Disconnect battery Wind speed Machine not level

Second Edition • Second Printing Operator's Manual
Symbol and Hazard Pictorials Definitions
Part No. 1305353GT Z®-45 XC™7
Manual force No smoking.
No flame.
Stop engine.
Explosion hazard Burn hazard Explosion hazard
Wheel load Tire specifications No smoking Explosion hazard Fire hazard
Platform tie-down
instructions
Lifting & tie down
instructions
Lanyard anchorage
points
Tie-down point Lifting point

Operator's Manual Second Edition • Second Printing
Symbol and Hazard Pictorials Definitions
8 Z®-45 XC™Part No. 1305353GT
Maximum capacity Runaway hazard Color coded
direction arrows
Pressure rating for air
line to platform
Voltage rating for
power to platform

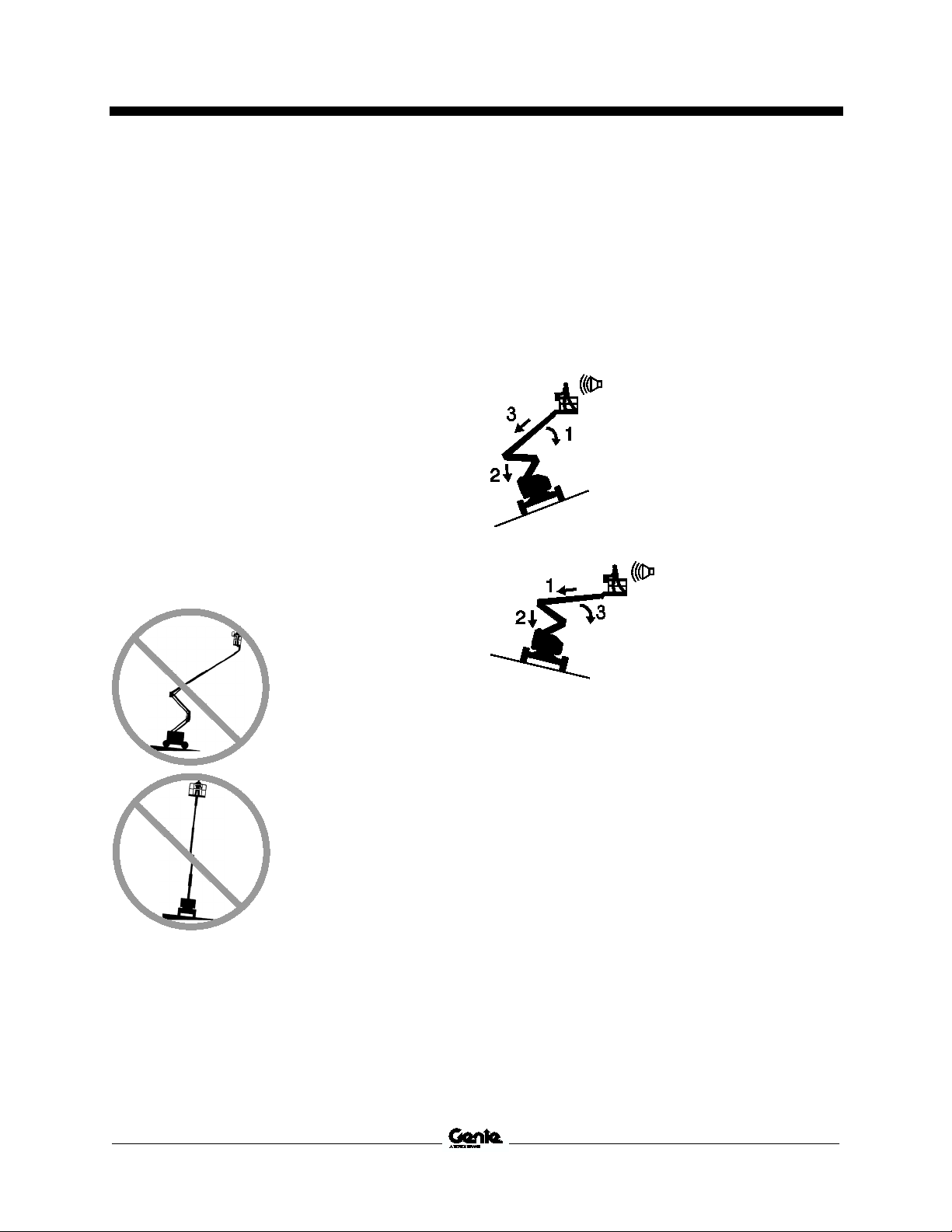

Recovery procedure if tilt alarm sounds while
elevated.
Platform uphill:
1 Lower primary.
2 Lower secondary.
3 Retract primary.
Platform downhill:
1
Retract primary.
2
Lower secondary.
3 Lower primary.
Access by trained
and authorized
personnel only
Crush hazard Support the platform
or boom during
maintenance
Auxiliary lowering Platform overloaded

Second Edition • Second Printing Operator's Manual
General Safety
Part No. 1305353GT Z®-45 XC™9

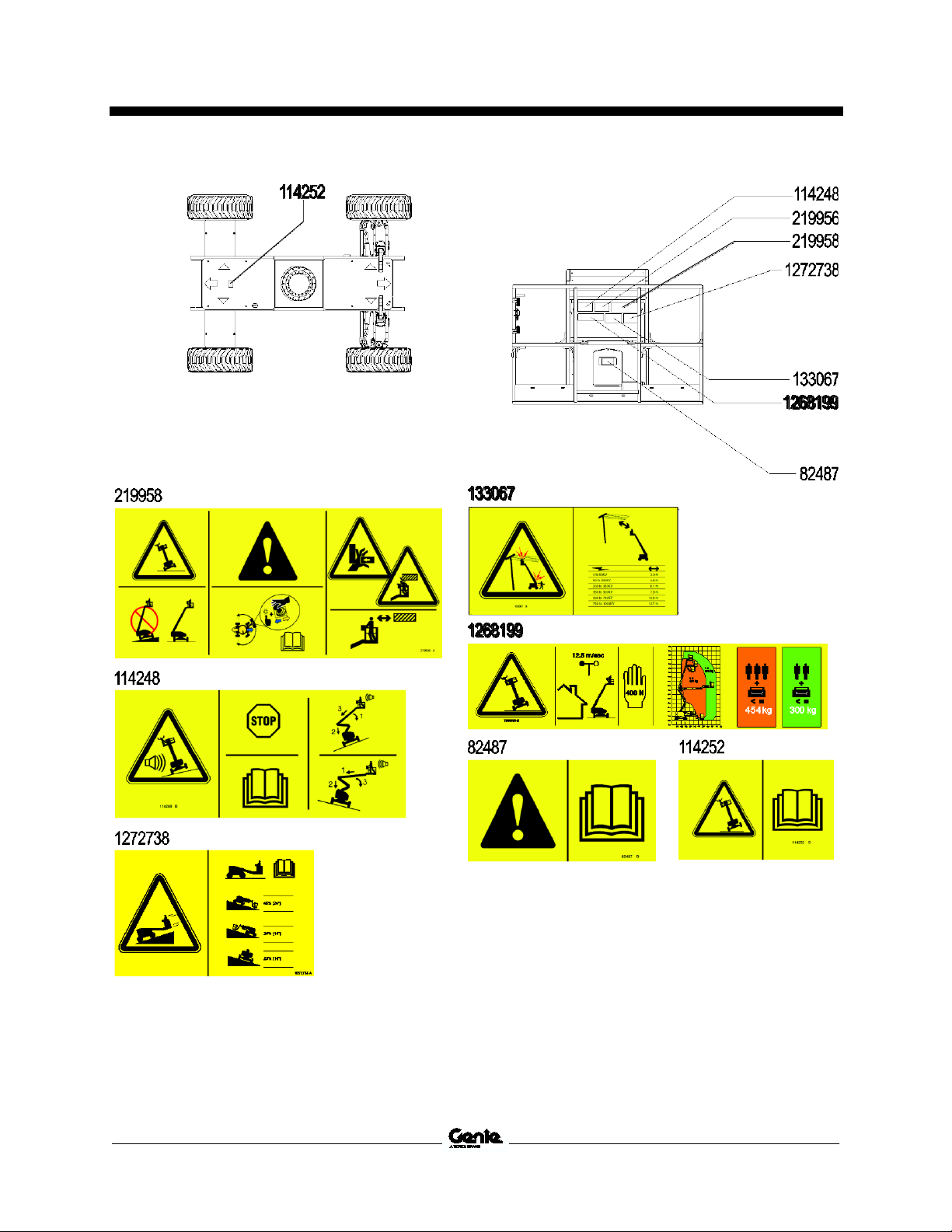

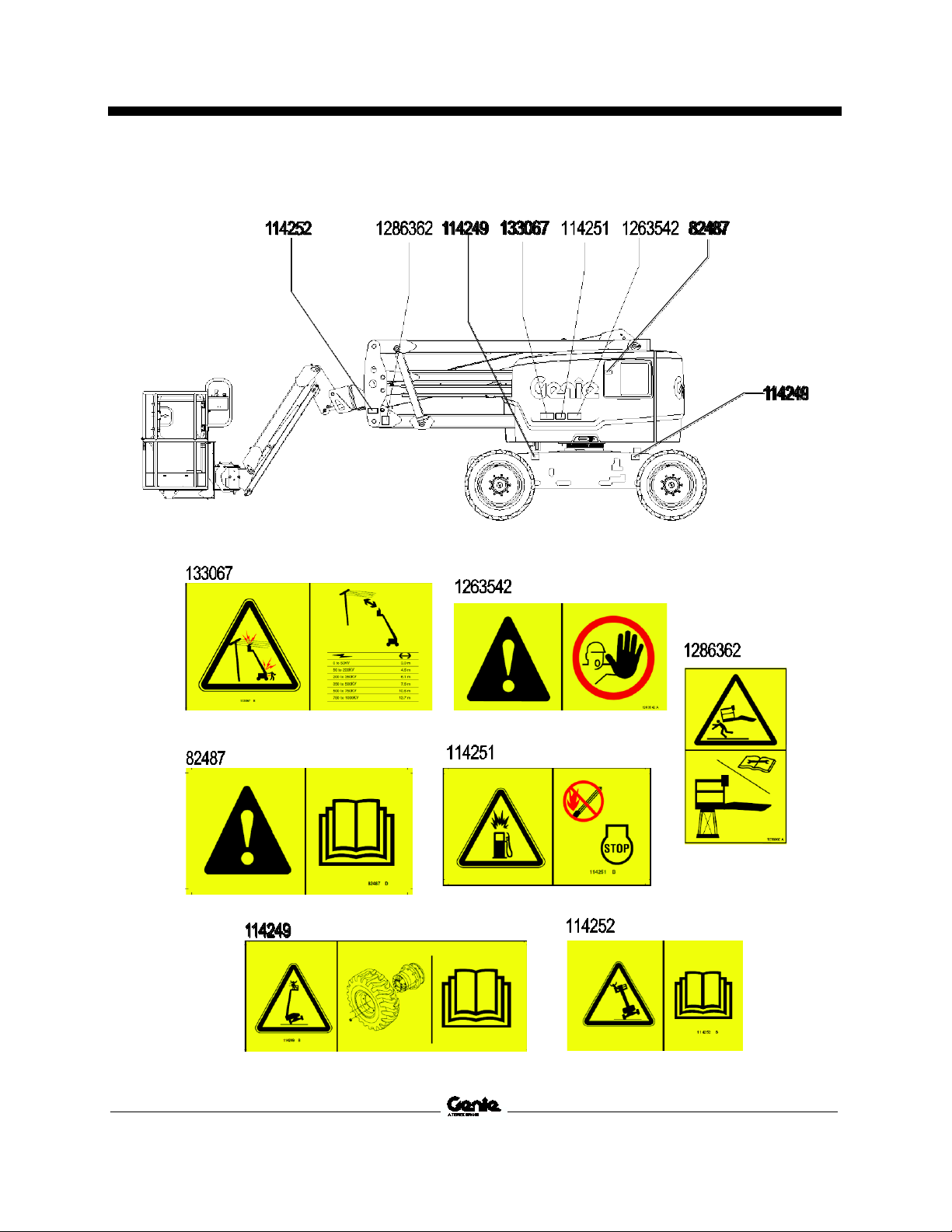

General Safety

Operator's Manual Second Edition • Second Printing
General Safety
10 Z®-45 XC™Part No. 1305353GT

Second Edition • Second Printing Operator's Manual
General Safety
Part No. 1305353GT Z®-45 XC™11

Operator's Manual Second Edition • Second Printing
Personal Safety
12 Z®-45 XC™Part No. 1305353GT
Personal Safet y
Personal Fall Protection
Personal fall protection equipment (PFPE) is
required when operating this machine.
Occupants must wear a safety belt or harness in
accordance with governmental regulations. Attach
the lanyard to the anchor provided in the platform.
Operators must comply with employer, job site and
governmental rules regarding the use of personal
protective equipment.
All PFPE must comply with applicable
governmental regulations, and must be inspected
and used in accordance with the PFPE
manufacturer’s instructions.

Second Edition • Second Printing Operator's Manual
Work Area Safety
Part No. 1305353GT Z®-45 XC™13
Work Area Safet y
Electrocution Hazards
This machine is not electrically insulated and will
not provide protection from contact with or
proximity to electrical current.
Obey all local and
governmental regulations
regarding required
clearance from electrical
power lines. At a minimum,
the required clearance
contained in the chart below
must be followed.
Line Voltage
Required Clearance
0
to 50KV 3.05
m
5
0 to 200KV 4.60
m
20
0 to 350KV 6.10
m
35
0 to 500KV 7.62
m
50
0 to 750KV 10.67
m
75
0 to 1000KV 13.72
m
Allow for platform movement, electrical line sway or
sag, and beware of strong or gusty winds.
Keep away from the
machine if it contacts
energized power lines.
Personnel on the ground or
in the platform must not
touch or operate the
machine until energized
power lines are shut off.
Do not operate the machine during lightning or
storms.
Do not use the machine as a ground for welding.
Tip-over Hazards
Occupants, equipment and materials shall not
exceed the maximum platform capacity.
Maximum platform capacity
Unrestricted range of motion
300 k
g
Maximum occupants
2
Maximum platform
capacity
Restricted range of motion
454 k
g
Maximum occupants
3
Maximum platform capacity
Unrestricted range of motion
Machine equipped with Aircraft
Protection Package
273 k
g
Maximum occupants
2
Maximum platform capacity
Restricted range of
motion
Machine equipped with Aircraft
Protection Package
427 k
g
Maximum occupants
3

Operator's Manual Second Edition • Second Printing
Work Area Safety
14 Z®-45 XC™Part No. 1305353GT
If the platform load is greater than 301 kg, or
274 kg with Aircraft Protection Package do not
move the platform into the unrestricted range of
motion zone.
Do not exceed the maximum platform capacity.
Do not attach a platform rated at 300 kg
(unrestricted range of motion) or 454 kg (restricted
range of motion) to machines with any other rated
load. See the serial label for the maximum rated
load.
The weight of options and accessories, such as
pipe cradles, panel cradles and welders, will
reduce the rated platform capacity and must be
subtracted from the platform capacity. See the
decals with the options and accessories.
If using accessories, read, understand and obey
the decals, instructions and manuals with the
accessory.
Do not raise or extend the
boom unless the machine
is on a firm, level surface.
Do not depend on the tilt alarm as a level indicator.
The tilt alarm sounds in the platform only when the
machine is on a severe slope.
If the tilt alarm sounds when the platform is raised,
use extreme caution. Identify the condition of the
boom on the slope as shown in the tilt alarm
procedure. Follow the steps to lower the boom
before moving to a firm, level surface. Do not rotate
the boom while lowering.
If the tilt alarm sounds
with the platform uphill:
1
Lower the primary
boom.
2
Lower the secondary
boom.
3
Retract the primary
boom.
If the tilt alarm sounds
with the platform
downhill:
1
Retract the primary
boom.
2
Lower the secondary
boom.
3
Lower the primary
boom.

Second Edition • Second Printing Operator's Manual
Work Area Safety
Part No. 1305353GT Z®-45 XC™15

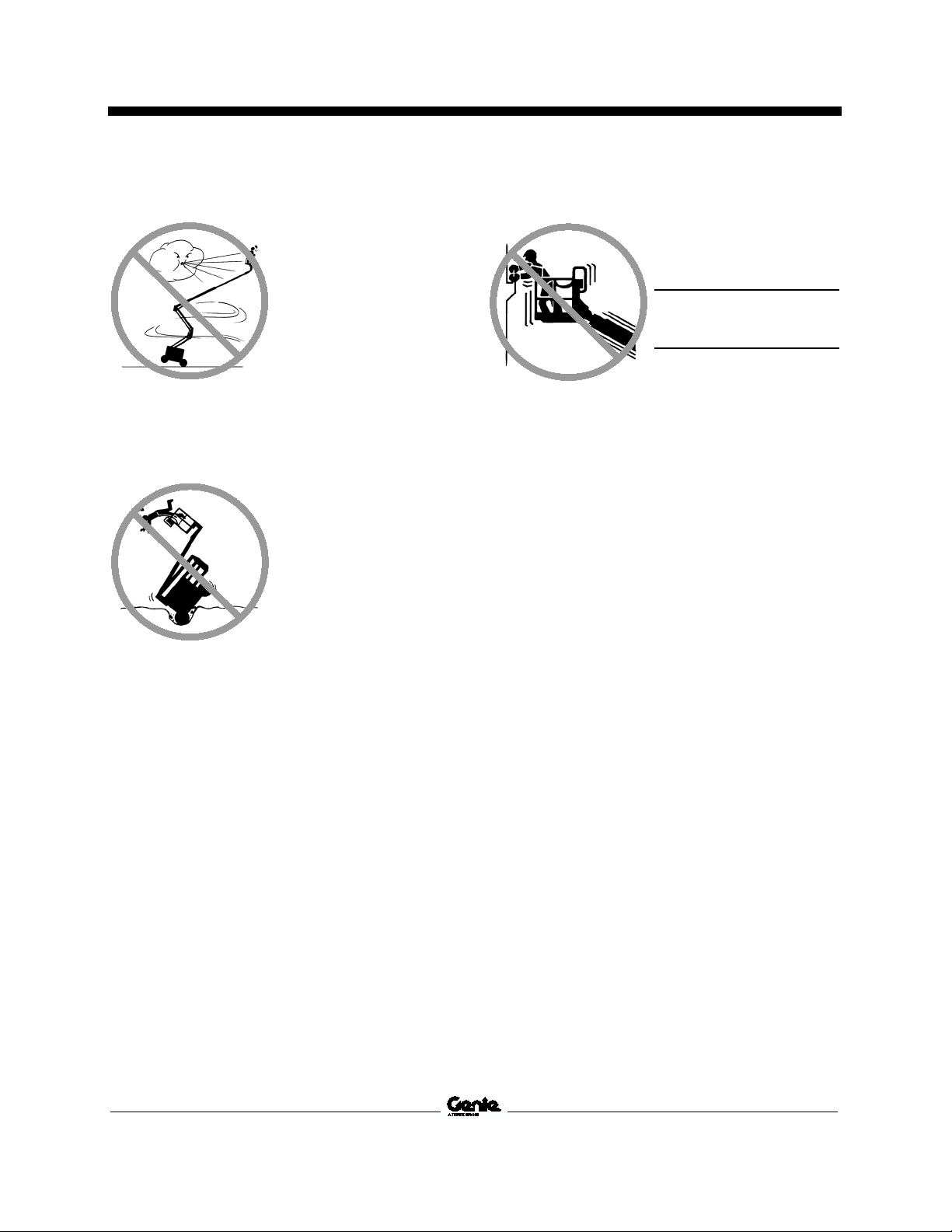

Do not raise the boom
when wind speeds may
exceed 12.
5 m/s. If wind
speeds exceed 12.
5 m/s
when the boom is raised,
lower the boom and do not
continue to operate the
machine.
Do not operate the machine in strong or gusty
winds. Do not increase the surface area of the
platform or the load. Increasing the area exposed
to the wind will decrease machine stability.
Use extreme care and
slow speeds while driving
the machine in the stowed
position across uneven
terrain, debris, unstable or
slippery surfaces and near
holes and drop
-offs.
Do not drive the machine on or near uneven terrain,
unstable surfaces or other hazardous conditions
with the boom raised or extended.
Do not use the machine as a crane.
Do not push the machine or other objects with the
boom.
Do not contact adjacent structures with the boom.
Do not tie the boom or platform to adjacent
structures.
Do not place loads outside the platform perimeter.
Do not push off or
pull
toward any object outside
of the platform.
Maximum allowable
manual force
– CE
400 N
Do not alter or disable machine components that in
any way affect safety and stability.
Do not replace items critical to machine stability
with items of different weight or specification.
Do not replace factory-installed tires with tires of
different specification or ply rating.
Do not use air-filled tires. These machines are
equipped with foam-filled tires. Wheel weight is
critical to stability.
Do not use the platform controls to free a platform
that is caught, snagged, or otherwise prevented
from normal motion by an adjacent structure. All
personnel must be removed from the platform
before attempting to free the platform using the
ground controls.

Operator's Manual Second Edition • Second Printing
Work Area Safety
16 Z®-45 XC™Part No. 1305353GT
Do not modify or alter an aerial work platform
without prior written permission from the
manufacturer. Mounting attachments for holding
tools or other materials onto the platform,
toeboards, or guard rail system can increase the
weight in the platform and the surface area of the
platform or the load.
Do not place or attach
fixed or overhanging loads
to any part of this machine.
Do not place ladders or
scaffolds in the platform or
against any part of this
machine.
Do not transport tools and materials unless they
are evenly distributed and can be safely handled by
person(s) in the platform.
Do not use the machine on a moving or mobile
surface or vehicle.
Be sure all tires are in good condition, air-filled tires
are properly inflated and lug nuts are properly
tightened.
Operation on Slopes Hazards
Do not drive the machine on a slope that exceeds
the maximum uphill, downhill or side slope rating of
the machine. Slope rating applies only to machines
in the stowed position.
Maximum slope rating, stowed position,
4WD
Platform downhill
45%
(24°)
Platform uphill
25%
(14°)
Side slope
25%
(14°)
Note: Slope rating is subject to ground conditions
with one person in the platform and adequate
traction. Additional platform weight may reduce
slope rating. See Driving on a Slope in the
Operating Instructions section.

Second Edition • Second Printing Operator's Manual
Work Area Safety
Part No. 1305353GT Z®-45 XC™17
Fall Hazards
Occupants must wear a
safety belt or harness in
accordance with
governmental regulations.
Attach the lanyard to the
anchor provided in the
platform.
Do not sit, stand, or
climb
on the platform guard rails.
Maintain a firm footing on
the platform floor at all
times.
Do not climb down from the
platform when raised.
Keep the platform floor clear of debris.
Lower the platform entry mid-rail or close the entry
gate before operating.
Do not enter or exit the platform unless the
machine is in the stowed position and the platform
is at ground level.
Hazards related with the specific product
application of exiting at height have been
considered in the design of the machine, for further
information contact Genie (see section Contacting
the Manufacturer).
Collision Hazards
Be aware of limited sight
distance and blind spots
when driving or operating.
Be aware of the boom position and tailswing when
rotating the turntable.
Check the work area for
overhead obstructions or
other possible hazards.
Be aware of crushing
hazards when grasping the
platform guard rail.
Operators must comply with employer, job site, and
governmental rules regarding use of personal
protective equipment.

Operator's Manual Second Edition • Second Printing
Work Area Safety
18 Z®-45 XC™Part No. 1305353GT
Observe and use the color-coded direction arrows
on the platform controls and drive chassis for drive
and steer functions.

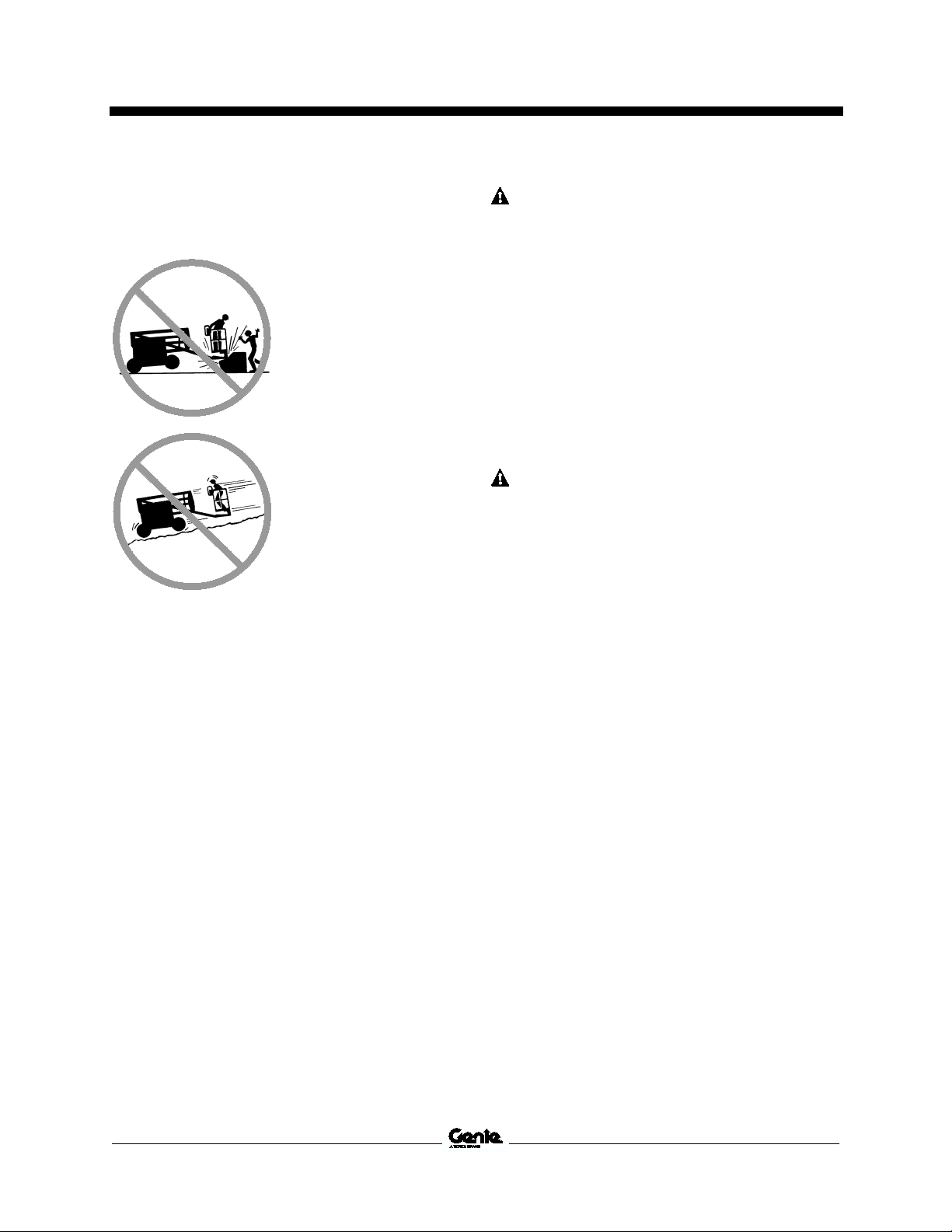

Do not lower the boom
unless the area below is
clear of personnel and
obstructions.
Limit trave
l speed
according to the condition
of the ground surface,
congestion, slope, location
of personnel, and any
other factors which may
cause collision.
Do not operate a boom in the path of any crane
unless the controls of the crane have been locked
out and/or precautions have been taken to prevent
any potential collision.
No stunt driving or horseplay while operating a
machine.
Bodily Injury Hazard
Always operate the machine in a well-ventilated
area to avoid carbon monoxide poisoning.
Do not operate the machine with a hydraulic oil or
air leak. An air leak or hydraulic leak can penetrate
and/or burn skin.
Improper contact with components under any cover
will cause serious injury. Only trained maintenance
personnel should access compartments. Access
by the operator is only advised when performing a
pre-operation inspection. All compartments must
remain closed and secured during operation.
Explosion and Fire Hazards
Do not start the engine if you smell or detect liquid
petroleum gas (LPG), gasoline, diesel fuel or other
explosive substances.
Do not refuel the machine with the engine running.
Refuel the machine and charge the battery only in
an open, well-ventilated area away from sparks,
flames and lighted tobacco.
Do not operate the machine or charge the battery
in hazardous locations or locations where
potentially flammable or explosive gases or
particles may be present.
Do not spray ether into engines equipped with glow
plugs.
