Terex Genie GTH-636 User manual

Maintenance Manual -
Telehandlers
GTH™-636
This manual includes detailed
procedures for each
maintenance inspection.
GTH™-844
GTH™-1056
For Repair
procedures, Fault
Codes, Electrical and Hydraulic
Schematics, refer to the
appropriate Service and Repair
Manual for your machine.
GTH™-1256
Refer to the inside cover for a list of model serial
number
ranges included in this manual.
Original Instructions
Part No. 1305161GT
Rev
A
November 2022

Maintenance Manual November 2022
Introduction
ii Genie Telehandlers Part No. 1305161GT
Intr od ucti on Intr od ucti on
Important
Read, understand and obey the safety rules and
operating instructions in the appropriate Operator's
Manual on your machine before attempting any
maintenance procedure.
This manual provides detailed scheduled
maintenance information for the machine owner
and user.
Basic mechanical, hydraulic and electrical skills
are required to perform most procedures.
However, several procedures require specialized
skills, tools, lifting equipment and a suitable
workshop. In these instances, we strongly
recommend that maintenance be performed at an
authorized Genie dealer service center.
Compliance
Machine Design Life
Unrestricted with proper operation, inspection and
scheduled maintenance.
Technical Publications
Genie has endeavored to deliver the highest
degree of accuracy possible. However, continuous
improvement of our products is a Genie policy.
Therefore, product specifications are subject to
change without notice.
Readers are encouraged to notify Genie of errors
and send in suggestions for improvement. All
communications will be carefully considered for
future printings of this and all other manuals.
Contact Us:
Internet: www.genielift.com
E-mail: [e-mail]
Copyright © 2016 by Terex Corporation
1305161GT Rev A, November 2022
Second Edition, First Printing
Genie is a registered trademark of Terex South Dakota, Inc. in
the U.S.A. and many other countries.
"GTH" is a trademark of Terex South Dakota, Inc.

November 2022 Maintenance Manual
Introduction
Part No. 1305161GT Genie Telehandlers iii
Models included in this manual
Use the following chart to identify the specific
serial number for models included in this manual.
Models Serial number
GTH-636 from GTH06T-13801
GTH-844 from GTH08T-14101
GTH-1056 from GTH10E-16000 to GTH10E-16500
from GTH10T-16501
GTH-1256 from GTH12T-10101
Identifying the Correct Procedure
for your Model
Unless otherwise noted, each procedure will apply
to all models. Procedures that only apply to
specific models or options will include the
information in the procedure title.
Examples of procedures that apply to specific
models:
•Adjust the Boom Sequencing Chains -
GTH-636, GTH-844
•Adjust the Boom Sequencing Chains -
GTH-1056, GTH-1256
Examples of procedures that apply to all models:
•Inspect the Electrical Wiring
•Inspect the Tires, Wheels and Lug Nut
Torque
Find additional Manuals for your
Model
Go to http://www.genielift.com
Use the links to locate Service Manuals,
Maintenance Manuals, Service and Repair
Manuals, Parts Manuals and Operator's Manuals.

Maintenance Manual November 2022
Introduction
iv Genie Telehandlers Part No. 1305161GT
Revision History
Revision Date Section Procedure / Description
A 11/2022 Initial Release
Reference Examples:
Section – Specifications Electronic Version
Click on any content or procedure in the Table of Contents to view the
update.
Section – Maintenance, (procedure)

November 2022 Maintenance Manual
Safety Rules
Part No. 1305161GT Genie Telehandlers v
Section 1 Safet y R ules
Danger
Failure to obey the instructions and safety rules in
this manual and the appropriate Operator's Manual
on your machine will result in death or serious
injury.
Many of the hazards identified in the operator's
manual are also safety hazards when
maintenance and repair procedures are
performed.
Do not modify or alter a Telehandler without prior
written permission from the manufacturer.
Do Not Perform Maintenance
Unless:
You are trained and qualified to perform
maintenance on this machine.
You read, understand and obey:
•manufacturer's instructions and safety rules
•employer's safety rules and worksite
regulations
•applicable governmental regulations
You have the appropriate tools, lifting
equipment and a suitable workshop.

Maintenance Manual November 2022
Safety Rules
vi Genie Telehandlers Part No. 1305161GT
Personal Safety
Any person working on or around a machine must
be aware of all known safety hazards. Personal
safety and the continued safe operation of the
machine should be your top priority.
Read each procedure thoroughly. This
manual and the decals on the machine,
use signal words to
identify the following:
Safety alert symbol
—used to
alert personnel to potential
personal injury hazards. Obey all
safety messages that follow this
symbol to avoid possible injury or
death.
Indicates a imminently hazardous
situation which, if not avo
ided,
will result in death or serious
injury.
Indicates a potentially hazardous
situation which, if not avoided,
could result in death or serious
injury.
Indicates a potentially hazardous
situation which, if not avoided,
may cause minor or
moderate
injury.
Indicates a potentially hazardous
situation which, if not avoided,
may result in property damage.
Be sure to wear protective eye wear and
other protective clothing if the situation
warrants it.
Be aware of potential crushing hazar
ds
such as moving parts, free swinging or
unsecured components when lifting or
placing loads. Always wear approved
steel
-toed shoes.
Workplace Safety
Any person working on or around a machine must
be aware of all known safety hazards. Personal
safety and the continued safe operation of the
machine should be your top priority.
Be sure to keep sparks, flames and
lighted tobacco away from flammable and
combustible materials like battery gases
and engine fuels. Always have an
approved fire extingu
isher within easy
reach.
Be sure that all tools and working areas
are properly maintained and ready for
use. Keep work surfaces clean and free
of debris that could get into machine
components and cause damage.
Be sure any forklift, overhead crane or
other lifting or supporting device is fully
capable of supporting and stabilizing the
weight to be lifted. Use only chains or
straps that are in good condition and of
ample capacity.
Be sure that fasteners intended for one
time use (i.e., cotter pins an
d self-locking
nuts) are not reused. These components
may fail if they are used a second time.
Be sure to properly dispose of old oil or
other fluids. Use an approved container.
Please be environmentally safe.
Be sure that your workshop or work
area
is properly ventilated and well lit.

November 2022
Table of Contents
Part No. 1305161GT Genie Telehandlers vii
Introduction Introduction...........................................................................................................ii
Important Information ............................................................................................. ii
Models included in this manual ............................................................................. iii
Identifying the Correct Procedure for your Model ................................................. iii
Find additional Manuals for your Model ................................................................ iii
Revision History..................................................................................................... iv
Section 1 Safety Rules ..........................................................................................................v
General Safety Rules ............................................................................................. v
Section 2 Specifications .......................................................................................................1
Fluid Capacities ......................................................................................................1
Air Conditioner Refrigerant Specifications .............................................................1
Performance Specifications ................................................................................2
Performance Specifications....................................................................................2
Torque Specifications..........................................................................................4
Tires and Wheels ...................................................................................................4
Powertrain Specifications ...................................................................................5
Operator and Maintenance Manuals ......................................................................5
Deutz Engine Models .............................................................................................5
Transmission Specifications...................................................................................6
Axle Specifications .................................................................................................6
Hydraulic Specifications......................................................................................7
Hydraulic Relief Valves ..........................................................................................7
Hydraulic Oil Specifications....................................................................................8
Hydraulic Hose and Fitting Torque Specifications ...............................................11
Torque Procedure ................................................................................................12

November 2022
Table of Contents
viii Genie Telehandlers Part No. 1305161GT
Section 3 Maintenance Procedures .................................................................................. 14
Introduction .......................................................................................................... 14
Maintenance Schedule ........................................................................................ 16
Pre-Delivery Preparation Report.......................................................................... 17
Scheduled and Programmed Maintenance Inspection Report ............................ 18
Commissioning Procedures ............................................................................. 19
C-1 Perform 50 Hour Service............................................................................... 19
C-2 Perform Engine Maintenance – 50 Hours..................................................... 19
C-3 Perform 150 Hour Service............................................................................. 20
Quarterly Maintenance Procedures ................................................................. 21
Q-1 Check for Open Bulletins and Owner Registration ....................................... 21
Q-2 Battery inspection ......................................................................................... 22
Q-3 Inspect the Electrical Wiring.......................................................................... 22
Q-4 Check the Boom Wear Pads......................................................................... 23
Q-5 Check the Exhaust System........................................................................... 24
Q-6 Inspect the Tires, Wheels and Lug Nut Torque ............................................ 24
Q-7 Inspect the Fork Level and Auxiliary Hydraulic Hose Tension ..................... 25
Q-8 Inspect the Fuel and Hydraulic Tank Cap Venting Systems ........................ 26
Q-9 Visual Inspection of the Hydraulic Oil ........................................................... 27
Q-10 Inspect the Engine Air Filter........................................................................ 28
Q-11 Lubricate the Driveshaft .............................................................................. 28
Q-12 Inspect and Lubricate the Sequencing Chains ........................................... 29
Annual Maintenance Procedures ..................................................................... 32
A-1 Inspect the Forks........................................................................................... 32
A-2 Adjust the Boom Sequencing Chains - GTH-636, GTH-844......................... 32
A-3 Adjust the Boom Sequencing Chains - GTH-1056, GTH-1256..................... 33
A-4 Replace Hydraulic Tank Return Filter Element ............................................. 34
A-5 Replace the Cab Air Intake Filter Element (if equipped) ............................... 35

November 2022
Table of Contents
Part No. 1305161GT Genie Telehandlers ix
Programmed Maintenance Procedures ...........................................................36
P0-1 Lubricate the Boom......................................................................................36
P0-2 Deutz Engine Maintenance – Under 1000 Hours ........................................37
P0-3 Axle Maintenance – Under 1000 Hours.......................................................38
P0-4 Transmission Maintenance – Under 1000 Hours ........................................39
P1-1 Perform Engine Maintenance – 1000 Hours ...............................................40
P1-2 PerformTransmission Maintenance – 1000 Hours ......................................40
P1-3 Perform Axle Maintenance – 1000 Hours....................................................41
P2-1 Test or Replace the Hydraulic Oil................................................................41
P3-1 Perform Engine Maintenance – 3000 Hours ...............................................42
P5-1 Perform Engine Maintenance – 5000 Hours ...............................................43
P6-1 Perform Engine Maintenance – 6000 Hours ...............................................43

Maintenance Manual November 2022
x Genie Telehandlers Part No. 1305161GT
This page intentionally left blank.

November 2022 Maintenance Manual
Specifications
Part No. 1305161GT Genie Telehandlers 1
Section 2 Speci fi c ati ons
Fluid capacities
GTH-636
Fuel tank 27 gallons
102,2 liters
Hydraulic tank 34 gallons
128,7 liters
Hydraulic system (including tank) 46.5 gallons
176 liters
GTH-844
Fuel tank 32 gallons
121,1 liters
Hydraulic tank 35 gallons
132,5 liters
Hydraulic system (including tank) 50 gallons
189,3 liters
DEF tank
Deutz TCD 3.6 L4, 99hp
2.6 gallons
9,8 liters
GTH-1056
Fuel tank 30 gallons
113,6 liters
Hydraulic tank
27 gallons
102,2 liters
Hydraulic system (including tank) 52 gallons
196,8 liters
DEF tank
Deutz TCD 3.6 L4, 121hp
2.6 gallons
9,8 liters
GTH-1256
Fuel tank 30 gallons
113,6 liters
Hydraulic tank 27 gallons
102,2 liters
Hydraulic system (including tank) 52 gallons
196,8 liters
DEF tank
Deutz TCD 3.6 L4, 121hp
2.6 gallons
9,8 liters
Air Conditioner Refrigerant
Specifications
System Full Charge
R134a
GTH-636 / 844 / 1056 / 1256
1 lb 14 oz

Maintenance Manual November 2022
Performance Specifications
2 Genie Telehandlers Part No. 1305161GT
GTH-636
Drive speed, maximum
Deutz TD 2.9 L4 18 mph
29,0 km/h
Draw bar pull 15100 lbs
6849 kg
Lift capacity, maximum 6000 lbs
2722 kg
Boom function speeds, maximum
Boom up 9 - 11 seconds
Boom down 7 - 9 seconds
Boom extend 10 - 12 seconds
Boom retract 8 - 10 seconds
Fork rotate 3 - 6 seconds
Fork tilt up 5 - 7 seconds
Fork tilt down 4 - 6 seconds
Chassis sway speed 12 - 13 seconds
GTH-844
Drive speed, maximum
Deutz TCD 3.6 L4 15 mph
24,1 km/h
Draw bar pull, 99 hp 20600 lbs
9344 kg
Draw bar pull, 74 hp 18800 lbs
8526 kg
Lift capacity, maximum 8000 lbs
3629 kg
Boom function speeds, maximum
Boom up 12 - 14 seconds
Boom down 9 - 11 seconds
Boom extend 13 - 15 seconds
Boom retract 8 - 10 seconds
Fork rotate 3 - 6 seconds
Fork tilt up 6 - 8 seconds
Fork tilt down 5 - 7 seconds
Chassis sway speed 15 - 16 seconds
GTH-1056
Drive speed, maximum
Deutz TCD 3.6 L4, 121 hp 17 mph
27,4 km/h
Deutz TCD 3.6 L4, 74 hp,
3 speed
15 mph
24,1 km/h
Deutz TCD 3.6 L4, 74 hp,
2 speed
19 mph
30,6 km/h
Draw bar pull, 121 hp 25000 lbs
11340 kg
Draw bar pull, 74 hp
23000 lbs
10433 kg
Lift capacity, maximum 10000 lbs
4536 kg
Boom function speeds, maximum
Boom up 13 - 16 seconds
Boom down 11 - 13 seconds
Boom extend 22 - 24 seconds
Boom retract 29 - 31 seconds
Fork rotate 3 - 6 seconds
Fork tilt up 7.5 - 9.5 seconds
Fork tilt down 7 - 9 seconds
Chassis sway speed
12 - 16 seconds

November 2022 Maintenance Manual
Performance Specifications
Part No. 1305161GT Genie Telehandlers 3
GTH-1256
Drive speed, maximum
Deutz TCD 3.6 L4, 121 hp 17 mph
27,4 km/h
Draw bar pull, 121 hp 25000 lbs
10206 kg
Lift capacity, maximum 12000 lbs
5450 kg
Boom function speeds, maximum
Boom up 19 - 23 seconds
Boom down 17 - 21 seconds
Boom extend 35 - 37 seconds
Boom retract 28 - 30 seconds
Fork rotate 3 - 6 seconds
Fork tilt up 23 - 25 seconds
Fork tilt down 25 - 27 seconds
Chassis sway speed
14 - 20 seconds

Maintenance Manual November 2022
Torque Specifications
4 Genie Telehandlers Part No. 1305161GT
Tires and wheels
Torque values are listed as dry.
Note: The tires on some machines are foam-filled
or solid rubber and do not need air added to them.
GTH-636
Lug nut torque 465 ft-lb
630 Nm
Tire pressure 72 psi
5 bar
GTH-844
Lug nut torque 465 ft-lb
630 Nm
Tire pressure 72 psi
5 bar
GTH-1056
Lug nut torque 465 ft-lb
630 Nm
Tire pressure 72 psi
5 bar
GTH-1256
Lug nut torque 465 ft-lb
630 Nm
Tire pressure 105 psi
7,2 bar

November 2022 Maintenance Manual
Powertrain Specifications
Part No. 1305161GT Genie Telehandlers 5
Engine Operator and
Maintenance Manuals
Deutz TD 2.9 L4
Genie part number 1251561GT
Deutz TCD 3.6 L4
Genie part number 1270991GT
Transmission Operator and
Maintenance Manuals
Dana VDT12004
Genie part number 218706GT
ZF 4 WG-98 TSC
Genie part number 1311107GT
Axle Operator and Maintenance
Manuals
Dana 212
Genie part number 1259569GT
Dana 223
Genie part number 1284290GT
Deutz Engine Models
TD 2.9 L4 T4F
Low idle 1000 rpm
High idle 2600 rpm
Oil capacity (including filter) 9.4 quarts
9 liters
Units ship with 15W-40
Engine coolant capacity
Type: Extended Life 50/50
3.1 gallons
11,7 liters
TD 2.9 L4 T3
Low idle 1000 rpm
High idle 2600 rpm
Oil capacity (including filter) 8 quarts
7,6 liters
Units ship with 15W-40 Shell Rimula R4 L
Engine coolant capacity
Type: Extended Life
3.4 gallons
12,9 liters
TCD 3.6 L4 T3/T4F
Low idle 1000 rpm
High idle 2300 rpm
Oil capacity (including filter) 9.5 quarts
9 liters
Units ship with 15W-40 API CJ4 low ash oil
Engine coolant capacity
Type: Extended Life
4.5 gallons
17 liters
Extreme operating temperatures may require the
use of alternative engine oils. For oil requirements,
refer to the Engine Operator Handbook on your
machine.

Maintenance Manual November 2022
Powertrain Specifications
6 Genie Telehandlers Part No. 1305161GT
Dana Transmission Models
Dana VDT12004
Transmission type: 3 speed powershift
Oil capacity, transmission 14.3 quarts
13,5 liters
Oil capacity, drop box 1.1 quarts
1 liter
Units ship with Chevron Ursa Hydraulic 10W
Extreme operating temperatures may require the
use of alternative transmission oils. For oil
requirements, refer to the Dana VDT12004
Service Manual.
ZF Transmission Models
ZF 4 WG-98 TSC
Transmission type: 4 speed powershift
Oil capacity 17 quarts
16 liters
Oil capacity, drop box 2 quarts
1,9 liters
Units ship with TE-ML 03
Extreme operating temperatures may require the
use of alternative transmission oils. For oil
requirements, refer to the ZF 4 WG-98 TSC
Maintenance Manual.
Dana Axle Models
Dana 212 drive axle
Front axle lubrication
Front differential 7.4 quarts
7 liters
Axle planetary end (each) 0.8 quarts
0,8 liters
Rear axle lubrication
Rear differential 8 quarts
7,6 liters
Axle planetary end (each) 0.8 quarts
0,8 liters
Oil viscosity requirements
Differential Gear oil 80W/90 (API GL4 or GL5)
Planetary ends Gear oil 80W/90 (API GL4 or GL5)
Dana 223 drive axle
Front axle lubrication
Front differential 12.7 quarts
12 liters
Axle planetary end (each) 2 quarts
1,9 liters
Rear axle lubrication
Rear differential 8 quarts
7,6 liters
Axle planetary end (each) 0.8 quarts
0,8 liters
Oil viscosity requirements
Differential Fuchs 85W90LS (GL5)
Planetary ends Fuchs 85W90LS (GL5)

November 2022 Maintenance Manual
Hydraulic Specifications
Part No. 1305161GT Genie Telehandlers 7
GTH-636
Primary Function Manifold
System relief valve pressure, maximum 3200 psi
221 bar
Fork tilt relief valve pressure, maximum 3500 psi
241 bar
Flow regulator valve, Sway circuit 2 gpm
7,5 L/min
Secondary Function Manifold
Steer relief valve pressure, maximum 2650 psi
182,7 bar
Parking brake relief valve pressure,
maximum
350 psi
24 bar
Joystick relief valve pressure, maximum 400 psi
27,5 bar
GTH-844
Primary Function Manifold
System relief valve pressure, maximum 3250 psi
224 bar
Fork tilt relief valve pressure, maximum 3500 psi
241 bar
Flow regulator valve, Sway circuit 2 gpm
7,5 L/min
Secondary Function Manifold
Steer relief valve pressure, maximum 2650 psi
182,7 bar
Parking brake relief valve pressure,
maximum
350 psi
24 bar
Differential lock relief valve pressure,
maximum
250 psi
17,2 bar
Rear lock-up relief valve pressure,
maximum
50 psi
34 bar
GTH-1056
Primary Function Manifold
System relief valve pressure, maximum 3200 psi
221 bar
Boom extend relief valve pressure,
maximum
2611 psi
180 bar
Fork tilt relief valve pressure, maximum 3481 psi
240 bar
Secondary Function Manifold
Steer relief valve pressure, maximum 2500 psi
172 bar
Parking brake relief valve pressure,
maximum
400 psi
27,5 bar
Rear lock-up relief valve pressure,
maximum
50 psi
3,4 bar
Flow regulator valve, Outrigger circuit
6 gpm
22,7 L/min
GTH-1256
Primary Function Manifold
System relief valve pressure, maximum 3200 psi
221 bar
Boom extend relief valve pressure,
maximum
2611 psi
180 bar
Fork tilt relief valve pressure, maximum 3481 psi
240 bar
Secondary Function Manifold
Steer relief valve pressure, maximum 2500 psi
172 bar
Parking brake relief valve pressure,
maximum
400 psi
27,5 bar
Rear lock-up relief valve pressure,
maximum
50 psi
3,4 bar
Flow regulator valve, Outrigger circuit 6 gpm
22,7 L/min

Maintenance Manual November 2022
Hydraulic Specifications
8 Genie Telehandlers Part No. 1305161GT

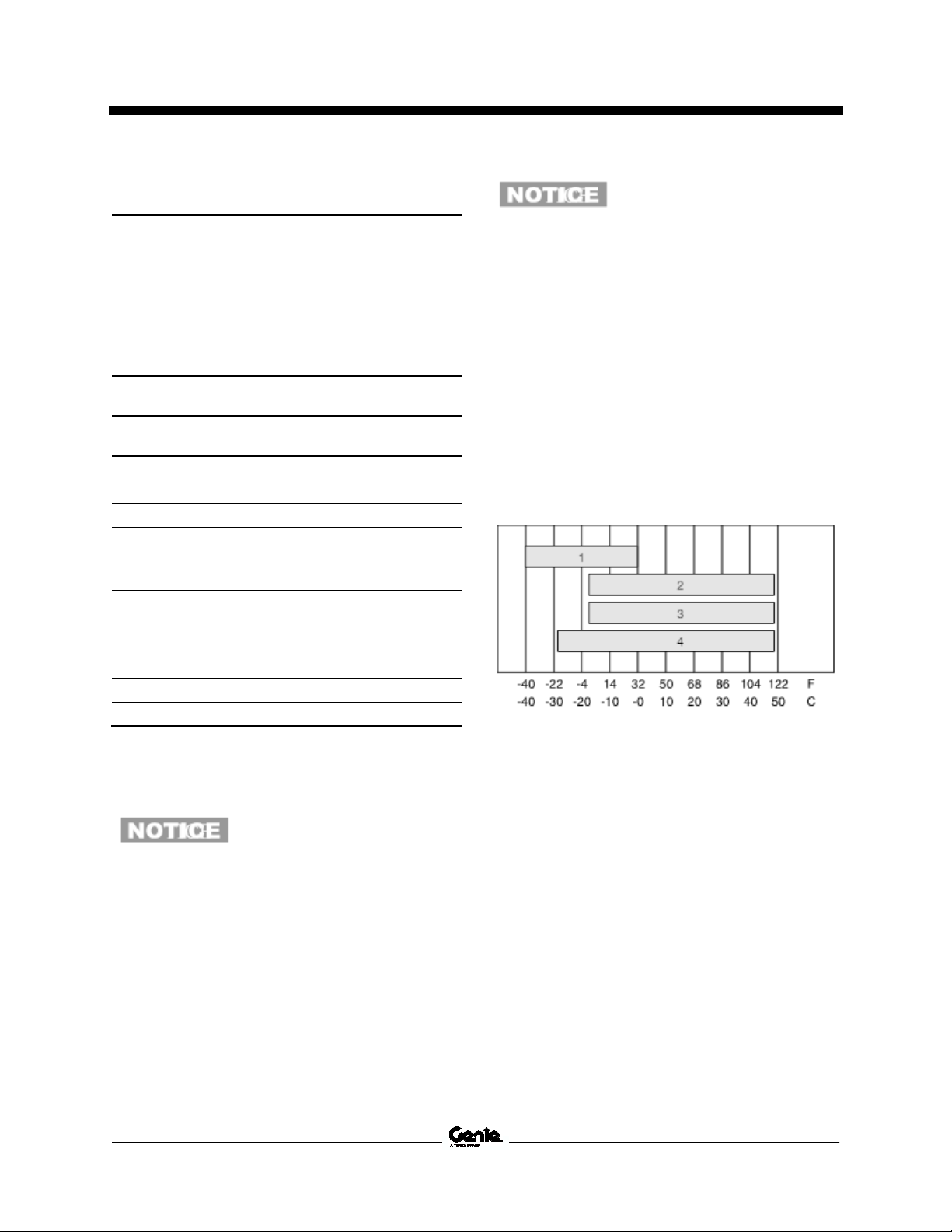

Hydraulic Oil Specifications
Hydraulic Fluid Specifications
Genie specifications require hydraulic oils which are
designed to give maximum protection to hydraulic
systems, have the ability to perform over a wide
temperature range, and the viscosity index should
exceed 140. They should provide excellent antiwear,
ox
idation prevention, corrosion inhibition, seal
conditioning, and foam and aeration suppression
properties.
Cleanliness level,
minimum
ISO 15/13
Water content,
maximum
250 p
pm
Recommended Hydraulic Fluid
Hydraulic oil type
Chevron Rando HD
Premium
ISO Grade
32
Viscosity index,
maximum
200
Optional Hydraulic Fluids
Mineral based
Shell Tellus S2 V 32
Shell Tellus S2 V 46
Shell Tellus S4 VX 32
Shell Donax TG (Dexron III)
Chevron 5606A
Biodegradable
Petro Canada Environ MV
46
Fire
resistant UCON Hydrolube HP-
5046
Note: Genie specifications require additional
equipment and special installation instructions for
the approved optional fluids. Consult Genie
Product Support before use.
Optional fluids may not have
the same hydraulic lifespan and
may result in component
damage.
Note: Extended machine operation can cause the
hydraulic fluid temperature to increase beyond its
maximum allowable range. If the hydraulic fluid
temperature consistently exceeds 200°F / 90°C an
optional oil cooler may be required.
Do not top off with incompatible
hydraulic fluids. Hydraulic fluids
may be incompatible due to the
differences in base additive
chemistry. When incompatible
fluids are mixed, insoluble
materials may form and deposit
in the hydrau
lic system,
plugging hydraulic lines, filters,
control valves and may result in
component damage.
Note: Do not operate the machine when the
ambient air temperature is consistently above
120°F / 49°C.
Hydraulic Fluid Temperature
Range
Ambient air temperature
1 Chevron hydraulic oil 5606A
2 Petro-Canada Environ MV 46
3 UCON Hydrolube HP-5046D
4 Chevron Rando HD premium oil MV

November 2022 Maintenance Manual
Hydraulic Specifications
Part No. 1305161GT Genie Telehandlers 9
Chevron Rando HD Premium Oil
MV Fluid Properties
ISO Grade
32
Viscosity index, maximum
200
Kinematic Viscosity, maximum
cSt @
200°F / 100°C
cSt @ 104°F / 40°C
7.5
33.5
Brookfield Viscosity, maximum
cP @
-4°F / -20°C
cP @
-22°F / -30°C
1040
3310
Flash point
375°F / 190°C
Pour point
-58°F / -
50°C
Maximum continuous operating
temperature
171°F / 77°C
Note: A hydraulic oil heating system is
recommended when the ambient temperature is
consistently below 0°F / -18°C.
Note: Do not operate the machine when the
ambient temperature is below -20°F / -29°C with
Rando HD Premium MV.
Chevron 5606A Hydraulic Oil
Fluid Properties
ISO Grade
15
Viscosity index, maximum
300
Kinematic Viscosity, maximum
cSt @ 200°F / 100°C
cSt @ 104°F / 40°C
cSt @
-40°F / -40°C
5.5
15.0
510
Flash point
180°F / 82°C
Pour point
-81°F / -
63°C
Maximum continuous operating
temperature
124°F / 51°C
Note: Use of Chevron 5606A hydraulic fluid, or
equivalent, is required when ambient temperatures
are consistently below 0°F / -17°C unless an oil
heating system is used.
Continued use of Chevron
5606A hydraulic fluid, or
equivalent, when ambient
temperatures are consistently
above 32°F / 0°C may result in
component damage

Maintenance Manual November 2022
Hydraulic Specifications
10 Genie Telehandlers Part No. 1305161GT
Petro-Canada Environ MV 46
Fluid Properties
ISO Grade
46
Viscosity index, maximum
154
Kinematic Viscosity, maximum
cSt @ 200°F / 100°C
cSt @
104°F / 40°C
8.0
44.4
Flash point
482°F / 250°C
Pour point
-49°F / -
45°C
Maximum continuous operating
temperature
180°F / 82°C
Shell Tellus S4 VX Fluid
Properties
ISO Grade
32
Viscosity index, maximum
300
Kinematic Viscosity, maximum
cSt @
200°F / 100°C
cSt @ 104°F / 40°C
9
33.8
Brookfield Viscosity, maximum
cSt @
-4°F / -20°C
cSt @
-13°F / -25°C
cSt @
-40°F / -40°C
481
702.4
2624
Flash point
>100
Pour point
-76°F / -
60°C
Maximum continuous operating
temperature
103°F / 75°C
UCON Hydrolube HP-5046 Fluid
Properties
ISO Grade
46
Viscosity index, maximum
192
Kinematic Viscosity, maximum
cSt @ 149°F / 65°C
cSt @ 104°F / 40°C
cSt @ 0°F /
-18°C
22
46
1300
Flash point
None
Pour point
-81°F / -
63°C
Maximum continuous
operating
temperature
189°F / 87°C
