Terra Universal 2700-12B Installation guide

Installation and Operating Guide Document No. 1800-47
Nitrogen Generator
© Copyright 2017 Terra Universal Inc. All rights reserved. •Revised June 2017
Terra Universal, Inc. • TerraUniversal.com • 800 S. Raymond Ave. • Fullerton, CA 92831 • TEL: [phone] • FAX: [phone]

Installation and Operating Guide
Nitrogen Generator
© Copyright 2017 Terra Universal Inc. All rights reserved. • Revised June 2017 • Document No. 1800-47
Terra Universal, Inc. • TerraUniversal.com • 800 S. Raymond Ave. • Fullerton, CA 92831 • TEL: [phone] • FAX: [phone]
2
1.0 Introduction
This manual provides information on installing and operating
your Terra Nitrogen Generator.
By studying this document carefully, you can be assured of a
long, efficient service life from your system.
2.0 Description
Terra Universal’s Nitrogen Generator is designed to provide
reliable dry nitrogen without the expense and inconvenience
associated with bottled systems. It uses efficient membrane
separation technology to generate nitrogen from compressed
air (see the chart below for typical system performance).
The system contains a gas pressure regulator and indicating
gauge, a flowmeter, a 1-micron air-line coalescing prefilter, a
0.01-micron air-line coalescing filter, and the air separator
membrane module. The prefilter removes all solids 1 micron
and larger, along with water droplets and most oil aerosols.
The coalescing filters remove solids 0.01 microns and larger
and 99.999+% of oil aerosols, thereby protecting the
membrane module from oil and other impurities in the
incoming air-line and ensuring a long service life. Oil and
moisture condensation from the prefilter and coalescing filters
exits the system through a 1/4" slip-fit connector that can be
directed to an in-house drain.
Proprietary Notice
This manual pertains to proprietary devices manufactured by Terra
Universal, Inc. Neither this document nor any portion of it may be
reproduced in any way without prior written permission from Terra
Universal.
Terra Universal makes no warranties applying to information contained
in this manual or its suitability for any implied or inferred purpose.
Terra Universal shall not be held liable for any errors this manual
contains or for any damages that result from its use.
Safety Notice
A thorough familiarity with all operating guidelines is essential to safe
operation of the product. Failure to observe safety precautions could
result in poor performance, damage to the system or other property, or
serious bodily injury or death.
The following symbols are intended to call your attention to two levels
of hazard involved in operation:
Cautions are used when failure to observe instructions
could result in significant damage to equipment.
CAUTION
Warnings are used when failure to observe instructions
or precautions could result in injury or death.
WARNING
The information presented here is subject to change without notice.
From left to right:
Cat. #2700-12B, #2700-11B, #2700-09B

Installation and Operating Guide
Nitrogen Generator
© Copyright 2017 Terra Universal Inc. All rights reserved. • Revised June 2017 • Document No. 1800-47
Terra Universal, Inc. • TerraUniversal.com • 800 S. Raymond Ave. • Fullerton, CA 92831 • TEL: [phone] • FAX: [phone]
3
3.0 Set-Up and Operation
Before operation, carefully unpack and inspect the Nitrogen Generator. Any damage should be reported immediately
to the shipping company.
To prevent dangerously low oxygen levels and risk of asphyxiation, nitrogen-purged systems should only
be installed in a well-ventilated area.
WARNING
Connecting and Operating the System
1. With the pressure regulator (counter clockwise rotation) and flowmeter (clockwise rotation) completely closed,
connect the Nitrogen Generator to an incoming compressed air line by means of the 3/8” (5/8” for Cat. #2700-
09B) inlet slip fitting on the top panel. The compressed air fed into the Nitrogen Generator should be regulated
externally between 100 and 200 psi (For maximum purity, choose the highest inlet pressure possible.)
2. Connect the nitrogen outlet by means of the other 3/8" (5/8” for Cat. No. #2700-09A) quick connect fittings on the
top panel.
3. Open regulator (completely clockwise) and flowmeter (completely counterclockwise) to allow unrestricted flow at
full line pressure. The outlet pressure will drop roughly 20-30% from the inlet pressure as the compressed air
flows through the membrane. Flow and purity are determined by adjusting either the pressure regulator or
flowmeter.
If consistent outlet pressure is required, set the pressure regulator at the desired level and then adjust the
flowmeter to achieve the desired flow at your selected pressure. The lower the flow rate at any pressure level,
the higher the product purity. The higher the pressure at any flow rate, the higher the product purity.
For your convenience, Terra installed a low-pressure alarm to alert users of gas line kinks or compressor
malfunctions via an easy-to-see Operator Status Indicator (OSI) light. This light emits a solid-color glow
under normal conditions and flashes if it detects that the compressed air feed falls below 70 PSI. This light is
120VAC powered and included as a convenience; electricity is not needed for the generator to extract
nitrogen from compressed air.
NOTE
Refer to flow tables on following pages for guidelines on typical purities achieved at varying pressures and
temperatures. Conduct purity tests to determine the settings that meet your specifications.
Initial Calibration
The frequency at which to replace pre-filters will vary depending on your application and system set-up. To help
determine the frequency for your system, check the pre-filter every three months until the color indicator on the pre-
filter turns yellow, which signifies that it’s time to replace it with a new pre-filter. Use the elapsed-time data from this
procedure to set up a filter maintenance schedule that corresponds to your workflow. By doing this, the membrane
filter will last indefinitely.

Installation and Operating Guide
Nitrogen Generator
© Copyright 2017 Terra Universal Inc. All rights reserved. • Revised June 2017 • Document No. 1800-47
Terra Universal, Inc. • TerraUniversal.com • 800 S. Raymond Ave. • Fullerton, CA 92831 • TEL: [phone] • FAX: [phone]
4
4.0 Maintenance
The membrane module inside the Nitrogen Generator is designed to operate maintenance-free as long as the prefilter
and coalescing filters effectively remove impurities (particularly oil vapor) from the feed air.

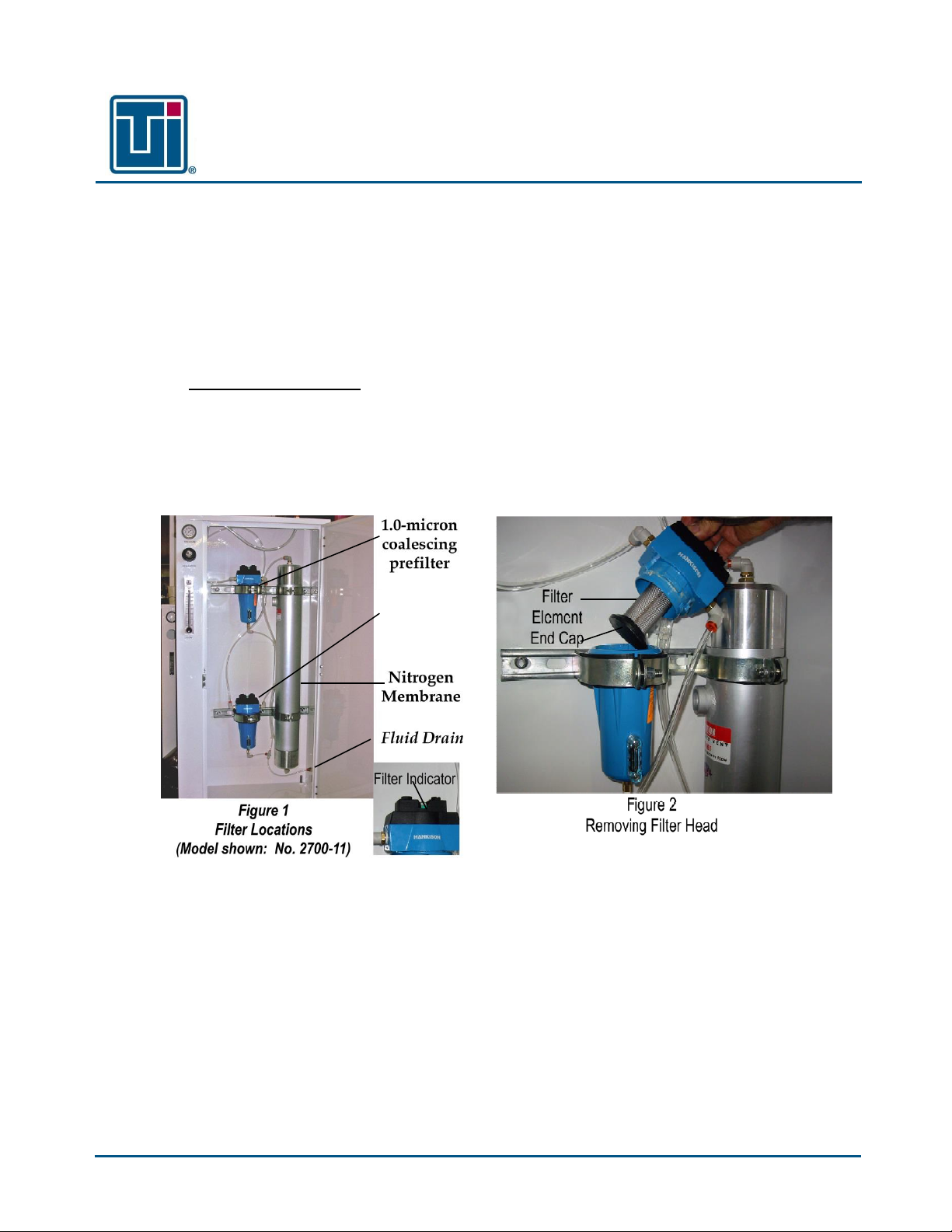

A slide indicator on these filters changes color (from green, to yellow, and then to red) when the filter element inside
either unit needs to be replaced (see Figure 1). This indicator should be monitored monthly. Under continuous use at
100 PSI, filters will operate for approximately two years (20,000 hours).
Replacing Filter Elements
1. Open the front housing panel of the Nitrogen Generator to expose the filters (see Figure 1).
2. Rotate the self-locking bayonet head 1/8 turn counterclockwise to release it from the bowl (see Figure 2).
3. Pull the filter element to release it from the head. Remove the bottom filter element cap.
4. Attach the bottom cap to the replacement filter element and push it into the filter head until it locks in place.
5. Rotate the filter head 1/8 turn clockwise to reattach it to the filter bowl. Close the front panel.
Replacement Filter Elements
Cat. #
1-micron Prefilter 2700-15
0.01-micron Coalescing Filter 2700-16
Nitrogen Membrane
For Model 2700-09 2700-36
For Model 2700-11 2700-37
For Model 2700-12 2700-38
0.01-micron
Coalescing
Filter

Installation and Operating Guide
Nitrogen Generator
© Copyright 2017 Terra Universal Inc. All rights reserved. • Revised June 2017 • Document No. 1800-47
Terra Universal, Inc. • TerraUniversal.com • 800 S. Raymond Ave. • Fullerton, CA 92831 • TEL: [phone] • FAX: [phone]
5
5.0 Specifications and Performance Data
Model Dimensions* Weight (uncrated) Flowmeter Range
2700-09 24”W x 14”D x 68.25”H 157 lbs. 0 - 400 SCFH
2700-11 24”W x 12”D x 49.25”H 96 lbs. 0 - 100 SCFH
2700-12 20”W x 12”D x 35.25”H 58 lbs. 0 - 20 SCFH
* Includes polypropylene leveling feet; excludes other hardware.

Installation and Operating Guide
Nitrogen Generator
© Copyright 2017 Terra Universal Inc. All rights reserved. • Revised June 2017 • Document No. 1800-47
Terra Universal, Inc. • TerraUniversal.com • 800 S. Raymond Ave. • Fullerton, CA 92831 • TEL: [phone] • FAX: [phone]
6
Housing: Powder-coated white CR steel cabinet with polyethylene leveling feet
Feed Air Pressure: 200 PSIG MAX
Feed Air Temperature: 40°F to 122°F

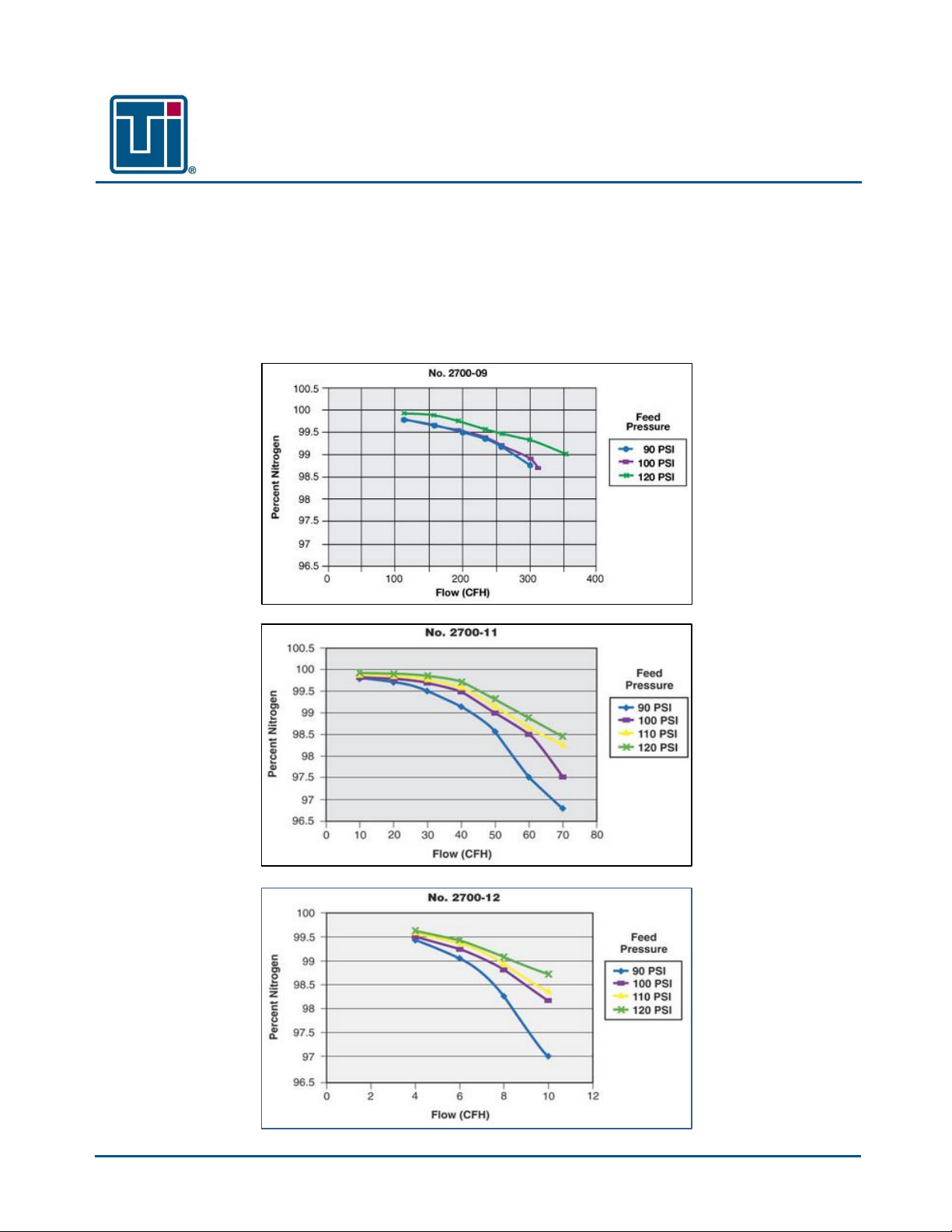

Nitrogen Outlet Flow: See graphs at right.
Prefilter: One-micron absolute filtration. Dual glass micro-fiber filter beds coalesce and remove water
droplets. Remaining oil content: 1 ppm by weight. Includes slide indicator (to indicate need
for filter change), liquid level indicator and internal drain. ISO 8573.1 Quality Class - Solids:
Class 2, Oil Content: Class 4
Coalescing Filter: Absolute filtration of 0.01µm particles; 99.999+% oil removal efficiency. Includes slide
indicator (to indicate need for filter change), liquid level indicator and internal drain. ISO
8573.1 Quality Class - Solids: Class 1, Oil Content: Class 1
Membrane Module: Semipermeable hollow fiber bundles.
Electrical: Power not needed to generate nitrogen, but low-pressure indicator light requires 120VAC.
User-supplied air compressor may require electricity.

Installation and Operating Guide
Nitrogen Generator
© Copyright 2017 Terra Universal Inc. All rights reserved. • Revised June 2017 • Document No. 1800-47
Terra Universal, Inc. • TerraUniversal.com • 800 S. Raymond Ave. • Fullerton, CA 92831 • TEL: [phone] • FAX: [phone]
7
Flow vs. Purity @ 50° C (122ºF)
(Based on 77° ambient)
No. 2700-09 No. 2700-11 No. 2700-12
Product Purity Product Purity Product Purity
Flow in SCFH 99% 98% 97% 95% 99% 98% 97% 95% 99% 98% 97% 95%
@ 150 psi 662 931 1188 1714 181 254 325 469 16 22 28 41
@ 135 psi 578 815 1042 1505 158 223 285 412 14 19 25 36
@ 125 psi 522 737 943 1365 143 202 258 374 12 18 22 32
@ 110 psi 437 620 795 1153 120 170 218 316 10 15 19 27
@ 100 psi 381 542 696 1012 104 148 191 277 9 13 17 24
@ 90 psi 326 465 598 871 89 127 164 238 8 11 14 21
Typical Nitrogen Product Flow Rates
Nm3/h (SCFH) flow at purity —13.8 barg (200 PSI) and 45°C (113°F)
Model Purity Level
95% 96% 97% 98% 99% 99.5% 99.9%
2700-09 65 55 45 36 26 20 11
(2461) (2084) (1715) (1350) (970) (745) (407)
2700-11 18 15 12 10 7 5 3
(673) (570) (468) (369) (266) (205) (110)
2700-12 1.5 1.3 1.1 0.8 0.6 0.5 0.3
(59) (49) (41) (32) (23) (18) (10)
Air Feed Requirements
Nm3/h (SCFH) flow at purity —13.8 barg (200 PSI) and 45°C (113°F)
Model Purity Level
95% 96% 97% 98% 99% 99.5% 99.9%
2700-09 122 111 99 88 76 70 50
(4655) (4218) (3776) (3331) (2883) (2654) (1902)
2700-11 34 30 27 24 21 19 14
(1274) (1156) (1034) (913) (787) (726) (521)
2700-12 2.9 2.6 2.4 2.1 1.8 1.7 1.2
(110) (99) (91) (80) (68) (65) (46)
Flow Volume Decrease
Outlet / Inlet flow, By Percentage
At N2 Purity Oulet Flow
95% 53% of inlet flow
96% 49% of inlet flow
97% 45% of inlet flow
98% 40% of inlet flow
99% 34% of inlet flow
99.5% 28% of inlet flow
99.9% 21% of inlet flow

Installation and Operating Guide
Nitrogen Generator
© Copyright 2017 Terra Universal Inc. All rights reserved. • Revised June 2017 • Document No. 1800-47
Terra Universal, Inc. • TerraUniversal.com • 800 S. Raymond Ave. • Fullerton, CA 92831 • TEL: [phone] • FAX: [phone]
8
6.0 Warranty
Products Manufactured by Terra: Terra Universal, Inc., warrants products that it manufactures to be free from
defects for a period of 12 months for parts and 90 days for labor, commencing from the date of shipment. Terra’s sole
responsibility is to repair or replace, at its option, any part of the product that proves defective or malfunctioning
during this time limit. In some cases, components incorporated in Terra Universal products are covered by additional
warranties from component manufacturers; obtain specific information from Terra sales representatives. This
warranty is void if the equipment is abused or modified by the customer, is operated outside Terra’s operating
instructions or specifications, or is used in any application other than that for which it is specified. This warranty does
not include routine maintenance or service procedures, breakage of quartz baths after 60 days, shipping damage, nor
damage from misuse, intentional or unintentional abuse, neglect, natural disasters, or acts of God.
Products Manufactured by Others: Terra Universal, Inc., warrants that, to the best of its ability, Terra’s
representations of products that are manufactured by others reflect the manufacturer’s representations, subject to
change without notice. Sole warranty for these products is the original manufacturer’s warranty that is passed forward
to the purchaser and constitutes the customer’s sole remedy for these products. Detailed warranties for distributed
products are available through Terra sales representatives.
Freight Shortage or Damage: Upon receipt of any equipment from Terra Universal, Inc., customer shall immediately
unpack and inspect for damage or shortage. The customer shall not accept a damaged package or a short shipment
until the carrier makes a "damage or shortage" notation on both the carrier's and customer's copy of the freight bill or
delivery receipt. Service title passes when the shipment is loaded, so customer is responsible for filing and collecting
a freight claim. Any replacement products must be ordered and paid for separately. For Terra's "Policy and
Procedures for Returning Goods," see Terra's Internet site: www.TerraUniversal.com.
Generally, customers can improve the chance of collecting on a freight claim by following these procedures: 1)
formally requesting that the carrier inspect the shipment immediately upon suspecting damage or shortage to verify
condition; 2) notifying the carrier upon discovery of concealed damage and requesting an inspection within 15 days of
receipt, both in person or phone and following up via mail; 3) keeping the shipment as intact as possible, including
retaining original packaging materials and keeping the product as close to the original receiving location as possible;
4) holding salvage for disposition by the carrier.
All Claims: Terra Universal expressly disclaims all other warranties, expressed or implied or implied by statute,
including the warranties of merchantability or fitness for intended use. Terra Universal is not responsible for
consequential or incidental damages arising out of the purchase or use of the products supplied by Terra Universal.
Terra Universal is not liable for damage to facilities, other equipment, products, property or personnel of others, or of
their agents, suppliers, or affiliated parties, which is caused or alleged to have been caused by products supplied by
Terra Universal. In any event or series of events, Terra Universal’s total liability for any and all damages whatsoever
is limited to the lesser of the actual damages or the original invoice cost of the items alleged to have caused the
damage. The customer’s sole and exclusive remedy for any cause of action whatsoever is repair or replacement of
the non-conforming products or refund of the actual purchase price, at the sole option of Terra Universal. All claims
must be made in writing within 90 days of the date the product was shipped. Any claims not made within this time limit
shall be deemed waived by the customer. Terra Universal is not responsible for any additional costs of repair caused
by poor packaging or in-shipment damage during return.
Warranty Returns: All warranty returns must be authorized in advance by Terra Universal and approved under an
RMA. Unless approved in advance for good reason, all returns must be in original condition, including all manuals,
and must be packaged in original packaging materials. All returned goods are to be shipped to Terra Universal, freight
prepaid at customer’s expense. See Terra’s “Policy and Procedure for Returned Goods.”
Thank you for ordering from
Terra Universal!
