Powerwall 2 AC Installation Manual
3
ATTENTION: Read this entire document before installing or using Powerwall. Failure to do so or to follow
any of the instructions or warnings in this document can result in electrical shock, serious injury, or death,
or can damage Powerwall, potentially rendering it inoperable.
IMPORTANT SAFETY INSTRUCTIONS
This manual contains important instructions for the Tesla Powerwall 2 AC and Backup Gateway that must be
followed during installation and maintenance of the system.

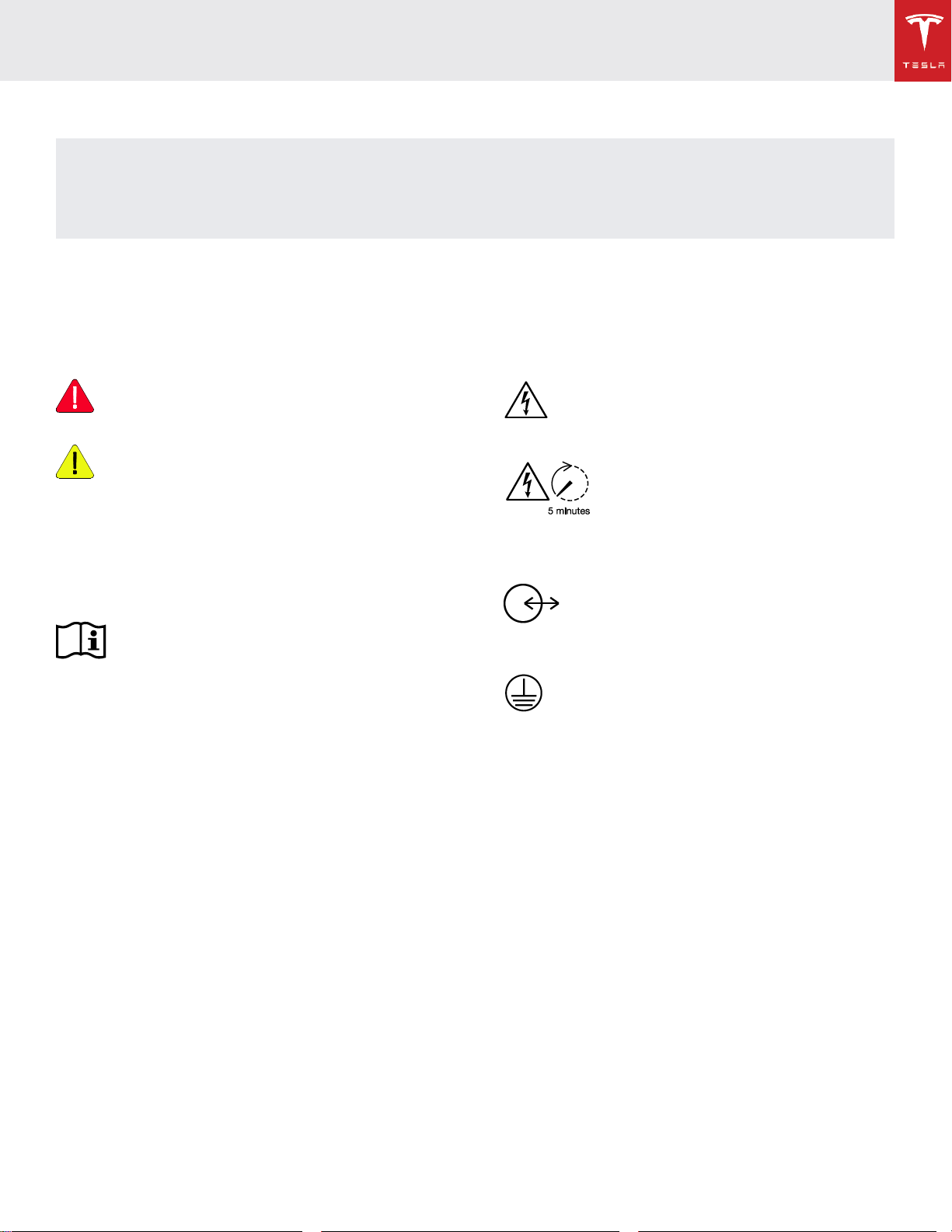

SYMBOLS USED
WARNING: indicates a hazardous situation
which, if not avoided, could result in injury
or death.
CAUTION: indicates a hazardous situation
which, if not avoided, could result in minor
injury or damage to the equipment.
NOTE: indicates an important step or tip that
leads to best results, but is not safety or damage
related.
REFER TO OPERATING INSTRUCTIONS:
indicates that user should refer to
operating or installation instructions before
proceeding.
RISK OF ELECTRIC SHOCK: indicates
components that present risk of electrical
shock.
CAUTION, RISK OF ELECTRIC
SHOCK, ENERGY STORAGE TIMED
DISCHARGE. Discharge time is 5
minutes from de-energization.
BIDIRECTIONAL TERMINAL: Indicates
location of combined input/output
connector on the equipment.
PROTECTIVE CONDUCTOR TERMINAL:
Indicates location of grounding connection
on the equipment.

Powerwall 2 AC Installation Manual
4
GENERAL INFORMATION
WARNING: Read this entire document before
installing or using Powerwall. Failure to do so
or to follow any of the instructions or
warnings in this document can result in
electrical shock, serious injury, or death, or
may damage Powerwall, potentially rendering
it inoperable.
WARNING: A battery can present a risk of
electrical shock, fire, or explosion from vented
gases. Observe proper precautions.
WARNING: Powerwall installation must be
carried out only by a competent electrician
who is certified by Tesla and who has been
trained in dealing with low voltage electricity.
WARNING: Powerwall is heavy. Use of lift
equipment is recommended.
WARNING: Use Powerwall only as directed.
WARNING: Do not use Powerwall if it is
defective, appears cracked, broken, or
otherwise damaged, or fails to operate.
WARNING: Before beginning the wiring
portion of the installation, ensure that
Powerwall is switched off, and lock out any
associated circuit breakers and disconnect
switches (if applicable for the installation).
WARNING: Do not attempt to open,
disassemble, repair, tamper with, or modify
Powerwall. Powerwall and its components are
not user serviceable. Batteries in Powerwall
are not replaceable. Contact Tesla Support for
guidance on repairs.
WARNING: To protect Powerwall and its
components from damage when transporting,
handle with care. Do not impact, pull, drag, or
step on Powerwall. Do not subject Powerwall
to any strong force. To help prevent damage,
leave Powerwall in its shipping packaging
until it is ready to be installed.
WARNING: Do not insert foreign objects into
any part of Powerwall.
WARNING: Do not expose Powerwall or its
components to direct flame.
WARNING: Do not install Powerwall near
heating equipment.
WARNING: Do not immerse Powerwall or its
components in water or other fluids
WARNING: Install Powerwall and Backup
Gateway in a location that prevents damage
from flooding.
WARNING: Operating or storing Powerwall in
temperatures outside its specified range
might cause damage to Powerwall.
WARNING: Do not expose Powerwall to
ambient temperatures above 60°C (140°F) or
below -30°C (-22°F).
CAUTION: Do not use solvents to clean
Powerwall, or expose Powerwall to flammable
or harsh chemicals or vapors.
CAUTION: Do not use fluids, parts, or
accessories other than those specified in this
manual, including use of non-genuine Tesla
parts or accessories, or parts or accessories
not purchased directly from Tesla or a Tesla-
certified party.
CAUTION: Do not place Powerwall in a
storage condition for more than one (1)
month, or permit the electrical feed on the
Powerwall to be severed for more than one (1)
month, without placing Powerwall into a
storage specifications.
CAUTION: Do not paint any part of Powerwall,
including any internal or external components
such as the exterior shell or casing.
CAUTION: Do not connect Powerwall directly
to photovoltaic (PV) solar wiring.
CAUTION: When installing Powerwall in a
garage or near vehicles, keep it out of the
driving path. If possible, install Powerwall on a
side wall and/or above the height of vehicle
bumpers.
CAUTION: Avoid installing Powerwall and
Backup Gateway in direct sunlight.
CAUTION: Ensure that no water sources are
above or near Powerwall or Backup Gateway,
including downspouts, sprinklers, or faucets.
CAUTION: Ensure that snow does not
accumulate around Powerwall or Backup
Gateway.
CAUTION: Avoid installing the Powerwall and
Backup Gateway where it will be exposed to
direct sunlight or ambient temperatures
greater than 35 deg C.
CAUTION: The Backup Gateway may not be
flush mounted in a wall or cavity.

Powerwall 2 AC Installation Manual
5
Specifications
Powerwall 2 AC Electrical Specifications
Usable Energy 1
13.5 kWh
AC Voltage (Nominal)
230 V
Maximum Continuous Current
16 A (UK G98)
25 A (UK G99; EU)
Frequency (Nominal)
50 Hz
Real Power, max continuous
(charge and discharge)
3.68 kW (UK G98)
5 kW (UK G99)
Apparent Power, max
continuous
(charge and discharge)
3.68 kVA (UK G98)
5.8 kVA (UK G99)
Power Factor Output Range
+/- 1.0 adjustable
Overvoltage Category
Category III
Maximum Supply Fault Current
10 kA
Maximum Output Fault Current
32 A
Maximum Inrush Current
0.4 A
Round Trip Efficiency
(Beginning of Life)1
90%
1Values for 25°C, 3.3 kW charge/discharge power
Backup Gateway 2 Electrical Specifications
Maximum Overcurrent
Protection Device
100 A
(single-phase service)
80 A
(2- and 3-phase service)
Rated Frequency (fn)
50-60 Hz
Overvoltage Category
Category III
AC Meter
Revenue accurate (+/
0.2%)
Maximum Input Short
Circuit Rating 2
16 kA
Compatible Earthing
Systems 3
TN or TT networks
Distribution boards
intended to be operated
by ordinary persons
(DBO) Type
Type B
Safety
IEC 61439-1, IEC 61439-3
2 16 kA rating when installed with current limiting fuse
compliant to BS 88.3; 10 kA rating without fuse.
3 TT earthing networks supported for Gateways with part
number 1152100-13-H and higher
Environmental Specifications
Powerwall 2 AC
Backup Gateway 2
Operating Temperature 4
-20°C to 50°C
-20°C to 50°C
Optimum Temperature
0°C to 30°C
N/A
Operating Humidity (RH)
Up to 100%, condensing
Up to 100%, condensing
Storage Conditions
(up to 12 months)
-20°C to 30°C
Up to 95% RH, non-condensing
State of Energy (SoE): 25% initial
N/A
Maximum Altitude
3000 m
3000 m
Noise Level @ 1 m
< 40 dBA at 30°C
N/A
Ingress Rating
IP67 (battery and power electronics)
IP56 (wiring)
IP55
Environmental Category
N/A
Outdoor
Wet Location Rating
Yes
Yes
Seismic Rating
AC156, IEEE 693-2005 (high)
N/A
Pollution Degree
N/A
PD2
4Performance may be de-rated in extreme ambient temperatures.

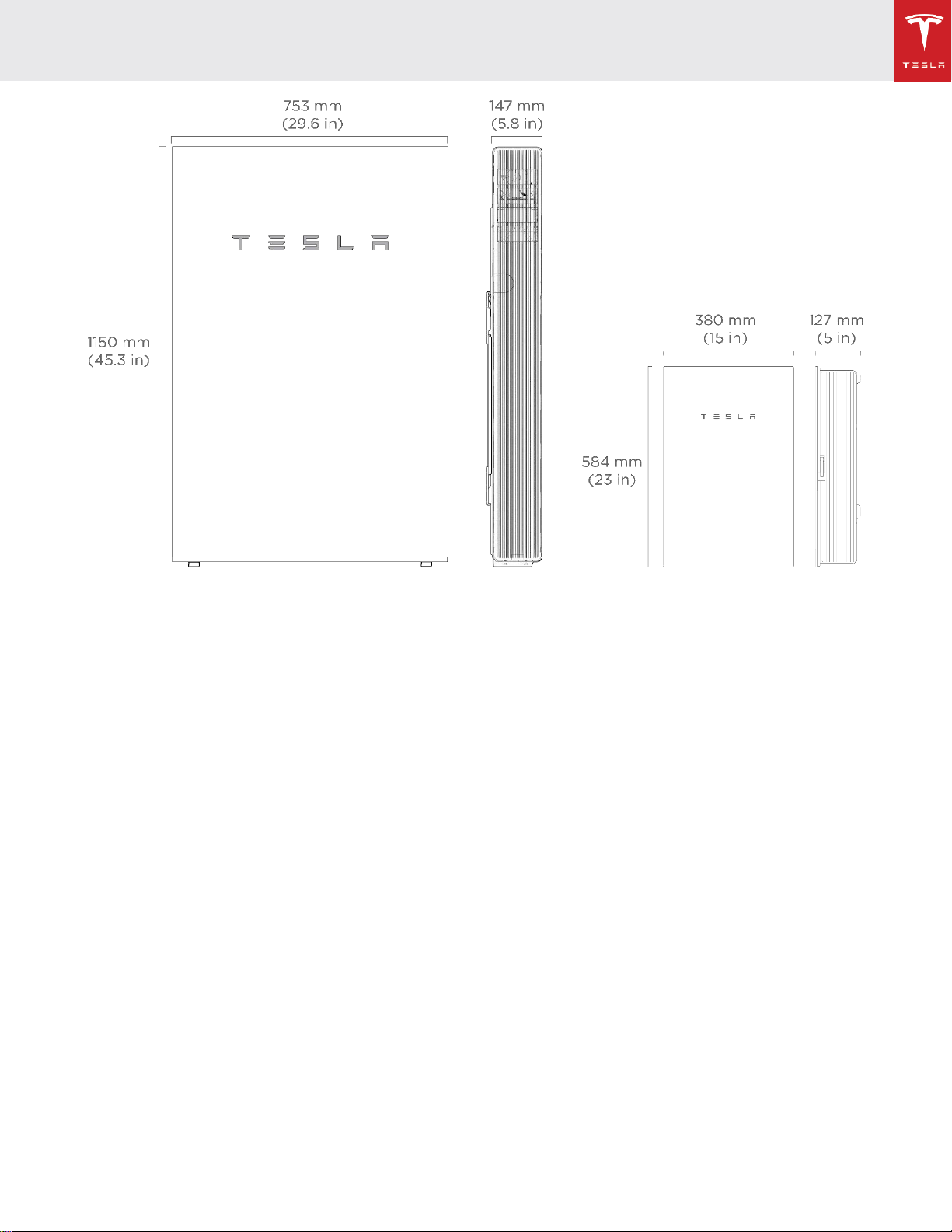

Mechanical Specifications
Powerwall 2 AC 5
Backup Gateway 2
Height
1150 mm
584 mm
Width
753 mm
380 mm
Depth
147 mm
127 mm
Weight
114 kg
11.4 kg
5Powerwalls with part numbers 1092170-XX-H and lower and 2012170-XX-B and lower have the following specifications:
1150 x 755 x 155 mm, 125 kg.

Powerwall 2 AC Installation Manual
6
Registering Powerwall
Tesla Powerwall comes with a warranty whose term depends on the connection of Powerwall to the Internet.
To secure the full 10-year warranty for Powerwall, it must be reliably connected to the Internet to allow
remote firmware upgrades from Tesla. If an Internet connection is not established or is interrupted for an
extended period, and Tesla is unable to contact the owner, the warranty may be limited to 4 years. To ensure
that the owner can receive the full 10-year warranty, be sure to complete the commissioning process so that
registration information is sent to Tesla.
For more information, refer to the Powerwall Warranty for your region at www.tesla.com.
Site Requirements and Pre-Installation Guidance
Powerwall and Backup Gateway 2 Installation Requirements
Powerwall comes with a separate Backup Gateway to enable integration with the electrical grid and
generation like solar systems (refer to Compatibility Matrix for information on what can be connected with
Powerwall). The Backup Gateway communicates with the system by means of wireless and wired
connections. Wiring and conduit (where required) must be provided by the installer. Where conduit is
required, the installation must comply with local codes.
AC disconnect and interconnection requirements between the Powerwall system and the main distribution
board are subject to local codes. Ensure that the installation meets local disconnect and interconnection
requirements.
) side of the Backup
.
WARNING: When Powerwall is installed in a dwelling unit, fire detection and protection equipment should
be installed in accordance with local building and fire codes.
WARNING: Do not connect the Backup Gateway in any way that bypasses or short-circuits its relay.
WARNING: Do not connect the Backup Gateway to the source side only or to the load side only. The
Backup Gateway must have both source and load connections, and must be wired in compliance with local
codes.
CAUTION: The Backup Gateway may not be recessed into a wall or cavity.
CAUTION: The Manual Override switch inside of the product must not be used to simulate a grid outage
or take home off-grid. A main isolation switch should be installed upstream of the Backup Gateway for
testing the system and for service purposes.
NOTE: All installations must conform to the laws, regulations, codes, and standards applicable in the
jurisdiction of installation.

Powerwall 2 AC Installation Manual
7
Figure 1: Powerwall 2 AC and Backup Gateway 2 Dimensions
Powerwall Physical Requirements
Powerwall can be mounted on a floor or wall, and includes a mounting bracket to support either
configuration. Mounting Powerwall must follow the guidance outlined in this document. Mounting
requirements based on wall type are provided in Appendix A: Powerwall Mounting Details
Powerwall requires adequate clearance for installation, cabling, and airflow. Do not install anything above
Powerwall that limits access to the unit or that might fall and damage the unit. Do not mount Powerwall
horizontally or upside down.
NOTE: Powerwall has a pump and fan that produce a gentle hum during operation, comparable to a typical
refrigerator. The noise level depends on the ambient temperature and the power level of operation. Consider
these noise levels when choosing where to install Powerwall.

Powerwall 2 AC Installation Manual
8
Powerwall Identification
Newer Powerwalls have slightly different dimensions for mounting-bracket height. Powerwalls may be easily
identified by part number and by comparing the back of the Powerwall (see Figure 2).
Figure 2: Powerwall 2 Identification by Mounting Bracket Height
Powerwall Optimum Temperature Range
Powerwall is rated to operate in temperatures from 4°F to 122°F (-20°C to 50°C). However, for best
performance Tesla recommends installing Powerwall in locations with ambient temperature between 32°F
and 86°F (0°C to 30°C) year round. When outside this recommended temperature range, charge/discharge
power may be reduced and Powerwall will utilize its thermal control system more frequently to maintain
battery cell temperature which will reduce the energy efficiency of the system. Systems operating off-grid
for long periods (>4 hours) in cold weather systems may need to curtail PV, and reduce energy used for pre-
conditioning.
•For cold climates, Tesla recommends installing Powerwall indoors when possible (particularly when
long outages are expected).
•For hot climates Tesla recommends keeping Powerwall out of direct sunlight. Installation in full sun
raises the temperature inside the enclosure above ambient temperature. This temperature rise is not a
safety risk, but may impact battery performance.
Additionally, if stored in a cold environment (e.g. below 0°C) before installation, it may take several hours for
Powerwall to raise its internal temperature using pre-conditioning. Tesla recommends storing Powerwalls in a
warm location prior to installation to help efficiently commission and test the system.
1092170-XX-H and lower
2012170-XX-B and lower
1092170-XX-J and higher
2012170-XX-C and higher

Powerwall 2 AC Installation Manual
9
Installation Quick Reference

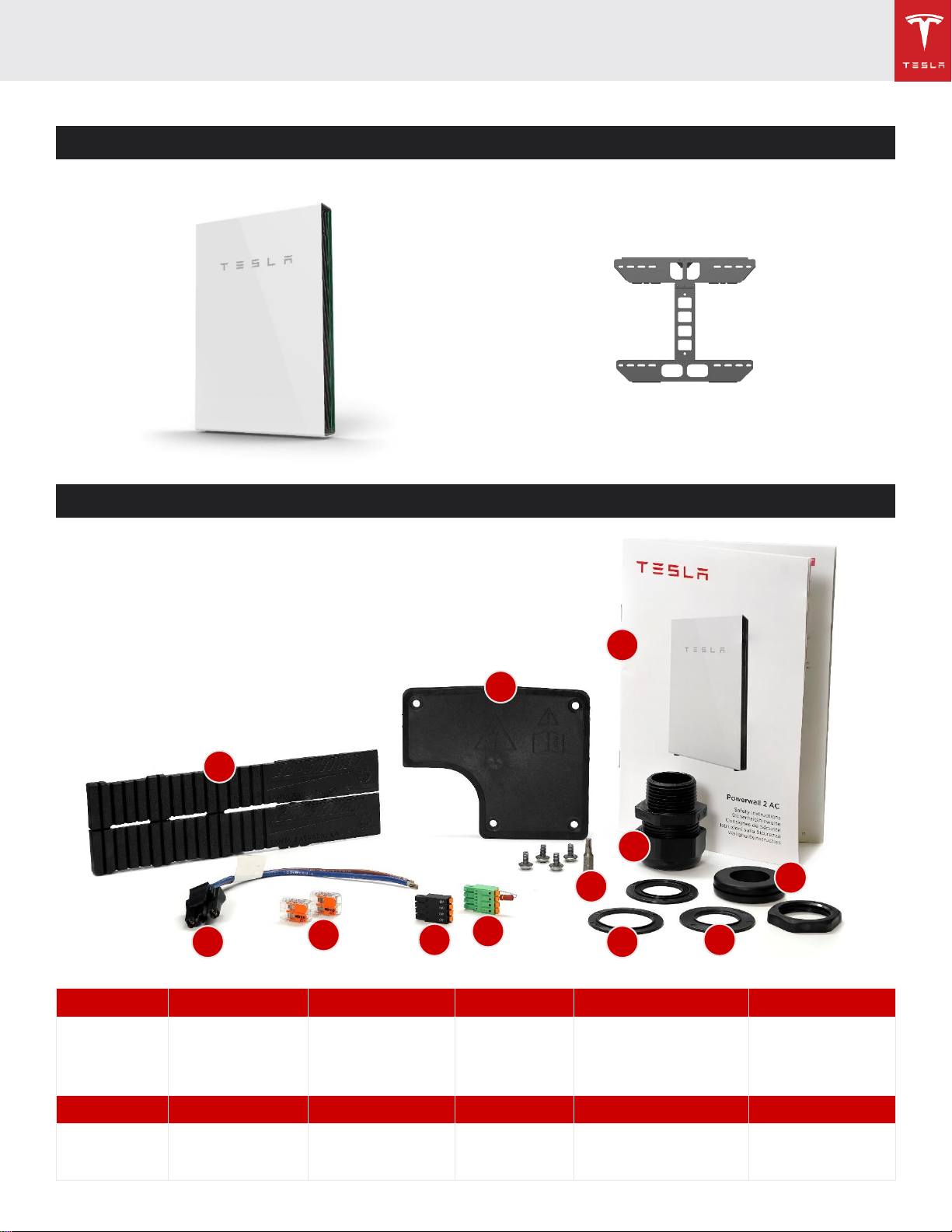

In the Powerwall Box
In the Powerwall Accessory Bag
1
2
3
4
5
6
(2) Shims
(1) AC power
harness
(2) Wago 2-position
lever nuts
(1) 4-pin
terminal block
connector
(1) 4-pin terminal block
connector with 120-Ohm
terminating resistor
(1) 32-mm reducing
washers
7
8
9
10
11
12
(2) 25-mm
reducing
washers
(1) 35-mm rubber
grommet
(1) drillable threaded
cable gland
(1) T20 Torx
driver bit
Wiring compartment
cover with (4) screws
(1) Safety Instruction
document
10
1
2
4
5
3
6
7
8
9
12
11

Powerwall 2 AC Installation Manual
10
In the Backup Gateway 2 Box
In the Backup Gateway Accessory Bag
1
2
3
4
(1) Adhesive circuit label
(1) CT extension cable harness
(3m)
(3) ¼-inch rubber boned
stainless steel washers
(5) 8mm backplate nuts
5
6
7
(1) M25 communication gland and insert
(1) Solar CT (100A, split-core)
(1) Circuit breaker blanking hole filler set
2
1
3
4
5
6
7
