Tesla SMART CAMERA PIR BATTERY User manual

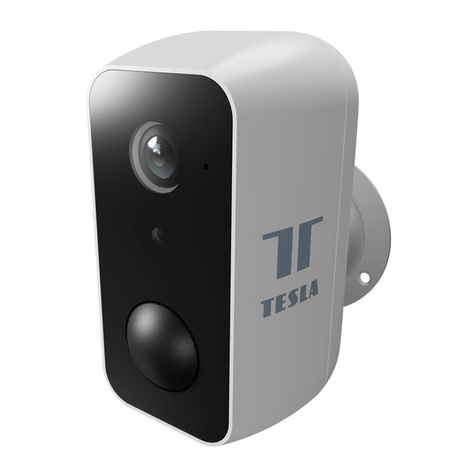

TESLA SMART CAMERA PIR BATTERY
USER MANUAL

EN
WHAT'S IN THE BOX
Please consult this checklist for all parts.
• Smart Camera PIR Baery
• Power adapter
• USB cable
• Screws (2 packages)
• Bracket (B)
• Bracket (A)
• User manual
Power port
Power ON/OFF
Status light
SD card slot
Reset
Charging indicator
Baery capacity
Speaker
Status light
Microphone
Lens
Photosensive
PIR
Reset
Micro USB
Charging indicator
Power buon
SD card slot
DC 5V±10%
Press the buon for 3 seconds to turn on/o the camera
Solid red light on: the camera is turning on or malfunconal
Blinking red light: awaing WiFi connecon (slowly blinking)
connecng the WiFi (quickly blinking)
Blinking blue light: currently connecng
Solid blue light on: the camera runs correctly
Support local SD card storage (Max.128G)
Press and hold on for 5 seconds to reset the camera
Solid red indicator on: baery is charging
Solid blue indicator on: charging completed
9000mAh (two 21700 lithium-ion baeries)
1

EN
INSTALL
Mode 1 Bracket (A) Installaon
Mode 2 Bracket (B) Installaon
1. Fix the bracket on the wall with screws
2. Bring the camera closer to the bracket
1. Fix the bracket on the wall
2. Install the camera in the bracket and lock it with the screw
0~360°
0~90°
2
Aer ajusng your camera angle,
please lock this screw

EN
CONNECT
Download
Set up router
Registraon process
QR code conguraon
Step 2
2
3
4
5
Sengs
Step 1
1
3
Smart Life is available for both iOS and Android OS.
Rearch the name 'Smart Life'in App Store or Android
Market, or scan the QR-Code to download the
App.
The router supports the 2.4GHz WiFi (doesn't support the 5GHz).Before connecng to the WiFi network,
please set the parameters of the router, and record the SSID and password of your WiFi.
Open the Smart Life App, click "Register", read the "Privacy Policy" and click "Agree" .
Open the Smart Life App, click "Create family", and you can customize
the Family name and related sengs.
Input a legal and valid Mobile number or Email address and click "Connue". Input Vericaon Code,
then log in the app.
Connue to click "Security & Sensor" >> "Smart Camera", and then
choose" Add Device" or "+", ready to add camera.
In "Add Device" this interface,connue to click "next step", and then you should input your WiFi's passwords.
Note: 1) Camera only supports 2.4GHz WiFi network. 2) The number of bits in the ssid and passwords of the router
should not exceed 24 digits.
In this interface, you should scan the QR code in your phone with the camera, when the camera comes out
"dong dong dong". And you can complete the conguraon about 30s.
When connecng, you should make sure your router, mobile,and camera are as close as possible. When camera
added successully, click " " you could also DIY the camera's name.
In "Smart Camera" interface,click " ",you can set the camera common funcons.

EN
FAQ
Funcons
Queson
Queson
Queson
Queson
Queson
Answer
Answer
Answer
Answer
Answer
The device cannot be previewed properly?
Why is it sll in the list of devices aer reseng?
How to cut the camera network to another router?
Why doesn't the device idenfy the SD card?
Why I can’t get the nocaons with my cell phone App?
Check whether the network is normal, you can place the camera close to the router, and if not,
it is recommended to reset the device and add it again.
The reset device only resets the network conguraon of the camera, but cannot change the
conguraon on the App, remove the camera, and must be deleted by the App.
First remove and reset the device on the App and then congure the device again
by the App.
It is recommended to plug in SD card aer power cut. Conrm whether the SD card is normally
available and the format is FAT32. And the TF card can’t be idened when the internet
environment is not good.
Please conrm that the App has been running on the phone, and the relevant reminder funcon
has been opened;Message nocaon and authority conrmaon in the mobile phone system
have been opened.
4
Remote wake-up
Low baery alarm
Full-duplex audio
Record
PIR
Day & Night
The camera will be in a sleep mode to save power; you can have a preview in App.
When the baery power is lower than your set, the App will send a nocaon to your mobile phone.
You can see and hear the vistor in your App from the camera.
Using SD card or opening the Cloud-Storage Service, to keep recording for every moment.
When the camera detects someone stopping by, it sends an alarm message to your cell phone.
Powerful night vision means no interrupons, even in complete darkness.

EN
TECHNICAL SPECIFICATION AND ADDITIONAL INFORMATION
5
Product name Tesla Smart Camera PIR Battery
Resolution
1920 x 1080
Power supply
DC5V, 1A, Baterie - 9000mAh
Battery Life
Up To 3 Months
Sensor
1/2.9'' 2MPx, CMOS
IR Distance
Up To 10 m
Lens
3.2mm , F2.0
Dimensions
57 x 62 x 100 mm
Storage
MicroSD Card, Cloud
App
Tesla Smart for Android a iOS
Connectivity Wi-Fi 2,4 GHz IEEE 802.11b/g/n
Model
Snap 11S
INFORMATION ABOUT DISPOSAL AND RECYCLING
EU DECLARATION OF CONFORMITY
This product is marked with the symbol for separate collecon. The product must be disposed of in accordance
with the regulaons for disposal of electrical and electronic equipment (Direcve 2012/19/EU on waste electrical
and electronic equipment). Disposal together with regular municipal waste is prohibited. Dispose of all electrical
and electronic products in accordance with all local and European regulaons at the designated collecon points
which hold the appropriate authorisaon and cercaon in line with the local and legislave regulaons. Correct
disposal and recycling help to minimise impacts on the environment and human health. Further informaon
regarding disposal can be obtained from the vendor, authorised service centre or local authories.
Hereby, Wiy Trade s.r.o. declares that the radio equipment type Snap 11S is in compliance with EU direcves.
The full text of the EU declaraon of conformity is available at the following internet address:
teslasmart.com/declaraon
Connecvity: Wi-Fi 2,4 GHz IEEE 802.11b/g/n
Frequency band: 2.400 - 2.4835 GHz
Max. radio-frequency power (EIRP): < 20 dBm
Wiy Trade s.r.o.
Průmyslová 1472/11, 102 00 Praha, Česká republika
www.teslasmart.com
