Tesla Snap 11S User manual

1
USER MANUAL
TESLA SMART CAMERA
PIR BATTERY
EN
CZ
SK
PL
HU
SL
HR
DE

2
WHAT‘S IN THE BOX
Please consult this checklist for all parts.
• Smart Camera PIR Battery
• Power adapter
• USB cable
• Screws (2 packages)
• Bracket (B)
• Bracket (A)
• User manual

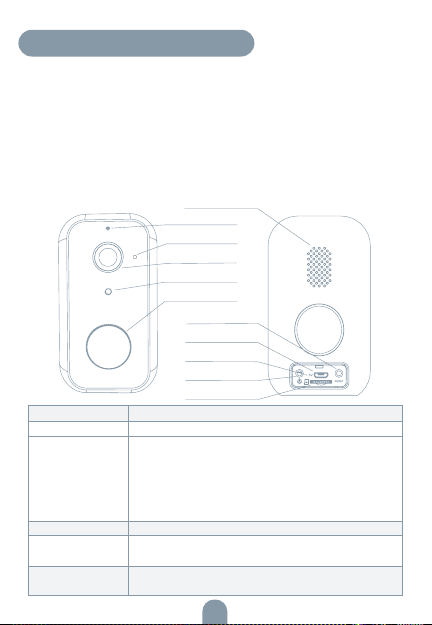

Power port DC 5V ±10%
Power ON/OFF Press the button for 3 seconds to turn on/off the camera
Status light Solid red light on: the camera is turning on or malfunctional
Blinking red light: awaiting WiFi connection (slowly blinking)
connecting the WiFi (quickly blinking)
Blinking blue light: currently connecting
Solid blue light on: the camera runs correctly
SD card slot Support local SD card storage (Max.128G)
Reset Press and hold on for 5 seconds to reset the camera
Charging indicator Solid red indicator on: battery is charging
Solid blue indicator on: charging completed
Battery capacity 9000mAh (two 21700 lithium-ion batteries)
Microphone
Speaker
PIR
Reset
Micro USB
Power button
SD card slot
Charging indicator
Photosensitive
Status light
Lens

3
INSTALL

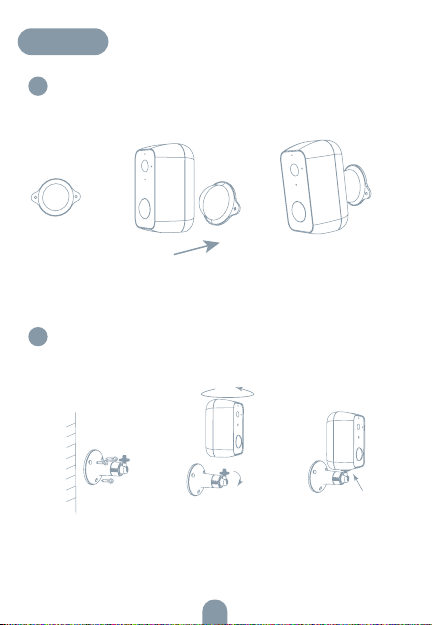

Bracket (A) Installation
1. Fix the bracket on the wall with screws.
2. Bring the camera closer to the bracket.
1. Fix the bracket on the wall.
2. Install the camera in the bracket and lock it with the screw.
After ajusting your camera
angle, please lock this screw.
0~90°
0~360°
Bracket (B) Installation
1
2

4
CONNECT
Download
Tesla Smart is available for both iOS and
Android OS. Search the name ‚Tesla Smart‘
in App Store or Android Market, or scan the
QR-Code to download the App.
SET UP ROUTER
The router supports the 2.4GHz WiFi (doesn‘t support the 5GHz), and
is connected to the WiFi network.Please set the parameters of the
router before connecting the WiFi network, and record the SSID and
password of your WiFi.
REGISTRATION PROCESS
Step 1 Open the Tesla Smart App, click „Register“, read the „Privacy
Policy“ and click „Agree“ .
Step 2 Input a legal and valid Mobile number or Email address and
click „Continue“. Input Verification Code, then log in the app.
QR CODE CONFIGURATION
1. Open the Tesla Smart App, click „Create family“, and you can custo-
mize the Family name and related settings.
2. Continue to click „Security & Sensor“ >> „Smart Camera“, and then
choose“ Add Device“ or „+“, ready to add camera.
3. In „Add Device“ this interface,continue to click „next step“, and then
you should input your WiFi‘s passwords. Note:
1) Camera only supports 2.4GHz WiFi network. 2) The number of bits
in the ssid and passwords of the router should not exceed 24 digits.
4. In this interface, you should scan the QR code in your phone with
the camera, when the camera comes out „dong dong dong“. And
you can complete the configuration about 30s.
5. When connecting, you should make sure your router, mobile,and

5
camera are as close as possible. When camera added successffully,
click „ „ you could also DIY the camera‘s name.
SETTINGS
In „Smart Camera“ interface,click „ „,you can set the camera
common functions.
FAQ
Q: The device cannot be previewed properly?
A: Check whether the network is normal, you can place the camera
close to the router, and if not, it is recommended to reset the device
and add it again.
Q: Why is it still in the list of devices after reseting?
A: The reset device only resets the network configuration of the
camera, but cannot change the configuration on the App, remove the
camera, and must be deleted by the App.
Q: How to cut the camera network to another router?
A: First remove and reset the device on the App and then configure the
device again by the App.
Q: Why doesn‘t the device identify the SD card?
A: It is recommended to plug in SD card after power cut. Confirm
whether the SD card is normally available and the format is FAT32.
And the TF card can’t be identified when the internet environment is
not good.
Q: Why I can’t get the notifications with my cell phone App?
A: Please confirm that the App has been running on the phone, and the
relevant reminder function has been opened;Message notification and
authority confirmation in the mobile phone system have been opened.

6
Remote wake-up
The camera will be in a sleep mode to save power; you can have a
preview in App.
Full-duplex audio
You can see and hear the vistor in your App from the camera.
PIR
When the camera detects someone stopping by, it sends an alarm
message to your cell phone.
Low battery alarm
When the battery power is lower than your set, the App will send
a notification to your mobile phone.
Record
Powerful night vision means no interruptions, even in complete
darkness.
Day & Night
Using SD card or opening the Cloud-Storage Service, to keep
recording for every moment.
Product name Tesla Smart Camera PIR Battery
Resolution 1920 x 1080
Power supply DC5V, 1A, Baterie - 9000mAh
Battery Life Up To 3 Months
Sensor 1/2.9‘‘ 2MPx, CMOS
IR Distance Up To 10 m
Lens 3.2mm , F2.0
Dimensions 57 x 62 x 100 mm
Storage MicroSD Card, Cloud
App Tesla Smart for Android and iOS
Connectivity Wi-Fi 2,4 GHz IEEE 802.11b/g/n
Model Snap 11S
TECHNICAL SPECIFICATION
FUNCTIONS

7
This product is marked with the symbol for separate collection. The
product must be disposed of in accordance with the regulations for
disposal of electrical and electronic equipment (Directive 2012/19/
EU on waste electrical and electronic equipment). Disposal together
with regular municipal waste is prohibited. Dispose of all electrical and
electronic products in accordance with all local and European regu-
lations at the designated collection points which hold the appropriate
authorisation and certification in line with the local and legislative
regulations. Correct disposal and recycling help to minimise impacts
on the environment and human health. Further information regarding
disposal can be obtained from the vendor, authorised service centre or
local authorities.
EU DECLARATION OF CONFORMITY
INFORMATION ABOUT DISPOSAL
AND RECYCLING
Hereby, Witty Trade s.r.o. declares that the radio equipment type
Snap 11S is in compliance with EU directives. The full text of the EU
declaration of conformity is available at the following internet address:
teslasmart.com/declaration
Connectivity: Wi-Fi 2,4 GHz IEEE 802.11b/g/n
Frequency band: 2.400 - 2.4835 GHz
Max. radio-frequency power (EIRP): < 20 dBm
Manufacturer
Tesla Global Limited
108 Lok Shan Road, Tokwawan,
Kowloon
Hong Kong, 85200
www.teslasmart.com

BENUTZERHANDBUCH
TESLA SMART CAMERA
PIR BATTERY
EN
CZ
SK
PL
HU
SL
HR
DE

9
WAS IST IN DER SCHACHTEL ZU FINDEN
Sehen Sie die folgende Checkliste ein und überprüfen Sie, ob Sie
alle Komponenten erhalten haben.
• Smart Camera PIR Battery
• Versorgungsadapter
• USB-Kabel
• Schrauben (2 Pakete)
• Tragrahmen (B)
• Tragrahmen (A)
• Bedienungsanleitung
Versorgungsport DC 5V ±10%
Einschalten/
Ausschalten
Durch das Drücken der Taste für die Dauer von 3 Sekunden
wird die Kamera eingeschaltet/ausgeschaltet
Zustandskontro-
lllampe
Rotes Licht leuchtet: Kamera wird eingeschaltet oder
funktioniert nicht richtig
Rotes Licht blinkt: Warten auf den Wi-Fi-Anschluss (langsa-
mes Blinken). Anschluss ans Wi-Fi-Netz (schnelles Blinken)
Blaues Licht blinkt: Anschließen
Blaues Licht leuchtet: Kamera funktioniert richtig
Slot für die
SD-Karte
Support local SD card storage (Max.128G)
Reset-Taste Durch das Drücken und Halten der Taste für die Dauer von
5 Sekunden wird die Kamera zurückgesetzt
Mikrophon
Lautsprecher
PIR-Sensor
Reset-Taste
Micro USB
Versorgungstaste
Slot für die SD-Karte
Ladeanzeige
Fotosensitivsensor
Zustandskontrolllampe
Linse

10
INSTALLATION
Installation des Tragrahmens (A)
1. Mit Hilfe der Schrauben befestigen Sie den Tragrahmen an die Wand
2. Führen Sie die Kamera an den Tragrahmen heran
1. Befestigen Sie den Tragrahmen an die Wand
2. Installieren Sie die Kamera an den Tragrahmen und
befestigen Sie sie mittels der Schrauben
Regulieren Sie den Winkel der
Kamera und befestigen Sie sie
mittels einer Schraube.
0~90°
0~360°
Installation des Tragrahmens (B)
1
2
Indikator Rote Kontrollleuchte leuchtet: Aufladen der Batterie
Blaue Kontrollleuchte leuchtet: Aufladen beendet
Batteriekapazität 9 000 mAh (zwei 21 700 Lithium-Ionen-Batterien)
