Tesla SOUND DAB75 User manual

TESLA SOUND DAB75
Radio with DAB+ tuner and colour LCD display
Operating Instructions EN
DAB+ Radio | FM Radio | Bluetooth | TF card

This device is a portable radio with colour LCD display, DAB+
digital tuner, Bluetooth player and FM tuner. You'll also enjoy the
ability to play from memory cards or play from an external
source via Aux-in. This portable DAB radio can be easily carried
to different locations thanks to its battery operation.
FUNCTIONS:
•DAB/DAB+ receiver Bandlll 174-240MHz
•FM receiver 87.5-108MHz with RDS
•Bluetooth player 5.0
•TF card reader
•AUX-in input
•3.5mm headphone output
•2.4" colour LCD display
•Presentation of images in DAB broadcasts
•40 FM pre-set stations & 40 DAB pre-set stations
•Setting of two alarms
•Sleep mode settings
•EQ settings
•Multilingual OSD
•1800mAh rechargeable built-in battery
•3-inch frequency speaker
•Telescopic antenna
PACKAGING CONTENTS:
•Main unit: 1pc
•USB-DC charging cable: 1pc
•AUX connection cable: 1pc
INTRODUCTION

DESCRIPTION OF THE INSTRUMENT AND CONTROLS
Menu:
1/2/3+:
KNOB:
:
:
:
Short press - display station information
Long press - enter menu
Pre-set stations - short press to select Pre-set stations
- long press to save
Back or exit in the menu
Turn to adjust the volume
Press to confirm the selection
Previous Station or song
Next Station or song
Short press - clock display
Long press in standby mode - switch off the device
TF Card

DESCRIPTION OF THE INSTRUMENT AND CONTROLS
BT MODE: Press the [ ] button to enter the main menu.
Press the [ button repeatedly ]
or rotate the [ KNOB] button to select Bluetooth
mode [ ].On the phone, select the DAB75
product model from the device list and press the
volume button, or wait 10 seconds to return to the
playback menu.
:
AUX:
LED:
DC5V:
3.5mm headphone jack
AUX: external audio
LED charging indicator
5V charging connector
Telescopic antenna

GETTING STARTED
1. SWITCHING THE RADIO ON/OFF
1.1 When the radio is off, press and hold [ ] to switch it on.
1.2 When the radio is on, press and hold [ ].
The radio switches to standby mode, press and hold again and
the radio switches off.
2. MODE SWITCH
2.1 When the radio is on, press [ ] to switch the mode.
2.2 You can choose DAB/FM/AUX/Bluetooth/TF Card mode
and press the knob to confirm the selection or to
enter the mode. After 3s it will automatically activate
itself.
3. CLOCK AND ALARM SETTINGS
3.1 Thanks to the DAB tuner, the clock is automatically set
using the DAB signal.
3.2 You can set the time/date manually. In any mode, press
and hold [ Menu ] to select the menu for setting the time/date,
alarm.
4. BACKLIGHT SETTINGS
Press and hold [ Menu ] in any mode to select [ Backlight ] and
set the time limit or backlight level.

FM RADIO
1. SEARCH RADIO STATIONS FM
1.1 In FM mode, press [ ] to search for FM stations
in 0.1 MHz steps.
1.2 In FM mode, press and hold [ ] to start the
automatic station search or press [ KNOB ] to search for
the previous or next FM station.
1.3 In FM mode, press the [ Menu ] button to get FM station
information.
2. SAVING PRE-SET FM STATIONS
2.1 When the FM station you want to save is playing, press
and hold down [ 1/2 ] to store the station under the selected
number as a pre-set station.
2.2 When the FM station is playing press and hold the [ 3+ ]
button and select one of the 40 numbers to save the pre-set
station.
You can select a number by pressing the [ ] button or by
turning the [ KNOB ] knob and pressing it to confirm your
selection.
3. CALLING UP A PRE-SET STATION
In FM mode, press [ 1/2 ] to select one of the two stored pre-set
stations. Press[ 3+ ] to select one of the 40 pre-set stations.
4. OTHER FM SETTINGS
In FM mode, press and hold [ Menu ] and select options from the list
to set other items such as: time/date, backlight, alarms, sleep mode,
Equalizer, language and more....

RADIO DAB
1. SEARCH RADIO STATIONS DAB
1.1 In DAB mode, press and hold [ Menu ] from the menu to
select [ Scan ] to scan all DAB stations or press
and hold [ KNOB ] to search for all DAB stations.
1.2 In DAB mode, press [ ] to select a station from the
list and press [ KNOB ] to confirm the selection.
1.3 In DAB mode, press [ Menu ] to get information about the
DAB station.
1.4 In DAB mode, press and hold [ ] to start the
automatic station search or press the button to search
for the previous or next DAB station.
2. STORAGE OF PRE-SET DAB STATIONS
2.1 When the DAB station you want to save is playing, press
and hold down [ 1/2 ] to store the station under the selected
number as a pre-set station.
2.2 When a DAB station is playing press and hold [ 3+ ] to
select one of the 40 numbers to save the pre-set station. You
can select a number by pressing the [ ] button or by
turning the [ KNOB ] knob and pressing it to confirm your
selection.
3. TO CALL UP A PRE-SET STATION
In DAB mode, press [ 1/2 ] to select one of the two stored
pre-set stations. Press [ 3+ ] to select one of the 40 pre-set
stations.
4. ADDITIONAL DAB SETTINGS
In DAB mode, press and hold [ Menu ] and select from the list of
options to set other items such as: time/date, backlight, alarms, sleep
mode, Equalizer, language and more....

BLUETOOTH
1. SMARTPHONE CONNECTION
In Bluetooth mode, use a device called "TESLA DAB75" to pair
with your smartphone.
2. BLUETOOTH PLAYBACK
In Bluetooth mode, when the Smartphone is playing music, the
screen displays the name of the connected Smartphone, then
you can skip to the previous [ ] or next track, or press
[KNOB ] to pause/play.

MEMORY CARD PLAYBACK
START PLAYBACK
In TF mode, insert the card into the radio and the music files on the
card will start playing.
TF card
Use [ ] to control the advance to the previous/next track,
press [ KNOB ] to pause/play the track.

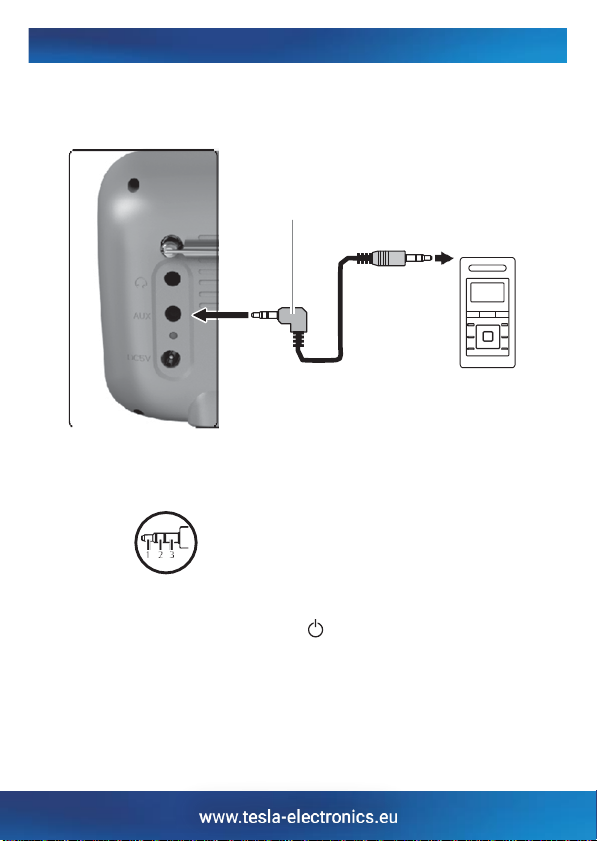

PLAYING AUX
Using a portable audio player
3.5 mm stereo jack
with "L" shaped
connector
(commercially
available)
Portable
audio
player
For optimum audio output, use a
3-jack stereo jack
Press [ ] repeatedly to select AUX, turn on
portable audio player or smartphone and start playback.

SOUND SETTINGS
PROBLEM SOLVING
VOLUME ADJUSTMENT
Turn the [ KNOB ] knob to adjust the volume down/up.
EQUALIZER SETTINGS
In any mode, press and hold [ Menu ]. You will see
settings list, select [ Equalizer ] to set the mode: Normal,
Classic, Pop, Jazz, Rock, Flat, Movie, News. Select one of them
and confirm with the [ KNOB ] knob.
PROBLEM
SOLUTION
Charging LED is not lit
Check the charging cable or
power adapter.
Charging LED flashes
The volume is too high
or the power supply of the
adapter is not enough
Automatic shutdown
or automatic restart
The battery's flat,
please charge your device in time
Poor DAB or FM reception
Make sure that the DAB/FM
radio signal is strong
enough. Fully extend the
antenna
TF card not playing
The TF card is of poor
quality, or the music file
is not supported

PRODUCT MAINTENANCE
Do not expose the instrument to liquid, moisture or humid
environments as it is not waterproof.
Do not attempt to clean the unit with chemical solvents
as this may damage the finish.
Avoid extreme temperatures, whether hot or cold, recharge at normal
temperature.
Avoid contact with sharp objects that may cause scratches or
damage.
Do not attempt to insert any objects into the unit to
avoid damaging the internal parts.
Do not attempt to disassemble the unit as there are no repairable
parts inside.
If you do not use the device for a long time, keep it in a
dry place.
Avoid temperature changes and dusty environments.
If you will not be using the device for an extended period of
time (one to two months), fully recharge it before storing it to
avoid a complete discharge that could lead to malfunction
or not recharging.

SPECIFICATIONS
FM
Frequency range.........................87.5 MHz -108.0 MHz (50 kHz step)
Channel space selection ...............................................50kHz/200kHz
Frequency response (±3 dB) ..........................................30 Hz-15 kHz
Signal to Noise Ratio (MONO).......................................................64 dB
Stereo separation (1 kHz)..............................................................40 dB
DAB
Frequency range.............................................BAND III: 174 - 240MHZ
Sensitivity................................................................................... -99dBm
MP3 decoding ..............Compatible with MPEG-1/2 audio layer
WMA decoding ....................Windows Media Audio Compatible
Bluetooth version ..........................................................................BT 5.0
Bluetooth device name................................................... TESLA DAB75
Transmission distance ...............................................................8-10m
Operating voltage ...........................................................................DC5V
Speaker diameter........................................................................3 inches
Speaker power..............................................................................8Q 5W
Operating temperature range......................................... -10°C - +60°C
Device dimensions (W x H x D)....................................170*90*52mm
Weight...........................................................................................0,35Kg
Subject to change without notice.

WARRANTY LETTER
WARRANTY CONDITIONS
serial number date of sale stamp and signature of the
seller
1. Warranty period
This product is warranted by the manufacturer for a period of 24 months
from the date of purchase by the consumer. The warranty period is
extended by the period during which the product was under warranty
repair or could not be used during the warranty period if the nature of the
defect prevented its use. The warranty only covers defects caused by a
manufacturing or material defect!
2. Warranty Card
Free warranty service is provided only in case of presentation of t h e
product purchase receipt and a correctly filled in warranty card - it must
contain the serial number, date of sale and the stamp of the shop
(assembly firm). Copies and incorrectly completed warranty cards will
not be taken into account!
3. Repairs under warranty and post-warranty
Warranty service must be applied for with the organisation where the
product was purchased or with the installation firm that carried out the
installation.
4. Scope of the warranty
The warranty is void if the defect is caused by mechanical damage
(except for damage during transport), improper use, inattention,
unavoidable event (natural disaster), if the product was connected to a
different supply voltage than specified in the technical specification, and
also in the case of modifications or repairs made outside the distributor's
service. The guarantee also cannot be invoked in the event that the
consumer requires modification or adaptation to extend the functions of
the product (or a system made up of several components) compared to
standard design.

Thank you for your purchase.
