Test Equipment Depot EDSYN LONER 952SX User manual

952SX
LONER®
Temperature Controlled
Soldering Station
made
in
U S A
• COMPLIESWITHMIL-S-45743E,MIL-STD-2000,DOD-STD-2000-1B,
WS6536EANDESDSPEC,DOD-STD-1686,DOD-HDBK-263
instruction manual

Specifications for Model 952SX
Power Requirements 120V, 50/60 Hz
Power Rating 15W - 220W
Heater Rating 120V, 95W
Temperature Range 400°F-800°F/205°C-427°C
Temperature Regulation ±6°F/±3°C
Tip-to-Ground Voltage
Leakage/Resistance < 2mV/< 2 ohms
Overall Dimension 4.1"W x 8.2"H x 10"D
104 mm x 208 mm x 254 mm
Weight 3.1 lbs/1.4 kg
Contents
952SX includes 1 - LT375 Soldering Tip
1 - LT337BC Soldering Tip
PD528 Tool Pod
SH230 Sponge Holder
(Includes RS199 Cleaning Sponge,
RS243 Leveling Pad, LN230 Liner)
WP556 WIGAPRY Low Static Computer Aid

WARNING:
CAUTION:
Over-filling can cause thermal shock to
the tip or heating element during tip
•ReplaceRS199CleaningSponge
1. Fill water only up to the top of the RS243
Leveling Pad.
• Replace SC581 Solder Collector
1. Hold the Housing firm and turn Cap
counter-clockwise
and pull it away from the Housing.
2. Remove used SC581 and replace with a
new one.
3. Reassemble Pod with TOP of the Cap in

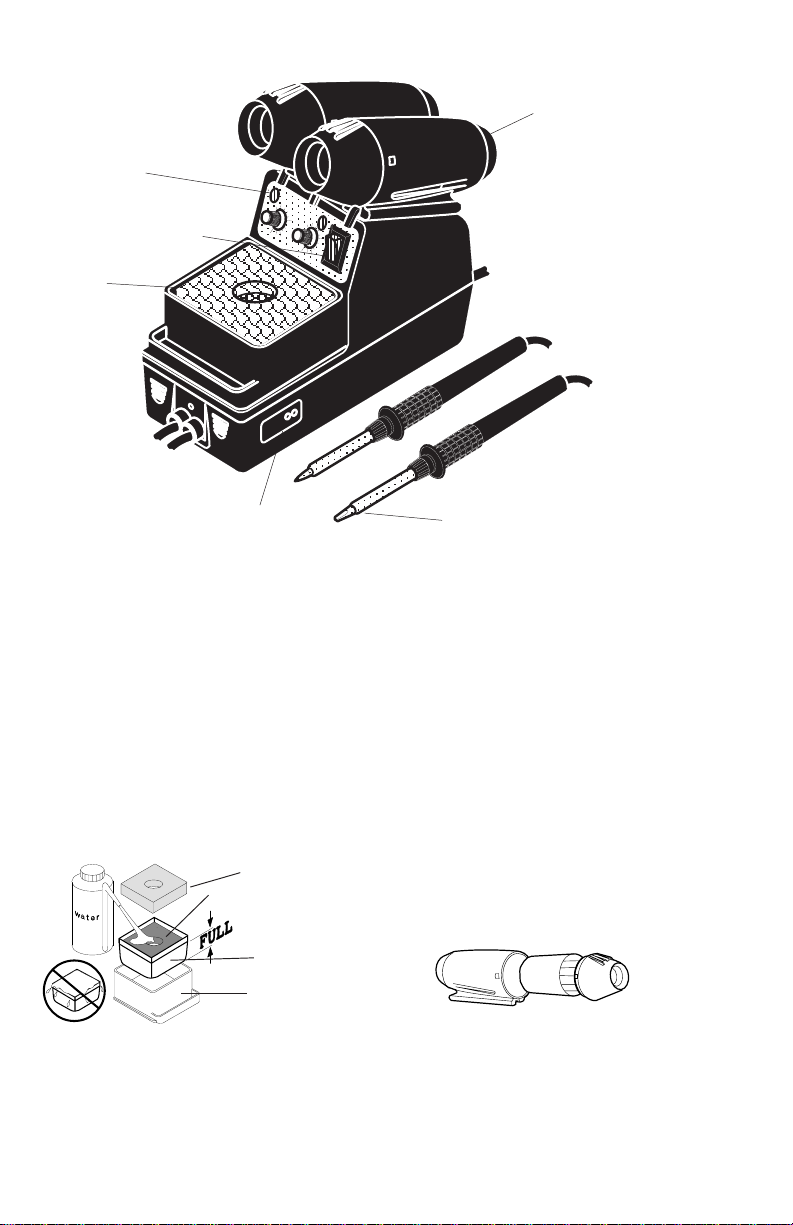

MAINTENANCE
Static Safe
Temp.
Regulation
Indicator
SH230
Sponge Holder
PD528Tool
Pod
Power Switch
Calibration Pots for HI & LO Temp. Hollow Threadless Heater
LN230
SH230-1
RS243
RS199
SC581
Solder SR043
Front
SR042
Thermal

METER
to match temperature markings on the
front panel.)

JUMBO
TIP
.03 (0.8 mm) .48 (12.2 mm)
.06 (1.5 mm) .48 (12.2 mm)
.02 (0.5 mm) 1.13 (28.8 mm)
.07 (2.0 mm) .93 (23.6 mm)
.03 (0.8 mm) .48 (12.2 mm)
.10 (2.5 mm) .74 (18.8 mm)
.06 (1.5 mm) 1.21 (30.7 mm)
.04 (1.0 mm) 1.21 (30.7 mm)
.20 (4.9 mm) .93 (23.6 mm)
.32 (8.3 mm) .97 (21.1 mm)
CHANGINGTIP
1. MAKE SURE YOUR TOOL IS COOL!
2. Turn Retaining Sleeve counter-clockwise to remove.
3. Remove old Soldering Tip.
4. Insert new Tip.
5. Install Retaining Sleeve. (should be "finger" tight only.)

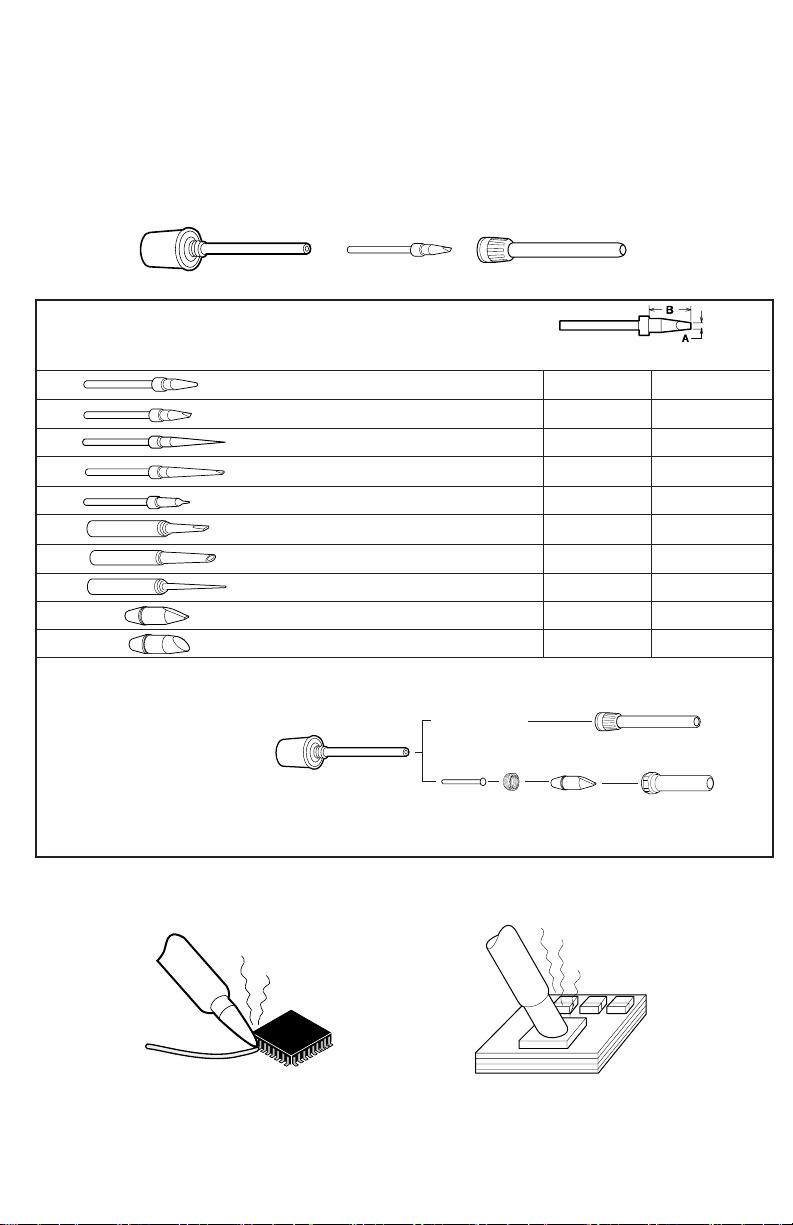

SOLDERING TIPS
Iron Plated for long life•Nickel and Chrome Plated for optimum heat transfer
CONTACT EDSYN FOR MORE SELECTIONS AB
Large and heavy tip for
heavy duty soldering.
Fine point tip for
SMD soldering.
LT374 Standard Probe
LT375 Standard Spade
LT392 Extra-Long Needle Point
LT394 Extra-Long Spade
LT446 SMD Probe
LT337BCHeavy Duty Terminal Spade
LT223BCHeavy Duty Fine Spade
LT222BCExtra long Needle Point
LT153BHJumbo Spade
LT155BHJumbo Angle Spade
SET-UP & REQUIRED ACCESSORIES FOR HEAVY DUTY AND JUMBO TIPS
Apply
AN112 or AN122* Anti-Seize
Compound
to Heater and area of Tip
contact.
"BC"
HEAVY DUTY TIP
AC735
TA350 RS351
RS271
*AN122 Anti-Seize Compound comes in syringe dispenser.
DO NOT USE the soldering tool if soldering tip is loose. This will cause the heater element to break.
Retaining Sleeve
RS372- for General Purpose Tip
RS271- for Heavy Duty Tip
Soldering Tip

6
912
7
7
1B 1C
3
11
21
15
18
25
14
19
22J
22A
2C
2B
2A
1A
22D
22
24
16
23
22C
22B 22K
22H
22G
22F
22I 22E
10
1
2
4
2D
9
952SX LONER®SOLDERINGSTATION
SPAREPARTSLIST
5
17
20
13
23

1PD528 ToolPod 2
1A SR042 Thermal Housing for Tool Pod 2
1B SC581 Solder Collector for Tool Pod 2
1C SR043 Front Housing for Tool Pod 2
2SH230 General Purpose Sponge Holder 1
2A RS199 Cleaning Sponge 1
2B RS243 Leveling Pad for SH230 1
2C LN230 Liner for SH230 1
2D SH230-1 Sponge Holder Tray 1
3SR303 ControlPanelLabel 1
4SR452 Power Switch, Illuminated 1
5SR068 Knob, Temperature Control 2
6SR243 5K Potentiometer, Temperature Control 2
7SR015 Flat Head Screw- Slotted #6 - 32 x 1/2 4
9SR467 Hex Nut- #6 - 32 4
10 SR781 Top Case 1
11 SR019 Dove Tail Mount 1
12 15002W95 Circuit Board 2
13 SR573 LED Assy. 2
14 SR052 Bottom Base 1
15 SR011 Pan Head Screw- Phillip #6 - 18 x 5/8 5
16 SR054 Bottom Weight 1
17 SR313 Power Cord Assy. 1
18 SR251 Rubber Foot 4
19
20 SR241 Strain Relief for Power Cord 1
21 SR249 Fuse, 250V, 1 A (5mm x 20 mm) 2
22 SR298 Soldering Tool, Complete Assembly 2
22A SR057 Handle for Tool 2
22B SR058 Cord Strain Relief 1
22C SR280 Tool Cord Assy., Burn Proof 2
22D SR060 Heater Element Assembly Kit (O-Ring (22E) & Collar (22g) Included 2
22E SR062 O-Ring 2
22F SR063 Vinyl Sleeve 2
22G SR064 Collar 2
22H LT375 LONER®StandardSpadeTip 1
22I RS382 RetainingSleeve 1
22J RB386 Retaining Bushing 1
22K SR525 Silicone Hose, Low Static (sold per foot) 5-1/4"
23 SR053 Strain Relief for Tool Cord 1
24 SR255 Spacer for Potentiometer 2
25 SR310 Label, Calibration Pot, Right Front or Left Rear 1
26 SR311 Label, Calibration Pot, Left Front or Right Rear 1
27 LT337BC Heavy Duty Soldering Tip 1
28 RS271 Retaining Sleeve, Heavy Duty 1
ITEM
NO. PART NO. DESCRIPTION QTY
REQ'D

952SXi.pdf
FORM.
952SX instruction manual
ALL RIGHTS RESERVED.
NO PART OF THIS PUBLICATION INCLUDING THE INDIVIDUAL ICONS
MAY BE REPRODUCED OR UTILIZED IN ANY FORM OR BY ANY MEANS
WITHOUT THE PERMISSION OF EDSYN, INC.
THE NAMES LONER, SOLDAPULLT, SOLDAVAC, ATMOSCOPE, AUTO-VAC, IDLE-REST,
OCTAVAC AND KLATCH
ARE REGISTERED TRADEMARKS OF EDSYN, INC.
MOST PRODUCTS ARE COVERED BY U.S. AND
FOREIGN PATENTS AND PENDING APPLICATIONS.
DESIGN, COLOR AND MATERIALS
SUBJECT TO CHANGE WITHOUT NOTICE.
TIP STYLE ON SOLDERING, DESOLDERING AND HOT AIR TOOLS MAY VARY.
PRINTED IN U.S.A.
©Copyright EDSYN, Inc. 2002
